#ADXL335 Module Price

[ainow]

Buy 100 RPM 12V DC GEARED MOTOR at Affordable Price in Ainow

100 RPM 12V DC GEARED MOTOR

This 100 RPM 12V DC GEARED MOTOR can be used in all-terrain robots and a variety of robotic applications. These motors have a 3 mm threaded drill hole in the middle of the shaft thus making it simple to connect it to the wheels or any other mechanical assembly. These motors are simple DC Motors featuring gears for the shaft for obtaining the optimal performance characteristics. They are known as Center Shaft DC Geared Motors because their shaft extends through the center of their gearbox assembly. These standard size DC Motors are very easy to use. Also, you don’t have to spend a lot of money to control motors with an Arduino or compatible board. The L298N H-bridge module with an onboard voltage regulator motor driver can be used with this motor that has a voltage of between 5 and 35V DC. Nut and threads on the shaft to easily connect and internally threaded shaft for easily connecting it to the wheels. These 100 RPM 12V DC GEARED MOTOR with robust metal/Plastic gearbox for heavy-duty applications, available in the wide RPM range(Check the list below) and ideally suited for robotics and industrial applications.

[ainow]

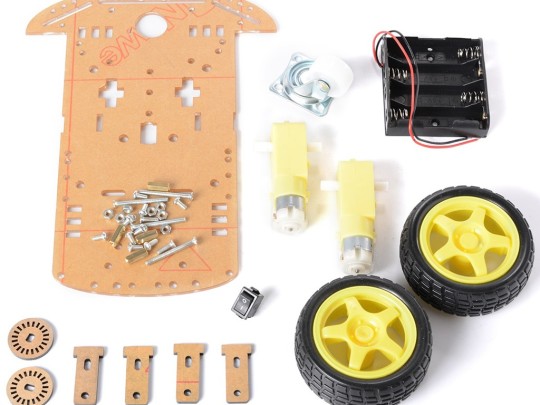

Buy 2 WD Smart Car Chassis Kit at Affordable Price in Ainow

2 WD Smart Car Chassis Kit

This Transparent Robot 2 WD Smart Car Chassis kit comes with a quality product. The kit is easy to assemble/disassemble. Now it has become very easy to design robotic smart cars with Robu.in. Check out our other smart kit now!!

Note:

The motor power supply is 3V ~ 6V. All the parameter above is tested without load.

The car Chassis is transparent, you need to tear out a protective paper.

The color of a protective paper may be different.

Feature:

Smart car chassis tracing car Robot car chassis with code disk, Ideal for DIY.

This car is the tachometer encoder.

With a 4 AA battery box (batteries not included).

It can be used for distance measurement, velocity.

Can use with other devices to realize the function of tracing, obstacle avoidance, distance testing, speed testing,

Wireless remote control.

[ainow]

Buy CP2102 USB to TTL MODULE at Affordable Price in Ainow

CP2102 USB to TTL MODULE

This is the CP2102 USB to TTL module UART serial converter. This is a great little tool for embedded systems that require a serial connection to a computer. The board can simply attach to a USB bus and will appear as a standard COM port. This CP2102 USB to TTL Module doesn’t require any external oscillator, it onboard-board voltage regulator, and it even uses a reprogrammable internal EEPROM for the device description. The full hardware UART has flow control for baud rates from 300bps to 921600bps. This breakout also allows you to connect the TX/RX pins of your favorite microcontroller or serial application to the RX/TX pins of the breakout, creating a simple serial cable replacement.

Supported operating systems:

Windows 98/Me/2000/7

MAC OS-9

MAC OS

X-Windows CE

Linux 2.40 or later

Features:

Brand new and high quality

Included USB transceiver, without external circuit device

Includes a clock circuit and power-on reset circuit

With 3.3V and 5V dual power output

With three LEDs: power indicator, data reception indicator, the data transmission indicator, working status

Meet the USB2.0 specification requirements

SUSPEND pin supports USB suspend state

With self-recovery fuse. In the event of the accidental short circuit, it can effectively protect your computer USB port and Downloader

With reset signal output, etc. directly to the Arduino board Promini download!

Asynchronous serial data bus compatible with all handshake and modulation controller interface signals

The supported data format is 8 data bits, 1 stop bit and parity bits

Connotation 512 byte receive buffer and 512 bytes transmit buffer

Supports hardware handshaking or X-ON/X-OFF

[ainow]

Buy Thin Proximity LF 125kHz RFID Cards at Low Cost in Ainow

Find the best cost on Thin Proximity LF 125kHz RFID Cards in India. Shop now at Ainow for low prices on high-quality products for your electronics project.

[ainow]

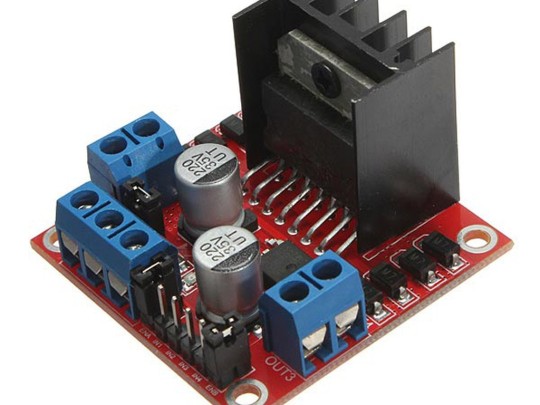

Buy L298N Motor Driver at Affordable Price in Ainow

Find the best cost on L298N Motor Driver in India. Shop now at Ainow for low prices on high-quality products for your electronics projects.

[ainow]

Buy Arduino UNO SMD CH340 Board at Affordable Price in Ainow

Find the best cost on Arduino Uno SMD boards in India. Shop now at Ainow for low prices on high-quality products for your electronics projects.

[ainow]

100 RPM 12V DC GEARED MOTOR

This 100 RPM 12V DC GEARED MOTOR can be used in all-terrain robots and a variety of robotic applications. These motors have a 3 mm threaded drill hole in the middle of the shaft thus making it simple to connect it to the wheels or any other mechanical assembly. These motors are simple DC Motors featuring gears for the shaft for obtaining the optimal performance characteristics. They are known as Center Shaft DC Geared Motors because their shaft extends through the center of their gearbox assembly. These standard size DC Motors are very easy to use. Also, you don’t have to spend a lot of money to control motors with an Arduino or compatible board. The L298N H-bridge module with an onboard voltage regulator motor driver can be used with this motor that has a voltage of between 5 and 35V DC. Nut and threads on the shaft to easily connect and internally threaded shaft for easily connecting it to the wheels. These 100 RPM 12V DC GEARED MOTOR with robust metal/Plastic gearbox for heavy-duty applications, available in the wide RPM range(Check the list below) and ideally suited for robotics and industrial applications.

[ainow]

MG995 TowerPro Metal Gear Servo Motor 180 degree Rotation

Getting an original TowerPro mg995 Servo Motor is not an economical option at all! And is also a very difficult task to recognize and buy an original TowerPro mg995 servo motor, Because there are many suppliers spread over different online shops who are selling fake servo motors under this Brand name. The TowerPro MG995 Servo Motor rotates 90° in each direction making it 180° servo motor. It is a Digital Servo Motor that receives and processes PWM signal faster and better. It equips sophisticated internal circuitry that provides good torque, holding power, and faster updates in response to external forces. These TowerPro MG995 Servo Motors are the high-speed servo motors with the mighty torque of 10 kg/cm. Wire Description

RED – Positive

Brown – Negative

Orange – Signal

NOTE: This servo draws high current while operation (up to 2 amp stall), to make this servo work with Arduino or any other microcontroller, please do the following connections. PLEASE MAKE SURE THAT YOUR SYSTEM HAS COMMON GROUND. POWER SOURCE ANYTHING BATTERY/SMPS/ADAPTER.

Features:

The connection cable is thicker.

Equips high-quality motor.

High resolution

Accurate positioning

Fast control response

Constant torque throughout the servo travel range

Excellent holding power

[ainow]

10A PWM DC Motor Speed Controller

The 10A PWM DC Motor Speed Controller allows controlling direction of a DC motor using a Pulse-Width-Modulated (PWM) DC voltage with a Duty Cycle fully adjustable from 10%-100%. The motor speed controller can provide a continuous current of 8A to your DC motor or other DC load. The circuit also includes a 10A fuse, with the reverse connection of power supply and control voltage over-voltage protection function.

Note: This can NOT be used to the BRUSHLESS motor. The controller is NOT reverse-polarity protected and will be damaged if it connects the supply voltage with the wrong polarity.

Features:

Control the speed of a DC motor with this controller.

High efficiency, high torque, low heat generating.

With reverse polarity protection, high current protection.

The overload and short circuit protecting current is 10A

Working Voltage: DC 12V – DC 40V.

Control Power:0.01 – 400W.

Static Current:0.02 A ( Standby ).

PWM Duty Cycle:10% -100%.

[ainow]

0.3MP OV7670 CAMERA MODULE

The 0.3MP OV7670 Camera Module with High-Quality SCCB Connector is a low voltage CMOS image sensor; that provides the full functionality of a single-chip VGA(Video Graphics Array) camera and image processor in a small footprint package. The OV7670/OV7171 provides full-frame, sub-sampled or windowed 8-bit images in a wide range of formats; controlled through the Serial Camera Control Bus (SCCB) interface.

This 0.3MP OV7670 Camera Module has an image array capable of operating at up to 30 frames per second (fps) in VGA; with complete user control over image quality, formatting and output data transfer. All required image processing functions, including exposure control, gamma, white balance; color saturation, hue control and more, are also programmable through the SCCB interface.

In addition, OV7670 CAMERA CHIPs use proprietary sensor technology to improve image quality by reducing; or eliminating common lighting/electrical sources of image contamination; such as fixed pattern noise (FPN), smearing, blooming, etc., to produce a clean, fully stable color image.

Applications:

Cellular and Picture Phones.

Toys.

PC Multimedia.

Digital Still Cameras.

Features:

High sensitivity for low-light operation.

Low operating voltage for embedded portable apps.

The standard SCCB interface is compatible with the I2C interface.

Supports VGA, CIF, and resolutions lower than CIF for RGB (GRB 4:2:2, RGB565/555), YUV (4:2:2) and YCbCr (4:2:2) formats.

VarioPixel® method for sub-sampling.

Automatic image control functions includes : Automatic Exposure Control (AEC), Automatic Gain Control (AGC), Automatic White Balance (AWB), Automatic Band Filter (ABF), and Automatic Black-Level Calibration (ABLC).

Image quality controls including color saturation, hue, gamma, sharpness (edge enhancement), and anti-blooming.

ISP includes noise reduction and defect correction.

Supports LED and flash strobe mode.

Supports scaling.

Lens shading correction.

Flicker (50/60 Hz) auto-detection.

Saturation level auto adjust (UV adjust).

Edge enhancement level auto-adjust.

De-noise level auto-adjust.

Sleep Power consumption: <20μA.

Stable operation: 0 ° C to 50 ° C.

Browse mode line by line.

Electronic exposure 1 line to 510 lines.

Output format: (8-bit) YUV/YCbCr4:2:2 RGB565/555/444 GRB4:2:2 Raw RGB Data.

Material: plastic metal.

[ainow]

EM-18 TTL RFID reader Module:

The EM-18 module is commonly used in projects for RFID (Radio Frequency Identification) readers. It enables direct interface with microcontrollers through UART communication. This particular module is specifically designed to read codes from 125 KHz card compatible read-only tags and also allows for read/write capabilities. Each card is identified by a unique value stored in the chip inside.

Highlighted characteristics of EM-18 TTL RFID reader Module:

Frequency used: 125Khz

The baud rate is set at 9600.

The interface options available are TTL or Wiegand26.

The voltage needed for operation is between DC 3.3V and 5V.

Current usage: 19mA to 25mA.

The maximum reading distance is 35mm.

The operating temperature ranges from -10℃ to 70℃.

Temperature range for storage: -20℃ to 80℃

The humidity level ranges from 0% to 95%.

Output in both Serial and TTL formats.

Superb read capabilities without the need for an external circuit.

Small and budget-friendly.

Incorporating an RFID coil antenna.

Efficient energy usage

Inexpensive

Steps to establish a connection:

Attach a 5V power supply to the RFID TTL connection.

Upon connecting the power supply, the LED will blink.

Connect the Tx pin of the EM-18 module to the TTL Rx.

The coil within the EM-18 module produces emf pulses for card detection purposes.

The card is equipped with both a coil and a chip that houses a distinctive hexadecimal code, which is then sent through the TTL transmitter.

The buzzer will sound upon reading the card.

The expected result will be in the form of a hexadecimal value and can be found in an external terminal, such as a PC.

There are various ways in which this software can be utilized. These include its potential applications in business, education, and personal use.

E-commerce has become a crucial aspect of business in today’s digital world. It has revolutionized the way companies conduct transactions and interact with customers. With the increasing use of technology, it has become imperative for businesses to have an online presence through e-commerce platforms.

The coordination of transportation and logistics.

Management and safeguarding of infrastructure

Passports are essential documents that allow individuals to travel internationally.

The payments for transportation changed

Identification of animals

Information

Good’s tracking

[ainow]

MAX30100 Pulse Oximeter Heart Rate Sensor Module

The MAX30100 Pulse Oximeter Heart Rate Sensor Module, known as Heart Rate click, operates through an optical sensor. This sensor utilizes two LEDs, a red and an infrared one, to emit wavelengths and measure the absorbance of pulsing blood with a photodetector. The combination of these LED colors is specifically designed to provide accurate readings when placed on the tip of one’s finger.

The low-noise analog signal processing unit processes the signal and transmits it to the target MCU via the mikroBUS I2C interface. However, developers should be aware that excessive motion and temperature fluctuations may affect the accuracy of the readings. Additionally, applying too much pressure could restrict capillary blood flow and compromise the reliability of the data. To provide further customization, there is a programmable INT pin available on this device. It operates with a 3.3V power supply.

Some common uses:

MAX30100 Pulse Oximeter Heart Rate Sensor Module used for monitoring health conditions

Devices to Help with Fitness

Wearable devices have become increasingly popular in recent years, as technology continues to advance. These gadgets provide convenience and ease for daily tasks, making them a must-have for many people. From fitness trackers to smart watches and even virtual reality headsets, these wearable devices offer a range of features that enhance our daily lives.

Please refrain from repeating the same information multiple times in order to avoid redundancy.

The berg pin connector is not included in the module.

The arrangement of pins:

The definition of pins, as stated by SN PINS…

1 The VIN input voltage range is from 1.8V to 5.5V.

The second paragraph of the IIC-SCL section is a restatement of the same information.

The acronym SDA is used twice in this phrase, so instead let’s say IIC-SDA.

The paragraph you entered is:

The IRD MAX30100 IR_DRV is a module that allows for the detection of infrared light.

Max30100 driver for RD6

GND, also known as Ground.

List of Specifications and Features of MAX30100 Pulse Oximeter Heart Rate Sensor Module:

An optical sensor that utilizes both an infrared light and a red LED, in addition to a photodetector.

Measures the absorption of blood pulsations.

The I2C interface and its accompanying INT pin.

MCU

The analog front that offers exceptional performance.

Optimizing energy efficiency extends the battery lifespan of wearable gadgets.

MAX30100 Pulse Oximeter Heart Rate Sensor Module boasts a high sample rate capability, fast data output capability, as well as ambient and light cancellation features.

This is a sensor solution that combines both pulse oximetry and heart rate monitoring.

[ainow]

ACS712 20A Current Sensor Module

The ACS712 20A Range Current Sensor Module is comprised of a precise Hall circuit with a copper conduction path near the surface of the die. When an electrical current runs through the copper path, it creates a magnetic field that is then converted into a corresponding voltage by the Hall IC.

Ensuring and regulating the flow of current is a crucial factor in numerous applications, such as over-current protection circuits, battery chargers, switching mode power supplies, digital watt meters, and programmable current sources.

The ACS712 20A Current Sensor Module utilizes the ACS712 sensor to precisely measure both AC and DC current.

The maximum detectable AC or DC current is 20A, and it can be read through the analog I/O port of Arduino.

Do not introduce too many unnecessary variables.

Please note that the product’s color may vary during shipping and you may receive any one of the available options.

We are providing an additional two modules that contain the ACS712 IC for current measurement. These modules are listed below.

Introducing the ACS712 20A Current Sensor Module.

The ACS712 is a range current sensor module with a rating of 30A.

It is important to balance your work and personal life for a healthy lifestyle.

When utilizing ACS712, it is important to consider the Hall detection principle and its sensitivity to magnetic fields. Keeping this in mind will prevent any potential accuracy issues with the readings.

Diagram of Connections:

The arduino_ACS712 is the perfect tool for measuring current.

The Arduino ACS712 is a highly useful tool for measuring electrical current.

The characteristics of ACS712 20A Current Sensor Module include:

The analog signal path with minimal noise.

The new FILTER pin is responsible for adjusting device bandwidth.

The output rise time in response to a step input current is -5 µs.

Compact, low-profile SOIC8 packaging.

The minimum isolation voltage from pins 1-4 to pins 5-8 is at least 2.1 kV RMS.

Operating at a single supply voltage of -5.0 V.

The output sensitivity ranges from 66 mV to 185 mV per ampere.

Voltage output corresponding to both alternating and direct currents

Precision-tuned in the factory for optimal accuracy.

Exceptionally consistent output offset voltage.

The magnetic hysteresis is close to zero.

The output ratio of the supply voltage.

[ainow]

PICKIT3 USB Debugger

Introducing the PICKIT3 USB Debugger Programmer Emulator Controller Development board. Its USB connection provides a reliable alternative to the ICD2. With an offline burning feature, it allows for convenient programming and batch burning of products. The power supply input can be easily managed through MPLAB IDE.

Introducing PICKIT3.5, now compatible with Win7 operating system. With a complete patch design and reflow soldering processing, the quality of our product is more reliable. We also provide developing data for PICs and a manual for C language development tools. You can explore numerous basic experiment program codes for PICs, along with details on how to use ICD2 and PICKIT3 effectively.

At a highly cost-effective price, the MPLAB PICkit 3 enables debugging and programming of both PIC® and dsPIC® Flash microcontrollers. Its user-friendly graphical interface is integrated into the MPLAB IDE. This tool connects to a design engineer’s PC through a full-speed USB interface and can be linked to the target via a Microchip debug (RJ-11) connector, which is compatible with MPLAB ICD 2, MPLAB ICD 3, and MPLAB REAL ICE.

The key elements of PICKIT3 USB Debugger:

Full-speed USB support with compatibility using standard drivers for Windows operating systems.

Executing in real-time

Processors operate at their highest possible speeds.

The monitor includes protection against both over-voltage and short circuits.

The voltage should be kept below 5V, within the range of 1.8 to 5V.

Manipulate the microcontroller’s program and data memory.

The diagnostic LEDs for power, activity, and status.

Manipulate program and data memory of the microcontroller

Perform a memory wipe, including all types of memory (EEPROM, ID, configuration, and program), with verification.

The breakpoint causes a freeze in the peripheral.

Input a maximum of 512K bytes of data into the program’s flash storage.

[ainow]

Heart Beat Sensor

The heart beat sensor functions by providing a digital display of pulse readings. As the heart beat detector operates, the LED on the sensor will flash in correlation with each beat of the heart. This digital signal can be linked directly to a microcontroller for accurate measurement of the heart’s Beats Per Minute (BPM) rate. Its operation is based on the modulation of light caused by blood flow through the finger during each pulse.

Some notable characteristics of Heart beat Sensor include:

The LED displays your heart rate.

To quickly have a digital output signal that can be directly connected to a microcontroller

Small and easy to carry design.

The voltage required for operation is 5V DC.

Steps to Establish a Connection:

The heart beat sensor is initially supplied with 5V of power.

When the forefinger is placed over the sensor, the LED flashes continuously in response to heart pulses.

The output pin can be linked to any of the microcontroller’s I/O pins for displaying the heart rate in BPM.

There are a variety of different uses for this product, such as in industries, businesses, and personal settings.

A monitor is essential today to many health-conscious people who want to track their heart rate.

In today’s world, staying in tune with one’s heart rate is highly valued among those who prioritize their health. As a result, a digital heart rate monitor has become a staple device for many individuals.

The patient monitoring system is a crucial tool for tracking the health of our patients. This system allows us to closely monitor any changes or progress in their condition, ensuring that we can provide the best possible care.

The implementation of bio-feedback control in robotics and its practical uses.

[ainow]

6MM Dead Axle Dummy Motor

A passive component, a dead axle Dummy Motor mimics the size and shape of a functional motor but serves only as a support for attaching non-powered wheels to the robot chassis. Additionally, it is compatible with 6mm <=> 4mm Couplings for connecting 4mm wheels to it.

The 6MM Dead Axle Dummy Motor boasts a variety of impressive features.

The plastic used is of high quality.

The diameter of the shaft measures 6mm.

The clamp offers the convenience of positioning a DC motor on any solid flat surface, making it suitable for various customized products and devices. It has become a staple in automation robots within industries. Additionally, it is an ideal tool for your project or competition robot as well.
