The Role of Pneumatic Actuators in Smart Manufacturing

Integrating Pneumatics into the Smart Factory Framework Smart manufacturing represents a paradigm shift in industrial operations, where advanced digital technologies such as IoT, AI, and machine learning converge with traditional manufacturing processes. Pneumatic actuators, long valued for their simplicity and reliability, now find renewed relevance in this connected ecosystem. As industries migrate towards automation and data-driven decision-making, pneumatic actuators are being integrated into smart systems that enable real-time monitoring, remote control, and predictive maintenance. These pneumatic linear actuators can be equipped with sensors that relay crucial data on pressure, position, and performance metrics to centralized control systems. This integration transforms pneumatic actuators from basic mechanical devices into intelligent components that contribute to the overall responsiveness and efficiency of the smart factory.

Enhancing Precision and Efficiency in Automated Processes In smart manufacturing environments, precision and repeatability are non-negotiable. Pneumatic actuators provide consistent linear or rotary motion that is critical for various tasks such as material handling, packaging, and assembly. Unlike their hydraulic counterparts, pneumatic actuators offer faster response times and cleaner operation, making them well-suited for environments that prioritize speed and hygiene. When incorporated with programmable logic controllers (PLCs) and advanced control systems, these actuators can operate with high degrees of accuracy and coordination. This enhanced precision leads to reduced waste, lower defect rates, and improved throughput, which are essential metrics in any smart manufacturing setup aiming for lean production.

Supporting Flexibility in Modular Manufacturing Systems One of the hallmarks of smart manufacturing is flexibility— the ability to quickly adapt to changes in product design, volume, or customization without incurring significant downtime or cost. Pneumatic actuators play a key role in supporting this flexibility. Their modular design and ease of integration allow them to be reconfigured or replaced with minimal disruption to the production line. For instance, pneumatic grippers and cylinders used in robotic arms or conveyor systems can be rapidly adjusted or upgraded to accommodate new tasks. This adaptability is especially valuable in industries that rely on batch production or mass customization, where rapid changeovers are a competitive advantage.

Driving Energy Efficiency and Sustainability Sustainability is a growing priority in modern manufacturing, and pneumatic actuators contribute by promoting energy-efficient practices. Traditional pneumatic systems have often been criticized for energy losses due to air leakage and inefficient compressors. However, smart manufacturing leverages advanced monitoring and control technologies to optimize air usage and detect inefficiencies. Pneumatic actuators equipped with smart valves and sensors can dynamically adjust their operation based on load requirements, reducing unnecessary air consumption. Additionally, manufacturers can use real-time data to identify system leaks and maintenance needs before they become costly. This proactive approach not only lowers energy bills but also aligns with environmental compliance and sustainability goals.

Enabling Predictive Maintenance and System Reliability Downtime is a costly threat to productivity, and smart manufacturing combats this through predictive maintenance strategies. Pneumatic actuators integrated into the smart ecosystem contribute to system reliability by continuously reporting their status and performance. Data on cycle counts, operating temperature, and response delays can be analyzed to forecast wear and schedule timely maintenance. This reduces unplanned stoppages and extends equipment lifespan. Furthermore, predictive analytics enable maintenance teams to make informed decisions, optimize spare part inventory, and schedule interventions during non-critical production periods. In this way, pneumatic actuators play a vital role in ensuring operational continuity and maximizing overall equipment effectiveness.

Conclusion Pneumatic actuators are evolving in response to the demands of smart manufacturing, transitioning from simple motion devices to integral parts of intelligent systems. Their roles in enhancing precision, enabling flexibility, improving energy efficiency, and supporting predictive maintenance make them indispensable in the smart factory landscape. As manufacturing continues to advance, pneumatic actuators will remain critical components, delivering the motion and control that power the future of automation.

[atilinearactuators]

Essential Maintenance Tips for Long-Lasting Pneumatic Linear Actuators

Pneumatic linear actuators are widely used in industrial automation for their speed, reliability, and cost-effectiveness. From packaging and assembly lines to food processing and robotics, these actuators perform crucial linear motion tasks day in and day out. While they are known for their low-maintenance nature, neglecting routine care can lead to performance issues, premature wear, or costly downtime.

To ensure optimal performance and extend the lifespan of your pneumatic linear actuators, it’s essential to follow a structured maintenance routine. In this article, we’ll explore key maintenance tips that help keep your actuators running smoothly, safely, and efficiently for years to come.

1. Keep the Air Supply Clean and Dry

One of the most critical aspects of pneumatic actuator maintenance is ensuring the quality of the compressed air. Contaminated or moist air can damage internal seals, corrode components, and reduce actuator efficiency.

Best practices:

Install an air preparation unit consisting of a filter, regulator, and lubricator (FRL) upstream of the actuator.

Check and replace air filters regularly to remove dust, oil, and particulates.

Use air dryers to eliminate moisture, especially in humid environments.

Avoid over-lubrication in systems using lubricators; too much oil can cause seal degradation.

Clean air not only improves actuator life but also ensures consistent and smooth operation across the entire pneumatic system.

2. Inspect Seals and Rods for Wear

Seals are one of the most common wear points in pneumatic actuators. Over time, they can dry out, crack, or erode, leading to air leaks, loss of force, or sluggish performance.

Routine checks:

Visually inspect rod seals, piston seals, and end caps for signs of wear, oil residue, or cracking.

Look for unusual sounds such as hissing, which could indicate air leaks.

Check for smooth movement of the actuator rod—stick-slip motion often points to seal wear or lubrication issues.

Replace worn seals promptly using manufacturer-recommended kits.

Also, check the piston rod for scoring, dents, or corrosion, as damage can compromise seal integrity and reduce actuator performance.

3. Lubricate According to Manufacturer Guidelines

Proper lubrication reduces friction, minimizes wear, and ensures smooth operation. While many pneumatic actuators are designed to be lubrication-free or pre-lubricated, some applications still require periodic lubrication.

Tips:

Use only lubricants specified by the actuator manufacturer to avoid seal incompatibility.

Do not over-lubricate—excess oil can attract dust and gum up internal components.

If using an in-line lubricator, monitor oil levels and clean the reservoir periodically.

For applications involving high-speed cycling or extreme temperatures, lubrication may be needed more frequently.

4. Check for Misalignment and Mounting Issues

Misalignment can lead to uneven wear, side loading, and even actuator failure. Ensuring correct alignment during installation—and checking it periodically—is key to actuator longevity.

Checklist:

Confirm that the actuator is properly aligned with the load and guided components.

Avoid side loading—use guided actuators or external guides when necessary.

Inspect mounting bolts and brackets for looseness or vibration.

Re-torque fasteners to manufacturer specifications during maintenance checks.

Misaligned or improperly mounted actuators will wear seals faster and may cause internal damage to the cylinder and rod.

5. Test for Air Leaks

Even small air leaks can reduce efficiency and put unnecessary strain on your compressor. Undetected leaks can also cause actuators to underperform or cycle incorrectly.

How to detect leaks:

Use a soap and water solution around fittings, seals, and valves. Bubbles indicate leakage.

Alternatively, use ultrasonic leak detectors for faster and more accurate diagnosis.

Repair leaks immediately to reduce energy waste and maintain system pressure.

Regular leak detection is a low-cost step with high impact on system performance and energy efficiency.

6. Monitor Cycle Counts and Replace Worn Parts Proactively

Like all mechanical systems, pneumatic actuators have a finite service life, often rated by the number of cycles. High-frequency applications can wear components faster than expected.

What to do:

Track actuator cycle counts using programmable logic controllers (PLCs) or sensors.

Replace seals, bushings, or cushions before they fail based on usage thresholds.

Keep spare parts and seal kits in stock for fast turnaround during scheduled maintenance.

Preventive part replacement can help avoid unplanned downtime and extend actuator life significantly.

7. Evaluate Performance Regularly

Beyond physical inspection, monitoring the performance of your actuators over time can reveal emerging issues. Declining speed, reduced force, or inconsistent motion may point to deeper problems.

Performance indicators:

Slower-than-usual extension or retraction speed.

Reduced force output or inability to hold a position.

Jerky or noisy operation during cycling.

When these symptoms appear, inspect not only the actuator but also the entire pneumatic circuit—valves, tubing, pressure settings, and air quality may all contribute.

8. Protect Against Harsh Environments

In dusty, wet, or corrosive environments, actuators need extra protection to maintain their integrity.

Protection measures:

Use stainless steel or corrosion-resistant cylinders for washdown or chemical applications.

Install rod boots or bellows covers to shield rods and seals from debris.

Opt for IP-rated actuators in dirty or wet conditions.

Preventing environmental ingress preserves internal components and reduces the frequency of repairs.

Conclusion

Pneumatic linear actuators are robust and efficient tools in the world of industrial automation, but like any mechanical system, they require care and attention. Regular maintenance not only prevents unexpected failures but also maximizes the return on investment by extending actuator lifespan.

By following these essential maintenance tips—maintaining clean air supply, inspecting seals, ensuring proper alignment, and monitoring performance—you can keep your pneumatic actuators running reliably and efficiently for years. A well-maintained actuator isn’t just a productivity booster—it’s a sign of a well-managed automation system.

[atilinearactuators]

Best Practices for Installing Pneumatic Linear Actuators

Understanding the Importance of Proper Installation

Installing pneumatic linear actuators correctly is critical to ensuring optimal performance, long service life, and overall system reliability. While these devices are designed to be robust and durable, poor installation can lead to premature failure, erratic movement, or even damage to connected equipment. By following best practices during the setup process, engineers and maintenance teams can minimize downtime and enhance safety in automation systems.

Start with a Thorough Pre-Installation Inspection

Before beginning the installation process, it is essential to conduct a comprehensive inspection of the actuator and surrounding components. This includes checking for visible damage, contamination, or signs of wear on the actuator, cylinder barrel, piston rod, seals, and mounting interfaces. Ensure that all required fittings, brackets, and mounting hardware are available and in good condition. Additionally, verify that the actuator type and size match the application specifications, including stroke length, bore size, and pressure rating. It’s also important to check the air supply for cleanliness and consistency, as contaminated air can cause seal degradation and premature wear.

Ensure Proper Mounting and Alignment

One of the most crucial aspects of installing a pneumatic linear actuator is achieving correct alignment between the actuator and the load it will move. Misalignment can create side loads, which place undue stress on the actuator’s internal components and bearings, leading to reduced efficiency and eventual failure. The actuator should be mounted securely to a rigid surface using the correct type of mounting configuration—whether it’s a foot mount, flange mount, or trunnion mount—depending on the application. During installation, care must be taken to ensure that the piston rod moves in a straight, unobstructed line. If the actuator is coupled to a load, the coupling must be properly aligned and allow for slight misalignments or axial movement if necessary.

Connect Pneumatic Lines Carefully

Once the actuator is mounted and aligned, the pneumatic lines should be connected to the appropriate ports on the cylinder end caps. Care must be taken to prevent cross-threading and to ensure leak-free connections. Use clean, dry compressed air and make sure the supply pressure matches the actuator’s rated operating range. Flow control valves should be installed close to the actuator to provide precise control over the speed of extension and retraction. Where applicable, quick exhaust valves and cushioning mechanisms should be included to improve performance and reduce mechanical stress during rapid movements. It’s also a good idea to include manual shut-off valves or pressure regulators to allow safe maintenance and system tuning.

Test and Adjust for Optimal Performance

After mechanical and pneumatic connections have been completed, the actuator should be tested under normal operating conditions. Start with a low-pressure test to verify movement and check for leaks. Gradually increase pressure to the desired operating level while monitoring actuator response, speed, and stroke length. If the actuator is equipped with adjustable cushions, fine-tune them to minimize end-of-stroke impact and noise. Sensors or switches, if used, should be calibrated and tested to ensure accurate position feedback or limit detection. It’s important to allow the actuator to complete several full cycles during testing to confirm smooth and consistent operation.

Implement a Routine Maintenance Plan

Proper installation sets the stage for reliable operation, but long-term performance depends on regular maintenance. After installation, the actuator should be periodically inspected for leaks, unusual noise, or wear. Air filters and lubricators in the pneumatic system must be checked and maintained to keep the air supply clean and at the correct pressure. Lubrication, if required, should follow the manufacturer's recommendations. Documenting installation parameters and test results can also aid future troubleshooting and system optimization.

Conclusion

Installing a pneumatic linear actuator may seem straightforward, but attention to detail and adherence to best practices can make a significant difference in performance and longevity. From pre-installation checks and precise alignment to careful air line connections and thorough testing, each step plays a role in ensuring the actuator functions as intended. By investing time in proper installation and following up with regular maintenance, operators can maximize uptime, reduce repair costs, and achieve smoother, more efficient automation in their processes.

[atilinearactuators]

Enhancing Efficiency with Pneumatic Linear Actuators in Manufacturing

In the competitive world of manufacturing, efficiency is a defining factor for success. Companies continually seek ways to optimize their operations, reduce downtime, and improve product quality—all while maintaining cost-effectiveness. One of the technologies that contribute significantly to achieving these goals is the pneumatic linear actuator. These devices play a critical role in automating tasks that require precise linear motion, helping manufacturers streamline processes and increase productivity without the need for overly complex or expensive systems.

Role of Pneumatic Actuators in Automation

Pneumatic linear actuators are widely used in manufacturing environments to perform essential tasks such as pushing, pulling, lifting, clamping, or positioning parts during assembly and production. They function by using compressed air to move a piston within a cylinder, translating air pressure into linear mechanical motion. This straightforward principle allows for fast, repetitive movement that is highly suitable for applications where reliability and speed are crucial. Because they do not rely on electricity to generate movement, pneumatic actuators are especially valuable in areas where electrical components might pose safety risks or where air power is more readily available.

Increasing Production Speed and Accuracy

One of the biggest advantages of incorporating pneumatic linear actuators into manufacturing systems is their ability to significantly increase production speed. These actuators operate quickly and with consistent force, making them ideal for repetitive tasks such as stamping, labeling, or pushing components down a conveyor line. When configured properly, pneumatic systems can cycle rapidly with minimal lag time, reducing the duration of each production cycle and allowing more units to be processed within the same timeframe. At the same time, their consistent output contributes to greater accuracy and uniformity, which is vital for maintaining high product standards across large volumes.

Reducing Operational Costs

Efficiency in manufacturing isn’t solely about speed—it’s also about cost control. Pneumatic linear actuators offer a cost-effective solution for automation because of their relatively low initial investment and minimal maintenance requirements. Compared to other motion systems like electric or hydraulic actuators, pneumatic options are often more affordable to install and easier to integrate into existing workflows. Since compressed air is already commonly used in many manufacturing facilities, leveraging that existing infrastructure further reduces setup costs. Additionally, pneumatic systems are known for their durability, and with routine maintenance, they can deliver long-term performance with minimal downtime.

Adapting to Harsh and Demanding Environments

Manufacturing floors are not always ideal environments for sensitive electronic equipment. Dust, moisture, vibrations, and extreme temperatures are common in industrial settings, and they can compromise more delicate automation solutions. Pneumatic linear actuators are particularly well-suited to these conditions. Their robust construction and minimal reliance on electronics make them highly durable and resilient in challenging environments. This reliability helps maintain uptime and reduces the risk of failure, supporting continuous production with fewer interruptions.

Flexibility and Scalability in Manufacturing Systems

Modern manufacturing requires flexible systems that can be adapted to different products, processes, and production volumes. Pneumatic linear actuators offer that flexibility. They come in a variety of sizes, force outputs, and stroke lengths, allowing manufacturers to select the exact configuration needed for a specific task. Whether it's a small component in an electronics assembly line or a heavy-duty actuator used in automotive fabrication, pneumatic solutions can be scaled to meet different demands. Additionally, they can be easily reconfigured or relocated within a production line, making them ideal for facilities that frequently adjust layouts or product lines.

Supporting Lean and Sustainable Operations

Efficiency in today’s manufacturing landscape also includes minimizing waste and environmental impact. Pneumatic systems support lean manufacturing principles by helping eliminate unnecessary motion, reducing overproduction, and streamlining repetitive tasks. Their clean operation—free from lubricants or complex cooling systems—also reduces environmental hazards and simplifies compliance with safety and sustainability standards. When combined with proper control systems and air management, pneumatic actuators can be part of a greener, more sustainable production process.

Conclusion

Pneumatic linear actuators are more than just motion devices—they are strategic tools that enhance the efficiency, flexibility, and reliability of manufacturing systems. By enabling faster production, reducing operational costs, and adapting to the rigorous demands of industrial environments, these actuators have become essential in modern manufacturing. As industries continue to seek smarter, more efficient ways to automate and produce, pneumatic actuators remain a trusted solution that delivers consistent results with simplicity and strength.

[atilinearactuators]

How to Maintain and Extend the Life of Your Pneumatic Linear Actuator

A pneumatic linear actuator is a crucial component in many industrial and automation systems. Ensuring its longevity and performance requires regular maintenance and proper usage. By following best practices, you can avoid costly repairs and downtime while maximizing efficiency. Here’s how you can maintain and extend the life of your pneumatic linear actuator.

1. Regular Inspection and Cleaning

Dirt, dust, and debris can accumulate over time and affect the efficiency of your pneumatic linear actuator. Regular inspections help detect early signs of wear, leaks, or blockages. Cleaning the actuator and its surrounding components prevents contaminants from affecting performance.

2. Proper Lubrication

Lubrication reduces friction and prevents excessive wear. Ensure that all moving parts are adequately lubricated with the manufacturer-recommended oil or grease. Over-lubrication can attract dust, while under-lubrication may cause friction damage.

3. Monitor Air Quality

The air supply plays a vital role in the functionality of a pneumatic linear actuator. Contaminants like moisture, oil, and debris in compressed air can cause corrosion and clog internal components. Using air filters, dryers, and regular monitoring can help maintain a clean and dry air supply.

4. Check for Air Leaks

Air leaks can reduce efficiency and force the actuator to work harder, leading to premature wear. Regularly inspect air connections, hoses, and seals for any signs of leakage. Replacing worn-out seals and tightening fittings can prevent air loss and maintain performance.

5. Maintain Proper Alignment

Misalignment can cause excessive stress on the actuator, leading to uneven wear and mechanical failure. Ensure that the actuator is correctly aligned with the load and mounting points. Use precision tools to verify alignment and make necessary adjustments.

6. Avoid Overloading

Operating a pneumatic linear actuator beyond its designed load capacity can cause severe damage. Always adhere to the manufacturer’s specifications regarding force and load limits. If higher force is required, consider upgrading to a more powerful actuator rather than overloading an existing one.

7. Control Operating Conditions

Extreme temperatures, humidity, and aggressive chemicals can degrade actuator materials. Ensure the actuator operates within the recommended environmental conditions. If the application requires operation in harsh conditions, opt for actuators designed for such environments.

8. Schedule Preventive Maintenance

Rather than waiting for a breakdown, adopt a preventive maintenance schedule. Routine checks, component replacements, and performance tests help identify issues before they become major problems. Keeping a maintenance log can also help track the actuator’s performance over time.

9. Use High-Quality Components

Using substandard parts can compromise the performance and longevity of your actuator. Always source high-quality seals, fittings, and replacement parts from reputable suppliers. Investing in premium components can reduce the frequency of repairs and extend service life.

Conclusion

Proper maintenance of a pneumatic linear actuator is essential for optimal performance and longevity. Regular inspections, lubrication, air quality management, and adherence to operational guidelines can prevent costly failures. By implementing these best practices, you can ensure your actuator operates efficiently for years to come, reducing downtime and increasing productivity.

Contact Us:

21225 FM 529 Rd

Houston, TX 77433

Cypress Area

Phone: +1-713-934-0171

Fax: +1-713-934-9099

sales@atiactuators.com

[atilinearactuators]

Pneumatic Linear Actuators: How They Work and Why You Need One

Introduction

Pneumatic linear actuators are essential components in various industrial and automation applications. They convert compressed air energy into mechanical motion, providing a reliable and efficient means of achieving linear movement. Whether in manufacturing, robotics, or material handling, these actuators play a crucial role in enhancing productivity and automation.

How Pneumatic Linear Actuators Work

Pneumatic linear actuator operate using compressed air to generate movement. The basic components of a pneumatic actuator include a cylinder, piston, rod, and valves. Here’s a step-by-step breakdown of their operation:

Air Compression – The actuator receives compressed air from a pneumatic system.

Piston Movement – Air pressure forces the piston to move inside the cylinder, pushing or pulling the attached rod.

Directional Control – Control valves regulate airflow, determining whether the actuator extends or retracts.

Exhaust Release – Air exits through an exhaust port when the actuator returns to its original position.

Speed and Force Control – Flow control valves and pressure regulators fine-tune the speed and force output.

Pneumatic actuators can be either single-acting (air pressure moves the piston in one direction, while a spring returns it) or double-acting (air pressure moves the piston in both directions, allowing for more precise control).

Advantages of Pneumatic Linear Actuators

Pneumatic actuators offer numerous benefits over other types of actuators, including hydraulic and electric options. Some key advantages include:

Reliability and Durability – With fewer moving parts, pneumatic actuators have a long service life and require minimal maintenance.

Cost-Effective – They are generally more affordable to install and operate than electric or hydraulic alternatives.

Fast Response Time – Compressed air enables quick movement, making them ideal for high-speed applications.

Safe and Clean – Unlike hydraulic systems, they don’t require oil, reducing the risk of leaks and contamination.

High Power-to-Weight Ratio – Pneumatic actuators provide strong force while remaining lightweight and compact.

Explosion-Proof – Since they don’t generate sparks, they are safe to use in hazardous environments.

Applications of Pneumatic Linear Actuators

Due to their versatility and efficiency, pneumatic actuators are used across various industries, including:

Manufacturing & Automation – Used in assembly lines, conveyor systems, and robotic arms.

Aerospace – Employed in aircraft control systems and landing gear mechanisms.

Medical Equipment – Found in automated surgical tools and laboratory machinery.

Automotive Industry – Used in braking systems, clamping devices, and engine control mechanisms.

Packaging & Material Handling – Assist in sorting, packaging, and moving heavy loads efficiently.

Choosing the Right Pneumatic Linear Actuator

Selecting the right actuator depends on factors such as:

Load Capacity – Ensure the actuator can handle the required force.

Stroke Length – Choose an actuator with the necessary range of motion.

Operating Speed – Different actuators offer varying speeds based on air pressure and cylinder design.

Environmental Conditions – Consider factors such as temperature, moisture, and exposure to chemicals.

Control Requirements – Some applications require precision control, which may necessitate additional components like sensors and regulators.

Maintenance and Troubleshooting

Pneumatic actuators require periodic maintenance to ensure optimal performance. Key maintenance tasks include:

Inspecting for Air Leaks – Regularly check hoses, fittings, and seals.

Cleaning and Lubrication – Keep components clean and well-lubricated to prevent wear and tear.

Checking Pressure Levels – Ensure the air supply pressure is within recommended limits.

Replacing Worn Components – Replace damaged seals, pistons, or rods as needed.

Conclusion

Pneumatic linear actuators are invaluable in industrial automation, offering efficiency, reliability, and cost-effectiveness. Whether you need precision control in manufacturing or robust performance in harsh environments, these actuators provide an optimal solution. By understanding their operation, advantages, and maintenance requirements, you can maximize their efficiency and longevity in your applications.

Contact Us Atiactuators 21225 FM 529 Rd Houston, TX 77433 USA Cypress Area +1-800-924-8037 +1-713-934-0171 sales@atiactuators.com

[atilinearactuators]

Pneumatic Linear Actuators and Industrial Automation - Driving Efficiency and Precision

In today’s rapidly evolving industrial landscape, automation plays a pivotal role in enhancing productivity, reducing costs, and ensuring operational efficiency. Pneumatic linear actuators are at the heart of many automation systems, providing reliable and precise motion control. By converting compressed air into mechanical energy, these actuators offer a versatile, efficient, and cost-effective solution for a variety of industrial applications.

What are Pneumatic Linear Actuators?

Pneumatic linear actuators are devices that use pressurized air to create linear motion. They consist of key components such as a cylinder, piston, rod, and seals. When compressed air is introduced into the cylinder, it pushes the piston, generating a linear motion that drives a mechanical load. This simple yet robust mechanism makes pneumatic actuators an indispensable tool in industrial automation.

Types of Pneumatic Linear Actuators

Single-Acting Cylinders

Powered by compressed air in one direction, with a spring or other mechanism returning the piston to its original position.

Commonly used in applications requiring repetitive and unidirectional motion.

Double-Acting Cylinders

Use air pressure for movement in both directions, providing greater control and flexibility.

Suitable for applications demanding bidirectional linear motion.

Rodless Cylinders

Feature a design where the motion occurs within the cylinder, making them ideal for space-constrained environments.

Frequently used in material handling and conveyor systems.

Telescopic Cylinders

Provide extended motion through multiple stages, making them suitable for applications with limited initial space but requiring long strokes.

Advantages of Pneumatic Linear Actuators in Industrial Automation

Simplicity and Reliability Pneumatic actuators have fewer moving parts, making them highly reliable and requiring minimal maintenance.

Cost-Effectiveness They are economically advantageous, with low initial investment and operational costs.

High Speed and Responsiveness Pneumatic systems offer quick actuation, enabling rapid and precise operations in high-speed production lines.

Durability in Harsh Environments Their ability to function in extreme conditions such as high temperatures, dust, or moisture makes them ideal for rugged industrial settings.

Intrinsic Safety Pneumatic actuators are inherently safe in hazardous or explosive environments, as they do not rely on electrical power.

Applications of Pneumatic Linear Actuators in Industrial Automation

Manufacturing Processes

Automating tasks such as pressing, clamping, and assembly in production lines.

Precise movement of tools and components during operations.

Material Handling

Efficiently moving and positioning products on conveyor systems.

Operating lifting and tilting mechanisms in warehouses and factories.

Packaging Industry

Driving machinery for cutting, sealing, labeling, and sorting.

Ensuring high-speed and accurate placement of products.

Food and Beverage Processing

Operating in hygienic environments to manage production and packaging.

Enhancing productivity while adhering to safety standards.

Automotive Industry

Supporting automation in assembly lines, from welding to painting.

Facilitating precision-driven tasks in vehicle manufacturing.

Integration in Industrial Automation Systems

Pneumatic linear actuators are often integrated into larger automation systems, working alongside sensors, valves, and controllers to achieve synchronized and efficient operations. Advanced control systems allow precise adjustment of motion parameters such as speed, force, and position, enabling tailored solutions for specific industrial needs.

Modern pneumatic actuators can also be combined with IoT (Internet of Things) technology, allowing real-time monitoring and predictive maintenance. This integration reduces downtime and enhances the overall efficiency of industrial processes.

Factors to Consider When Selecting a Pneumatic Linear Actuator

Application Requirements Understand the load, speed, and stroke length needed for your operation.

Environmental Conditions Choose actuators that can withstand the specific conditions, such as high humidity, extreme temperatures, or exposure to chemicals.

System Compatibility Ensure compatibility with existing pneumatic systems and control infrastructure.

Precision and Control Evaluate the level of precision and control required for your tasks.

Maintenance Needs Opt for actuators with designs that facilitate easy inspection and servicing.

Maintaining Pneumatic Linear Actuators for Longevity

Ensure Clean Air Supply Use filtered and dry air to prevent contamination and reduce wear on internal components.

Routine Inspections Regularly inspect seals, rods, and pistons for wear and tear.

Lubrication Apply appropriate lubrication to moving parts to ensure smooth operation.

Periodic Testing Test actuators periodically to ensure they are functioning at optimal performance levels.

Conclusion

Pneumatic linear actuators are an essential component of industrial automation, delivering efficiency, reliability, and cost-effectiveness. Their versatility allows them to be used in a wide range of applications, from material handling to precision manufacturing. As industries continue to embrace automation and smart technologies, the role of pneumatic actuators will only expand, driving innovation and productivity across sectors. By understanding their capabilities and integrating them effectively, businesses can unlock new levels of operational excellence and competitiveness.

Pneumatic linear actuators

21225 FM 529 Rd

Houston, TX 77433

Cypress Area

Phone: +1-713-934-0171

Fax: +1-713-934-9099

sales@atiactuators.com

https://www.linkedin.com/company/automation-technology-inc.

[atilinearactuators]

Pneumatic Linear Actuators- An In-Depth Overview

Pneumatic linear actuators play a pivotal role in automation and control systems across various industries. They convert compressed air into linear motion, offering a reliable and efficient means of driving mechanical systems. In this article, we will explore the design, working principles, applications, advantages, and considerations of pneumatic linear actuators, highlighting their significance in modern engineering.

What is a Pneumatic Linear Actuator?

A pneumatic linear actuator is a device that uses compressed air to produce linear motion. Typically consisting of a cylinder and a piston, these actuators function by the expansion of air within the cylinder, pushing the piston to generate motion. The stroke length, or the distance the piston travels, can be customized based on the specific application requirements.

Working Principle

The operation of a pneumatic linear actuator is relatively straightforward:

Compressed Air Supply: The actuator is connected to a source of compressed air. When the system is activated, air enters the cylinder through an inlet valve.

Piston Movement: As compressed air fills the cylinder, it exerts pressure on the piston. This pressure pushes the piston in a linear direction, converting the energy from the compressed air into mechanical motion.

Exhaust: Once the desired stroke is achieved, the air can be released through an exhaust valve, allowing the piston to return to its original position. This can be controlled manually or automatically, depending on the actuator design.

Key Components

Pneumatic linear actuators consist of several key components:

Cylinder: The main body housing the piston and providing the chamber for air pressure.

Piston: A movable component within the cylinder that converts air pressure into linear motion.

Seals and Gaskets: Ensure that air does not leak out of the cylinder, maintaining pressure for effective operation.

Mounting Hardware: Allows for secure attachment to various machinery or systems.

Valves: Control the flow of compressed air into and out of the actuator, regulating its movement.

Applications

Pneumatic linear actuators are used in a wide range of applications, including:

Manufacturing: In assembly lines, these actuators automate tasks such as lifting, pushing, and moving products or components.

Material Handling: They are used in conveyor systems and robotic arms to transport materials efficiently.

Packaging: Pneumatic actuators control packaging machines, ensuring precise placement and sealing of products.

Automotive: Used in automated manufacturing processes, such as welding and painting, to enhance productivity.

Medical Equipment: In devices like hospital beds and surgical tables, pneumatic actuators provide adjustable height and positioning.

Advantages of Pneumatic Linear Actuators

High Speed: Pneumatic actuators can achieve rapid motion, making them ideal for applications requiring quick actuation.

Simplicity: Their simple design leads to lower maintenance requirements compared to electric or hydraulic actuators.

Cost-Effective: Pneumatic systems generally have a lower initial investment and operating costs, particularly in high-volume applications.

Force and Weight: Pneumatic actuators can produce significant force relative to their size and weight, making them suitable for compact designs.

Safety: Pneumatic systems are often safer than hydraulic systems, as they use air, which poses fewer risks in terms of leaks or spills.

Considerations When Choosing a Pneumatic Linear Actuator

While pneumatic linear actuators offer numerous advantages, there are several considerations to keep in mind when selecting one for your application:

Air Supply: Ensure you have a reliable source of compressed air, as insufficient pressure can lead to poor performance.

Stroke Length: Determine the required stroke length for your application, as this will influence the actuator's design.

Load Capacity: Calculate the force needed for the specific application to choose an actuator that can handle the load.

Environment: Consider the operating environment. Factors such as temperature, humidity, and potential exposure to contaminants can affect performance.

Control System: Choose compatible control systems and valves for the pneumatic actuator to ensure efficient operation.

Conclusion

Pneumatic linear actuators are vital components in many industrial applications, providing efficient and reliable motion control. With their simplicity, speed, and cost-effectiveness, they offer a compelling solution for automating various processes. Understanding their working principles, advantages, and considerations is essential for selecting the right pneumatic actuator for your specific needs. As industries continue to evolve towards automation, pneumatic linear actuators will undoubtedly remain a key player in driving innovation and efficiency.

Address

21225 FM 529 Rd Houston, TX 77433 Cypress Area

Phone: +1-713-934-0171 Fax: +1-713-934-9099 sales@atiactuators.com

[atilinearactuators]

Understanding Pneumatic Linear Actuators: A Comprehensive Guide

Pneumatic linear actuators have become essential components in various industries, enabling efficient and precise movement through the use of compressed air. These devices transform energy into linear motion, playing a crucial role in automation, manufacturing, robotics, and more. This comprehensive guide explores the principles, components, advantages, applications, and future trends of pneumatic linear actuators.

What Are Pneumatic Linear Actuators?

A pneumatic linear actuator is a mechanical device that converts compressed air energy into linear motion. When air is introduced into a cylinder, it pushes a piston, creating movement in a straight line. This simple yet effective mechanism allows for a wide range of applications in settings where quick and reliable movement is needed.

Key Components

Piston: The heart of the actuator, it moves within the cylinder when compressed air is applied.

Cylinder: The housing that contains the piston, designed to withstand high pressure.

Air Supply System: Comprises valves, filters, and regulators to manage the flow of compressed air, ensuring consistent performance.

Mounting Hardware: Allows for flexible installation in various machinery or equipment.

How It Works

When compressed air enters the cylinder, it forces the piston to move. The speed and distance of the piston’s movement can be controlled by adjusting the air pressure and the design of the actuator. This makes pneumatic actuators highly versatile, capable of performing a variety of tasks with precision.

Advantages of Pneumatic Linear Actuators

1. Speed and Responsiveness

Pneumatic actuators are known for their fast response times. This quick movement is crucial in environments where speed is essential, such as manufacturing lines and robotics.

2. Simplicity and Cost-Effectiveness

The straightforward design of pneumatic systems means fewer components and less complexity compared to electric or hydraulic systems. This simplicity leads to lower initial costs and reduced maintenance needs.

3. Durability

Pneumatic actuators are built to withstand harsh conditions. Their robust construction allows them to operate effectively in environments with dust, moisture, and extreme temperatures.

4. Safety and Environmental Considerations

Using compressed air minimizes the risk of electrical hazards, making pneumatic systems safer. Additionally, pneumatic actuators do not require hydraulic fluids, reducing environmental risks.

Applications of Pneumatic Linear Actuators

Pneumatic linear actuators are utilized across a wide range of industries, thanks to their versatility:

1. Manufacturing

In manufacturing, these actuators are used for assembly, packaging, and material handling. Their speed and precision help streamline production processes.

2. Robotics

Pneumatic actuators provide motion for robotic arms and grippers, allowing for rapid and precise manipulation of objects in various tasks.

3. Food and Beverage

In the food industry, pneumatic actuators are essential for packaging, bottling, and sorting, ensuring hygiene and efficiency in operations.

4. Medical Devices

They play a critical role in medical equipment, enabling precise movements in surgical instruments and diagnostic tools.

5. Aerospace

Pneumatic actuators are used in various aerospace applications, such as landing gear and control surfaces, where reliability and rapid response are vital.

Maintenance and Best Practices

To ensure optimal performance and longevity of pneumatic linear actuators, regular maintenance is essential. Here are some best practices:

Regular Inspections: Check for leaks, wear, and proper alignment. Early detection can prevent larger issues.

Air Quality Management: Use filters to ensure clean, dry air is supplied to the system, minimizing contamination.

Lubrication: Regularly lubricate moving parts to reduce friction and wear.

Pressure Monitoring: Keep an eye on the air pressure to ensure it remains within the recommended range for optimal operation.

Future Trends

As technology continues to advance, the future of pneumatic linear actuators looks promising. Emerging trends include:

Integration with IoT: Smart technology integration will allow for real-time monitoring and control, enhancing automation capabilities.

Advanced Materials: New materials can improve performance, reduce weight, and enhance durability.

Increased Customization: As industries demand more specialized solutions, manufacturers are likely to offer customizable options for pneumatic actuators.

Conclusion

Pneumatic linear actuators are vital to modern automation and control, offering speed, efficiency, and reliability across various applications. Understanding their components, advantages, and applications can help industries leverage this technology effectively. As innovations continue to shape the landscape of pneumatic systems, these actuators will remain at the forefront of automation, driving productivity and enhancing operational efficiency in diverse sectors. By harnessing the power of compressed air, pneumatic linear actuators are set to play an increasingly significant role in the future of industrial automation.

Contact Us

21225 FM 529 Rd

Houston, TX 77433

Cypress Area

Phone: +1-713-934-0171

Fax: +1-713-934-9099

sales@atiactuators.com

[atilinearactuators]

Pneumatic Linear Actuators- Unveiling the Power of Pneumatic Motion

Pneumatic linear actuators are integral components in various industrial applications, providing precise, reliable motion through the use of compressed air. These devices have become indispensable in fields ranging from manufacturing to robotics, and their versatility and efficiency make them a popular choice for numerous automation tasks.

Understanding Pneumatic Linear Actuators

A pneumatic linear actuator converts the energy of compressed air into linear motion. Unlike electric actuators, which use electric motors to produce movement, pneumatic actuators rely on the force of compressed air to drive a piston or rod in a straight line. This process involves several key components, including the actuator cylinder, piston, rod, and end caps.

The core function of the pneumatic actuator is to harness compressed air to create a force that moves a piston within a cylinder. This movement is then translated into linear motion. The simplicity and robustness of this design contribute to its widespread use and reliability in various applications.

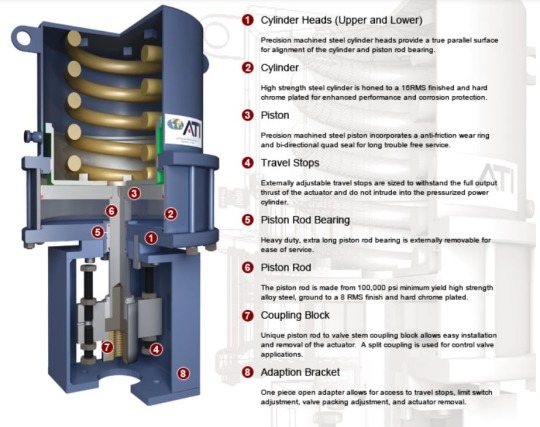

Key Components and Operation

The basic structure of a pneumatic linear actuator includes:

Cylinder: The main body of the actuator, which houses the piston. The cylinder is typically made from durable materials such as aluminum or stainless steel to withstand high pressures and environmental conditions.

Piston: Located inside the cylinder, the piston is responsible for moving back and forth in response to the compressed air. The movement of the piston generates the linear force necessary for the actuator’s function.

Rod: Attached to the piston, the rod extends and retracts as the piston moves. The rod is the part of the actuator that interacts with other components or systems, transferring the linear motion.

End Caps: These components seal the ends of the cylinder, ensuring that the compressed air remains contained and directing the motion of the piston and rod.

The operation of a pneumatic linear actuator begins with the introduction of compressed air into the cylinder. As the air pressure increases, it forces the piston to move. Depending on the design, the actuator can be single-acting (where the piston moves in one direction and a spring or external force returns it) or double-acting (where the piston can move in both directions due to air pressure applied on both sides).

Advantages of Pneumatic Linear Actuators

Pneumatic linear actuators offer several advantages that make them an attractive option for many applications:

Simplicity and Reliability: The basic design of pneumatic actuators is straightforward, with fewer moving parts compared to electric actuators. This simplicity translates into higher reliability and lower maintenance requirements.

High Speed and Precision: Pneumatic actuators can achieve high speeds and precise movements, making them suitable for applications that require rapid actuation with exact positioning.

Cost-Effectiveness: Pneumatic actuators are often more cost-effective than electric or hydraulic actuators, both in terms of initial investment and long-term maintenance.

Clean Operation: Since pneumatic actuators use compressed air, they are clean and do not require lubrication like hydraulic systems. This makes them ideal for use in environments where cleanliness is crucial, such as in food processing or pharmaceuticals.

Compact Design: Pneumatic actuators can be designed to be compact and lightweight, which is advantageous in applications with space constraints or where reduced weight is beneficial.

Applications of Pneumatic Linear Actuators

The versatility of pneumatic linear actuators allows them to be employed in a wide range of industries and applications:

Manufacturing and Automation: In manufacturing, pneumatic actuators are used for tasks such as assembly, packaging, and material handling. Their speed and precision are valuable for automating repetitive tasks, enhancing production efficiency.

Robotics: Pneumatic actuators play a crucial role in robotic systems, providing the linear motion needed for robotic arms and other manipulators. Their ability to deliver precise and fast movements is essential for robotic operations.

Automotive Industry: Pneumatic actuators are used in automotive assembly lines and in various vehicle systems. They can control door mechanisms, adjust seats, and operate other components with precision.

Aerospace: In the aerospace sector, pneumatic actuators are used in various applications, including the operation of landing gear and other critical components. Their reliability and ability to function in harsh environments make them suitable for aerospace use.

Medical Devices: The medical industry benefits from pneumatic actuators in devices such as dental chairs, hospital beds, and surgical tools. The clean and reliable operation of these actuators is crucial in medical applications.

Maintenance and Troubleshooting

Proper maintenance is essential to ensure the longevity and performance of pneumatic linear actuators. Regular checks should be conducted to inspect for leaks, wear, and other potential issues. Lubrication of moving parts and cleaning of the actuator components can help prevent malfunctions.

Common issues with pneumatic actuators include:

Air Leaks: Leaks in the pneumatic system can lead to reduced performance and efficiency. Regularly check for leaks in hoses, fittings, and connections.

Piston Seal Wear: Over time, the seals around the piston can wear out, leading to decreased performance. Replacing worn seals can restore proper function.

Pressure Imbalance: Ensure that the air pressure supplied to the actuator is consistent and within the specified range. Pressure imbalances can affect the actuator’s performance and lifespan.

Contamination: Contaminants in the compressed air can affect the actuator's operation. Using clean, filtered air can help prevent issues related to contamination.

Future Trends and Innovations

As technology advances, the field of pneumatic actuators continues to evolve. Future trends and innovations in pneumatic actuators may include:

Smart Pneumatic Actuators: Integration of sensors and control systems to enable more sophisticated and automated operation. Smart actuators can provide real-time data on performance and allow for more precise control.

Energy Efficiency: Developments aimed at improving the energy efficiency of pneumatic systems, including better air management and reduced energy consumption.

Advanced Materials: The use of advanced materials to enhance the durability and performance of pneumatic actuators, making them suitable for more demanding applications.

Miniaturization: The trend towards smaller, more compact actuators to fit into increasingly tight spaces and applications requiring miniaturized components.

Conclusion

Pneumatic linear actuators are a crucial component in the world of automation and mechanical movement. Their simplicity, reliability, and versatility make them a valuable choice for a wide range of applications. By understanding their operation, advantages, and potential issues, industries can effectively harness the power of pneumatic motion to improve efficiency and performance in their operations. As technology progresses, pneumatic actuators are poised to benefit from continued innovations, further enhancing their capabilities and applications in the future.

Contact Us 21225 FM 529 Rd Houston, TX 77433 USA Cypress Area. Phone: +1-800-924-8037. Email: sales@atiactuators.com

[atilinearactuators]

Unlock the Power of Pneumatic Linear Actuators - Your Ultimate Guide Starts Here!

Hey there, fellow industrial enthusiasts! If you're diving into the world of automation, chances are you've heard of pneumatic linear actuators. But what exactly are they, and why should you care? Well, buckle up because we're about to embark on a journey to uncover the secrets behind these powerhouse components that are revolutionizing industries everywhere.

Understanding Pneumatic Linear Actuators

Let's kick things off with a quick rundown of what pneumatic linear actuators are all about. Picture this: you've got a machine that needs to move parts back and forth in a straight line. Enter pneumatic linear actuators – they're like the muscles of the machine, using compressed air to push or pull objects with precision and efficiency. It's like having your own personal air-powered superhero!

Now, you might be wondering how these bad boys actually work. Well, it's pretty straightforward. When compressed air is pumped into the actuator, it creates pressure that forces a piston to move in a linear direction. Think of it as a pneumatic-powered push or pull, depending on how the actuator is set up. And the best part? They're reliable, easy to maintain, and can handle heavy loads like a champ.

Advantages and Applications

So, what's all the hype about? Let me break it down for you. Pneumatic linear actuators pack a punch when it comes to advantages. Need to move something heavy? No problem. These bad boys can generate some serious force, making them perfect for tasks that require a little muscle. Plus, they're lightning-fast, which is crucial for keeping up with the demands of modern automation.

But where do you actually use these things? The possibilities are endless! From manufacturing and automotive to packaging and beyond, pneumatic linear actuators are everywhere you look. I remember the first time I saw one in action at a production line – it was like watching poetry in motion. These actuators were zipping back and forth, effortlessly assembling parts with precision and speed.

Types and Selection Guide

Now, let's talk variety. Pneumatic linear actuators come in all shapes and sizes, each with its own set of features and benefits. Whether you need a rodless, rod-style, or guided pneumatic actuator, there's something out there to fit your needs. But how do you choose the right one? Fear not, my friend. With a little know-how and some careful consideration of factors like force requirements and stroke length, you'll be well on your way to picking the perfect actuator for the job.

Installation and Maintenance

Okay, so you've got your shiny new pneumatic linear actuator – now what? It's time to get it installed and running like a well-oiled machine. Luckily, installation is a breeze with these babies. Just mount it, connect the air lines, and adjust the stroke length to your liking. And when it comes to maintenance, a little TLC goes a long way. Keep your actuator lubricated and give it regular check-ups to ensure it's operating at peak performance.

Troubleshooting and Safety

Of course, no guide would be complete without addressing the inevitable bumps in the road. If you run into issues with your pneumatic linear actuator, don't panic! Air leaks or sluggish movement can usually be fixed with some simple troubleshooting techniques. And when it comes to safety, always remember to follow proper protocols and use protective equipment. Safety first, my friends!

Future Trends and Innovations

As we look to the future, the sky's the limit for pneumatic linear actuators. With advancements in materials and design, we're seeing new innovations that promise to make these powerhouses even more efficient and sustainable. Who knows what the future holds? One thing's for sure – pneumatic linear actuators are here to stay, and they're only getting better with time.

Conclusion

And there you have it, folks – your crash course in the world of pneumatic linear actuators. Whether you're a seasoned pro or just dipping your toes into automation, understanding the power of these versatile components is key to unlocking your full potential. So go forth, my friends, and let the air-powered revolution begin!

[atilinearactuators]

Dive into Pneumatic Linear Actuator Tech

In the realm of automation and industrial machinery, the quest for efficiency, reliability, and precision is unceasing. One of the crucial components enabling this pursuit is the pneumatic linear actuator. These robust devices have become indispensable in a wide array of applications, from manufacturing and robotics to automotive and aerospace industries. Let's delve into the workings, applications, and advancements of pneumatic linear actuators, and explore how they're shaping the future of engineering and automation.

Understanding Pneumatic Linear Actuators

At its core, a pneumatic linear actuator is a mechanical device that converts compressed air energy into linear motion. The principle behind its operation is relatively simple yet effective. Compressed air is directed into the actuator's chamber, exerting force on a piston or diaphragm, which then moves along a linear path. This linear motion can be used to perform various tasks, such as opening or closing valves, lifting loads, positioning components, or actuating robotic arms.

Versatility in Applications

One of the key strengths of pneumatic linear actuators lies in their versatility. They find applications across a broad spectrum of industries

Manufacturing: In automated assembly lines, pneumatic linear actuators play a vital role in precise positioning and manipulating components. They ensure smooth and efficient operation, contributing to increased productivity and throughput.

Robotics: Pneumatic actuators are commonly used in robotic systems for tasks that require rapid and precise movement. Whether it's pick-and-place operations, material handling, or assembly tasks, these actuators provide the necessary force and speed.

Automotive: From automated welding and painting processes to assembly line operations, pneumatic actuators are integral to automotive manufacturing. Their reliability and robustness make them ideal for handling various tasks in the production of vehicles and their components.

Aerospace: In aerospace applications, where lightweight yet durable components are paramount, pneumatic actuators offer an excellent solution. They are utilized in aircraft systems for functions such as controlling flaps, landing gear, and cargo doors.

Medical: Pneumatic actuators play a crucial role in medical devices and equipment, such as surgical robots, patient handling systems, and diagnostic instruments. Their precise control and sterile operation make them indispensable in healthcare settings.

Advancements Driving Innovation

In recent years, advancements in materials, design, and control technologies have led to significant improvements in pneumatic linear actuators

Materials: The use of lightweight and high-strength materials, such as aluminum alloys and composite polymers, has resulted in actuators that offer better performance while minimizing weight and energy consumption.

Miniaturization: Miniature pneumatic actuators are becoming increasingly common, enabling their integration into compact and space-constrained applications, including medical devices, consumer electronics, and micro-robotics.

Smart Actuators: Integration of sensors, feedback systems, and advanced control algorithms has transformed pneumatic actuators into smart devices capable of precise motion control, adaptive performance, and self-monitoring capabilities.

Energy Efficiency: Efforts to improve energy efficiency have led to the development of pneumatic actuators with reduced air consumption and optimized performance characteristics, resulting in lower operating costs and environmental impact.

Future Prospects

As industries continue to embrace automation and robotics, the demand for pneumatic linear actuators is expected to grow. Advancements in materials science, sensor technology, and artificial intelligence will further enhance the capabilities and performance of these actuators, opening up new possibilities in areas such as collaborative robotics, wearable exoskeletons, and autonomous vehicles.

In conclusion, pneumatic linear actuators represent a cornerstone of modern engineering and automation. Their ability to convert compressed air into precise linear motion makes them indispensable across a wide range of industries and applications. With ongoing innovations driving their evolution, pneumatic actuators are poised to play an even more significant role in shaping the future of technology and industry.
