Text
HSK･T Turning Tools for External and Facing
HSK-T SBN is for mounting square tool holders, for external turning and facing operation, but it is with 45 deg angle, and one holder is for one direction, R is for the right hand and L is for the left hand.
TECHNICAL DRAWING OF HSK･T TURNING TOOLS FOR EXTERNAL AND FACING
Size
L
L1
L2
L3
L4
D1
B1
B2
B3
H1
H2
G
HSK50T-SBN2020R-120
120
60
83.1
72.8
52.8
－
20
25
43.5
35
35
M10
HSK50T-SBN2020L-120
120
60
83.1
72.8
52.8
－
20
25
43.5
35
35
M10
HSK63T-SBN2020R-120
120
60
83.1
72.8
52.8
－
20
32
43.5
35
35
M10
HSK63T-SBN2020L-120
120
60
83.1
72.8
52.8
－
20
32
43.5
35
35
M10
HSK63T-SBN2525R-120
120
70
85.2
70.8
45.8
90
25
32
53
39
39
M12
HSK63T-SBN2525L-120
120
70
85.2
70.8
45.8
90
25
32
53
39
39
M12
HSK100T-SBN2525R-145
145
70
102.9
88.5
63.5
－
25
32
59
43
43
M12
HSK100T-SBN2525L-145
145
70
102.9
88.5
63.5
－
25
32
59
43
43
M12
HSK100T-SBN3232R-150
150
85
109.9
89
59
－
32
37
68.5
48
43
M14
HSK100T-SBN3232L-150
150
85
109.9
89
59
－
32
37
68.5
48
43
M14
0 notes
Text
HSK･T Turning Tools for External and Cut-off
SBV axial square shank tool holders are for external turning and cutting-off operation, with an adjustable cooling nozzle with internal thread. Due to its support design, it is with high rigidity. SBV is for one-direction axial tool holders, for double directions, please choose the SBVD line.
TECHNICAL DRAWING OF HSK･T TURNING TOOLS FOR EXTERNAL AND CUT-OFF
SPECIFICATION OF HSK･T TURNING TOOLS FOR EXTERNAL AND CUT-OFF
Size
L
L1
L2
B1
B2
B3
H1
H2
H3
G
Kg
HSK50T-SBV2020R-105
105
60
15
20
25
43.5
25
25
5
M10
2
HSK50T-SBV2020L-105
105
60
15
20
25
43.5
25
25
5
M10
2
HSK63T-SBV2020R-105
105
60
15
20
32
43.5
33
32
13
M10
2.7
HSK63T-SBV2020L-105
105
60
15
20
32
43.5
33
32
13
M10
2.7
HSK63T-SBV2525R-115
115
70
20
25
32
45
30
30
5
M12
2.9
HSK63T-SBV2525L-115
115
70
20
25
32
45
30
30
5
M12
2.9
HSK100T-SBV2525R-160
160
110
20
25
37
59
48
43
23
M12
8.5
HSK100T-SBV2525L-160
160
110
20
25
37
59
48
43
23
M12
8.5
HSK100T-SBV3232R-160
160
110
20
32
40
68.5
45
43
15
M14
9
HSK100T-SBV3232L-160
160
110
20
32
40
68.5
45
43
15
M14
9
0 notes
Text

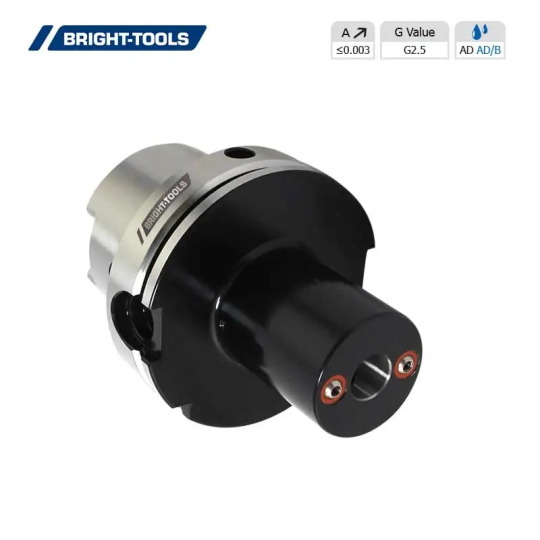

HSK･T Boring Bar Holders
HSK-T boring bar tool holders are with outlet holes on the end face, with wide range diameters from 6mm to 40mm.
0 notes
Text
Fine Boring Head
This boring head is specially designed for precision production boring on machining centers, boring mills, transfer machines, etc. The boring head offered by us is manufactured from premium quality raw materials and progressive technology at vendor's end.
Features
Rust proof
Dimensional accuracy
High durability
Size
CK No.
Dc
L
L1
Insertholder
CK1-F2025
CK1
20-25
30
27
ENH1-1
CK1-F2529
CK1
25-29
30
27
ENH1-2
CK1-F3034
CK1
30-34
30
27
ENH1-3
CK2-F2533
CK2
25-33
34
31
ENH2-1
CK2-F3240
CK2
32-40
34
31
ENH2-2
CK2-F3947
CK2
39-47
34
31
ENH2-3
CK3-F3243
CK3
32-43
41
37
ENH3-1
CK3-F4151
CK3
41-51
41
37
ENH3-2
CK3-F5060
CK3
50-60
41
37
ENH3-3
CK4-F4156
CK4
41-56
50
42
ENH4-1
CK4-F5167
CK4
51-67
50
42
ENH4-2
CK4-F6477
CK4
64-77
50
42
ENH4-3
CK5-F5274
CK5
52-74
60
56
ENH5-1
CK5-F6487
CK5
64-87
60
56
ENH5-2
CK5-F77100
CK5
77-100
60
56
ENH5-3
CK6-F68103
CK6
68-103
70
66
ENH6-1
CK6-F95128
CK6
95-128
70
66
ENH6-2
CK6-F118153
CK6
118-153
70
66
ENH6-3
CK6-F100152
CK6
100-152
70
66
ENH6-1
CK6-F126179
CK6
126-179
70
60
ENH6-2
CK6-F151203
CK6
151-203
70
60
ENH6-3
0 notes
Text
Face Mill Holders
For high-performance milling operations, there are specialized tool holders called face mill holders. The milling cutters are securely held in place by a flange mechanism in the holders, resulting in steady and accurate cutting performance. Face Mill Holders' distinctive design provides great stiffness and torque transfer, allowing for dependable and efficient milling. Face Mill Holders are a crucial tool holder for any high-speed machining operation because they provide high-quality surface finishing and increased tool life. They are also simple to install and cool well.
SPECIFICATION OF FACE MILL HOLDERS
Material
40Cr, 20CrMnTi
Type
FMA, FMB
Size
NT40-FMB27-30
Accuracy
0.005mm
Hardness
52-58HRC
Usage
For holding like shell mill cutters
Standard
MAS403BT, DIN69871, CAT ANSI B5.50, DIN2080
Size
d
L
D
H
M
BT30-FMB16-40
16
40
38
17
M8
BT30-FMB22-40
22
40
48
19
M10
BT30-FMB27-40
27
40
58
21
M12
BT30-FMB32-50
32
50
78
24
M16
BT40-FMB16-40
16
40
38
17
M8
BT40-FMB22-40
22
40
48
19
M10
BT40-FMB27-40
27
40
58
21
M12
BT40-FMB32-50
32
50
78
24
M16
BT40-FMB40-50
40
50
88
27
M20
BT40-FMB22-60
22
60
48
19
M10
BT40-FMB27-60
27
60
58
21
M12
BT40-FMB32-60
32
60
78
24
M16
BT40-FMB40-60
40
60
88
27
M20
BT40-FMB16-100
16
100
38
17
M8
BT40-FMB22-100
22
100
48
19
M10
BT40-FMB27-100
27
100
58
21
M12
BT40-FMB32-100
32
100
78
24
M16
BT40-FMB40-100
40
100
88
27
M20
BT40-FMB16-160
16
160
38
17
M8
BT40-FMB22-160
22
160
48
19
M10
BT40-FMB27-160
27
160
58
21
M12
BT40-FMB32-160
32
160
78
24
M16
BT40-FMB40-160
40
160
88
27
M20
BT40-FMB22-200
22
200
48
19
M10
BT40-FMB27-200
27
200
58
21
M12
BT40-FMB32-200
32
200
78
24
M16
BT40-FMB40-200
40
200
88
27
M20
BT40-FMB22-250
22
250
48
19
M10
BT40-FMB22-300
22
300
48
19
M10
0 notes
Text
Drill Chuck Adapter
A Drill Chuck Adapter is a tool used to adapt a drill chuck onto a machine with a different type of arbor. It is widely used in machine shops and factories where different types of machines and tools are used. The adapter provides a quick and easy way to attach a portable drill chuck to a machine, which allows for drilling operations to be performed accurately and with minimum fuss. Drill Chuck Adapters are available in various sizes and can be used on different types of machines such as lathes, drill presses, and milling machines.
Used together with drill chuck head.
Buy Drill Chuck Adapter
SPECIFICATION OF DRILL CHUCK ADAPTER
Size
D
L
L1
BT30-B12-25
B12
25
18.5
BT30-B16-25
B16
25
24
BT40-B12-32
B12
32
18.5
BT40-B16-32
B16
32
24
BT40-B18-32
B18
32
32
BT40-B22-32
B22
32
40.5
BT50-B16-45
B16
45
24
BT50-B18-45
B18
45
32
BT50-B22-45
B22
45
40.5
0 notes
Text
DIN 69893 (ISO 12164) HSK-F TOOL HOLDERS
BRIGHT-TOOLS offers premium DIN 69893 (ISO 12164) HSK-F tool holders, designed for high-speed cutting applications. Our HSK-F tool holders provide exceptional stability and cutting accuracy, ensuring superior performance even under the most demanding conditions. With BRIGHT-TOOLS HSK-F tool holders, customers can achieve greater precision, efficiency, and profitability in their machining processes.
WHAT TYPES OF MACHINES ARE DIN 69893 (ISO 12164) HSK-F TOOL HOLDERS SUITABLE FOR?
HSK-F tool holders are suitable for high-speed spindles in CNC machines. These tool holders are specifically designed for applications that require high-performance, high-precision, and high-speed cutting operations. HSK-F tool holders provide optimal stability and accuracy during machining processes, making them suitable for various machines such as milling machines, lathes, grinding machines, and drilling machines. The HSK-F system ensures effective transmission of torque, enhanced cooling capabilities, and reduced tool vibration, resulting in improved machining precision and surface finish.
HOW TO ENSURE PROPER MAINTENANCE AND CARE FOR DIN 69893 (ISO 12164) HSK-F TOOL HOLDERS?
To ensure proper maintenance and care for HSK-F tool holders, follow these steps:
1. Regularly inspect the tool holders for any signs of wear, damage, or contamination.
2. Clean the tool holders with a non-abrasive solvent after each use to remove chips, dust, and dirt.
3. Lubricate the tool holders with a recommended oil or grease to prevent rust and maintain smooth operation.
4. Store the tool holders in a clean, dry, and climate-controlled environment to protect them from moisture and temperature fluctuations.
5. Follow manufacturer recommendations for tightening and loosening the tool holders to prevent overtightening or undertightening.
