Text

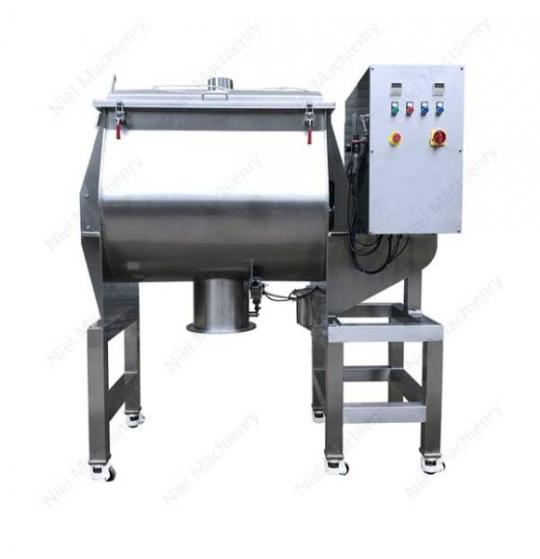

Ribbon Mixer Machine
https://www.nielmachinery.com/products/ribbon-mixer-machine.html
The ribbon mixer machine consists of a U-shape tank, spiral and drives parts. The spirals dual structure. Outer spiral makes the material move from the sides to the center of the tank and the inner screw conveyor the material from the center to the sides to get the convective mixing.
Description of Ribbon Mixer Machine
Generally, ribbon mixer machines are used for mixing a viscous or cohesive mixture of particulates and the addition of liquid and paste-like material in powder or granule. Since Viscous materials are difficult to clean, the spiral ribbon mixer is suitable for mass production and other occasions such as infrequent replacement mixing.
Our NRD series ribbon type mixer can mix many kinds of materials especially for the powder and granular which with viscosity or cohesion character, or add a little liquid and paste material into powder and granular material. The mixture effect is high. The cover of the tank can be made in open-type so as to clean and change parts easily. If you are interested and want to know our ribbon blender machine price, please feel free to contact us.
Structural Characteristics of Ribbon Blender Mixer
The U-shaped elongated body of the tube structure ensures the resistance movement of the mixed materials within the barrel (powder, semifluid). Reverse rotation of a ribbon attached to the same horizontal axis, forming a low-power efficient mixing environment, generally made of ribbon blade helical double or triple, the outer spiral pooled material from both sides toward the center, the inner spiral conveying material from the center to both sides, the material can be formed more vortices in the flow. Horizontal ribbon blender can accelerate the mixing speed and mixing improve uniformity.
Application of Ribbon Blender
Milk powder
Foodstuff
Medicinal
Chicken powder
Cosmetic Pigment
Other industries
Main Features of Ribbon Mixer Machine
1. Horizontal tank, single shaft with dual spiral symmetry circle structure.
2. Under the bottom of the tank, there has a flap dome valve (pneumatic control or manual control) of the center. The valve is an arc design that assures no material accumulated and without any dead angle when mixing. Reliable regular- seal prohibit the leakage between the frequent close and open.
3. The disconnection ribbon of the mixer can make the material mixed with more high speed and uniformity in a short time
4. This mixer also can be designed with the function to keep cold or heat. Add one layer outside the tank and put it into medium into the interlayer to get the mixing material cold or heat. Usually, use water for cool and hot steam or use electricity for heat.
Technical Data of Ribbon Blender
Model
NRD-200L
NRD-300L
NRD-500L
NRD-1000L
NRD-1500L
NRD-2000L
NRD-3000L
Effective volume
200L
300L
500L
1000L
1500L
2000L
3000L
Fully volume
280L
400L
680L
1275L
1820L
2450L
3680L
Turning speed
53RPM
53RPM
45RPM
45RPM
39RPM
39RPM
37RPM
Total weight
400KG
650KG
980KG
1300KG
1600KG
2200KG
2600KG
Total power
4KW
5.5KW
7.5KW
11KW
15KW
18.5KW
22KW
Length
1800MM
1900MM
2050MM
2500MM
2950MM
3330MM
3350MM
Width
860MM
900MM
1050MM
1200MM
1350MM
1500MM
1850MM
Height
860MM
900MM
1250MM
1350MM
1400MM
1650MM
2050MM
Power supply
3P AC208-415V 50/60HZ
0 notes
Text

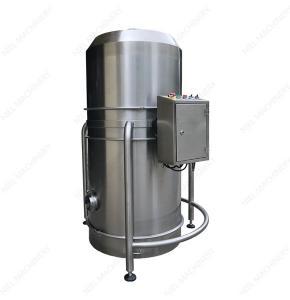

Pulse Jet Dust Collector
https://www.nielmachinery.com/products/pulse-jet-dust-collector.html
This pulse jet dust collector is a new type of dust collector developed on the basis of our company's first generation dust collector. The stainless steel casing is thicker and the round design makes this duster have lower noise and beautiful appearance. The Teflon filter is wrapped around the bottom of the machine, and the overall dust removal efficiency is significantly higher than that of the first generation dust collector.
Product Description of Pulse Jet Dust Collector
The new type pulse jet type dust collector is an air purification device with small volume and high dust removal efficiency. Suitable for a variety of independent dust-producing points, flexible and convenient, on-site dust collection, on-site treatment, can effectively ensure the cleanliness of the air.
The basic structure consists of a dust box, a centrifugal fan, a filter bag (filter cartridge), a pulse type dust collector and a microcomputer controller. The dust is sucked into the interior of the dust collector box by the negative pressure of the fan through the suction pipe, using gravity and upward airflow. The coarse-grained dust is directly filtered by the filter and directly dropped to the dust collector. The particulate dust is trapped on the outer surface by the filter, and the clean gas is filtered and decomposed and purified by the filter element, and then flows into the cleanroom, thereby being discharged from the air outlet by the fan. The entire dust removal filtration process is the result of a combination of gravity, inertial force, collision, electrostatic adsorption, and sieving.
Working Principle of Pulse Jet Dust Collector
The dusty air enters the tank through the air inlet, and the coarser dust falls down to the ash drawer under the action of its own gravity. The other part of the fine dust is sucked on the outer wall of the filter cartridge and cleaned under the suction of the main fan. The air through the filter cartridge is discharged through the fan outlet. Can be directly discharged indoors for recycling. As the filtration conditions continue, the dust adsorbed on the surface of the filter cartridge is increasing. In order to ensure the normal operation of the system, the resistance of the precipitator should be maintained within the limit (1.2KPa), so the cleaning is performed by high frequency vibration. , complete the recycling of the filter cartridge.
Application of Pulse Jet Dust Collector
A grinding machine, etc
Food industry
Chemical Industry
Pharmaceutical industry
Commodity industry
Production line dust collect
Main Features of Pulse Jet Dust Collector
Exquisite design, stainless steel, manufactured according to food-grade industry standards
Compact structure and small footprint
Sub-micron filtration, high purification efficiency
Easy maintenance and small workload
Can be used with a variety of dust-designed production line equipment for a wide range of applications
Technical Data of Pulse Jet Dust Collector
Technical data
Model
NCC-1.5
NCC-2.2
NCC-3.0
NCC-4.0
NCC-5.0
NCC-7.5
Blowing rate(m³)
780-1070
1360-1680
1730-2420
2680-3590
3830-4580
4850-7050
Pressure(Pa)
950-700
970-590
1690-1120
1690-1120
1690-1120
1690-1120
Power(kw)
1.65
2.35
3.15
4.15
5.65
7.65
Max noise(DB)
55
60
65
65
70
70
Dedusting rate(%)
99.9
99.9
99.9
99.9
99.9
99.9
Dimension(⌀*H)(mm)
⌀650*1620
⌀680*1740
⌀720*1810
⌀780*1880
⌀850*1970
⌀890*1020
Total weight(kg)
110
150
180
240
350
460
Filter
Teflon
Teflon
Teflon
Teflon
Teflon
Teflon
Power supply
3 Phase 220V-400V 50HZ
0 notes
Text

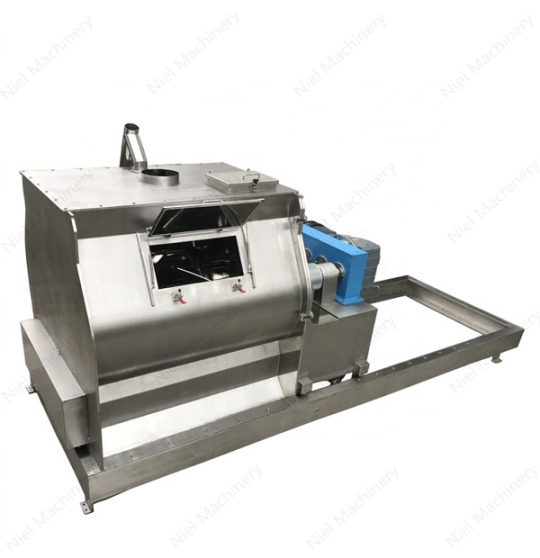

Pulling Type Paddle Mixer
https://www.nielmachinery.com/products/pulling-type-paddle-mixer.html
The pulling type paddle mixer machine is mainly used for anti-cracking mortar, thermal insulation mortar, bonding mortar, plastering mortar, floor mortar and other dry powder mortars with high mixing uniformity and high-grade putty powder. Concrete admixtures, feeds, chemical powders, food flavors and other industries have also been greatly applied, and it is not suitable for the mixing of raw materials with a particularly large amount of spray and particularly large viscosity of materials.
Product Description of Pulling Type Paddle Mixer Machine
Pulling type paddle mixer machine is widely used for drying and mixing of dry powder mortar, chemical, pesticide, detergent, pigment food, monosodium glutamate, milk powder, salt, feed, chemicals, ceramics, plastics, rubber additives, and other powders.
Pulling type paddle mixer machine is also called a non-gravity door open type mixer. Based on the long-term practice in the field of mixers, the equipment overcomes the shortcomings of horizontal mixer cleaning and uses gear reduction gearbox and mixer rotor direct connection transmission for higher reliability and longer service life.
Structural Characteristics of Pulling Type Paddle Mixer Machine
The right end surface of the pulling type paddle mixer machine body is provided with a non-drive endplate, the left end is provided with a drive endplate, the lower end of the drive end plate is disposed inside the track, and the motor reducer and the rotor shaft are respectively provided with two, the left end of the rotor shaft and the output end of the motor reducer is connected and connected, and the rotor shaft is assembled inside the mixer body through the driving endplate. The rotor shaft is symmetrically arranged inside the mixer body, the blade is assembled on the rotor shaft, and the track is arranged on the lower side of the mixer body. The lower end opens a discharge door, and a shaft seal is arranged at a connection between the rotor shaft and the output end of the motor reducer.
The Pulling type paddle mixer machine is a new high-efficiency material mixer independently developed and designed by the Neil mechanical design team based on the twin-blade gravity-free mixer. This model maintains the advantages of the previous generation double-mix mixer. On the basis of the design of the side-opening door, the cleaning efficiency and mixing speed are greatly improved, the mixing time is shortened, and the production efficiency is greatly improved.
Application of Pulling Type Paddle Mixer
Dry mortar
Chemicals, chemicals, detergents,
Feed, pesticides,
Pigment food, monosodium glutamate, milk powder, salt
Ceramic, plastic, rubber additives
Main Features of Pulling Type Paddle Mixer
(1) Easy to clean, side-opening door design makes machine cleaning more convenient and saves production time
(2) The rotation speed of the shaft driven by the reducer and the structure of the blade will weaken the gravity of the material. With the lack of gravity, the difference in particle size and a specific gravity of each material is neglected during the mixing process.
(3) The intense mixing movement shortens the mixing time, which is faster and more efficient.
(4) Even if the material has a difference in specific gravity and particle size, a good mixing effect can be achieved under the rapid and vigorous tumbling of the staggered stirring blades.
Technical Data of Pulling Type Paddle Mixer
Technical Data
Model no.
Effective Vol
Loading ratio
Power
Speed
Dimension (mm)
Weight
NCL-300
300L
0.6-0.8
4KW
53r/min
3240X1035X1430
580kg
NCL-500
500L
0.6-0.8
7.5KW
53r/min
3390X1160X1480
860kg
NCL-1000
1000L
0.6-0.8
11KW
45r/min
3590X1380X1630
1530kg
NCL-1500
1500L
0.6-0.8
15KW
45r/min
3880X1550X1810
1980kg
NCL-2000
2000L
0.6-0.8
18.5KW
39r/min
4180X1780X1930
2590kg
NCL-3000
3000L
0.6-0.8
22KW
31r/min
4430X1910X2040
3620kg
Power supply
AC 3 Phase 208-415V 50/60HZ
0 notes
Text
Powder Mixer Machine
https://www.nielmachinery.com/products/powder-mixer-machine/
Powder mixer machine is a mechanical device that uniformly mixes two or more materials by mechanical force, gravity, and the like. In the process of mixing, it is also possible to increase the surface contact area of the material to promote the chemical reaction; it can also accelerate the physical change.
Powder Mixer Machine List
Ribbon Mixer Machine
The horizontal ribbon mixer machine consists of a U-shape tank, spiral and drives parts. The spirals dual structure. Outer spiral makes the material move from the sides to the center of the tank and the inner screw conveyor the material from the center to the sides to get the convective mixing.
Ribbon Mixer Machine
Single Shaft Paddle Mixer Machine
The structure of the single shaft paddle mixer machine is firm and stable. The mixing paddle and material contact is made of stainless steel. Single shaft paddle mixer machine has good corrosion resistance and keeps the quality and cleanness of the material without discoloration.
Single Shaft Paddle Mixer Machine
Double Shaft Paddle Mixer Machine
Double shaft paddle mixer machine is also called non-gravity mixer machine, it is widely used for drying and mixing of dry powder mortar, chemical, pesticide, detergent, pigment food, monosodium glutamate, milk powder, salt, feed, chemicals, ceramics, plastics, rubber additives, and other powders.
Double Shaft Paddle Mixer Machine
Pulling Type Paddle Mixer
The pulling type paddle mixer machine is mainly used for anti-cracking mortar, thermal insulation mortar, bonding mortar, plastering mortar, floor mortar and other dry powder mortars with high mixing uniformity and high-grade putty powder.
Pulling Type Paddle Mixer

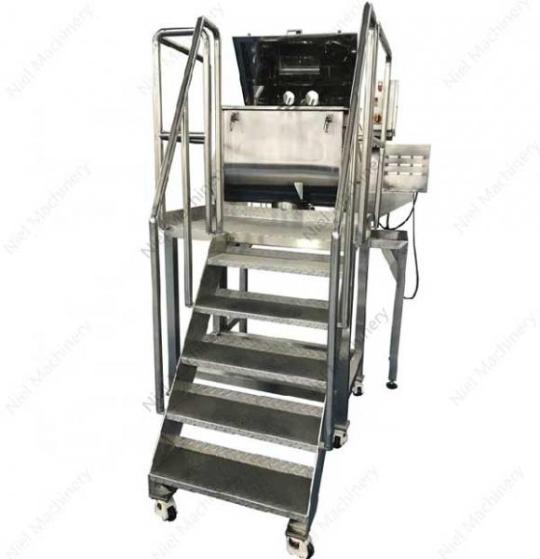

Laboratory Mixer Machine
The laboratory mixer machine automatically performs all movements such as clamping, rotation, and mixing. Equipped with a series of automatic lifting mixers and a variety of mixing hoppers of different specifications, a laboratory mixer machine can meet the mixing requirements of large quantities and varieties.
Laboratory Mixer Machine
Plough Shear Mixer Machine
The ploughshare mixer machine is a new type of high-efficiency powder mixing equipment. It can be divided into stainless steel coulter mixer and carbon steel coulter mixer according to the material. It can be divided into horizontal coulter mixer and multi-purpose coulter according to the structure type. Mixer, etc.
Plough Shear Mixer Machine
Post Lifting Bin Mixer
The post lifting bin mixer can automatically complete the functions of lifting, mixing and lowering, and is ideal mixing equipment for the solid preparation of the pharmaceutical industry. This model can be fully automated and only needs to input relevant data on the control screen to mix materials.
Post Lifting Bin Mixer
Types of Powder Mixer Machine
Commonly used powder mixer machines or material mixing equipment are divided into gas and low viscosity liquid mixers, medium and high viscosity liquid and paste mixers, powder and granular solid materials mixing machinery.
The gas and low viscosity liquid powder mixing system features a simple structure and no rotating parts, low maintenance and repair, and low energy consumption. This type of powder mixing machine is divided into four types: airflow mixing, pipe mixing, jet mixing, and forced circulation mixing.
Powder blender mixer machines for medium and high viscosity liquids and pastes generally have strong shearing action.
Thermoplastic material mixing machinery is mainly used for mixing thermoplastic materials (such as rubber and plastic) with additives; powdered and granular solid material mixing machines are mostly intermittent operations, and also include machines that combine mixing and grinding, such as rim machines.
Currently, we supply spiral ribbon mixer, single shaft paddle mixer machine, double shaft paddle mixer machine, single paddle mixer, pulling type paddle mixer, powder mixer for sale, plough shear mixer machine, powder blender for sale, used powder mixer, used powder blending equipment and bin blender machine. You may click the pictures above to get more product information.
Mixer Parts of Powder Mixing Machine
Mixer parts of powder mixing blender machines are mainly made of wear-resistant alloy materials, including high-speed mixing scraper, mixing fin, wear-resistant lining, mixing arm, mixing shovel, vacuum conveyors for powder & bulk, planetary shovel, mixing coulter, stirring rod, mixing raft, etc.
How Does Powder Mixer Machine Work?
The moving parts of the mechanical agitator also shear the liquid when it is rotated. The liquid is also subjected to shearing action when flowing through the wall and various fixing members installed in the container. These shearing effects will cause many local eddy current diffusion.
For liquids of different density, composition, and immiscibility, the shearing action caused by the agitation and the strong turbulence shred the dense liquid into small droplets and uniformly disperse it into the main liquid.
About Neil Machinery
As one of the leading powder mixing machine manufacturers in China, Niel Machinery is committed to the design and development of various types of powder machine mixers, such as laboratory powder mixer, dry powder mixer machine, milk powder mixer machine, powder blender machine, dry powder blending equipment, small powder mixer machine, big mixing machine, detergent powder mixer machine, detergent powder mixing machine and laboratory dry powder blender. In combination with customer requirements, Neil Machinery, one of China's powder mixer suppliers, can design the most suitable mixer for customers. At present, the main powder mixers for sale are ribbon mixer, paddle Mixers, gravity-free mixers, pull-out mixers, various laboratory mixers, and lift hopper mixers, all made of 304 or 316 stainless steel, meeting food safety requirements. Neil Machinery, a notable industrial powder blender and mixer machine manufacturer, can provide customers with a One-stop industrial powder mixer machine solution that saves customers time and provides the best solution.
FAQ of Powder Mixer Machine
How to Choose the Right Powder Mixer Machine
There are a variety of powder mixer machines in the market. Customers can choose the best one according to your processing capacity and the discharging method.
Features of Ribbon Mixer Equipment
The ribbon mixer machine is a common type of powder mixer machine. Our ribbon mixer for sale allows for a flexible material selection. Also, our spiral ribbon mixer is equipped with a reliable drive configuration. Need to know ribbon blender machine price? Please contact our sales.
What to Pay Attention to When Choosing a Horizontal Ribbon Mixer?
When buying a horizontal ribbon mixer, you need to pay attention to several aspects, including the working principle of the ribbon mixer machine and its discharging methods. Before you buy the ribbon type mixer, you should know clearly about your own requirements that you can get the right solution!
0 notes
Text
Powder Filling Packing Machine
https://www.nielmachinery.com/products/powder-filling-packing-machine/
The packing machine refers to machinery that can complete all or part of the product and product packaging process. The packaging process includes major processes such as filling, wrapping, and sealing, as well as related pre- and post-processes such as cleaning, stacking, and disassembly.
In addition, the package also includes processes such as metering or stamping on the package. The use of mechanical packaging products can increase productivity, reduce labor intensity, meet the needs of large-scale production, and meet the requirements of sanitation.
Powder Filling Packing Machine List

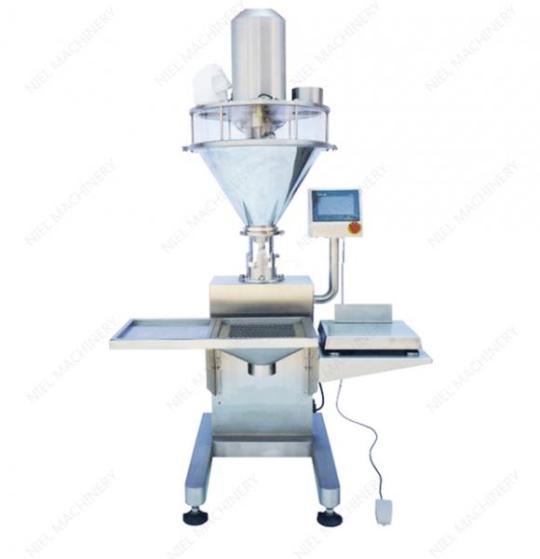

Semi Automatic Weighing and Filling Machine
The semi automatic weighing and filling machine, also called semi automatic weighing auger filling machine, is mainly designed for ultra-fine powder and high-precision packaging requirements that are easy to dust. It performs two-speed filling, metering and lifting according to the signal given by the weight sensor mounted under the container.
Semi Automatic Weighing and Filling Machine

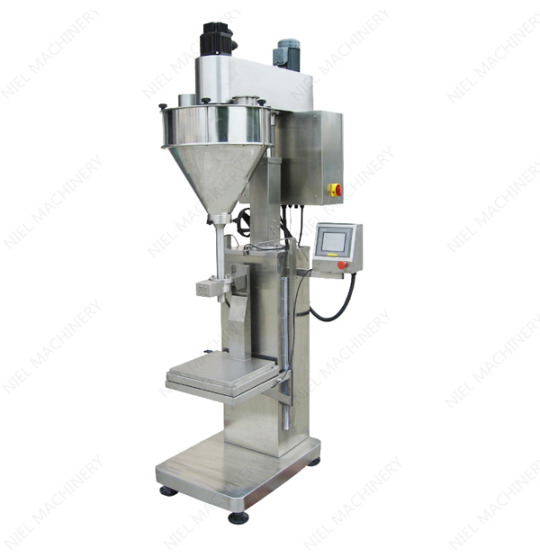

Semi Automatic Filling Machine
This type of semi automatic filling machine can complete the measurement, filling and the like, and is suitable for measuring powdery and granular materials with poor flow or fluidity, such as milk powder, protein powder, rice flour, milk tea, solid beverage, coffee powder, white sugar, glucose, food additive, feed, etc.
Semi Automatic Filling Machine
Auger Filler Parts
PThe screw measuring machine is metered by a screw feeder, that is, the cavity of the screw groove is used as a measuring container, and in each dispensing cycle, the speed of the screw rotation is controlled, and the physical quantity of each rotation is controlled, thereby Achieve the purpose of measurement.
Auger Filler Parts
Basic Functions of Powder Filling Packing Machine
The packaging is a necessary condition for products to enter the circulation field, and the main means of achieving packaging is the use of packaging machinery. With the development of the times and the advancement of technology, packaging machinery is playing an increasingly important role in the packaging field. Its main functions are as follows:
(1) It works as an auto powder filling machine, which can greatly improve labor productivity Sliding plastic blister sealing machine mechanical packaging is much faster than manual packaging.
(2) It can effectively guarantee the quality of packaging. Mechanical packaging can be obtained according to the requirements of packaging items, according to the shape and size of the required packaging.
(3) It can realize the operation that cannot be realized by manual packaging. Some packaging operations, such as vacuum packaging, pneumatic packaging, body packaging, isostatic filling, etc., are all impossible to achieve by manual packaging, and can only be realized by mechanical packaging.
(4) It can reduce labor intensity and improve labor conditions. The labor intensity of manual packaging is very high.
(5) Labor protection for workers for certain products that seriously affect the health of the body.
(6) It can reduce packaging costs, save storage and freight.
(7) It can reliably ensure that certain products are hygienic in products, avoiding direct contact with food and medicines and ensuring the quality of hygiene.
(8) It can promote the development of related industries. Packaging machinery is a comprehensive science. It involves various disciplines such as materials, processes, equipment, electronics, electrical appliances, and automatic control. It requires the simultaneous and coordinated development of all relevant disciplines. Disciplinary issues will affect the overall performance of packaging machinery.
Classification of Powder Filling Packing Machine
There are many classification methods for packaging machinery. Each classification method has its own characteristics and scope of application, but it has its limitations. From the general situation of packaging machinery in the world, the more scientific classification method is classified according to its main function, which can grasp the essence of things.
(1) Filling machine
A filling machine is a power bag packing machine that loads a precise number of packages into various containers. The main types are:
volumetric filling machine. Including measuring cup, intubation, plunger, material level, screw, timing filling machine.
weighing filling machine. Including intermittent weighing, continuous weighing, weighing - centrifugation and other filling machines.
counting filling machine. Includes single-piece counting and multi-piece counting filling machines.
(2) Sealing machine
A sealing machine is a machine for sealing a container filled with a package, and the main types thereof are:
No sealing material sealing machine. Including hot pressing, cold pressing, fusion welding, plug-in, folding and other sealing machines.
There is a sealing material sealing machine. Including rotary, rolling, crimping, press-fit and other sealing machines.
has an auxiliary sealing material sealing machine. Including tape type, adhesive type, nail type, ligation type, stitching type, and another sealing machine.
(3) Wrapper
The wrapper is a package that wraps the package in whole or in part with a flexible packaging material Installed. The main types are:
full wrap wrapper. Including wrap, cover, body, seam, and other wrappers.
half-wrapped wrapper. Including folding, shrinking, stretching, winding and other wrapping machines.
(4) Multi-functional packaging machine
This type of packaging machine has two or more functions.
Routine maintenance of Powder Filling Packing Machine
Several key points for the maintenance of packaging machinery: cleaning, fastening, adjustment, lubrication, anti-corrosion. In the ordinary production process, each machine maintainer should do it. According to the maintenance manual and maintenance procedures of the machine packaging equipment, strictly carry out various maintenance work according to the specified period, reduce the wear speed of the parts, eliminate the hidden troubles of the fault, and prolong The life of the machine.
Maintenance is divided into: routine maintenance, regular maintenance (minute: primary maintenance, secondary maintenance, tertiary maintenance), special maintenance (point: for seasonal maintenance, disable maintenance).
Routine maintenance
With cleaning, lubrication, inspection, and fastening as the center, routine maintenance should be carried out as required during and after the work of the machine.
The first-level maintenance work is carried out on the basis of routine maintenance. The key work is to lubricate, tighten and inspect all relevant parts and their cleaning work.
The secondary maintenance work focuses on inspection and adjustment. Specifically check the engine, clutch, transmission, transmission components, steering, and brake components.
The third-level maintenance focus is to detect, adjust, troubleshoot and balance the wear of each component. Diagnose and condition check the parts that affect the performance of the equipment and the parts with fault signs, and then complete the necessary replacement, adjustment, and troubleshooting.
Seasonal maintenance
It means that the packaging equipment should focus on the detection and repair of components such as the combustion system, hydraulic system, cooling system, and starting system before entering the summer and winter.
Disable maintenance
Refers to the cleaning, cosmetic, supporting, anti-corrosion work, etc. when the packaging equipment needs to be deactivated for a period of time due to seasonal factors (such as winter vacation).
About Neil Machinery
The packaging machine is an integral part of the packaging production line. Neil Machinery is dedicated to the design and manufacture of various semi-automatic, automatic filling machines, powder bottle filling machine, auger filler packing machine, auger packing machine and packaging machines. At the same time, our R&D team can customize according to the needs of customers. Packaging machine can satisfy customers with multiple products, including semi auto powder filling machine, powder automatic packing machine, powder bag filling machine, powder filling and sealing machine as well as powder filling and packing machine.
0 notes
Text
Conveying Equipment
https://www.nielmachinery.com/products/powder-conveying-equipment-system/
Conveying Equipment
The conveyor is a machine that frictionally drives the material in a continuous manner. It can be used to form a material conveying process on a certain conveying line from the initial feeding point to the final discharging point. It can carry out the transportation of broken materials as well as the transportation of individual items. In addition to pure material handling, it can also be combined with the requirements of the process in the production process of various industrial enterprises to form a rhythmic flow line. Therefore, the conveying equipment is widely used in various modern industrial enterprises.
Conveying Equipment List
Vacuum Conveyor
NZKS vacuum conveyor unit is using a whirlpool air pump extracting air. The inlet of absorption material tap and the whole system is made to be in a vacuum state. The powder grains of material is absorbed into the material tap with ambient air and formed to be the air flowing with material passing the absorption material tube, they arrive at the hopper.
Vacuum Conveyor
Auger Conveyor
Auger conveyor is also called material hoist. The vibrating screw feeder can lift a variety of powder materials. The material box and the auger are made of stainless steel. The vibration amplitude of each switch motor and vibration motor can be adjusted.
Auger Conveyor
Bucket Elevator
The bucket elevator is suitable for lifting from a low place to a high place. After the material is supplied to the hopper through the vibrating table, the machine automatically runs continuously upwards.
Bucket Elevator
Belt Conveyor
Belt Conveyor is widely used in home appliances, electronics, electrical appliances, machinery, tobacco, injection molding, post and telecommunications, printing, food and other industries, assembly, testing, debugging, packaging and transportation of objects.
Belt Conveyor
Roller Conveyor
Roller conveyor is suitable for the transportation of all kinds of boxes, bags, pallets, etc., bulk materials, small items or irregular items that need to be placed on the pallet or in the tote. It can transport a single piece of material with a large weight, or withstand a large impact load.
Roller Conveyor
Application Industry of Conveying Equipment
Fine chemicals: pigments, dyes, coatings, carbon black, titanium dioxide, iron oxide, ceramic powder, heavy calcium, light calcium, bentonite, molecular sieves, kaolin, silica gel, activated carbon, etc.
Pesticide ore: urea, ammonium chloride, ammonium bicarbonate, soda powder, solid pesticides, tungsten powder, pesticide additives, copper concentrate powder, coal powder, phosphate rock powder, alumina powder, etc.
Building materials: cement, clay, yellow sand, quartz sand, clay powder, silica, limestone powder, dolomite powder, sawdust powder, glass fiber, silica, talcum powder, etc.
Food industry: flour, starch, cereals, milk powder, food additives, etc.
Classification of Conveying Equipment
The powder conveying equipment refers to the material handling machinery that continuously transports materials on a certain line, also known as the assembly line. The conveying line can be transported horizontally, obliquely and vertically, or it can form a space conveying line, which is generally fixed. The conveyor has a large conveying capacity and a long transportation distance, and can also complete several process operations simultaneously in the conveying process, so the application is very extensive.
Belt conveyor
The belt conveyor consists of a driving device, a tensioning device, a conveyor belt, a middle frame and a roller to form a conveyor belt.
As traction and load-bearing member, the bulk material or the finished product is continuously conveyed.
Auger conveyor
Auger conveyor is commonly known as an auger, suitable for horizontal conveying of granular or powdery materials, inclined to convey, vertical transport and other forms. The transport distance varies according to the deformity, generally from 2 meters to 70 meters.
Bucket elevator
The bucket elevator utilizes a series of hoppers that are uniformly fixed to the endless traction member, vertical. A continuous conveying machine that lifts materials. The bucket elevator has the advantages of large conveying capacity, high lifting height, stable and reliable operation, and long service life.
Roller conveyor
Roller conveyors can transport parts with a flat bottom at a horizontal or small angle of inclination products, such as plates, rods, tubes, profiles, trays, box containers and various workpieces. For non-flat bottom items and flexible items, delivery can be achieved by means of a tray. It has the characteristics of simple structure, reliable operation, convenient maintenance, economy, energy-saving, etc. The most outstanding thing is that he can be well connected and matched with the production process, and has functional diversity.
Vacuum conveyor
Vacuum feeder is a dust-free and closed pipeline conveying equipment that transports particles and powder materials by means of vacuum suction. The pressure difference between vacuum and environmental space is used to form gas flow in the pipeline and drive powder. The material movement to complete powder delivery.
Development Trend of Conveying Equipment
In the future, the conveyor will develop towards large-scale development, expanding the scope of use, automatic sorting of materials, reducing energy consumption, and reducing pollution.
Continue to develop into a large-scale.
Expand the scope of use of the conveyor. Develop conveyors that can operate in environments with high temperatures, low temperatures, corrosive, radioactive, and flammable materials, as well as materials that can transport hot, explosive, agglomerated, and viscous materials.
Make the structure of the conveyor meet the requirements of the single handling of the automatic control of the material handling system.
Reducing energy consumption to save energy has become an important aspect of scientific research in the field of transportation technology.
Reduce the dust, noise and exhaust gas generated by various conveyors during operation.
About Neil Machinery
The conveying equipment is one of the main parts of Neil mechanical products. Neil Machinery provides a roller conveyor, belt conveyor, ribbon conveyor, screw feeder, vacuum feeder, chain conveyor, sterilization conveyor, etc. Equipment, and can be designed and manufactured according to the needs of customers. These conveying equipment can form a complete powder production line with other products of Neil Machinery. You can leave a message or consult us according to specific needs.
0 notes
Text
Conveying Equipment
The conveyor is a machine that frictionally drives the material in a continuous manner. It can be used to form a material conveying process on a certain conveying line from the initial feeding point to the final discharging point. It can carry out the transportation of broken materials as well as the transportation of individual items. In addition to pure material handling, it can also be combined with the requirements of the process in the production process of various industrial enterprises to form a rhythmic flow line. Therefore, the conveying equipment is widely used in various modern industrial enterprises. Application Industry of Conveying Equipment Fine chemicals: pigments, dyes, coatings, carbon black, titanium dioxide, iron oxide, ceramic powder, heavy calcium, light calcium, bentonite, molecular sieves, kaolin, silica gel, activated carbon, etc.
Pesticide ore: urea, ammonium chloride, ammonium bicarbonate, soda powder, solid pesticides, tungsten powder, pesticide additives, copper concentrate powder, coal powder, phosphate rock powder, alumina powder, etc.
Building materials: cement, clay, yellow sand, quartz sand, clay powder, silica, limestone powder, dolomite powder, sawdust powder, glass fiber, silica, talcum powder, etc.
Food industry: flour, starch, cereals, milk powder, food additives, etc.
Classification of Conveying Equipment Conveying equipment refers to the material handling machinery that continuously transports materials on a certain line, also known as the assembly line. The conveying line can be transported horizontally, obliquely and vertically, or it can form a space conveying line, which is generally fixed. The conveyor has a large conveying capacity and a long transportation distance, and can also complete several process operations simultaneously in the conveying process, so the application is very extensive.
Belt conveyor
The belt conveyor consists of a driving device, a tensioning device, a conveyor belt, a middle frame and a roller to form a conveyor belt.
As traction and load-bearing member, the bulk material or the finished product is continuously conveyed.
Auger conveyor
Auger conveyor is commonly known as an auger, suitable for horizontal conveying of granular or powdery materials, inclined to convey, vertical transport and other forms. The transport distance varies according to the deformity, generally from 2 meters to 70 meters.
Bucket elevator
The bucket elevator utilizes a series of hoppers that are uniformly fixed to the endless traction member, vertical. A continuous conveying machine that lifts materials. The bucket elevator has the advantages of large conveying capacity, high lifting height, stable and reliable operation, and long service life.
Roller conveyor
Roller conveyors can transport parts with a flat bottom at a horizontal or small angle of inclination products, such as plates, rods, tubes, profiles, trays, box containers and various workpieces. For non-flat bottom items and flexible items, delivery can be achieved by means of a tray. It has the characteristics of simple structure, reliable operation, convenient maintenance, economy, energy-saving, etc. The most outstanding thing is that he can be well connected and matched with the production process, and has functional diversity.
Vacuum conveyor
Vacuum feeder is a dust-free and closed pipeline conveying equipment that transports particles and powder materials by means of vacuum suction. The pressure difference between vacuum and environmental space is used to form gas flow in the pipeline and drive powder. The material movement to complete powder delivery.
Development Trend of Conveying Equipment In the future, the conveyor will develop towards large-scale development, expanding the scope of use, automatic sorting of materials, reducing energy consumption, and reducing pollution.
Continue to develop into a large-scale.
Expand the scope of use of the conveyor. Develop conveyors that can operate in environments with high temperatures, low temperatures, corrosive, radioactive, and flammable materials, as well as materials that can transport hot, explosive, agglomerated, and viscous materials.
Make the structure of the conveyor meet the requirements of the single handling of the automatic control of the material handling system.
Reducing energy consumption to save energy has become an important aspect of scientific research in the field of transportation technology.
Reduce the dust, noise and exhaust gas generated by various conveyors during operation.
About Neil Machinery
The conveying equipment is one of the main parts of Neil mechanical products. Neil Machinery provides a roller conveyor, belt conveyor, ribbon conveyor, screw feeder, vacuum feeder, chain conveyor, sterilization conveyor, etc. Equipment, and can be designed and manufactured according to the needs of customers. These conveying equipment can form a complete powder production line with other products of Neil Machinery. You can leave a message or consult us according to specific needs.
We produce powder conveying equipment,material conveying equipment,powder conveyor and bulk powder handling equipment,RFQ today.
https://www.nielmachinery.com/products/powder-conveying-equipment-system/
0 notes
Text
Powder Filling Packing Machine
The packing machine refers to machinery that can complete all or part of the product and product packaging process. The packaging process includes major processes such as filling, wrapping, and sealing, as well as related pre- and post-processes such as cleaning, stacking, and disassembly.
In addition, the package also includes processes such as metering or stamping on the package. The use of mechanical packaging products can increase productivity, reduce labor intensity, meet the needs of large-scale production, and meet the requirements of sanitation. Basic Functions of Powder Filling Packing Machine The packaging is a necessary condition for products to enter the circulation field, and the main means of achieving packaging is the use of packaging machinery. With the development of the times and the advancement of technology, packaging machinery is playing an increasingly important role in the packaging field. Its main functions are as follows:
(1) can greatly improve labor productivity Sliding plastic blister sealing machine mechanical packaging is much faster than manual packaging.
(2) It can effectively guarantee the quality of packaging. Mechanical packaging can be obtained according to the requirements of packaging items, according to the shape and size of the required packaging.
(3) It can realize the operation that cannot be realized by manual packaging. Some packaging operations, such as vacuum packaging, pneumatic packaging, body packaging, isostatic filling, etc., are all impossible to achieve by manual packaging, and can only be realized by mechanical packaging.
(4) It can reduce labor intensity and improve labor conditions. The labor intensity of manual packaging is very high.
(5) Labor protection for workers for certain products that seriously affect the health of the body.
(6) It can reduce packaging costs, save storage and freight.
(7) It can reliably ensure that certain products are hygienic in products, avoiding direct contact with food and medicines and ensuring the quality of hygiene.
(8) It can promote the development of related industries. Packaging machinery is a comprehensive science. It involves various disciplines such as materials, processes, equipment, electronics, electrical appliances, and automatic control. It requires the simultaneous and coordinated development of all relevant disciplines. Disciplinary issues will affect the overall performance of packaging machinery.
Classification of Powder Filling Packing Machine There are many classification methods for packaging machinery. Each classification method has its own characteristics and scope of application, but it has its limitations. From the general situation of packaging machinery in the world, the more scientific classification method is classified according to its main function, which can grasp the essence of things.
(1) Filling machine
A filling machine is a packaging machine that loads a precise number of packages into various containers. The main types are:
volumetric filling machine. Including measuring cup, intubation, plunger, material level, screw, timing filling machine.
weighing filling machine. Including intermittent weighing, continuous weighing, weighing - centrifugation and other filling machines.
counting filling machine. Includes single-piece counting and multi-piece counting filling machines.
(2) Sealing machine
A sealing machine is a machine for sealing a container filled with a package, and the main types thereof are:
No sealing material sealing machine. Including hot pressing, cold pressing, fusion welding, plug-in, folding and other sealing machines.
There is a sealing material sealing machine. Including rotary, rolling, crimping, press-fit and other sealing machines.
has an auxiliary sealing material sealing machine. Including tape type, adhesive type, nail type, ligation type, stitching type, and another sealing machine.
(3) Wrapper
The wrapper is a package that wraps the package in whole or in part with a flexible packaging material Installed. The main types are:
full wrap wrapper. Including wrap, cover, body, seam, and other wrappers.
half-wrapped wrapper. Including folding, shrinking, stretching, winding and other wrapping machines.
(4) Multi-functional packaging machine
This type of packaging machine has two or more functions.
Routine maintenance of Powder Filling Packing Machine Several key points for the maintenance of packaging machinery: cleaning, fastening, adjustment, lubrication, anti-corrosion. In the ordinary production process, each machine maintainer should do it. According to the maintenance manual and maintenance procedures of the machine packaging equipment, strictly carry out various maintenance work according to the specified period, reduce the wear speed of the parts, eliminate the hidden troubles of the fault, and prolong The life of the machine.
Maintenance is divided into: routine maintenance, regular maintenance (minute: primary maintenance, secondary maintenance, tertiary maintenance), special maintenance (point: for seasonal maintenance, disable maintenance).
Routine maintenance
With cleaning, lubrication, inspection, and fastening as the center, routine maintenance should be carried out as required during and after the work of the machine.
The first-level maintenance work is carried out on the basis of routine maintenance. The key work is to lubricate, tighten and inspect all relevant parts and their cleaning work.
The secondary maintenance work focuses on inspection and adjustment. Specifically check the engine, clutch, transmission, transmission components, steering, and brake components.
The third-level maintenance focus is to detect, adjust, troubleshoot and balance the wear of each component. Diagnose and condition check the parts that affect the performance of the equipment and the parts with fault signs, and then complete the necessary replacement, adjustment, and troubleshooting.
Seasonal maintenance
It means that the packaging equipment should focus on the detection and repair of components such as the combustion system, hydraulic system, cooling system, and starting system before entering the summer and winter.
Disable maintenance
Refers to the cleaning, cosmetic, supporting, anti-corrosion work, etc. when the packaging equipment needs to be deactivated for a period of time due to seasonal factors (such as winter vacation).
About Neil Machinery
The packaging machine is an integral part of the packaging production line. Neil Machinery is dedicated to the design and manufacture of various semi-automatic, automatic filling machines and packaging machines. At the same time, our R&D team can customize according to the needs of customers. Packaging machine to satisfy customers
We have powder filling and packing machine,auger filler for sale,semi auto powder filling machine,semi automatic packing machine,semi packing machine,powder bag filling machine and bulk powder handling systems,contact us now.
https://www.nielmachinery.com/products/powder-filling-packing-machine/
0 notes
Text
Powder Mixer Machine
Powder mixer machine is a mechanical device that uniformly mixes two or more materials by mechanical force, gravity, and the like. In the process of mixing, it is also possible to increase the surface contact area of the material to promote the chemical reaction; it can also accelerate the physical change.
Types of Powder Mixer Machine Commonly used powder mixer machines are divided into gas and low viscosity liquid mixers, medium and high viscosity liquid and paste mixers, powder and granular solid materials mixing machinery.
The gas and low viscosity liquid powder mixing equipment features a simple structure and no rotating parts, low maintenance and repair, and low energy consumption. This type of powder mixing machine is divided into four types: airflow mixing, pipe mixing, jet mixing, and forced circulation mixing.
Powder mixing blender machine for medium and high viscosity liquids and pastes generally have strong shearing action.
Thermoplastic material mixing machinery is mainly used for mixing thermoplastic materials (such as rubber and plastic) with additives; powdered and granular solid material mixing machines are mostly intermittent operations, and also include machines that combine mixing and grinding, such as rim machines.
Currently, we supply spiral ribbon mixer, single shaft paddle mixer machine, double shaft paddle mixer machine, single paddle mixer, pulling type paddle mixer, powder mixer for sale, plough shear mixer machine, and bin blender machine. You may click the pictures above to get more product information.
Mixer Parts of Powder Mixing Machine Mixer parts of powder mixing blender machines are mainly made of wear-resistant alloy materials, including high-speed mixing scraper, mixing fin, wear-resistant lining, mixing arm, mixing shovel, planetary shovel, mixing coulter, stirring rod, mixing raft, etc.
How Does Powder Mixer Machine Work? The moving parts of the mechanical agitator also shear the liquid when it is rotated. The liquid is also subjected to shearing action when flowing through the wall and various fixing members installed in the container. These shearing effects will cause many local eddy current diffusion.
For liquids of different density, composition, and immiscibility, the shearing action caused by the agitation and the strong turbulence shred the dense liquid into small droplets and uniformly disperse it into the main liquid.
About Neil Machinery
As one of the leading powder mixing machine manufacturers in China, Niel Machinery is committed to the design and development of various types of powder machine mixer, such as laboratory powder mixer, dry powder mixer machine, milk powder mixer machine and laboratory dry powder blender. In combination with customer requirements, Neil Machinery can design the most suitable mixer for customers. At present, the main powder mixers are ribbon mixer, paddle Mixers, gravity-free mixers, pull-out mixers, various laboratory mixers, and lift hopper mixers, all made of 304 or 316 stainless steel, meeting food safety requirements. Neil Machinery can provide customers with a One-stop industrial powder mixer machine solution that saves customers time and provides the best solution.
We are one of the perfect powder mixing machine suppliers,dry powder mixer manufacturers and powder mixer manufacturers,we provide dry mixer machine,chemical powder mixing machine and bulk powder transfer systems,contact us now.
https://www.nielmachinery.com/products/powder-mixer-machine/
0 notes
Text
Pulling Type Paddle Mixer
The pulling type paddle mixer machine is mainly used for anti-cracking mortar, thermal insulation mortar, bonding mortar, plastering mortar, floor mortar and other dry powder mortars with high mixing uniformity and high-grade putty powder. Concrete admixtures, feeds, chemical powders, food flavors and other industries have also been greatly applied, and it is not suitable for the mixing of raw materials with a particularly large amount of spray and particularly large viscosity of materials.
Product Description of Pulling Type Paddle Mixer Machine Pulling type paddle mixer machine is widely used for drying and mixing of dry powder mortar, chemical, pesticide, detergent, pigment food, monosodium glutamate, milk powder, salt, feed, chemicals, ceramics, plastics, rubber additives, and other powders.
Pulling type paddle mixer machine is also called a non-gravity door open type mixer. Based on the long-term practice in the field of mixers, the equipment overcomes the shortcomings of horizontal mixer cleaning and uses gear reduction gearbox and mixer rotor direct connection transmission for higher reliability and longer service life.
Structural Characteristics of Pulling Type Paddle Mixer Machine The right end surface of the pulling type paddle mixer machine body is provided with a non-drive endplate, the left end is provided with a drive endplate, the lower end of the drive end plate is disposed inside the track, and the motor reducer and the rotor shaft are respectively provided with two, the left end of the rotor shaft and the output end of the motor reducer is connected and connected, and the rotor shaft is assembled inside the mixer body through the driving endplate. The rotor shaft is symmetrically arranged inside the mixer body, the blade is assembled on the rotor shaft, and the track is arranged on the lower side of the mixer body. The lower end opens a discharge door, and a shaft seal is arranged at a connection between the rotor shaft and the output end of the motor reducer.
The Pulling type paddle mixer machine is a new high-efficiency material mixer independently developed and designed by the Neil mechanical design team based on the twin-blade gravity-free mixer. This model maintains the advantages of the previous generation double-mix mixer. On the basis of the design of the side-opening door, the cleaning efficiency and mixing speed are greatly improved, the mixing time is shortened, and the production efficiency is greatly improved.
Application of Pulling Type Paddle Mixer Dry mortar
Chemicals, chemicals, detergents,
Feed, pesticides,
Pigment food, monosodium glutamate, milk powder, salt
Ceramic, plastic, rubber additives
Main Features of Pulling Type Paddle Mixer (1) Easy to clean, side-opening door design makes machine cleaning more convenient and saves production time
(2) The rotation speed of the shaft driven by the reducer and the structure of the blade will weaken the gravity of the material. With the lack of gravity, the difference in particle size and a specific gravity of each material is neglected during the mixing process.
(3) The intense mixing movement shortens the mixing time, which is faster and more efficient.
(4) Even if the material has a difference in specific gravity and particle size, a good mixing effect can be achieved under the rapid and vigorous tumbling of the staggered stirring blades.
Technical Data of Pulling Type Paddle Mixer Technical Data Model no. Effective Vol Loading ratio Power Speed Dimension (mm) Weight NCL-300 300L 0.6-0.8 4KW 53r/min 3240X1035X1430 580kg NCL-500 500L 0.6-0.8 7.5KW 53r/min 3390X1160X1480 860kg NCL-1000 1000L 0.6-0.8 11KW 45r/min 3590X1380X1630 1530kg NCL-1500 1500L 0.6-0.8 15KW 45r/min 3880X1550X1810 1980kg NCL-2000 2000L 0.6-0.8 18.5KW 39r/min 4180X1780X1930 2590kg NCL-3000 3000L 0.6-0.8 22KW 31r/min 4430X1910X2040 3620kg Power supply AC 3 Phase 208-415V 50/60HZ
Our company provides paddle type mixer,horizontal powder mixer,paddle mixer design,horizontal paddle mixer,paddle mixers for sale and bulk powder transport,RFQ today.
https://www.nielmachinery.com/products/pulling-type-paddle-mixer.html
0 notes
Text
Pulse Jet Dust Collector
This pulse jet dust collector is a new type of dust collector developed on the basis of our company's first generation dust collector. The stainless steel casing is thicker and the round design makes this duster have lower noise and beautiful appearance. The Teflon filter is wrapped around the bottom of the machine, and the overall dust removal efficiency is significantly higher than that of the first generation dust collector.
Product Description of Pulse Jet Dust Collector The new type pulse jet type dust collector is an air purification device with small volume and high dust removal efficiency. Suitable for a variety of independent dust-producing points, flexible and convenient, on-site dust collection, on-site treatment, can effectively ensure the cleanliness of the air.
The basic structure consists of a dust box, a centrifugal fan, a filter bag (filter cartridge), a pulse type dust collector and a microcomputer controller. The dust is sucked into the interior of the dust collector box by the negative pressure of the fan through the suction pipe, using gravity and upward airflow. The coarse-grained dust is directly filtered by the filter and directly dropped to the dust collector. The particulate dust is trapped on the outer surface by the filter, and the clean gas is filtered and decomposed and purified by the filter element, and then flows into the cleanroom, thereby being discharged from the air outlet by the fan. The entire dust removal filtration process is the result of a combination of gravity, inertial force, collision, electrostatic adsorption, and sieving.
Working Principle of Pulse Jet Dust Collector The dusty air enters the tank through the air inlet, and the coarser dust falls down to the ash drawer under the action of its own gravity. The other part of the fine dust is sucked on the outer wall of the filter cartridge and cleaned under the suction of the main fan. The air through the filter cartridge is discharged through the fan outlet. Can be directly discharged indoors for recycling. As the filtration conditions continue, the dust adsorbed on the surface of the filter cartridge is increasing. In order to ensure the normal operation of the system, the resistance of the precipitator should be maintained within the limit (1.2KPa), so the cleaning is performed by high frequency vibration. , complete the recycling of the filter cartridge.
Application of Pulse Jet Dust Collector
A grinding machine, etc
Food industry
Chemical Industry
Pharmaceutical industry
Commodity industry
Production line dust collect
Main Features of Pulse Jet Dust Collector Exquisite design, stainless steel, manufactured according to food-grade industry standards
Compact structure and small footprint
Sub-micron filtration, high purification efficiency
Easy maintenance and small workload
Can be used with a variety of dust-designed production line equipment for a wide range of applications
Technical Data of Pulse Jet Dust Collector Technical data Model NCC-1.5 NCC-2.2 NCC-3.0 NCC-4.0 NCC-5.0 NCC-7.5 Blowing rate(m³) 780-1070 1360-1680 1730-2420 2680-3590 3830-4580 4850-7050 Pressure(Pa) 950-700 970-590 1690-1120 1690-1120 1690-1120 1690-1120 Power(kw) 1.65 2.35 3.15 4.15 5.65 7.65 Max noise(DB) 55 60 65 65 70 70 Dedusting rate(%) 99.9 99.9 99.9 99.9 99.9 99.9 Dimension(⌀*H)(mm) ⌀650*1620 ⌀680*1740 ⌀720*1810 ⌀780*1880 ⌀850*1970 ⌀890*1020 Total weight(kg) 110 150 180 240 350 460 Filter Teflon Teflon Teflon Teflon Teflon Teflon Power supply 3 Phase 220V-400V 50HZ
We provide pulse jet dust collector working principle,dust collector pulse jet system,pulse jet cleaning system and powder handling and processing,RFQ today.
https://www.nielmachinery.com/products/pulse-jet-dust-collector.html
0 notes
Text
Ribbon Mixer Machine
The ribbon mixer machine consists of a U-shape tank, spiral and drives parts. The spirals dual structure. Outer spiral makes the material move from the sides to the center of the tank and the inner screw conveyor the material from the center to the sides to get the convective mixing.
Description of Ribbon Mixer Machine Generally, ribbon mixer machines are used for mixing a viscous or cohesive mixture of particulates and the addition of liquid and paste-like material in powder or granule. Since Viscous materials are difficult to clean, the spiral ribbon mixer is suitable for mass production and other occasions such as infrequent replacement mixing.
Our NRD series ribbon type mixer can mix many kinds of materials especially for the powder and granular which with viscosity or cohesion character, or add a little liquid and paste material into powder and granular material. The mixture effect is high. The cover of the tank can be made in open-type so as to clean and change parts easily. If you are interested and want to know our ribbon blender machine price, please feel free to contact us.
Structural Characteristics of Ribbon Blender Mixer The U-shaped elongated body of the tube structure ensures the resistance movement of the mixed materials within the barrel (powder, semifluid). Reverse rotation of a ribbon attached to the same horizontal axis, forming a low-power efficient mixing environment, generally made of ribbon blade helical double or triple, the outer spiral pooled material from both sides toward the center, the inner spiral conveying material from the center to both sides, the material can be formed more vortices in the flow. Horizontal ribbon blender can accelerate the mixing speed and mixing improve uniformity.
Application of Ribbon Blender Milk powder
Foodstuff
Medicinal
Chicken powder
Cosmetic Pigment
Other industries
Main Features of Ribbon Mixer Machine 1. Horizontal tank, single shaft with dual spiral symmetry circle structure.
2. Under the bottom of the tank, there has a flap dome valve (pneumatic control or manual control) of the center. The valve is an arc design that assures no material accumulated and without any dead angle when mixing. Reliable regular- seal prohibit the leakage between the frequent close and open.
3. The disconnection ribbon of the mixer can make the material mixed with more high speed and uniformity in a short time
4. This mixer also can be designed with the function to keep cold or heat. Add one layer outside the tank and put it into medium into the interlayer to get the mixing material cold or heat. Usually, use water for cool and hot steam or use electricity for heat.
Technical Data of Ribbon Blender Model NRD-200L NRD-300L NRD-500L NRD-1000L NRD-1500L NRD-2000L NRD-3000L Effective volume 200L 300L 500L 1000L 1500L 2000L 3000L Fully volume 280L 400L 680L 1275L 1820L 2450L 3680L Turning speed 53RPM 53RPM 45RPM 45RPM 39RPM 39RPM 37RPM Total weight 400KG 650KG 980KG 1300KG 1600KG 2200KG 2600KG Total power 4KW 5.5KW 7.5KW 11KW 15KW 18.5KW 22KW Length 1800MM 1900MM 2050MM 2500MM 2950MM 3330MM 3350MM Width 860MM 900MM 1050MM 1200MM 1350MM 1500MM 1850MM Height 860MM 900MM 1250MM 1350MM 1400MM 1650MM 2050MM Power supply 3P AC208-415V 50/60HZ
As one of the most professional ribbon mixer manufacturers from China, Niel Machinery has top quality ribbon mixer for sale. If you want to know our ribbon mixer price or other information of our ribbon mixer blender, please contact us via [email protected] or leave a message through our website.
Our website have ribbon mixer machine price and ribbon blender price,we also provide ribbon blender mixer machine and powder handling equipment,contact us now.
https://www.nielmachinery.com/products/ribbon-mixer-machine.html
0 notes
Text
Vacuum Conveyor
NZKS vacuum conveyor unit is using a whirlpool air pump extracting air. The inlet of absorption material tap and the whole system is made to be in a vacuum state. The powder grains of material is absorbed into the material tap with ambient air and formed to be the air flowing with material passing the absorption material tube, they arrive at the hopper. The air and materials are separated into it. The separated materials are sent to the receiver control center controls the on/of state of pneumatic triple valve for feeding or discharging the materials
Product Description of Vacuum Conveyor
In the vacuum conveyor unit, the compressed air opposite the blowing device is fitted. When discharging the materials every time, the compressed air pulse oppositely blows the filter. The powder attached on the surface of filter is blown off for ensuring normal absorbing material
Structural Characteristics of Vacuum Conveyor
conveying is the closed transportation of pipelines. This kind of vacuum conveying method can prevent dust environmental pollution, improve the working environment, reduce pollution of materials and personnel to materials and improve cleanliness. Because it is pipeline transportation, it takes up small space and can complete powder in a narrow space. The material is conveyed to make the workspace space beautiful; especially not limited by the length and distance. At the same time, the vacuum feeder can reduce labor intensity and improve the working efficiency; it is the first choice for most powder material transportation methods.
The vacuum conveyor consists of a vacuum pump (oil-free, water-free), a membrane filter bag filter, a compressed air backflushing device, a pneumatic discharge door device, a vacuum hopper, a stainless steel adjustable suction gun, a conveying hose and the like.
Vacuum conveyor is mainly used to transport powder and granular materials, such as raw material powder, chemical powder, metal oxide powder; capsules, tablets, pills, small food particles, etc.; not suitable for conveying too moist, sticky overweight material
Application of Vacuum Conveyor
l Food powder
l Medicine powder
l Chemical powder
l Metal oxide powder
l Capsules, tablets, pills, small food pellets
Main Features of Vacuum Conveyor
(1) The whole machine is powered by a vortex air pump. The pump is oil-free, water-free and maintenance-free.
(2) The entire conveying process is completed in a completely closed state, preventing dust pollution.
(3) The machine is a building block type mechanism, and the barrel body is connected by a quick opening clamp, which is convenient and quick to disassemble and clean.
(4) Low energy consumption, low noise, and convenient control.
(5) The special S-type flange is used between the barrel and the barrel to prevent dust from overflowing.
https://www.nielmachinery.com/products/vacuum-conveyor-for-powder.html
0 notes
Text
Single Shaft Paddle Mixer Machine
https://www.nielmachinery.com/products/single-shaft-paddle-mixer-machine.htmlThe structure of the single shaft paddle mixer machine is firm and stable. Both the mixing paddle and material contact of the single paddle mixer is made of stainless steel. Single shaft paddle mixer machine has good corrosion resistance and keeps the quality and cleanness of the material without discoloration. The transmission mechanism of a single paddle mixer adopts worm gear and worm to directly drive. It has no excessive noise when used, and has sufficient oil storage capacity to get good lubrication.
Niel Machinery has paddle mixers for sale. We supply high quality but cheap paddle mixer. The following are detailed information of rigid single paddle mixer.
Instructions for Use And Precautions of Single Shaft Paddle Mixer Machine
Before using the paddle type mixer, perform a dry run test. Before the test, check the firmness of all the connecting parts of the paddle agitator mixer, the amount of lubricating oil in the reducer and the integrity of the electrical equipment, then close the main switch and put on the power supply.
Empty running test. The empty running test shall be connected to the test according to the steps and functions of Article 15 of this manual.
If you need to scrape the groove wall material during the operation of an electric paddle mixer, apply bamboo and wood tools, and do not use your hands to avoid accidents.
If the machine is found to be abnormal in vibration or abnormal noise during use, stop it immediately.
the use of load should not be too large, generally measured by the load of the motor, with 380V motor in the heavy-duty current when mixing, no more than 6 amps are normal if the load should be reduced immediately to reduce the mixing capacity.
The shaft seals at both ends of the mixing paddle should be kept clean to avoid blackening and deterioration of the material.
Managers must be familiar with the technical performance, internal structure, and control structure of the machine. Do not leave the worksite during operation to prevent damage to the machine parts, so as to ensure safe production.
Structural Characteristics of Single Shaft Paddle Mixer Machine
(1) The single shaft paddle mixer machine is a batch mixer with excellent mixing uniformity.
(2) The gap between the rotor and the casing is small so that the materials can be fully mixed, and the bottom is full-length opening, material residue
small
(3) The two ends of the body are tightly sealed to prevent the leakage of the two shaft ends.
(4) The discharge door is pneumatically controlled, the action is more accurate and reliable, and the sealing performance is good.
(5) The machine is equipped with a liquid adding device, and the distribution is evenly dispersed.
(6) The overall structure is reasonable, the appearance is beautiful, and the operation and maintenance are convenient.
Application of Single Shaft Paddle Mixer Machine
Milk powder
Foodstuff
Medicinal
Chicken powder
Cosmetic Pigment
Other industries
Main Features of Single Shaft Paddle Mixer Machine
The paddles of different directions drive materials through different angles, mixing time approx. 3 to 5 minutes.
The rotating paddles will be filled with the chamber in a compact design, mixing evenness will be up to 99%.
There is only a 2-5mm gap between paddle and chamber, discharging outlet in open type.
Patent design can make sure the rotating shaft and discharging outlet has no leakage.
All with the polishing process in the chamber, there is no fastening pc such as nut, etc.
Full stainless steel 304 construct except hearing parts, very elegant and generous.
Technical Data of Single Shaft Paddle Mixer Machine
https://www.nielmachinery.com/products/single-shaft-paddle-mixer-machine.html
0 notes
Text
Semi Automatic Weighing and Filling Machine
https://www.nielmachinery.com/products/semi-automatic-weighing-and-filling-machine.htmlThe semi automatic weighing and filling machine is mainly designed for ultra-fine powder and high-precision packaging requirements that are easy to dust. It performs two-speed filling, metering and lifting according to the signal given by the weight sensor mounted under the container. It is suitable for packaging milk powder, additives, Toner, dry powder for fire extinguishers, other ultrafine powders, and powders with high precision packaging requirements.
Working Principle of Semi Automatic Weighing and Filling Machine
The semi automatic weighing and filling machine is an automatic weighing type filling machine. After the powder material enters the hopper, it is poured into the packaging bag through the screw. The machine is provided with an automatic bag-holding function, which automatically releases after reaching the standard weight, and the whole machine can be controlled by the touch screen. And can pre-store multiple recipes, convenient and efficient.
Application of Semi Automatic Weighing and Filling Machine
Milk powder
Foodstuff
Medicinal
Chicken powder
Cosmetic Pigment
Other industries
Main Features of Semi Automatic Weighing and Filling Machine
(1) The pneumatic bagging device and the bracket are mounted on the weight sensor, and the fast and slow filling according to the preset weight, the weighing system with high reaction speed, ensures high packaging precision;
(2) The servo motor drives the tray to lift and lower, and the lifting speed can be set arbitrarily. When filling, basically no dust is raised to pollute the environment;
(3) Servo motor and servo drive control screw, stable performance, high precision
(4) PLC control, touch screen man-machine interface display, easy to operate;
(5) All stainless steel structure, combined or open type bin, easy to clean
(6) The filling head is equipped with a pistol to adjust the height, and it is easy to realize a variety of specifications.
(7) Fixed screw mounting structure, which does not affect the material properties when filling.
(8) Workflow: manual bagging or manual canning → container rise → rapid filling, while the container is lowered → the weight reaches the pre-value → slow filling → the weight reaches the target value → the container is manually taken out;
(9) Pneumatic bagging device and tow tank device are available for selection, and only need to select different devices to meet the filling and bagging requirements.
(10) Two working modes can be switched, quantitative or real-time weighing, quantitative speed is fast, accuracy is slightly worse, real-time weighing type, high precision, slower speed
https://www.nielmachinery.com/products/semi-automatic-weighing-and-filling-machine.html
0 notes
Text
Semi Automatic Filling Machine
This type of semi automatic filling machine can complete the measurement, filling and the like, and is suitable for measuring powdery and granular materials with poor flow or fluidity, such as milk powder, protein powder, rice flour, milk tea, solid beverage, coffee powder, white sugar, glucose, food additive, feed, pharmaceutical raw materials, pesticides, dyes, flavors and fragrances.
Working Principle of Semi Automatic Filling Machine
This filling machine is a quantitative semi-automatic filling machine. It is mainly used for filling various fine powders and particulate matter. Users need to input the amount of material injected each time in the control panel, and then the system will control the screw injection to reach After the predetermined amount, the screw will automatically stop the injection, the user can store more than ten different formulas and specific gravity in the control panel, which is convenient for the next use, which can greatly save the user's time and install the electronic scale on the machine. The user can weigh the weight of the material after filling to calculate the accuracy. At the same time, this semi-automatic filling machine can be combined with screw feeder, mixer, conveyor belt and other equipment to form the filling production line.
Application of Semi Automatic Filling Machine
Milk powder, coffee powder
Foodstuff, grain, protein powder
Medicinal
Chicken powder
Cosmetic Pigment
Chemical powder and detergent powder. etc
Other industries
Main Features of Semi Automatic Filling Machine
All stainless steel structure; combined transparent bin; easy to remove and wash without tools;
servo motor and servo drive control screw;
PLC control, touch screen man-machine interface display, easy to operate;
Designed as a weighing feedback specific gravity tracking type, which overcomes the shortcomings of changes in the weight of the package due to changes in the specific gravity of the material;
Various product adjustment parameter formulas can be stored, used after preparation, and stored up to 10 recipes;
Replace the screw attachment, which can adapt to a variety of materials such as ultra-fine powder to small particles.
Technical Data of Semi Automatic Filling Machine
https://www.nielmachinery.com/products/semi-automatic-powder-filling-machine.html
0 notes
Text
Ribbon Mixer Machine
As one of the most professional ribbon mixer manufacturers from China, Niel Machinery has top quality ribbon mixer for sale. If you want to know our ribbon mixer price or other information of our ribbon mixer blender, please contact us via [email protected] or leave a message through our website.The horizontal ribbon mixer machine consists of a U-shape tank, spiral and drives parts. The spirals dual structure. Outer spiral makes the material move from the sides to the center of the tank and the inner screw conveyor the material from the center to the sides to get the convective mixing.
Description of Ribbon Mixer Machine
Generally, ribbon mixer machines are used for mixing a viscous or cohesive mixture of particulates and the addition of liquid and paste-like material in powder or granule. Since Viscous materials are difficult to clean, the spiral ribbon mixer is suitable for mass production and other occasions such as infrequent replacement mixing.
Our NRD series ribbon type mixer can mix many kinds of materials especially for the powder and granular which with viscosity or cohesion character, or add a little liquid and paste material into powder and granular material. The mixture effect is high. The cover of the tank can be made in open-type so as to clean and change parts easily.
Structural Characteristics of Ribbon Blender Mixer
The U-shaped elongated body of the tube structure ensures the resistance movement of the mixed materials within the barrel (powder, semifluid). Reverse rotation of a ribbon attached to the same horizontal axis, forming a low-power efficient mixing environment, generally made of ribbon blade helical double or triple, the outer spiral pooled material from both sides toward the center, the inner spiral conveying material from the center to both sides, the material can be formed more vortices in the flow. Horizontal ribbon blender can accelerate the mixing speed and mixing improve uniformity.
Application of Ribbon Blender
Milk powder
Foodstuff
Medicinal
Chicken powder
Cosmetic Pigment
Other industries
Main Features of Ribbon Mixer Machine
1. Horizontal tank, single shaft with dual spiral symmetry circle structure.
2. Under the bottom of the tank, there has a flap dome valve (pneumatic control or manual control) of the center. The valve is an arc design that assures no material accumulated and without any dead angle when mixing. Reliable regular- seal prohibit the leakage between the frequent close and open
3. The disconnection ribbon of the mixer can make the material mixed with more high speed and uniformity in a short time
4. This mixer also can be designed with the function to keep cold or heat. Add one layer outside the tank and put it into medium into the interlayer to get the mixing material cold or heat. Usually, use water for cool and hot steam or use electricity for heat.
As one of the most professional ribbon mixer manufacturers from China, Niel Machinery has top quality ribbon mixer for sale. If you want to know our ribbon mixer price or other information of our ribbon mixer blender, please contact us via [email protected] or leave a message through our website.
https://www.nielmachinery.com/products/ribbon-mixer-machine.html
0 notes
