What are the top 5 enterprise level servers from Dell?

Here are Dell's top 5 enterprise-level servers for 2025, based on performance, scalability, and industry relevance.

1. Dell PowerEdge R940xa

Performance: A 4U rack server designed for compute-intensive workloads like AI, machine learning, and GPU-accelerated databases. It supports up to four 2nd Gen Intel Xeon Scalable processors (112 cores) and up to 4 double-width GPUs (e.g., NVIDIA A100) or 8 FPGAs .

Memory & Storage: Features 48 DDR4 DIMM slots (up to 6 TB) with support for NVDIMMs and Intel Optane DC persistent memory, totaling 15.36 TB. Internal storage includes up to 32x 2.5" drives (132 TB) and 4 NVMe PCIe SSDs .

Management: Built-in iDRAC9 with lifecycle controller for remote management and encrypted firmware updates .

2. Dell PowerEdge XE9680

AI/HPC Focus: A 4U server optimized for AI training and high-performance computing. It integrates dual Intel Xeon Platinum 8468 CPUs and supports up to 8 NVIDIA H100 or AMD MI300X GPUs with NVLink for extreme parallel processing .

Scalability: Offers 12x PCIe Gen 5 slots, 1 TB DDR4 memory, and high-speed NVMe storage for real-time data processing. Its liquid-cooled variant (XE9680L) enhances efficiency in dense data centers .

Security: Cyber-resilient architecture with silicon root of trust and secure erase .

3. Dell PowerEdge R750xs

Flexibility: A 2U rack server ideal for virtualization, cloud, and ERP systems. It supports 3rd Gen Intel Xeon Silver/Gold processors (up to 32 cores) and 16 DDR4 DIMM slots (1 TB max) .

Storage: Configurable with up to 24x 2.5" SAS/SATA drives or 16x NVMe drives, plus rear expansion for additional 2.5" drives. Features PCIe Gen 4 slots for GPU/FPGA acceleration .

Efficiency: Air-cooled design with optional direct liquid cooling (DLC) for power optimization .

4. Dell PowerEdge R640

Density & Cost-Efficiency: A 1U dual-socket server designed for dense data centers. It supports 2nd Gen Intel Xeon Scalable processors and up to 24x 2.5" drives (132 TB) or 10x NVMe drives for software-defined storage (SDS) .

Networking: Offers 12x PCIe Gen 3 slots and 10/25/100 GbE connectivity, making it suitable for private cloud and HPC workloads .

Management: Agent-free iDRAC9 and OpenManage Enterprise for centralized monitoring .

5. Dell PowerEdge R840

Multiprocessing: A 2U 4-socket server for data analytics and large-scale databases. It supports up to four Intel Xeon Scalable processors (112 cores) and 48 DDR4 DIMMs (6 TB) .

Storage: Configurable with up to 26x 2.5" drives (184 TB) or 24x NVMe drives (153 TB), plus 2x rear 2.5" drives. Supports dual FPGAs or GPUs for acceleration .

Security: System lockdown mode and cryptographically signed firmware to prevent unauthorized changes .

Honorable Mentions:

Dell PowerEdge R6715 (1U, AMD EPYC 9005 series): Optimized for AI inference and edge computing, with up to 64 cores and 1.5 TB DDR5 memory . Dell PowerEdge R7715 (2U, single-socket): High-performance server for data warehousing, supporting up to 160 cores and 6 TB DDR5 memory .

These servers are selected based on their ability to handle modern enterprise workloads, scalability, and Dell’s ongoing innovation in AI, security, and management tools. For specific use cases (e.g., edge vs. core data center), consult Dell’s latest documentation or partner with a certified provider.

[skywardtelecom]

Does the PowerEdge R760 support NVMe drives for storage?

The PowerEdge R760 supports NVMe drives for storage. It is a 2U rack - mount server that can support up to 24 NVMe drives. The specific storage configurations are as follows:

Front bays: It can support up to 12x 3.5 - inch SAS/SATA (HDD/SSD) with a maximum capacity of 240TB, 8x 2.5 - inch SAS/SATA/NVMe (HDD/SSD) with a maximum capacity of 122.88TB, 16x 2.5 - inch SAS/SATA/NVMe (HDD/SSD) with a maximum capacity of 245.76TB, and 24x 2.5 - inch SAS/SATA/NVMe (HDD/SSD) with a maximum capacity of 368.64TB.

Rear bays: It can support up to 2x 2.5 - inch SAS/SATA/NVMe (HDD/SSD) with a maximum capacity of 30.72TB and 4x 2.5 - inch SAS/SATA/NVMe (HDD/SSD) with a maximum capacity of 61.44TB.

The R760 can be configured with direct storage access or with the new Dell PERC 12 RAID card that enables NVMe hardware RAID (up to 16 hardware RAID + 8 direct - attached NVMe). Additionally, the server supports the new EDSFF E3.S SSDs, which are the only Gen 5 form factor Dell supports on this platform, while the U.2 bays are Gen 4 only

[skywardtelecom]

HPE Servers' Performance in Data Centers

HPE servers are widely regarded as high-performing, reliable, and well-suited for enterprise data center environments, consistently ranking among the top vendors globally. Here’s a breakdown of their performance across key dimensions:

1. Reliability & Stability (RAS Features)

Mission-Critical Uptime: HPE ProLiant (Gen10/Gen11), Synergy, and Integrity servers incorporate robust RAS (Reliability, Availability, Serviceability) features:

iLO (Integrated Lights-Out): Advanced remote management for monitoring, diagnostics, and repairs.

Smart Array Controllers: Hardware RAID with cache protection against power loss.

Silicon Root of Trust: Hardware-enforced security against firmware tampering.

Predictive analytics via HPE InfoSight for preemptive failure detection.

Result: High MTBF (Mean Time Between Failures) and minimal unplanned downtime.

2. Performance & Scalability

Latest Hardware: Support for newest Intel Xeon Scalable & AMD EPYC CPUs, DDR5 memory, PCIe 5.0, and high-speed NVMe storage.

Workload-Optimized:

ProLiant DL/ML: Versatile for virtualization, databases, and HCI.

Synergy: Composable infrastructure for dynamic resource pooling.

Apollo: High-density compute for HPC/AI.

Scalability: Modular designs (e.g., Synergy frames) allow scaling compute/storage independently.

3. Management & Automation

HPE OneView: Unified infrastructure management for servers, storage, and networking (automates provisioning, updates, and compliance).

Cloud Integration: Native tools for hybrid cloud (e.g., HPE GreenLake) and APIs for Terraform/Ansible.

HPE InfoSight: AI-driven analytics for optimizing performance and predicting issues.

4. Energy Efficiency & Cooling

Silent Smart Cooling: Dynamic fan control tuned for variable workloads.

Thermal Design: Optimized airflow (e.g., HPE Apollo 4000 supports direct liquid cooling).

Energy Star Certifications: ProLiant servers often exceed efficiency standards, reducing power/cooling costs.

5. Security

Firmware Integrity: Silicon Root of Trust ensures secure boot.

Cyber Resilience: Runtime intrusion detection, encrypted memory (AMD SEV-SNP, Intel SGX), and secure erase.

Zero Trust Architecture: Integrated with HPE Aruba networking for end-to-end security.

6. Hybrid Cloud & Edge Integration

HPE GreenLake: Consumption-based "as-a-service" model for on-premises data centers.

Edge Solutions: Compact servers (e.g., Edgeline EL8000) for rugged/remote deployments.

7. Support & Services

HPE Pointnext: Proactive 24/7 support, certified spare parts, and global service coverage.

Firmware/Driver Ecosystem: Regular updates with long-term lifecycle support.

Ideal Use Cases

Enterprise Virtualization: VMware/Hyper-V clusters on ProLiant.

Hybrid Cloud: GreenLake-managed private/hybrid environments.

AI/HPC: Apollo systems for GPU-heavy workloads.

SAP/Oracle: Mission-critical applications on Superdome Flex.

Considerations & Challenges

Cost: Premium pricing vs. white-box/OEM alternatives.

Complexity: Advanced features (e.g., Synergy/OneView) require training.

Ecosystem Lock-in: Best with HPE storage/networking for full integration.

Competitive Positioning

vs Dell PowerEdge: Comparable performance; HPE leads in composable infrastructure (Synergy) and AI-driven ops (InfoSight).

vs Cisco UCS: UCS excels in unified networking; HPE offers broader edge-to-cloud portfolio.

vs Lenovo ThinkSystem: Similar RAS; HPE has stronger hybrid cloud services (GreenLake).

Summary: HPE Server Strengths in Data Centers

Reliability: Industry-leading RAS + iLO management. Automation: AI-driven ops (InfoSight) + composability (Synergy). Efficiency: Energy-optimized designs + liquid cooling support. Security: End-to-end Zero Trust + firmware hardening. Hybrid Cloud: GreenLake consumption model + consistent API-driven management.

Bottom Line: HPE servers excel in demanding, large-scale data centers prioritizing stability, automation, and hybrid cloud flexibility. While priced at a premium, their RAS capabilities, management ecosystem, and global support justify the investment for enterprises with critical workloads. For SMBs or hyperscale web-tier deployments, cost may drive consideration of alternatives.

[skywardtelecom]

How do I configure an HPE DL380 Gen11 server?

The HPE DL380 configuration steps should include hardware selection, network settings, storage configuration, system management, power cooling, and initialization and security settings. The following is a step-by-step guide to configure the HPE ProLiant DL380 Gen11 server, combining hardware selection, network settings, system management and other functions.

1. Hardware Configuration

Processor Selection

Supports the fourth generation (Sapphire Rapids) and fifth generation (Emerald Rapids) Intel® Xeon® Scalable Processors, with a maximum of 64 cores per processor and a maximum TDP of 385W.

Select the suffix model according to the workload (such as H type for database analysis and N type for network edge computing).

Note: Processors with TDP >150W require a high-performance heat sink (such as P48818-B21).

Memory Configuration

Supports up to 8TB DDR5 RDIMM memory, 32 DIMM slots (16 per processor), and a maximum speed of 5600 MT/s.

Supports advanced memory protection features such as mirroring, combined channel, and HPE Fast Fault Tolerant Memory (ADDDC).

Storage configuration

Drive support:

Front: 24x SFF or 12x LFF hard drives.

Mid/rear expansion: supports 8x SFF or 6x NVMe rear drives.

Optional NVMe U.2/U.3, EDSFF, or M.2 SSDs.

Storage controller: Optional HPE Smart Array series (such as MR408i-o), supporting RAID 0/1/10/5 and NVMe pass-through.

Expansion slot and GPU support

Up to 8 PCIe Gen5 slots and 2 OCP 3.0 slots.

Supports 8 single-width or 3 double-width GPUs for AI and graphics-intensive tasks.

2. Network configuration

NIC selection and aggregation

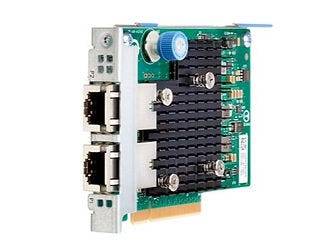

Optional OCP 3.0 NIC or PCIe adapter (such as Broadcom P210tep 10Gb), support 10/25/100/200Gb network.

Port aggregation example (taking Windows Server as an example):

Create a NIC team in the operating system, select LACP mode and dynamic load balancing.

The switch needs to configure a dynamic aggregation interface and add the corresponding port to the aggregation group.

iLO management network

Use the dedicated iLO service port (rear) for out-of-band management, support remote monitoring, firmware updates, and troubleshooting.

3. System management and initialization

iLO 6 configuration

Complete system initialization, BIOS settings, and firmware updates through the iLO 6 management interface. Support RESTful API and mobile management.

Enable security features: Silicon Root of Trust, firmware consistency detection, and memory encryption.

Operating system deployment

Use Intelligent Provisioning tools to quickly install operating systems (such as Windows Server or Linux).

Optional hot-swappable M.2 boot devices (such as NS204i-u) support RAID 1 redundancy.

4. Power and cooling

Power supply options: 800W/1000W/1600W redundant power supplies, support Titanium level energy efficiency (96%).

Cooling requirements: Processors with TDP >205W require a high-performance fan kit3, Operating temperature range: 5°C–45°C.

5. Security and maintenance

Physical security: Standard TPM 2.0, optional bezel lock and intrusion detection kit.

Firmware updates: Regularly upgrade firmware through HPE SUM tool or iLO 6 to ensure vulnerability fixes and performance optimization.

[skywardtelecom]

How to Identify Dell PowerEdge Server Generation

Dell PowerEdge servers with common design components are be grouped into generations, This article provides general guidance for PowerEdge server model naming conventions to help identify the generation and key components.

To identify the generation of a Dell PowerEdge server, follow these steps:

1. Check the Model Number

Locate the Model Number: Found on the server’s front bezel, rear label, or within system information (BIOS/iDRAC).

Decode the Model Number:

Format: [Series][Generation][Design] (e.g., R740 = Rack (R), 7 Series, 14th Generation).

Key Rule: The second digit in the model number indicates the generation when added to 10.

Example: R740 → Second digit = 4 → Generation = 14 (10 + 4).

2. Use Dell’s Support Site

Enter the Service Tag (found on the server’s label) at Dell Support. The site will display the generation and full specifications.

3. Check BIOS or iDRAC

BIOS: Boot into BIOS; the main screen often lists the model and generation.

iDRAC: Access the iDRAC web interface (via IP) to view detailed system info, including generation.

4. Command-Line Tools

Linux: Run sudo dmidecode -s system-product-name to get the model number.

Windows: Use msinfo32 or PowerShell:  Get-WmiObject Win32_ComputerSystem | Select-Object Model

5. Physical Indicators (Less Reliable)

LCD Bezel Color:

12th Gen (Rx20): Blue

13th Gen (Rx30): Green

14th Gen (Rx40): Orange

CPU Architecture:

12th Gen (2012): Intel Ivy Bridge

13th Gen (2014): Intel Haswell

14th Gen (2017): Intel Broadwell/Skylake

15th Gen (2020): Intel Cascade Lake/AMD Milan

Reference Chart

Model Number ExampleSecond DigitGenerationRelease Era R710, R610 1 11th ~2010 R720, R620 2 12th ~2012 R730, R630 3 13th ~2014 R740, R640 4 14th ~2017 R750, R650 5 15th ~2020 R760, R660 6 16th ~2023

Example Workflow

Model Number: R740 → Second digit = 4 → 14th Generation.

Service Tag: Enter at Dell Support → Confirms "PowerEdge R740 (14th Gen)".

iDRAC/BIOS: System Info → "PowerEdge R740, Generation 14".

This method ensures accurate identification regardless of server configuration or age.

[skywardtelecom]

Difference Between Server Management and Server Monitoring?

Certainly! Server management and server monitoring are distinct but closely related aspects of maintaining a server’s health, performance, and availability. Here’s a breakdown of the two:

Server Management

Server management involves the comprehensive administration, configuration, and upkeep of servers to ensure they operate optimally and meet business requirements. It focuses on proactive and reactive actions to maintain the server’s overall health.

Key Aspects:

1. Configuration and Setup:

• Installing operating systems and software.

• Configuring server roles, permissions, and security settings.

2. Maintenance:

• Applying software updates and patches.

• Performing regular backups and managing storage.

3. Optimization:

• Adjusting server settings for improved performance.

• Allocating resources such as CPU, memory, and disk space efficiently.

4. Troubleshooting and Repairs:

• Diagnosing and fixing hardware or software issues.

• Replacing faulty components.

5. Security:

• Implementing firewalls, antivirus software, and intrusion detection systems.

• Ensuring compliance with regulatory standards.

6. Resource Management:

• Scaling resources up or down based on demand.

• Managing user access and workloads.

Server Monitoring

Server monitoring, on the other hand, is the process of continuously tracking a server’s performance, availability, and health. It focuses on identifying and alerting administrators about potential issues in real time to prevent downtime or service disruptions.

Key Aspects:

1. Performance Tracking:

• Monitoring CPU usage, memory usage, disk I/O, and network traffic.

• Identifying bottlenecks or performance degradation.

2. Availability Checks:

• Ensuring the server and its services are up and running.

• Tracking uptime and downtime.

3. Alerting and Notifications:

• Setting thresholds for resource usage or errors.

• Sending alerts (e.g., email, SMS) when issues are detected.

4. Log Analysis:

• Reviewing server logs to identify errors or unusual activity.

• Analyzing trends over time for predictive insights.

5. Integration with Tools:

• Using tools like Nagios, Zabbix, or SolarWinds for automated monitoring.

• Employing dashboards for real-time visualization of server health.

6. Proactive Measures:

• Detecting potential hardware failures.

• Identifying security breaches or unauthorized access.

Key Differences

Feature Server Management Server Monitoring

Purpose Administering and maintaining the server. Observing and analyzing server performance.

Scope Broad, includes all aspects of server operation. Narrow, focuses on performance and health tracking.

Nature Proactive and reactive. Mostly proactive (real-time monitoring).

Tools Configuration tools, backup solutions. Monitoring software, alert systems.

Outcome Stability, efficiency, and security. Timely detection of issues to prevent downtime.

How They Work Together

• Server monitoring provides the data and alerts that inform server management decisions.

• For instance, if server monitoring detects high CPU usage, server management might involve adding more resources or optimizing workloads.

By combining effective server management with continuous monitoring, organizations can ensure their servers operate reliably and efficiently. Let me know if you’d like specific examples or tools for either!

[skywardtelecom]

Server CPU Model Code Analysis

Decoding Server CPU Model Numbers: A Comprehensive Guide

Server CPU model numbers are not arbitrary strings of letters and digits; they encode critical technical specifications, performance tiers, and use-case optimizations. This article breaks down the naming conventions for server processors, using Intel Xeon as a primary example. While other vendors (e.g., AMD EPYC) may follow different rules, the core principles of hierarchical classification and feature encoding remain similar.

1. Brand and Tier Identification

Brand: The prefix identifies the product family. For instance, Intel Xeon denotes a server/workstation-focused processor line.

Tier: Reflects performance and market positioning:

Pre-2017: Tiers were marked by prefixes like E3 (entry-level), E5 (mid-range), and E7 (high-end).

Post-2017: Intel introduced a metal-based tiering system:

Platinum: Models start with 8 or 9 (e.g., 8480H). Designed for mission-critical workloads, these CPUs support maximum core counts, advanced UPI interconnects, and enterprise-grade features.

Gold: Begins with 5 or 6 (e.g., 6448Y). Targets general-purpose servers and balanced performance.

Silver: Starts with 4 (e.g., 4410T). Optimized for lightweight workloads and edge computing.

2. Generation Identifier

The first digit after the tier indicates the processor generation. Higher numbers represent newer architectures:

1: 1st Gen Scalable Processors (2017, Skylake-SP, 14nm).

2: 2nd Gen Scalable Processors (2019, Cascade Lake, 14nm).

3: 3rd Gen Scalable Processors (2020–2021, Ice Lake/Cooper Lake, 10nm/14nm).

4: 4th Gen Scalable Processors (2023, Sapphire Rapids, Intel 7 process, Golden Cove architecture).

Example: In Platinum 8462V, the “4” signifies a 4th Gen (Sapphire Rapids) CPU.

3. SKU Number

The trailing digits (usually 2–3) differentiate SKUs within the same generation and tier. Higher SKU numbers generally imply better performance (e.g., more cores, larger cache):

Example: Gold 6448Y vs. Gold 6468Y: The latter (SKU 68) has more cores and higher clock speeds than the former (SKU 48).

4. Suffix Letters

Suffixes denote specialized features or optimizations:

C: Single-socket only (no multi-CPU support).

N: Enhanced for networking/NFV (Network Functions Virtualization).

T: Long-lifecycle support (10+ years).

Q: Liquid-cooling compatibility.

P/V: Optimized for cloud workloads (P for IaaS, V for SaaS).

Example: 4410T includes the “T” suffix for extended reliability in industrial applications.

5. Architecture and Interconnect Technologies

On-Die Architecture:

Ring Bus (pre-2017): Limited scalability due to latency spikes as core counts increased.

Mesh Architecture (post-2017): Grid-based core layout improves scalability (e.g., up to 40 cores in Ice Lake).

Interconnects:

UPI (Ultra Path Interconnect): Facilitates communication between multiple CPUs. Platinum-tier CPUs often support 3–4 UPI links (10.4–20.8 GT/s).

PCIe Support: Newer generations integrate updated PCIe standards (e.g., Sapphire Rapids supports PCIe 5.0).

Application-Based Selection Guide

High-Performance Computing (HPC): Prioritize Platinum CPUs (e.g., 8480H) with high core counts and UPI bandwidth.

Cloud Infrastructure: Choose P (IaaS) or V (SaaS) variants (e.g., 6454S).

Edge/Telecom: Opt for N-suffix models (e.g., 6338N) with network acceleration.

Industrial/Embedded Systems: Select T-suffix CPUs (e.g., 4410T) for extended lifecycle support.

Server CPU model numbers act as a shorthand for technical capabilities, enabling IT teams to quickly assess a processor’s performance tier, generation, and specialized features. By understanding these codes, organizations can align hardware choices with workload demands—whether deploying AI clusters, cloud-native apps, or ruggedized edge systems. For precise specifications, always cross-reference vendor resources like Intel’s ARK database or AMD’s technical briefs.

[skywardtelecom]

What is the difference between SATA and SAS?

SATA (Serial Advanced Technology Attachment) and SAS (Serial Attached SCSI) are both interfaces used for connecting storage devices, but they serve different purposes and have distinct characteristics. Here are the key differences:

1. Purpose and Use Case

SATA: Primarily designed for consumer-grade applications, such as personal computers and consumer electronics. It is commonly used for hard drives and solid-state drives in desktops and laptops.

SAS: Designed for enterprise environments, SAS is used in servers and storage arrays that require high performance, reliability, and scalability. It is suitable for applications demanding high availability and data integrity, such as databases and virtualization.

2. Performance

SATA: Typically offers lower data transfer rates, with standard speeds of 6 Gbps (SATA III). The focus is on cost-effectiveness rather than performance.

SAS: Provides higher data transfer rates, with speeds up to 12 Gbps and even 24 Gbps in newer versions (SAS-4). It is optimized for higher throughput and lower latency.

3. Data Integrity and Reliability

SATA: Generally lacks advanced error correction and redundancy features, making it less reliable for critical data storage.

SAS: Incorporates features like error checking, dual porting (for redundancy), and support for more robust RAID configurations, enhancing data integrity and reliability.

4. Device Support

SATA: Supports a limited number of devices per controller, typically up to 1 device per port.

SAS: Can support a much larger number of devices (up to 128 devices) due to its expandability and ability to connect multiple devices through expanders.

5. Cost

SATA: Generally cheaper due to its consumer focus and lower performance capabilities.

SAS: More expensive, reflecting its advanced features, performance, and suitability for enterprise applications.

6. Compatibility

SATA: SATA drives can connect to SATA interfaces, but they cannot connect to SAS interfaces.

SAS: SAS controllers can connect both SAS and SATA drives, allowing for greater flexibility in storage configurations.

Summary

In summary, SATA is more suited for consumer applications where cost is a primary concern, while SAS is designed for enterprise environments where performance, reliability, and scalability are critical.

[skywardtelecom]

Dell Precision 5860 Tower Workstation Review

The Dell Precision 5860 is a mid-range Intel-based tower workstation tailored for demanding tasks such as 3D rendering, AI development, and large-scale data processing. Built with enterprise-grade components, it balances performance, scalability, and reliability, making it ideal for engineers, designers, and developers.

Key Specifications and Features

Processing Power

Equipped with Intel Xeon W-series "Sapphire Rapids" CPUs, supporting up to 24 cores/48 threads (e.g., Xeon w7-2495X). For higher core counts, users must upgrade to the Precision 7960 (56 cores) or Precision 7865 (AMD Threadripper Pro, 64 cores).

Supports 2TB of DDR5-4800 ECC memory across 8 DIMM slots, ensuring stability for memory-intensive workflows.

Graphics and Expansion

Dual GPU support with options for NVIDIA RTX A6000 (48GB GDDR6) or AMD Radeon Pro W6800 (16GB GDDR6).

PCIe Gen5 and Gen4 slots:

1x Gen5 x16

1x Gen4 x16

3x Gen4 x8 (open-ended)

Dedicated slots for NVMe Gen4 SSDs and SATA drives.

Storage Flexibility

Configurable with 56TB maximum storage via dual Gen4 M.2 slots, two internal SATA bays, and two FlexBay slots for hot-swappable drives.

Design and Build

Robust steel chassis with recyclable materials (61% recycled plastics).

Tool-free access for easy upgrades and maintenance.

Optional rack-mount or horizontal placement with rubberized feet.

Software and Security

Pre-certified for ISV applications (e.g., AutoCAD, SolidWorks).

Advanced security features: TPM 2.0, BIOS-level encryption, and chassis intrusion detection.

Performance Highlights

AI and Compute Workloads: The Precision 5860’s Xeon CPUs and dual GPUs excel in AI model training, simulation, and rendering. Paired with Dell’s AI-ready optimizations, it supports frameworks like PyTorch and CUDA.

Thermal Efficiency: A large tower cooler with 11 heat pipes ensures stable performance under sustained loads.

Dell Optimizer: AI-driven software enhances application performance and system responsiveness based on usage patterns.

BIOS Quirks: The system may not display the Dell logo during POST if video output is not routed through the primary GPU slot. This is a design choice to prioritize stability.

Upgradability Restrictions: BIOS updates may limit downgrade options for certain Xeon processors.

[skywardtelecom]

How to fix UEFI Error HWC8010 or HWC8011 on Dell server r750xs POST

Fixing UEFI Error HWC8010 or HWC8011 on a Dell PowerEdge R750xs during POST typically involves troubleshooting hardware compatibility, firmware settings, or memory/storage issues. Since this is a server-grade system, the steps may differ slightly from consumer PCs. Below is a structured approach to diagnose and resolve the issue.

Possible Causes for HWC8010/HWC8011 on Dell R750xs:

Incompatible or Faulty RAM

Incorrect UEFI Boot Settings

Outdated or Corrupted BIOS/UEFI Firmware

Storage Drive Compatibility Issue (NVMe/SATA)

Secure Boot or TPM Configuration Conflict

Step-by-Step Fixes:

1. Reset BIOS/UEFI to Defaults

Restart the system and enter UEFI/BIOS Setup (usually by pressing F2, F12, DEL, or ESC during boot).

Look for an option like "Load Defaults" or "Reset to Factory Settings".

Save changes and reboot.

2. Check & Reseat RAM

Power off the system and unplug it.

Remove RAM sticks and reseat them firmly.

Test with one stick at a time to identify faulty RAM.

Ensure RAM is compatible with your motherboard (check manufacturer specs).

3. Update BIOS/UEFI Firmware

Visit the motherboard/Dell support site and download the latest BIOS.

Follow instructions to update (usually via a USB flash drive in BIOS or using a built-in updater).

4. Adjust UEFI Boot Settings

Enter BIOS and check:

Boot Mode: Set to UEFI (not Legacy/CSM).

Secure Boot: Try disabling it temporarily.

Fast Boot: Disable if enabled.

5. Check Storage Drives

If using NVMe SSD, ensure it’s properly seated.

Try booting with only one drive connected.

If the drive is new, check if it requires a UEFI driver (some older systems need NVMe support updates).

6. Disable TPM or Clear TPM (if applicable)

In BIOS, look for TPM (Trusted Platform Module) settings.

Try disabling TPM or clearing its keys (if error persists).

7. Test with Minimal Hardware

Disconnect all non-essential devices (extra drives, GPUs, USB devices).

Boot with only CPU, 1 RAM stick, and boot drive.

8. Check for Dell-Specific Fixes (if applicable)

Some Dell systems may need a BIOS recovery (check Dell’s support site for HWC8010/HWC8011 errors).

Try Dell SupportAssist for automated diagnostics.

Final Steps if Error Persists

Test with a different PSU (if possible).

Reset CMOS (remove motherboard battery for 5 mins).

Contact Dell/Motherboard Support if the issue remains unresolved.

If the error appeared after a hardware change (e.g., new RAM or SSD), revert to the old configuration to confirm compatibility.

[skywardtelecom]

PowerEdge R660：Your Strong Engine for Digital Transformation

In today's world where the digital wave is sweeping across the globe, data has become the most valuable asset for enterprises. How to efficiently process, analyze, and utilize data has become the key to winning the future. The Dell PowerEdge R660 server, a 2U dual-socket rack server designed for modern workloads, stands out as a powerful engine for enterprise digital transformation with its exceptional performance, flexible scalability, and reliable security.

Exceptional Performance to Meet Future Challenges

Powered by the 3rd Gen Intel® Xeon® Scalable processors, the PowerEdge R660 delivers robust computing performance, easily handling demanding workloads such as virtualization, databases, and artificial intelligence. Supporting up to 4TB of DDR4 memory, it ensures rapid processing of even the most complex datasets, meeting the ever-growing data processing needs of enterprises.

Flexible Scalability to Adapt to Business Growth

The PowerEdge R660 offers flexible storage and I/O options, supporting up to 10 x 2.5-inch or 4 x 3.5-inch drives, and can be configured with various RAID levels to meet the storage requirements of different application scenarios. Its abundant PCIe slots and network interfaces provide ample room for future business expansion.

Secure and Reliable, Ensuring Data Peace of Mind

The PowerEdge R660 features a multi-layered security design, safeguarding data from hardware, firmware, to software. It supports silicon-rooted trust, secure boot, and system lockdown, effectively defending against various security threats and ensuring enterprise data security.

Intelligent Management, Simplifying Operations

Equipped with iDRAC9 with Lifecycle Controller, the PowerEdge R660 enables automated server deployment, monitoring, and management, simplifying IT operations and reducing management costs. Integrated with OpenManage Enterprise, it provides a centralized server management platform, helping enterprises achieve comprehensive control over their IT infrastructure.

Empowering the Future, Achieving Infinite Possibilities

The PowerEdge R660 server, with its exceptional performance, flexible scalability, reliable security, and intelligent management features, provides strong momentum for enterprise digital transformation. Whether building a private cloud, deploying AI applications, or conducting big data analytics, the PowerEdge R660 can meet your needs, helping enterprises unleash the power of data and empower future innovation.

Choose PowerEdge R660, Choose Infinite Possibilities for the Future!

[skywardtelecom]

What is a Discrete Graphics Card?

In the world of computing, visuals matter—whether you’re gaming, designing, editing videos, or simply binge-watching your favorite shows. But what powers those crisp, vibrant images and seamless animations? Enter the **discrete graphics card**, a critical component that elevates your visual experience. Let’s dive into what it is, why it matters, and how it can transform your digital life.

A discrete graphics card (also called a dedicated GPU) is a standalone hardware component designed to handle graphical processing tasks independently of your computer’s central processor (CPU). Unlike an *integrated GPU*, which shares resources with the CPU and relies on system memory, a discrete GPU has its own dedicated memory (VRAM), cooling system, and processing power. This specialization allows it to deliver superior performance for graphics-intensive applications.

Popular brands like **NVIDIA** (GeForce RTX series) and **AMD** (Radeon RX series) dominate this space, offering GPUs tailored for gaming, creative work, and even AI-driven tasks.

Discrete vs. Integrated Graphics: What’s the Difference?

Why Do You Need a Discrete Graphics Card?

1. Gaming: Modern AAA games demand high frame rates and realistic graphics. A discrete GPU unlocks smoother gameplay, higher settings, and immersive technologies like VR. 2. Content Creation: Video editors, 3D artists, and animators benefit from accelerated rendering times and support for software like Blender, Adobe Premiere Pro, and AutoCAD. 3. Multitasking: Run multiple monitors, stream content, or edit while gaming—without lag. 4. Future-Proofing: Discrete GPUs adapt to evolving software demands, ensuring your system stays relevant longer.

Who Should Invest in a Discrete GPU?

- Gamers: For buttery-smooth gameplay and cutting-edge visuals. - Professionals: Designers, engineers, and video editors needing precision and speed. - Enthusiasts: Anyone craving a premium multimedia experience, from 4K movies to VR exploration.

How to Choosing the Right Discrete Graphics Card Consider these factors: - Budget: Entry-level cards (e.g., NVIDIA RTX 6000) handle 1080p gaming, while flagship models (e.g., RTX 4090) target 4K/8K enthusiasts. - Use Case: Gamers prioritize frame rates; creators focus on VRAM and software compatibility. - Compatibility: Ensure your PC has adequate power supply, cooling, and physical space.

The Future of Discrete GPUs

Discrete graphics cards are evolving beyond gaming. They now power AI workloads, machine learning, and even cryptocurrency mining. With advancements like real-time ray tracing and AI-driven super-resolution, GPUs are redefining what’s possible in visual computing.

Final Thoughts

A discrete graphics card isn’t just a luxury—it’s a gateway to unlocking your device’s full potential. Whether you’re battling virtual enemies, rendering a masterpiece, or simply enjoying stunning visuals, a dedicated GPU ensures you never compromise on performance.

[skywardtelecom]

Dell PowerEdge R660 Network Interface Controller Configuration Guide

The PowerEdge R660 is a Intel Processor server with possibilities for only 2 Network Interface controller port on the back panel from the motherboard with speeds of 1GbE RJ45.

The NIC speeds for the Dell PowerEdge R660 are, 1GbE, 8GbE, up to 100GbE if using a network card through the PCIe slot expansion, or OCP card. Only PCIe NIC and OCP 3.0 cards are accepted on the R660. RJ45, SFP, SFP+, Fiber Channel, SFP28, QSFP28, QSFP56 is the interface type the Dell PowerEdge R660 can have. NIC cards can come with a metal bracket or not, make sure you choose your option correctly. Some Network cards might have two variations, a low-profile variation and a full-height variation, which is based on the physical size of the card.

Dell PowerEdge R660 Network Interface Controller Upgrade Tips

There are 7 different types of interfaces: RJ45, SFP, SFP+, Fiber Channel, SFP28, QSFP28, QSFP56.

There are 2 different types of cards available for the R660: PCIe network cards and OCP 3.0 NIC Cards.

There are multiple port speeds: 1GbE, 8GbE, 10GbE, up to 100GbE.

The maximum port speed for the R660 is 100GbE (Gigabits over Ethernet).

The R660 does support fiber channel cards over PCIe.

The Dell PowerEdge R660 originally accepts up to 2 Network ports on the back panel of the chassis from the motherboard and an extra expansion PCIe card.

For more port speed the NICs to be used are only PCIe cards or, plugged into the PCIe slot.

Depending on the type of NIC card, one of two variations can be used, low-profile and high-profile. Make sure to choose the correct one.

[skywardtelecom]

727055 B21 Technical Specifications

Network Processor: Intel® X710 Controller

Data Rate: Two ports, each at 20 Gb/s bi-directional; 40 Gb/s aggregate bi-directional theoretical bandwidth.

Onboard Memory: 256 MB

Bus type: PCI Express 3.0 at 8 GT/s x8

Form Factor: Standard and low-profile adapter compliant with the PCIe standard

IEEE Compliance: 802.3, 802.1ab, 802.3x, 802.3ad, 802.3p, 802.1q, 802.3ae, 802.1au, 802.3ap, 802.1as, 802.3ak,802.1qaz, 802.1Qbb

Power: 10W typical, 10.8W maximum

Temperature: 0° to 55°C (32° to 131°F)

Humidity: 5% to 95% non-condensing

Emissions Classification: Class B

Agency Approvals

USA: FCC Part 15 Class B Canada: ICES-003, Issue 5 Japan: VCCI 2011–04 Class B International: EN55022:2010 + Class B, EN55024:2010; EN61000–3–2:2006, EN61000–3–3:2008 Taiwan: BSMI, CNS13438 (2006) Class B Australia/New Zealand (AS/NZS): AS/NZS CISPR 22: 2009+A1:2010 Class Korea: KN22 Class B, KN24

RoHS Compliance: 5 of 6

Safety: UL Mark (USA and Canada) CE Mark EN 605901 2nd edition

[skywardtelecom]

SFF8087 to 4 SATA cables available.

Discover more: https://www.skywardtel.com/c/cables/sas-cables

[skywardtelecom]

External Mini-SAS HD SFF-8644 to Mini-SAS SFF-8088 Cable

Maximize storage interconnect performance and space with this external Mini-SAS HD SFF-8644 to Mini-SAS SFF-8088 cable. This Mini-SAS HD to Mini-SAS Hybrid Cable is guaranteed to operate at 6.0 Gbps per lane and features an SFF-8644 pull-release connector with an SFF-8088 push-release connector on the other end.

This Mini SAS HD to Mini SAS hybrid cable is guaranteed to perform at speeds of 6.0 Gbps per lane and can be used to connect external drives with Mini SAS HD SFF-8644 connector to a controller with Mini SAS SFF-8088 connector.

Specifications :

Length: 0.5- 2.0 meters

Impedance: 100 Ohms

Wire diameter: 30AWG

Connector A: Mini SAS HD (SFF-8644) male

Connector B: Mini SAS (SFF-8088) female

Data Rate: 6.00 Gb/s

Applications: Fibre Channel, Infiniband, and SAS3.0

RoHS Compliant

Comply with SAS2.0 specification

[skywardtelecom]

External Mini SAS HD SFF-8644 To 4 Port SATA Cable

Mini SAS HD SFF-8644 to 4 SATA Cable is 6.0 Gbps Speed, 30 AWG, 100 Ohm Impedance.

Connectors: the SFF8644 HD Mini SAS 36 Pin at the Host-end (HBA Card), and the 4 X SATA fan-out at Target-end (such as SSD or HDD)

Universal Compatibility: the Mini SAS SFF 8644 to 4 sata cable compatible for all hard drives with sata port

Specifications: Data Rate UP to 6 GB/s; SAS 2.1 Compliant; SAS 2.1 Compliant

Application

1.RAID (Redundant Array of Independent Disks) 2.Workstation 3.Rack Server 4.Server 5.Storage shelf
