KT142C Voice Chip Smart Application Solution for Coffee Machines

I. Development Background

With the rapid development of the smart home market and increasing consumer demand for interactive experiences in home appliances, voice prompt functionality has become a key selling point for modern coffee machines. Traditional coffee machines relying solely on indicator lights and simple buzzer alerts can no longer meet user expectations for operational guidance, status feedback, and personalized experiences.

The KT142C voice chip, as a high-performance, cost-effective voice solution, provides coffee machine manufacturers with perfect voice interaction capabilities through its:

Built-in 320KB storage

MP3 format playback support

Flexible control methods

This solution enables clear information delivery even in noisy kitchen environments while enhancing user-friendliness and product differentiation.

II. Chip Application

The KT142C voice chip features:

SOP16 package

24-bit DAC with 90dB dynamic range and 85dB SNR

Two audio output modes:Direct PWM drive: Supports 8Ω/0.5W speaker (no external amplifier needed)DAC output: Connectable to external amplifiers (e.g., HAA2018) for higher power output

In coffee machine applications, KT142C enables:

Voice-guided operation steps

Real-time status feedback during brewing

Fault alarm notifications

Personalized welcome messages

The chip supports MP3 audio at 8-32kHz sampling rates, with 30-level volume control (0x06 command) and built-in audio DSP processing to ensure clear voice output in kitchen environments.

III. Functional Implementation

1. Voice Content Management

File naming convention: 001.mp3, 002.mp3... (up to 999 files)

Direct drag-and-drop updates via USB virtual drive (supports WinXP/Win7/Win10)

Folder categorization (max 99 folders, 255 files each)

2. Playback Control Methods

GPIO triggering: 4 configurable IOs (PA6/PA5/PA4/PA11) support one-touch playbackSix trigger modes configurable via config.txt (interruptible, non-interruptible, hold-to-loop, etc.)

UART control: Default 9600bps baud rate (adjustable), rich command set:

// Play specific file examples 7E 03 00 02 00 01 EF // Play 001.mp3 7E 0F 00 02 01 01 EF // Play 001.mp3 in folder 01 // Combined playback example (seamless multi-voice) 7E 21 00 05 01 03 02 05 04 EF // Play 001/003/002/005/004 sequentially

3. System Integration Key Points

Power design: Wide voltage input (2.6V-5.2V), recommendations:5V systems: Add series diode (e.g., 1N4001) for surge protection3V systems: Ensure ≥200mA current supply

Grounding: Audio ground (AGND) and digital ground (GND) shorted at power input

Status detection: BUSY pin (PA12) outputs playback status:Low: Playback activeHigh: Idle state

IV. Typical Application Scenarios

1. Operational Guidance

2. Fault Alerts

Low water: Loop "Please add water" (0x08 command)

Temperature abnormal: Urgent alert tone (random play 0x18)

Grounds container full: Combined "Please empty - coffee grounds" (0x21 command)

3. Power Saving Mode

Enable low-power mode via config.txt (standby current only 2μA)

Auto sleep after 5s inactivity

GPIO/UART wake-up support

V. Solution Advantages

Plug-and-Play Development

Professional Audio Quality

Industrial-Grade Reliability

Mass Production Support

VI. Recommended Voice Content

By integrating the KT142C voice chip, coffee machines achieve intelligent upgrades while providing users with more convenient and intuitive operation. Its flexible configuration and excellent cost-performance ratio make it an ideal choice for small-to-medium batch smart coffee machine development.

[coffeehouseke]

☕ Discover the Perfect Coffee Machine for Your Needs! ☕

Are you a coffee lover looking for the ultimate brewing experience? At Coffee House, we offer a wide range of coffee machines that cater to every taste and need. Whether you prefer a simple machine for your home kitchen or an advanced model for your office or café, we’ve got you covered!

Our selection includes top brands known for their quality and reliability, ensuring you get the perfect cup of coffee every time. From espresso makers to drip coffee machines, find the one that suits your style and savor the rich flavors of your favorite brews.

Don’t settle for less when it comes to your coffee. Explore our collection and find the perfect coffee machine that will elevate your coffee experience.

👉 Visit Coffee House and Shop Now!

[fajcoffeemachines]

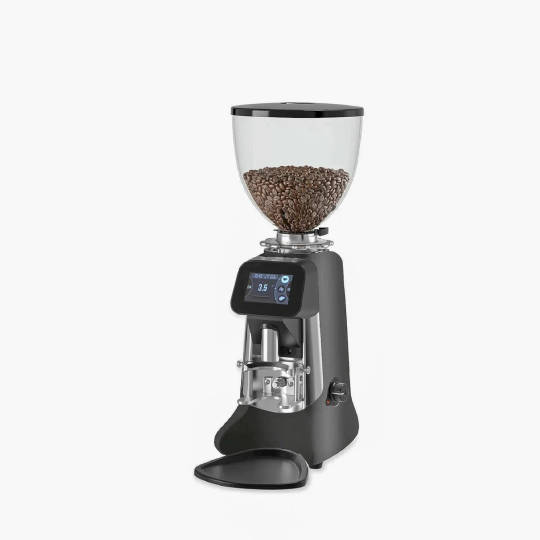

Hey Cafe Buddy Professional On Demand Espresso Grinder.
