Ryobi Cs30

OPERATOR'S MANUAL

Ryobi Cs30 Spark Plug

Ryobi Cs30 Muffler

Ryobi Cs30 Manual

Ryobi Cs30 Trimmer

Ryobi Cs30 Ry30524

Ryobi Cs30 Parts Diagram

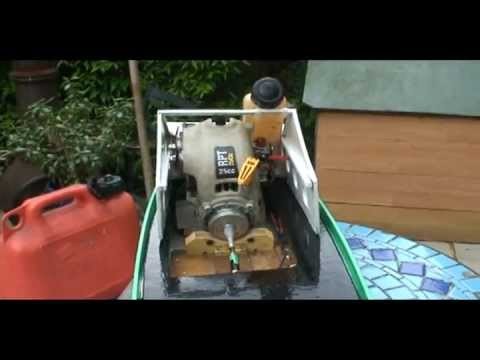

The Ryobi CS30 is a curved-shaft, gasoline-powered trimmer intended for residential landscape trimming and weed control. The head is connected to the engine by a flexible shaft.

Bid History for Ryobi CS30 with an edger attachment Auction Start Date: 06/26/17 7:38 PM ET Auction End Date: 07/03/17 3:00 PM ET Asset ID: 878 Number of Bids: 1. Loading bid history.

30cc String Trimmers and Brushcutters

BQBS C1U-H60 Carburetor for Ryobi Homelite 25cc 26cc 30cc CS30 CS26 SS26 SS30 BC30 PC30 TP30 S430 String Trimmer Brushcutter 985654003 with Air Filter Adjustment Tool Tune-Up Kit 5.0 out of 5 stars 1. Fits Model: RYOBI: 410r Tiller RYOBI: 280r RGBV3100 Leaf Blower RYOBI: 700r 700rVP 704r 705r 720r 725r 725rE 750r 766r 767r 770rEB 775r 790r 740R 2800M 766R 768R 770REB 767r String Trimmer YARDMAN: YM1000 String Trimmer MTD: 41AD280G000 41ADY28G000 String Trimmer Replaces OEM: Ryobi: 791182535.

RY30000 Series

SS30

(RY30040, RY30043)

CS30

(RY30020, RY30023)

BC30

(RY30060, RY30063)

Your new trimmer has been engineered and manufactured to Ryobi’s high standard for dependability, ease of operation, and operator safety. Properly cared for, it will give you years of rugged, trouble-free performance.

WARNING: To reduce the risk of injury, the user must read and understand the operator’s manual before using this product.

Thank you for buying a Ryobi trimmer.

TABLE OF CONTENTS

Introduction ...................................................................................................................................................................

General Safety Rules....................................................................................................................................................

Specific Safety Rules....................................................................................................................................................

Symbols ..................................................................................................................................................................

5 - 6

Specifications................................................................................................................................................................

Unpacking ....................................................................................................................................................................

Features .................................................................................................................................................................

8 - 9

Assembly.............................................................................................................................................................

10 - 14

Operation ............................................................................................................................................................

15 - 18

Maintenance .....................................................................................................................................................

19 - 22

Troubleshooting...................................................................................................................................................

23 - 24

Warranty..............................................................................................................................................................

25 - 26

Service Parts...............................................................................................................................................................

INTRODUCTION

This product has many features for making its use more pleasant and enjoyable. Safety, performance, and dependability have been given top priority in the design of this product making it easy to maintain and operate.

CALLUSFIRST

Foranyquestionsaboutoperatingormaintainingyourtrimmer,orbrushcutter calltheRyobi® HelpLine!

Ryobi Cs30 Spark Plug

Yourtrimmerhasbeenfullytestedpriortoshipmenttoensure

yourcompletesatisfaction.

Troubleshootingtipsarealsoavailableinthisoperator'smanual.

WARNING:

Read and understand all instructions.Failure to follow all instructions listed below may result in electric shock, fire and/or serious personal injury.

READ ALL INSTRUCTIONS

nFor safe operation, read and understand all instructions before using this product. Follow all safety instructions. Failure to follow all safety instructions listed below, can result in serious personal injury.

nDo not allow children or untrained individuals to use this unit.

nNeverstartorruntheengineinaclosedorpoorlyventilated area; breathing exhaust fumes can kill.

nClear the work area before each use.Remove all objects such as rocks, broken glass, nails, wire, or string which can be thrown or become entangled in the cutting line or blade.

nWearsafetyglassesorgogglesthataremarkedtocomply with ANSI Z87.1 standard when operating this product.

nWear heavy, long pants, boots, and gloves. Do not wear loose fitting clothing, short pants, or go barefoot. Do not wear jewelry of any kind.

nProductusersonUnitedStatesForestServiceland,andin somestates,mustcomplywithfirepreventionregulations. This product is equipped with a spark arrestor; however, otheruserrequirementsmayapply.Checkwithyourfederal, state, or local authorities.

nNever operate this unit on the operator's left side.

nSecure long hair above shoulder level to prevent entanglement in moving parts.

nKeep all bystanders, children, and pets at least 15 m (50 ft.) away.

nDo not operate this unit when you are tired, ill, or under the influence of alcohol, drugs, or medication.

nDo not operate in poor lighting.

nKeep firm footing and balance. Do not overreach. Overreaching can result in loss of balance or exposure to hot surfaces.

nKeep all parts of your body away from any moving part.

nTo avoid hot surfaces, never operate the unit with the bottom of the engine above waist level.

nDo not touch area around the muffler or cylinder of the unit, these parts get hot from operation.

nAlways stop the engine and remove the spark plug wire before making any adjustments or repairs except for carburetor adjustments.

nInspect the unit before each use for loose fasteners, fuel leaks, etc. Replace any damaged parts before use.

nThe string head or blade will rotate during carburetor adjustments.

nIt has been reported that vibrations from hand-held tools maycontributetoaconditioncalledRaynaud’sSyndrome in certain individuals. Symptoms may include tingling, numbness and blanching of the fingers, usually apparent upon exposure to cold. Hereditary factors, exposure to cold and dampness, diet, smoking and work practices are all thought to contribute to the development of these symptoms.It is presently unknown what, if any, vibrations or extent of exposure may contribute to the condition. There are measures that can be taken by the operator to possibly reduce the effects of vibration:

a)Keep your body warm in cold weather. When operating the unit wear gloves to keep the hands and wrists warm.It is reported that cold weather is a major factor contributing to Raynaud’s Syndrome.

b)After each period of operation, exercise to increase blood circulation.

c)Takefrequentworkbreaks.Limittheamountofexposure per day.

d)Keep the tool well maintained, fasteners tightened and worn parts replaced.

If you experience any of the symptoms of this condition, immediatelydiscontinueuseandseeyourphysicianabout these symptoms.

nMix and store fuel in a container approved for gasoline.

nMix fuel outdoors where there are no sparks or flames. Wipe up any fuel spillage. Move 9 m (30 ft. ) away from refueling site before starting engine.

nStoptheengineandallowtocoolbeforerefuelingorstoring the unit.

nAllow the engine to cool; empty the fuel tank and secure the unit from moving before transporting in a vehicle.

SPECIFIC SAFETY RULES FOR TRIMMER USE

nReplacestringheadifcracked,chipped,ordamagedinany way.Be sure the string head or blade is properly installed andsecurelyfastened.Failuretodosocancause serious injury.

nMake sure all guards, straps, deflectors and handles are properly and securely attached.

nUse only the manufacturer's replacement string in the cutting head. Do not use any other cutting attachment. To install any other brand of cutting head to this string trimmer can result in serious personal injury.

nNever operate unit without the grass deflector in place and in good condition.

nMaintain a firm grip on both handles while trimming. Keep string head below waist level. Never cut with the string head located over 76 cm (30 in.) or more above the ground.

SPECIFIC SAFETY RULES FOR BRUSHCUTTER AND BLADE USE

nAfter engine stops, keep rotating blade in thicker weeds or pulpy stalks until it stops.

nDo not operate the brushcutter unless the brushcutter guard is firmly secured in place and in good condition.

nUse heavy gloves when operating the brushcutter and when installing or removing blades.

nAlways stop the engine and remove the spark plug wire before attempting to remove any obstruction caught or jammed in the blade or before removing and installing the blade.

nDo not attempt to touch or stop the blade when it is rotating.

nA coasting blade can cause injury while it continues to spinaftertheengineisstoppedorthrottletriggerreleased. Maintain proper control until the blade has completely stopped rotating.

nReplace any blade that has been damaged.Always make sure blade is installed correctly and securely fastened before each use. Failure to do so can cause serious injury.

nUse only the manufacturer's replacement Tri-Arc® blade intended for use on this brushcutter.Do not use any other blade. To install any other brand blade or cutting head to this brushcutter can result in serious personal injury.

nThe Tri-Arc® blade is suited for cutting thicker weeds or pulpy stalks only.Do not use for any other purpose.Never use the Tri-Arc® blade to cut woody brush.

nExercise extreme caution when using the blade with this unit. Blade thrust is the reaction that may occur when the spinning blade contacts anything it cannot cut. This contact may cause the blade to stop for an instant, and suddenly “thrust” the unit away from the object that was hit.This reaction can be violent enough to cause the operator to lose control of the unit. Blade thrust can occur without warning if the blade snags, stalls, or binds.This is more likely to occur in areas where it is difficult to see the material being cut. For cutting ease and safety, approach the weeds being cut from the right to the left. In the event an unexpected object or woody stock is encountered, this could minimize the blade thrust reaction.

nNever cut any material over 13 mm (1/2 in.) diameter.

nAlways wear the shoulder harness when using the brushcutter and adjust to a comfortable operating position.Maintain a firm grip on both handles while cutting with a blade. Keep the blade away from body and below waist level.

nNever use the brushcutter with the blade located 76 cm (30 in.) or more above the ground level.

SYMBOLS

Some of the following symbols may be used on this tool. Please study them and learn their meaning for safe operation of this product.

SYMBOL

NAME

EXPLANATION

Safety Alert Symbol

Precautions that involve your safety.

Read the Operator’s Manual

To reduce the risk of injury, user must read and

understand operator’s manual before using this

product.

Wear Eye and Hearing Protection

Wear eye protection which is marked to comply

with ANSI Z87.1 as well as hearing protection when

operating this equipment.

Keep Bystanders Away

Keep all bystanders at least 50 ft. (15 m) away.

50' 15m

Ricochet

Thrown objects can ricochet and result in personal

injury or property damage.

No Blade

Do not install or use any type of blade on a product

displaying this symbol.

Blade Thrust

Beware of blade thrust. Products authorized for

blade use will display this symbol to warn of blade

thrust.

Gasoline and Oil

Use unleaded gasoline intended for motor vehicle

usewithanoctaneratingof87((R+M)/2)orhigher.

This product is powered by a 2-cycle engine and

SYMBOLS

The following signal words and meanings are intended to explain the levels of risk associated with this product.

SYMBOL SIGNAL

MEANING

DANGER: Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.

WARNING: Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.

CAUTION: (Without Safety Alert Symbol) Indicates a situation that may result in property damage.

SERVICE

Servicing requires extreme care and knowledge and should be performed only by a qualified service technician. For service we suggest you return the product to your nearest AUTHORIZED SERVICE DEALER for repair. When servicing, use only identical replacement parts.

WARNING:

Toavoidseriouspersonalinjury,donotattempttooperate this product until you read thoroughly and understand completely the operator's manual. Save this operator's manualandreviewfrequentlyforcontinuingsafeoperation and instructing others who may use this product.

WARNING:

The operation of any product can result in foreign objects being thrown into your eyes, which can result in severe eye damage. Before beginning operation, always wear safety goggles or safety glasses with side shields and a full face shield when needed.We recommend WideVision Safety Mask for use over eyeglasses or standard safety glasses with side shields. Always wear eye protection which is marked to comply with ANSI Z87.1.

SAVE THESE INSTRUCTIONS

SPECIFICATIONS

Weight - (without fuel)

CS30 (RY30020, RY30023)

..................................................................................................................10.7 lbs. (4.9 kg.)

SS30 (RY30040, RY30043) ..................................................................................................................

12.1 lbs. (5.4 kg.)

BC30 (RY30060, RY30063)..................................................................................................................

12.9 lbs. (5.9 kg.)

String cutting width

CS30 (RY30020, RY30023).....................................................................................................................

17 in. (432 mm)

SS30 (RY30040, RY30043) .....................................................................................................................

18 in. (457 mm)

BC30 (RY30060, RY30063).....................................................................................................................

18 in. (457 mm)

Blade cutting width

BC30 (RY30060, RY30063)..............................................................................................................................

8 in. (203)

Engine displacement .................................................................................................................................................

30cc

String diameter

CS30 (RY30020, RY30023)....................................................................................................................

080 in. (2.0 mm)

SS30 (RY30040, RY30043) ....................................................................................................................

095 in. (2.4 mm)

BC30 (RY30060, RY30063)....................................................................................................................

095 in. (2.4 mm)

UNPACKING

INSTRUCTIONS

nCarefully remove the product from the carton.

nInspect the product to make sure no breakage or damage occurred during shipping.

nDonotdiscardthepackingmaterialuntilyouhaveinspected and operated the product.

nIf any parts are damaged or missing, please call 1-800-860-4050 for assistance.

WARNING:

If any parts are missing, do not operate this tool until the missing parts are replaced. Failure to do so could result in possible serious personal injury.

PACKING LIST - CS30

nTrimmer Assembly

nOwner’s Kit

n Front handle

n Curved Shaft Grass deflector n Hardware Bags (2)

n Bottle of 2-Cycle Oil n Hanger Cap

n Operator's manual

n Warranty Registration Card

PACKING LIST - SS30

nTrimmer Assembly

nOwner’s Kit

n Front handle

n Straight Shaft Grass deflector n Hardware Bags (2)

n Bottle of 2-Cycle Oil n Hanger Cap

n Operator's manual

n Warranty Registration Card

PACKING LIST - BC30

nTrimmer Assembly

nOwner’s Kit

n “J” Barrier Handle

n Straight Shaft Grass Deflector n Gear Head Locking Tool

n Hardware Bag

n Bottle of 2-Cycle Oil n Shoulder Harness

n String Head Assembly n Hanger Cap

n Operator's manual

n Warranty Registration Card

STARTER

GRIP AND

ROPE

REAR HANDLE

TRIGGER

LOCK

PRIMER

BULB

COUPLER

THROTTLE TRIGGER

DRIVE SHAFT

HOUSING

FRONT HANDLE

KNOB

CURVED SHAFT GRASS

DEFLECTOR

Ryobi Cs30 Muffler

STRING HEAD

Fig. 1a

STARTER GRIP

AND ROPE REAR HANDLE

TRIGGER LOCK

PRIMER

COUPLER

BULB

THROTTLE TRIGGER

DRIVE SHAFT

HOUSING

FRONT HANDLE

STRING

HEAD

KNOB

STRAIGHT SHAFT

GRASS DEFLECTOR

Fig. 1b

STARTER GRIP

AND ROPE

REAR HANDLE TRIGGER LOCK

“J” BARRIER

Ryobi Cs30 Manual

HANDLE

PRIMER BULB

COUPLER

THROTTLE TRIGGER

DRIVE SHAFT HOUSING

KNOB

Ryobi Cs30 Trimmer

BLADE

Ryobi Cs30 Ry30524

SHOULDER HARNESS

BRUSHCUTTER GUARD

Ryobi Cs30 Parts Diagram

Fig. 1c

Page 9
