Carbonara – Carbon X-Beam for Voron Printers

Push the limits of speed and precision with Carbonara, a premium carbon fiber X-beam designed for Voron and Monolith 3D printers using 250, 300, or 350 build sizes. Built for extreme performance in demanding environments, Carbonara brings aerospace-level engineering to your CoreXY printer.

🚀 Engineered for High-Speed, High-Temp Printing

CarbonAra delivers up to 58% weight reduction compared to a standard 2020 aluminum extrusion — without compromising strength or stability.

Tested under real-world stress, it withstands:

Print speeds between 500–1300 mm/s

Accelerations up to 100,000 mm/s²

Chamber temperatures of up to 80°C

More than 800 hours of high-intensity use

This makes it ideal for Klipper-tuned high-speed machines where every gram counts.

🔧 Key Features

Pre-drilled for fast, hassle-free installation

High torsional stiffness for consistent gantry alignment

3K carbon fiber finish – smooth, sleek, and incredibly rigid

110°C short-term / 90°C continuous temperature resistance

💡 Why Choose Carbonara?

If you're serious about speed, precision, and thermal stability, Carbonara is a direct upgrade path for your printer’s motion system. Whether you're optimizing print quality or chasing higher acceleration, this carbon beam delivers measurable gains with plug-and-play ease.

[de3dprintman]

The beautiful Mayan Temple Dice Tower by @kimboltcreations is nearly ready and you can still watch it print live on my YouTube channel. It is printing in @halo3dfilaments Throwing Copper in 0.15mm layers on the LDO @voron.corexy 2.4 r2. It already looks stunning. You can find this model on @printablescom via https://www.printables.com/model/61080-mayan-temple-dice-tower You can watch the stream here: https://youtu.be/UTqWO7nfr9Q #3dprinting #3dprintingcommunity #3dprintingvirals #3dprinter #3dprinted #3dprint #3dp #3dmodeler #kimboltcreations #ldomotors #ldovoron #voron #vorondesign #voroncorexy #corexy #printablescom #halo3dfilaments #e3d #revomicro #de3dprintman (at Leiderdorp) https://www.instagram.com/p/Cn7jXQTL8nE/?igshid=NGJjMDIxMWI=

[pux3]

#minimalistic Dragon 😍🐉 @shootcamp.at #vorondesign #3Dprinting #combinedhobbies https://www.instagram.com/p/CnNPN84NofsxHJ6hbrflMD0eZRDh9qS0cMmYbM0/?igshid=NGJjMDIxMWI=

[voron-3dprinter-parts]

BTT SB2209 USB – Compact Toolhead Board for Klipper

The Bigtreetech SB2209 USB (RP2040) is a compact and reliable toolhead board designed for Klipper-based 3D printers, especially Voron V2.4, Trident, or custom CoreXY builds. Based on the Raspberry Pi RP2040 microcontroller, it provides powerful, low-latency communication and supports direct USB connection to the host system — ideal for setups without CAN bus.

🔧 Key Features

MCU: Raspberry Pi RP2040 dual-core processor @ 133 MHz

Connectivity: USB-C interface (no CAN bus required)

Stepper Driver: 1x TMC2209 integrated (UART mode, up to 2A RMS)

Temperature Inputs: 2x thermistor ports (100K NTC supported)

Fan Outputs:

1x controllable fan output (up to 24V, PWM)

1x always-on fan output

Heater Output: 1x hotend heater (up to 60W at 24V)

Probe Input: Dedicated input for Z probe (including inductive sensors)

Endstops: X and Y endstop inputs

LED Output: Neopixel (WS2812) port for addressable RGB LEDs

Power Input: 24V via VIN or USB only for logic

📦 Typical Use Case

Toolhead board for Voron printers using USB communication instead of CAN

Works well with Stealthburner or Clockwork 2 setups

Simplifies wiring by centralizing toolhead electronics into one board

📐 Dimensions and Mounting

Board Size: 45mm x 40mm

Mounting: Compatible with standard Stealthburner rear mounts

Cooling: Passive (no heatsink needed for typical use) shop.zen3d.eu – BTT SB2209 USB Toolhead Board

[voron-3dprinter-parts]

Leviathan Board – The Ultimate Voron Controller by LDO & JNP

The Leviathan Board is the result of a collaboration between JNP (a core member of the Voron community) and LDO Motors, created specifically for high-performance Voron 3D printers. It combines cutting-edge hardware, smart integration, and real-world experience to streamline builds and push the limits of DIY CoreXY machines.

Whether you’re building a compact Micron or a large-format V2, the Leviathan is engineered to make your life easier — while giving your steppers the power they deserve.

What Makes Leviathan Different?

Leviathan isn’t just another 3D printer controller. It’s a purpose-built solution for Voron printers, integrating many features makers typically had to add manually.

Key Highlights:

Onboard Raspberry Pi mount – Fits Pi 3, 4, 5 or Zero 2W

Integrated TMC2209 & TMC5160 drivers – Smooth motion, powerful torque

48V support for A/B steppers – Ideal for fast, high-mass gantries

Reverse polarity protection – Peace of mind for your power wiring

Smart fan and sensor integration – More control, fewer external boards

It’s a refined, all-in-one design that reduces wiring complexity, improves reliability, and saves space in your electronics bay.

Full Technical Features

MCU: STM32F446 @ 180 MHz

Drivers: • 5x TMC2209 (integrated) • 2x TMC5160 (48V rated, integrated)

Power Input Protections: • Reverse polarity protection on main and HV stepper supply

Cooling: Passive cooling for all stepper drivers

Pi Integration: • Mounting space for Pi 3/4/5 or Zero 2W • Dedicated Pi power supply and UART port

Fan Ports: • 4x with flyback protection, 5V/24V selectable, tachometer input

Thermistors: • 4x with 2.2kΩ pull-up resistors

Lighting: • 1x LED strip output (1% flicker-free dimming) • 1x Neopixel port

Heater Outputs: • Hotend: Up to 180W • Heated bed: Up to 240W

Z-Probe Port: • Dedicated input with selectable voltage and diode protection

I/O Ports: • 3x endstop inputs • 1x filament sensor input

Designed for the Voron Ecosystem

Every detail of the Leviathan Board is tuned to the needs of Voron builders:

Compact and elegant electronics layout

Optimized for CoreXY motion systems

Built-in support for sensorless homing and probes

Clean Pi integration with no need for messy cabling or additional breakout boards

Whether you’re upgrading from a standard controller or planning a fresh build, Leviathan gives you the tools to go further — faster. https://shop.zen3d.eu/ldo-voron-leviathan-board

Order the Leviathan Board at shop.zen3d.eu

[voron-3dprinter-parts]

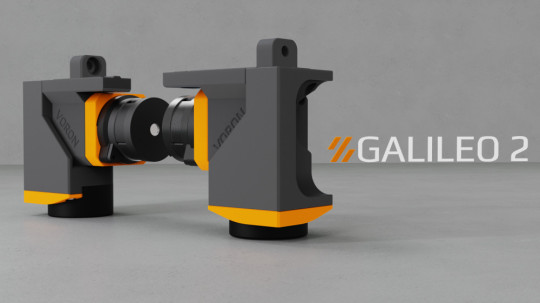

Galileo 2 Z-Drive – Compact Power for Voron V2 and Micron

If you're building a space-constrained Voron or Micron printer, the Galileo 2 Z-Drive (G2Z) might be the upgrade you didn’t know you needed.

Designed for compactness and performance, G2Z eliminates the need for belts and pulleys (except the Z belt itself), delivering a cleaner, simpler setup — and saving valuable space in your electronics bay.

Why Choose the Galileo 2 Z-Drive?

Compact design – Ideal for small-format builds like the Micron 120 and 180, or tight electronics compartments in Voron V2.4.

No belts or pulleys (except for the Z belt) – Clean, simple layout and reduced maintenance.

9:1 gear ratio – Higher resolution than standard 5:1 Z drives.

Easy assembly – Builder-friendly design with fewer moving parts.

Use Cases

Perfect for Voron V2 (small format) and Micron 120/180 printers.

Can be used for custom mods, such as a belted V0 Z drive.

Compatible with larger V2 printers (up to 350 mm), but note that gantry sag may be similar to or greater than with stock Z drives.

Note: The Galileo 2 Z-Drive is not recommended for large V2 printers where gantry sag is a concern. However, many users have successfully used it on builds up to 350 mm.

Available now

Order from shop.zen3d.eu Boost your build with smarter mechanics — and make every layer count.

[de3dprintman]

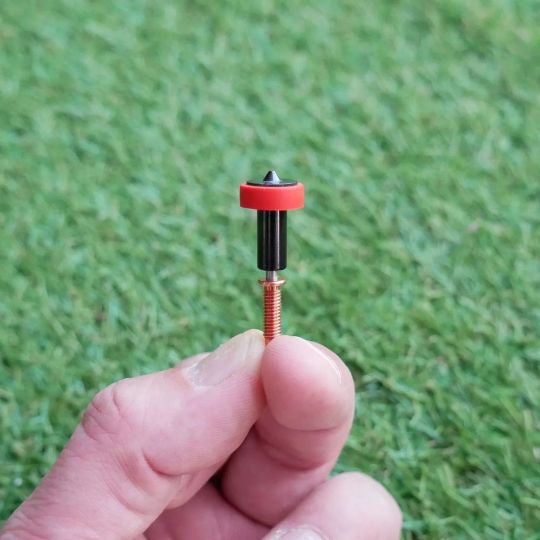

Look what I got in the mail yesterday. It's finally here! The wear-resistant @e3donline REVO ObXidian. Testing this one will be a lot of fun. I have some nice carbon- and glass-fiber nylon reserved especially for you my friend. 😁 Time to change a nozzle.... Fast! #3dprinting #3dprintingcommunity #3dprinter #3dprinten #3ddrucken #3dp #e3d #e3drevo #rapidchangerevo #revoobxidian #obxidian #filamentextruder #nozzle #hotend #prusa3d #vorondesign #maker #makermovement #de3dprintman (at Leiderdorp) https://www.instagram.com/p/CgnEtEgr6kD/?igshid=NGJjMDIxMWI=

[de3dprintman]

This one printed nicely! It's beautiful. This cool Mayan Temple Dice Tower by @kimboltcreations is scaled to 130% and printed in 0.15mm layers in @plasticznetherlands PLA Traffic Yellow on the LDO Voron 2.4 r2. It weighs 879 grams and nearly took 3 days to finish. You can find this dice tower on @printablescom via https://www.printables.com/model/61080-mayan-temple-dice-tower #3dprinting #3dprintingcommunity #3dprinted #3dprinter #3dprint #3dp #3dmodel #ldomotors #ldovoron #voron #vorondesign #voroncorexy #corexy #opensourcehardware #robotics #maker #makermovement #additive #plasticznl #de3dprintman (at Leiderdorp) https://www.instagram.com/p/CnxT2S1rSvL/?igshid=NGJjMDIxMWI=

[de3dprintman]

This is going to be a big one. Can you tell what it is going to be already? This print is going to weigh 897 grams and is printing in 0.15mm layers on the LDO Voron 2.4 r2. I'm using @plasticznetherlands PLA Traffic Yellow for this one. #3dprinting #3dprintingindustry #3dprinter #3dprinted #3dprint #3dp #3dmodel #3dcad #printablescom #ldomotors #ldovoron #vorondesign #voroncorexy #voron24r2 #corexy #plasticznl #filaments #maker #makermovement #de3dprintman (at Leiderdorp) https://www.instagram.com/p/CnpnMvdry2Q/?igshid=NGJjMDIxMWI=

[de3dprintman]

Just hooked up the @raspberrypi HQ camera to the LDO @voron.corexy 2.4 R2. The image quality is very good and I am currently testing the timelapse feature in Moonraker (Klipper Firmware). Let's see how this Cheerful Pilot from @bendansie3d looks using the standard timelapse. After that we can change the code a bit and go crazy to make them look even better. #3dprinting #3dprintingcommunity #3dprintinglife #3dprintingvirals #3dprint #3dp #3dart #ldomotors #ldovoron #vorondesign #voroncorexy #voron #e3d #klipperfirmware #raspberrypi #corexy #bendansie #moonraker #gui #linux #firmware #gcode #prusaslicer #technology #de3dprintman (at Leiderdorp) https://www.instagram.com/p/CnIv9vto-uG/?igshid=NGJjMDIxMWI=

[de3dprintman]

I finally started the wiring and cable management on the LDO @voron.corexy 2.4 yesterday. The assembly of the printer is so much fun and I am going to try to do the best cable management job I ever did on this one. Nearly there folks! 🙂 #3dprinting #3dprintingcommunity #3dprintingindustry #3dprinter #3dprinted #3dprint #3dp #3ddrucker #ldomotors #ldovoron #vorondesign #voroncorexy #voroncorexy #voron24 #corexy #reprap #robotics #e3d #rapidchangerevo #technology #tech #de3dprintman (at Leiderdorp) https://www.instagram.com/p/Ci_CtA7rmLt/?igshid=NGJjMDIxMWI=

[de3dprintman]

Figuring out the next step of the LDO @voron.corexy 2.4 assembly in 36° Celsius last week. 😂 It really was a bit too hot to do anything and both @bathoorn and I had some personal stuff to deal with so I had to do something. The complete gantry is ready so time to work on the Stealthburner next. #3dprinting #3dprintingindustry #3dprinter #3dprinted #3dprint #3dp #3dimensional #3ddrucker #3d #ldomotors #ldovoron #vorondesign #voroncorexy #voron24 #stealthburner #e3d #revomicro #rapidchangerevo #additvemanufacturing #maker #de3dprintman (at Leiderdorp) https://www.instagram.com/p/ChesfPALSg7/?igshid=NGJjMDIxMWI=

[de3dprintman]

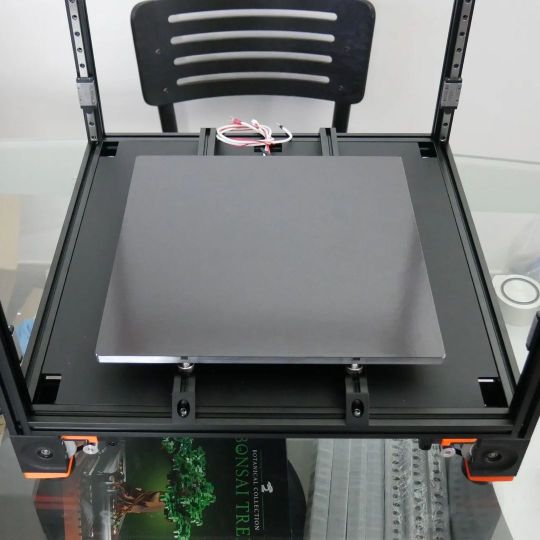

Today I'm working on the LDO @voron.corexy 2.4 300mm again and I just finished the heated bed assembly. Look at that nice build plate. The Gantry is next so it really starts to look like a proper 3D printer already. Those Glass Fiber Nylon parts can't wait to be assembled. #3dprinting #3dprintingcommunity #3dprinter #3dp #3dimensional #ldomotors #vorondesign #voroncorexy #voron24 #e3d #rapidchangerevo #maker #makermovement #assembly #prusament #fiberthree #corexy #opensourcehardware #de3dprintman (at Leiderdorp) https://www.instagram.com/p/ChP5eRmr7pm/?igshid=NGJjMDIxMWI=

[de3dprintman]

My buddy @bathoorn and I are working on our LDO @voron.corexy 2.4 build again and it is such a pleasure to do this assembly. The printed parts fit together perfectly and look very good. Time for the next step. #3dprinting #3dprintingcommunity #3dprinter #3dprinted #3dp #ldomotors #vorondesign #voron #voroncorexy #voron24 #corexy #makermovement #makerslife #additvemanufacturing #additive #prototyping #manufacturing #engineering #de3dprintman (at Leiderdorp) https://www.instagram.com/p/Cg9paNRN3q6/?igshid=NGJjMDIxMWI=

[de3dprintman]

Finally printed all the parts for the LDO @voron.corexy 2.4 kit..... Three times. 😂 So it's time to continue the assembly a bit. My buddy @bathoorn can't be here for the complete build but he didn't mind if I already do some work. These parts are printed in @prusament ASA and PCCF on the Prusa i3 MK3S by @josefprusa and I love the color scheme we are going to do. #3dprinting #3dprintingcommunity #3dprinted #3dprinter #3dprint #3dp #3dimensional #vorondesign #voroncorexy #voronldo #ldomotors #voron24 #prusa3d #prusai3mk3s #prusament #bathoorn #corexy #maker #makermovement #e3d #rapidchangerevo #de3dprintman (at Leiderdorp) https://www.instagram.com/p/Cgce8hjrEti/?igshid=NGJjMDIxMWI=

[de3dprintman]

I have good news and some bad news. The good news is that @bathoorn and I unboxed the LDO @voron.corexy 2.4 300mm kit and assembled the frame today. The bad news is that I used my 4K cam on a laptop to shoot video material for my YouTube channel and the footage is lagging. I think that the laptop might need more memory for 4K video. I will try to fix it and we had great fun so far. #3dprinting #3dprintingindustry #3dprinter #3dprinterkit #3dprint #3dp #3dimensional #vorondesign #voronldo #voroncorexy #voron24 #ldomotors #e3d #rapidchangerevo #bigtreetech #raspberrypi #corexy #opensource #opensourcehardware #makermovement #maker #de3dprintman (at Leiderdorp) https://www.instagram.com/p/CgFiSk_Lcpx/?igshid=NGJjMDIxMWI=
