Yanhua ACDP2 Module 39 Correct Mileage for Benz MB HU7 Instrument

Yanhua Module 39 is newly released and works with Yanhua ACDP1/ACDP2 for mileage correction on bench for Mercedes-Benz MB HU7 instrument module (A206/A223/A177) equipped with chip model R7F7015293/R7F7015294. Module 39 comes with a free emulator. One car requires one emulator. More emulators can be purchased separately (1 HU7 emulator/5 emulators).

If you want to correct mileage for MB HU6 instrument modules (models A167 /A213/A247) with chip R7F701403, choose Yanhua ACDP Module 37.

Yanhua ACDP Module 39 Supported Vehicle Models:

S-Class(W223)

C-Class(W206 / S206 / V206 / X206)

AMG(192 / X290)

A-Class(W177)

B-Class(W243 / W247)

CLA(C118 / W118)

CLE(A236 / C236)

EQA(H243)

EQB(X243)

EQE(V294)

EQS(V297)

GLA(H247)

GLB(X247)

GLC(C254 / X254)

GLE(V167)

GLS(X167)

CLS(W257)

SL(232)

Supported Instrument Modules:

A206

A177

A223

ACDP APP Menu Path:

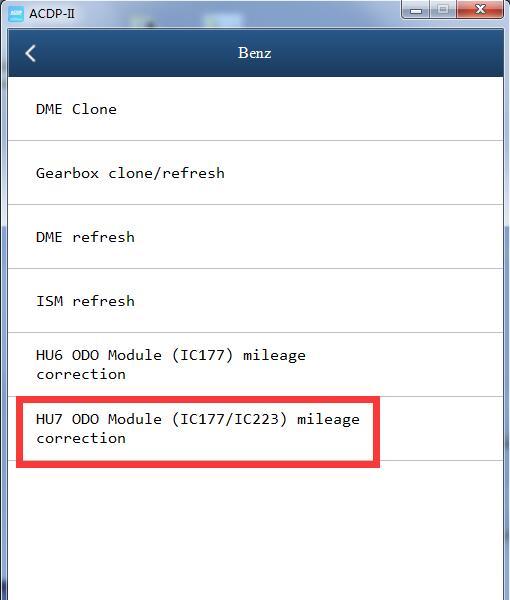

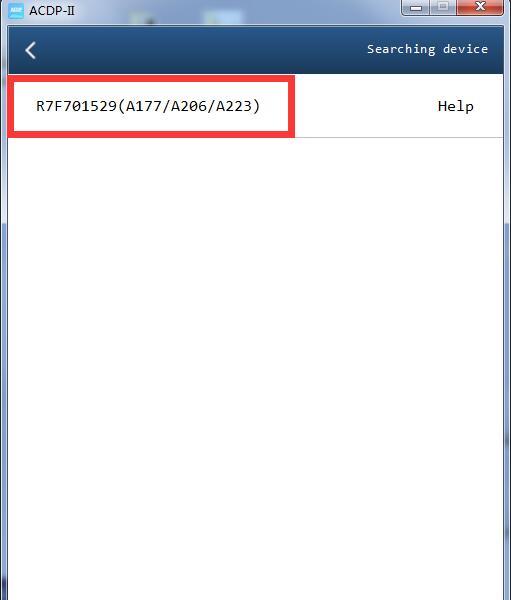

Benz-> HU7 ODO Module (IC177/IC223) mileage correction-> R7F701529 (A177/A206/A223)

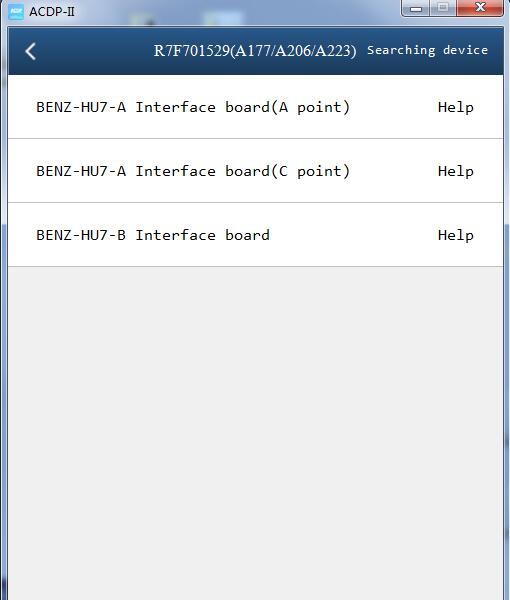

There are three interface boards for selection, choose the correct interface board depends on the dashboard module.

BENZ-HU7-A Interface board (A point)

BENZ-HU7-A Interface board (C point)

BENZ-HU7-B Interface board

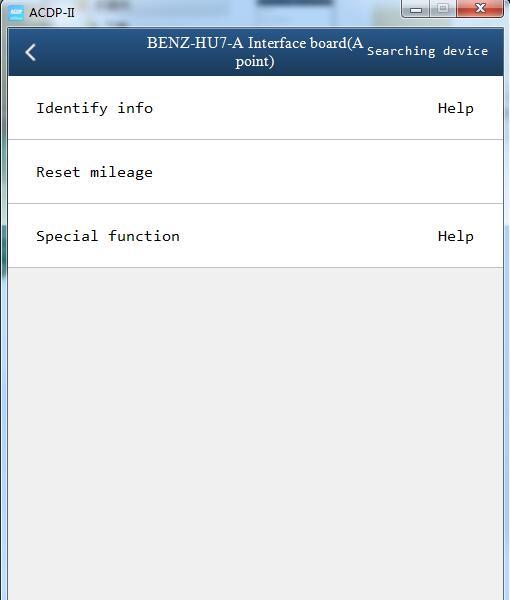

Reset mileage process:

1.Identify info.

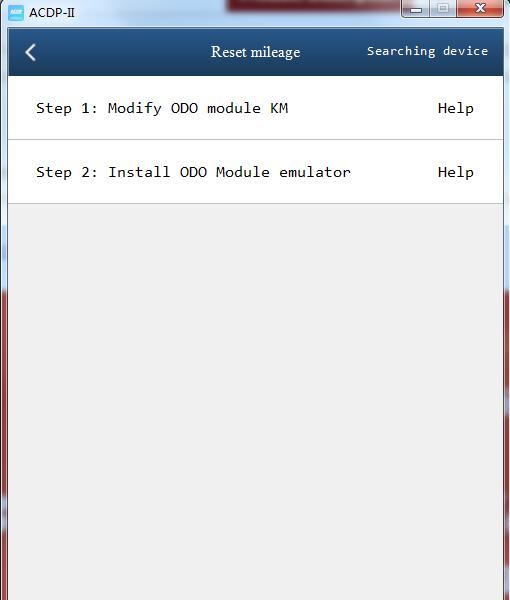

2.Reset mileage

Step 1: Modify ODO Module KM

Step 2: Install ODO Module emulator

BENZ-HU7-A Interface board (A point)- for A223 and A206

(need to push the DIP switch on the BENZ-HU7-A interface board to the A-end)

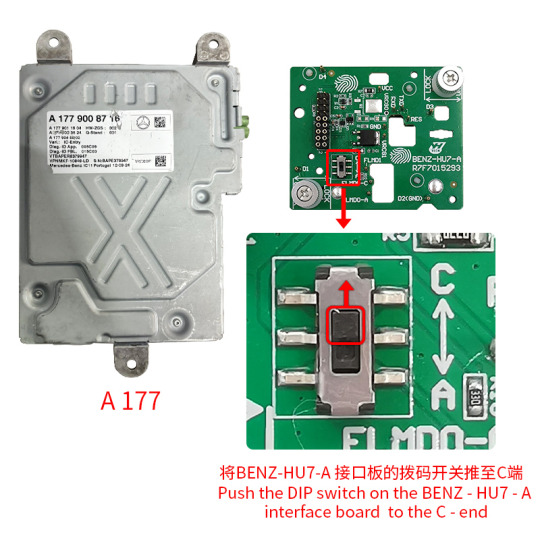

BENZ-HU7-A Interface board (C point)- for A177

(need to push the DIP switch on the BENZ-HU7-A interface board to the C-end)

BENZ-HU7-B Interface board- for A223

[auto-tools]

MB HU7 Instrument Module Mileage Correction Solution

Yanhua Tech introduces ACDP Module 39, designed to support mileage correction for Mercedes-Benz HU7 instrument modules (A206/A223/A177) equipped with chip models R7F7015923 or R7F7015924. This solution is safe and efficient — no soldering is required, significantly reducing the risk of damage.

Module Functions: Supports mileage correction for MB HU7 instrument modules. Compatible with chips: R7F7015923 / R7F7015924.

Supported Vehicle Models: S(W223)/ C(W206/ S206/ V206/ X206)/ AMG (192/ X290)/ A(W177)/ B(W243 W247)/ CLA (C118/ W118)/ CLE(A236 C236)/ EQA (H243)/ EQB(X243)/ EQE(V294)/ EQS(V297)/ GLA(H247)/ GLB(X247)/ GLC(C254/ X254)/ GLE(V167)/ GLS(X167)/ GLS(W257)/ SL(232)

Supported Instrument Modules: A206 A177 A223

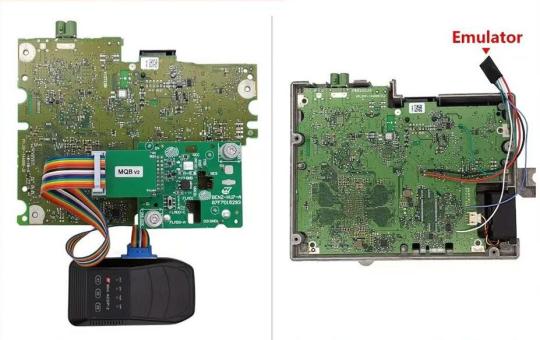

Connection Method:

MB HU7 Instrument Module Emulator Guide (For use with ACDP Module 39)

The MB HU7 emulator allows you to correct the mileage by simulating the relevant communication signals within the instrument module.

How to Use: 1. Use the ACDP module 39 function to correct the mileage of the Mercedes-Benz HU7 instrument module. 2. Weld the emulator in the HU7 instrument module.

Emulator welding diagram:

For more information or to purchase, visit: www.obd2shop.co.uk Sales@obd2shop.co.uk
