Solution for Thermal Printers Using the KT6368A Dual-Mode Bluetooth Chip Module

I. Introduction to the Printer Bluetooth Module

Currently, most mainstream printers do not come equipped with Bluetooth. Due to cost constraints and other factors, many still rely on USB for communication with computers to facilitate data exchange for printing.

In the early days, Bluetooth technology developed slowly, and printer-type products were positioned as high-end, making development quite challenging. For example, a requirement to connect one iOS device and seven Android host devices simultaneously to send print data was nearly impossible to achieve cost-effectively.

Most current module products consist of an MCU paired with a Realtek dual-mode Bluetooth chip. The reason for this combination remains unclear to us.

However, in reality, many products do not require such high specifications. Connecting to a single host device is often sufficient. For scenarios requiring simultaneous multi-device operation, Wi-Fi or 4G versions are typically used instead.

Additionally, modern Windows 10 computers come with built-in Bluetooth drivers, and Bluetooth adapters are readily available and convenient to use.

The early Bluetooth module designs were as follows:

We recommend using the KT6368A dual-mode Bluetooth chip, which enables APP connectivity and data exchange for printers. It comes in an SOP8 package, offering high cost-effectiveness, simplicity, and stability.

II. Detailed Development Guide

1. First, ensure that your Bluetooth printer supports BLE (Bluetooth Low Energy) communication and does not use proprietary protocols, adhering to standard BLE communication protocols.

2. Obtain UUIDs from the Printer Manufacturer

Request the printer's UUIDs from the manufacturer. There are three UUIDs:

Service UUID

TX_UUID (Transmit UUID)

RX_UUID (Receive UUID)

3. Configure the Bluetooth Module Using AT Commands

Enter AT command mode to modify the BLE UUIDs. Update all three UUIDs (Service, TX, and RX).

Set the BLE working mode to Master Mode.

Send the command AT+Z to restart the module.

The UUIDs for the KT6368A are as follows:

Service_UUID: 49535343-FE7D-4AE5-8FA9-9FAFD205E455

TX_UUID: 49535343-1E4D-4BD9-BA61-23C647249616

RX_UUID: 49535343-8841-43F4-A8D4-ECBE34729BB3

III. Test Environment Setup – Meituan Merchant Edition

The Android and iOS platforms operate differently:

Android uses SPP (Serial Port Profile) for communication.

iOS devices use BLE (Bluetooth Low Energy).

The KT6368A chip's internal operation logs and the print data received from the app can be monitored for debugging and verification.

#BluetoothPrinters #Bluetoothchip #AIoT #EmbeddedSystems #electronics #BLE #KT6368A

[alexbkrieger13]

https://www.focus.de/politik/ausland/wir-vergeben-nicht-hacker-anonymous-bekennen-sich-zu-attacke-auf-x_83bfde8a-842b-45ee-a8d4-e9975f12e23d.html

Not surprised

[chorusfm]

New Name Taken Anniversary Pressing

A 20th anniversary edition of Name Taken’s Hold On is now available on vinyl. https://www.instagram.com/reel/C5Oes1NAFy3/?utm_source=ig_embed&ig_rid=ecfd4181-7ac2-4a98-a8d4-f14a26049e0c --- Please consider becoming a member so we can keep bringing you stories like this one. ◎ https://chorus.fm/news/new-name-taken-anniversary-pressing/

[kaibintech]

Mercedes S-Class W223 4Matic Front Left Air Strut with ADS Mercedes Benz W223 4Matic Front Left & Right Air Suspension Shock Struts

2233207103, 2233207203

2Matic 2WD: 2233208703 2233208803

https://wa.me/8618285110463

https://www.auto-rubbers.com/

#MercedesBenzAirSpring #MercedesBenzSpareParts #AirSpringproblems #AirSuspensionReplacement #W223 #AirSuspensionStrut #Kaibintech #W222 #W218 #A8D4 #W176 #W212 #W292 #W463 #W172 #W164 #W166 #W213 #W205 #W213 #W205 #AIRMATIC #AIRSUSPENSIONPUMP #AirSuspensionCompressor #ChinaAirSuspension #AirShock #ShockAbsorber #ShockStrut

[alaturkanews]

The Assignment Presents: The Axe Files

We want to learn more about you! Please tell us a bit about yourself by participating in a brief survey at cnn.com/audie (https://cms.megaphone.fm/organizations/ba638556-35cc-11ee-9775-07413de91471/podcasts/f691e200-4758-11ee-9719-eb5efc015fac/episodes/944945fe-4c24-11ee-a8d4-0b8495b02c34/cnn.com/audie) — and thank you! —- Today, we present an episode of David Axelrod's CNN podcast, The Axe…

[shirshalex]

Хорошо стоит. Audi A8L TFSI Quattro (D4) 2014-2018 #audi #audia8 #audia8d4 #audia8l #audia8long #audia8lquattro #a8 #a8d4 #a8d4long #audiquattro #tfsi #auditfsi #quattro #a8lquattro #audiphotography #audirussia #audiclub #audirussland #audipower #quattroworld #audiporn #audi_official #audi_city #автомобилисулиц #автомобилисулицмосквы #т717ен #т717ен77 (at Moscow, Russia) https://www.instagram.com/p/CFwS3yYBGm2/?igshid=1s7wxn19oc0g7

[azspot]

I hasten to add that I don’t think Bernie Sanders is inimical to democracy. I think that’s the big difference between rightwing versus leftwing, that rightwing populism is inherently inimical to democracy. I don’t think leftwing populism is. In fact, I would say that we probably do need a good dose of leftwing populism today to save us, really, from the very damaging and ultimately much more scary rightwing version.

Dani Rodrik

[kaibintech]

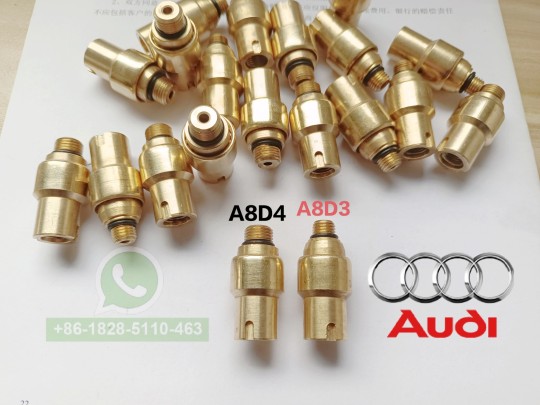

Don't mix up! They are different. Air suspension copper valve for Audi A8 D3 and A8 D4.
