Kinds of UV Radiometers Available
Tumblr media

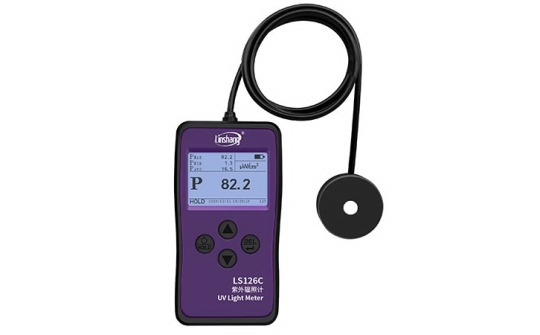

UV radiometer
There are lots of radiometer styles out there that deliver a variety of varieties of info. A radiometer ought to be decided on to fit the application as well as the info essential. Capabilities array from very simple intensity and straightforward dosage to classy mapping products. Which wavelength to measure is additionally a make a difference of option. Over 95% on the UV radiometers EIT sells evaluate within the UVA spectrum (320nm-390nm). This is because the vast majority of the chemistry responds to this band of strength. Whether it is fascinating to measure other parts on the UV spectrum, a radiometer is accessible to try and do so. Certain chemistry is formulated to answer different wavelengths of light and for different programs. Radiometers can also be configured to be used in numerous applications.
UV radiometer
In UV location curing, a higher intensity UV source is channeled via a liquid mild manual as a way to handle an exceptionally substantial depth light-weight and focus it onto a comparatively smaller space. UV place curing is employed for quite a few adhesive applications by way of example, attaching hypodermic needles for the plastic injector. It is actually crucial to keep an eye on the output from these units because the lamp, reflector and lightweight guideline deteriorate with use. A radiometer, configured like the SpotCure Intensity Meter, actions the UV depth within the liquid light-weight guidebook and will be used to ascertain if the output has dropped beneath a usable stage. The radiometer can also be used to enhance the positioning of your light guide. Every time the light manual is bent or twisted some UV output is missing. By measuring the UV output having a radiometer, gentle information position can be modified until eventually the maximum intensity is recognized with the technique).
Most radiometry commonly entails measuring UV dosage in mJ/cm2. Far more refined measurements involve measuring peak UV intensity on top of that to dosage. Dosage is simply a measurement of whole electrical power, though the depth at which the vitality was shipped has profound outcomes to the get rid of characteristics of the completed products. To supply an intense case in point, 1 would get pretty distinct treatment traits by exposing a workpiece to 500mJ/cm2 of UVA gentle beneath a 300-W/in. mercury vapor lamp as opposed to laying the workpiece outside the house while in the sunlight for any time frame which might produce 500mJ/cm2 (about three min.). UVA on this illustration is primarily 365nm wavelength mild.
In just about every scenario the workpiece was uncovered to 500 mJ/cm2 of UVA energy, but the treatment properties of every workpiece will probably be considerably various.
A radiometer like the UV Electricity Puck can measure both depth and dosage of a number of wavelength bands, UVA, UVB, UVC, and UVV. This details reveals how the UV was shipped and at what wavelength.
Usually the user is interested in the spectral information on the UV source becoming used. Since diverse chemistry is affected by various UV wavelengths, it really is attractive to optimize the curing approach by matching UV lamps towards the chemistry of the application. Also, the spectral content of the UV supply might change mainly because it ages with the shorter wavelengths shifting towards the more time close on the spectrum. The spectral reflectivity of your irradiator frequently changes eventually at the same time. UV lamp suppliers and close end users alike have an interest during this phenomenon.
It really is possible to totally analyze the complete curing procedure utilizing a mapping unit referred to as a UVIMAP. By mapping the curing procedure, you may figure out the irradiance of each lamp from the curing procedure, peak depth, dosage, target, and reflector performance. Really uncomplicated to work with, the UVIMAP gives all the critical information important to totally characterize a UV curing system for the specified spectral bandpass.
The unit is passed by means of the curing method. It steps and retailers the UV depth and temperature knowledge it encounters within the curing method. The unit is then attached to a printer included while using the device or loaded into a laptop computer. The info is summarized along with the unit prints the total dosage, peak intensity, average intensity, peak temperature, sample level, number of samples, selection mode and inner temperature. It is going to also print out when the battery amount is lower. Moreover, the printout really graphs the UV and temperature disorders inside of the curing system. By examining the graph, the problem of each and every UV lamp may be determined and when compared with other lamps within the method. The form of the curve is fairly revealing.
Ordinarily, a fresh new lamp that is thoroughly centered features a extremely sharp peak with uniform slope on either facet. Given that the lamp ages as well as the reflector degrades, the form on the curve modifications. The height is not as sharp and normally takes over a rounded visual appeal. The slope on the sides may well no longer be symmetrical because the reflector doesn't usually degrade uniformly.
In case the curve displays a double peak, then the lamp is not really in emphasis. The lamp could be both too significant or also lower as being the trace looks the exact same. If one side of your double peak is increased than the other, the reflector may be less productive on 1 side as opposed to other or perhaps the reflector can be tilted off heart.
Having a normal radiometer that steps only dosage, the in-depth issue with the UV resource cannot be established. The dosage might have dropped off but it surely is not really straightforward to ascertain why it happened. Particularly in the procedure with various lamps, measuring the dosage won't inform you if all lamps degraded equally or when there is a problem with just one lamp. Even a radiometer that gives you peak intensity won't tell you which lamp experienced the highest output. The only real way to get these facts would be to "map" the curing technique.
