Etching was a huge pain in the ass! Worked out ok for both pedals but I couldn't get an etch as deep as I would have liked, ended up using a waterslide over top of the Life Pedal clone (right) as the black paint didn't go deep enough. Still nice effect and would probably try it again with a higher concentrate FeCl solution. The pedal on the left is a teensy 4 based midi controller with TRS IN/OUT/THRU, and midi out on the back.

[forrestbaer]

Getting graphics ready to try my hand at acid etching some pedal enclosures.

[forrestbaer]

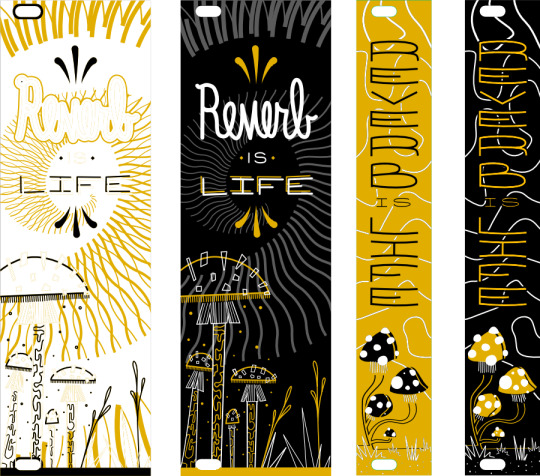

Some panels getting layered up to move into kicad for gerberizing. Design for Omri Cohen.

[forrestbaer]

Pulse Controller for a pulsar-23 and serge system

[forrestbaer]

Finished a couple 208c cards from portabellaz. I added a triangle osc to the big one and a white/pink noise generator to the BOB

[forrestbaer]

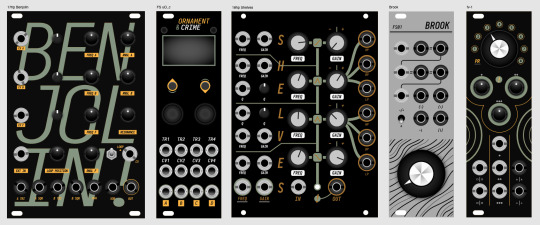

Various eurorack panels and modules I created in 2020/2021. Learned a lot during the pandemic. Hoping to release at least 3 4u pcb/panels in LW format in 2023.

[forrestbaer]

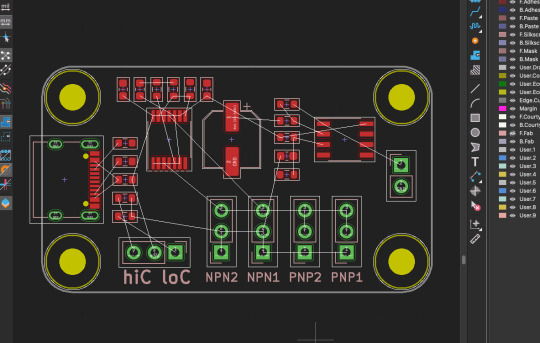

Laying out a transistor matching tool called the YATMA2, liked the design but wanted a smaller board and usb-c for power.

[forrestbaer]

low-gain matrix mixer build with banana jacks. there's a butchered endorphin.es 2hp power mounted inside with a power switch and barrel jack ported to the outside, all mounted in a fraptools 42hp case.

[forrestbaer]

these two inspire something in me, made vector art of both to use in a planned zine but decided they were far too detailed for that purpose.. maybe for a pdf manual

just realized how much darker they are than the real things

[forrestbaer]

banana cables & nonsense <3

[forrestbaer]

best frands

[forrestbaer]

my first custom euro module, lost the kicad files

[forrestbaer]

had one of these keyed mosstones for a minute, kinda wish i would have held on to it

[forrestbaer]

a whole new world, my first banana gear

[forrestbaer]

circuit bending my sk-1

[forrestbaer]

teenage engineering sucks.

[forrestbaer]

microphone amp i built for clippy em272 mics.. sounds great
