roof panel machine

roof panel machine parameters Decoiler/uncoiler Manual decoiler or according to customer requirements Cutting blade Manual cutter Mainframe 400mm H beams, 45# steel Middle plate 20mm or according to machine demands,45# steel Machine cover Welded by 8mm diameter wire mesh and 35mm diameter angle steel Wheel 45# steel, surface heat treatment chrome plating, hardness HRC 58-60℃ Shaft Diameter: 80mm (depends on different design) Solid shaft, high quality 45# forged steel, with anti-return pad Number of rolls Common 9 rolls - 25rolls (according to different design) Chain 1.2 inch according to machine demands Voltage 220V/50HZ/single phase power or as requirement Main motor power 3KW/4kW/5.5KW/7.5KW or as actual demands Hydraulic pump station Gear pump Pump station motor power 3KW/4KW/5.5KW/7.5KW or as actual demands Reducer 6#/ 8# Gear Reducer Hydraulic pressure 10-12MPa according to the oil pump and pump motor Shearing knife Cr12 / Cr12MOV, heat treatment, HRC 58-60℃ Cr-plating size: 0.05 mm Cutting method Electric cutting Control System PLC Control System, 360 degree rotation PLC Display languages Chinese, English, (Spanish or Russian) Productivity 10~15m/min Length tolerance ±2mm Cutting tolerance ±1mm Raw material Galvanized steel coil/ Galvalume steel coil/ Color steel coil/ Aluminum steel coil/ Stainless steel coil Feeding thickness 0.3-1.0mm(Galvanized steel coil/ Galvalume steel coil/ Color steel coil/ Stainless steel coil); 0.3-1.5mm (Aluminum steel coil)

roof panel machine details

01. Mainframe: GB H steel, hard texture. 02. Operator station: 360-degree rotation display. 03. Cutter: The main material is Cr12, which has high hardness. 04. Retaining pad: Prevent the nut from loosening. 05. Easy hanging: Prevent the machine from scratching during the movement. 06. Wheel: generally 45# steel, good hardness. 07. Travel switch: Limit the position or travel of the machine. 08. Rear hand knife: cut in advance to prevent waste. 09. Resin wheel: used to record the length of discharge and record data is more accurate. 10. Electric control cabinet: The main brands are Panasonic / Siemens / Schneider / Delta PLC Why choose us? The customer service department of Haixing Group consists of knowledgeable machine experts and technicians who can answer and submit solutions to customer problems in the fastest time. For us, sales are not selling products and then go away. Our aim is to serve our customers wholeheartedly. To this end, we offer our clients free advice. In communication with customers, we not only have an in-depth understanding of the actual needs of our customers but also provide professional advice, including the choice of raw material types and raw material thickness. We provide remote services to our customers, allowing them to purchase products without any worries. Warmly welcome to visit our Chinese factory and choose the machine you need. Our roof panel machine is warranted for 24 months. During the warranty period, if the damaged part cannot be repaired, we can send the new part for replacement of the damaged part for free, but you will need to pay the courier fee yourself. If after the warranty period, we can negotiate to resolve the issue and provide technical support throughout the life of the device. Read the full article

[haixinggroup]

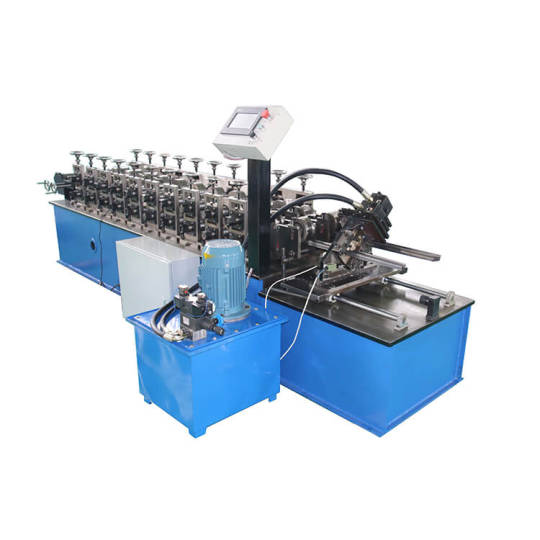

C profile stud machine

Our C profile stud machine can be designed according to the buyer's samples or drawings. The work Flow for the galvanized metal studs and tracks roll forming machine is as follows: Decoiler → Feeding Guide → Roll Forming → Cut-to-length → Run out table. C profile stud machine parameters 1 Suitable to process Color steel plate 2 Width of the plate As customer need 3 Thickness of the plate 0.5-1.2mm 4 De-coiler Manual one, can load 3 tons raw material 5 Rollers for forming 18 rows 6 Diameter of the roller Φ Read the full article

[haixinggroup]

Aluminium sheet curved roof panel roll forming machine

Aluminium sheet curved roof panel roll forming machine parameters Main frame Welded from 350mm H-beam. Roller shaft diameter 70mm, solid shaft with retaining pad shaft material 45# steel chrome 0.03mm Transfer method 1.0 inch chain Medium plate thickness 16mm Main motor 3kw, Siemens Bede Motor Hydraulic power station 4kw, gear pump: Shanghai Lichao Cutter material Cr12, heat treatment HR50-60 Cutting method Hydraulic four-column cutting Length tolerance ±2mm PLC High-precision computer control cabinet: Taiwan Delta; touch screen, frequency converter: Mitsubishi Production speed 1.5-3 m/min Voltage 380V, three-phase, 50 Hz Feed width 914mm or or according to customer requirements Number of rows 3 rows Equipment size 6500*1350*1400mm Pressing mold material Cr12 Raw material thickness 0.28~0.8mm Aluminium sheet curved roof panel roll forming machine pictures

Packing & Shipping a.The main body of aluminium sheet curving curved roof panel roll forming machine with water-proof plastic, then fixed to container by 8mm diameter steel wire and angle iron. b.Rollers and shafts are covered with anti-rust oil. c.PLC control system and motor pump are packed with waterproof paper and plastic film. d.Spare parts in a carton box. e.Manual decoiler was nude packing. f.The output-table put into a carton box. g.If the machine is too long, we will divide it into two parts and pack them in one package with steel wire. h.Fit for ocean shipping.

Read the full article

[haixinggroup]

Stainless steel sheet leveling machine

Advantages of Stainless steel sheet leveling machine 1.This Stainless steel sheet leveling machine adopts steel welded structure, hydraulic transmission, easy to operate, reliable performance, nice appearance. 2. Blade gap is adjusted according to sign post, can adjust light quickly. 3. It has light for wire device, and can non-polar adjust route. 4. It adopts fence type safety device. 5. Size of rear block stop and shearing numbers has digital display apparatus. No. Stainless steel sheet leveling machine Parameters 1 Suitable to process Color alu-zinc steel coil 2 Roller Up: 5 rollers; Down: 6 rollers 3 Dimensions 2200x2000x2000mm 4 Motor Power 4Kw 5 Pump Station Motor 3Kw.Lichao Brand 6 Thickness of the plate Slitting: Max 0.8mm; Cutting: Max 2.0mm 7 Productivity 10-15m/min 8 Material of the cutting blade Cr12,Quenched treatment 58℃-60℃ 9 Diameter of the roller Φ90mm 10 Weight About 2500kgs 11 Main structure of the machine 350H beams 12 Processing precision Within 1.0mm 13 Side panel of machine 40mm 14 Chain Wheel and Cycle Chain 1 Inch 15 Voltage 380V 50Hz 3phases or as customer's need 16 Control system PLC control (Delta) 17 Frequency system Delta 18 Drive mode Motor driver 19 Touch screen Delta 20 Rolling materials 45# forging steel with chromium plate 21 Length Tolerance ±2mm Stainless steel sheet leveling machine Picture Details

Stainless steel sheet leveling machine Packing & Shipping a.The main body of Stainless steel sheet leveling machine with water-proof plastic, then fixed to container by 8mm diameter steel wire and angle iron. b.Rollers and shafts are covered with anti-rust oil. c.PLC control system and motor pump are packed with waterproof paper and plastic film. d.Spare parts in a carton box. e.Manual decoiler was nude packing. f.The output-table put into a carton box. g.If the machine is too long, we will divide it into two parts and pack them in one package with steel wire. h.Fit for ocean shipping. Read the full article

[haixinggroup]

arch hydraulic curving roof machine

no girder arch roof forming machine parameters Main frame Welded from 350mm H-beam. Roller shaft diameter 70mm, solid shaft with retaining pad shaft material 45# steel chrome 0.03mm Transfer method 1.0 inch chain Medium plate thickness 16mm Main motor 3kw, Siemens Bede Motor Hydraulic power station 4kw, gear pump: Shanghai Lichao Cutter material Cr12, heat treatment HR50-60 Cutting method Hydraulic four-column cutting Length tolerance ±2mm PLC High-precision computer control cabinet: Taiwan Delta; touch screen, frequency converter: Mitsubishi Production speed 1.5-3 m/min Voltage 380V, three-phase, 50 Hz Feed width 914mm or or according to customer requirements Number of rows 3 rows Equipment size 6500*1350*1400mm Pressing mold material Cr12 Raw material thickness 0.28~0.8mm no girder arch roof forming machine pictures

Packing & Shipping a.The main body of no girder arch roof forming machine with water-proof plastic, then fixed to container by 8mm diameter steel wire and angle iron. b.Rollers and shafts are covered with anti-rust oil. c.PLC control system and motor pump are packed with waterproof paper and plastic film. d.Spare parts in a carton box. e.Manual decoiler was nude packing. f.The output-table put into a carton box. g.If the machine is too long, we will divide it into two parts and pack them in one package with steel wire. h.Fit for ocean shipping.

Read the full article

[haixinggroup]

sheet metal roll slitting machine

Name sheet metal roll slitting machine Size About 1.5m*1.3m*1.25m Weight 0.35Tons The main motor power 0.75-2.2kw or customer's need The max machining width 1250mm The machining steel thickness 0.2-1.2mm Min slitting width 75mm Material of the cutting blade Gr12,die steel, heat treatment, finish machining for excircle, surface and inner bore. Hardness of blade 56~62 degree Feeding method With 2Φ130mm glue axis feeding Material of centre stand 140mm channel steel maxum Voltage 380v 50hz 3Phase or customer's need

sheet metal roll slitting machine advantages 1. Metal slitting machine is used to cut wide width materials to many narrow width products. 2. The knife shaft and whole machine are manufactured by our own with high precision. 3. Our machine can work with various special materials, such as bronze, iron, steel, and stainless steel,etc with the best additional value. 4. In addition to our complete models, special specifications are also accepted. After Sales Service: 1. Warranty: Two years,and we will provide technical support for whole life of the equipment. 2. Delivery time: Within 25 days after deposit receipt your payment. 3. Guarantee period: 24months free service/ pay service all the machine life. 4. Installation and training: If buyers visit our factory and check the machine, we will teach you how to install and use the machine and also train your workers/technician face to face. Why choose us? 1. Our company owned a professional design team, we can design different profiles according to customer's demands. 2. We design and manufacture machines using advanced standard technology. We have strict control over the quality of the machines, our principle is that "never let one unqualified Machine leave our factory". 3. Our machines are controlled by computer, PLC display, simple operation, stable and reliable operation, durable and maintenance-free. 4. Our machines can uses galvanized steel sheet, colored armor plate or aluminum plate as the material plate. 5. Our machine has a long warranty and you can use it without worry after purchase. 6. After purchasing our machine, we will offer easily damaged parts freely. 7. All use well-known brand appliances. 8. Multilingual control system, including Spanish, Russian, English and Chinese. 9. Powerful teach teams with more than 12 years of working experience will help you, improve the design if it is not perfect before selling. 10. 24*7 hours before and after service in English, Russian, Spanish and others. We, Tianjin Haixing is a professional cold roll forming machine manufacturer, We have been focusing on this field for 22 years. Our equipment includes roof roll forming machine, floor deck roll forming machine, automatic decoiler, shutter door roll forming machine, light keel roll forming machine, purlin machine, leveling and slitting machine, and other related construction equipment. Haixing has employed a team of engineers for more than 20 years. At the same time, our machines use branded electrical components, raw materials from branded steel factories, strict process control, two-year warranty, installation and training services. Read the full article

[haixinggroup]

Light keel cold roll forming machine

Our Light keel cold roll forming machine can be designed according to the buyer's samples or drawings. The work Flow for the galvanized metal studs and tracks roll forming machine is as follows: Decoiler → Feeding Guide → Roll Forming → Cut-to-length → Run out table. metal stud and track roll forming machine parameters 1 Suitable to process Color steel plate 2 Width of the plate As customer need 3 Thickness of the plate 0.5-1.2mm 4 De-coiler Manual one, can load 3 tons raw material 5 Rollers for forming 18 rows 6 Diameter of the roller Φ Read the full article

[haixinggroup]

Aluminium sheet curved roof panel roll forming machine

Aluminium sheet curved roof panel roll forming machine parameters Main frame Welded from 350mm H-beam. Roller shaft diameter 70mm, solid shaft with retaining pad shaft material 45# steel chrome 0.03mm Transfer method 1.0 inch chain Medium plate thickness 16mm Main motor 3kw, Siemens Bede Motor Hydraulic power station 4kw, gear pump: Shanghai Lichao Cutter material Cr12, heat treatment HR50-60 Cutting method Hydraulic four-column cutting Length tolerance ±2mm PLC High-precision computer control cabinet: Taiwan Delta; touch screen, frequency converter: Mitsubishi Production speed 1.5-3 m/min Voltage 380V, three-phase, 50 Hz Feed width 914mm or or according to customer requirements Number of rows 3 rows Equipment size 6500*1350*1400mm Pressing mold material Cr12 Raw material thickness 0.28~0.8mm Aluminium sheet curved roof panel roll forming machine pictures

Packing & Shipping a.The main body of aluminium sheet curving curved roof panel roll forming machine with water-proof plastic, then fixed to container by 8mm diameter steel wire and angle iron. b.Rollers and shafts are covered with anti-rust oil. c.PLC control system and motor pump are packed with waterproof paper and plastic film. d.Spare parts in a carton box. e.Manual decoiler was nude packing. f.The output-table put into a carton box. g.If the machine is too long, we will divide it into two parts and pack them in one package with steel wire. h.Fit for ocean shipping.

Read the full article

[haixinggroup]

C profile stud machine

Our C profile stud machine can be designed according to the buyer's samples or drawings. The work Flow for the galvanized metal studs and tracks roll forming machine is as follows: Decoiler → Feeding Guide → Roll Forming → Cut-to-length → Run out table. C profile stud machine parameters 1 Suitable to process Color steel plate 2 Width of the plate As customer need 3 Thickness of the plate 0.5-1.2mm 4 De-coiler Manual one, can load 3 tons raw material 5 Rollers for forming 18 rows 6 Diameter of the roller Φ Read the full article

[haixinggroup]

C profile stud machine

Our C profile stud machine can be designed according to the buyer's samples or drawings. The work Flow for the galvanized metal studs and tracks roll forming machine is as follows: Decoiler → Feeding Guide → Roll Forming → Cut-to-length → Run out table. C profile stud machine parameters 1 Suitable to process Color steel plate 2 Width of the plate As customer need 3 Thickness of the plate 0.5-1.2mm 4 De-coiler Manual one, can load 3 tons raw material 5 Rollers for forming 18 rows 6 Diameter of the roller Φ Read the full article

[haixinggroup]

C profile stud machine

Our C profile stud machine can be designed according to the buyer's samples or drawings. The work Flow for the galvanized metal studs and tracks roll forming machine is as follows: Decoiler → Feeding Guide → Roll Forming → Cut-to-length → Run out table. C profile stud machine parameters 1 Suitable to process Color steel plate 2 Width of the plate As customer need 3 Thickness of the plate 0.5-1.2mm 4 De-coiler Manual one, can load 3 tons raw material 5 Rollers for forming 18 rows 6 Diameter of the roller Φ Read the full article

[haixinggroup]

C profile stud machine

Our C profile stud machine can be designed according to the buyer's samples or drawings. The work Flow for the galvanized metal studs and tracks roll forming machine is as follows: Decoiler → Feeding Guide → Roll Forming → Cut-to-length → Run out table. C profile stud machine parameters 1 Suitable to process Color steel plate 2 Width of the plate As customer need 3 Thickness of the plate 0.5-1.2mm 4 De-coiler Manual one, can load 3 tons raw material 5 Rollers for forming 18 rows 6 Diameter of the roller Φ Read the full article

[haixinggroup]

Metal Standing Seam Machine

The Standing Seam Metal Roof Panel has excellent flexibility, and with different materials such as steel plates and aluminum plates, it can meet various architectural design requirements. Including flat, curved, fan-shaped (large and small head), melon-shaped (two small ends and large in the middle), the middle small and two heads and other shapes. Thus providing architects with a vast creative space. Metal Standing Seam Machine parameters 1 Suitable to process Color alu-zinc steel coil/Aluminium Coil 2 Roller 16Rows 3 Dimensions 7.0*1.3*1.55m 4 Motor Power 7.5Kw 5 Pump Station Motor 5.5Kw, Lichao Brand 6 Thickness of the plate 0.6-1.2mm 7 Productivity 10-15m/min 8 Material of the cutting blade Cr12,Quenched treatment 58℃-60℃ 9 Diameter of the roller Φ90mm 10 Weight About 4800kgs 11 Main structure of the machine 400H beams 12 Processing precision Within 1.0mm 13 Side panel of machine 20mm 14 Chain Wheel and Cycle Chain 1 Inch 15 Voltage 380V 50Hz 3phases or as customer's need 16 Control system PLC control (Delta) 17 Frequency system Delta 18 Drive mode Motor driver 19 Touch screen Delta 20 Rolling materials 45# forging steel with chromium plate 21 Length Tolerance ±2mm Picture details of Metal Standing Seam Machine

Roof roll forming machines has different types which used together with corrugated sheet and IBR sheet, or glazed tile sheet, selflock roof machine. The metal sheet is widely used in many kinds of industrial factory, civilian buildings, and Roof board for attached part product It has advantage of pretty appearance, durable using and so on. For the Metal Standing Seam Machine, we commonly use the profile as following:

Metal Standing Seam Machine packaging Details a.The main body of machine with water-proof plastic, then fixed to container by 8mm diameter steel wire and angle iron. b.Rollers and shafts are covered with anti-rust oil. c.PLC control system and motor pump are packed with waterproof paper and plastic film. d.Spare parts in a carton box. e.Manual decoiler was nude packing. f.The output-table put into a carton box. g.If the machine is too long, we will divide it into two parts and pack them in one package with steel wire. h.Fit for ocean shipping. Read the full article

[haixinggroup]

Aluminium sheet curved roof panel roll forming machine

Aluminium sheet curved roof panel roll forming machine parameters Main frame Welded from 350mm H-beam. Roller shaft diameter 70mm, solid shaft with retaining pad shaft material 45# steel chrome 0.03mm Transfer method 1.0 inch chain Medium plate thickness 16mm Main motor 3kw, Siemens Bede Motor Hydraulic power station 4kw, gear pump: Shanghai Lichao Cutter material Cr12, heat treatment HR50-60 Cutting method Hydraulic four-column cutting Length tolerance ±2mm PLC High-precision computer control cabinet: Taiwan Delta; touch screen, frequency converter: Mitsubishi Production speed 1.5-3 m/min Voltage 380V, three-phase, 50 Hz Feed width 914mm or or according to customer requirements Number of rows 3 rows Equipment size 6500*1350*1400mm Pressing mold material Cr12 Raw material thickness 0.28~0.8mm Aluminium sheet curved roof panel roll forming machine pictures

Packing & Shipping a.The main body of aluminium sheet curving curved roof panel roll forming machine with water-proof plastic, then fixed to container by 8mm diameter steel wire and angle iron. b.Rollers and shafts are covered with anti-rust oil. c.PLC control system and motor pump are packed with waterproof paper and plastic film. d.Spare parts in a carton box. e.Manual decoiler was nude packing. f.The output-table put into a carton box. g.If the machine is too long, we will divide it into two parts and pack them in one package with steel wire. h.Fit for ocean shipping.

Read the full article

[haixinggroup]

Aluminium sheet curved roof panel roll forming machine

Aluminium sheet curved roof panel roll forming machine parameters Main frame Welded from 350mm H-beam. Roller shaft diameter 70mm, solid shaft with retaining pad shaft material 45# steel chrome 0.03mm Transfer method 1.0 inch chain Medium plate thickness 16mm Main motor 3kw, Siemens Bede Motor Hydraulic power station 4kw, gear pump: Shanghai Lichao Cutter material Cr12, heat treatment HR50-60 Cutting method Hydraulic four-column cutting Length tolerance ±2mm PLC High-precision computer control cabinet: Taiwan Delta; touch screen, frequency converter: Mitsubishi Production speed 1.5-3 m/min Voltage 380V, three-phase, 50 Hz Feed width 914mm or or according to customer requirements Number of rows 3 rows Equipment size 6500*1350*1400mm Pressing mold material Cr12 Raw material thickness 0.28~0.8mm Aluminium sheet curved roof panel roll forming machine pictures

Packing & Shipping a.The main body of aluminium sheet curving curved roof panel roll forming machine with water-proof plastic, then fixed to container by 8mm diameter steel wire and angle iron. b.Rollers and shafts are covered with anti-rust oil. c.PLC control system and motor pump are packed with waterproof paper and plastic film. d.Spare parts in a carton box. e.Manual decoiler was nude packing. f.The output-table put into a carton box. g.If the machine is too long, we will divide it into two parts and pack them in one package with steel wire. h.Fit for ocean shipping.

Read the full article

[haixinggroup]

Light Gauge Forming Machine

Our Light Gauge Forming Machine can be designed according to the buyer's samples or drawings. The work Flow for the galvanized metal studs and tracks roll forming machine is as follows: Decoiler → Feeding Guide → Roll Forming → Cut-to-length → Run out table. Light Gauge Forming Machine parameters 1 Suitable to process Color steel plate 2 Width of the plate As customer need 3 Thickness of the plate 0.5-1.2mm 4 De-coiler Manual one, can load 3 tons raw material 5 Rollers for forming 18 rows 6 Diameter of the roller Φ Read the full article

[haixinggroup]

Light Gauge Forming Machine

Our Light Gauge Forming Machine can be designed according to the buyer's samples or drawings. The work Flow for the galvanized metal studs and tracks roll forming machine is as follows: Decoiler → Feeding Guide → Roll Forming → Cut-to-length → Run out table. Light Gauge Forming Machine parameters 1 Suitable to process Color steel plate 2 Width of the plate As customer need 3 Thickness of the plate 0.5-1.2mm 4 De-coiler Manual one, can load 3 tons raw material 5 Rollers for forming 18 rows 6 Diameter of the roller Φ Read the full article
