ODF-OW96A Outdoor Wall-mount Fiber Optic Distribution Frame is mainly used for connecting the outdoor optical cables, optical patch cords and optical pigtails. It can be wall mounted or pole mounted, and facilitates the test and refit of the lines.

[laurafan13]

Rotary Type Fiber Optic Patch Panel

Specification: Model: ODF-RW24-A Material: Cold-roll steel ABS material splice tray: OST-010G 1pc splice tray; each splice tray 24 cores Dimension: 482x341x44mm Capacity: 24 cores

#ftth #fiberoptic #ODF #patchpanel

[laurafan13]

Rotary Type Fiber Optic Patch Panel

ODF-RW1U48-B Material: Cold roll steel ABS material splice tray: OST-010G

12C, 24C, 36C, 48C, 72C, 96C, 144C optional, with or without fiber optic pigtails and adapters

fiberoptic #ftth #opticalfiber #ODF #patchpanel

[laurafan13]

Dome Fiber Optic Splice Closure CV018

Feature: 1pc splice tray, max. 24 fibers Cable port: 2pcs round port φ15mm, 2pcs round port φ13mm, 8pcs 2*3mm drop cable ports. The 2 cable ports are heat shrink sealing. Cable entry without cutting. Outdoor aerial hanger and pole holding. Material: high impact resistance PP materials with UV Can load 1pc PLC 1:8 splitter and 9pcs SC simplex adapters

#splitter #fiberoptic #SCsimplex #fiberclosure #plcsplitter #spliceclosure #FTTH #24fibers

[laurafan13]

IP68 24 cores fiber optic terminal box OTB-P037 High quality and samples available Waterproof and dust off high-level #fiberoptic #ftth #napbox #fiberopticterminalbox #OTB #ODB #fiberbox

[laurafan13]

Fiber optic inline splice closure CH027 PP material, 6 cable ports, 12~96fibers capacity #FTTH #CH027 #fiberoptic #spliceclosure #fiberopticspliceclosure

[laurafan13]

Fiber Optic Terminal Box OTB-P021-A

Features Material: ABS plastic 2 splice module, each 6 slots, max. 12 fibers Max. 12pcs SC simplex adapter ports Support cable entry without cutting 2pcs port for max. 12mm cable + 8pcs port for max. 8mm cable entry Wall mounting and pole mounting application Waterproof, outdoor using, IP65

[laurafan13]

A plastic fiber optic terminal box that suitable for optical fiber splicing, distribution, and protection. It can load 18pcs SC simplex adapters and 1pc PLC 1:16 steel tube type splitter. It supports 16 drop cable output and cable entry without cutting.

#16corenapbox #16core #napbox #cajabox #fiberopticterminalbox #ftthbox #fiberoptic

[laurafan13]

Insulation optic fiber tension clamp Suitable for round optical cables with a diameter of 8-12mm; ultimate breaking force of 8000N #Fiberoptic #FTTH #tensionclamp #opticfibertensionclamp

[laurafan13]

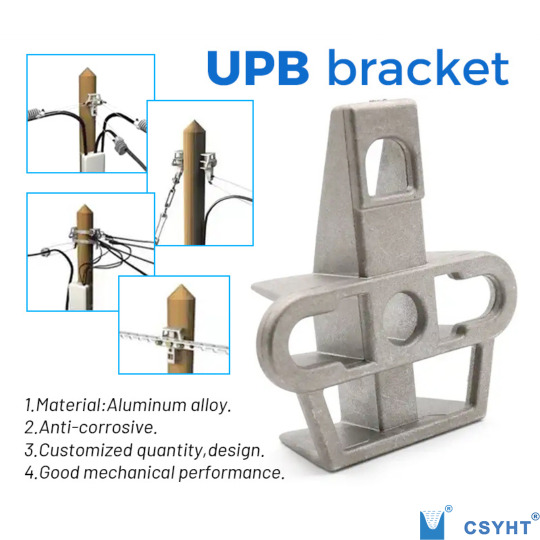

The UPB (Universal pole bracket) is manufactured from aluminum alloy with correspondingly high mechanical strength. Its unique patented design has been developed to propose a universal fitting covering all installation situations on wooden, metal or concrete poles.

#UPBbracket #UPB #fiberoptic #FTTH #cablefittings #telecommunications

[laurafan13]

ADSS Cable J Hook Suspension Clamp

ADSS Cable J Hook Suspension Clamps is designed to provide a suspension for aerial ADSS round optical fiber cable during construction of transmission line. The clamp consists of plastic insert, which clamp the optical cable without damaging. A wide range of gripping capacities and mechanical resistance archived by wide product range, with different sizes of neoprene inserts.

The metal hook of suspension clamp allows installation on the pole by using stainless steel band and pigtail hook or brackets. The hook of ADSS clamp can be produced form stainless steel materials according to you request.

#adssclamp#suspensionclamp#fiberoptic#fiberclamp#Jhooksusoensionclamp#ftth#ftta#fttb#telecom

[laurafan13]

Anchor Clamp for ADSS Cable

Anchor Clamps for ADSS Cable are designed for dead-ending aerial ADSS cables on access networks when span do not exceed 100m. And different capacities are available to adapt to the cable.

Main Features Dead-ending of 6 to 20 mm ADSS cables Minimum breaking load of 500/600 daN Installation on any pole hardware fitting: brackets, cross-arms or eye bolt with a min eye Ø of 15 mm 4kV thimble as standard. 11 kV thimble available All plastic parts are UV resistant and tested in conditions equivalent to min 25 years of service in tropical environment

Advantages: Light and compact products Easy, quick and safe dead-ending Installation takes seconds The flexible bail provides an extra protection to the cable against vibrations 4 kV or 11 kV insulation provided #anchorclamp #fiberoptic #adsscable #ADSS

[laurafan13]

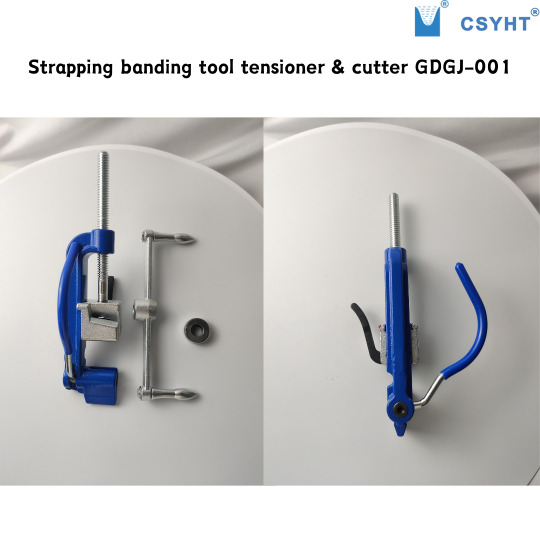

The GDGJ-001 can meet all the requirements for tensioning and cutting stainless steel banding, and which can be further described as: Dimension: 220x60x300mm Material: High carbon steel, blade quenched Application: for all steel band with width 3/16”~3/4”

The GDGJ-001 with high hardness, strength and other excellent mechanical properties, which is very easy to use and labor saving. Specifications:

Screw Tightening and Adjustable Tightness

Lever Principe on Cutting Handle

Automatic Cut-off and Simple Operation

Comfortable Handle with PVC antiskid

Lightweight

[laurafan13]

ADSS CLAMP For spanning 150M adss cable, suitable for 11.5MM cable diameter.

#ADSSCLAMP #Fiberoptic #FTTH #fiber #telecommunications #cable #fiberopticcable #wire #telecom

[laurafan13]

400X Magnification Inspection Probe KIP-600V Fiber Optic Video Inspection Probe and Display, Fiber Optic Inspector

Remainder:

The standard package includes UPC connectors. If you use the UPC connectors to test the APC fiber, you will find that it can't be focused with UPC connectors, and the picture it shows is blurry. So choose the right connector before starting the test.

[laurafan13]

Light and premium quality fusion splicer SC1 Contact for the price details #FTTH #Fusionsplicer #Fiberoptic

[laurafan13]

FTTH Toolbag VFL + Drop cable Stripper + Power meter + Cleaver + Miller Stripper + Alcohol bottle Model: F-BAG-002

#FTTH #Fiberoptic #Ftthtoolbag #FTTA #powermeter #VFL
