Common Causes of Leaf Spring Failure and How to Avoid Them

Understanding Leaf Spring Basics

Before diving into the causes of failure, it's important to understand what a leaf spring is. A leaf spring is a simple form of spring commonly used for the suspension in wheeled vehicles. It consists of multiple layers of metal (typically steel), called leaves, that are bound together. These layers flex under pressure and absorb shock, providing a smoother ride and supporting the weight of the vehicle.

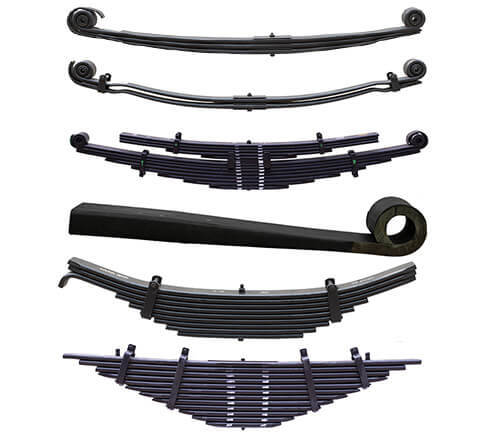

There are several types of leaf springs, including: - Multi-leaf springs: Composed of several layers with varying lengths. - Mono-leaf (single leaf) springs: Consist of one thick plate. - Parabolic leaf springs: Have tapered profiles to provide a more progressive response.

Regardless of the type, leaf springs play a vital role in maintaining ride quality, vehicle stability, and safety.

Common Causes of Leaf Spring Failures

Leaf spring failures can arise from various mechanical, environmental, and operational factors. Here are the most common causes:

1. Metal Fatigue and Overloading: One of the most prevalent causes of leaf spring failure is metal fatigue. Over time, the repeated flexing of the leaves under heavy loads causes microscopic cracks in the metal. These cracks grow, eventually leading to breakage.

2. Corrosion and Rust: Corrosion, particularly rust, weakens the integrity of the steel leaves. Moisture, salt, and other environmental contaminants accelerate this process.

3. Improper Installation or Alignment: Incorrect installation or misalignment of leaf springs can cause unnatural stress distributions, leading to premature wear or failure.

4. Poor Quality Materials or Manufacturing Defects: The quality of the steel used and the manufacturing process greatly influence the lifespan of leaf springs.

5. Lack of Maintenance: Neglecting regular inspections and maintenance leads to a build-up of wear and minor damage that can compound into significant failures.

6. Road and Operating Conditions: Severe off-road use, uneven terrain, or continuous operation in rough conditions amplify the stress experienced by the leaf springs.

Signs of Leaf Spring Failure

Recognizing the early signs of failure can help avoid catastrophic outcomes: - Vehicle sagging - Uneven tire wear - Increased vibration or harsh ride - Visible cracks or separation - Noisy suspension

Preventive Measures to Avoid Leaf Spring Failures

While it's impossible to prevent all failures, several proactive steps can be taken to reduce the risk and extend the life of your leaf springs.

1. Routine Inspection and Maintenance: Regular checks for wear and damage can help catch issues early.

2. Avoid Overloading:     Adhere strictly to the vehicle’s load ratings. Overloading not only accelerates leaf spring failure but also compromises the entire suspension system and safety.

3. Rust Prevention and Cleaning: Protective coatings and regular cleaning can help prevent rust.

4. Use Quality Components: Invest in high-quality leaf springs from reputable manufacturers.

5. Correct Installation Procedures: Ensure springs are installed by trained professionals using manufacturer-recommended tools and specifications.

6. Customize for Use Case: For fleets or specialty vehicles, consider custom-designed springs tailored for specific load and terrain requirements.

Future Innovations in Leaf Spring Durability

Emerging technologies offer new ways to reduce leaf spring failures: - Composite Leaf Springs - Smart Springs - Advanced Coatings

Conclusion

Leaf springs are simple yet critical components that bear the brunt of vehicle load and road stress. Understanding the common causes of their failure allows vehicle owners and fleet operators to implement strategies for prevention. Through regular maintenance, quality selection, and attention to installation practices, leaf spring failures can be significantly reduced, enhancing safety, performance, and the longevity of your vehicle.

Investing time and resources in these preventive measures is not just good engineering—it’s good business.

[leafsprings]

Best Practices for Leaf Spring Alignment and Suspension Optimization

Leaf springs are a critical component of a vehicle’s suspension system, particularly in trucks, commercial vehicles, and off-road applications. Proper alignment and optimization of the suspension system are essential for ensuring vehicle stability, load distribution, ride comfort, and longevity of the suspension components. Misaligned or improperly optimized leaf springs can lead to uneven tire wear, reduced fuel efficiency, handling issues, and even safety risks.

This article provides a detailed overview of best practices for leaf spring alignment and suspension optimization, covering inspection procedures, adjustment techniques, common issues, and preventive maintenance measures.

Understanding Leaf Spring Alignment

Leaf spring alignment refers to the correct positioning of the springs relative to the vehicle’s chassis, axles, and wheels. Proper alignment ensures that weight is evenly distributed, prevents unnecessary strain on suspension components, and maintains optimal ride quality and vehicle control.

Key Factors Affecting Leaf Spring Alignment:

Axle Positioning – The alignment of the leaf springs with the axle ensures balanced load distribution and proper wheel tracking.

Spring Eye Bushings – Worn-out or damaged bushings can cause misalignment and affect the vehicle’s handling.

Shackle Angles – The angle of the shackles influences ride comfort and axle articulation.

Center Bolt Placement – The center bolt of the leaf spring pack must be correctly positioned to maintain alignment.

U-Bolt Torque – Incorrect torque on U-bolts can cause shifting of the leaf spring pack, leading to misalignment.

Signs of Misaligned Leaf Springs

Uneven tire wear or rapid tire degradation

Pulling to one side while driving

Excessive vibrations or rattling in the suspension

Reduced handling and stability

Noticeable lean or height difference in the vehicle’s stance

Step-by-Step Guide to Leaf Spring Alignment

1. Initial Inspection

Before making any adjustments, conduct a thorough visual and physical inspection:

Check for visible damage such as cracks, bends, or worn-out bushings.

Inspect the U-bolts, shackles, and mounting brackets for looseness or signs of wear.

Measure wheelbase symmetry on both sides to ensure equal spacing.

Look for center pin misalignment, which can shift axle positioning.

2. Measuring Axle Alignment

Use a plumb bob or laser alignment tool to verify that the axle is centered with respect to the chassis.

Measure the distance from the front and rear axles to a fixed reference point on the frame.

Ensure equal distances on both sides for proper tracking.

3. Adjusting Leaf Spring Positioning

Loosen the U-bolts carefully to allow slight repositioning of the spring pack.

Realign the center bolt of the leaf spring pack with the axle seat.

If necessary, adjust the shackles and hangers to correct misalignment.

Retorque U-bolts to the manufacturer’s specified torque values to prevent shifting.

4. Checking Shackle Angles

Ensure that the shackle angles are within the recommended range to allow proper movement.

A misaligned shackle can restrict suspension articulation and cause a harsh ride.

If needed, replace old shackles or reposition them for better alignment.

5. Bushing Inspection and Replacement

Worn or damaged bushings can lead to excessive movement and misalignment.

Inspect the spring eye and shackle bushings for cracks, excessive wear, or deformation.

Replace worn-out bushings with high-quality rubber or polyurethane bushings for enhanced durability.

6. Final Torque and Load Testing

After making adjustments, torque all fasteners to manufacturer-recommended specifications.

Load test the suspension by simulating the typical weight the vehicle carries.

Perform a road test to check for handling improvements and potential misalignment issues.

Suspension Optimization Techniques

Beyond proper alignment, suspension optimization ensures a smooth ride, extended component life, and enhanced performance under different loads and terrains.

1. Selecting the Right Leaf Springs

Choose leaf springs that match the vehicle’s load capacity and intended use.

Heavy-duty applications require reinforced or multi-leaf spring packs.

Lighter-duty applications may benefit from parabolic leaf springs for better ride comfort.

2. Upgrading to Variable-Rate Springs

Progressive or variable-rate leaf springs adjust stiffness according to load conditions.

Ideal for vehicles that frequently carry varying loads.

3. Maintaining Proper U-Bolt Torque

Loose U-bolts can lead to shifting of the spring pack and misalignment.

Overtightening U-bolts can crush the leaf pack and reduce suspension flexibility.

Check U-bolt torque regularly, especially after suspension modifications or off-road driving.

4. Adding Shock Absorbers for Enhanced Stability

Complement leaf springs with high-quality shock absorbers for improved damping.

Helps in reducing bouncing, vibrations, and excessive movement.

5. Proper Lubrication and Corrosion Prevention

Periodically lubricate leaf spring components, particularly shackle bolts and bushings.

Apply corrosion-resistant coatings or paint to prevent rust and metal fatigue.

Avoid excessive grease between leaf packs, as this can attract dirt and debris.

Common Mistakes to Avoid

Overlooking Small Misalignments – Even minor misalignment can cause long-term wear issues.

Ignoring Bushing Wear – Bushings play a crucial role in suspension movement; neglecting them can lead to failure.

Incorrect U-Bolt Tightening – Over-tightening or under-tightening can cause shifting or excessive stiffness.

Using Mismatched Leaf Springs – Ensure both sides have the same specifications to avoid handling imbalances.

Delaying Routine Inspections – Regular checks help in detecting early signs of wear and preventing costly repairs.

Proper leaf spring alignment and suspension optimization are essential for vehicle stability, load management, and overall ride quality. Following best practices for alignment, torque management, bushing maintenance, and shock absorber integration ensures that the suspension system operates at peak efficiency.

By implementing these techniques, fleet operators, off-road enthusiasts, and commercial vehicle owners can maximize performance, reduce maintenance costs, and improve safety on the road. Regular inspections and preventive measures will help in extending the lifespan of leaf springs and keeping vehicles in optimal condition.

For those seeking professional assistance, consulting a qualified suspension specialist can ensure precise alignment and enhanced suspension performance. Investing in proper alignment today can save thousands in future repair costs and downtime.

[leafsprings]

Why Conventional Leaf Springs Remain The Preferred Choice For Heavy-Duty Trucks And Trailers

Heavy-duty trucks and trailers are the backbone of global transportation, enabling the movement of goods across vast distances and through challenging terrains. These vehicles are designed to handle massive loads and endure rigorous operational demands, from highways to construction sites and off-road environments. One critical aspect of heavy-duty vehicles that is often taken for granted is their suspension system, which plays a crucial role in providing stability, handling, and comfort while ensuring the vehicle’s longevity. While modern suspension technologies like air suspension systems and coil springs are available, conventional leaf springs continue to dominate the suspension systems in heavy-duty trucks and trailers.

Leaf springs have been used in transportation since the 18th century, and despite the advancements in automotive technology, they are still widely used in heavy-duty vehicles today. Their continued use is due to a combination of advantages such as durability, cost-effectiveness, simplicity, load-bearing capacity, and ease of maintenance. In this article, we will explore why leaf springs remain a preferred choice for heavy-duty trucks and trailers, despite the availability of alternative suspension technologies.

1. Durability and Longevity

One of the most compelling reasons for the continued use of leaf springs in heavy-duty trucks and trailers is their durability and long lifespan. Heavy-duty vehicles are subject to extreme conditions, including harsh weather, rough roads, and heavy loads. Leaf springs, made from high-strength steel or composite materials, are inherently durable and can withstand these demanding conditions.

Unlike air suspensions, which require seals, compressors, and airbags that may wear out over time, leaf springs are simple mechanical devices with fewer components that can fail. The robust nature of leaf springs allows them to continue performing reliably under load, even in challenging environments, which is crucial for industries such as construction, mining, and freight transportation. Their ability to absorb shock and distribute weight evenly across the chassis contributes to the overall longevity of the vehicle.

2. Cost-Effectiveness

Cost is a significant factor in the choice of suspension systems for heavy-duty trucks and trailers. Conventional leaf springs are relatively inexpensive compared to other suspension types such as air suspension or independent suspension systems. For truck owners and fleet operators who need to manage operating costs, leaf springs provide an affordable option without compromising on performance.

In addition to the low upfront cost, leaf springs are also more affordable to maintain and repair. In the event of damage, a leaf spring can be replaced relatively quickly and at a lower cost than repairing or replacing components of more complex suspension systems. The simplicity of the leaf spring design contributes to lower maintenance costs and less downtime for heavy-duty vehicles, which is a significant advantage for businesses that rely on their trucks for constant operation.

3. Load-Bearing Capacity

Heavy-duty trucks and trailers are designed to transport large and heavy loads, often weighing several tons. Leaf springs are renowned for their ability to handle such heavy loads efficiently. Their design allows them to distribute the weight of the cargo evenly across the suspension system, preventing excessive wear and tear on individual components.

The strength and stiffness of leaf springs can be adjusted to suit the weight and type of cargo being carried. For example, by adding or removing leafs in the spring pack, the suspension can be customized to provide the right amount of support for different loads. This flexibility makes leaf springs ideal for use in a wide range of heavy-duty applications, from hauling construction materials to transporting oversized loads.

While air suspension systems can also handle heavy loads, they often require complex systems that need to be monitored and maintained. Leaf springs, on the other hand, provide a straightforward solution that is well-suited to the heavy-duty trucking industry.

4. Simplicity and Reliability

The simplicity of leaf springs is another reason they remain a staple in the heavy-duty trucking industry. A typical leaf spring consists of a series of metal plates stacked together, forming an arched shape that acts as a spring. This simple design is effective at providing the necessary suspension for heavy loads, and it has stood the test of time.

The reliability of leaf springs is due to the lack of complex moving parts that are prone to failure. For instance, air suspension systems rely on air compressors, hoses, valves, and airbags, all of which are vulnerable to leaks or malfunctions. Similarly, hydraulic suspension systems can be prone to issues with fluid leakage or pump failure. In contrast, leaf springs do not require any power sources or delicate components, making them less prone to failure.

The reliability of leaf springs is especially important in industries where downtime is costly, such as freight transportation and construction. When a truck or trailer is on the road, it needs to perform without fail. The ability of leaf springs to provide consistent performance with minimal maintenance makes them a trusted choice for heavy-duty applications.

5. Versatility

Leaf springs are incredibly versatile and can be used in a variety of configurations, depending on the specific needs of the vehicle. Heavy-duty trucks and trailers come in different shapes and sizes, and their suspension systems need to be adaptable to these variations. Leaf springs can be used in both front and rear axles, and they can be configured for tandem, triaxle, or multi-axle setups.

For example, multi-leaf spring systems can be used for extra-heavy-duty applications, while single-leaf springs are suitable for lighter loads. In some cases, manufacturers may also incorporate a combination of leaf springs and air suspension to optimize performance. This versatility allows leaf springs to remain a popular choice for a wide range of truck and trailer designs, from semi-trailers to dump trucks and flatbeds.

6. Ease of Maintenance

Heavy-duty trucks and trailers often operate in remote locations, where access to service centers and repair shops may be limited. For this reason, truck operators value suspension systems that are easy to maintain and repair on-site. Leaf springs offer significant advantages in this regard due to their simplicity and widespread availability of replacement parts.

In the event of a problem, such as a broken or damaged leaf, the repair process is relatively straightforward. Leaf springs can often be replaced or repaired using basic tools, and replacement parts are typically available at most truck parts suppliers. This ease of maintenance is a key factor in reducing downtime and keeping trucks on the road.

In contrast, air suspension systems can be more difficult to repair in the field. If an airbag ruptures or a compressor fails, it may require specialized tools or expertise to fix the issue, resulting in longer downtime and higher repair costs. Leaf springs, by comparison, offer a more straightforward and reliable solution for truck operators who need to keep their vehicles running smoothly.

7. Better Performance in Heavy-Duty Applications

Leaf springs are particularly well-suited for heavy-duty applications where stability and load-bearing capacity are paramount. For example, trucks used in construction, mining, and agriculture often encounter uneven, rugged terrain that requires a suspension system that can handle sudden shocks and impacts. Leaf springs excel in these environments due to their robust design and their ability to absorb and distribute the forces generated by rough roads.

In contrast, air suspension systems may struggle to provide the same level of performance in extreme conditions. While air suspensions can offer a smooth ride on highways, they may not be as effective in off-road conditions or when carrying very heavy loads. The leaf spring’s design ensures that it remains stable under heavy loads and can absorb shocks effectively, making it ideal for off-road and rough-terrain applications.

Despite the availability of alternative suspension systems, conventional leaf springs remain the go-to solution for heavy-duty trucks and trailers. Their durability, cost-effectiveness, load-bearing capacity, simplicity, and reliability make them a natural choice for the demanding requirements of the trucking industry. While advancements in suspension technology have introduced new options, the proven performance of leaf springs continues to offer significant advantages in terms of longevity, ease of maintenance, and versatility.

In a world where uptime, efficiency, and cost-effectiveness are critical for businesses, leaf springs continue to provide a reliable, long-lasting solution for heavy-duty vehicles. Whether it’s hauling freight across highways, transporting equipment on construction sites, or navigating rough terrain, leaf springs remain a trusted and essential component of heavy-duty truck and trailer suspension systems.

[leafsprings]

The Engineering Behind Leaf Springs: Mechanics, Applications, and Performance

Leaf springs are one of the oldest and most reliable suspension components in vehicle engineering. From horse-drawn carriages to modern heavy-duty trucks, leaf springs have evolved significantly while maintaining their core principle of providing stability, load-bearing capability, and shock absorption. Despite the development of advanced suspension technologies, leaf springs continue to be widely used in various industries due to their simplicity, durability, and cost-effectiveness. This article delves into the engineering mechanics, applications, and performance characteristics of leaf springs, alongside exploring recent innovations that ensure their continued relevance.

What Are Leaf Springs?

A leaf spring is a mechanical component used in suspension systems, consisting of one or more strips of flexible steel or composite material, curved into an arc. The primary purpose of a leaf spring is to absorb shocks and evenly distribute loads, ensuring a smoother ride and minimizing strain on the vehicle chassis and axle.

Key Components of Leaf Springs

Spring Leaves: Layers of steel or composite material stacked in decreasing lengths, with the longest leaf at the base.

Center Bolt: Secures the spring leaves together and aligns them with the axle.

Clamps: Maintain the alignment of leaves during compression and rebound.

Spring Eyes: Loops at the ends of the topmost leaf for attachment to the vehicle chassis.

Shackles: Hinged connections that adjust to changes in spring length during operation, allowing for smooth movement.

Mechanics of Leaf Springs

Working Principle

The core function of a leaf spring is to absorb and dissipate energy caused by road irregularities. When a vehicle encounters a bump, the spring compresses, flexing under the force. The potential energy stored during compression is then released as the spring rebounds, minimizing vibrations transmitted to the chassis.

The multi-leaf design enables variable stiffness:

Shorter Leaves: Provide high stiffness under heavy loads.

Longer Leaves: Offer flexibility for lighter loads.

This adaptability makes leaf springs effective for vehicles that operate under variable load conditions.

Stress Distribution

The curved design of leaf springs ensures even stress distribution across their length. The highest stress concentration occurs near the center (around the axle) and diminishes toward the ends. Engineers optimize the thickness and width of the leaves to prevent failure from fatigue or overloading.

Material Selection

Traditionally, leaf springs are made of high-strength steel, such as 65Si7 or 60SiCr7, known for their flexibility and fatigue resistance. However, modern applications have introduced composite materials, such as fiber-reinforced plastics (FRP), which provide advantages like weight reduction and improved corrosion resistance.

Applications of Leaf Springs

1. Automotive Industry

Commercial Vehicles: Trucks, trailers, and buses extensively use leaf springs to carry heavy loads due to their robust design and cost-effectiveness.

Off-Road Vehicles: SUVs and jeeps favor leaf springs for their durability and ability to handle rough terrains.

2. Railway Systems

Leaf springs are used in railway carriages to absorb shocks and vibrations. Their simple yet effective design ensures passenger comfort and protects cargo from damage during transit.

3. Agricultural Machinery

Farm equipment such as tractors and harvesters rely on leaf springs to cushion impacts and reduce vibrations, extending equipment life and improving performance.

4. Industrial Applications

Beyond vehicles, leaf springs are used in vibration isolation systems and heavy machinery, where load-bearing capacity and shock absorption are critical.

Performance Characteristics

Advantages

Load Distribution: Multi-leaf designs ensure progressive stiffness, distributing loads efficiently across the suspension system.

Durability: Leaf springs are highly durable and capable of withstanding extreme conditions and heavy loads.

Cost-Effectiveness: Their simple construction and manufacturing process make them an economical choice.

Ease of Maintenance: Replacement and repairs are straightforward compared to more complex suspension systems.

Limitations

Weight: Traditional steel leaf springs are heavy, adding to the vehicle’s unsprung mass and affecting fuel efficiency.

Ride Quality: Leaf springs may provide a less comfortable ride compared to modern systems like coil or air suspensions.

Limited Adjustability: Unlike advanced suspension systems, leaf springs offer limited options for tuning stiffness and damping.

Modern Innovations in Leaf Springs

While traditional leaf springs are highly effective, continuous innovations have enhanced their performance, durability, and adaptability. These advancements include the refinement of conventional springs and the integration of newer materials and designs.

1. Conventional Multi-Leaf Springs

Conventional multi-leaf springs remain a staple in many suspension systems due to their proven reliability. Engineers have optimized traditional designs through:

Enhanced Material Strength: Using advanced alloys and improved heat treatment processes, modern steel springs exhibit greater resistance to fatigue and deformation.

Precision Manufacturing: Better alignment of spring leaves and improved clamping mechanisms have reduced wear and enhanced performance.

2. Composite Materials

Composite leaf springs, made from fiber-reinforced plastics, offer significant weight savings compared to steel counterparts. This reduction in unsprung mass improves vehicle handling and fuel efficiency. Additionally, composite materials resist corrosion and provide better energy absorption, making them suitable for lightweight and energy-efficient vehicles.

3. Parabolic Leaf Springs

Parabolic springs are an innovative design where the thickness of each leaf tapers from the center to the ends. Unlike traditional springs with constant-thickness leaves, parabolic springs:

Reduce weight without compromising strength.

Improve flexibility, providing a smoother ride.

Enhance load distribution and reduce internal friction between leaves.

This design is particularly useful in applications where comfort and performance are prioritized alongside durability.

4. Variable Rate Springs

Variable rate springs are designed to adapt to changing loads and road conditions. By adjusting stiffness dynamically, they combine the benefits of traditional multi-leaf springs with improved adaptability. This design is ideal for vehicles that frequently carry variable loads, such as trucks and agricultural machinery.

5. Advanced Manufacturing Techniques

Modern manufacturing techniques, such as shot peening and surface treatment, have improved the fatigue life of leaf springs. These processes reduce stress concentration points and enhance resistance to cracking and corrosion, extending the operational lifespan of the spring.

The engineering behind leaf springs is a testament to their versatility and reliability. From their simple yet effective mechanics to their broad range of applications, leaf springs have stood the test of time as a cornerstone of suspension technology. Their ability to handle heavy loads, evenly distribute stress, and offer durability makes them indispensable in industries ranging from automotive to agriculture.

While advanced suspension systems may provide greater comfort and sophistication, the ongoing innovations in conventional and composite leaf spring designs ensure their relevance in modern applications. Engineers and designers continue to refine their performance, making leaf springs a reliable and cost-effective solution for various load-bearing and shock-absorbing needs.

[leafsprings]

How Leaf Springs Affect Fuel Efficiency: A Comprehensive Analysis

In the ever-evolving landscape of automotive engineering, fuel efficiency remains a paramount concern for manufacturers, consumers, and environmental advocates alike. As the demand for fuel-efficient vehicles continues to rise, the role of various components in achieving this goal becomes increasingly critical. Among these components, leaf springs, a fundamental element of vehicle suspension systems, play a significant yet often overlooked role in influencing fuel efficiency. This comprehensive analysis delves into how leaf springs affect fuel efficiency, examining their design, material composition, weight, and overall impact on vehicle dynamics.

 Understanding Leaf Springs

Before we explore their impact on fuel efficiency, it’s essential to understand what leaf springs are and how they function. Leaf springs are made up of multiple layers of flexible steel or composite materials arranged in a flat configuration. They are primarily used in the suspension systems of vehicles, particularly in trucks and SUVs, to support the vehicle's weight, absorb shock, and maintain wheel alignment.

The primary purpose of leaf springs is to provide a balance between load-bearing capability and ride comfort. When a vehicle encounters bumps or uneven surfaces, the leaf springs flex and absorb the impact, ensuring a smooth ride while maintaining stability. The design and configuration of leaf springs can vary, affecting how they perform under different loads and driving conditions.

 The Relationship Between Leaf Springs and Fuel Efficiency

 1. Weight and Material Composition

One of the most significant factors influencing fuel efficiency is a vehicle’s overall weight. Heavier vehicles require more energy to accelerate and maintain speed, leading to higher fuel consumption. Traditional leaf springs are typically made of steel, which, while durable, adds significant weight to the vehicle. However, advancements in materials have led to the development of lighter alternatives, such as composite leaf springs.

 Composite Leaf Springs

Composite leaf springs, made from materials such as fiberglass or carbon fiber, are gaining popularity due to their reduced weight and increased flexibility. These springs offer several advantages over traditional steel springs, including:

- Weight Reduction: Composite materials can be significantly lighter than steel, which directly reduces the overall weight of the vehicle. This weight savings translates into lower fuel consumption, especially during acceleration and when climbing hills.

- Enhanced Flexibility: Composite springs can be designed to flex more easily than steel springs, improving ride comfort and vehicle handling. A vehicle that rides smoothly is less likely to lose traction, which can improve fuel efficiency, especially in adverse conditions.

 2. Suspension Design and Geometry

The design and geometry of leaf springs significantly influence a vehicle’s aerodynamics and ride quality, both of which are critical to fuel efficiency.

 Aerodynamics

Aerodynamic drag is a significant factor affecting fuel efficiency, especially at higher speeds. The design of the suspension system, including the placement and angle of the leaf springs, can influence a vehicle’s overall aerodynamic profile. A well-designed suspension system can minimize drag, contributing to better fuel economy.

- Ride Height: Leaf springs determine the vehicle's ride height. A higher ride height can lead to increased aerodynamic drag, while a lower ride height often enhances aerodynamics. Therefore, the ability to adjust leaf spring configurations can be crucial in optimizing fuel efficiency.

- Suspension Travel: Leaf spring design impacts the vehicle's suspension travel, which refers to how much the suspension can compress and extend. Too much travel can lead to excessive body roll and instability, increasing drag and reducing fuel efficiency. A well-tuned leaf spring setup can minimize these issues, contributing to improved aerodynamics and efficiency.

 3. Load Distribution and Weight Transfer

Leaf springs play a crucial role in load distribution and weight transfer during driving. Proper load distribution ensures that the vehicle maintains stability and traction, both essential for fuel efficiency.

 Stability and Traction

When a vehicle accelerates, brakes, or turns, weight transfers occur, impacting how the tires grip the road. Leaf springs help manage this weight transfer, allowing the tires to maintain optimal contact with the surface.

- Improved Traction: By ensuring even weight distribution across all four tires, leaf springs can help enhance traction. Better traction means the engine doesn’t have to work as hard to overcome slippage, leading to lower fuel consumption.

- Handling Dynamics: The ability of leaf springs to maintain stability during cornering and braking affects handling dynamics. Vehicles that handle well are less likely to experience slippage or loss of control, allowing for smoother, more efficient driving.

 4. Ride Comfort and Driver Behavior

Ride comfort is not just a matter of luxury; it directly impacts fuel efficiency. A comfortable ride encourages smoother driving behavior, which is more fuel-efficient than aggressive driving.

 Smooth Driving Patterns

Vehicles equipped with well-designed leaf springs tend to absorb bumps and imperfections in the road better, providing a more comfortable ride. When drivers experience a smooth ride, they are less likely to accelerate and brake aggressively, leading to improved fuel efficiency.

- Reduced Driver Fatigue: A comfortable ride can reduce driver fatigue, allowing for longer periods of attentive driving. Distracted or fatigued drivers are more likely to engage in erratic driving behaviors that can negatively impact fuel economy.

 5. Maintenance and Longevity

The longevity and maintenance of leaf springs also play a role in fuel efficiency. Worn or damaged leaf springs can lead to a variety of performance issues, including increased ride height, uneven load distribution, and compromised handling.

 Regular Maintenance

Regular maintenance of the suspension system, including leaf springs, is crucial for maintaining optimal performance and fuel efficiency.

- Signs of Wear: Drivers should be aware of the signs of worn leaf springs, such as uneven tire wear, excessive body roll, and a bouncy ride. Addressing these issues promptly can prevent a decline in fuel efficiency.

- Replacement Options: When it comes time to replace leaf springs, opting for lighter and more efficient alternatives, such as composite springs, can help improve fuel economy while maintaining performance and comfort.

In conclusion, while leaf springs may seem like a straightforward component of a vehicle's suspension system, their impact on fuel efficiency is multifaceted and significant. From weight reduction and material composition to suspension design and maintenance, every aspect of leaf springs contributes to how efficiently a vehicle operates.

As the automotive industry continues to innovate and prioritize sustainability, the evolution of leaf spring technology—particularly the shift towards lighter, composite materials—holds promise for enhancing fuel efficiency further. By understanding and optimizing the role of leaf springs in vehicle dynamics, manufacturers can not only improve fuel economy but also contribute to a more sustainable future in transportation.

As consumers, being aware of how these components affect our vehicles can help us make informed decisions about our vehicle choices and maintenance practices, ultimately leading to a more efficient and eco-friendly driving experience. Whether you're an automotive enthusiast, a fleet manager, or just someone looking to save at the pump, recognizing the importance of leaf springs in fuel efficiency is a crucial step in the journey toward smarter and greener mobility.

[leafsprings]

Leaf spring

Sonico Leaf Spring product range includes parabolic, conventional, bogie, trailer springs and much more. It caters to unique customer requirements . For more information about Leaf springs please visit us : https://www.sonicoleafsprings.com/leaf-springs.html . #LeafSpring ＃LeafSpringManufacturer #LeafSpringExporter #Sonicoleafsprings .

[leafsprings]

Leaf spring

Leaf springs are widely used for automobiles. The leaf springs absorb the vibrations, impacts and bumps due to road irregularities and ensure safety and maintain comfort. Sonico Leaf Springs product range includes parabolic, conventional, bogie, trailer springs and much more. It caters to unique customer requirements . For more information please visit us : https://www.sonicoleafsprings.com/leaf-springs.html .

[leafsprings]

Challenges and Future Trends in Leaf Spring Engineering

Leaf springs have been a fundamental component of vehicle suspension systems for centuries, providing robust support and damping capabilities. Over time, advancements in material science, manufacturing techniques, and design methodologies have shaped the evolution of leaf springs. However, despite their enduring utility, leaf spring engineering faces various challenges in meeting the demands of modern vehicles, including the need for enhanced performance, reduced weight, and increased sustainability. This article explores the existing challenges and promising future trends in leaf spring engineering.

Challenges in Leaf Spring Engineering

1. Weight Reduction: One of the primary challenges in leaf spring design is the demand for weight reduction. Traditional leaf springs made from steel are effective but heavy. The automotive industry is continuously striving to reduce vehicle weight to enhance fuel efficiency and reduce emissions. Achieving weight reduction in leaf springs without compromising strength and durability remains a significant challenge.

2. Optimizing Performance under Varying Loads: Leaf springs must perform reliably under dynamic loads, such as during vehicle acceleration, braking, and cornering. Designing leaf springs that can effectively handle these varying loads while maintaining ride comfort and stability is a complex engineering challenge.

3. Fatigue and Durability: Leaf springs are subjected to repetitive loading cycles during vehicle operation, leading to fatigue and potential failure over time. Designing leaf springs with improved fatigue life and durability to withstand millions of load cycles is crucial for ensuring long-term reliability.

4. Vibration and Noise Control: Leaf springs can generate undesirable vibrations and noise, particularly in commercial vehicles. Addressing these issues through advanced design modifications and damping technologies is essential for enhancing vehicle comfort and reducing noise pollution.

5. Material Selection and Sustainability: The choice of materials for leaf springs impacts performance, cost, and environmental sustainability. While steel remains a common material due to its strength and durability, alternative materials such as composite materials and lightweight alloys are being explored to achieve weight reduction and improve sustainability.

Future Trends in Leaf Spring Engineering

1. Advanced Materials and Composites: Future leaf springs are likely to incorporate advanced materials such as high-strength alloys, composites, and hybrid materials. These materials offer the potential for significant weight reduction while maintaining or enhancing performance characteristics.

2. Design Optimization through Simulation: Computational modeling and simulation tools allow engineers to optimize leaf spring designs virtually before physical prototyping. This approach enables the rapid exploration of various design configurations, leading to optimized performance and reduced development time.

3. Additive Manufacturing (3D Printing): Additive manufacturing techniques have the potential to revolutionize leaf spring production by enabling complex geometries and customized designs. 3D printing can also facilitate the use of novel materials and reduce material waste during manufacturing.

4. Smart Leaf Springs: Integration of sensors and actuators into leaf spring designs can enable real-time monitoring of performance metrics such as load distribution, fatigue status, and vehicle dynamics. Smart leaf springs can contribute to predictive maintenance and enhanced vehicle safety.

5. Environmental Sustainability: Future trends in leaf spring engineering will prioritize sustainability by focusing on recyclable materials, energy-efficient manufacturing processes, and lifecycle assessments to minimize environmental impact.

6. Integration with Vehicle Dynamics Systems: Advanced vehicle dynamics control systems can leverage data from leaf springs to optimize ride quality, stability, and handling characteristics. This integration will enhance overall vehicle performance and safety.

In conclusion, leaf spring engineering faces several challenges related to weight reduction, performance optimization, durability, and sustainability. However, promising future trends such as advanced materials, design optimization tools, additive manufacturing, smart technologies, and environmental sustainability initiatives offer exciting opportunities for innovation in leaf spring design and manufacturing. By addressing these challenges and embracing emerging trends, engineers can develop next-generation leaf springs that meet the evolving demands of modern vehicles in terms of performance, efficiency, and sustainability. This ongoing evolution underscores the enduring importance of leaf springs as a critical component of vehicle suspension systems.

[leafsprings]

Leaf spring Manufacturer

Sonico Leaf Spring product range includes parabolic, conventional, bogie, trailer springs and much more. It caters to unique customer requirements . For more information about Leaf springs please visit us : https://www.sonicoleafsprings.com/leaf-springs.html . ＃LeafSpring ＃LeafSpringManufacturer ＃LeafSpringExporter ＃Sonicoleafsprings .

[leafsprings]

Leaf spring

Sonico Leaf Spring product range includes parabolic, conventional, bogie, trailer springs and much more. It caters to unique customer requirements . For more information about Leaf springs please visit us : https://www.sonicoleafsprings.com/leaf-springs.html .

#LeafSpring ＃LeafSpringManufacturer ＃LeafSpringExporter

#Sonicoleafsprings .

[leafsprings]

Multi-Leaf Springs and Mono-Leaf Springs: Finding the Ideal Suspension for Your Needs

In the realm of vehicle suspension systems, the choice between multi-leaf springs and mono-leaf springs plays a crucial role in determining overall performance and ride quality. Each type has its unique characteristics and advantages, making the decision a critical one for vehicle owners and enthusiasts. This comprehensive guide delves into the differences between multi-leaf and mono-leaf springs, helping you make an informed decision based on your specific needs and preferences.

Understanding Multi-Leaf Springs:

Multi-leaf springs, also known as semi-elliptical springs, consist of multiple layers or leaves stacked on top of each other. These layers vary in length, with the longest at the bottom and successively shorter ones stacked above. This design imparts flexibility and load-bearing capacity to the suspension system. Multi-leaf springs are commonly found in various vehicles, from trucks and SUVs to commercial vehicles, owing to their ability to handle heavier loads.

Advantages of Multi-Leaf Springs:

Enhanced Load Capacity: Multi-leaf springs are known for their superior load-carrying capabilities, making them suitable for applications where heavy payloads are a regular occurrence.

Durability and Longevity: The layered construction of multi-leaf springs contributes to increased durability, providing a robust solution for vehicles subjected to demanding conditions.

Cost-Effectiveness: In terms of manufacturing and installation costs, multi-leaf springs often present a more budget-friendly option compared to some alternatives.

Understanding Mono-Leaf Springs:

On the other hand, mono-leaf springs, also known as single-leaf springs or parabolic springs, feature a single, tapered leaf. This design offers a progressive spring rate, meaning that as the load increases, the resistance also increases. Mono-leaf springs are commonly used in sports cars and performance-oriented vehicles.

Advantages of Mono-Leaf Springs:

Improved Handling and Performance: Mono-leaf springs are favored for their ability to provide a more responsive and sportier ride. The progressive spring rate contributes to enhanced handling characteristics.

Weight Reduction: With a single leaf, mono-leaf springs are generally lighter than their multi-leaf counterparts. This weight reduction can contribute to improved fuel efficiency and agility.

Aesthetics and Design Flexibility: The single-leaf design allows for more creative and aesthetically pleasing designs, making mono-leaf springs a popular choice for vehicles where appearance is a key consideration.

Choosing the Right Suspension for Your Needs:

Consider Vehicle Type and Use: For heavy-duty applications or vehicles frequently carrying substantial loads, multi-leaf springs are often the preferred choice. Mono-leaf springs are well-suited for performance-oriented vehicles and those where weight reduction is a priority.

Evaluate Ride Quality Preferences: If a smoother ride and load-carrying capacity are essential, multi-leaf springs may be more suitable. For drivers seeking a sportier, responsive ride, mono-leaf springs offer a favorable balance between comfort and performance.

Factor in Budgetary Constraints: Assessing the overall costs, including manufacturing, installation, and potential maintenance, can help align your choice with budgetary considerations.

The decision between multi-leaf springs and mono-leaf springs is a nuanced one, influenced by factors such as vehicle type, usage, performance expectations, and budget constraints. By understanding the unique characteristics and advantages of each suspension type, you can make an informed choice that aligns with your specific needs. Whether aiming for rugged durability or a dynamic driving experience, the right suspension choice is instrumental in optimizing your vehicle's performance.

[leafsprings]

Maintenance Tips for Leaf Springs: Ensuring Longevity and Performance

Leaf springs play a crucial role in the suspension system of various vehicles, providing stability and support. Regular maintenance is essential to keep them in optimal condition, ensuring a smooth and safe ride. In this comprehensive guide, we'll delve into effective maintenance tips for leaf springs, covering key aspects such as inspection, lubrication, common issues, and practical solutions.

Inspection and Lubrication

1. Regular Visual Inspection

Start with a visual examination of the leaf springs for signs of wear, cracks, or deformation.

Check for proper alignment and ensure that the leaves are evenly spaced.

2. Spring Hanger and Shackle Inspection

Examine the spring hangers and shackles for any signs of damage or corrosion.

Tighten loose bolts and replace any worn-out components promptly.

3. Bushings and Bolts

Inspect the condition of the bushings and bolts connecting the leaf springs to the vehicle chassis.

Lubricate these components regularly to prevent friction and reduce wear.

4. Alignment Check

Ensure that the leaf springs are properly aligned to maintain the vehicle's balance.

Misalignment can lead to uneven tire wear and compromise handling.

5. Lubrication Tips

Use a high-quality, lithium-based grease for lubricating the leaf springs.

Apply grease to the ends of the leaves, focusing on pivot points and bushings.

Lubricate at regular intervals, especially after off-road use or exposure to harsh conditions.

Common Issues and Practical Solutions

1. Corrosion Prevention

Combat rust and corrosion by applying a rust inhibitor or anti-corrosion spray.

Keep the leaf springs clean and free from debris to prevent accelerated corrosion.

2. Leaf Fractures and Cracks

Inspect for any fractures or cracks in the leaves, as these can compromise the spring's strength.

Replace damaged leaves promptly to prevent further deterioration.

3. Squeaking Sounds

Address squeaking noises by applying a silicone-based lubricant on the leaf surfaces.

Check for worn-out bushings or shackles, as they may contribute to the noise.

4. Spring Sagging

If your vehicle experiences sagging, consider adding a leaf or replacing worn-out leaves.

Consult the manufacturer's guidelines to ensure proper load capacity.

5. Uneven Wear Patterns

Address uneven wear on the leaf springs by identifying and rectifying the root cause.

Regularly rotate and balance your tires to ensure even distribution of weight.

By implementing these maintenance tips, you can significantly extend the lifespan of your leaf springs and enhance the overall performance of your vehicle. Regular inspections, proper lubrication, and timely resolution of common issues are key to ensuring a safe and comfortable driving experience. Invest time in the care of your leaf springs, and you'll reap the benefits of improved longevity and reliability on the road .

[leafsprings]

The Evolution of Leaf Spring Technology in the Automotive Industry

Leaf springs have been a fundamental component of vehicle suspension systems for centuries, providing stability and support to a wide range of vehicles. Their evolution over time has been a remarkable journey, showcasing advancements in material science, design, and engineering to meet the changing needs of the automotive industry.

Early Beginnings

The concept of leaf springs dates back to ancient civilizations, where horse-drawn carriages utilized flexible wooden or metal strips to provide support and cushioning. As the automotive industry emerged, these early leaf springs were adapted for use in early automobiles. Initially, simple semi-elliptical springs made of multiple layers of steel were employed to handle the vehicle's weight and smooth out the ride.

Transition to Modern Materials

With the advent of the industrial revolution, the automotive industry witnessed a shift towards the use of high-strength steel alloys. These alloys offered increased durability and resilience compared to traditional materials. By the mid-20th century, advancements in metallurgy allowed for the production of leaf springs with superior strength-to-weight ratios, enhancing their overall performance and longevity.

Multi-Leaf and Mono-Leaf Spring Designs

In the mid-20th century, engineers began experimenting with different leaf spring designs to improve suspension performance. Multi-leaf springs, which featured several thinner leaves stacked on top of each other, gained popularity due to their ability to distribute weight more evenly and provide a smoother ride.

Later, the mono-leaf spring design emerged, utilizing a single, thicker leaf with varying thicknesses along its length to optimize load distribution and enhance ride comfort. Mono-leaf springs offered advantages in terms of reduced weight, improved handling, and ease of manufacturing.

Composite Leaf Springs

In recent decades, the automotive industry has explored innovative materials such as composite materials for leaf springs. Composite leaf springs are manufactured using reinforced plastics or composite fibers, offering significant weight savings compared to traditional steel leaf springs. This reduction in weight contributes to improved fuel efficiency and reduces the vehicle's overall carbon footprint.

Composite leaf springs are also known for their corrosion resistance, enhanced fatigue life, and the ability to be precisely tailored to specific load requirements. They have become increasingly prevalent in both commercial and passenger vehicles, representing a modern and sustainable approach to leaf spring technology.

Computer-Aided Design and Simulation

The advent of computer-aided design (CAD) and simulation technologies has revolutionized leaf spring design and optimization. Engineers can now use sophisticated software to model, analyze, and simulate various leaf spring configurations, enabling them to fine-tune designs for optimal performance, durability, and cost-effectiveness. This technology has significantly accelerated the development process and facilitated the creation of highly efficient leaf spring designs.

Future Trends and Innovations

Looking ahead, the future of leaf spring technology in the automotive industry appears promising. Advancements in materials science, such as the integration of carbon fiber and other advanced composites, hold the potential to further reduce weight and enhance the performance of leaf springs.

Moreover, research into smart materials and adaptive suspension systems may lead to leaf springs that can adjust their characteristics in real-time, optimizing the ride and handling based on driving conditions and load variations. These innovations will play a crucial role in shaping the automotive landscape, promoting sustainability, fuel efficiency, and improved driving experiences.

In conclusion, the evolution of leaf spring technology in the automotive industry has been a remarkable journey of innovation and adaptation. From humble beginnings as simple wooden or metal strips to the sophisticated composite leaf springs of today, this fundamental suspension component continues to evolve, driven by advancements in materials, design methodologies, and engineering techniques. As we continue to push the boundaries of technology, the leaf spring remains a vital element in ensuring a safe, comfortable, and efficient ride for vehicles of all kinds.

[leafsprings]

Leaf spring

Sonico Leaf Spring product range includes parabolic, conventional, bogie, trailer springs and much more. It caters to unique customer requirements . For more information about Leaf springs please visit us : https://www.sonicoleafsprings.com/leaf-springs.html . #LeafSpring #LeafSpringManufacturer #LeafSpringExporter #Sonicoleafsprings .

#leafspring#leafspringexporter#leafspringmanufacturer#sonicoleafspringsleaf springleaf spring exporter .

[leafsprings]

What Is Leaf Spring and How Does It Work?

Leaf springs are an essential component of a vehicle's suspension system, with a history dating back centuries. They absorb shocks, improves stability, and ensures a more comfortable and controlled ride.

What is a Leaf Spring?

A leaf spring is a type of suspension spring, typically made of several layers or "leaves" of spring steel bound together in a specific pattern. These leaves are progressively shorter in length and are stacked on top of one another, forming a curved or "arched" shape resembling a bow. This design provides flexibility and resilience to the spring.

Structure of a Leaf Spring

The construction of a leaf spring comprises several components, each contributing to its overall functionality:

Main Leaf: The longest and thickest leaf in the assembly, positioned at the center. It bears the majority of the load and forms the primary structure of the spring.

Helper Leafs: These are the progressively shorter leaves stacked on top of the main leaf. They assist in distributing the load and providing additional support.

Clamps or Clips: These are used to hold the leaves together and maintain their alignment, ensuring the spring functions as a cohesive unit.

Eyelet: Found at either end of the leaf spring, the eyelet allows the spring to be attached to the vehicle's chassis and axle.

How Does a Leaf Spring Work?

The operation of a leaf spring is based on the principles of elasticity and resilience of the spring steel. When a vehicle encounters bumps, potholes, or uneven terrain, the leaf spring flexes and compresses, absorbing the shocks and vibrations. Here's how it works:

Load Distribution: The main leaf, being the longest and thickest, bears the primary load. As the load increases, the helper leaves engage, distributing the weight across the entire length of the spring.

Flexibility: The arch-shaped design of the leaf spring allows it to flex easily when subjected to stress or pressure. This flexibility helps maintain a smoother ride even on rough surfaces.

Energy Absorption: As the vehicle encounters bumps or irregularities in the road, the leaf spring compresses and absorbs the energy generated by the sudden movement. Differences in spring deflection enable the accumulation of potential energy, which is stored as strain energy and later released in a more controlled and gradual manner, resulting in a more comfortable ride for the occupants.

Stability and Traction: Leaf springs play a crucial role in maintaining tire grip on the road. The consistent pressure and weight distribution facilitated by the leaf spring ensure that the tires remain firmly planted, enhancing stability during acceleration, braking, and turning.

Leaf springs, with their simple yet effective design, have been an integral part of vehicle suspension systems for centuries. Their ability to distribute weight, absorb shocks, and maintain stability make them a cornerstone of safe and comfortable transportation. Understanding how leaf springs function provides valuable insight into the engineering behind a smooth and secure ride, underscoring their importance in the automotive industry.

[leafsprings]

The Impact of Leaf Spring Design on Vehicle Performance

Leaf springs have been a fundamental part of vehicle suspension systems for centuries, providing support, stability, and load-carrying capacity. These simple yet effective components play a crucial role in determining a vehicle's performance characteristics, including handling, ride comfort, and load-carrying capabilities. The design of leaf springs has evolved significantly over time, with different configurations catering to various vehicle types and applications. In this article, we will explore the impact of leaf spring design on vehicle performance, examining how factors such as shape, number of leaves, and materials influence a vehicle's handling, stability, and overall ride quality.

Understanding Leaf Springs: Basics of Function and Construction

Leaf springs are made up of multiple thin, curved metal strips (leaves) stacked on top of each other and secured by a center bolt. These leaves work together as a single unit to support the weight of the vehicle and absorb shocks from road irregularities. When a vehicle encounters bumps or dips on the road, the leaves flex and then rebound to provide a smooth ride. The design of leaf springs can vary significantly based on the specific requirements of the vehicle and its intended use.

Shape and Arch of Leaf Springs: Effects on Load Capacity and Comfort

The shape and arch of leaf springs greatly influence a vehicle's load-carrying capacity and ride comfort. Leaf springs with a higher arch (more curved) typically have higher load-carrying capabilities and are commonly used in heavy-duty applications such as trucks and commercial vehicles. However, they may sacrifice some ride comfort due to their stiffness. On the other hand, leaf springs with a lower arch (flatter) are more common in passenger cars and light-duty vehicles, providing a more comfortable and smoother ride at the expense of load capacity.

Number of Leaves: Balancing Flexibility and Load Support

The number of leaves in a leaf spring pack also affects the vehicle's performance. A spring pack with more leaves offers greater flexibility, resulting in improved ride comfort and better traction over rough terrain. However, increasing the number of leaves may lead to a stiffer suspension, potentially impacting the vehicle's handling and stability. Manufacturers carefully balance the number of leaves to achieve the desired blend of load-carrying capacity, comfort, and handling characteristics.

Materials Used in Leaf Spring Construction: Balancing Strength and Weight

The choice of materials in leaf spring construction is critical for achieving the right balance of strength and weight. Traditional leaf springs are typically made from steel, which provides excellent load-carrying capabilities and durability. However, steel leaf springs can be relatively heavy, impacting fuel efficiency and overall vehicle weight. In recent years, advancements in materials have led to the development of composite leaf springs, which offer comparable strength to steel but at a fraction of the weight, contributing to improved fuel efficiency and reduced unsprung weight.

Suspension Geometry and Leaf Spring Design: Impact on Handling

Leaf spring design is closely related to the suspension geometry of a vehicle, influencing handling characteristics such as cornering, steering response, and body roll. The placement and orientation of leaf springs can affect the vehicle's center of gravity, wheel alignment, and roll center height. Manufacturers carefully engineer leaf spring configurations to achieve optimal handling and stability, ensuring the vehicle responds predictably and safely to driver inputs.

Custom Leaf Springs for Specialized Applications

In certain applications, standard leaf spring designs may not meet specific performance requirements. As a result, custom leaf springs are designed to suit specialized vehicles, such as off-road trucks, racing cars, and modified vehicles. Custom leaf springs allow for fine-tuning of suspension characteristics to cater to unique driving conditions and performance goals.

Leaf Spring Deflection and Load Distribution

Leaf spring deflection, or the amount the leaves flex under load, plays a crucial role in load distribution. Proper load distribution is essential for maintaining even weight distribution on all wheels, which is vital for stability and tire wear. Leaf spring design and materials influence the spring rate, or the amount of force required to compress the leaves. By optimizing the spring rate, manufacturers can achieve the desired balance between load-carrying capacity and ride comfort.

Impact on Towing and Payload Capabilities

For trucks and commercial vehicles, leaf springs significantly impact towing and payload capabilities. The design and configuration of leaf springs determine the vehicle's Gross Vehicle Weight Rating (GVWR) and its towing capacity. Properly designed leaf springs ensure that the vehicle can safely handle heavy loads without compromising stability or safety.

Leaf Spring Fatigue and Maintenance

Over time, leaf springs may experience fatigue and wear due to the stresses they endure during regular use. Proper maintenance and inspection are crucial to detect signs of wear or damage. Replacing worn or damaged leaf springs promptly is essential for maintaining vehicle safety and performance.

Future Trends and Innovations in Leaf Spring Design

As automotive technology continues to evolve, researchers and manufacturers are exploring new materials and innovative designs for leaf springs. Composite materials, advanced alloys, and lightweight construction techniques are being integrated into leaf spring design to further improve vehicle performance, fuel efficiency, and overall sustainability.Leaf springs are an integral part of a vehicle's suspension

[leafsprings]

Types of Leaf Springs: Exploring Different Designs and Applications

Leaf springs are one of the oldest and most reliable suspension systems used in various vehicles, ranging from cars to trucks and even trailers. These springs consist of multiple layers or leaves of metal that are stacked together to form a flexible and durable suspension component. The design and configuration of leaf springs can vary significantly, each with its unique characteristics and applications. In this article, we will explore the different types of leaf springs, their designs, and their specific applications in the automotive industry.

Single-leaf Springs

Single-leaf springs, also known as mono-leaf springs, are the simplest type of leaf springs. They consist of a single curved or tapered metal leaf, which provides suspension support to the vehicle. Single-leaf springs are commonly found in smaller vehicles or light-duty applications where load capacity and flexibility are not the primary concerns. They are relatively inexpensive to produce and offer a simple suspension solution. However, they have limited load-carrying capabilities and can result in a harsher ride due to their limited flexibility.

Multi-leaf Springs

Multi-leaf springs are the most commonly used type of leaf springs in various vehicles. They consist of multiple leaves of varying lengths, thicknesses, and shapes, stacked together and held in place by a center bolt. The leaves are progressively longer from the center to the outer edges, with the longest leaf known as the main leaf or master leaf. The additional leaves, known as helper leaves or secondary leaves, provide additional support and flexibility to the suspension system.

Multi-leaf springs offer better load-carrying capacity and improved ride quality compared to single-leaf springs. The number of leaves and their thicknesses can be adjusted to meet the specific requirements of different vehicles. Heavy-duty trucks and commercial vehicles often utilize multi-leaf springs due to their ability to handle significant loads. These springs can effectively distribute weight and provide stability, making them suitable for applications that involve hauling or towing heavy loads.

Parabolic Springs

Parabolic springs are a modern variation of leaf springs that offer several advantages over traditional multi-leaf springs. Instead of using uniformly tapered leaves, parabolic springs feature leaves that are tapered more toward the center and become progressively thinner towards the edges. This design creates a parabolic shape, hence the name.

One significant advantage of parabolic springs is their ability to provide a smoother ride and improved shock absorption compared to other leaf spring designs. The parabolic shape allows the leaves to flex more evenly and gradually, resulting in reduced vibrations and enhanced comfort for passengers. Additionally, parabolic springs are lighter in weight compared to conventional multi-leaf springs, which can contribute to improved fuel efficiency.

Parabolic springs find applications in various vehicles, including passenger cars, light trucks, and SUVs. They are especially favored in off-road vehicles and recreational vehicles, where ride quality and durability are essential factors. The enhanced flexibility and load-carrying capacity of parabolic springs make them suitable for traversing uneven terrains and providing stability in demanding off-road conditions.

Semi-elliptical Springs

Semi-elliptical springs, also known as elliptical springs or half-elliptical springs, have a curved shape resembling half an ellipse. These springs consist of two or more individual leaves that are curved along their length and connected at the center. The center bolt holds the leaves together, and the shape of the leaves contributes to the overall flexibility and load distribution.

Semi-elliptical springs are commonly found in older vehicles or vintage cars. They were widely used in the early days of automotive engineering before other leaf spring designs became more prevalent. While they are not as commonly used today, semi-elliptical springs still have theirplace in certain applications, such as restoring classic cars or maintaining the authenticity of vintage vehicles.

Leaf springs come in various types and designs to meet the specific needs of different vehicles and applications. Single-leaf springs offer simplicity and cost-effectiveness, while multi-leaf springs provide improved load-carrying capacity and ride quality. Parabolic springs offer enhanced comfort and shock absorption, making them ideal for off-road vehicles. Semi-elliptical springs, although less common in modern vehicles, still have their significance in restoring classic cars.

Understanding the different types of leaf springs helps automotive engineers and enthusiasts make informed decisions regarding suspension systems. The choice of leaf spring design depends on factors such as the intended use, load requirements, ride quality preferences, and vehicle specifications.Leaf springs continue to be a reliable and widely used suspension system in various vehicles, showcasing their enduring legacy in the automotive industry.
