What is the reason of lithium battery battery drum shell?
What is the reason of lithium battery battery drum shell? Shared by the 18650 lithium ion battery supplier.
The shell features
Lithium, at atomic number 3 and atomic weight of 6.941, is the lightest alkali metal element. To improve safety and voltage, scientists have developed materials such as graphite and lithium cobalt oxide to store lithium atoms. The molecular structure of these materials forms tiny storage lattices at the nanoscale that can be used to store lithium atoms. That way, even if the battery shell breaks and oxygen enters, the molecules are too big to fit into the tiny cells, preventing lithium atoms from coming into contact with oxygen and exploding.
Protection measures
When the lithium battery cell is overcharged to a voltage higher than 4.2v, side effects begin to occur. The higher the overcharge voltage, the higher the risk. When the lithium cell voltage exceeds 4.2v, less than half of the lithium atoms are left in the anode material, and the storage cell often collapses, causing a permanent loss of battery capacity. If the charge continues, the lithium metal will accumulate on the surface of the negative material, since the negative cell is already full of lithium atoms. These lithium atoms grow dendritic crystals from the negative surface toward the lithium ions. These lithium metal crystals will pass through the diaphragm paper, short-circuiting the anode and cathode. Sometimes the battery explodes before a short circuit occurs, because in the overcharge process, materials such as electrolyte will crack and produce gas, causing the battery shell or pressure valve to swell and crack, allowing oxygen to enter and react with lithium atoms accumulated on the negative electrode surface, thereby exploding.
Therefore, when charging lithium batteries, the voltage limit must be set, so that the battery life, capacity and safety can be taken into account at the same time. The optimal upper limit of charging voltage is 4.2v. Lithium cell discharge also have a lower voltage limit. When the cell voltage falls below 2.4v, some of the material begins to be destroyed. And because the battery will self-discharge, the longer it is put, the lower the voltage will be. Therefore, it is better not to stop at 2.4v when discharging. During the period from 3.0v to 2.4v, lithium batteries release only about 3% of the battery capacity. Therefore, 3.0v is an ideal discharge cut-off voltage. Charge and discharge, in addition to the voltage limit, the current limit is also necessary. When the current is too high, the lithium ions don't have time to get into the cell and will accumulate on the surface of the material.
When these lithium ions gain electrons, they create crystals of lithium atoms on the material's surface, which, like overcharging, can be dangerous. In case the battery case breaks, it will explode. Therefore, the protection of lithium ion battery, at least include: charging voltage upper limit, discharge voltage lower limit, and current upper limit three. In general, in addition to the lithium battery core, there will be a protective plate, which mainly provides the three protection. However, the protection plate of the three protection is obviously not enough, the global lithium battery explosion incidents are still frequent. To ensure the safety of the battery system, the cause of battery explosion must be analyzed more carefully.
That's all for the sharing, thanks for your reading, and we also supply 18650 High security rechargeable lithium battery for sale, if you have any demand for our products, just feel free to contact us.
Jiangsu Sunpower Co., Ltd. founded in 2014, focus on producing cylindrical power lithium-ion batteries. All adopt the most advanced extrusion coating production technology and yearly production reaches to 250 million Ah power type 18650 High security lithium ion battery.
If you want to learn more about the High security lithium ion battery, please visit here.
https://www.sp-powerbattery.com/
0 notes
Link
0 notes
Link
0 notes
The main battery electrode material
As a Car 18650 battery supplier, today we would like to share the main battery electrode material for you.
Carbon negative materials
The cathode materials used in lithium ion batteries are basically carbon materials, such as artificial graphite, natural graphite, mesophase carbon microspheres, petroleum coke, carbon fiber, pyrolysis resin carbon and so on.
Tin base anode material
Tin - based anode materials can be divided into tin oxides and tin - based composite oxides. Oxides are oxides of various valence metals of tin. No commercial products.
nitrides
There are no commercial products.
Alloy class
They include tin-based alloys, silicon-based alloys, germany-based alloys, aluminium-based alloys, antimony-based alloys, magnesium-based alloys and other alloys, and there are no commercial products.
nanoscale
Carbon nanotubes, nanometer alloy materials.
Nanometer oxide
At present, according to the latest market development trend of lithium battery new energy industry in 2009, many companies have begun to use nano titanium oxide and nano silicon oxide to add in the traditional graphite, tin oxide and carbon nanotubes, greatly increasing the charge and discharge amount and times of lithium battery.
That's all for the sharing, thanks for your reading, and we also supply car 18650 battery for sale, if you have any demand for our products, just feel free to contact us.
Jiangsu Sunpower Co., Ltd. founded in 2014, focus on producing cylindrical power lithium-ion batteries. All adopt the most advanced extrusion coating production technology and yearly production reaches to 250 million Ah power type 18650 High security lithium ion battery.
If you want to learn more about the High security lithium ion battery, please visit here.
https://www.sp-powerbattery.com/
0 notes
Warranty Period & Product Liability Of INR18650-1300mAh Li-ion Rechargeable cylindrical battery
Warranty Period & Product Liability of the 18650 High security rechargeable lithium battery.
Warranty period of this product is 12 months from manufacturing code. JIANGSU SUNPOWER CO., LTD. is not responsible for the troubles caused by mishandling of the battery which is against the instructions in this specification.
Warnings and Cautions in Using the Battery
To prevent a possibility of the battery from leaking, heating or explosion please observe the following precautions:
● When using a new battery for the first time or after long term storage, please use the battery charger specifically for that purpose fully charge the battery before use.
● Do not disassemble or open, crush, bend or deform, puncture, or shred;
● Do not modify or remanufacture, attempt to insert foreign objects into the battery, immerse or expose to water or other liquids such as water, seawater, drinks such as soft drinks, juices, coffee or others, or expose to fire, explosion, or other hazard.
● Do not short circuit a battery or allow metallic or conductive objects to contact the battery terminals.
● Avoid dropping the phone or battery. If the phone or battery is dropped, especially on a hard surface, and the user suspects damage, take it to a service center for inspection.
● The battery replacement shall be done only by either cells supplier or device supplier and never be done by the user.
● Replace the battery only with another battery that has been qualified with the system per standard. Use of an unqualified battery may present a risk of fire, explosion, leakage, or other hazard.
● Don't keep a 18650 High security lithium ion battery at rest for a long time (over 6 months). Safety accident may happen when recharging battery which has a rest for a long time.
● In the event of a battery leak, do not allow the liquid to come in contact with the skin or eyes. If contact has been made, wash the affected area with large amounts of water and seek medical advice.
● Battery usage by children should be supervised. Seek medical advice immediately if a battery has been swallowed
● Never disassemble cells. The disassembling may generate internal short circuit in the cell, which may cause firing or other problems.
● Never incinerate nor dispose the cells in fire. These may cause firing of the cells, which is very dangerous and is prohibited.
● Do not remove the outer sleeve from a battery pack nor cut into its housing.
● Do not mix our batteries with other battery brands or batteries of a different chemistry such as alkaline and zinc carbon.
● Do not mix new batteries in use with semi-used batteries, over-discharge may occur.
● Promptly dispose of used batteries in accordance with local regulations.
Company products are positioned in the field of power type lithium ion battery. We have a complete quality management system. Choose us, you can be get most careful and thoughtful service!
If you want to learn more about the rechargeable lithium battery, please visit here.
https://www.sp-powerbattery.com/
0 notes
Link
0 notes
The development of lithium ion batteries
The development of lithium ion batteries shared by vacuum cleaner lithium ion battery manufacturer.
In the 1970s exxon's m.s. hittingham made the first lithium-ion batteries using titanium sulfide as a anode and lithium as a cathode.
In 1980, j. Goodenough discovered that lithium cobalt oxide could be used as a positive electrode for lithium-ion batteries.
In 1982 r.r. garwal and j.r. salman of the Illinois Institute of Technology found that lithium ions have the properties of being embedded in graphite, a process that is rapid and reversible. At the same time, lithium batteries made of lithium metal have drawn much attention to their safety risks. Therefore, people try to make rechargeable batteries by using the properties of lithium ion embedded in graphite. The first available lithium ion graphite electrode was trialled by bell LABS.
In 1983, m. hackeray and j. goodenough et al. found that manganese spinel was an excellent anode material with low price, stability and excellent electric and lithium conductivity. Its decomposition temperature is high, and oxidation is far lower than lithium cobalt oxide, even if there is a short circuit, overcharge, also can avoid the risk of combustion, explosion.
In 1989, a. a. thiram and j. g. guddenough found that using the positive electrode of the polymerized anions produced higher voltages.
1991 SONY corp. released the first commercial lithium-ion battery. Then lithium-ion batteries revolutionised consumer electronics.
In 1996, Padhi and Goodenough found that phosphate with olivine structure, such as lithium iron phosphate (LiFePO4), has more advantages than traditional anode materials, so it has become the mainstream anode materials.
With the wide use of digital products such as mobile phones and laptops, lithium ion batteries have been widely used in such products with excellent performance, and are gradually developing to other product application fields.
In 1998, tianjin power research institute began to produce lithium ion batteries commercially.
On July 15, 2018, a special carbon-negative material for high-capacity high-density lithium battery with pure carbon as the main component was released in the research institute of coal chemistry of keda. The lithium battery made of this new material can achieve a range of more than 600 kilometers.
In October 2018, the research group of professor liang jiajie and professor Chen yongsheng of nankai university cooperated with the research group of lai chao of jiangsu normal university to successfully prepare silver nanowires with multi-stage structure -- graphene 3d porous carrier and load lithium metal as composite negative electrode material. This carrier can inhibit the generation of lithium dendrites, so as to achieve ultra-high speed battery charging, which is expected to greatly extend the "life" of lithium batteries. The research is published in the latest issue of advanced materials.
That's all for the sharing,and we supply High security rechargeable lithium battery for sale, if you have any demand for our products,just feel free to contact us.
Jiangsu Sunpower Co., Ltd. founded in 2014, focus on producing cylindrical power lithium-ion batteries. All adopt the most advanced extrusion coating production technology and yearly production reaches to 250 million Ah power type 18650 High security lithium ion battery.
If you want to learn more about the High security lithium ion battery, please visit here.
https://www.sp-powerbattery.com/
0 notes
[Lithium ion battery for sale]Lithium ion battery is discussed
Lithium battery is discussed
Power tool lithium ion battery supplier shares that"Lithium battery" is a kind of battery with lithium metal or lithium alloy as negative electrode material and non-aqueous electrolyte solution. In 1912, lithium metal batteries were first proposed and studied by Gilbert n. Lewis. In the 1970s, M. S. Whittingham proposed and began to study lithium-ion batteries. Due to the very lively chemical properties of lithium metal, the processing, preservation and use of lithium metal have very high requirements for the environment. With the development of science and technology, lithium battery has become the mainstream.
Lithium batteries can be roughly divided into two categories: lithium metal batteries and lithium ion batteries. Lithium-ion batteries do not contain metallic lithium and are rechargeable. The fifth generation of rechargeable lithium metal battery was born in 1996. Its safety, specific capacity, self-discharge rate and performance/price ratio are all better than lithium ion battery. Because of its own high technology requirements, only a few companies in a few countries now produce the lithium metal battery.
In October 2018, professor liang jiajie and professor Chen yongsheng of nankai university cooperated with the lai chao research group of jiangsu normal university to successfully prepare a graphene three-dimensional porous carrier, which can realize ultra-high-speed battery charging and is expected to significantly extend the "life" of lithium batteries.
That's all for the sharing,and we supply High temperature resistance lithium ion battery for sale, if you have any demand for our products,just feel free to contact us.
Jiangsu Sunpower Co., Ltd. founded in 2014, focus on producing cylindrical power lithium-ion batteries. All adopt the most advanced extrusion coating production technology and yearly production reaches to 250 million Ah power type 18650 High security lithium ion battery.
If you want to learn more about the lithium ion battery, please visit here.
https://www.sp-powerbattery.com/
0 notes

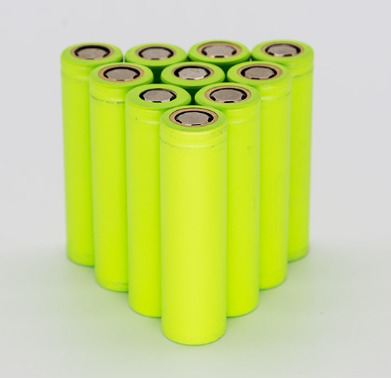

INR18650-3000mAh Li-ion Rechargeable cylindrical battery,18650 battery,High security lithium ion battery,power tool lithium ion battery supplier
3000mah Li-Ion Battery Product Details:
Items
Specifications
2.1 Model
INR18650-3000
2.2 Min. Capacity
2950mAhCharge: 0.5C, 4.20V,CCCV 150mA cut-off, Discharge: 0.2C, 2.5V discharge cut-off
2.3 Nominal Voltage
3.7V
2.4 Max. Charge Voltage
4.20 V
2.5 Discharge Cut-off Voltage
2.50V
2.6 Standard charge
CCCV, 1.50A, 4.20 ± 0.05 V, 150mA cut-off
2.7 Max. Charge Current
CCCV, 4A, 4.20 ± 0.05 V, 100mA cut-off
2.8 Max. Continuous Discharge Current
15 A
2.9 Max. Pulse Discharge Current
30A（ 2s pulse ）
2.10 Max. Diameter
≤18.40 mm
2.11 Max. Height
≤65.50mm
2.12 Weight
≤ 48. 0g
2.13 Impedance
≤ 18 mΩ
2.14 Operating temperature (surface temperature)
Charge: 0℃～50℃
Discharge : -20℃～75℃
Storage: -20℃～45℃
Characteristic of Long life 18650 battery
a. Environmental conditions
Unless otherwise specified, all tests stated in this specification are conducted at temperature 23±3°and humidity under 65%.
b. Measuring equipment
(1) Amp-meter and volt-meter
The amp-meter and volt-meter should have an accuracy of the grade 0.5mA and mV or higher.
(2) Slide caliper
The slide caliper should have 0.01 mm scale.
(3) Impedance meter
The impedance meter with AC 1kHz should be used.
c. Standard charge
charging the cell CCCV with charge current 0.5C, constant voltage 4.2V and 150mA cut-off in CV mode at 23℃ for capacity.
d. Standard discharge capacity
discharge current of 600mA(0.2C) with 2.5V cut-off at 23℃within 1hour after the standard charge.
Electrical Characteristic for power tool rechargeable Li-ion battery supplier
NO.
Item
Standard
Test Method
1
Discharge rate capabilities
0.2C≥2950mAh0.5C≥2900mAh1.0C≥2850mAh3.0C≥2800mAh5.0C≥2700mAh
Standard charged, then rest for 30mins and discharge at 0.2C、1C、3C、5 C and 2.5V cut-off
2
capacity retention and recovery
Residual capacity≥94％ Recoverablecapacity≥*98％
Standard charged under the condition of normal atmospheric pressure and the environmental temperature of 23℃±3℃， Stored for 28 days, then discharge at 0.2 C to 2.75V measuring residual capacity; Then standard charge/discharge measure recoverable capacity.
3
Low TemperaturePerformance
discharge capacity≥85% rated capacityno distortion and no rupture
The cell shall be charged in accordance with the standard charge. Then stored in the temperature of -10℃±1℃ for4h, Discharge at the constant current of 0.2C down to the end-of-discharge voltage 2.750V.
4
Cycle Life
1C charged the cell to 4.2V, then change to charge with constant voltage till the current less than or equal to 0.04C, rest for 30mins; 10A discharge to 2.75V, one cycle is finished, rest for 30mins. Then repeat above steps, when capacity is less than 70% of initial capacity, the battery life is over.
Safety Characteristic of car 18650 battery
NO.
Item
Standard
Test Method
1
Overcharge
No fire、No explosion
After standard charge, rest for 10mins; then charge at constant current of 3C to 10V.(or charge at 3C for90mins).
2
Forced discharge
No fire、No explosion
The battery to be discharged with standard discharging condition, Inverse charge current =1C；time: ≥90mins
3
Short Circuit test
No fireNo explosion
The battery to be fully charged with standard charging condition, and short the positive and negative terminals with wire resistance ≤50mΩ.Tests are to be conducted at 23℃±3℃ and at 55℃ ±5℃, keep 24h or casetemperature decline to 20% of the max temperature ,test is over.
4
Crush test
No fire/No explosion
A battery is crushed between two flat surfaces. The applied force is 13 kN±1kN by hydrocylinder, Once the maximum pressure has been obtained or voltage decrease to 1/3 of nominal voltage sharply, then release pressure.
5
Shock test
No fire/No explosion
The full charged battery is fixed on shock table, to force a certain shock to three mutual vertical direction, in initial3ms, the min. average acceleration is 75gn,the peak acceleration is between 125gn and 175gn.
6
Heating test(130°C)
No fire/No explosion
The cells are fully charged with standard charging condition, and put into incubator with nature air or cycled air convected, heat battery by velocity of 5°C ±2°C/min to130°C±2°C,and maintain for 10mins.
7
TemperatureCycling Test
no leakage, no fire, no explosion
The fully charged batteries are placed in a test chamber and subjected to the following cycles: a) Raising the temperature to 75°C ±2°C within 30 minutes and maintaining this temperature for 6 hours. b) Reducing the temperature to minus 40°C ±2°C within30 minutes and maintaining this temperature for 6 hours. c) Repeating the sequence for a further 9 cycles. d) Afterthe 10th cycle, storing the batteries for 24 hours prior to examination.
Environment Adaptation Performance for 18650 lithium ion battery supplier
NO
Item
Standard
Test Method
1
Altitude/Low pressure simulation test
no leakage, no fire, no explosion
The full charged cells are to be stored for 6h at an vaccum environment with pressure of less than 11.6kPa and atemperature of 23℃±3℃.
2
Free drop test
no fire, no explosion
The fully charged battery drops on the concrete ground from height(1m),total 3 times,to obtain the shock of random directions.
3
Vibration test
No remarkable damage、No smoking 、No explosion
After standard charging, fixed the cell to vibration table and subjected to vibration cycling that the frequency is to be varied at the rate of 1Hz per minute between 10Hz and 55Hz,the excursion of the vibration is 1.52mm. The cell shall be vibrated for 90 minutes per axis of x, y axes
Storage Temperature for Shipping
If the cell is kept as ex-factory status (50% of charge), the 0.2C recoverable capacity rate is more than 90%.
1 month -20°C ~ 60 °C
2 months-20°C ~ 40 °C
3 months-20℃~ 25 °C
Appearance
There shall be no such defect as deep scratch, flaw, crack, rust, leakage, which may adversely affect commercial value of the cell.
Package
The cells are packed with JIANGSU SUNPOWER CO.,LTD. standard carton box, which hold four inner boxes. There are 100pcs 18650 cells per inner box. And the inner box and outer box identifies battery capacity, voltage and impedance information.
Warranty Period & Product Liability for High security lithium ion battery
Warranty period of this product is 12 months from manufacturing code. JIANGSU SUNPOWER CO., LTD. is not responsible for the troubles caused by mishandling of the battery which is against the instructions in this specification.
Warnings and Cautions in Using the Battery
To prevent a possibility of the battery from leaking, heating or explosion please observe the following precautions:
● When using a new battery for the first time or after long term storage, please use the battery charger specifically for that purpose fully charge the battery before use.
● Do not disassemble or open, crush, bend or deform, puncture, or shred;
● Do not modify or remanufacture, attempt to insert foreign objects into the battery, immerse or expose to water or other liquids such as water, seawater, drinks such as soft drinks, juices, coffee or others, or expose to fire, explosion, or other hazard.
● Do not short circuit a battery or allow metallic or conductive objects to contact the battery terminals.
● Avoid dropping the phone or battery. If the phone or battery is dropped, especially on a hard surface, and the user suspects damage, take it to a service center for inspection.
● The battery replacement shall be done only by either cells supplier or device supplier and never be done by the user.
● Replace the battery only with another battery that has been qualified with the system per standard. Use of an unqualified battery may present a risk of fire, explosion, leakage, or other hazard.
● Don’t keep a battery at rest for a long time (over 6 months). Safety accident may happen when recharging battery which has a rest for a long time.
● In the event of a battery leak, do not allow the liquid to come in contact with the skin or eyes. If contact has been made, wash the affected area with large amounts of water and seek medical advice.
● Battery usage by children should be supervised. Seek medical advice immediately if a battery has been swallowed
● Never disassemble cells. The disassembling may generate internal short circuit in the cell, which may cause firing or other problems.
● Never incinerate nor dispose the cells in fire. These may cause firing of the cells, which is very dangerous and is prohibited.
● When use the battery , must to ensure the charge and discharge voltage of the battery is between 2.75V to 4.2V.
● Do not remove the outer sleeve from a battery pack nor cut into its housing.
● Do not mix our batteries with other battery brands or batteries of a different chemistry such as alkaline and zinc carbon.
● Do not mix new batteries in use with semi-used batteries, over-discharge may occur.
● Promptly dispose of used batteries in accordance with local regulations.
Ship
The cells might be damaged during shipping by shock. If any abnormal features of the cells are found such as deformation of the cell package, smelling of an electrolyte, an electrolyte leakage and others, the cells shall never be used any more. The Cells with a smell of the electrolyte or a leakage shall be placed away from fire to avoid firing.
Storage of power tool 18650 battery
The cell shall be stored at the environmental condition of -20℃- 45℃ and 65%±20% RH. The voltage for long time storage shall be 3.5V-3.7V range. If the cell has to be storied for a long time (Over 3 months), the environmental condition should be: Temperature: 23℃±3℃Humidity: 65%±20％RH；please activate the battery once every 3 months according to the following method: Charge with current 0.2C until the voltage achieve to 3.7V.
The company founded in 2014, focus on producing cylindrical power lithium-ion batteries. The company supply Electric vehicle cylindrical lithium battery, which include 1500mAh, 1300mAh, 2000mAh, 2200mAh, 2500mAh, 2600mAh Li-ion battery and 3000mAh Li-ion battery. All adopt the most advanced extrusion coating production technology and yearly production reaches to 250 million Ah power type 18650 High security lithium ion battery. Our products have high quality and competitive prices.
If you want to learn more about the High security lithium ion battery, please visit here.
https://www.sp-powerbattery.com/
0 notes
INR18650-2600mAh Li-ion Rechargeable cylindrical battery,2600mAh Li-ion battery,18650 battery ,Long life lithium ion battery
2600mah Li-Ion Battery Product Details:
NO.
Items
Specifications
1
Model
INR18650-2600
2
Can Material
Ni-Iron
3
Rated Capacity
2600 mAh（0.2C5A）
Min. Capacity
2550 mAh（0.2C5A）
4
Nominal Voltage
3.7V
5
Max. Charge Voltage
4.2 V
6
Discharge Cut-off Voltage
2.75V
7
Max. Charge Current
1 C5A
8
Standard Discharging Current
0.2 C5A
9
Max. Continuous Discharge Current
13 A
10
Max. Pulse Discharge Current
30A（ 2s pulse ）
11
Max. Diameter（include PET）
≤18.40 mm
12
Max. Height (include PET)
≤65.50mm
13
Weight (Approx.)
44.0±1.0g
14
Impedance （Max. at 1000Hz、charged status）
≤ 18 mΩ
15
Charge Method (CC/CV)
Standard
0.5 C5A×6hrs
Quick
1 C5A×1.5hrs.
16
Operating Temperature
Charge
0℃～45℃ 32oF～113oF
Discharge
-20℃～60℃ -4oF～140oF
Storage
-20℃～45℃ -4oF～113oF
Characteristic of custom 2600mAh Li-ion battery
Without special instructions, the following tests should be done under the condition of : temperature(23℃±3℃), atmospheric pressure (86KPa～106KPa), relative humidity (45%～85%), and the tests should be done within two weeks after receiving the products.
the definitions of some nomenclatures of this specification
standard Charge: Charge with current 0.2C5A to limit charge voltage under the condition of23℃±3℃ surrounding temperature, then change to charge with constant voltage till the current less than or equal to 0.02C5A.
Electrical Characteristic for power tool rechargeable Li-ion battery supplier
NO.
Item
Standard
Test Method
1
Discharge rate capabilities
A）1 C5A ≥100% B）10 C5A ≥95% C）15 C5A ≥90%
Standard charged under the condition of normal atmospheric pressure and the environmental temperature of 23℃±3℃ and45%～85%RH, then rest for 30mins and discharge at1C5A、5 C5A、10 C5A to the discharge cut-off voltage respectively. Charge/discharge cycle can be conducted for 3times before meeting the Standards（the same below）
2
capacity retention and recovery
Residualcapacity≥94％ Recoverablecapacity≥*98％
Standard charged under the condition of normal atmospheric pressure and the environmental temperature of 23℃±3℃， Stored for 28 days, then discharge at 0.2 C5A to 2.75Vmeasuring residual capacity; Then standard charge/discharge measure recoverable capacity.
3
Low Temperature Performance
discharge capacity≥85% rated capacityno distortion and no rupture
The cell shall be charged in accordance with the standard charge. Then stored in the temperature of -10℃±1℃ for4h, Discharge at the constant current of 0.2C5A down to the end-of-discharge voltage 2.75V.
4
Cycle Life
≥300cycles
Charge: The cell shall be charged in accordance with RapidCharge condition. rest for 10mins.Discharge: 10C5A discharge to 2.75V, one cycle is finished, then rest for 30mins. Then repeat above steps, when capacity is less than 80% of initial capacity, the battery life is over.
Safety Characteristic of e-bike cylindrical power lithium-ion batteries
NO.
Item
Standard
Test Method
1
Overcharge
No fire、No explosion
After standard charge, rest for 10mins; then charge at constant current of 3C5A to 10V.(or charge at 3C5A for 90mins).
2
Forced discharge
No fire、No explosion
The battery to be discharged with standard discharging condition, Inverse charge current =1C5A；time: ≥ 90mins
3
Short Circuit test
No fire、 No explosion
The battery to be fully charged with standard charging condition, and short the positive and negative terminals with wire resistance ≤50mΩ.Tests are to be conducted at 23℃±3℃ and at 55℃ ±5℃, keep 24h or case temperature decline to 20% of the max temperature ,test is over.
4
Crush test
No fire、No explosion
A battery is crushed between two flat surfaces. The applied force is 13 kN±1kN by hydrocylinder, Once the maximum pressure has been obtained or voltage decrease to 1/3 of nominal voltage sharply, then release pressure.
5
Shock test
No fire、No explosion
The full charged battery is fixed on shock table, to force a certain shock to three mutual vertical direction, in initial 3ms, the min. average acceleration is 75gn,the peak acceleration is between 125gn and 175gn.
6
Heating test (130°C)
No fire、No explosion
The cells are fully charged with standard charging condition, and put into incubator with nature air or cycled air convected, heat battery by velocity of 5°C ±2°C/min to 130°C±2°C,and maintain for 10mins.
7
Temperature Cycling Test
no leakage, no fire, no explosion
The fully charged batteries are placed in a test chamber and subjected to the following cycles: a) Raising the temperature to 75°C ±2°C within 30 minutes and maintaining this temperature for 6 hours. b) Reducing the temperature to minus 40°C ±2°C within 30 minutes and maintaining this temperature for 6 hours. c) Repeating the sequence for a further 9 cycles. d) After the 10th cycle, storing the batteries for 24 hours prior to examination.
Environment Adaptation Performance for power tool 18650 battery
NO
Item
Standard
Test Method
1
Altitude/Low pressure simulation test
no leakage, no fire, no explosion
The full charged cells are to be stored for 6h at an vaccum environment with pressure of less than 11.6kPa and atemperature of 23℃±3℃.
2
Free drop test
no fire, no explosion
The fully charged battery drops on the concrete ground from height(1m),total 3 times,to obtain the shock of random directions.
3
Vibration test
No remarkable damage/No smoking ,No explosion
After standard charging, fixed the cell to vibration table and subjected to vibration cycling that the frequency is to be varied at the rate of 1Hz per minute between 10Hz and 55Hz,the excursion of the vibration is 1.52mm. The cell shall be vibrated for 90 minutes per axis of x, y axes.
Storage Temperature for Shipping
If the cell is kept as ex-factory status (50% of charge), the 0.2C recoverable capacity rate is more than 80%.
1 month-20°C ~ 60 °C
2 months -20°C ~ 40 °C
3 months-20℃~ 25 °C
Appearance
There shall be no such defect as deep scratch, flaw, crack, rust, leakage, which may adversely affect commercial value of the cell.
Package
The cells are packed with JIANGSU SUNPOWER CO.,LTD. standard carton box, which hold four inner boxes. There are 100pcs 18650 cells per inner box. And the inner box and outer box identifies battery capacity, voltage and impedance information.
Warnings and Cautions in Using the Long life rechargeable lithium battery
To prevent a possibility of the battery from leaking, heating or explosion please observe the following precautions:
● When using a new battery for the first time or after long term storage, please use the battery charger specifically for that purpose fully charge the battery before use.
● Do not disassemble or open, crush, bend or deform, puncture, or shred;
● Do not modify or remanufacture, attempt to insert foreign objects into the battery, immerse or expose to water or other liquids such as water, seawater, drinks such as soft drinks, juices, coffee or others, or expose to fire, explosion, or other hazard.
● Do not short circuit a battery or allow metallic or conductive objects to contact the battery terminals.
● Avoid dropping the phone or battery. If the phone or battery is dropped, especially on a hard surface, and the user suspects damage, take it to a service center for inspection.
● The battery replacement shall be done only by either cells supplier or device supplier and never be done by the user.
● Replace the battery only with another battery that has been qualified with the system per standard. Use of an unqualified battery may present a risk of fire, explosion, leakage, or other hazard.
● Don't keep a battery at rest for a long time (over 6 months). Safety accident may happen when recharging battery which has a rest for a long time.
● In the event of a battery leak, do not allow the liquid to come in contact with the skin or eyes. If contact has been made, wash the affected area with large amounts of water and seek medical advice.
● Battery usage by children should be supervised. Seek medical advice immediately if a battery has been swallowed
● Never disassemble cells. The disassembling may generate internal short circuit in the cell, which may cause firing or other problems.
● Never incinerate nor dispose the cells in fire. These may cause firing of the cells, which is very dangerous and is prohibited.
● Do not remove the outer sleeve from a battery pack nor cut into its housing.
● Do not mix our batteries with other battery brands or batteries of a different chemistry such as alkaline and zinc carbon.
● Do not mix new batteries in use with semi-used batteries, over-discharge may occur.
● Promptly dispose of used batteries in accordance with local regulations.
Ship
The cells might be damaged during shipping by shock. If any abnormal features of the cells are found such as deformation of the cell package, smelling of an electrolyte, an electrolyte leakage and others, the cells shall never be used any more. The Cells with a smell of the electrolyte or a leakage shall be placed away from fire to avoid firing.
The company founded in 2014, focus on producing cylindrical power lithium-ion batteries. The company supply Electric vehicle cylindrical lithium battery, which include 1500mAh, 1300mAh, 2000mAh, 2200mAh, 2500mAh, 2600mAh Li-ion battery and 3000mAh Li-ion battery. All adopt the most advanced extrusion coating production technology and yearly production reaches to 250 million Ah power type 18650 High security lithium ion battery. Our products have high quality and competitive prices.
If you want to learn more about the High security lithium ion battery, please visit here.
https://www.sp-powerbattery.com/
0 notes
INR18650-2500mAh Li-ion Rechargeable cylindrical battery,High security lithium ion battery,rechargeable lithium battery,High temperature resistance lithium ion battery
2500mah Li-Ion Battery Product Details:
NO.
Items
Specifications
1
Model
INR18650-2500
2
Can Material
Ni-Iron
3
Rated Capacity
2500 mAh（0.2C ）
Min. Capacity
2450 mAh（0.2C ）
4
Nominal Voltage
3.7V
5
Max. Charge Voltage
4.2 V
6
Discharge Cut-off Voltage
2.75V
7
Max. Charge Current
2.5 A
8
Standard Discharging Current
1.3 A
9
Max. Continuous Discharge Current
20 A
10
Max. Pulse Discharge Current
30A（ 3s pulse ）
11
Max. Diameter（include PET）
≤18.40 mm
12
Max. Height (include PET)
≤65.50mm
13
Weight (Approx.)
44.0±1.0g
14
Impedance （Max. at 1000Hz、charged status）
≤ 18 mΩ
15
Charge Method (CC/CV)
Standard
0.5 C ×6hrs
Quick
1 C ×1.5hrs.
16
Operating Temperature
Charge
0℃～45℃ 32oF～113oF
Discharge
-20℃～60℃ -4oF～140oF
Storage
-20℃～45℃ -4oF～113oF
Characteristic for 18650 rechargeable lithium battery wholesale
Without special instructions, the following tests should be done under the condition of : temperature(23℃±3℃), atmospheric pressure (86KPa～106KPa), relative humidity (45%～85%), and the tests should be done within two
weeks after receiving the products.
the definitions of some nomenclatures of this specification
standard Charge: Charge with current 0.2C to limit charge voltage under the condition of23℃±3℃ surrounding temperature,then change to charge with constant voltage till the current less than or equal to 0.02C .
Safety Characteristic of 18650 High security rechargeable lithium battery
NO.
Item
Standard
Test Method
1
Overcharge
No fire、No explosion
After standard charge, rest for 10mins; then charge at constant current of 3C5A to 10V.(or charge at 3C5A for 90mins).
2
Forced discharge
No fire、No explosion
The battery to be discharged with standard discharging condition, Inverse charge current =1C5A；time: ≥ 90mins
3
Short Circuit test
No fire、 No explosion
The battery to be fully charged with standard charging condition, and short the positive and negative terminals with wire resistance ≤50mΩ.Tests are to be conducted at 23℃±3℃ and at 55℃ ±5℃, keep 24h or case temperature decline to 20% of the max temperature ,test is over.
4
Crush test
No fire、No explosion
A battery is crushed between two flat surfaces. The applied force is 13 kN±1kN by hydrocylinder, Once the maximum pressure has been obtained or voltage decrease to 1/3 of nominal voltage sharply, then release pressure.
5
Shock test
No fire、No explosion
The full charged battery is fixed on shock table, to force a certain shock to three mutual vertical direction, in initial 3ms, the min. average acceleration is 75gn,the peak acceleration is between 125gn and 175gn.
6
Heating test (130°C)
No fire、No explosion
The cells are fully charged with standard charging condition, and put into incubator with nature air or cycled air convected, heat battery by velocity of 5°C ±2°C/min to 130°C±2°C,and maintain for 10mins.
7
Temperature Cycling Test
no leakage, no fire, no explosion
The fully charged batteries are placed in a test chamber and subjected to the following cycles: a) Raising the temperature to 75°C ±2°C within 30 minutes and maintaining this temperature for 6 hours. b) Reducing the temperature to minus 40°C ±2°C within 30 minutes and maintaining this temperature for 6 hours. c) Repeating the sequence for a further 9 cycles. d) After the 10th cycle, storing the batteries for 24 hours prior to examination.
Environment Adaptation Performance of lithium ion battery
NO.
Item
Standard
Test Method
1
Altitude/Low pressure simulation test
no leakage, no fire, no explosion
The full charged cells are to be stored for 6h at an vaccum environment with pressure of less than 11.6kPa and atemperature of 23℃±3℃.
2
Free drop test
no fire, no explosion
The fully charged battery drops on the concrete ground from height(1m),total 3 times,to obtain the shock of random directions.
3
Vibration test
No remarkable damage、No smoking 、No explosion
After standard charging, fixed the cell to vibration table and subjected to vibration cycling that the frequency is to be varied at the rate of 1Hz per minute between 10Hz and 55Hz,the excursion of the vibration is 1.52mm. The cell shall be vibrated for 90 minutes per axis of x, y axes.
Storage Temperature for Shipping
If the cell is kept as ex-factory status (50% of charge), the 0.2C recoverable capacity rate is more than 80%.
1 month-20°C ~ 60 °C
2 months-20°C ~ 40 °C
3 months -20℃~ 25 °C
Appearance
There shall be no such defect as deep scratch, flaw, crack, rust, leakage, which may adversely affect commercial value of the cell.
Package
The cells are packed with JIANGSU SUNPOWER CO.,LTD. standard carton box, which hold four inner boxes. There are 100pcs 18650 cells per inner box. And the inner box and outer box identifies battery capacity, voltage and impedance information.
Warnings and Cautions in Using the power tool lithium ion battery supplier
To prevent a possibility of the battery from leaking, heating or explosion please observe the following precautions:
● When using a new battery for the first time or after long term storage, please use the battery charger specifically for that purpose fully charge the battery before use.
● Do not disassemble or open, crush, bend or deform, puncture, or shred;
● Do not modify or remanufacture, attempt to insert foreign objects into the battery, immerse or expose to water or other liquids such as water, seawater, drinks such as soft drinks, juices, coffee or others, or expose to fire, explosion, or other hazard.
● Do not short circuit a battery or allow metallic or conductive objects to contact the battery terminals.
● Avoid dropping the phone or battery. If the phone or battery is dropped, especially on a hard surface, and the user suspects damage, take it to a service center for inspection.
● The battery replacement shall be done only by either cells supplier or device supplier and never be done by the user.
● Replace the battery only with another battery that has been qualified with the system per standard. Use of an unqualified battery may present a risk of fire, explosion, leakage, or other hazard.
● Don't keep a battery at rest for a long time (over 6 months). Safety accident may happen when recharging battery which has a rest for a long time.
● In the event of a battery leak, do not allow the liquid to come in contact with the skin or eyes. If contact has been made, wash the affected area with large amounts of water and seek medical advice.
● Battery usage by children should be supervised. Seek medical advice immediately if a battery has been swallowed
● Never disassemble cells. The disassembling may generate internal short circuit in the cell, which may cause firing or other problems.
● Never incinerate nor dispose the cells in fire. These may cause firing of the cells, which is very dangerous and is prohibited.
● Do not remove the outer sleeve from a battery pack nor cut into its housing.
● Do not mix our batteries with other battery brands or batteries of a different chemistry such as alkaline and zinc carbon.
● Do not mix new batteries in use with semi-used batteries, over-discharge may occur.
● Promptly dispose of used batteries in accordance with local regulations.
Ship
The cells might be damaged during shipping by shock. If any abnormal features of the cells are found such as deformation of the cell package, smelling of an electrolyte, an electrolyte leakage and others, the cells shall never be used any more. The Cells with a smell of the electrolyte or a leakage shall be placed away from fire to avoid firing.
Storage
The cell shall be stored at the environmental condition of -20℃ - 45℃ and 65%±20% RH. The voltage for long time storage shall be 3.6V-3.9V range. If the cell has to be storied for a long time (Over 3 months), the environmental condition should be: Temperature: 23℃±3℃ Humidity: 65%±20％RH； please activate the battery once every 3 months according to the following method: Charge with current 0.2C5A until the voltage achieve to 4.0V.
The company founded in 2014, focus on producing cylindrical power lithium-ion batteries. The company supply Electric vehicle cylindrical lithium battery, which include 1500mAh, 1300mAh, 2000mAh, 2200mAh, 2500mAh, 2600mAh Li-ion battery and 3000mAh Li-ion battery. All adopt the most advanced extrusion coating production technology and yearly production reaches to 250 million Ah power type 18650 High security lithium ion battery. Our products have high quality and competitive prices.
If you want to learn more about the High security lithium ion battery, please visit here.
https://www.sp-powerbattery.com/
0 notes
INR18650-2200mAh battery,2000mAh Li-ion battery supplier,lithium ion battery for power tool,power tool lithium ion battery supplier
2200mAh Li-ion battery Product Details:
NO.
Items
Specifications
1
Model
INR18650-2200
2
Can Material
Ni-Iron
3
Rated Capacity
2200 mAh（0.2C5A）
4
Nominal Voltage
3.7V
5
Max. Charge Voltage
4.2 V
6
Discharge Cut-off Voltage
2.75V
7
Max. Charge Current
1 C5A
8
Standard Discharging Current
0.5 C5A
9
Max. Continuous Discharge Current
11 A
10
Max. Pulse Discharge Current
30A（ 2s pulse ）
11
Max. Diameter（include PET）
≤18.40 mm
12
Max. Height (include PET)
≤65.50mm
13
Weight (Approx.)
44.0g
14
Impedance （Max. at 1000Hz、charged status）
≤ 18 mΩ
15
Charge Method (CC/CV)
Standard
0.2 C5A×5hrs
Quick
1 C5A×2.5hrs.
16
Operating Temperature
Charge
0℃～45℃ 32oF～113oF
Discharge
-10℃～60℃ -4oF～140oF
Storage
-20℃～45℃ -4oF～113oF
Characteristic of 2200mAh Li-ion cylindrical battery
Without special instructions, the following tests should be done under the condition of : temperature(23℃±3℃), atmospheric pressure (86KPa～106KPa), relative humidity (45%～85%), and the tests should be done within two weeks after receiving the products.
the definitions of some nomenclatures of this specification
standard Charge: Charge with current 0.2C5A to limit charge voltage under the condition of23℃±3℃ surrounding temperature, then change to charge with constant voltage till the current less than or equal to 0.02C5A.
Electrical Characteristic for Cylindrical Rechargeable Electric vehicle li-ion Battery
NO.
Item
Standard
Test Method
1
Discharge rate capabilities
A）1 C5A ≥97% B）5 C5A ≥95%
Standard charged under the condition of normal atmospheric pressure and the environmental temperature of 23℃±3℃ and45%～85%RH, then rest for 30mins and discharge at1C5A、5 C5A、10 C5A to the discharge cut-off voltage respectively. Charge/discharge cycle can be conducted for 3times before meeting the Standards（the same below）
2
capacity retention and recovery
Residualcapacity≥94 %
Recoverablecapacity≥*98%
Standard charged under the condition of normal atmospheric pressure and the environmental temperature of 23℃±3℃， Stored for 28 days, then discharge at 0.2 C5A to 2.50Vmeasuring residual capacity; Then standard charge/discharge measure recoverable capacity.
3
Low TemperaturePerformance
discharge capacity≥85% rated capacityno distortion and no rupture
The cell shall be charged in accordance with the standard charge. Then stored in the temperature of -10℃±1℃ for4h, Discharge at the constant current of 0.2C5A down to the end-of-discharge voltage 2.750V.
4
Cycle Life
Charge: The cell shall be charged in accordance with RapidCharge condition. rest for 10mins.Discharge : 5C5A discharge to 2.75V, one cycle is finished, then rest for 30mins. Then repeat above steps, when capacity is less than 80% of initial capacity, the battery life is over.
Safety Characteristic of bicycle 18650 battery
NO.
Item
Standard
Test Method
1
Overcharge
No fire、No explosion
After standard charge, rest for 10mins; then charge at constant current of 3C5A to 10V.(or charge at 3C5A for 90mins).
2
Forced discharge
No fire、No explosion
The battery to be discharged with standard discharging condition, Inverse charge current =1C5A；time: ≥ 90mins
3
Short Circuit test
No fire、 No explosion
The battery to be fully charged with standard charging condition, and short the positive and negative terminals with wire resistance ≤50mΩ.Tests are to be conducted at 23℃±3℃ and at 55℃ ±5℃, keep 24h or case temperature decline to 20% of the max temperature ,test is over.
4
Crush test
No fire、No explosion
A battery is crushed between two flat surfaces. The applied force is 13 kN±1kN by hydrocylinder, Once the maximum pressure has been obtained or voltage decrease to 1/3 of nominal voltage sharply, then release pressure.
5
Shock test
No fire、No explosion
The full charged battery is fixed on shock table, to force a certain shock to three mutual vertical direction, in initial 3ms, the min. average acceleration is 75gn,the peak acceleration is between 125gn and 175gn.
6
Heating test (130°C)
No fire、No explosion
The cells are fully charged with standard charging condition, and put into incubator with nature air or cycled air convected, heat battery by velocity of 5°C ±2°C/min to 130°C±2°C,and maintain for 10mins.
7
Temperature Cycling Test
no leakage, no fire, no explosion
The fully charged batteries are placed in a test chamber and subjected to the following cycles: a) Raising the temperature to 75°C ±2°C within 30 minutes and maintaining this temperature for 6 hours. b) Reducing the temperature to minus 40°C ±2°C within 30 minutes and maintaining this temperature for 6 hours. c) Repeating the sequence for a further 9 cycles. d) After the 10th cycle, storing the batteries for 24 hours prior to examination.
Warranty Period & Product Liability for car 18650 battery
Warranty period of this product is 12 months from manufacturing code. JIANGSU SUNPOWER CO., LTD. is not responsible for the troubles caused by mishandling of the battery which is against the instructions in this specification.
standard Charge: Charge with current 0.2C5A to limit charge voltage under the condition of23℃±3℃ surrounding temperature, then change to charge with constant voltage till the current less than or equal to 0.02C5A.
Warnings and Cautions in Using the high quality car 18650 battery
To prevent a possibility of the battery from leaking, heating or explosion please observe the following precautions:
● When using a new battery for the first time or after long term storage, please use the battery charger specifically for that purpose fully charge the battery before use.
● Do not disassemble or open, crush, bend or deform, puncture, or shred;
● Do not modify or remanufacture, attempt to insert foreign objects into the battery, immerse or expose to water or other liquids such as water, seawater, drinks such as soft drinks, juices, coffee or others, or expose to fire, explosion, or other hazard.
● Do not short circuit a battery or allow metallic or conductive objects to contact the battery terminals.
● Avoid dropping the phone or battery. If the phone or battery is dropped, especially on a hard surface, and the user suspects damage, take it to a service center for inspection.
● The battery replacement shall be done only by either cells supplier or device supplier and never be done by the user.
● Replace the battery only with another battery that has been qualified with the system per standard. Use of an unqualified battery may present a risk of fire, explosion, leakage, or other hazard.
● Don't keep a battery at rest for a long time (over 6 months). Safety accident may happen when recharging battery which has a rest for a long time.
● In the event of a battery leak, do not allow the liquid to come in contact with the skin or eyes. If contact has been made, wash the affected area with large amounts of water and seek medical advice.
● Battery usage by children should be supervised. Seek medical advice immediately if a battery has been swallowed
● Never disassemble cells. The disassembling may generate internal short circuit in the cell, which may cause firing or other problems.
● Never incinerate nor dispose the cells in fire. These may cause firing of the cells, which is very dangerous and is prohibited.
● Do not remove the outer sleeve from a battery pack nor cut into its housing.
● Do not mix our batteries with other battery brands or batteries of a different chemistry such as alkaline and zinc carbon.
● Do not mix new batteries in use with semi-used batteries, over-discharge may occur.
● Promptly dispose of used batteries in accordance with local regulations.
Ship
The cells might be damaged during shipping by shock. If any abnormal features of the cells are found such as deformation of the cell package, smelling of an electrolyte, an electrolyte leakage and others, the cells shall never be used any more. The Cells with a smell of the electrolyte or a leakage shall be placed away from fire to avoid firing.
Storage
The cell shall be stored at the environmental condition of -20℃ - 45℃ and 65%±20% RH. The voltage for long time storage shall be 3.6V-3.9V range. If the cell has to be storied for a long time (Over 3 months), the environmental condition should be: Temperature: 23℃±3℃ Humidity: 65%±20％RH； please activate the battery once every 3 months according to the following method: Charge with current 0.2C5A until the voltage achieve to 4.0V.
The company founded in 2014, focus on producing cylindrical power lithium-ion batteries. The company supply Electric vehicle cylindrical lithium battery, which include 1500mAh, 1300mAh, 2000mAh, 2200mAh, 2500mAh, 2600mAh Li-ion battery and 3000mAh Li-ion battery. All adopt the most advanced extrusion coating production technology and yearly production reaches to 250 million Ah power type 18650 High security lithium ion battery. Our products have high quality and competitive prices.
If you want to learn more about the High security lithium ion battery, please visit here.
https://www.sp-powerbattery.com/
0 notes
INR18650-2000mAh battery,2200mAh Li-ion battery manufacturer,lithium ion battery for vacuum cleaner,High security lithium ion battery
2000mAh Li-ion cylindrical battery Product Details:
NO.
Items
Specifications
1
Model
20P1 (INR18650-2000)
2
Can Material
Ni-Iron
3
Min Capacity
1950 mAh（0.2C）
4
Nominal Voltage
3.7V
5
Max. Charge Voltage
4.2 V
6
Discharge Cut-off Voltage
2.750V
7
Max. Charge Current
4A
8
Max. Continuous Discharge Current
20 A
9
Max. Pulse Discharge Current
30A（ 2s pulse ）
10
Max. Diameter（include PET）
18.4±0.05 mm
11
Max. Height (include PET)
65.25±0.15mm
12
Weight (Approx.)
43.0g
13
Impedance （Max. at 1000Hz、charged status）
15±3mΩ
14
Pack consistency
△Voltage △Impedance △Capacity
15
Charge Method (CC/CV)
Standard
0.5 C×3 hrs.
Quick
2C×1.0 hrs.
16
Operating temperature (surface temperature)
Charge
0℃～45℃
Discharge
-20℃～75℃
Storage
-20℃～45℃
Characteristic of echargeable lithium battery
a. Environmental conditions
Unless otherwise specified, all tests stated in this specification are conducted at temperature 23±3°and humidity under 65%.
b. Measuring equipment
(1) Amp-meter and volt-meter
The amp-meter and volt-meter should have an accuracy of the grade 0.5mA and mV or higher.
(2) Slide caliper
The slide caliper should have 0.01 mm scale.
(3) Impedance meter
The impedance meter with AC 1kHz should be used.
c. Standard charge
Charging the cell CCCV with charge current 0.5C, constant voltage 4.2V and 100mA cut-off in CV mode at
23℃for capacity.
d. Standard discharge capacity
Discharge current of 400mA (0.2C) with 2.5V cut-off at 23℃within 1hour after the standard charge.
Electrical Characteristic for High temperature resistance lithium ion battery
NO.
Item
Standard
Test Method
1
Discharge rate capabilities
A）1 C ≥97% B）5 C ≥95% B）10 C ≥95%
Standard charged under the condition of normal atmospheric pressure and the environmental temperature of 23℃±3℃ and45%～85%RH, then rest for 30mins and discharge at1C、5 C 、10C to the discharge cut-off voltage respectively. Charge/discharge cycle can be conducted for 3 times beforemeeting the Standards（the same below）
2
capacity retention and recovery
Residual capacity≥94%Recoverable capacity≥*98%
Standard charged under the condition of normal atmospheric pressure and the environmental temperature of 23℃±3℃，Stored for 28 days, then discharge at 0.2 C to 2.75V measuring residual capacity; Then standard charge/discharge measure recoverable capacity.
3
Low TemperaturePerformance
discharge capacity≥85% rated capacityno distortion and no rupture
The cell shall be charged in accordance with the standard charge. Then stored in the temperature of -10℃±1℃ for4h, Discharge at the constant current of 0.2C down to the end-of-discharge voltage 2.50V.
4
Cycle Life
2A charge/ 10Adischarge≥500cycles4A charge/ 20Adischarge≥200cycles
Charge: The cell shall be charged in accordance with2A(4A)Charge condition and the end-of-charge voltage is4.15V. rest for 30mins.Discharge：10A discharge to 2.75V, one cycle is finished, rest for 60mins. Then repeat above steps, when capacity is lessthan 70% of initial capacity, the battery life is over. Discharge：20A discharge to 2.75V, one cycle is finished, rest for 60mins. Then repeat above steps, when capacity is lessthan 70% of initial capacity, the battery life is over.
Safety Characteristic for 2000mAh Li-ion battery supplier
NO.
Item
Standard
Test Method
1
Overcharge
No fire、No explosion
After standard charge, rest for 10mins; then charge at constant current of 3C5A to 10V.(or charge at 3C5A for 90mins).
2
Forced discharge
No fire、No explosion
The battery to be discharged with standard discharging condition, Inverse charge current =1C5A；time: ≥ 90mins
3
Short Circuit test
No fire、 No explosion
The battery to be fully charged with standard charging condition, and short the positive and negative terminals with wire resistance ≤50mΩ.Tests are to be conducted at 23℃±3℃ and at 55℃ ±5℃, keep 24h or case temperature decline to 20% of the max temperature ,test is over.
4
Crush test
No fire、No explosion
A battery is crushed between two flat surfaces. The applied force is 13 kN±1kN by hydrocylinder, Once the maximum pressure has been obtained or voltage decrease to 1/3 of nominal voltage sharply, then release pressure.
5
Shock test
No fire、No explosion
The full charged battery is fixed on shock table, to force a certain shock to three mutual vertical direction, in initial 3ms, the min. average acceleration is 75gn,the peak acceleration is between 125gn and 175gn.
6
Heating test (130°C)
No fire、No explosion
The cells are fully charged with standard charging condition, and put into incubator with nature air or cycled air convected, heat battery by velocity of 5°C ±2°C/min to 130°C±2°C,and maintain for 10mins.
7
Temperature Cycling Test
no leakage, no fire, no explosion
The fully charged batteries are placed in a test chamber and subjected to the following cycles: a) Raising the temperature to 75°C ±2°C within 30 minutes and maintaining this temperature for 6 hours. b) Reducing the temperature to minus 40°C ±2°C within 30 minutes and maintaining this temperature for 6 hours. c) Repeating the sequence for a further 9 cycles. d) After the 10th cycle, storing the batteries for 24 hours prior to examination.
Package
The cells are packed with JIANGSU SUNPOWER CO.,LTD. standard carton box, which hold four inner boxes. There are 150pcs 18650 cells per inner box. And each cell is held by a cardboard with 100 sockets.
Warranty Period & Product Liability
Warranty period of this product is 12 months from manufacturing code. JIANGSU SUNPOWER CO., LTD. is not responsible for the troubles caused by mishandling of the battery which is against the instructions in this specification.
Warnings and Cautions in Using the Li-ion Rechargeable cylindrical battery
To prevent a possibility of the battery from leaking, heating or explosion please observe the following precautions:
● When using a new battery for the first time or after long term storage, please use the battery charger specifically for that purpose fully charge the battery before use.
● Do not disassemble or open, crush, bend or deform, puncture, or shred;
● Do not modify or remanufacture, attempt to insert foreign objects into the battery, immerse or expose to water or other liquids such as water, seawater, drinks such as soft drinks, juices, coffee or others, or expose to fire, explosion, or other hazard.
● Do not short circuit a battery or allow metallic or conductive objects to contact the battery terminals.
● Avoid dropping the phone or battery. If the phone or battery is dropped, especially on a hard surface, and the user suspects damage, take it to a service center for inspection.
● The battery replacement shall be done only by either cells supplier or device supplier and never be done by the user.
● Replace the battery only with another battery that has been qualified with the system per standard. Use of an unqualified battery may present a risk of fire, explosion, leakage, or other hazard.
● Don't keep a battery at rest for a long time (over 6 months). Safety accident may happen when recharging battery which has a rest for a long time.
● In the event of a battery leak, do not allow the liquid to come in contact with the skin or eyes. If contact has been made, wash the affected area with large amounts of water and seek medical advice.
● Battery usage by children should be supervised. Seek medical advice immediately if a battery has been swallowed
● Never disassemble cells. The disassembling may generate internal short circuit in the cell, which may cause firing or other problems.
● Never incinerate nor dispose the cells in fire. These may cause firing of the cells, which is very dangerous and is prohibited.
● Do not remove the outer sleeve from a battery pack nor cut into its housing.
● Do not mix our batteries with other battery brands or batteries of a different chemistry such as alkaline and zinc carbon.
● Do not mix new batteries in use with semi-used batteries, over-discharge may occur.
● Promptly dispose of used batteries in accordance with local regulations.
Ship
The cells might be damaged during shipping by shock. If any abnormal features of the cells are found such as deformation of the cell package, smelling of an electrolyte, an electrolyte leakage and others, the cells shall never be used any more. The Cells with a smell of the electrolyte or a leakage shall be placed away from fire to avoid firing.
Storage
The cell shall be stored at the environmental condition of -20℃ - 45℃ and 65%±20% RH. The voltage for long time storage shall be 3.6V-3.9V range. If the cell has to be storied for a long time (Over 3 months), the environmental condition should be: Temperature: 23℃±3℃ Humidity: 65%±20％RH； please activate the battery once every 3 months according to the following method: Charge with current 0.2C5A until the voltage achieve to 4.0V.
The company founded in 2014, focus on producing cylindrical power lithium-ion batteries. The company supply Electric vehicle cylindrical lithium battery, which include 1500mAh, 1300mAh, 2000mAh, 2200mAh, 2500mAh, 2600mAh Li-ion battery and 3000mAh Li-ion battery. All adopt the most advanced extrusion coating production technology and yearly production reaches to 250 million Ah power type 18650 High security lithium ion battery. Our products have high quality and competitive prices.
If you want to learn more about the High security lithium ion battery, please visit here.
https://www.sp-powerbattery.com/
0 notes
INR18650-1500mAh Battery,1500mAh Li-ion cylindrical battery,lithium ion battery,cylindrical power lithium-ion batteries
1500mAh Li-ion battery Product Details:
NO.
Items
Specifications
1
Model
INR18650-1500
2
Can Material
Ni-Iron
3
Rated Capacity
1500 mAh（0.2C5A）
4
Nominal Voltage
3.7V
5
Max. Charge Voltage
4.2 V
6
Discharge Cut-off Voltage
2.75V
7
Max. Charge Current
1 C5A
8
Max. Continuous Discharge Current
20 A
9
Max. Pulse Discharge Current
30A（ 2s pulse ）
10
Max. Diameter（include PVC）
≤18.30 mm
11
Max. Height (include PVC)
≤65.30mm
12
Weight (Approx.)
43.0g
13
Impedance （Max. at 1000Hz、charged status）
≤ 20 mΩ
14
Charge Method (CC/CV)
Standard
0.5 C5A×3hrs
Quick
1 C5A×2.5hrs.
15
Operating Temperature
Charge
0℃～45℃ 32oF～113oF
Discharge
-10℃～60℃ -4oF～140oF
Storage
-20℃～45℃ -4oF～113oF
Characteristic of High security rechargeable lithium battery
Without special instructions, the following tests should be done under the condition of : temperature(23℃±3℃), atmospheric pressure (86KPa～106KPa), relative humidity (45%～85%), and the tests should be done within two weeks after receiving the products.
the definitions of some nomenclatures of this specification
standard Charge: Charge with current 0.2C5A to limit charge voltage under the condition of23℃±3℃
surrounding temperature,then change to charge with constant voltage till the current less than or equal to0.02C5A.
Electrical Characteristic for Long life lithium ion battery
NO.
Item
Standard
Test Method
1
Discharge rate capabilities
A）1 C5A ≥100% B）10 C5A ≥95% C）15 C5A ≥90%
Standard charged under the condition of normal atmospheric pressure and the environmental temperature of 23℃±3℃ and45%～85%RH, then rest for 30mins and discharge at1C5A、5 C5A、10 C5A to the discharge cut-off voltage respectively. Charge/discharge cycle can be conducted for 3times before meeting the Standards（the same below）
2
capacity retention and recovery
Residualcapacity≥94％ Recoverablecapacity≥*98％
Standard charged under the condition of normal atmospheric pressure and the environmental temperature of 23℃±3℃， Stored for 28 days, then discharge at 0.2 C5A to 2.75Vmeasuring residual capacity; Then standard charge/discharge measure recoverable capacity.
3
Low Temperature Performance
discharge capacity≥85% rated capacityno distortion and no rupture
The cell shall be charged in accordance with the standard charge. Then stored in the temperature of -10℃±1℃ for4h, Discharge at the constant current of 0.2C5A down to the end-of-discharge voltage 2.75V.
4
Cycle Life
≥300cycles
Charge: The cell shall be charged in accordance with RapidCharge condition. rest for 10mins.Discharge: 10C5A discharge to 2.75V, one cycle is finished, then rest for 30mins. Then repeat above steps, when capacity is less than 80% of initial capacity, the battery life is over.
Safety Characteristic of High temperature resistance lithium ion battery
NO.
Item
Standard
Test Method
1
Overcharge
No fire、No explosion
After standard charge, rest for 10mins; then charge at constant current of 3C5A to 10V.(or charge at 3C5A for 90mins).
2
Forced discharge
No fire、No explosion
The battery to be discharged with standard discharging condition, Inverse charge current =1C5A；time: ≥ 90mins
3
Short Circuit test
No fire、 No explosion
The battery to be fully charged with standard charging condition, and short the positive and negative terminals with wire resistance ≤50mΩ.Tests are to be conducted at 23℃±3℃ and at 55℃ ±5℃, keep 24h or case temperature decline to 20% of the max temperature ,test is over.
4
Crush test
No fire、No explosion
A battery is crushed between two flat surfaces. The applied force is 13 kN±1kN by hydrocylinder, Once the maximum pressure has been obtained or voltage decrease to 1/3 of nominal voltage sharply, then release pressure.
5
Shock test
No fire、No explosion
The full charged battery is fixed on shock table, to force a certain shock to three mutual vertical direction, in initial 3ms, the min. average acceleration is 75gn,the peak acceleration is between 125gn and 175gn.
6
Heating test (130°C)
No fire、No explosion
The cells are fully charged with standard charging condition, and put into incubator with nature air or cycled air convected, heat battery by velocity of 5°C ±2°C/min to 130°C±2°C,and maintain for 10mins.
7
Temperature Cycling Test
no leakage, no fire, no explosion
The fully charged batteries are placed in a test chamber and subjected to the following cycles: a) Raising the temperature to 75°C ±2°C within 30 minutes and maintaining this temperature for 6 hours. b) Reducing the temperature to minus 40°C ±2°C within 30 minutes and maintaining this temperature for 6 hours. c) Repeating the sequence for a further 9 cycles. d) After the 10th cycle, storing the batteries for 24 hours prior to examination.
Environment Adaptation Performance of power tool rechargeable Li-ion battery supplier
NO.
Item
Standard
Test Method
1
Altitude/Low pressure simulation test
no leakage, no fire, no explosion
The full charged cells are to be stored for 6h at an vaccum environment with pressure of less than 11.6kPa and atemperature of 23℃±3℃.
2
Free drop test
no fire, no explosion
The fully charged battery drops on the concrete ground from height(1m),total 3 times,to obtain the shock of random directions.
3
Vibration test
No remarkable damage、No smoking 、No explosion
After standard charging, fixed the cell to vibration table and subjected to vibration cycling that the frequency is to be varied at the rate of 1Hz per minute between 10Hz and 55Hz,the excursion of the vibration is 1.52mm. The cell shall be vibrated for 90 minutes per axis of x, y axes.
Package
The cells are packed with JIANGSU SUNPOWER CO.,LTD. standard carton box, which hold four inner boxes. There are 150pcs 18650 cells per inner box. And each cell is held by a cardboard with 100 sockets.
Warranty Period & Product Liability
Warranty period of this product is 12 months from manufacturing code. JIANGSU SUNPOWER CO., LTD. is not responsible for the troubles caused by mishandling of the battery which is against the instructions in this specification.
Warnings and Cautions in Using the high quality car 18650 battery
To prevent a possibility of the battery from leaking, heating or explosion please observe the following precautions:
● When using a new battery for the first time or after long term storage, please use the battery charger specifically for that purpose fully charge the battery before use.
● Do not disassemble or open, crush, bend or deform, puncture, or shred;
● Do not modify or remanufacture, attempt to insert foreign objects into the battery, immerse or expose to water or other liquids such as water, seawater, drinks such as soft drinks, juices, coffee or others, or expose to fire, explosion, or other hazard.
● Do not short circuit a battery or allow metallic or conductive objects to contact the battery terminals.
● Avoid dropping the phone or battery. If the phone or battery is dropped, especially on a hard surface, and the user suspects damage, take it to a service center for inspection.
● The battery replacement shall be done only by either cells supplier or device supplier and never be done by the user.
● Replace the battery only with another battery that has been qualified with the system per standard. Use of an unqualified battery may present a risk of fire, explosion, leakage, or other hazard.
● Don't keep a battery at rest for a long time (over 6 months). Safety accident may happen when recharging battery which has a rest for a long time.
● In the event of a battery leak, do not allow the liquid to come in contact with the skin or eyes. If contact has been made, wash the affected area with large amounts of water and seek medical advice.
● Battery usage by children should be supervised. Seek medical advice immediately if a battery has been swallowed
● Never disassemble cells. The disassembling may generate internal short circuit in the cell, which may cause firing or other problems.
● Never incinerate nor dispose the cells in fire. These may cause firing of the cells, which is very dangerous and is prohibited.
● Do not remove the outer sleeve from a battery pack nor cut into its housing.
● Do not mix our batteries with other battery brands or batteries of a different chemistry such as alkaline and zinc carbon.
● Do not mix new batteries in use with semi-used batteries, over-discharge may occur.
● Promptly dispose of used batteries in accordance with local regulations.
Ship
The cells might be damaged during shipping by shock. If any abnormal features of the cells are found such as deformation of the cell package, smelling of an electrolyte, an electrolyte leakage and others, the cells shall never be used any more. The Cells with a smell of the electrolyte or a leakage shall be placed away from fire to avoid firing.
Storage
The cell shall be stored at the environmental condition of -20℃ - 45℃ and 65%±20% RH. The voltage for long time storage shall be 3.6V-3.9V range. If the cell has to be storied for a long time (Over 3 months), the environmental condition should be: Temperature: 23℃±3℃ Humidity: 65%±20％RH； please activate the battery once every 3 months according to the following method: Charge with current 0.2C5A until the voltage achieve to 4.0V.
The company founded in 2014, focus on producing cylindrical power lithium-ion batteries. The company supply Electric vehicle cylindrical lithium battery, which include 1500mAh, 1300mAh, 2000mAh, 2200mAh, 2500mAh, 2600mAh Li-ion battery and 3000mAh Li-ion battery. All adopt the most advanced extrusion coating production technology and yearly production reaches to 250 million Ah power type 18650 High security lithium ion battery. Our products have high quality and competitive prices.
If you want to learn more about the High security lithium ion battery, please visit here.
https://www.sp-powerbattery.com/
0 notes
INR18650-1300mAh Li-ion Rechargeable cylindrical battery,power tool cylindrical battery,lithium ion battery for power tool,high-quality lithium-ion batteries
1300mAh Li-ion Battery Product Details:
NO.
Items
Specifications
1
Model
INR18650-1300
2
Can Material
Ni-Iron
3
Rated Capacity
1300 mAh（0.2C5A）
4
Nominal Voltage
3.7V
5
Max. Charge Voltage
4.2 V
6
Discharge Cut-off Voltage
2.75V
7
Max. Charge Current
1 C5A
8
Max. Continuous Discharge Current
15 C5A
9
Max. Pulse Discharge Current
30A （2s pulse ）
10
Max. Diameter（include PVC）
≤18.30 mm
11
Max. Height (include PVC)
≤65.30mm
12
Weight (Approx.)
41.0g
13
Impedance （Max. at 1000Hz、charged status）
≤ 18 mΩ
14
Charge Method (CC/CV)
Standard
0.5 C5A×3hrs
Quick
1 C5A×2.5hrs.
15
Operating Temperature
Charge
0℃～45℃ 32oF～113oF
Discharge
-10℃～60℃ -4oF～140oF
Storage
-20℃～45℃ -4oF～113oF
Characteristic
Without special instructions, the following tests should be done under the condition of : temperature(23℃±3℃), atmospheric pressure (86KPa～106KPa), relative humidity (45%～85%), and the tests should be done within two weeks after receiving the products.
the definitions of some nomenclatures of this specification
standard Charge: Charge with current 0.2C5A to limit charge voltage under the condition of23℃±3℃
surrounding temperature,then change to charge with constant voltage till the current less than or equal to0.02C5A.
Electrical Characteristic of e-bike cylindrical power lithium-ion batteries
NO.
Item
Standard
Test Method
1
Discharge rate capabilities
A）1 C5A ≥100% B）10 C5A ≥95% C）15 C5A ≥90%
Standard charged under the condition of normal atmospheric pressure and the environmental temperature of 23℃±3℃ and45%～85%RH, then rest for 30mins and discharge at1C5A、5 C5A、10 C5A to the discharge cut-off voltage respectively. Charge/discharge cycle can be conducted for 3times before meeting the Standards（the same below）
2
capacity retention and recovery
Residualcapacity≥94％ Recoverablecapacity≥*98％
Standard charged under the condition of normal atmospheric pressure and the environmental temperature of 23℃±3℃， Stored for 28 days, then discharge at 0.2 C5A to 2.75Vmeasuring residual capacity; Then standard charge/discharge measure recoverable capacity.
3
Low Temperature Performance
discharge capacity≥85% rated capacityno distortion and no rupture
The cell shall be charged in accordance with the standard charge. Then stored in the temperature of -10℃±1℃ for4h, Discharge at the constant current of 0.2C5A down to the end-of-discharge voltage 2.75V.
4
Cycle Life
≥300cycles
Charge: The cell shall be charged in accordance with RapidCharge condition. rest for 10mins.Discharge: 10C5A discharge to 2.75V, one cycle is finished, then rest for 30mins. Then repeat above steps, when capacity is less than 80% of initial capacity, the battery life is over.
Safety Characteristic for 18650 power tool lithium ion battery
NO.
Item
Standard
Test Method
1
Overcharge
No fire、No explosion
After standard charge, rest for 10mins; then charge at constant current of 3C5A to 10V.(or charge at 3C5A for 90mins).
2
Forced discharge
No fire、No explosion
The battery to be discharged with standard discharging condition, Inverse charge current =1C5A；time: ≥ 90mins
3
Short Circuit test
No fire、 No explosion
The battery to be fully charged with standard charging condition, and short the positive and negative terminals with wire resistance ≤50mΩ.Tests are to be conducted at 23℃±3℃ and at 55℃ ±5℃, keep 24h or case temperature decline to 20% of the max temperature ,test is over.
4
Crush test
No fire、No explosion
A battery is crushed between two flat surfaces. The applied force is 13 kN±1kN by hydrocylinder, Once the maximum pressure has been obtained or voltage decrease to 1/3 of nominal voltage sharply, then release pressure.
5
Shock test
No fire、No explosion
The full charged battery is fixed on shock table, to force a certain shock to three mutual vertical direction, in initial 3ms, the min. average acceleration is 75gn,the peak acceleration is between 125gn and 175gn.
6
Heating test (130°C)
No fire、No explosion
The cells are fully charged with standard charging condition, and put into incubator with nature air or cycled air convected, heat battery by velocity of 5°C ±2°C/min to 130°C±2°C,and maintain for 10mins.
7
Temperature Cycling Test
no leakage, no fire, no explosion
The fully charged batteries are placed in a test chamber and subjected to the following cycles: a) Raising the temperature to 75°C ±2°C within 30 minutes and maintaining this temperature for 6 hours. b) Reducing the temperature to minus 40°C ±2°C within 30 minutes and maintaining this temperature for 6 hours. c) Repeating the sequence for a further 9 cycles. d) After the 10th cycle, storing the batteries for 24 hours prior to examination.
Environment Adaptation Performance of 18650 rechargeable lithium battery
NO.
Item
Standard
Test Method
1
Altitude/Low pressure simulation test
no leakage, no fire, no explosion
The full charged cells are to be stored for 6h at an vaccum environment with pressure of less than 11.6kPa and atemperature of 23℃±3℃.
2
Free drop test
no fire, no explosion
The fully charged battery drops on the concrete ground from height(1m),total 3 times,to obtain the shock of random directions.
3
Vibration test
No remarkable damage、No smoking 、No explosion
After standard charging, fixed the cell to vibration table and subjected to vibration cycling that the frequency is to be varied at the rate of 1Hz per minute between 10Hz and 55Hz,the excursion of the vibration is 1.52mm. The cell shall be vibrated for 90 minutes per axis of x, y axes.
Package
The cells are packed with JIANGSU SUNPOWER CO.,LTD. standard carton box, which hold four inner boxes. There are 150pcs 18650 cells per inner box. And each cell is held by a cardboard with 100 sockets.
Warranty Period & Product Liability
Warranty period of this product is 12 months from manufacturing code. JIANGSU SUNPOWER CO., LTD. is not responsible for the troubles caused by mishandling of the battery which is against the instructions in this specification.
Warnings and Cautions in Using the custom vacuum cleaner lithium ion battery
To prevent a possibility of the battery from leaking, heating or explosion please observe the following precautions:
● When using a new battery for the first time or after long term storage, please use the battery charger specifically for that purpose fully charge the battery before use.
● Do not disassemble or open, crush, bend or deform, puncture, or shred;
● Do not modify or remanufacture, attempt to insert foreign objects into the battery, immerse or expose to water or other liquids such as water, seawater, drinks such as soft drinks, juices, coffee or others, or expose to fire, explosion, or other hazard.
● Do not short circuit a battery or allow metallic or conductive objects to contact the battery terminals.
● Avoid dropping the phone or battery. If the phone or battery is dropped, especially on a hard surface, and the user suspects damage, take it to a service center for inspection.
● The battery replacement shall be done only by either cells supplier or device supplier and never be done by the user.
● Replace the battery only with another battery that has been qualified with the system per standard. Use of an unqualified battery may present a risk of fire, explosion, leakage, or other hazard.
● Don't keep a battery at rest for a long time (over 6 months). Safety accident may happen when recharging battery which has a rest for a long time.
● In the event of a battery leak, do not allow the liquid to come in contact with the skin or eyes. If contact has been made, wash the affected area with large amounts of water and seek medical advice.
● Battery usage by children should be supervised. Seek medical advice immediately if a battery has been swallowed
● Never disassemble cells. The disassembling may generate internal short circuit in the cell, which may cause firing or other problems.
● Never incinerate nor dispose the cells in fire. These may cause firing of the cells, which is very dangerous and is prohibited.
● Do not remove the outer sleeve from a battery pack nor cut into its housing.
● Do not mix our batteries with other battery brands or batteries of a different chemistry such as alkaline and zinc carbon.
● Do not mix new batteries in use with semi-used batteries, over-discharge may occur.
● Promptly dispose of used batteries in accordance with local regulations.
Ship
The cells might be damaged during shipping by shock. If any abnormal features of the cells are found such as deformation of the cell package, smelling of an electrolyte, an electrolyte leakage and others, the cells shall never be used any more. The Cells with a smell of the electrolyte or a leakage shall be placed away from fire to avoid firing.
Storage
The cell shall be stored at the environmental condition of -20℃ - 45℃ and 65%±20% RH. The voltage for long time storage shall be 3.6V-3.9V range. If the cell has to be storied for a long time (Over 3 months), the environmental condition should be: Temperature: 23℃±3℃ Humidity: 65%±20％RH； please activate the battery once every 3 months according to the following method: Charge with current 0.2C5A until the voltage achieve to 4.0V.
The company founded in 2014, focus on producing cylindrical power lithium-ion batteries. The company supply Electric vehicle cylindrical lithium battery, which include 1500mAh, 1300mAh, 2000mAh, 2200mAh, 2500mAh, 2600mAh Li-ion battery and 3000mAh Li-ion battery. All adopt the most advanced extrusion coating production technology and yearly production reaches to 250 million Ah power type 18650 High security lithium ion battery. Our products have high quality and competitive prices.
If you want to learn more about the High security lithium ion battery, please visit here.
https://www.sp-powerbattery.com/
0 notes
Link
0 notes
Link
0 notes
