Android Speech to Text Tutorial

You might have already used this feature. We can use voice commands search on google. This feature is inbuilt in Android, and if you want you can use this feature to get voice input in your application as well. And this post will explain to you how to use android speech to text feature in your application.

Now let’s see how we use voice input using Android Speech to Text.

Contents

1 Android Speech to Text Tutorial

1.1 Creating a new Project

1.2 User Interface Design

1.3 Adding Permission

1.4 Checking Permission on Runtime

1.5 Adding Touch Listener to Button

1.6 Creating a SpeechRecognizer

1.7 Using the RecognitionListener to Listen

1.8 The Complete Final Code

2 Android Speech to Text App Source Code

Android Speech to Text Tutorial

Creating a new Project

We will start by creating a new Android Studio Project. Here I have created a project named SpeechToText.

Now let’s begin with the UI design.

User Interface Design

We will try to create a beautiful UI as shown in the below image.

Android Speech to Text App

First, we will define the colors. And to do this go inside, res->values->colors.xml.

<?xml version="1.0" encoding="utf-8"?> <resources> <color name="colorPrimary">#5aa184</color> <color name="colorPrimaryDark">#487b66</color> <color name="colorAccent">#2b644c</color> <color name="colorButton">#3d5f51</color> <color name="colorButtonActive">#1bea95</color> </resources>

Change the style to NoActionBar as well (res->values->styles.xml).

<resources> <!-- Base application theme. --> <style name="AppTheme" parent="Theme.AppCompat.Light.NoActionBar"> <!-- Customize your theme here. --> <item name="colorPrimary">@color/colorPrimary</item> <item name="colorPrimaryDark">@color/colorPrimaryDark</item> <item name="colorAccent">@color/colorAccent</item> </style> </resources>

As you see in the above image, we have a circular button with an audio recorder icon. You can use any image for the icon. But the tricky thing here is we are using both a custom background and a picture. So for this here we will create two more drawable XML files. One is for the default state of the button, and one is for the active state.

So first create an XML file named round_default.xml inside the drawable folder.

<?xml version="1.0" encoding="utf-8"?> <layer-list xmlns:android="http://schemas.android.com/apk/res/android"> <item> <shape android:shape="oval"> <solid android:color="@color/colorButton" /> </shape> </item> <item android:bottom="20dp" android:drawable="@drawable/icon_record" android:left="20dp" android:right="20dp" android:top="20dp" /> </layer-list>

Now, create one more file named round_active.xml inside the drawable folder.

<?xml version="1.0" encoding="utf-8"?> <layer-list xmlns:android="http://schemas.android.com/apk/res/android"> <item> <shape android:shape="oval"> <solid android:color="@color/colorButtonActive" /> </shape> </item> <item android:bottom="20dp" android:drawable="@drawable/icon_record" android:left="20dp" android:right="20dp" android:top="20dp" /> </layer-list>

Remember, here we are using icon_record which is already in my project’s drawable folder. In your case, you need to paste an image for this inside your drawable folder.

Now for the button background, we will create one more drawable resource file inside the same directory. Create a file named button_background.xml and write the following code.

<?xml version="1.0" encoding="utf-8"?> <selector xmlns:android="http://schemas.android.com/apk/res/android"> <item android:drawable="@drawable/round_default" android:state_pressed="false" /> <item android:drawable="@drawable/round_active" android:state_pressed="true" /> </selector>

Now finally we will come inside activity_main.xml to create our User Interface. Open activity_main.xml and write the following code.

<?xml version="1.0" encoding="utf-8"?> <RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android" xmlns:tools="http://schemas.android.com/tools" android:layout_width="match_parent" android:layout_height="match_parent" android:background="@color/colorPrimary" android:padding="12dp" tools:context="net.simplifiedcoding.speechtotext.MainActivity"> <EditText android:id="@+id/editText" android:layout_width="match_parent" android:layout_height="wrap_content" android:layout_centerVertical="true" android:hint="You will see input here" android:textAppearance="@style/Base.TextAppearance.AppCompat.Large" /> <ImageButton android:id="@+id/button" android:layout_width="wrap_content" android:layout_height="wrap_content" android:layout_alignParentBottom="true" android:layout_centerHorizontal="true" android:layout_marginBottom="20dp" android:background="@drawable/button_background" /> </RelativeLayout>

After writing the above-given code in your activity_main.xml you will see the following design.

Adding Permission

For this application, we need RECORD_AUDIO permission. So, lets first define it in the AndroidManifest.xml.

<?xml version="1.0" encoding="utf-8"?> <manifest xmlns:android="http://schemas.android.com/apk/res/android" package="net.simplifiedcoding.speechtotext"> <uses-permission android:name="android.permission.RECORD_AUDIO" /> <application android:allowBackup="true" android:icon="@mipmap/ic_launcher" android:label="@string/app_name" android:roundIcon="@mipmap/ic_launcher_round" android:supportsRtl="true" android:theme="@style/AppTheme"> <activity android:name=".MainActivity"> <intent-filter> <action android:name="android.intent.action.MAIN" /> <category android:name="android.intent.category.LAUNCHER" /> </intent-filter> </activity> </application> </manifest>

Checking Permission on Runtime

You might already be knowing that after Android Marshmallow we have to ask permission at runtime. So we need to check the permission on runtime if the device running our app is on the android marshmallow or ahead.

To do this come inside MainActivity.java and write the following method.

private void checkPermission() if (Build.VERSION.SDK_INT >= Build.VERSION_CODES.M) if (!(ContextCompat.checkSelfPermission(this, Manifest.permission.RECORD_AUDIO) == PackageManager.PERMISSION_GRANTED)) Intent intent = new Intent(Settings.ACTION_APPLICATION_DETAILS_SETTINGS, Uri.parse("package:" + getPackageName())); startActivity(intent); finish();

Here we are checking if the device is running android marshmallow or ahead. If this condition is true again, we are testing the permission granted or not. If the permission is not granted, we are opening the settings from where the user can allow the permission.

So, if the permission is not granted user will see the settings activity, from where the user can allow the permission needed. If the permission is already granted user will directly see our application screen.

To achieve our goal that the user should not see the app screen if the permission is not granted, we will first call the above method inside onCreate().

@Override protected void onCreate(Bundle savedInstanceState) super.onCreate(savedInstanceState); setContentView(R.layout.activity_main); checkPermission();

Now when you first run the application, you will see the following screen.

Android Speech to Text – Settings Screen

From this screen, you can allow the RECORD_AUDIO permission. Just click on Permissions and enable the RECORD_AUDIO permission.

Adding Touch Listener to Button

The user has to keep the button pressed when he wants to speak to get the text. So when the button is in the pressed state, it will get the speech and start listening, and after removing the finger from the button, it will stop listening. To achieve this thing we need an OnTouchListener in our Button.

(adsbygoogle = window.adsbygoogle || []).push();

First we will define the EditText.  Inside onCreate() just after the line where we are calling the checkPermission() add the following line.

final EditText editText = findViewById(R.id.editText);

Come inside onCreate() and write the following code after defining the EditText.

findViewById(R.id.button).setOnTouchListener(new View.OnTouchListener() @Override public boolean onTouch(View view, MotionEvent motionEvent) switch (motionEvent.getAction()) case MotionEvent.ACTION_UP: //when the user removed the finger editText.setHint("You will see input here"); break; case MotionEvent.ACTION_DOWN: //finger is on the button editText.setText(""); editText.setHint("Listening..."); break; return false; );

Now if you run the application, you will see listening after tapping the record button.

Android Speech to Text

Now our task is to listen to the speech after this.

Creating a SpeechRecognizer

Just after the line where you defined the EditText write the following line.

final SpeechRecognizer mSpeechRecognizer = SpeechRecognizer.createSpeechRecognizer(this);

We also need an Intent to listen to the speech. So After the above line write the following code.

final Intent mSpeechRecognizerIntent = new Intent(RecognizerIntent.ACTION_RECOGNIZE_SPEECH); mSpeechRecognizerIntent.putExtra(RecognizerIntent.EXTRA_LANGUAGE_MODEL, RecognizerIntent.LANGUAGE_MODEL_FREE_FORM); mSpeechRecognizerIntent.putExtra(RecognizerIntent.EXTRA_LANGUAGE, Locale.getDefault());

Using the RecognitionListener to Listen

After defining the Intent. Write the following code.

mSpeechRecognizer.setRecognitionListener(new RecognitionListener() @Override public void onReadyForSpeech(Bundle bundle) @Override public void onBeginningOfSpeech() @Override public void onRmsChanged(float v) @Override public void onBufferReceived(byte[] bytes) @Override public void onEndOfSpeech() @Override public void onError(int i) @Override public void onResults(Bundle bundle) //getting all the matches ArrayList<String> matches = bundle .getStringArrayList(SpeechRecognizer.RESULTS_RECOGNITION); //displaying the first match if (matches != null) editText.setText(matches.get(0)); @Override public void onPartialResults(Bundle bundle) @Override public void onEvent(int i, Bundle bundle) );

Now you need to modify the OnTouchListener as below.

findViewById(R.id.button).setOnTouchListener(new View.OnTouchListener() @Override public boolean onTouch(View view, MotionEvent motionEvent) switch (motionEvent.getAction()) case MotionEvent.ACTION_UP: mSpeechRecognizer.stopListening(); editText.setHint("You will see input here"); break; case MotionEvent.ACTION_DOWN: mSpeechRecognizer.startListening(mSpeechRecognizerIntent); editText.setText(""); editText.setHint("Listening..."); break; return false; );

The Complete Final Code

After doing everything as we discussed above, we have our MainActivity.java as shown below.

package net.simplifiedcoding.speechtotext; import android.Manifest; import android.content.Intent; import android.content.pm.PackageManager; import android.net.Uri; import android.os.Build; import android.provider.Settings; import android.speech.RecognitionListener; import android.speech.RecognizerIntent; import android.speech.SpeechRecognizer; import android.support.v4.content.ContextCompat; import android.support.v7.app.AppCompatActivity; import android.os.Bundle; import android.view.MotionEvent; import android.view.View; import android.widget.EditText; import java.util.ArrayList; import java.util.Locale; public class MainActivity extends AppCompatActivity @Override protected void onCreate(Bundle savedInstanceState) super.onCreate(savedInstanceState); setContentView(R.layout.activity_main); checkPermission(); final EditText editText = findViewById(R.id.editText); final SpeechRecognizer mSpeechRecognizer = SpeechRecognizer.createSpeechRecognizer(this); final Intent mSpeechRecognizerIntent = new Intent(RecognizerIntent.ACTION_RECOGNIZE_SPEECH); mSpeechRecognizerIntent.putExtra(RecognizerIntent.EXTRA_LANGUAGE_MODEL, RecognizerIntent.LANGUAGE_MODEL_FREE_FORM); mSpeechRecognizerIntent.putExtra(RecognizerIntent.EXTRA_LANGUAGE, Locale.getDefault()); mSpeechRecognizer.setRecognitionListener(new RecognitionListener() @Override public void onReadyForSpeech(Bundle bundle) @Override public void onBeginningOfSpeech() @Override public void onRmsChanged(float v) @Override public void onBufferReceived(byte[] bytes) @Override public void onEndOfSpeech() @Override public void onError(int i) @Override public void onResults(Bundle bundle) //getting all the matches ArrayList<String> matches = bundle .getStringArrayList(SpeechRecognizer.RESULTS_RECOGNITION); //displaying the first match if (matches != null) editText.setText(matches.get(0)); @Override public void onPartialResults(Bundle bundle) @Override public void onEvent(int i, Bundle bundle) ); findViewById(R.id.button).setOnTouchListener(new View.OnTouchListener() @Override public boolean onTouch(View view, MotionEvent motionEvent) switch (motionEvent.getAction()) case MotionEvent.ACTION_UP: mSpeechRecognizer.stopListening(); editText.setHint("You will see input here"); break; case MotionEvent.ACTION_DOWN: mSpeechRecognizer.startListening(mSpeechRecognizerIntent); editText.setText(""); editText.setHint("Listening..."); break; return false; ); private void checkPermission() if (Build.VERSION.SDK_INT >= Build.VERSION_CODES.M) if (!(ContextCompat.checkSelfPermission(this, Manifest.permission.RECORD_AUDIO) == PackageManager.PERMISSION_GRANTED)) Intent intent = new Intent(Settings.ACTION_APPLICATION_DETAILS_SETTINGS, Uri.parse("package:" + getPackageName())); startActivity(intent); finish();

Now you can try running your application.

But remember we need voice data in the device where we are testing the application. You can check the below image to know how to download voice data.

Now you can test the application.

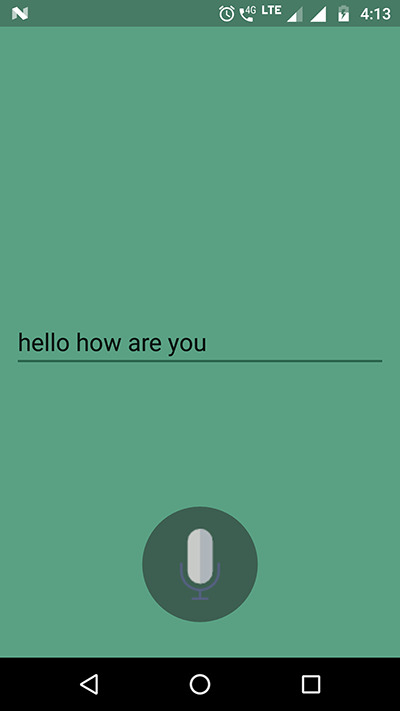

Android Speech to Text App

Android Speech to Text App Source Code

Still having troubles creating this application? Don’t worry I’ve got the source code for you. Unlock the link given below to get the source code.

Android Speech to Text App Source Code Download

So that’s all for this Android Speech to Text Tutorial. If you have any question regarding this Android Speech to Text tutorial, then let’s discuss it in comments. If you found this post helpful, then please SHARE it with your friends. Thank You 🙂

[sourabhdubey007]

How to make Lego EV3 Pet Robot 2020

What it does:

Using voice commands, the user instructs a LEGO robot to do certain maneuvers and actions.

The user can pick one of several commands: forward, backward (reverse), stop, forward slow, forward fast, disconnect, circles, right turn (turn right), left turn (turn left).

The robot will follow the user’s voice commands and perform the action for half a second before prompting the user for another command. If the user provides no commands, the previous command will be executed until another command is registered.  why your het room

Demonstration Video

What it teaches:

Teaches the programming concepts such as conditional statements with a LEGO EV3 robot.

Uses non-visible components such as Clock, SpeechRecognizer, Bluetooth Client, Motors, and Sound.

Allows room for programmable extensions of this application for the Ev3 Robot.

Making the application in the Designer:

Drag a Vertical Arrangement onto the Designer. This component will enclose all of your buttons and labels for the application.

Change the Height property to “Fill parent”. This makes the height of the Vertical Arrangement as big as the user’s screen.

Change the Width property to “Fill parent”. This makes the width of the Vertical Arrangement as big as the user’s screen.

Drag a Label onto the Designer and with in the Vertical Arrangement. This Label will be used to tell the user whether or not he or she is connected to the  Robot.

Rename the Label on the Component Tree to “Connect Label”.

Change the Width property to “Fill parent”. This makes the width of the Label as big as the user’s screen.

Change the Text property to “Not Connected”. I also changed the Font Size to 16 to make it more visible.

Change the Text Alignment property to “Center”.

Drag a ListPicker onto the Designer, within the Vertical Arrangement and below the first Label. This component will show the application user the list of Bluetooth addresses and names to choose from.

Rename the ListPicker in the Component Tree to “Connect ListPicker 1”.

Change the Width property to “Fill parent”.

Change the Text property to “Connect!”. Again, I changed the Font Size to 16 to make it more visible.

Change the Text Alignment property to “Center”.

Drag a Button onto the Designer, within the Vertical Arrangement, and below the ListPicker. This component will allow the user to command to Ev3 Robot to start listening for commands.

Rename the Button on the Component Tree to “Start Button”.

Uncheck the Enabled box in the Properties panel. This prevents the users from clicking the button before they connect to the robot.

Change the Width property to “Fill parent”.

Change the Text property to “Start Listening”. Again, I changed the Font Size to 16.

Change the Text Alignment property to “Center”.

Drag another Button onto the Designer, within the Vertical Arrangement, and below the Button created in Step 4. This component will allow the user to Disconnect the Ev3 Robot

when they are finished commanding it.

Rename the Button on the Component Tree to “Disconnect Button”.

Uncheck the Enabled box in the Properties panel. This prevents the user from clicking the button to disconnect before they connected to the robot.

Change the Width property to “Fill parent”.

Change the Text property to “Disconnect”. Again, I changed the Font Size to 16.

Change the Text Alignment property to “Center”.

to 16.

Change the Text Alignment property to “Center

Optional Step: Place another Label within the Vertical Arrangement and above the label created in Step 6. This label will be used for information such as listing the commands that the user voice to control the robot.

Rename the Label on the Component Tree to “Information Label”.

Change the Width property to “Fill parent”.

Change the Height property to “Fill parent”.

Change the Text property to whatever commands you want to program. For this application, I’ve programmed to robot to move forward, backward, faster, slower, turn left, turn right, stop, and disconnect, so I changed the text property to “Commands: Forward, Backward (Reverse), Fast Forward, Forward Slow, Left Turn, Right Turn, Stop”. Again, I changed the Font Size to 16.

Change the Text Alignment property to “Center”.

That’s it for the visible components of the application. All that is left to do for the Designer is to add the Non-visible components. All the Non-visible components of the application will appear under the Screen

.

Drag a SpeechRecognizer (in the Media category of the Palette) onto the Designer. This component will allow the user to speak into the application and have the command converted to text.

Drag a BluetoothClient (in the Connectivity category of the Palette) onto the Designer. This component will allow the Ev3 Robot to connect with the application.

Drag a Clock (in the Sensors category of the Palette) onto the Designer. This component will ensure that the robot will ask for a command in a given interval of time.

Uncheck the Time Always Fries box.

-Uncheck the TimerEnabled box.

Change the Timer Interval to 500. Note that TimerInterval is in milliseconds. This ensures that the clock will fire every half second (1000 millisecond is 1 second).

Drag a Motors (All of the Ev3 components are in the LEGO MINDSTORMS category of the Palette) onto the Designer. This component will instruct the motors on the  robot to move.

Choose BluetoothClient1 on the dropdown menu from BluetoothClient property.

Ensure that the MotorsPorts property reflects what you have for your own Ev3. For this application and the robot that I have built, the MotorPorts are B and C. So, I put BC into the MotorsPorts property.

Drag a Sound onto the Designer. This component will allow sound to be played from the Robot.

Choose BluetoothClient1 on the dropdown menu from the BluetoothClient property.

The Designer, when all the components are completed, should be identical to the following:

Making the application in the Blocks Editor:

First, the blocks for the Connect ListPicker 1 will be created. Drag out the “when ConnectListPicker1.Before Picking do��� event handler out of the Connect ListPicker 1 drawer.

Open the same drawer to drag out the “set Connect ListPicker 1.Elements to” block.

Complete the block by dragging out a BluetoothClient 1.Addresses Names block into the empty socket.

This block will execute before the user picks an selection and set all the elements (or choices) in the listpicker to be all the Bluetooth Addresses that are picked up by the phone.

Now drag out a “when ConnectListPicker1.After Picking do” from the Connect ListPicker 1 drawer  event handler onto the workspace.

Open the Built-in Control drawer to drag out an “if then” block, placing it in the “do” section.

Open the BluetoothClient 1 drawer to drag out the “call BluetoothClient.Connect” method block and placing it in the “if” socket of the “if then” block.

Open the Connect ListPicker 1 drawer to drag out the ConnectListPicker1.Selection block to complete the “call BluetoothClient.Connect” method block by placing it in the address socket.

Open the Start Button drawer and drag out a “set Start Button.Enabled to” block and place it “then” section of the “if then” block. Complete the block by connecting a “true” block from the Built-in Logic drawer.

Open the Connect Label drawer to drag out the “set Connect Label.Text to” block in the “then” section of the “if then” block, below the “set Start Button.Enabled to block”. Complete the block by connecting a text block with the text “Connection Successful”.

This block, after the user decides on a selection, will connect to the Bluetooth Address that the user specifies, and once the connection is made, the block will enable the Start Button (so the user can command the robot to start listening) and changes the text from “Not Connected” to “Connection Successful”.

Now the Start Button will be programmed. Drag out a “when StartButton.Click do” event handler from the Start Button drawer onto the workspace.

Drag out a “set Start Button.Enabled to” block from the same drawer and place it in the “do” section of the event handler. Complete the block by connecting it with a “false” block from the Built-in Logic drawer.

Drag out a “set Disconnect Button.Enabled to” block from the Disconnect Button drawer and place it in the “do” section of the event handler. Complete the block by connecting it with a “true” block from the Built-in Logic drawer.

Drag out a “set Listening Label.Text to” block from the Listening Label drawer and place it

in the “do” section of the event handler. Complete the block by connecting it with a text block with the text “Waiting for command…” from the Built-in Text drawer.

Drag out a “set Clock 1.Timer Enabled to” block from the Clock 1 drawer and place it in the “do” section of the event handler. Complete the block by connecting it with a “true” block from the Built-in Logic drawer.

Drag out a “set ConnectListPicker1.Enabled to” block from the Connect ListPicker 1 drawer and place it in the “do” section of the event handler. Complete the block by connecting it with a “false” block from the Built-in Logic drawer.

This block will execute when the Start Button is clicked by the user. It will disable the Start Button (by setting its Enabled property to false) so the user cannot press it again. It will enable the Disconnect Button (by setting its Enabled property to true) so the user can disconnect if he or she wishes to. It sets the text of Listening Label to “Waiting for command…,” letting the user know that the Ev3 Robot is waiting for a voice command. It begins the timer, by setting its TimerEnabled property to true. Finally, it disables the Connect ListPicker so the user cannot choose a different address before disconnecting by setting its Enabled property to false.

Now, the Disconnect Button will be programmed.

Drag out a “when DisconnectButton.Click do” event handler from the Disconnect Button drawer and place it on the workspace.

Drag out a “call BluetoothClient 1.Disconnect” method block from the BluetoothClient 1 drawer and place it in the “do” section of the Disconnect Button event handler.

Drag out a “set Start Button.Enabled to” block from the Start Button drawer and place it in the “do” section of the event handler. Complete the block by connecting a “false” block from the Built-in Logic drawer.

Drag out a “set Connect Label.Text to” block from the Connect Label drawer and place it in the “do” section of the event handler. Complete the block by connecting a Text block with the text “Disconnected” from the Built-in Text Drawer.

Drag out a “set Disconnect Button.Enabled to” block from the Disconnect Button drawer and place it in the “do” section of the event handler. Complete the block by attaching a “false” block from the Built-in Logic Drawer.

Drag out a “set Listening Label.Text” to block from the Listening Label drawer and place it in the “do” section of the event handler. Complete the block by attaching a Text block with the text “Not listening…” from the Built-in Text drawer.

Drag out a “set ConnectListPicker1.Enabled to” block from the Connect ListPicker 1 drawer and place it in the “do” section of the event handler. Complete the block by attaching a “True” block from the Built-in Logic drawer.

Drag out a “set Clock 1.Timer Enabled” block from the Clock 1 drawer and place it in the “do” section of the event handler. Complete the block by attaching a “false” block from the Built-in Logic drawer.

This block will execute when the user clicks on the Disconnect Button. It will first disconnect the BluetoothClient by calling the .Disconnect method. It will then disable the Start Button, the Disconnect Button, and the Clock since these should not be enabled until the application is connected to the Ev3 Robot through Bluetooth. The Connect Label is set back to “Disconnected” and the Listening Label is set to “Not listening…” since the Ev3 Robot is no longer connected.

Now we can program the Clock component.

First, drag out an “initialize global name to” block from the Built-in Variables drawer. Change the name to “ClockEnabled”. Complete the new variable block by connecting it with a “false” block from the Built-in Logic drawer.

Next, drag out a “when Clock.Timer do” event handler block from the Clock 1 drawer.

Hover over the “ClockEnabled” area in the “initialize global Clock Enabled to false” block. Drag out the “set global Clock Enabled to” block and place it in the “do” section of the Clock 1 event handler block. Complete the block by connecting a “true” block from the Built-in Logic drawer.

Drag out a “set Clock 1.Timer Enabled to” block from the Clock 1 drawer, placing it in the “do” section of the Clock 1 event handler block. Complete the block by connecting it with a “false” block from the Built-in Logic drawer.

Drag out the “call SpeechRecognizer 1.GetText” method from the SpeechRecognizer 1 drawer. Place it in the “do” section of the Clock 1 event handler block.

This block will execute each time the Clock goes off (which we specified to be half a second, 500 milliseconds in the Designer). Each time the Clock goes off, the blocks will set the variable ClockEnabled to be true. It will also disable the Clock by setting its TimerEnabled property to false and calls the SpeechRecognizer 1.GetText method, which prompts the user for a voice command. We disable the clock from going off again in the case that the user speaks slowly or the SpeechRecognizer fails to understand, he or she won’t be interrupted by another request for a voice command as they are speaking their first command.

Now, drag out a “when SpeechRecognizer 1.AfterGettingText do” event handler out of the SpeechRecognizer 1 drawer and place it onto the workspace.

Drag out an “if then” block from the Built-in Control drawer and place it within the “do” section of the SpeechRecognizer 1 event handler block. Drag a “=” block form the Built-in Logic drawer and place it in the “if” socket of the “if then” block. Hover over the “initialize global Clock Enabled to false” block to retrieve a “get global Clock Enabled” block. Place this block in the first socket of the “=” block. Place a “true” block from the Built-in Logic drawer in the second socket of the “=” block.

Drag out a “set Clock 1.Timer Enabled to” from the Clock 1 drawer and place it within the “then” section of the “if then” block. Complete this block by attaching a “true” block from the Built-in Logic drawer.

Now, drag out another “if then block” from the Built-in Control drawer and place it within the “do” section of the SpeechRecognizer 1 event handler block but also within the “then” section of the first “if then” block.

This “if then” block is where we will convert voice commands into Ev3 robot actions.

The Forward Command

We need to make an “if else if then” block. We can do this by clicking over the blue area in the “if then” block just created. Drag an “else if” block from that area into “if block” immediately to the right of it to create an “if else if then” block. I will refer to this as “creating another else if section”.

Place a “=” block fromA the Built-in Logic drawer into the “if” socket. Hover over the pink area labeled “result” in the “when SpeechRecognizer 1.AfterGettingText do” event handler to retrieve a “get result” block. Place the “get result” block into the first socket of the “=” block. Place a Text block with the text “forward” into the second socket of the “=” block.

Retrieve a “set global Clock Enabled to” block by hovering over the “initialize global Clock Enabled to false” block and place it in the “then” section of the “if else if then” block. Complete the block by attaching a “false” block from the Built-in Logic drawer.

Drag out a “set Listening Label.Text to” block from the Listening Label drawer and place it under the “set global Clock Enabled to” block, completing it by attaching it to a Text block with the text “Got it. Moving Forward.”.

Drag out a “call Ev3 Motors v1.Rotate Indefinitely” method from the Ev3 Motors 1 drawer and place it under the “set Listening Label.Text to” block.

Complete the block with a “40” block from the Built-in Math drawer.

This block will execute whenever the user speaks a voice command into the SpeechRecognizer. If the condition statements are satisfied for the first if then statement (if get global Clock Enabled = true) then it will set the enable the timer to prompt the user for another command. It then will compare the result (what the SpeechRecognizer thinks the user said) to the voice commands programmed. This is where all the voice commands will be programmed. If the result is “forward,” then Listening Label’s text will change to acknowledge this command. It will also call the Ev3 Motors method to actually move the robot forward.

The Backward Command

What if the result, which is what the SpeechRecognizer interprets as the voice command of the user isn’t “forward”? What if it was backwards? We would need to create another conditional statement for that situation then.

Make an “else if” section within the “if then” block by clicking the blue area and dragging an “else if” block into the “if then” block immediately to the right of it.

Instead of if “get result = “forward”” we now need if “get result = “backward”” for the backward command. We can just copy the entire “=” block from the forward command and replacing “forward” with “backward”. A block can be copied by right clicking it and clicking “Duplicate”. Drag the duplicated block and place it in the “else if” socket. Complete this new condition by replacing “forward” with “backward”.

Copy the “set global Clock Enabled to false” block from the forward command and place it underneath the “then” section of the “else if” section of the block. This block is needed for all of the commands, so be sure to confirm that this block is present in other commands that will be programmed.

Copy the “set Listening Label.Text to” block from the forward command and place it underneath the “then section” of the “else if” section of the block. Again, this block is needed for all of the commands because it sets the text to whatever the Ev3 Robot is commanded to do. For this case, if the voice command is “backward,” the text should be changed to “Got it. Moving backward.” Make this change to the block after duplicating and placing it in the “then” section of the “else if” section of the block.

Copy the “call Ev3 Motors v1.Rotate Indefinitely” method from the forward command and place it underneath the “then section” of the “else if” section of the block. The only difference between moving forward and backward is that the wheels should rotate the opposite direction. Reflect this change by making the “40” block attached to the power to “-40”.

Optional: What if the user says “reverse” instead of backwards? Since reverse and backwards mean the same thing, the else if statement can actually account for both in the blocks:

This section of the code will be executed if the result (the text that the SpeechRecognizer interpreted from the user command) is “backward” or “reverse”. Then, the Listening Label’s text will be changed to acknowledge that the voice command was understood. It will then call the Ev3 Motors’ Rotate Indefinitely function to move the robot in reverse. Note that the power argument is -40.

The Stop Command

Make another “else if” condition within the “if else if then” block by clicking over the blue area of the “if else if then” block.

Complete the same actions with the backward command, but change the text to “stop” since this will be programmed for the stop command.

In the stop command, the “get result = “stop”” block will be placed in the “else if” socket.

Instead of “Got it. Moving backwards”, the Listening Label.Text will be set to “Got it. Stopping”.

Instead of using the “call Ev3 Motors v1.Rotate Indefinitely” method, you would use the “call Ev3 Motors 1.Stop” method. Complete the block by placing a “true” block from the Built-in Logic drawer in the use Brake socket.

This part of the if else if block will be executed if the result is “stop”. It will first change the Listening Label’s text to tell the user that it understood the voice command. It will then call the Ev3 Motors Stop method to physicslly stop the robot.

The Forward Slow Command

The forward slow command is just the forward command, but just slower. The only difference between the forward slow command and the forward command is the difference in power in the “call Ev3 Motors 1.Rotate Indefinitely” method. I used 20 for power, but feel free to experiment as long as the movement is slower than the forward command.

Make sure to change the “set Listening Label.Text to” block from “Got it. Moving forward” to “Got it. Moving forward slower”.

This part of the if else if block will be executed if the result is “forward slow.” Note that the only difference between forward slow and forward is that the Listening Label text tells the user that it understood the forward slow command and the power argument, 20, for the Rotate Indefinitely method is less than the forward command, which was 40.

The Forward Fast Command

The forward fast command is just the forward command, but just faster! The only difference between the forward slow command and the forward command is the difference in power in the “call Ev3 Motors 1.Rotate Indefinitely” method. This is similar to the forward slow command, but the power is now larger than the original forward command. I used 70. Again, feel free to experiment, but make sure that the forward fast command is actually faster than the forward command.

Make sure to change the “set Listening Label.Text to” block from “Got it. Moving forward.” to “Got it. Moving forward faster.”

This part of the if else if block will be executed if the result is “forward fast.” Note that the only difference between forward fast and forward is that the Listening Label text tells the user that it understood the forward fast command and the power argument, 70,  for the Rotate Indefinitely method is greater than the forward command, which was 40.

Right and Left Turn Commands

The right and left turn commands will use a different method of the Ev3 Motors 1 than the ones used in the forward and backward commands. Make two more “else if” condition sections inside the “if else if then” block.

Right Turn Command

For right turn, make sure to change the “else if” condition to “get result = “right turn””. Make sure that the condition is valid still if the user says “turn right” instead of “right turn”. This can be done by creating an “or” block such that the else if state is “get result = “right turn”” OR “get result = “turn right””

Make sure that the “set global Clock Enabled to false” block is in the “then” section of this “else if” statement for a right turn.

Make sure to change the “set Listening Label.Text to” text block to “Got it. Turning right”.

Now, the method block used for turning is “call Ev3 Motor s1.RotateSync Indefinitely” with the arguments (represented as sockets) power and turn Ratio, which can be found in the Ev3 Motors 1 drawer. Place this method block in the “then” section. Complete the block by placing “40” in the power socket and 45 in the turn Ratio socket. I used 40 and 45 respectively for a gradual turn. A sharper turn would require a greater turns Ratio.

This part of the if else if block will be executed if the result is “right turn” or “turn right.” It will change the Listening Label’s text to tell the user that his or her voice command for a right turn was understood. It then calls Ev3 Motors Rotate Sync Indefinitely to turn right.

Left Turn Command

In short, the only difference between the left turn and right turn command is that the conditional statements need to reflect that the voice command is now “left turn” or “turn left” instead of “right turn” or “turn right”. The “set Listening Label.Text to” text block needs to be changed to “Got it. Turning left”.

The same method, call Ev3 Motors 1.Sync Rotate Indefinitely, is still used with the arguments “40” for power and “-45” for turn Ratio. -45 is used for turn Ratio because a left turn is essentially the opposite of a right turn. Again, a sharper turn would require a greater turns Ratio.

This part of the if else if block will be executed if the result is “left turn” or “turn left.” It will change the Listening Label’s text to tell the user that his or her voice command for a left turn  was understood. It will then call Ev3 Motors Rotate Sync Indefinitely method to turn left. Note that the turn Ratio argument is now -45 instead of 45 since a left turn is essentially opposite of a right turn.

Else Condition: What happens when the SpeechRecognizer doesn’t understand what the user command was? What if the command didn’t match any of the ones that was programmed (such as the user saying “sideways” when the command hasn’t been programmed)? An else statement is needed to cover all the cases such that the user commands doesn’t match the ones programmed.

Make an “else” section within the “if then” block by clicking the blue area and dragging an “else” block into the “if then” block immediately to the right of it.

Drag out a “set Listening Label.Text to” block from the Listening Label drawer and place it in the “else” section of the “if then” block. Complete the block by attaching a Text block with the text “I didn’t quite catch that. Can you repeat it?”.

Drag out a “set Clock 1.Timer Enabled to” block from the Clock 1 drawer and place it into the “else” section of the “if then” block. Complete the block by attaching a “false” block from the Built-in Logic drawer.

Finally, drag out a “call SpeechRecognizer 1.GetText” method from the SpeechRecognizer 1 drawer and place it in the “else” section of the “if then” block.

The block will execute when the result (what the SpeechRecognizer interprets the user voice command as) doesn’t match any of the programmed commands. It will first set the Listening Label to “I didn’t catch that, could you repeat it?”, then disables the Clock so the user wouldn’t be interrupted by another request for a command, and requests for a command by calling the SpeechRecognizer 1.GetText. The Clock is disabled so that another request for a command would not interrupt the current request (since the clock will go off every half second, prompting a request for a voice command).

Basic Commands

Forward, Forward Slow, Forward Fast, Backward (Reverse), Left Turn, Right Turn, Stop are some of the basic voice commands that the Ev3 Pet Robot can follow. For debugging purposes, here is the completed blocks for only these commands.

Click the images for a large image.

The final blocks for this application should look like this.

`

Click the image for larger image.

AIA and APK files:

APK Files

AIA Files

Instructions for running the application:

Make sure that the MotorPorts that are attached to your own Ev3 Robot matches the ones set in the Designer. For example, if the physical robot’s motors are attached to ports B and C, you would change the MotorsPorts property of the Ev3 Motors component on the Designer to BC.

The Ev3 Robot must be connected with the phone through Bluetooth first. The passkey is usually 1234. After the Ev3 Robot is connected with the phone, then the application can connect to it using the Connect ListPicker 1.

The way that the application was programmed allows the robot to perform the previous action while waiting for a voice command. If the user commanded the robot to turn left, the robot will continue to turn left until it receives another legible voice command.

Notes:

There are a lot of variations of commands that could be programmed. Commands such as “backward fast” or “backward slow” are just variations of the “backward” command.

A “bark” command can be programmed as well using the Ev3 Sound component by having the robot place a certain sequences of sounds.

A challenge would be having the Ev3 Robot “bark” at random times, much like a real dog.

Other extensions beyond commands that could be programmed involves the use of other sensors such as the Touch Sensor or the Color Sensor.

The pet Ev3 Robot could be commanded to “bark” when it runs into an obstacle such as a wall and then could back up.

The pet Ev3 Robot could be commanded to avoid certain areas of the ground by sensing color. It could move away or turn away when it senses red areas and move freely in green areas.

The post How to make Lego EV3 Pet Robot 2020 appeared first on The Coding Bus.

from WordPress https://ift.tt/30xhOYz via IFTTT

[ktrkathir]

Speech to Text using Speech Kit in iOS

Speech to Text using Speech Kit in iOS

import UIKit import Speech class ViewController: UIViewController,SFSpeechRecognizerDelegate { @IBOutlet var queriesField: UITextView! @IBOutlet var startRecordButton: UIButton! private var recognitionRequest: SFSpeechAudioBufferRecognitionRequest? private var recognitionTask: SFSpeechRecognitionTask? private let audioEngine = AVAudioEngine() var speechRecognizer = SFSpeechRecognizer(locale:…

[sourabhdubey007]

How to make LEGO EV3 Pet Robot 2020

What it does:

Using voice commands, the user instructs an EV3 LEGO robot to do certain maneuvers and actions.

The user can pick one of several commands: forward, backward (reverse), stop, forward slow, forward fast, disconnect, circles, right turn (turn right), left turn (turn left).

The robot will follow the user’s voice commands and perform the action for half a second before prompting the user for another command. If the user provides no commands, the previous command will be executed until another command is registered.

Demonstration Video

What it teaches:

Teaches the programming concepts such as conditional statements with a LEGO EV3 robot.

Uses non-visible components such as Clock, SpeechRecognizer, BluetoothClient, Ev3Motors, and Ev3Sound.

Allows room for programmable extensions of this application for the Ev3 Robot.

Making the application in the Designer:

Drag a VerticalArrangement onto the Designer. This component will enclose all of your buttons and labels for the application.

Change the Height property to “Fill parent”. This makes the height of the VerticalArrangement as big as the user’s screen.

Change the Width property to “Fill parent”. This makes the width of the VerticalArrangement as big as the user’s screen.

Drag a Label onto the Designer and within the VerticalArranagement. This Label will be used to tell the user whether or not he or she is connected to the Ev3 Robot.

Rename the Label in the Component Tree to “ConnectLabel”.

Change the Width property to “Fill parent”. This makes the width of the Label as big as the user’s screen.

Change the Text property to “Not Connected”. I also changed the FontSize to 16 to make it more visible.

Change the TextAlignment property to “Center”.

Drag a ListPicker onto the Designer, within the VerticalArranagement and below the first Label. This component will show the application user the list of Bluetooth addresses and names to choose from.

Rename the ListPicker in the Component Tree to “ConnectListPicker1”.

Change the Width property to “Fill parent”.

Change the Text property to “Connect!”. Again, I changed the FontSize to 16 to make it more visible.

Change the TextAlignment property to “Center”.

Drag a Button onto the Designer, within the VerticalArrangement, and below the ListPicker. This component will allow the user to command to Ev3 Robot to start listening for commands.

Rename the Button in the Component Tree to “StartButton”.

Uncheck the Enabled box in the Properties panel. This prevents the users from clicking the button before they connect to the robot.

Change the Width property to “Fill parent”.

Change the Text property to “Start Listening”. Again, I changed the FontSize to 16.

Change the TextAlignment property to “Center”.

Drag another Button onto the Designer, within the VerticalArranagement, and below the Button created in Step 4. This component will allow the user to Disconnect the Ev3 Robot when they are finished commanding it.

Rename the Button in the Component Tree to “DisconnectButton”.

Uncheck the Enabled box in the Properties panel. This prevents the user from clicking the button to disconnect before they connected to the robot.

Change the Width property to “Fill parent”.

Change the Text property to “Disconnect”. Again, I changed the FontSize to 16.

Change the TextAlignment property to “Center”.

Finally, drag a Label onto the Designer, within the VerticalArranagement, and below the Button placed earlier. This component will indicate the action that the Ev3 Robot is currently performing.

Rename the Label in the Component Tree to “ListeningLabel”.

Change the Width property to “Fill parent”.

Change the Height property to “Fill parent”.

Change the Text property to “Not Listening…”. Again, I changed the FontSize to 16.

Change the TextAlignment property to “Center”.

Optional Step: Place another Label within the Vertical Arrangement and above the label created in Step 6. This label will be used for information such as listing the commands that the user voice to control the robot.

Rename the Label in the Component Tree to “InformationLabel”.

Change the Width property to “Fill parent”.

Change the Height property to “Fill parent”.

Change the Text property to whatever commands you want to program. For this application, I’ve programmed to robot to move forward, backward, faster, slower, turn left, turn right, stop, and disconnect, so I changed the text property to “Commands: Forward, Backward (Reverse), Fast Forward, Forward Slow, Left Turn, Right Turn, Stop”. Again, I changed the FontSize to 16.

Change the TextAlignment property to “Center”.

That’s it for the visible components of the application. All that is left to do for the Designer is to add the Non-visible components. All the Non-visible components of the application will appear under the Screen.

Drag a SpeechRecognizer (in the Media category of the Palette) onto the Designer. This component will allow the user to speak into the application and have the command converted to text.

Drag a BluetoothClient (in the Connectivity category of the Palette) onto the Designer. This component will allow the Ev3 Robot to connect with the application.

Drag a Clock (in the Sensors category of the Palette) onto the Designer. This component will ensure that the robot will ask for a command in a given interval of time.

Uncheck the TimeAlwaysFires box.

Uncheck the TimerEnabled box.

Change the TimerInterval to 500. Note that TimerInterval is in milliseconds. This ensures that the clock will fire every half second (1000 millisecond is 1 second).

Drag a Ev3Motors (All of the Ev3 components are in the LEGO MINDSTORMS category of the Palette) onto the Designer. This component will instruct the motors on the Ev3 robot to move.

Choose BluetoothClient1 on the dropdown menu from BluetoothClient property.

Ensure that the MotorPorts property reflects what you have for your own Ev3. For this application and the robot that I have built, the MotorPorts are B and C. So, I put BC into the MotorPorts property.

Drag a Ev3Sound onto the Designer. This component will allow sound to be played from the Ev3 Robot.

Choose BluetoothClient1 on the dropdown menu from the BluetoothClient property.

The Designer, when all the components are completed, should be identical to the following:

Making the application in the Blocks Editor:

First, the blocks for the ConnectListPicker1 will be created. Drag out the “when ConnectListPicker1.BeforePicking do” event handler out of the ConnectListPicker1 drawer.

Open the same drawer to drag out the “set ConnectListPicker1.Elements to” block.

Complete the block by dragging out a BluetoothClient1.AddressesAndNames block into the empty socket.

This block will execute before the user picks an selection and set all the elements (or choices) in the listpicker to be all the Bluetooth Addresses that are picked up by the phone.

Now drag out a “when ConnectListPicker1.AfterPicking do” from the ConnectListPicker1 drawer  event handler onto the workspace.

Open the Built-in Control drawer to drag out an “if then” block, placing it in the “do” section.

Open the BluetoothClient1 drawer to drag out the “call BluetoothClient1.Connect” method block and placing it in the “if” socket of the “if then” block.

Open the ConnectListPicker1 drawer to drag out the ConnectListPicker1.Selection block to complete the “call BluetoothClient1.Connect” method block by placing it in the address socket.

Open the StartButton drawer and drag out a “set StartButton.Enabled to” block and place it “then” section of the “if then” block. Complete the block by connecting a “true” block from the Built-in Logic drawer.

Open the ConnectLabel drawer to drag out the “set ConnectLabel.Text to” block in the “then” section of the “if then” block, below the “set StartButton.Enabled to block”. Complete the block by connecting a text block with the text “Connection Successful”.

This block, after the user decides on a selection, will connect to the Bluetooth Address that the user specifies, and once the connection is made, the block will enable the Start Button (so the user can command the robot to start listening) and changes the text from “Not Connected” to “Connection Successful”.

Now the StartButton will be programmed. Drag out a “when StartButton.Click do” event handler from the StartButton drawer onto the workspace.

Drag out a “set StartButton.Enabled to” block from the same drawer and place it in the “do” section of the event handler. Complete the block by connecting it with a “false” block from the Built-in Logic drawer.

Drag out a “set DisconnectButton.Enabled to” block from the DisconnectButton drawer and place it in the “do” section of the event handler. Complete the block by connecting it with a “true” block from the Built-in Logic drawer.

Drag out a “set ListeningLabel.Text to” block from the ListeningLabel drawer and place it in the “do” section of the event handler. Complete the block by connecting it with a text block with the text “Waiting for command…” from the Built-in Text drawer.

Drag out a “set Clock1.TimerEnabled to” block from the Clock1 drawer and place it in the “do” section of the event handler. Complete the block by connecting it with a “true” block from the Built-in Logic drawer.

Drag out a “set ConnectListPicker1.Enabled to” block from the ConnectListPicker1 drawer and place it in the “do” section of the event handler. Complete the block by connecting it with a “false” block from the Built-in Logic drawer.

This block will execute when the StartButton is clicked by the user. It will disable the StartButton (by setting its Enabled property to false) so the user cannot press it again. It will enable the DisconnectButton (by setting its Enabled property to true) so the user can disconnect if he or she wishes to. It sets the text of ListeningLabel to “Waiting for command…,” letting the user know that the Ev3 Robot is waiting for a voice command. It begins the timer, by setting its TimerEnabled property to true. Finally, it disables the ConnectListPicker so the user cannot choose a different address before disconnecting by setting its Enabled property to false.

Now, the DisconnectButton will be programmed.

Drag out a “when DisconnectButton.Click do” event handler from the DisconnectButton drawer and place it on the worksapce.

Drag out a “call BluetoothClient1.Disconnect” method block from the BluetoothClient1 drawer and place it in the “do” section of the DisconnectButton event handler.

Drag out a “set StartButton.Enabled to” block from the StartButton drawer and place it in the “do” section of the event handler. Complete the block by connecting a “false” block from the Built-in Logic drawer.

Drag out a “set ConnectLabel.Text to” block from the ConnectLabel drawer and place it in the “do” section of the event handler. Complete the block by connecting a Text block with the text “Disconnected” from the Built-in Text Drawer.

Drag out a “set DisconnectButton.Enabled to” block from the DisconnectButton drawer and place it in the “do” section of the event handler. Complete the block by attaching a “false” block from the Built-in Logic Drawer.

Drag out a “set ListeningLabel.Text” to block from the ListeningLabel drawer and place it in the “do” section of the event handler. Complete the block by attaching a Text block with the text “Not listening…” from the Built-in Text drawer.

Drag out a “set ConnectListPicker1.Enabled to” block from the ConnectListPicker1 drawer and place it in the “do” section of the event handler. Complete the block by attaching a “True” block from the Built-in Logic drawer.

Drag out a “set Clock1.TimerEnabled” block from the Clock1 drawer and place it in the “do” section of the event handler. Complete the block by attaching a “false” block from the Built-in Logic drawer.

This block will execute when the user clicks on the DisconnectButton. It will first disconnect the BluetoothClient by calling the .Disconnect method. It will then disable the StartButton, the DisconnectButton, and the Clock since these should not be enabled until the application is connected to the Ev3 Robot through Bluetooth. The ConnectLabel is set back to “Disconnected” and the ListeningLabel is set to “Not listening…” since the Ev3 Robot is no longer connected.

Now we can program the Clock component.

First, drag out an “initialize global name to” block from the Built-in Variables drawer. Change the name to “ClockEnabled”. Complete the new variable block by connecting it with a “false” block from the Built-in Logic drawer.

Next, drag out a “when Clock1.Timer do” event handler block from the Clock1 drawer.

Hover over the “ClockEnabled” area in the “initialize global Clock Enabled to false” block. Drag out the “set global ClockEnabled to” block and place it in the “do” section of the Clock1 event handler block. Complete the block by connecting a “true” block from the Built-in Logic drawer.

Drag out a “set Clock1.TimerEnabled to” block from the Clock1 drawer, placing it in the “do” section of the Clock1 event handler block. Complete the block by connecting it with a “false” block from the Built-in Logic drawer.

Drag out the “call SpeechRecognizer1.GetText” method from the SpeechRecognizer1 drawer. Place it in the “do” section of the Clock1 event handler block.

This block will execute each time the Clock goes off (which we specified to be half a second, 500 milliseconds in the Designer). Each time the Clock goes off, the blocks will set the variable ClockEnabled to be true. It will also disable the Clock by setting its TimerEnabled property to false and calls the SpeechRecognizer1.GetText method, which prompts the user for a voice command. We disable the clock from going off again in the case that the user speaks slowly or the SpeechRecognizer fails to understand, he or she won’t be interrupted by another request for a voice command as they are speaking their first command.

Now, drag out a “when SpeechRecognizer1.AfterGettingText do” event handler out of the SpeechRecognizer1 drawer and place it onto the workspace.

Drag out an “if then” block from the Built-in Control drawer and place it within the “do” section of the SpeechRecognizer1 event handler block. Drag a “=” block form the Built-in Logic drawer and place it in the “if” socket of the “if then” block. Hover over the “initialize global ClockEnabled to false” block to retrieve a “get global ClockEnabled” block. Place this block in the first socket of the “=” block. Place a “true” block from the Built-in Logic drawer in the second socket of the “=” block.

Drag out a “set Clock1.TimerEnabled to” from the Clock1 drawer and place it within the “then” section of the “if then” block. Complete this block by attaching a “true” block from the Built-in Logic drawer.

Now, drag out another “if then block” from the Built-in Control drawer and place it within the “do” section of the SpeechRecognizer1 event handler block but also within the “then” section of the first “if then” block.

This “if then” block is where we will convert voice commands into Ev3 robot actions.

The Forward Command

We need to make an “if else if then” block. We can do this by clicking over the blue area in the “if then” block just created. Drag an “else if” block from that area into “if block” immediately to the right of it to create an “if else if then” block. I will refer to this as “creating another else if section”.

Place a “=” block from the Built-in Logic drawer into the “if” socket. Hover over the pink area labeled “result” in the “when SpeechRecognizer1.AfterGettingText do” event handler to retrieve a “get result” block. Place the “get result” block into the first socket of the “=” block. Place a Text block with the text “forward” into the second socket of the “=” block.

Retrieve a “set global ClockEnabled to” block by hovering over the “initialize global ClockEnabled to false” block and place it in the “then” section of the “if else if then” block. Complete the block by attaching a “false” block from the Built-in Logic drawer.

Drag out a “set ListeningLabel.Text to” block from the ListeningLabel drawer and place it under the “set global ClockEnabled to” block, completing it by attaching it to a Text block with the text “Got it. Moving Forward.”.

Drag out a “call Ev3Motors1.RotateIndefinitely” method from the Ev3Motors1 drawer and place it under the “set ListeningLabel.Text to” block.

Complete the block with a “40” block from the Built-in Math drawer.

This block will execute whenever the user speaks a voice command into the SpeechRecognizer. If the condition statements are satisfied for the first if then statement (if get global ClockEnabled = true) then it will set the enable the timer to prompt the user for another command. It then will compare the result (what the SpeechRecognizer thinks the user said) to the voice commands programmed. This is where all the voice commands will be programmed. If the result is “forward,” then ListeningLabel’s text will change to acknowledge this command. It will also call the Ev3 Motors method to actually move the robot forward.

The Backward Command

What if the result, which is what the SpeechRecognizer interprets as the voice command of the user isn’t “forward”? What if it was backwards? We would need to create another conditional statement for that situation then.

Make an “else if” section within the “if then” block by clicking the blue area and dragging an “else if” block into the “if then” block immediately to the right of it.

Instead of if “get result = “forward”” we now need if “get result = “backward”” for the backward command. We can just copy the entire “=” block from the forward command and replacing “forward” with “backward”. A block can be copied by right clicking it and clicking “Duplicate”. Drag the duplicated block and place it in the “else if” socket. Complete this new condition by replacing “forward” with “backward”.

Copy the “set global ClockEnabled to false” block from the forward command and place it underneath the “then” section of the “else if” section of the block. This block is needed for all of the commands, so be sure to confirm that this block is present in other commands that will be programmed.

Copy the “set ListeningLabel.Text to” block from the forward command and place it underneath the “then section” of the “else if” section of the block. Again, this block is needed for all of the commands because it sets the text to whatever the Ev3 Robot is commanded to do. For this case, if the voice command is “backward,” the text should be changed to “Got it. Moving backward.” Make this change to the block after duplicating and placing it in the “then” section of the “else if” section of the block.

Copy the “call Ev3Motors1.RotateIndefinitely” method from the forward command and place it underneath the “then section” of the “else if” section of the block. The only difference between moving forward and backward is that the wheels should rotate the opposite direction. Reflect this change by making the “40” block attached to the power to “-40”.

Optional: What if the user says “reverse” instead of backwards? Since reverse and backwards mean the same thing, the else if statement can actually account for both in the blocks:

This section of the code will be executed if the result (the text that the SpeechRecognizer interpreted from the user command) is “backward” or “reverse”. Then, the ListeningLabel’s text will be changed to acknowledge that the voice command was understood. It will then call the Ev3Motors’ RotateIndefinitely function to move the robot in reverse. Note that the power argument is -40.

The Stop Command

Make another “else if” condition within the “if else if then” block by clicking over the blue area of the “if else if then” block.

Complete the same actions with the backward command, but change the text to “stop” since this will be programmed for the stop command.

In the stop command, the “get result = “stop”” block will be placed in the “else if” socket.

Instead of “Got it. Moving backwards”, the ListeningLabel.Text will be set to “Got it. Stopping”.

Instead of using the “call Ev3Motors1.RotateIndefinitely” method, you would use the “call Ev3Motors1.Stop” method. Complete the block by placing a “true” block from the Built-in Logic drawer in the useBrake socket.

This part of the if else if block will be executed if the result is “stop”. It will first change the ListeningLabel’s text to tell the user that it understood the voice command. It will then call the Ev3Motor’s Stop method to physically stop the robot.

The Forward Slow Command

The forward slow command is just the forward command, but just slower. The only difference between the forward slow command and the forward command is the difference in power in the “call Ev3Motors1.RotateIndefinitely” method. I used 20 for power, but feel free to experiment as long as the movement is slower than the forward command.

Make sure to change the “set ListeningLabel.Text to” block from “Got it. Moving forward” to “Got it. Moving forward slower”.

This part of the if else if block will be executed if the result is “forward slow.” Note that the only difference between forward slow and forward is that the ListeningLabel text tells the user that it understood the forward slow command and the power argument, 20, for the RotateIndefinitely method is less than the forward command, which was 40.

The Forward Fast Command

The forward fast command is just the forward command, but just faster! The only difference between the forward slow command and the forward command is the difference in power in the “call Ev3Motors1.RotateIndefinitely” method. This is similar to the forward slow command, but the power is now larger than the original forward command. I used 70. Again, feel free to experiment, but make sure that the forward fast command is actually faster than the forward command.

Make sure to change the “set ListeningLabel.Text to” block from “Got it. Moving forward.” to “Got it. Moving forward faster.”

This part of the if else if block will be executed if the result is “forward fast.” Note that the only difference between forward fast and forward is that the ListeningLabel text tells the user that it understood the forward fast command and the power argument, 70,  for the RotateIndefinitely method is greater than the forward command, which was 40.

Right and Left Turn Commands

The right and left turn commands will use a different method of the Ev3Motors1 than the ones used in the forward and backward commands. Make two more “else if” condition sections inside the “if else if then” block.

Right Turn Command

For right turn, make sure to change the “else if” condition to “get result = “right turn””. Make sure that the condition is valid still if the user says “turn right” instead of “right turn”. This can be done by creating an “or” block such that the else if state is “get result = “right turn”” OR “get result = “turn right””

Make sure that the “set global ClockEnabled to false” block is in the “then” section of this “else if” statement for a right turn.

Make sure to change the “set ListeningLabel.Text to” text block to “Got it. Turning right”.

Now, the method block used for turning is “call Ev3Motors1.RotateSyncIndefinitely” with the arguments (represented as sockets) power and turnRatio, which can be found in the Ev3Motors1 drawer. Place this method block in the “then” section. Complete the block by placing “40” in the power socket and 45 in the turnRatio socket. I used 40 and 45 respectively for a gradual turn. A sharper turn would require a greater turnRatio.

This part of the if else if block will be executed if the result is “right turn” or “turn right.” It will change the ListeningLabel’s text to tell the user that his or her voice command for a right turn was understood. It then calls Ev3Motor’s RotateSyncIndefinitely to turn right.

Left Turn Command

In short, the only difference between the left turn and right turn command is that the conditional statements need to reflect that the voice command is now “left turn” or “turn left” instead of “right turn” or “turn right”. The “set ListeningLabel.Text to” text block needs to be changed to “Got it. Turning left”.

The same method, callEv3Motors1.SyncRotateIndefinitely, is still used with the arguments “40” for power and “-45” for turnRatio. -45 is used for turnRatio because a left turn is essentially the opposite of a right turn. Again, a sharper turn would require a greater turnRatio.

This part of the if else if block will be executed if the result is “left turn” or “turn left.” It will change the ListeningLabel’s text to tell the user that his or her voice command for a left turn  was understood. It will then call Ev3Motor’s RotateSyncIndefinitely method to turn left. Note that the turnRatio argument is now -45 instead of 45 since a left turn is essentially opposite of a right turn.

Else Condition: What happens when the SpeechRecognizer doesn’t understand what the user command was? What if the command didn’t match any of the ones that was programmed (such as the user saying “sideways” when the command hasn’t been programmed)? An else statement is needed to cover all the cases such that the user commands doesn’t match the ones programmed.

Make an “else” section within the “if then” block by clicking the blue area and dragging an “else” block into the “if then” block immediately to the right of it.

Drag out a “set ListeningLabel.Text to” block from the ListeningLabel drawer and place it in the “else” section of the “if then” block. Complete the block by attaching a Text block with the text “I didn’t quite catch that. Can you repeat it?”.

Drag out a “set Clock1.TimerEnabled to” block from the Clock1 drawer and place it into the “else” section of the “if then” block. Complete the block by attaching a “false” block from the Built-in Logic drawer.

Finally, drag out a “call SpeechRecognizer1.GetText” method from the SpeechRecognizer1 drawer and place it in the “else” section of the “if then” block.

The block will execute when the result (what the SpeechRecognizer interprets the user voice command as) doesn’t match any of the programmed commands. It will first set the ListeningLabel to “I didn’t catch that, could you repeat it?”, then disables the Clock so the user wouldn’t be interrupted by another request for a command, and requests for a command by calling the SpeechRecognizer1.GetText. The Clock is disabled so that another request for a command would not interrupt the current request (since the clock will go off every half second, prompting a request for a voice command).

Basic Commands

Forward, Forward Slow, Forward Fast, Backward (Reverse), Left Turn, Right Turn, Stop are some of the basic voice commands that the Ev3 Pet Robot can follow. For debugging purposes, here is the completed blocks for only these commands.

Click the images for a large image.

The final blocks for this application should look like this.

AIA and APK files:

APK Files

AIA Files

Instructions for running the application:

Make sure that the MotorPorts that are attached to your own Ev3 Robot matches the ones set in the Designer. For example, if the physical robot’s motors are attached to ports B and C, you would change the MotorPorts property of the Ev3Motors component on the Designer to BC.

The Ev3 Robot must be connected with the phone through Bluetooth first. The passkey is usually 1234. After the Ev3 Robot is connected with the phone, then the application can connect to it using the ConnectListPicker1.

The way that the application was programmed allows the robot to perform the previous action while waiting for a voice command. If the user commanded the robot to turn left, the robot will continue to turn left until it receives another legible voice command.

Notes:

There are a lot of variations of commands that could be programmed. Commands such as “backward fast” or “backward slow” are just variations of the “backward” command.

A “bark” command can be programmed as well using the Ev3Sound component by having the robot place a certain sequences of sounds.

A challenge would be having the Ev3 Robot “bark” at random times, much like a real dog.

Other extensions beyond commands that could be programmed involves the use of other sensors such as the TouchSensor or the ColorSensor.

The pet Ev3 Robot could be commanded to “bark” when it runs into an obstacle such as a wall and then could back up.

The pet Ev3 Robot could be commanded to avoid certain areas of the ground by sensing color. It could move away or turn away when it senses red areas and move freely in green areas.

The post How to make LEGO EV3 Pet Robot 2020 appeared first on The Coding Bus.

from WordPress https://ift.tt/30uAEiZ via IFTTT
