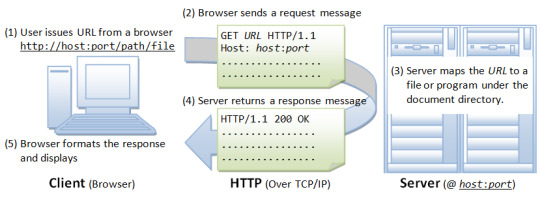

With its WiFi capabilities, the ESP32 can connect to API services and acquire useful (and sometimes useless) information from the web. Here’s a quick tutorial on how to connect to RESTful APIs using ESP32.

(more…)

[teachmemicrocontrollers]

Getting Started with Blue Pill and STM32Cube

Getting Started with Blue Pill and STM32Cube

Arduino was made to be easy-to-use but at the expense of a lot of features, most glaring of them is speed. Hence you would rarely see an Arduino in an embedded, industrial setting. ARM Cortex-M microcontrollers are low-cost, energy-efficient 32-bit devices with up to 2 DMIPS/MHz. They are the microcontroller of choice if you are looking into image processing, machine learning or digital signal…

[teachmemicrocontrollers]

Arduino State Machine Tutorial

Arduino State Machine Tutorial

A finite state machine (FSM) is a theoretical machine that only has one action or state at a time. The machine may go from one state to another if there are inputs (or one input) that triggers the state change.

In this article, I will guide you on how to implement an Arduino state machinefor your project. Using state machines will not necessarily make your Arduino sketch execute faster; state…

[teachmemicrocontrollers]

Seeed Studio now Offering Free DFA Review for PCBA Orders

Seeed Studio now Offering Free DFA Review for PCBA Orders

This post is sponsored by Seeed Studio

With a focus on giving customers the best value for money, Seeed Fusion’s turnkey PCB assembly now offers free Design for Assembly (DFA) on all PCB assembly orders. This is supposed to be the first on a series of new offers Seeed Studio will be rolling out every month of this year and maybe, beyond.

(more…)

[teachmemicrocontrollers]

ESP8266 SPIFFs | File System for NodeMCU

ESP8266 SPIFFs | File System for NodeMCU

SPIFFS or Serial Peripheral Interface Flash File System is a system that utilizes extra flash memory on the ESP8266 and ESP32 for storing files. It’s so named because the user reads, writes or deletes files in the memory using the serial interface. In this article, I will show you how to set up SPIFFS for your NodeMCU or WeMos D1 Miniboard. Also, an example is presented on how to take advantage…

[teachmemicrocontrollers]

The MQ-4 is one of many gas sensors ready to be interfaced with microcontrollers. Just like the rest of the MQ sensors, the MQ-4 is most sensitive to a particular gas. This time, it’s methane, although the sensor can still detect other flammable gases like butane and propane.

MQ-4 Methane Sensor Overview

At the heart of the MQ-4 is a heater and electrochemical sensor. When the target gas enters the membrane and reaches the sensor, it undergoes a redox reaction which creates current. This current is stronger for sensors at specific gases. In the case of the MQ4, it’s more sensitive to methane, butane and propane.

If you are looking to buy a MQ-4 sensor, you should choose the one that comes in a breakout board like this:

#gallery-0-4 { margin: auto; } #gallery-0-4 .gallery-item { float: left; margin-top: 10px; text-align: center; width: 33%; } #gallery-0-4 img { border: 2px solid #cfcfcf; } #gallery-0-4 .gallery-caption { margin-left: 0; } /* see gallery_shortcode() in wp-includes/media.php */

This breakout board has four output pins, namely A0, D0, GND and VCC.

The power pins VCC and GND can be connected directly to an Arduino’s 5 V pin and GND respectively.

Using Digital Output

The D0 pin generates a high (equal to VCC) when in the presence of methane gas and low (equal to around 0.1 V) otherwise. You can calibrate this “digital” output through the trimmer pot on the board.

If your project only requires detection of methane then reading the D0 pin will do. Here’s a circuit diagram with an Arduino UNO:

Here, the D0 pin connects to digital pin 2 of the Arduino. The Arduino sketch below uses an interrupt so that the microcontroller always detects the MQ-4 first.

/* MQ4 Sensor - Digital Output Example * by R. Pelayo * * From TeachMeMicro (www.teachmemicro.com/arduino-mq4-methane-sensor * * Date Created: 09/11/2020 */ const byte MQ4_Pin = 2; //MQ4 D0 pin void setup() { pinMode(MQ4_Pin, INPUT_PULLUP); attachInterrupt(digitalPinToInterrupt(MQ4_Pin), sensor_triggered, CHANGE); //attach interrupt on MQ4 pin Serial.begin(9600); } void loop() { // Do anything you want here } void sensor_triggered() { Serial.println("Methane detected!"); // Output to serial monitor }

If however you need to determine methane concentration, you’ll need the A0 pin.

Using Analog Output

Determining PPM Equation

The sensitivity curve of the MQ-4 is shown below:

This curve is from the device datasheet and shows the sensitivity of the MQ-4 to gases. As seen here, it’s most sensitive to CH4, the chemical name of methane. Absent in the curve are propane and butane gases although both are known components of LPG (which is second to methane in this curve).

The curve is a log-log scale and shows the relationship between RS/R0 and gas concentration in parts-per-million (PPM). RS/R0 is the ratio of sensor resistance at target gas (RS) and resistance in clean air (R0). Hence, by knowing RS/R0, we can determine the concentration of the gas in PPM.

We take two points on this graph to derive a formula. This formula will then be used in our Arduino sketch later on.

The most obvious point is when RS/R0 = 1 and PPM = 1000. The second point is when RS/R0 is somewhere around 0.58 and PPM = 5000. The equation starts with:

Here, we will assign Y1 = 1, X1 = 1000 from the first point and Y2 = 0.58 and X2 = 5000 from the second point. Substituting these values in the equation above:

Changing Y to RS/R0 and X to PPM and solving for PPM:

We can now use this formula in our sketch. But before that, we need to determine the resistance ratio RS/R0.

Methane PPM Output Arduino Sketch

As mentioned, RS is the sensor resistance in the presence of Methane while R0 is the sensor resistance in clean air. Of these two, R0 would be easier to determine. We measure the resistance of the electrodes 1-6 or 4-3 (see figure below) using an ohmmeter.

My MQ-4 electrodes give out 945 ohms of resistance for both 1-6 and 4-3 electrodes. This means my R0 is 945 ohms.

The value of RS would have to be known through a sketch. The MQ-4 breakout board uses this schematic:

As you can see, Aout connects to one of the electrodes and in parallel to a resistor RL. This means the electrode resistance creates a voltage divider with RL and the voltage at Aout is:

Here, RS is our target electrode resistance which varies depending on methane concentration.

BTW, RL is an SMD resistor with label 102. This corresponds to a resistance of 1k.

So to get RS we use this formula:

The Arduino sketch to give out methane concentration in PPM is now:

/* MQ4 Sensor - Analog Output Example * Prints out methane concentration in PPM to serial monitor * by R. Pelayo * * From TeachMeMicro (www.teachmemicro.com/arduino-mq4-methane-sensor * * Date Created: 09/11/2020 */ const byte MQ4_Pin = A0; //MQ4 A0 pin const int R_0 = 945; //Change this to your own R0 measurements void setup() { Serial.begin(9600); } void loop() { Serial.println(getMethanePPM()); } /* * getMethanePPM returns a float value in PPM of methane concentration */ float getMethanePPM(){ float a0 = analogRead(A0); // get raw reading from sensor float v_o = a0 * 5 / 1023; // convert reading to volts float R_S = (5-v_o) * 1000 / v_o; // apply formula for getting RS float PPM = pow(R_S/R_0,-2.95) * 1000; //apply formula for getting PPM return PPM; // return PPM value to calling function }

That’s two ways to use the MQ-4 methane gas sensor. Note that this sketch is for display methane concentrations only, not butane or propane. For any questions, reactions, or suggestions, kindly drop a comment below.

How to Use MQ-4 Methane Gas Sensor The MQ-4 is one of many gas sensors ready to be interfaced with microcontrollers. Just like the rest of the MQ sensors, the MQ-4 is most sensitive to a particular gas.

[teachmemicrocontrollers]

Using the BH1750 (GY-30) Sensor with Arduino

Using the BH1750 (GY-30) Sensor with Arduino

The BH1750 is a light intensity sensor which interfaces with a microcontroller through the I2C bus. It can directly provide lux values without further processing unlike CdS cells or photodiodes.

(more…)

[teachmemicrocontrollers]

Using AD9833 Signal Generator with Arduino

Using AD9833 Signal Generator with Arduino

Have you ever wondered how you can create sine, square or triangular waves with Arduino? Apparently, there’s a way with the help of an integrated circuit package called AD9833. With it, you can now create waveforms for communications, instrumentation or other related projects. My tutorial on building your own Arduino signal generator after the jump.

(more…)

[teachmemicrocontrollers]

How to Use I2C Devices with Raspberry Pi

How to Use I2C Devices with Raspberry Pi

I2C is a popular device protocol in communicating with microcontrollers. However, this protocol is not limited to Arduino, PIC and STM32; the Raspberry Pi can also use I2C.

(more…)

[teachmemicrocontrollers]

Watchdog Timer on Arduino Tutorial

Watchdog Timer on Arduino Tutorial

In Arduino programming, we learn about functions setup() and loop(). Any code inside setup() executes once while code inside loop() executes again and again until the next reset.

Now what if while inside the loop(), something went wrong either in code or in hardware? Normally we just press the reset button. But what if we can’t press that button? You can reset the Arduino via software using the w…

[teachmemicrocontrollers]

Dot Matrix Droplets Project

Dot Matrix Droplets Project

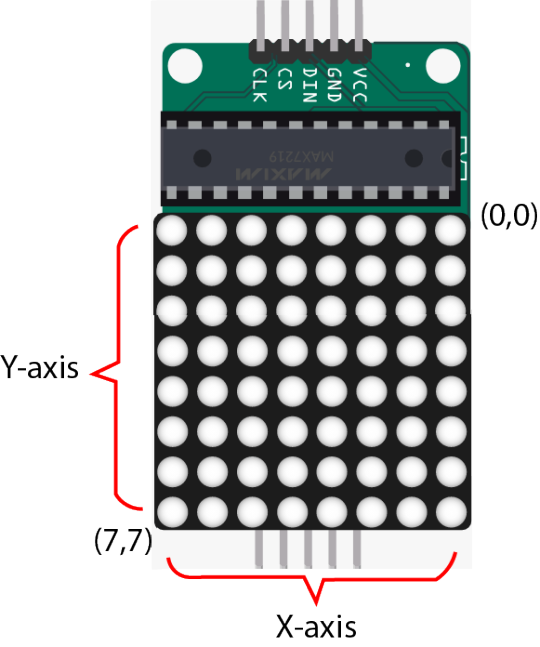

This project makes the “dots” on a dot matrix look like they are pebbles in a container. Tilt the device on one side and the dots fall toward that side. The same goes if the device tilts to the other side.
