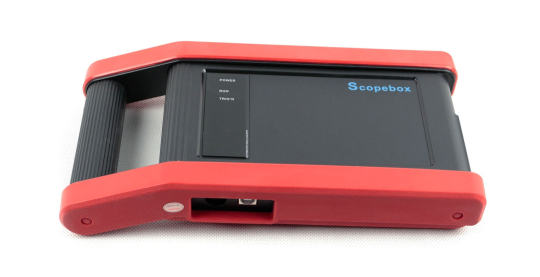

AutoMobile Diagnostic Sensorbox:

Description

Turn your professional diagnostics into a 4 channel Lab Scope with the LAUNCH Scopebox. The Scopebox quickly captures suspect / intermittent signals for waveform analysis via the screen of your X-431 PAD II. By analyzing waveforms, a variety of faults on sensors, actuators, circuits and electronic control units can be discovered - saving time on vehicle diagnosis and cutting down on unnecessary parts replacement costs.

Electrical signals and their waveforms can be recorded, displayed, compared and examined based on the following parameters: amplitude (the maximum voltage of a signal), shape (the form of the signal), pulse width (the duty cycle or time interval of the signal) and array (the repetition characteristics of the signal).

Features

Possibility to substitute known good waveforms for intermittent components that cannot be verified.

Contains a library of standard reference waveforms that can be modified by the stroke of a finger.

Generate hand drawn waveforms right on the screen.

Sensor simulations: - DC Voltage - Fixed frequency - Predefined waveforms - Hand-drawn waveforms.

Integrated multimeter test function: - Voltage - Resistance - Frequency.

Technical data (sensorbox)

Precision: +- 5%

Amplitude range: -12 to +12 V

Maximum output current: 70 mA

Predefined frequency range: 0 to 150 Hz

Square wave signal pulse frequency: 0 to 15 kHz

[launchindia-blog]

Turn your professional diagnostics into a 4 channel Lab Scope with the LAUNCH Scopebox. The Scopebox quickly captures suspect / intermittent signals for waveform analysis via the screen of your X-431 PAD II. By analyzing waveforms, a variety of faults on sensors, actuators, circuits and electronic control units can be discovered - saving time on vehicle diagnosis and cutting down on unnecessary parts replacement costs.

Electrical signals and their waveforms can be recorded, displayed, compared and examined based on the following parameters: amplitude (the maximum voltage of a signal), shape (the form of the signal), pulse width (the duty cycle or time interval of the signal) and array (the repetition characteristics of the signal).

Features

Possibility to substitute known good waveforms for intermittent components that cannot be verified.

Contains a library of standard reference waveforms that can be modified by the stroke of a finger.

Generate hand drawn waveforms right on the screen.

Sensor simulations: - DC Voltage - Fixed frequency - Predefined waveforms - Hand-drawn waveforms.

Integrated multimeter test function: - Voltage - Resistance - Frequency.

Technical data (sensorbox)

Precision: +- 5%

Amplitude range: -12 to +12 V

Maximum output current: 70 mA

Predefined frequency range: 0 to 150 Hz

Square wave signal pulse frequency: 0 to 15 kHz

[launchindia-blog]

Turn your professional diagnostics into a 4 channel Lab Scope with the LAUNCH Scopebox. The Scopebox quickly captures suspect / intermittent signals for waveform analysis via the screen of your X-431 PAD II. By analyzing waveforms, a variety of faults on sensors, actuators, circuits and electronic control units can be discovered saving time on vehicle diagnosis and cutting down on unnecessary parts replacement costs.

Electrical signals and their waveforms can be recorded, displayed, compared and examined based on the following parameters: amplitude (the maximum voltage of a signal), shape (the form of the signal), pulse width (the duty cycle or time interval of the signal) and array (the repetition characteristics of the signal).

Features & technical data

Record und save waveforms

Print stored waveforms

Extensive library of known good waveforms

Waveform auto set up on all 4 channels

Independent ground on each channel - allows for clean signal without interference or potentially damaging feedback

Including ignition set-up pre-selects

Ultra-fast capture of glitch occurrences with advanced triggers

Built-in square wave signal generator ensures verification of accuracy & calibration

Playback of waveform can be slowed down for observation and analysis

Highest sampling rate in the industry to capture the smallest possible glitch: Four channel: up to 200 MHz; single channel: 50 MHz

Bandwidth: 20 MHz

DC accuracy: +- 1%

Plug & Play: Software comes pre-loaded - nothing to install!

Connects via USB

Easy to use intuitive interface

High quality twist & lock BNC connectors

Including an array of conventional ignition adaptors

Including storage box and a comprehensive range of accessories

Contact Us

AutoMobile Diagnostic Scopebox
