How to Correct VW MQB RH850 R7F7014xx Mileage with CG100X?

Question:

Is it possible to correct mileage on VW MQB RH850 R7F7014xx dashboard by CG100X? Need cut wire or lift pin?

Eobdtool.co.uk engineer replied:

Yes. CG100X programmer has this function now. Need to update the software to V1.4.1.0.

Use capacitor removal way, and CG100X D1 Adapter is required. No Soldering! No Lift Pin!

Security decryption, stable operation!

MQB R7F7014 car models supported:

Volkswagen Passat, Magotan, T-ROC, Tayron, Bora, Sagitar, Tharu, Teramont, Tiguan, Lamando, CC, Golf, etc

MQB R7F7014 chips newly added:

R7F701402

R7F701407

Keep updating…

How to correct mileage of MQB R7F7014 with CGDI CG100X?

CG100X MQB R7F701402 wiring diagram

Volkswagen MQB power on the interface diagram:

Volkswagen MQB R7F701402 Capacitor Removal Way Diagram:

Follow the above diagram to remove those components and do not extend the wire harness of the D1 adapter.

CG100X MQB R7F701407 wiring diagram

KINDLY NOTICE:

Currently, the VAG MQB RH850/V850 mileage correction algorithms are not built-in, need to read mileage data, and send the data to CGDI engineer to modify mileage, and then write modified data back to cluster.

FYI…

CG100X V1.4.1.0Update Info on March 8th, 2024:

1.VW MQB added R7F7014xx mileage repair model.

2.Added 5 chips to Programmer.

3.Added 28 models to dashboard.

4.Added 2 models to read-write.

The following chips are added for Programmer.

W25Q80

W25Q16

W25Q32

W25Q64

W25Q128

The following models are added for dashboard.

baoding grabbing machine Wheel type wood grabber 24C04

BAIC MOTOR X7 2022- 24C16 (Dashboard)+95320 (BCM)

BAIC Weiwang M20 2014- 24C02 V2

BYD AUTO BYD Tang 2021- 24C16

Buick GL8 2013- 9S12H256

DongFeng brave warrior X5043

Toyota Previa MB91F060BS

Ford Territor S 2021- 24C16

FOTON Auman GTL 24C04

FOTON XiangLing Q 2023- 24C16

Haima HaiMa S7 2013- 24C04

Huatai Santafe A25 2016- 24C02

JAC haoyun 2020- 24C04

JMC Bus 2019- CAT1023

JMC YuHu 9 S6J334C

JieFang J7 24LC04

KaiMa Kaijie 2022- 24C04

MG MG 2015- 24C16 (BCM)

SANY SI16C Digger 24C04

Hyundai I10 2017- 24C16

XCMG 55 Excavator 2013- 24C64

ChangAn Auchan EV MPC5606S (SC667585CL SPC5606S)

ChangAn shenqi 24C04

ChangAn RuiXing M60 2022- 24C04

ChangAn RuiXing M60 2023- 9S12HY64

ChangAn Auchan X7(PLUS) 2022- 24C64

CNHTC HOWO -7 2016- 95640 (time)

CNHTC HOWO N5G270 2022- 95640

The following models are added for dashboard read-write.

Geely Yuanjing S1 2018- 24C16 Dashboard+D70F3637 BCM (read writer)

KIA seltos 2021- R7F701034 (read write)

[auto-tools]

CG100X Software Download, installation and activation

This post will guide you on how to download, install, and activate the software of the CGDI CG100X programmer.

CG100X Software Download: https://mega.nz/folder/3CIXXDJC#jJ4CdJ9T-eEYhkBYi6Z65A Click the link above to open the CG100X folder and download it to your computer.

CG100X Software installation and activation: Connect CG100X to the computer with a USB cable, and then open the software installed on the computer. Follow the prompts and select "Install" to complete the software installation.

Open "CG100X, it "prompts" "The device is not active, can not be used." "Before activation, please log in to your account and bind your device." Click "OK" to continue.

It comes to the current interface and selects "No account? Create one!" Fill in the following information and click "Next".

Choose one of the following two methods for verification. Here we use email verification. Click "Get verification code". Log in to your email to get the verification code, and click "Submit" to continue.

The account has been created successfully, you can sign in now. After successful registration, click "Activate the Device Now". Bind your device to your account, then activate it. Please confirm to continue. The activation is successful.

Video guides:

www.obd2shop.co.uk

[xhorseshop]

Read EEPROM without Soldering using CGDI CG100X Tutorial

In this guide, we will provide you with step-by-step instructions on how to use CGDI CG100X programmer effectively, ensuring a seamless experience. So let's dive in and explore the process!

To begin, make sure you have the following devices and accessories at hand:

CG100X programmer

EEPROM Adapter

EEPROM Clip

ECU

To establish the necessary connections for reading EEPROM, follow these steps:

Plug EEPROM Adapter into CG100X programmer

Connect one side of EEPROM Clip to EEPROM Adapter

Connect the other side of EEPROM Clip to ECU chip

Locating pin diagram

Before proceeding, it's crucial to locate the pin diagram for the specific chip you're working with. Fortunately, CG100X software provides an easy-to-access pathway to find the pin diagram:

Select Programmer > Manufacturer > Series > Chip

Double-click on the selected chip or click Next to proceed.

In the Pin Diagram section, you will find the detailed pin layout. For example, if you're using a 35 series 35080 160DOWQ/T chip, follow the path: Select 35 Series > 35080 SERIES > 160 DOWQ/T > double-click or click Next.

Having the correct pin diagram is vital for accurate and efficient reading of the EEPROM.

Navigate to the operation interface

Once you have completed the above steps, you will be presented with the operation interface. This interface allows you to control the reading and writing processes. To make the most of it, follow these guidelines:

Click on "Pin Diagram" option to access the required adapter and pin diagram information.

Review the pin diagram to ensure the correct adapter is selected and properly connected.

Select the relevant option from the interface to initiate the reading or writing of EEPROM data.

By following these instructions, you can effectively use CGDI CG100X programmer to read EEPROM without soldering. Remember to refer to the pin diagram, establish the necessary connections, and utilize the operation interface to perform the desired operations accurately. With this powerful tool in your hands, you can effortlessly read and write EEPROM data for various applications.

CG100X EEPROM support list download:

No password

[x431euinfo]

Toyota Tundra 2019 Odometer Repair using CG100X

CGDI CG100X is an affordable programmer covering airbag reset, odometer, Chip, ECU...

Here comes a review:

TOYOTA TUNDRA 2019 | CG100X TO REPAIR MILEAGE

Desolder chip from dashboard and solder it in ECU adapter.

In CG100X software,

Select

Serial>>RHXX>>RH66

Read and backup original dashboard data.

Select

Dashboard>>Asian Car>>Toyota>>Alphard>>RH66

Read dashboard data.

Enter new KM.

Write new data back to dashboard chip.

Solder chip back.

KM comparison.

Done! That's how to repair KM for Toyota Tundra 2019 using CG100X Programmer.

[obd2gatecom]

VW MQB D70F35xx Dashboard Activation Using CGDI CG100X

The CGDI CG100X Programmer is equipped with an integrated CAN driver, making the activation of Volkswagen MQB D70F35xx dashboards via the 12V (ON) function a seamless process.

Supported Varieties of MQB Dashboards:

This procedure supports various dashboard models, including D70F3524+95320, D70F3525 (A2C81589600), D70F3525+95320, D70F3526 (A2C81589700), D70F3526+95320, D70F3529 (A2C84582900), and D70F3532 (A2C81589500).

Instructions for Operation:

To proceed with this process, you will need the following devices and accessories:

Main unit of CG100X programmer

35X-CAN Adapter

CAN Cable

Volkswagen MQB D70F35xx dashboard

Follow the interface diagram to power on the Volkswagen MQB:

For dashboard types D70F3525 (A2C81589600), D70F3526 (A2C81589700), D70F3529 (A2C84582900), and D70F3532 (A2C81589500), refer to the provided connection diagram.

For dashboard types D70F3524+95320, D70F3525+95320, and D70F3526+95320, use the provided connection diagram.

Proceed as outlined below:

Insert the CAN cable into the appropriate slot on the MQB dashboard.

Connect the CAN cable and the 35X-CAN Adapter, and then link them to the CGDI CG100X device.

Open the CG100X software (We recommend using CG100X version V1.1.6.0 or V1.1.7.0).

Navigate to Dashboard >> European car >> Volkswagen D70F35xx >> MQB >> the relevant supported dashboard type.

Click on the “Start operation” button.

If you encounter an error message saying “No response…”, simply press “OK” to continue.

Press the “12V (OFF)” button; it will illuminate and display “12V (ON)”.

Simultaneously, the VW MQB dashboard will initiate automatically. You will observe the VW logo appearing, and the startup sound of the instrument will play as usual.

The process is now successfully completed!

CGDI CG100X price on OBD2gate.com:

[obd2gate-com]

VW MQB D70F35xx Dashboard Activation Using CGDI CG100X

The CGDI CG100X Programmer is equipped with an integrated CAN driver, making the activation of Volkswagen MQB D70F35xx dashboards via the 12V (ON) function a seamless process.

Supported Varieties of MQB Dashboards:

This procedure supports various dashboard models, including D70F3524+95320, D70F3525 (A2C81589600), D70F3525+95320, D70F3526 (A2C81589700), D70F3526+95320, D70F3529 (A2C84582900), and D70F3532 (A2C81589500).

Instructions for Operation:

To proceed with this process, you will need the following devices and accessories:

Main unit of CG100X programmer

35X-CAN Adapter

CAN Cable

Volkswagen MQB D70F35xx dashboard

Follow the interface diagram to power on the Volkswagen MQB:

For dashboard types D70F3525 (A2C81589600), D70F3526 (A2C81589700), D70F3529 (A2C84582900), and D70F3532 (A2C81589500), refer to the provided connection diagram.

For dashboard types D70F3524+95320, D70F3525+95320, and D70F3526+95320, use the provided connection diagram.

Proceed as outlined below:

Insert the CAN cable into the appropriate slot on the MQB dashboard.

Connect the CAN cable and the 35X-CAN Adapter, and then link them to the CGDI CG100X device.

Open the CG100X software (We recommend using CG100X version V1.1.6.0 or V1.1.7.0).

Navigate to Dashboard >> European car >> Volkswagen D70F35xx >> MQB >> the relevant supported dashboard type.

Click on the “Start operation” button.

If you encounter an error message saying “No response…”, simply press “OK” to continue.

Press the “12V (OFF)” button; it will illuminate and display “12V (ON)”.

Simultaneously, the VW MQB dashboard will initiate automatically. You will observe the VW logo appearing, and the startup sound of the instrument will play as usual.

The process is now successfully completed!

CGDI CG100X price on OBD2gate.com:

[eobdtooluk-blog]

Lonsdor K518 Pro OBD Cable Hardware Self-Check Guide

How to check if the OBD cable hardware of Lonsdor K518 Pro Key Programmer is damaged or normal?

You can use the OBD hardware self-check function in the device software to test it easily.

Step-by-step guide:

Click [Immo & remote] on the main menu of K518 Pro key programmer

Select OBDII>> OBD hardware self-check>> OBD hardware self-check

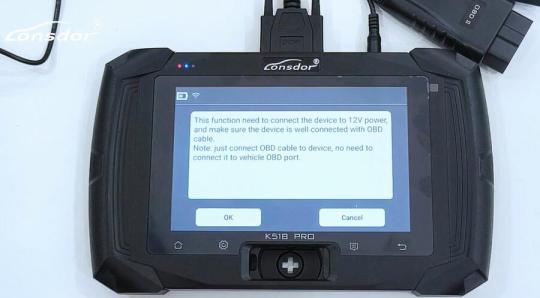

Connect the 12V power supply and OBD cable to K518 Pro correctly

No need to connect OBD cable to the vehicle OBD port

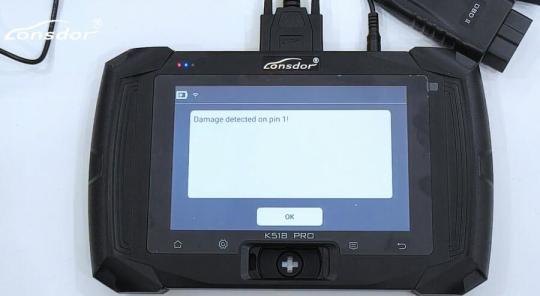

The system detects the OBD cable problem “Damage detected on Pin 1”.

We disconnect the current OBD cable, and use another OBD cable to connect with Lonsdor K518 Pro device.

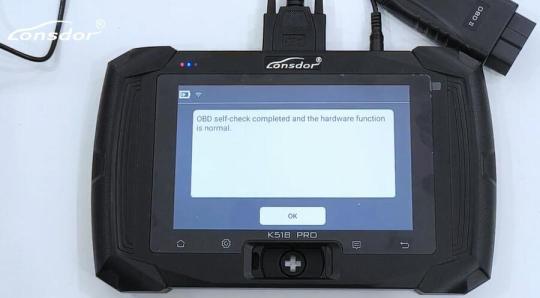

OBD cable self-check completed and the hardware function is normal now.

Besides, there is a small bulb symbol in the upper right corner. It can open the light of OBD cable to help users find OBD port easier in the dark.

[eobdtooluk-blog]

CG100X V1.8.1.0 Update: Added More Airbag ECU

CGDI CG100X Programmer releases a new software V1.8.1.0 on April 21st, 2025. It adds Toyota 89170-08250 R7F701644 (encrypted), SAIC C00047622 R7F7010643 (encrypted) for airbag, etc. Check the detailed update info below and update your device ASAP.

CG100X V1.8.1.0 Update Info:

Added 19 models to dashboard.

Added 3 models to airbag.

Added 6 models to read-write.

The following models are added for dashboard.

Spring breeze CLX700 2020- 24C04

Dayun Auspicious dragon 25256

FOTON Tunland S 24C08

FOTON Yuling V5 STM8S105C6

Space WanShan Low-speed EV STM8S105S6

Geely CaoCao 60 24C16

TODAY SUNSHINE S250 2023- 24C08

JinBei T10 2021- 24LC02

KINGLONG Haige 24C16

Nezha J01 2019- 24C04

Sanye Cyber 150ADV 24C08

Wandi motorcycle STM8S105S6

WuLing Bao Jun Cloud EV 2023- 24C64

ISUZU ISUZU TAGA 24C16

ISUZU D-MAX 2018- 9S12HA48

Xiagong Digger 95640 (ECU Controller)

ChangAn CS35 9S12HY64

ChangAn Cross Star V5 EV 2024- 24C16

TJFAW Lanjian H6 2021- 24C64

The following models are added for airbag.

Toyota 89170-08250 R7F701644 (encrypted)

Geely 8891612657 R7F701A033 (encrypted)

SAIC C00047622 R7F7010643 (encrypted)

The following models are added for dashboard read-write.

Benz 2038206385 60 040622 2620 CR16MCT9V (read write)

BYD AUTO BYD Seagull 2024- 95128 (Body) read write

SAIC C00262208 R7F7010643 (encrypted) (read write)

SWT FanDouChe R5F10DPEJ (read write)

Universal Decryption R7F701330 R7F701330 Type9 (encrypted) (read write)

Universal Decryption R7F701330 R7F701330 Type10 (encrypted) (read write)

Universal Decryption R7F701330 R7F701330 Type11 (encrypted) (read write)

ChangAn 3658100-MK06-CR30 R7F701A033 (encrypted) (read write)

Great Wall Havel H6 2023- 24C32 (Head Unit) (read write)

[eobdtooluk-blog]

CG100X VW MQB V850 5A RH850 Dashboard Mileage Correction Support List

CGDI CG100X Programmer supports mileage correction for VW MQB V850 (D70Fxx)/RH850 (R7F7xx) dashboard. D1 Adapter is required for most MQB dashboards. You need to distinguish the 5A and 5C dashboard types. Only 5A cluster is supported by CG100X currently. Check the related MQB dashboard and 5A/5C dashboard support list to confirm if your dashboard can work with CG100X before operation.

1.CG100X VW MQB Mileage Correction Support Listt

*Incl. VAG MQB V850, Johnson Control dashboard, VAG MQB 5A RH850 dashboard

2.VW 5A & 5C Dashboard and Chip List

Learn more:

CG100X Volkswagen MQB Mileage Correction Important Information Introduction:

How to correct mileage of MQB48 dashboard by CGDI CG100X?

[eobdtooluk-blog]

CG100X V1.5.1.0 Update and Free Download

CG100X V1.5.1.0 was newly released for CGDI CG100X Programmer on May 25th, 2024. It added 30 models to dashboard. Check the detailed update info and free download link below.

Update info:

1. Added 30 models to dashboard.

The following models are added for dashboard.

VESPA GTS 300 R5F10DLXXX

Aochi X3 2023- 24C04

BAIC CHANGHE BEIDOUXING 2017- 9S12ZVH128

Besturn E05 2022- 24C16

Besturn T55 2023- 24C16

Honda FREED 2020- 93C86

BYD AUTO T5D 93C86

DongFeng Fengshen E70 PRO 2023- 95160

DongFeng fengxinglingzhi PLUS 9S12HY32

FOTON Oumake X122 24C64

Hanwo 1804 agricultural machinery 25640 (times)

JMC Wweilong HV5 2020- 24C16

JieFang Lion 2022- 24C08

JieFang J6V 2023- 24C16

JinLv XUEHU 25LC1024

Liugong Digger 24C64 (RC64)(times)

KIA The maxxima 2008- 93S56

SADING Tractor 24C01 (times)

Shaanxi Auto K5000 MB91F53BC

Shengang 55 Digging machine 9S12ZVH128

Tianji ME5 2021- R5F10DSLL

Viknoson 55 Digging machine 24C01 (times)

Ward AOlongTractor R5F10DPJ (times)

Ward Harvester STM8S208RB (times)

Xiao Peng P7 93C86 (Central gateway processor)

ChangAn kaicheng F300 2023- 24C04

ChangAn shenqi 2018- 9S12HA32 (2 hand)

Great Wall Euler black cat 2020- 24C64

Great Wall Havel First love 2021- 25160

ZhongTong Bus 2016- 9S12XHY256

How to update CG100X software?

Method 1: Free download CG100X V1.5.1.0

Method 2:

Connect CG100X and PC via USB cable, and follow the prompt to update software directly.

[eobdtooluk-blog]

CGDI CG100X Update to V1.8.7.0

The newest software of CGDI CG100X Programmer is updated to V1.8.7.0, which adds 15 new dashboard models and 3 read/write functions. Check the details below and update your device soon.

Free download CG100X V1.8.7.0

Update details:

1.The following models are added for dashboard.

Aochi Autocar V6 2020- MPC5606S (SC667545VLU6)

Benenlli Huanglong 300 2019- 24C08

Dayun Pickup V5 2023- 24C64

DongFeng Duolika 2023- 93C66

DongFeng Ruichi EK07S 9S12HY64

Toyota PRIUS 2014-2017- 93A66 (93C66)

Toyota Previa XR50 2012- MB91F060BS

Ford V362 RV 2024- R5F10DSKL

FOTON Oumake S1 130 2020- 24C08

Hanteng E+ 2018- 24C16

HONGQI HQ9 24C32

MAXUS MIFA9 2022- 24C16

Hyundai Kona Electric 93C56

YuJie yogomo 24C02

ChangAn Electric Bus 25LC1024

2.The following models are added for dashboard read-write.

DongFeng HuashenT5 2019- MB96F696R (read write)

MG MG7 2023- 95160 (Dashboard)+95640 (Body)read write

Chery Tiggo 8 2020- 24C16Digital Read-Write

[eobdtooluk-blog]

CGDI CG100X V1.7.2.0 Update: Added 4 Models to RH850 Decryption Airbag

CGDI CG100X Programmer will release the new version V1.7.2.0 soon.

Added 16 models to dashboard.

Adds 4 models to RH850 decryption airbag.

Added 10 models to read-write.

The following models are added for dashboard.

Toyota BZ3 2023- 25640(BCM)

FOTON Landscape G5 2024- 24C16

FOTON TimeEV6 2023- R5F10DL

FOTON xiangling M2 2023- 24C16

Geely geometry G6 2022- 24C32 (Multimedia host)

JAC Devos 2022- 24C08

JMC JMMC 2014- CAT1023

Chery jietu X70S 2022- 24C16 (4G16)

qianjiang race Hong125 2023- 24C64

Roewe RX5 PLUS 2022- Dashboard 95640+BCM95640

Roewe EI6 2019- Dashboard 25320+BCM95640

WuLing Yunduo 2023-24C64

WuLing Hongguang EV 2022- 24C02

YAMAHA FUying 2023- 24C04

ChangAn CS35 PLUS 2022- 24C64

Zhongxing ZhongXing Pickup 2021- 24C04

The following models are added for RH850 decryption airbag.

BAIC A512C00112 R7F7010643 (encrypted)

Toyota 89170-08260 R7F701644 (encrypted)

LINCOLN MA1T-14B321-AD R7F701A033 (encrypted)

SAIC C00262208 R7F701A033 (encrypted)

The following models are added for dashboard read-write.

BAIC Huansu H2E 2018- 24C04 (read write)

BAIC BJ80 2016- MPC5606S (Dashboard)+95320BCM (read write)

BYD AUTO BYD Chinese 2022- 25256 (Left body module) (read write)

Dayun Fengchi ZiXieChe 2022- MB96F696R (read write)

Trumpchi Hechuang Z03 2023- 24C32 (read write)

Trumpchi 8040003ARRD0400 R7F7010643 (encrypted) (read write)

Geely 660809888 R7F701330 (encrypted) (read write)

LYNK&CO 8891944731 R7F701330 (encrypted) (read write)

ChangAn Honor 2023- 9S12HY64 (read write)

ChangAn 3658130XVC01A R7F7010643 (encrypted) (read write)

[eobdtooluk-blog]

CG100X V1.7.0.0 Update

CGDI CG100X Programmer released the newest software V1.7.0.0 on Jan. 11th, 2025. It added Toyota BZ4/BX4/ Platinum 4X/ frontlander/ COROLLA / Levin R7F701441 dashboards and more.

Update Info:

Added 43 models to dashboard.

Added 2 models to airbag.

Added 11 models to read-write.

The following models are added for dashboard.

BOneng Shangrao Bus CAT1023

Volkswagen MQB R7F7014xx-Removal of capacitor way R7F701421 (Only 5D Meters)

DongFeng Furuika PIC16F946

DongFeng Furuika 2021- PIC18F66K80

Toyota BZ4/BX4 R7F701441

Toyota Platinum 4X R7F701441

Toyota frontlander R7F701441

Toyota COROLLA R7F701441

Toyota Levin R7F701441

FOTON lead G5 2024- 24C16

FOTON Oman Galaxy 24C04

Hangzhou forklift Forklift PIC16F914

HELI Forklift PIC16F917

LEVDEO Electric car PIC18F45K80

LEVDEO COCO 2019- PIC18F45K80

LEVDEO S50 2018- PIC18F45K80

Long Xin WUjiLX500S 2022- 24C64

Meikesi Forklift PIC16F887

Nanjun Ruiyu STM32F105VC

qianjiang race sai450 24C02

Sanhuan Maker New energy 24C04

SAIC Chase MIFR9 24C16

lshikawa lsland Digger 95640

Tianlong Flagship 660 24C256 (Head unit) (mileage+Fuel consumption)

Wilma W6 FS32K146+24C64 (Entertainment console)

Ward AOlong R5F10xxx

Hyundai IX35 2023- 24C16 (4G16)

Hyundai Kustu 2023- 24C16

Hyundai Sheng Tu 2020- 9S12XHY128

Hyundai Elantra 2016- D70F3526

New energy Old man s pleasure K3 STM8S105K6

XINYUAN HIACE 24C16

XCMG DIAOCHE 24C16 (Six pointers) mileage

YAMAHA XMAX300 93C66

Yutong Bus 2013- 24C08

Yutong Business bus 2016- 24LC16

YuJie 260 R5F10xxx

ChangAn Rui chengPLUS 2023- 24C64

ChangAn Auchan Z6 2023- 24C64

Know beans Know beans D3 24C02

TJFAW Yiqilingyuan 9S12HA48 (Two poiners)

CNHTC Tuoche R5F10PMHL

ZOOMLION CarCrane 24C256

The following models are added for airbag.

FAW 1EA0-57K30-A R7F701A033 (encrypted)

ChangAn 3658100-MK01-BS03 R7F7010643 (encrypted)

The following models are added for dashboard read-write.

Aichi U5 2019- Dashboard 24C04+BCM D70F3637 (read write)

BYD AUTO BYD Chinese 2021- R7F701581 (read write)+24C16 (Dongfeng)

Volkswagen The Beatles 2017- D70F3427+ 95320 (read write)

Trumpchi GM8 D70F3532 (read write)

Geely 6608095757 R7F701330 (encrypted) (read write)

JieFang J6F EV R7F701441 (read write)

LOVOL Tractor PIC16F917 (read write)

LYNK&CO 8894157613 R7F701330 (encrypted) (read write)

qianjiang race sai600 24C16 (read write)

Nissan Sylphy S6J329 (read write)

ChangAn UNI-T 2023- 24C32 (read write)

[eobdtooluk-blog]

CG100X V1.6.8.0 Software Update

CGDI CG100X Programmer released the newest software V1.6.8.0 updated on December 28th, 2024. It newly added Universal Decryption RH850 Decryption R7F7010643 Type 5 and RH850 Decryption R7F701644 Type1 (encrypted) (read write), etc.

Update info:

Added 39 models to dashboard.

Added 2 models to airbag.

Added 10 models to read-write.

The following models are added for dashboard.

Aprilia GPR150 24C16

Ankai Big Bus 24C16

PORSCHE 718 Boxster 2012- 93LC86

BAIC EU5 Dashboard 24C64+ BCM 95320 V2

BAIC WangpaiM7 2023- 24C16

BAIC RUIsheng wangpaiM7 2023- 24C16

Peugeot partner 2020- DashboardR5F10DPKL+BCM95128

DongFeng FengShen HAOJI 2022- 24C32

Trumpchi YINGku 2023- 95160

JiAo Shuailing R5F10DLECJ

Geely geometry G6 24C32 (Multimedia host)

Geely Chocolates 24C08

JAC ShuailingC5 24C16 (4G16)

JAC T6 2017- 24C04

JAC JUNLING 2024- 24C16

JMC JMMC BUS 2015- CAT1023

JieFang jiefang 2024- 9S12HZ128

leijun Electric R5F10CGBJ

LOVOL King kong 2nd RG70generation harvester 2014- 24C04 (controller) mileage+ time

LOVOL Corn harvester 2020- 24C04 (time)

Lingong 953N ZhuangZaiJi 24C08

Suzuki DR300 93C66

LUgong Forklift MPC5606S

MG MG6 Dashboard24C32+BCM95640

Sanyang motorcycle 24C04

Shaanxi Auto Delong L5000 2024- 24C32

SAIC JieShi M500 93C66

Tairong 150 scooter 24C08

TongLiZhongGong ZiXieChe Instrument modification 24C02

WuLing Mini 24C02

WuLing Yangguang 24C16

WuLing Baojun 530 2020- 24C16

WuLing BenKo 2024- 24C02

Starlight YU long Tractor R5F10TPJJ (time)

Yanmar Digger 24C02 (time)

Yutong 6708DH 9S12HA32

ChangAn Chang'an star 9 9S12HY32

Know beans 301C 9S12HY64

Nezha V 2022- Dasboard9S12G128+BCM95640

The following models are added for airbag.

WuLing 23756334 R7F701A033 (encrypted)

ChangAn 3658100-MK06-CR02 R7F7010643 (encrypted)

The following models are added for dashboard read-write.

BYD AUTO Yuan PLUS 2023- 25256 (Left car body) (read write)

BYD AUTO BYD qing PLUS 2022- 25640 (read write)

BYD AUTO BYD Yuan 2017- 93C86 (read write)

BYD AUTO BYD YuanEV 2018- 93C86 (read write)

Toyota VIOS 2020- MB91F060BS (read write)

KAIwo ChuangweiEV6 2022- 9S12HY64 (read write)

LOVOL 80PRO 2023- 24C04 (mileage+time (read write)) Vehicle body controller

MG MG5 2022- Dashboard95160+BCM95640 (read write)

Universal Decryption RH850 Decryption R7F7010643 Type 5 (encrypted) (read write)

Universal Decryption RH850 Decryption R7F701644 Type1 (encrypted) (read write)

[eobdtooluk-blog]

Can CG100 Prog III Repair VW MQB Cluster Mileage?

Good news!!! CG100 Prog III can repair mileage for VW MQB D70F34XX DF0F35XX 5A clusters the same as CG100X now.

It requires CG100 Special VW MQB Instrument Repair Adapter and D1 Adapter to work together. No need to cut wire or lift pins!

CG CG100 D70F34xx/D70F35xx Adapter Functions:

Help users quickly and non-destructively calibrate the instrument mileage,

Help to change the mileage

Help to do the instrument testing

Support repeated use

In addition, CGDI CG100X Programmer only needs CG100X D1 Adapter to repair mileage on VW MQB V850 (D70FXX) 5A and RH850 (R7F7xx) 5A & 5C & 5D clusters.

Support models:

D70F34XX 5ACluster

DF0F35XX5A Cluster

Volkswagen MQB D70F3526 (A2C81589700) (read-write), D70F3529 (read-write), D70F3532 (A2C81589500) (read-write)

Volkswagen D70F35xx MQB D70F3525 (A2C81589600)

Volkswagen MQB D70F3525 (A2C81589600)

Volkswagen D70F35xx MQB D70F3526+95320 (read write)

Volkswagen MQB D70F3525+95320

Volkswagen D70F35xx MQB Full LCD D70F3525 (A2C81589600)

Volkswagen D70F35xx MQB Full LCD D70F3526

Compatible the car models:

Volkswagen Passat, Magotan, T-ROC, Tayron, Bora, Sagitar, Tharu, Teramont, Tiguan, Lamando, CC, Golf, etc

R7F701401 (5A and 5C Clusters)

R7F701402 (5A and 5C Clusters)

R7F701407 (5A and 5C Clusters)

R7F701404 (Only 5C Clusters)

R7F701406 (Only 5C Clusters)

Volkswagen MQB R7F7014xx-Removal of capacitor way R7F701404 (Only 5D Meters)

Volkswagen MQB R7F7014xx-Removal of capacitor way R7F701401 (Only 5D Meters)
