Extraction

The process of developing some better assets for the vertical slice began in earnest today. I wanted to turn my attention to the very first thing the player will be doing - setting up extractors to pull up material from the underlying asteroid.

Time to replace the ugly placeholder assets!

My typical workflow for this is to set up a new Blender file with a placeholder tile that represents the footprint of a single grid tile. This helps me keep within a size boundary and helps me to contextualise the height of things a bit easier.

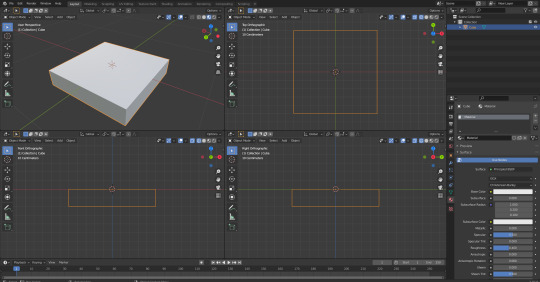

My default Blender file for setting up new objects that will sit on the level grid.

I then set up a new texture file in Photoshop for the object at 1024x1024 pixels in size. Not quite the 4k textures that you might see in AAA studio games - but this is a management / factory game, and super high resolution textures are just wasted at the draw scale of most objects in the game!

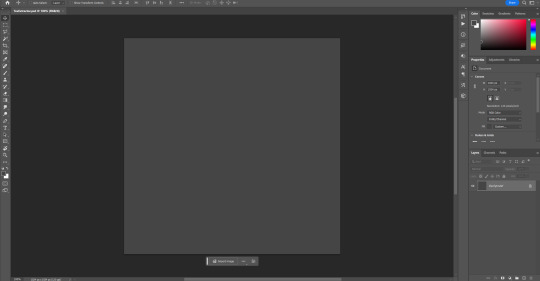

An empty texture. I'd best start doing some painting!

It's then time to rough out the geometry into something resembling my idea for an extraction machine. I'm limited somewhat by my (arbitrary) decision to have this object only occupy 1 tile, but it's mainly because I don't want these objects being too large when you have a factory to fill with other more interesting things!

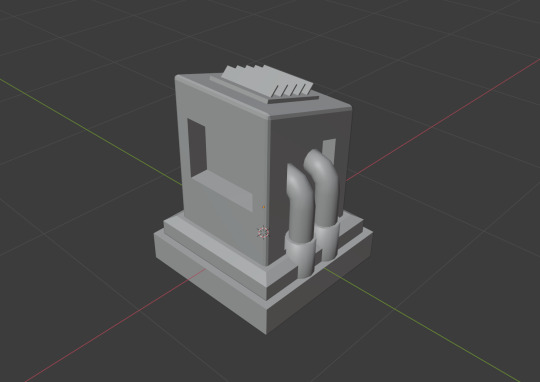

A shot of the front of the new Extractor model.

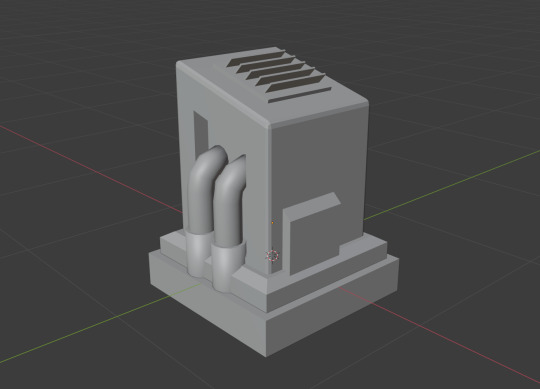

And from the rear, giving a better look at the vent and back detail.

I then start blocking out rough colours and areas in the texture map, making sure to consider the size / shape of the actual model surfaces they'll be applied to. Then I'll add some small surface details, maybe some decals, and a small amount of scuffs and scratches just to break up the smoothness of it all.

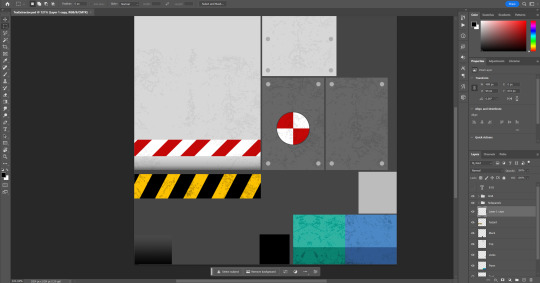

An almost complete texture map!

I keep refreshing this PSD texture in Blender (I don't bother exporting actual image textures at this stage, since PSDs are natively supported in Blender), this keeps the model up to date and also lets me progressively work my way over each part of the model and align up its texture coordinates.

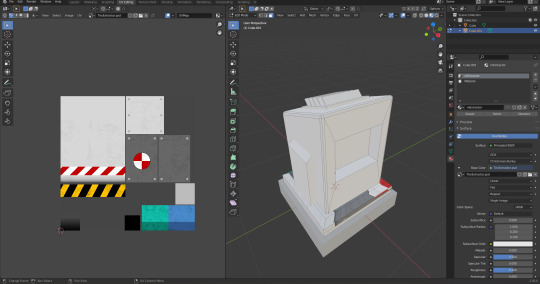

A freshly imported texture. I haven't yet started mapping polygons to areas of the texture map yet.

Some people use UV-unwrapping techniques for laying out and painting textures, which I find great for more organic shapes. But for more angular, man-made objects, I often find it easier to map the texture to the model, rather than the other way around.

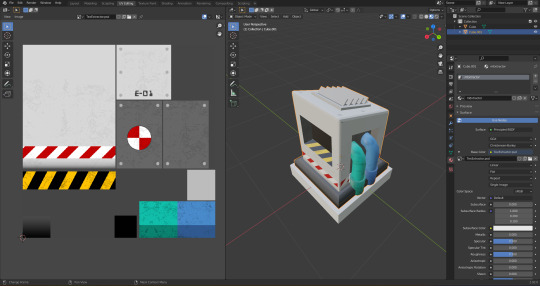

After some final texture tweaks and some polygon UV mapping, we have a finished model!

Once I've finished texturing, I export the Blender model as an FBX and import into Unity, making sure not to import the Blender material, animation rigs or any of that other stuff (I prefer to set up most of those things within Unity itself).

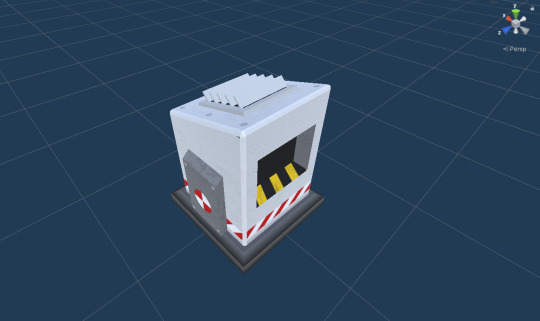

A finished model!

I perform a final pass on the texture to create a height map from it (grayscale). This is used to generate a normal map to bring out some of the surface details under certain lighting conditions. Not essential for this game, but in the event I add any situational lighting, it'd be nice to catch some of those details in specular highlights created by the normal map. It's just a nice bonus.

So that's about it for this one. It was a fun lunch break to set this up, and you can see how it looks in the game below.

Thanks for sticking around, and have a great day!
