cmxelcs · 2 months ago
Text
Tumblr media
PIC18F2580 I/SO I/ML I/SP for Microchip MCU Supplier   The PIC MCU Number:PIC18F2580,IC MCU 8BIT 32KB FLASH 28SOIC Online default price and shipment is PIC18F2580-I/SO,and SOP-28 package as picture show online. There is DIP and QFN package available,but the letter is difference,contact us to inquire the price. There is serial variants.Contact us to inquire if you interested with much more quantity than online MOQ. All the Integrated Circuits we provide are from original manufacturer.So datasheet you have in hand are universal use,if you not have the datasheet,they usually can be get from original factory. Online price is for refference,since price is changing at sometimes,inquire the latest price is better. Online Date Code only for refference,different lot date code maybe difference than online picture.All date code or lot number is as actual received shipment.   About Online Price and MOQ: As you see in the quantity blanket,MOQ is 100 units,if you interested with much more quantity than our MOQ,welcome to chat with us via whatsapp to consult. Tips:We not only distribute this micro chip ic number but also available for other different parts number,like below showing: - PIC18F2550-I/SP - PIC18F2550-I/SO - PIC18F1220-E/ML - PIC18F6620-I/PT - PIC18F2580-I/SO - PIC12F675 - PIC18F4580 - PIC18F4520 - PIC16F877A - PIC18F452 - PIC12F508 - PIC12F675 - PIC16F84 - PIC16F872 - PIC16F628 - PIC16F676 - PIC16F690 - PIC16F72 - PIC16F84 - PIC18F2580-I/ML - PIC18F2580-I/SP ...... Other more electronic components inventory stock are not able to post online,welcome drop us email or chat via whatsapp to know more. If you are looking for something else about the electronic components bom list,they are also available to supply.Integrated circuits including power ic, logic ic, control ic, driver ic, monitor ic, inerface ic etc. Distribution brand including ADI,Micron,ATMEL, MICROCHIP, ST, TI, NXP, INFINEON,ON TDK etc.Welcome drop us email to send a enquiry. If you are looking for a reliable and trustworth ic supplier,then this is a good place you comes.Contact us to talk via whatsapp with sourcing request for quotation,we'll respond you soon. Know more about company product catagory here. Read the full article
0 notes
quartz-components · 2 years ago
Text

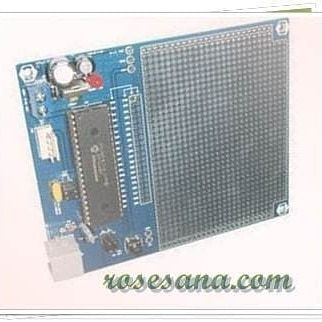

PIC16F877A is the most commonly used entry-level 8-bit PIC Microcontroller. It is a 40-pin 8-bit Microcontroller with 14kB of program memory. It does not have an internal oscillator but can work up to 20MHz with external oscillators. The controller has 8 ADC channels with 10-bit resolution and also supports PWM on 2 pins. It has two 8-bit timers and one 16-bit timer and supports communication protocols like UART, SPI, and IIC. You can also check other PIC microcontroller Components.
1 note · View note
jayakody2000lk · 7 years ago
Video
youtube

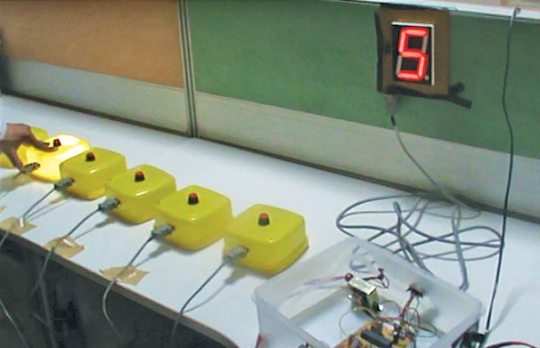

This is simple sensor kit to drive 8 active or passive sensors and log it's data into remote Android application. This system also have an option to activate external device(s) based on specified threshold of sensor data. This sensor controller is mainly build around Raspberry Pi Model 3 B+ and PIC16F877A MCU. PIC16F877A MCU is used to interface/select sensors and it's built-in 10bit multi channel ADC is used to capture the analog signals from sensors.
All the schematics and source codes of this project are available to clone at https://github.com/dilshan/android-datalogger.
1 note · View note
sphi2gess · 5 years ago
Link
Microchip PIC16F877A-I/P in Tube. PIC16F Series 14 kB Flash 368 B RAM 20 MHz 8-Bit Microcontroller - PDIP-40.
1 note · View note
sdizdar · 2 years ago
Text
Working with EEPROM on PIC16F877a
EEPROM (Electrically Erasable Programmable Read-Only Memory) is a type of non-volatile memory which can be programmed, erased, and re-programmed electrically while it is on the circuit board. The main problem of FLASH and RAM memories is in fact that they are not capatible for storing data which will be stored after loss of the electric power. A majority of PIC microcontrollers (for example PIC16F877a) come with some built-in EEPROM which is a great place to store data that should not be lost when the system is powered down. Actually, FLASH can be used for that purpose, but it is a little bit complicated and for data access you need to write a special software called Bootloader. PIC16F877 has a 256 bytes of EEPROM memory. A good example for EEPROM is a digital lock system where the access code can be stored in the EEPROM of microcontroller so that the contents remain intact even after the power supply has been removed. For more clearer example, you can use internal EEPROM to store the measured temperature values. Reading and writting to EEPROM is pretty straightforward, and it’ relativelly easy.
To read EEPROM you need to:
1.Write an address of EEPROM you want to read into EEADR register
2. Set EEPGD bit from EECON1 register to 0 so the next operations can refer to EEPROM (and not FLASHROM)
3. Set RD bit from EECON1 register to begin EEPROM reading
4. The data is stored in EEDATA register.
Sample code is below:
void delay(char n) { //function that inserts delay 5ms char i; // we need it because we will send data from EEPROM to LED OPTION=7; // diodes which are on PORTB do { clrwdt(); i=TMR0+39; while(i!=TMR0); }while(–n>0); } void main(void){ TRISB=0; EEADR = 0; EEPGD = 0; // 0 enables to read write from EEPROM-a ..
// EEPGD=1 means that we want read/write access to FLASHROM unsigned char eeprom_address = 0; for(eeprom_address = 0; eeprom_address< 0xFF; eeprom_address++) { // for loop for reading EEPROM and displaying it on PORTB EEADR=eeprom_address; while(RD); //wait to finish EEPROM reading delay(50); PORTB=EEDATA; if(eeprom_address==0xFF) eeprom_address=0; } }
I will write about writting to EEPROM in next post.
