How to use stepper motor with arduino in proteus

Arduino bipolar stepper motor speed and direction of rotation control with L293D driver - Proteus simulation.

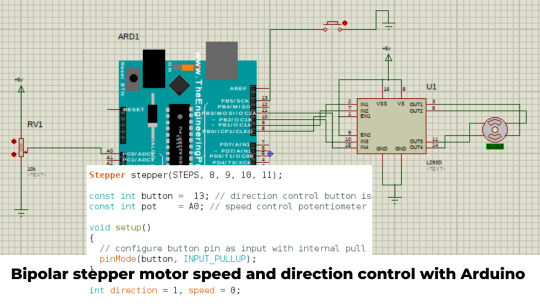

Bipolar stepper motor speed and direction control with Arduino

stepper motor driving with arduino UNO and L293 driver in proteus

Speed Controll by Potentiometer

.............................

Hardware Required:

   Arduino UNO board    Bipolar stepper motor    L293D motor driver chip    10k ohm potentiometer    Pushbutton    Power source with voltage equal to motor nominal voltage    Bread board    Jumper wires

.....................................

The 4 inputs are connected as follows: IN1 to Arduino pin 8 IN2 to Arduino pin 9 IN3 to Arduino pin 10 IN4 to Arduino pin 11

.........................................

The 10k ohm Potentiometer is used to control the speed of the stepper motor, its output pin is connected to Arduino analog pin 0.

......................................

The push button which is connected to Arduino pin 13 is used to change the rotation direction of the stepper motor.

[arduinoblink]

Control Speed and Direction of DC Motor (Proteus+Arduino Code)

[arduinoblink]

How to use PIR Motion Detector Sensor with Arduino With Code and Proteus

[arduinoblink]

Led Knight Rider Both Side simple code arduino with Proteus Simulation

[arduinoblink]

7 Segment Display Counting From 0 to F

[arduinoblink]

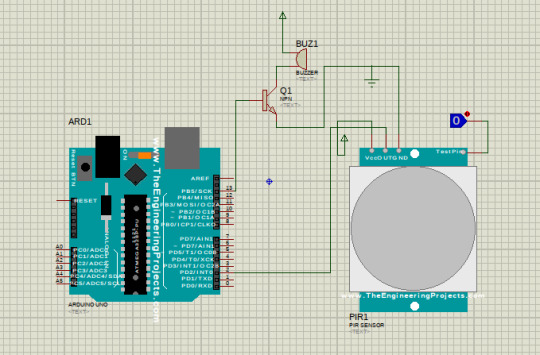

PIR Sensor with Buzzer connection to Arudino uno
