If you would like to purchase other products with your engine, such as an injection pump, turbo, injectors, etc... we can either ship them in a box with your engine or we can install them for you, so your engine is ready to go. Contact us for a quote on labor for installing them.

Over the years the Mercedes-Benz OM606 Turbo Diesel Engine has been called many things; it is a 3.0-liter inline-six engine produced from the 1990s, and it is known for its immense durability, consistent power, and incredible ease of tuning. Derived from models such as the W124 and W210 E-Class, this turbocharged engine – MB 105, provides around 174 HP Power at 1800-5400 RPMs, with 330 Nm torque at 1300- 4000 RPMs, which gives power and fuel efficiency for regular use and performance. Most notably, the OM606 is sought after for engine swap projects, classic Mercedes’ restorations, off-road vehicles owing to its longevity as well as flexibility to do modifications in as a bid to enhance its horsepower. Some of these are; a turbocharged system enhancing its fuel consumption, compatibility with previous model Mercedes automobiles, and the inline-six forming a great basis of its efficiency and silent operation. Highly regarded by many enthusiasts because of its versatility, the OM606 is still favored by motorists who wish to have a good and tunable diesel engine.

[benzinjection]

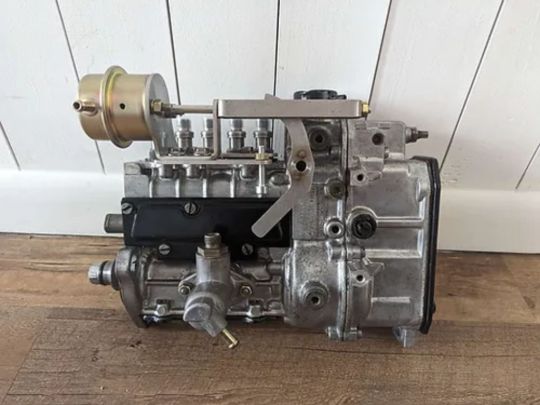

Want performance and tunability for your OM617? These M pumps provide just that! Unlike the MW pumps, you can tune and adjust the fuel to your liking using the external ALDA. These are a direct replacement of the MW pumps found on all US Mercedes-Benz OM617 engines. These rare M pumps had to be imported from Europe.

[benzinjection]

Benz Injection W210 OM606 Turbo Kit Comparison

Want to get 300 HP out of your 98-99 Mercedes-Benz E300 without touching the injection pump, welding, fabricating or guessing what all you need? Introducing the one-and-done, all-in-one, complete turbo kit.

Includes:

T04E Turbocharger

Sean Treacy Stage 2 Tuned ECU (EGR, SOV & MAF deleted)

Swan Manifold Adapter, gasket & hardware

Custom turbo downpipe & V-band clamp

Oil feed block fitting, oil feed line, turbo oil feed fitting, gasket & hardware

Oil drain fitting, gasket, hardware, hose & clamps

Air filter, extension pipe, CCV hose & clamps

Intercooler connector hose & clamps

Basically, this kit comes with EVERYTHING you need, nothing you don't and no welding or fabricating. It is designed around Sean Treacy's famous Stage 2 tuned ECU, which maxes out the stock EDC injection pump and stock 722.6 transmission. He swears by the T04E Turbo, his #1 recommendation for 300 HP on a OM606 in a W210.

Please note that this kit is designed to be as inexpensive as possible. There's nothing flashy about it. It's designed to work well, be easy to install and get you as close to 300 HP as possible. Price out this kit and you'll be at this same price or higher.

In order to create this kit, a stock ECU and downpipe are needed. By purchasing, you agree to send back your core ECU and downpipe after installation. A prepaid shipping label will be provided. You will be refunded $100 for your ECU and $20 for the downpipe.

[benzinjection]

Here is an in-depth comparison of the last three series of IDI turbo diesels Mercedes-Benz made: OM617, OM602/OM603 and the OM605/OM606. Check out the stuff we sell for these engines at benzinjection.com

[benzinjection]

OM606 Turbo Kit Install from Benz Injection
