How to Select the Perfect Measurement Solution for Your Fluid Processing System

In today's industrial landscape, selecting the right fluid measurement solution can make or break your processing system's efficiency, accuracy, and overall operational costs. With countless options available in the market, finding the perfect fit for your specific application requires careful consideration of numerous factors. This comprehensive guide will walk you through the essential steps to ensure you make an informed decision when choosing measurement tools for your fluid processing needs.

Understanding Your Process Requirements First

Before diving into the various measurement technologies available, you must thoroughly understand what you're measuring and why. A successful fluid system measurement strategy begins with clearly defining your process parameters:

Process Media Characteristics

Viscosity (Is your fluid thick like honey or thin like water?)

Corrosiveness (Will your fluid potentially damage measurement equipment?)

Temperature and pressure ranges

Presence of solids or bubbles

Conductivity properties

Performance Requirements

Required measurement accuracy (±0.2%, ±0.5%, or ±1%)

Flow rate range (minimum and maximum expected rates)

Pressure drop limitations

Repeatability needs

Response time

Installation Environment

Available space constraints

Straight pipe run availability

Ambient conditions (temperature, humidity, vibration)

Hazardous area classifications

Taking the time to document these requirements will significantly narrow your options and prevent costly mistakes down the road.

Exploring Common Fluid Measurement Technologies

Each measurement technology has its unique strengths and limitations. Let's explore the most common options and when they shine:

Electromagnetic Flow Meters

Electromagnetic flowmeters excel when measuring conductive fluids. By generating a magnetic field across the pipe and measuring the voltage produced as the conductive fluid passes through, these meters deliver exceptional accuracy.

Best suited for:

Water-based solutions

Slurries and wastewater

Chemical processing

Food and beverage applications

Key advantages:

No moving parts means minimal maintenance

No pressure drop

Unaffected by fluid density, viscosity, or temperature

Available in sanitary designs for hygienic applications

However, electromagnetic flow sensors cannot measure non-conductive fluids like oils or gases, so they're not universal solutions.

Ultrasonic Flow Meters

Ultrasonic flow meters use sound waves to determine flow rates, either through transit-time or Doppler methods. The transit-time approach measures how long it takes for sound waves to travel between transducers, while Doppler systems measure frequency shifts caused by reflections off particles in the fluid.

Best applications:

Clean liquids (transit-time)

Dirty liquids with suspended particles (Doppler)

Large diameter pipes

Non-invasive measurement needs

Strengths:

Clamp-on options available (no pipe cutting required)

No pressure drop or flow obstructions

Suitable for corrosive applications

Bidirectional measurement capabilities

Ultrasonic flow meter accuracy can be affected by fluid consistency and pipe condition, so proper installation is crucial.

Coriolis Flow Meters

When ultimate accuracy is non-negotiable, coriolis flow meters often provide the solution. Using the Coriolis effect, these meters measure mass flow directly rather than volumetric flow, eliminating concerns about temperature and pressure effects on density.

Ideal for:

Custody transfer applications

High-value products

Multi-phase fluids

Applications requiring density or concentration measurement

Benefits:

Exceptional accuracy (typically ±0.1% to ±0.5%)

Direct mass flow measurement

Independent of flow profile and fluid properties

Can measure multiple parameters simultaneously (flow, density, temperature)

The primary drawbacks include higher initial cost and larger installation footprints, especially for larger pipe sizes.

Rotameter Flowmeters

For applications where simplicity, reliability, and visual indication are priorities, rotameter flowmeters remain popular choices. These variable area meters use a float in a tapered tube to indicate flow rate.

Commonly used for:

Low-flow applications

Local flow indication without power

Simple proportional control

Purge and blanketing systems

Advantages:

No power required for basic models

Visual indication without instruments

Simple operation and maintenance

Cost-effective for smaller applications

Accuracy tends to be lower than other technologies (typically ±2-5%), making rotameters less suitable when precision is paramount.

Critical Selection Factors Beyond Technology Type

While understanding the different measurement technologies is important, several other factors should influence your final decision:

Total Cost of Ownership

Initial purchase price is just one component of the total cost. Consider:

Installation complexity and costs

Power requirements

Calibration frequency and expense

Spare parts availability and cost

Expected service life

Maintenance requirements

A higher upfront investment in a premium flow meter might deliver substantial savings over its operational lifetime through reduced maintenance and higher accuracy.

Integration with Existing Systems

Your measurement solution should seamlessly integrate with your current control and monitoring systems:

Compatible output signals (4-20mA, HART, Fieldbus, etc.)

Communication protocol support

Software compatibility

Power supply requirements

Ensuring proper integration prevents costly rework and communication issues after installation.

Regulatory and Compliance Requirements

Many industries face strict regulatory oversight regarding fluid measurement:

Industry-specific certifications (FDA, 3A, EHEDG for food and pharma)

Hazardous area approvals (ATEX, IECEx, FM)

Custody transfer approvals (OIML, NTEP, MID)

Environmental compliance documentation

Non-compliance can result in production shutdowns, fines, or rejected products, making this a critical consideration.

Supplier Expertise and Support

The right measurement partner offers more than just hardware:

Application engineering support

Commissioning assistance

Training programs

Responsive technical support

Calibration services

Global presence for multinational operations

Working with experienced measurement solution providers like XINSIER TECHNOLOGY ensures you benefit from 15+ years of industry knowledge and support across 53 countries worldwide.

Decision-Making Framework: A Practical Approach

To systematize your selection process, consider implementing this step-by-step framework:

Document process requirements (fluid properties, accuracy needs, environmental conditions)

Screen technologies based on compatibility with your application

Evaluate qualified options using weighted criteria important to your operation

Request detailed specifications from shortlisted suppliers

Perform cost-benefit analysis including total cost of ownership

Check references from similar applications

Conduct site assessment to verify installation feasibility

This structured approach narrows options progressively while ensuring all critical factors receive proper attention.

Real-World Considerations From Industry Experience

After working with thousands of fluid processing systems across diverse industries, we've observed several practical considerations often overlooked during selection:

Future-proofing: Select measurement solutions that can accommodate potential process changes or expansions

Standardization benefits: Using consistent meter types across your facility simplifies maintenance and reduces spare parts inventory

Redundancy needs: Critical measurements might warrant backup measurement systems

Local support availability: Even the best technology fails without proper support infrastructure

Environmental impact: Consider energy consumption and end-of-life disposal impacts

Conclusion: Making Your Final Decision

Selecting the perfect measurement solution for your fluid processing system requires balancing technical requirements, financial considerations, and practical implementation factors. By thoroughly understanding your process needs, evaluating the strengths and limitations of different technologies, and considering the total cost of ownership, you'll be well-positioned to make an informed decision.

Remember that the cheapest option rarely delivers the lowest long-term cost, and the most expensive isn't automatically the best fit for your application. Instead, focus on finding the right match for your specific requirements while ensuring proper installation and maintenance.

With over 15 years of experience providing scientific and cost-effective measuring solutions, XINSIER TECHNOLOGY has helped thousands of facilities optimize their fluid measurement systems. Our team of specialists can guide you through the selection process to ensure you achieve the precision, reliability, and performance your operation demands.

Whether you need electromagnetic flowmeters for water treatment, ultrasonic flow meters for large pipelines, or coriolis flow meters for high-accuracy custody transfer applications, partnering with experienced measurement professionals ensures you'll get the perfect solution for your unique requirements.

[cflowmeter]

Variable Area Measurement Technology: What Engineers Need to Know in 2025

In today's industrial landscape, accurate measurement of fluid flow is crucial for maintaining efficient operations, ensuring product quality, and meeting regulatory requirements. Variable area measurement technology has stood the test of time as a reliable solution for flow measurement needs across industries. As we progress through 2025, engineers face new challenges and opportunities when implementing these measurement systems. This comprehensive guide explores the latest developments in variable area measurement technology and provides practical insights for engineering professionals.

Understanding Variable Area Flow Measurement Principles

At its core, variable area flow measurement operates on a straightforward principle: as fluid flows through a tapered tube, it exerts force on a float, causing it to rise until the upward force of the fluid equals the downward force of gravity on the float. The position of the float corresponds to a specific flow rate, which can be read directly from calibrated markings on the tube.

This elegant principle has made rotameter flowmeters one of the most widely used variable area instruments in industrial settings. Their reliability in challenging environments continues to make them relevant even as digital alternatives emerge.

Key Advantages in Modern Industrial Applications

Variable area technology offers several distinct advantages that explain its endurance in the competitive flow meter market:

Visual indication: Operators can quickly assess flow rates with a glance at the device, making troubleshooting more efficient

Operation without external power: Unlike electromagnetic flow sensors, basic variable area devices function without electricity

Cost-effectiveness: Lower acquisition and maintenance costs compared to more complex flow measurement technologies

Versatility: Suitable for liquids, gases, and steam applications with appropriate configurations

Durability: Well-constructed units can operate reliably for decades with minimal maintenance

When comparing variable area technology to other options like ultrasonic flow meters, engineers must consider these inherent advantages alongside specific application requirements.

Recent Innovations in Variable Area Measurement

The traditional variable area meter has evolved significantly in recent years. Modern versions now incorporate:

Digital Integration Capabilities

Today's advanced rotameter flowmeters often feature digital outputs that can interface with plant control systems. This bridges the gap between traditional visual indication and modern digital monitoring requirements. Engineers can now enjoy the reliability of variable area principles combined with the convenience of remote monitoring and data logging.

Enhanced Materials for Extreme Conditions

Manufacturers have developed specialized materials for both floats and tubes that can withstand increasingly challenging industrial environments. PTFE-lined units resist highly corrosive chemicals, while titanium components allow operation in high-pressure, high-temperature scenarios that would have been impossible for earlier designs.

Improved Accuracy Specifications

While traditional variable area devices typically offered accuracy in the 2-5% range, recent engineering improvements have pushed accuracies to within 0.5% for premium units. This development has expanded the application range for these instruments, making them viable for processes requiring higher precision without resorting to more expensive measurement technologies.

Selection Criteria for Engineering Applications

When evaluating variable area measurement devices for specific applications, engineers should consider:

Fluid Properties

The viscosity, density, corrosiveness, and cleanliness of the process fluid directly impact the performance and longevity of the measurement device. For highly aggressive chemicals, glass-tube rotameter flowmeters with corrosion-resistant floats often provide the best combination of visibility and durability.

Flow Range Requirements

Variable area devices perform best when sized appropriately for the expected flow range. Oversized units sacrifice resolution at lower flows, while undersized units create excessive pressure drop and may suffer premature wear. The optimal selection provides readable resolution across the entire expected operating range.

Installation Considerations

Proper installation significantly impacts measurement accuracy. Engineers must ensure:

Sufficient straight pipe runs before and after the device

Proper orientation (typically vertical with flow upward)

Protection from external mechanical vibration

Appropriate temperature conditions to maintain calibration accuracy

Integration Needs

Modern industrial settings increasingly demand connected instruments. When selecting a variable area measurement device, engineers should evaluate:

Protocol compatibility with existing control systems

Data logging requirements

Alarm notification capabilities

Remote monitoring needs

Comparison with Alternative Flow Measurement Technologies

Understanding how variable area measurement compares with other common flow meter types helps engineers make informed decisions:

Technology

Strengths

Limitations

Best Applications

Variable Area

Visual indication, no power required, cost-effective

Limited accuracy, requires vertical installation

Simple monitoring, backup systems, budget-conscious applications

Electromagnetic

High accuracy, no moving parts, no flow obstruction

Requires power, limited to conductive fluids

Precise measurement of conductive liquids, bidirectional flow

Ultrasonic

Non-invasive options, works with large pipes

Higher cost, sensitive to fluid properties

Clean liquids, existing pipelines where cutting is impractical

Air Flow Sensors

Specialized for gas applications

Limited to specific media

HVAC, compressed air systems, gas monitoring

Maintenance Best Practices for Long-Term Reliability

To maximize the service life of variable area measurement devices, engineers should implement:

Regular visual inspections - Check for float movement restrictions, tube discoloration, or damage

Periodic cleaning - Remove buildup that can affect float movement or reading accuracy

Calibration verification - Compare readings against a reference standard annually

Gasket and seal replacement - Prevent leakage by replacing wear components according to manufacturer guidelines

These maintenance routines typically require minimal downtime while significantly extending instrument life and preserving measurement accuracy.

Future Trends in Variable Area Measurement

Looking ahead, several developments are shaping the future of variable area flow measurement:

IoT integration enabling predictive maintenance and performance optimization

Augmented reality interfaces for easier commissioning and troubleshooting

Advanced materials further extending chemical compatibility and temperature ranges

Hybrid designs combining variable area principles with digital sensing technologies

These innovations will likely expand applications for variable area technology while maintaining its fundamental advantages of simplicity and reliability.

Conclusion

Variable area measurement technology remains a valuable tool in the industrial engineer's toolkit for 2025 and beyond. By understanding its principles, advantages, and recent innovations, engineers can effectively apply this proven technology to meet modern measurement challenges. When properly selected, installed, and maintained, variable area devices offer an excellent balance of reliability, visibility, and cost-effectiveness for a wide range of fluid measurement applications.

Whether you're considering a basic rotameter flowmeter for visual indication or an advanced variable area system with digital integration, this technology continues to evolve to meet the changing needs of industrial measurement applications while maintaining its fundamental simplicity and dependability.

[cflowmeter]

The Complete Guide to Industrial Flow Measurement Technology

In today's complex industrial environments, accurate flow measurement isn't just helpful—it's essential. Whether you're monitoring water treatment processes, managing chemical manufacturing, or overseeing oil and gas operations, understanding the fundamentals of flow measurement technology can make the difference between optimal efficiency and costly mistakes.

Understanding Industrial Flow Measurement Basics

Industrial flow measurement involves quantifying the movement of fluids—whether liquid, gas, or steam—through pipes, channels, or other containment structures. The accuracy of these measurements directly impacts production quality, operational efficiency, and regulatory compliance.

Most industrial processes rely on precise flow data to:

Maintain product quality and consistency

Optimize energy consumption

Ensure regulatory compliance

Prevent system failures

Reduce waste and operating costs

Key Flow Measurement Technologies in Modern Industry

Electromagnetic Flow Measurement

Electromagnetic flowmeters operate on Faraday's Law of Electromagnetic Induction. When conductive fluid passes through a magnetic field generated by the meter, it produces a voltage proportional to the flow velocity. This voltage is then measured by electrodes and converted into flow rate readings.

Electromagnetic flow sensors excel in applications involving:

Wastewater treatment

Pulp and paper processing

Mining slurries

Chemical manufacturing

Food and beverage production

The technology offers exceptional accuracy for conductive fluids, with minimal pressure drop and maintenance requirements. However, they cannot measure non-conductive fluids like hydrocarbons or purified water.

Ultrasonic Flow Meter Technology

Ultrasonic flow meters use sound waves to measure fluid velocity. These devices come in two primary varieties:

Transit-time ultrasonic meters measure the difference in time it takes for ultrasonic pulses to travel with and against the flow direction. This technology works exceptionally well with clean, homogeneous liquids.

Doppler ultrasonic meters measure the frequency shift of an ultrasonic signal reflected off particles or bubbles in the fluid. This makes them ideal for slurries, sludge, and other particle-laden flows.

Ultrasonic flow meter installations offer several advantages:

Non-invasive measurement (clamp-on types)

No moving parts to wear out

No pressure drop

Suitable for large pipe diameters

Ability to measure bi-directional flow

These meters have transformed industries like water distribution, HVAC, and energy management by providing reliable measurements without disrupting the flow process.

Coriolis Flow Meter Precision

Coriolis flow meters represent the gold standard for mass flow measurement accuracy. These meters measure the twist in oscillating tubes caused by the Coriolis effect as fluid moves through them. This technology directly measures mass flow rather than volumetric flow, eliminating the need for temperature and pressure compensation.

Industries that benefit most from coriolis flow meter technology include:

Pharmaceutical manufacturing

Food processing

Oil and gas custody transfer

Chemical batching

High-purity applications

While these meters typically command higher upfront costs, their exceptional accuracy (often ±0.1% or better) and ability to simultaneously measure density and temperature make them invaluable for critical applications.

Traditional Rotameter Flowmeter Applications

Despite advances in digital technology, variable area meters—commonly known as rotameter flowmeters—remain widely used in certain applications. These simple devices consist of a tapered tube containing a float that rises proportionally to flow rate.

Rotameter flowmeters are particularly valuable in:

Local flow indication without power

Low-flow applications

Simple process monitoring

Laboratory settings

Economical installations

While lacking the advanced features of electronic meters, rotameters offer reliability, simplicity, and visual indication at a fraction of the cost.

Selecting the Right Flow Measurement Technology

Choosing the appropriate flow meter requires careful consideration of several factors:

Fluid Properties: Viscosity, conductivity, corrosiveness, and presence of particles all influence meter selection.

Process Conditions: Temperature, pressure, flow range, and required accuracy determine which technologies are viable.

Installation Requirements: Available straight pipe runs, space constraints, and maintenance access affect installation options.

Budget Considerations: Initial purchase cost must be balanced against maintenance requirements, expected lifespan, and accuracy needs.

Industry Standards: Certain applications may require specific meter types to meet regulatory or custody transfer requirements.

Flow Monitoring Integration with Industrial Systems

Modern flow measurement extends beyond standalone meters to integrated monitoring systems. Today's flow meters often include:

Digital communication protocols (HART, Modbus, Foundation Fieldbus)

Built-in diagnostics and verification capabilities

Remote monitoring functionality

Data logging and analysis features

Mobile connectivity options

These advanced features enable predictive maintenance, reduce downtime, and provide valuable insights into process efficiency.

Future Trends in Flow Measurement Technology

The industrial flow measurement landscape continues to evolve with several emerging trends:

Increased Intelligence: Self-calibrating meters with advanced diagnostics

Multi-parameter Measurement: Single devices measuring flow, temperature, pressure, and fluid quality

IIoT Integration: Flow meters as critical nodes in Industrial Internet of Things networks

Enhanced Visualization: Augmented reality interfaces for maintenance and troubleshooting

Machine Learning Applications: AI-driven flow pattern analysis for predictive insights

Conclusion

Effective industrial flow measurement requires understanding available technologies and selecting the right solution for each specific application. Whether implementing electromagnetic flowmeters for conductive fluids, ultrasonic flow meters for non-invasive monitoring, coriolis flow meters for mass flow precision, or traditional rotameter flowmeters for visual indication, proper selection ensures accurate data for process control and optimization.

As industrial processes grow increasingly complex, reliable flow measurement becomes ever more critical. By understanding the strengths and limitations of each technology, industrial operators can make informed decisions that improve efficiency, reduce costs, and ensure consistent product quality.

For specialized applications or challenging environments, consulting with flow measurement experts can help identify the optimal solution among the diverse range of flowmeter technologies available today.

[cflowmeter]

The Complete Guide to Industrial Flow Measurement Technology

In today's precision-driven industrial landscape, accurate flow measurement isn't just a technical requirement—it's the backbone of efficient operations, quality control, and regulatory compliance. Whether you're managing water treatment facilities, chemical processing plants, or food and beverage production lines, understanding the intricacies of industrial flow measurement technology can significantly impact your bottom line.

Understanding the Fundamentals of Industrial Flow Measurement

At its core, industrial flow measurement involves quantifying the rate at which liquids or gases move through pipes, channels, or vessels. This seemingly simple concept becomes increasingly complex as we consider variables like fluid properties, environmental conditions, and specific application requirements.

The evolution of flow measurement technology has transformed from basic mechanical devices to sophisticated electronic systems capable of providing unprecedented accuracy. Modern solutions offer not just flow data, but intelligent analytics that drive process optimization and predictive maintenance.

Selecting the Right Flow Measurement Principle

Different industrial applications demand different measurement approaches. Let's explore the major technologies driving today's flow measurement landscape:

Velocity-Based Measurement

These technologies measure flow by detecting the speed at which fluid moves through a defined area:

Magnetic principles in flow measurement have revolutionized how we monitor conductive liquids. By generating a magnetic field across a pipe and measuring the voltage produced as the liquid flows through it, these devices offer exceptional accuracy with minimal pressure drop. This technology excels in applications involving water, chemicals, and slurries.

Ultrasonic technology utilizes sound waves to determine flow rates either through transit-time or Doppler methods. Transit-time systems measure how long it takes ultrasonic signals to travel upstream versus downstream, while Doppler systems analyze frequency shifts as sound waves bounce off particles in the fluid. These non-invasive solutions work well for clean liquids and natural gas applications.

Positive Displacement Measurement

These mechanical systems physically capture and count discrete volumes of fluid:

Rotary meters use rotating components that trap and release measured quantities of fluid. Their high accuracy makes them ideal for custody transfer applications, though they typically require more maintenance than electronic alternatives.

Mass Flow Measurement

Instead of volumetric calculations, these technologies directly measure the mass flow rate:

Coriolis technology represents the pinnacle of mass flow measurement precision. By vibrating tubes and measuring how fluid flow affects these vibrations through the Coriolis effect, these instruments deliver exceptional accuracy regardless of fluid properties. While initially expensive, their low maintenance requirements and multi-parameter measurement capabilities often justify the investment.

Differential Pressure Measurement

This classic approach relies on measuring pressure differences across a restriction:

Orifice plates and venturi tubes create predictable pressure drops that correlate with flow rates. Though simple in principle, these systems require careful engineering to account for various flow conditions.

Variable Area Measurement

Rotameter technology uses a tapered tube with a float that rises in proportion to flow rate. These visual indicators offer simplicity and reliability for less demanding applications.

Critical Factors Affecting Flow Measurement Accuracy

Several variables can impact measurement performance:

Installation considerations: Proper straight pipe runs before and after meters prevent turbulence that can compromise accuracy.

Fluid properties: Viscosity, density, temperature, and conductivity all influence measurement performance.

Environmental factors: Vibration, electromagnetic interference, and ambient temperature fluctuations can affect sensitive instruments.

Calibration requirements: Regular verification against known standards ensures continued accuracy throughout a meter's operational life.

Advanced Features in Modern Flow Measurement Systems

Today's flow measurement technology extends far beyond basic rate detection:

Digital communication protocols like HART, Profibus, and Foundation Fieldbus enable seamless integration with control systems.

Self-diagnostic capabilities alert operators to potential issues before they affect production.

Multi-parameter measurement combines flow data with temperature, pressure, and density readings for comprehensive process insight.

Battery-powered options enable remote installation where power infrastructure is limited.

Selecting the Optimal Flow Measurement Solution

When evaluating flow measurement technologies for your application, consider these factors:

Process fluid characteristics: Conductivity, viscosity, and cleanliness will eliminate certain technologies from consideration.

Required accuracy: Higher precision typically demands more sophisticated technology and proper installation.

Installation constraints: Available straight pipe runs, power availability, and environmental conditions matter.

Budget considerations: While initial purchase price matters, total cost of ownership—including maintenance, calibration, and operational impact—should guide decision-making.

Regulatory requirements: Certain industries face strict metrological standards that influence technology selection.

Industry-Specific Applications

Different sectors leverage flow measurement technology in unique ways:

Water/wastewater: Magnetic flow meters excel in treatment processes and distribution networks.

Oil and gas: Coriolis meters provide the high accuracy needed for custody transfer and process control.

Chemical processing: Corrosion-resistant flow meters with appropriate safety certifications ensure reliable measurement of aggressive media.

Food and beverage: Hygienic design flow meters meet stringent sanitation requirements while providing the accuracy needed for recipe control.

Future Trends in Flow Measurement

As we look ahead, several developments promise to reshape industrial flow measurement:

IoT integration enables real-time monitoring and analytics across distributed facilities.

Artificial intelligence applications will enhance predictive maintenance and flow pattern recognition.

Miniaturization continues to reduce the physical footprint of sophisticated measurement technologies.

Enhanced battery life expands the feasibility of wireless flow measurement in remote locations.

Conclusion

Choosing the right industrial flow measurement technology involves balancing technical requirements, operational constraints, and economic considerations. By understanding the principles, limitations, and advantages of different measurement approaches, you can make informed decisions that optimize process efficiency, product quality, and regulatory compliance.

The ideal flow measurement solution isn't necessarily the most expensive or technically advanced—it's the one that delivers reliable, accurate data for your specific application while minimizing total cost of ownership. As technology continues to evolve, staying informed about emerging capabilities will ensure your measurement infrastructure remains both effective and competitive.

For more information about specific flow measurement solutions for your application, consult with experienced measurement professionals who can evaluate your unique requirements and recommend appropriate technologies.

[cflowmeter]

The Ultimate Guide to Choosing Flow Measuring Instruments for Process Industries

Selecting the right flow measuring instruments for your process industry applications can significantly impact operational efficiency, product quality, and bottom-line results. This comprehensive guide will help you navigate the complex world of industrial measurement devices and make informed decisions for your specific needs.

Understanding Your Process Requirements

Before diving into specific measurement solutions, it's essential to evaluate your process requirements thoroughly. Consider these critical factors:

Process Conditions

Operating temperature and pressure ranges

Chemical compatibility

Required accuracy levels

Flow ranges and variations

Installation constraints

Environmental factors

Industry-Specific Considerations

Different industries have unique challenges and requirements. For example, the food and beverage sector demands hygienic designs, while chemical processing requires robust construction materials. Consider how your industry standards affect your choice of measuring instruments.

Types of Flow Measurement Technologies

Modern process industry equipment encompasses various measurement technologies, each with distinct advantages for specific applications.

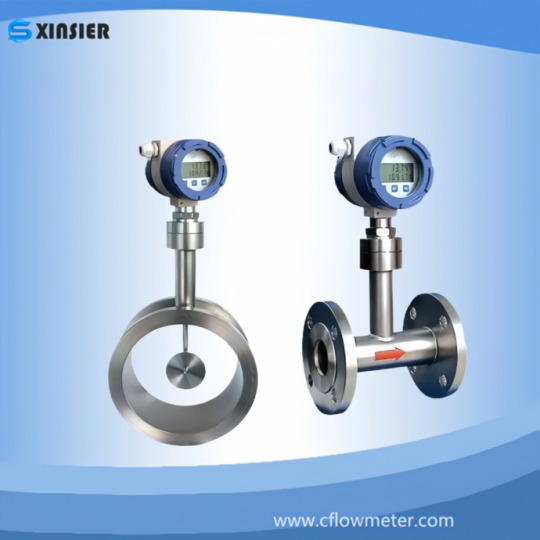

Target Flow Technology This reliable solution offers excellent performance for liquid and gas applications. Target flow measurement excels in situations requiring:

Low maintenance requirements

High repeatability

Simple installation

Cost-effective operation

Electromagnetic Measurement Systems Perfect for conductive liquids, these devices provide:

No pressure drop

No moving parts

High accuracy ratings

Excellent long-term stability

Thermal Mass Technology Ideal for gas flow applications, offering:

Direct mass flow measurement

Low-flow sensitivity

No pressure drop

Minimal maintenance requirements

Key Selection Criteria

Accuracy Requirements Consider your process tolerance levels. While some applications may need precise measurements of ±0.2%, others might work fine with ±1% accuracy. Remember that higher accuracy typically means higher costs.

Installation Considerations Evaluate your space constraints and installation requirements:

Available straight pipe runs

Mounting options

Access for maintenance

Power availability

Signal transmission requirements

Total Cost of Ownership Look beyond the initial purchase price and consider:

Installation costs

Maintenance requirements

Calibration needs

Energy consumption

Replacement parts availability

Technical support access

Environmental Factors Assess how environmental conditions might affect performance:

Temperature variations

Vibration levels

Electromagnetic interference

Moisture and dust exposure

Hazardous area classifications

Making the Right Choice

To select the most appropriate measurement solution:

Document Your Requirements Create a detailed specification sheet including:

Process parameters

Performance requirements

Installation constraints

Budget limitations

Maintenance capabilities

Evaluate Multiple Options Don't limit yourself to a single technology or manufacturer. Compare different solutions based on:

Technical specifications

Performance in similar applications

User reviews and testimonials

Manufacturer support capabilities

Total cost of ownership

Consider Future Needs Think about potential process changes or upgrades:

Scalability requirements

Communication protocol compatibility

Upgrade possibilities

Long-term maintenance support

Maintenance and Support

Remember to consider long-term support when selecting measurement devices:

Local technical support availability

Spare parts accessibility

Calibration service options

Training requirements

Warranty terms and conditions

Integration and Communication

Modern industrial measurement devices often need to integrate with existing systems:

Control system compatibility

Communication protocols

Data logging requirements

Remote monitoring capabilities

Diagnostic features

Best Practices for Implementation

Once you've selected your flow measuring instruments:

Proper Installation

Follow manufacturer guidelines

Use qualified technicians

Consider environmental factors

Implement proper grounding

Ensure adequate straight runs

Regular Maintenance

Develop maintenance schedules

Train operators properly

Keep documentation updated

Monitor performance regularly

Plan for periodic calibration

Performance Monitoring

Track measurement accuracy

Monitor drift patterns

Document maintenance activities

Analyze failure modes

Update procedures as needed

Conclusion

Choosing the right flow measuring instruments requires careful consideration of multiple factors. Take time to evaluate your specific needs, research available options, and consider long-term implications. Remember that the cheapest option isn't always the most cost-effective in the long run. For optimal results, work with experienced suppliers who understand your industry and can provide comprehensive support throughout the equipment's lifecycle. Regular maintenance, proper installation, and ongoing monitoring will ensure your chosen solution continues to meet your process requirements effectively.

[cflowmeter]

The Ultimate Guide to Industrial Liquid Measurement in 2024

In today's fast-paced industrial landscape, precise liquid measurement isn't just a technical requirement – it's a cornerstone of operational excellence. Whether you're managing a chemical processing plant or overseeing a food and beverage facility, understanding the nuances of industrial liquid measurement can make the difference between ordinary and exceptional performance.

The Evolution of Industrial Measurement

The industrial sector has witnessed remarkable transformations in measurement technology over the past decade. Traditional mechanical methods have given way to sophisticated digital solutions, offering unprecedented accuracy and reliability. Modern measurement solutions now incorporate smart features, enabling real-time monitoring and data analysis that were once thought impossible.

Understanding Your Measurement Needs

Before diving into specific solutions, it's crucial to assess your particular requirements. Consider these essential factors:

Process Conditions: Temperature, pressure, and chemical compatibility play vital roles in selecting the right measurement system. High-temperature applications might require specialized sensors, while corrosive chemicals demand robust materials.

Accuracy Requirements: Different industries have varying tolerance levels. While the pharmaceutical industry might demand accuracy within 0.2%, other applications might accept wider margins. Modern ultrasonic flow meters can achieve remarkable precision, making them ideal for critical processes.

Installation Environment: Space constraints, maintenance access, and environmental conditions significantly impact your choice. Some measurement devices require straight pipe runs, while others can function effectively in tight spaces.

Advanced Measurement Technologies

Today's market offers various sophisticated measurement solutions. Let's explore some key technologies:

Electromagnetic Measurement: Perfect for conductive liquids, electromagnetic flowmeters provide excellent accuracy without moving parts. They're particularly valuable in applications where maintaining product purity is crucial, such as food processing.

Precision Gear Technology: When it comes to highly viscous liquids, gear-based measurement systems offer exceptional reliability. These robust devices handle challenging fluids while maintaining accuracy over extended periods.

Ultrasonic Solutions: Non-invasive measurement has revolutionized liquid monitoring. Ultrasonic technology allows for accurate measurement without fluid contact, ideal for sterile applications or aggressive chemicals.

Optimizing Measurement Accuracy

Achieving and maintaining measurement accuracy involves several key strategies:

Regular Calibration: Even the most advanced systems require periodic calibration. Establishing a regular maintenance schedule ensures consistent accuracy.

Environmental Compensation: Modern measurement solutions often include temperature and pressure compensation, ensuring accuracy across varying conditions.

Data Integration: Connecting your measurement devices to broader control systems enables real-time monitoring and quick response to variations.

Future-Proofing Your Measurement Systems

As industry requirements evolve, your measurement infrastructure must adapt. Consider these forward-looking aspects:

Digital Integration: Modern measurement solutions offer digital outputs compatible with Industry 4.0 initiatives. This connectivity enables advanced analytics and predictive maintenance.

Scalability: Choose systems that can grow with your needs. Modular solutions allow for easy upgrades and expansions.

Energy Efficiency: Contemporary measurement devices often incorporate energy-saving features, reducing operational costs while maintaining performance.

Cost Considerations and ROI

While initial investment in high-quality measurement solutions might seem substantial, consider the long-term benefits:

Reduced Waste: Accurate measurement directly translates to better product quality and less waste.

Maintenance Savings: Advanced systems often require less maintenance, reducing long-term operational costs.

Production Efficiency: Precise measurement enables optimal process control, improving overall production efficiency.

Making the Right Choice

Selecting the appropriate measurement solution requires careful consideration of various factors:

Application Specifics: Different liquids and processes require specific measurement approaches. Consider viscosity, conductivity, and flow ranges.

Industry Standards: Ensure your chosen solution meets relevant industry standards and certifications.

Support Infrastructure: Evaluate the availability of local support, spare parts, and technical expertise.

Conclusion

Industrial liquid measurement continues to evolve, offering new possibilities for process optimization and control. By understanding available technologies and carefully considering your specific needs, you can implement measurement solutions that not only meet current requirements but also position your operation for future success.

Remember, the key to successful implementation lies not just in selecting the right technology, but in proper installation, regular maintenance, and continuous monitoring of system performance. As we move further into 2024, staying informed about measurement innovations and best practices will remain crucial for industrial success.

By focusing on accuracy, reliability, and future scalability, you can build a measurement infrastructure that delivers value for years to come. The investment in proper liquid measurement technology today will pay dividends in improved efficiency, reduced waste, and enhanced product quality tomorrow.

[cflowmeter]

Unlocking Precision: The Science Behind Modern Flow Measurement Technology

In the intricate world of industrial engineering, measuring fluid flow isn't just a technical requirement—it's an art form that combines cutting-edge technology with scientific precision. As industries continue to push the boundaries of efficiency and performance, the role of advanced flow measurement technology has become increasingly critical.

The Evolution of Flow Measurement

Flow measurement has come a long way from its rudimentary beginnings. What started as simple manual observations has transformed into a sophisticated field of precision engineering that powers everything from chemical processing plants to sophisticated manufacturing facilities.

Understanding the Fundamentals

At its core, flow measurement technology is about capturing the movement of fluids with unprecedented accuracy. Whether it's water, gas, or complex chemical compounds, each fluid presents unique challenges that require specialized measurement solutions.

Key Technologies Driving Modern Flow Measurement

Turbine Flowmeters: Spinning Towards Accuracy Turbine flowmeters represent a pinnacle of mechanical flow measurement. These ingenious devices use a spinning rotor to measure fluid velocity, providing remarkable precision across various industrial applications. The faster the fluid moves, the more rapidly the turbine spins, creating a direct correlation between rotation and flow rate. Key advantages include: • High accuracy in liquid measurement • Wide range of application temperatures • Suitable for clean, low-viscosity fluids

Vortex Flowmeters: Harnessing Fluid Dynamics Vortex flowmeters take a different approach, leveraging the fascinating phenomenon of vortex shedding. As fluid passes through a bluff body, it creates alternating vortices that can be precisely measured to determine flow rate. This technology excels in applications involving steam, gases, and liquids. Notable benefits: • Minimal pressure drop • No moving parts, reducing maintenance • Excellent for challenging industrial environments

3. Variable Area Flowmeters: Simple Yet Effective

Also known as rotameters, variable area flowmeters provide a straightforward yet reliable method of flow measurement. These devices use a float suspended in a tapered tube, with the float's position indicating the flow rate—a testament to elegant engineering simplicity.

4. Advanced Flow Sensors: The New Frontier

Modern flow sensors have transcended traditional mechanical limitations. Incorporating digital technologies, these sensors offer real-time monitoring, data logging, and integration with complex industrial control systems.

Precision Engineering: More Than Just Measurement

Precision in flow measurement goes beyond simply reading numbers. It's about:

Ensuring process efficiency

Minimizing waste

Maintaining product quality

Enabling predictive maintenance

Industrial Flow Solutions: A Holistic Approach

Successful flow measurement requires more than just selecting the right technology. It demands a comprehensive understanding of:

Specific industrial requirements

Fluid characteristics

Environmental conditions

Long-term performance expectations

Xinsier Technology's Commitment to Excellence

With over 15 years of experience and presence in more than 53 countries, Xinsier Technology exemplifies the pinnacle of measurement innovation. Our approach combines:

Advanced manufacturing technology

Scientific calibration systems

Measuring accuracies of ±0.2%, ±0.5%, and ±1%

ISO/IEC17025 approved quality control

Choosing the Right Flow Measurement Technology

Selecting an appropriate flow measurement solution requires careful consideration:

Understand your specific fluid properties

Evaluate temperature and pressure conditions

Consider maintenance requirements

Assess long-term reliability

Factor in total cost of ownership

The Future of Flow Measurement

Emerging technologies like smart sensors, artificial intelligence, and IoT integration are revolutionizing flow measurement. We're moving towards systems that not only measure but predict, optimize, and self-diagnose.

Conclusion: Precision as a Competitive Advantage

In today's competitive industrial landscape, precision isn't just a technical specification—it's a strategic advantage. By leveraging advanced flow measurement technologies, companies can unlock unprecedented levels of efficiency, reliability, and performance.

At Xinsier Technology, we don't just measure flow—we enable progress, one precise measurement at a time.

Disclaimer: Specifications and technologies mentioned are based on current industry standards and Xinsier Technology's expertise as of 2024.

[cflowmeter]

Measuring Precision: The Science Behind Industrial Flow Solutions

In the intricate world of industrial engineering, measurement isn't just about numbers—it's about understanding the subtle dynamics that drive modern manufacturing, processing, and research. Precision measurement has become the cornerstone of technological advancement, where even the smallest deviation can mean the difference between success and failure.

The Evolution of Measurement Technologies

Measurement technologies have come a long way from rudimentary tools to sophisticated systems that can detect minute changes with incredible accuracy. Today's industrial environments demand more than just basic readings; they require comprehensive solutions that provide real-time, reliable data across various applications.

Understanding Flow Measurement: More Than Meets the Eye

Flow measurement is a critical aspect of many industrial processes. Whether it's managing water treatment plants, monitoring chemical production, or controlling fuel consumption in energy systems, accurate flow measurement is paramount. The science behind flow measurement involves complex principles of fluid dynamics, thermodynamics, and advanced sensor technologies.

Key Challenges in Industrial Flow Measurement

Accuracy Demands Modern industries operate on razor-thin margins where precision can translate directly to cost savings. A 0.1% improvement in measurement accuracy can result in significant economic benefits, especially in large-scale operations.

Environmental Variations Industrial environments present unique challenges. Temperature fluctuations, pressure changes, and diverse fluid compositions can dramatically impact measurement accuracy. This is where advanced measurement technologies truly shine.

Technological Complexity The days of simple mechanical meters are long gone. Today's flow measurement solutions integrate sophisticated electronics, advanced materials, and intelligent software systems that provide comprehensive insights.

Innovative Approaches to Precision Measurement

At the heart of modern flow measurement are technologies that push the boundaries of what's possible. While traditional methods relied on mechanical movement, contemporary solutions leverage cutting-edge principles:

Turbine Flow Meters: Precision in Motion Turbine flow meters represent a pinnacle of mechanical-electronic measurement. By utilizing a precisely balanced turbine wheel, these devices can measure fluid flow with remarkable accuracy. The rotation speed of the turbine directly correlates to the fluid's velocity, allowing for precise volume calculations.

Key Advantages:

High accuracy (+/- 0.2% to 1%)

Wide application range

Suitable for clean, low-viscosity fluids

Minimal pressure drop

Vortex Flow Meters: Harnessing Fluid Dynamics Vortex flow meters take a different approach, measuring flow by detecting vortical shedding in fluid streams. As fluid passes an obstruction, it creates distinctive vortices that can be precisely measured, providing another innovative solution for industrial flow measurement.

Advanced Sensor Technologies

Modern flow sensors go beyond simple measurement. They're intelligent systems that can:

Provide real-time data streams

Detect anomalies

Predict potential system failures

Integrate with broader industrial control systems

Our Commitment to Precision

At XINSIER TECHNOLOGY, we've spent over 15 years perfecting the art and science of measurement. Our approach combines rigorous scientific research with practical engineering solutions. With a presence in 53 countries and over 6,537 project sites utilizing our technologies, we understand the global complexity of industrial measurement.

Our Differentiators:

ISO/IEC17025 approved calibration systems

Customized measurement solutions

Advanced manufacturing technologies

Consistently high accuracy (+/- 0.2% to 1%)

The Future of Flow Measurement

As industries become more complex and interconnected, the demand for precise, intelligent measurement solutions will only increase. Emerging technologies like artificial intelligence, machine learning, and advanced sensor networks are set to revolutionize how we understand and manage fluid dynamics.

Practical Considerations for Flow Measurement Selection

When choosing a flow measurement solution, consider:

Fluid characteristics

Temperature and pressure ranges

Required accuracy

Installation environment

Budget constraints

Long-term maintenance needs

Conclusion: Precision as a Competitive Advantage

In today's competitive industrial landscape, precision isn't just a technical specification—it's a strategic advantage. By investing in advanced measurement technologies, companies can optimize processes, reduce waste, and drive innovation.

At XINSIER TECHNOLOGY, we're not just measuring flow; we're measuring potential. Our commitment to scientific rigor and technological innovation ensures that our clients always stay ahead of the curve.

Interested in exploring how precision measurement can transform your operations? Let's start a conversation about your specific challenges and opportunities.

[Contact Information] XINSIER TECHNOLOGY Precise Measurement, Prestigious Business

[cflowmeter]

Gas Flow Meters: Precision Measurement for Safe and Efficient Operations

Introduction

Gas flow meters are essential instruments used to measure the flow rate of gases in various industrial and commercial applications. Accurate gas flow measurement is critical in sectors such as energy, manufacturing, and healthcare, where precise control over gas usage, quality, and safety is required. Different technologies are used in gas flow meters, each suited to specific applications and gas types.

How Gas Flow Meters Work

There are several types of gas flow meters, each based on a unique working principle. Common types include thermal, ultrasonic, differential pressure, and turbine flow meters. For example, thermal gas flow meters measure flow rate based on the cooling effect of gas passing over a heated element. Ultrasonic meters use sound waves to measure gas flow velocity, while differential pressure meters, such as orifice plate meters, calculate flow based on pressure drops across a restriction. Each type of gas flow meter offers specific benefits based on the application and gas characteristics.

Advantages of Gas Flow Meters

Accuracy: Gas flow meters provide precise measurements, ensuring safe and efficient operations, particularly in processes where gas volume control is essential.

Versatility: These meters can handle various gases, including natural gas, oxygen, and compressed air, making them adaptable for multiple industries.

Efficiency: By monitoring gas flow accurately, businesses can optimize energy use and reduce waste, resulting in cost savings and environmental benefits.

Enhanced Safety: Precise measurement is critical in controlling gas flows in hazardous environments, reducing the risk of leaks or overflows.

Applications

Gas flow meters are widely used in industries such as natural gas distribution, chemical processing, pharmaceuticals, and HVAC systems. They are essential for monitoring gas usage in processes that require precise control over flow rates for efficiency, cost control, and safety.

Conclusion

Gas flow meters are indispensable tools for measuring gas flow rates accurately in a wide range of applications. Their ability to ensure safe, efficient, and cost-effective gas usage makes them valuable assets across industries, from energy and manufacturing to healthcare and environmental monitoring. As technology advances, gas flow meters continue to evolve, supporting more accurate and reliable gas flow measurement solutions.

[cflowmeter]

Hall-Effect Sensors: Revolutionizing Magnetic Field Detection and Motion Sensing

Introduction

Hall-effect sensors are versatile devices used to detect magnetic fields and convert them into electrical signals. These sensors play a crucial role in various applications, ranging from automotive systems and industrial automation to consumer electronics. Their ability to provide contactless, precise measurements makes them a reliable choice for detecting motion, position, and proximity in modern technology.

How Hall-Effect Sensors Work

Named after physicist Edwin Hall, who discovered the Hall effect in 1879, these sensors operate based on the principle that a magnetic field perpendicular to an electric current creates a voltage, called the Hall voltage, across the conductor. When a magnetic field is applied to a Hall-effect sensor, the device generates an output signal proportional to the strength of the magnetic field. This signal can be used to measure the position of a moving object, detect speed, or sense the proximity of a magnet.

Advantages of Hall-Effect Sensors

Non-Contact Operation: Hall-effect sensors detect magnetic fields without requiring physical contact, reducing wear and tear and ensuring longer operational life.

High Precision: These sensors offer accurate measurements of position, speed, and proximity, making them ideal for applications where precise control is critical.

Durability: Since Hall-effect sensors are resistant to dust, dirt, and vibrations, they perform reliably in harsh environments.

Versatility: They can be used in various applications, from detecting the speed of rotating wheels to providing position feedback in electric motors.

Applications

Hall-effect sensors are widely used in automotive systems for sensing wheel speed, crankshaft position, and throttle control. In industrial automation, they are employed in robotics, conveyor systems, and safety equipment. They are also found in consumer electronics, such as smartphones and game controllers, to detect motion or screen orientation.

Conclusion

Hall-effect sensors are a key technology in modern industries, providing accurate, contactless sensing solutions for a variety of applications. Their precision, durability, and versatility make them indispensable for tasks involving motion detection, positioning, and magnetic field sensing. As technology advances, Hall-effect sensors continue to drive innovation in automotive, industrial, and consumer electronics applications.

[cflowmeter]

Float Switches: Reliable Liquid Level Monitoring for Various Applications

Introduction

A float switch is a simple, yet effective device used to detect and control liquid levels in tanks, reservoirs, and other containers. By automatically triggering actions such as filling, draining, or alerting users to critical levels, float switches are indispensable in industries where liquid level management is essential, including water treatment, industrial processes, and household appliances.

How Float Switches Work

Float switches operate based on buoyancy. The main component is a float, which rises or falls with the liquid level. As the liquid reaches a pre-set level, the float either makes or breaks an electrical circuit, triggering the desired action, such as activating a pump or sounding an alarm. There are two common types of float switches: mechanical and magnetic. In mechanical float switches, the float physically tilts or moves to activate the switch, while magnetic float switches use magnets and reed switches for contactless operation.

Advantages of Float Switches

Simplicity: Float switches are straightforward in design and easy to install, making them a cost-effective solution for level control.

Versatility: They can be used in a wide range of applications, from water and oil tanks to industrial systems handling corrosive liquids.

Low Maintenance: With minimal moving parts, float switches are durable and require little maintenance over time.

Automatic Control: Float switches provide automatic operation, improving efficiency and reducing the need for manual monitoring of liquid levels.

Applications

Float switches are widely used in various industries, including wastewater treatment, oil and gas, HVAC systems, and household appliances like sump pumps. They are ideal for systems requiring automatic liquid level control or safety shut-off mechanisms.

Conclusion

Float switches offer a reliable and cost-effective solution for liquid level monitoring and control. Their simplicity, durability, and automatic operation make them a trusted tool in industries that require precise and efficient liquid management. Whether for residential or industrial use, float switches ensure optimal system performance with minimal oversight.

[cflowmeter]

Orifice Plate Flowmeters: A Cost-Effective Solution for Fluid Measurement

Introduction

Orifice plate flowmeters are one of the most widely used flow measurement devices in industrial applications. These flowmeters are popular for their simplicity, affordability, and reliability in measuring the flow rate of liquids, gases, and steam. By creating a pressure differential across an orifice plate, these meters allow precise flow calculations based on fluid dynamics.

How Orifice Plate Flowmeters Work

An orifice plate flowmeter operates on the principle of differential pressure. The orifice plate, which is a flat plate with a hole in the middle, is installed in the pipeline. As fluid passes through the restricted opening, its velocity increases, and the pressure drops. This pressure difference is measured upstream and downstream of the orifice plate. By applying Bernoulli’s equation, the flow rate can be calculated based on the pressure drop, fluid density, and orifice size.

Advantages of Orifice Plate Flowmeters

Cost-Effective: Orifice plates are relatively inexpensive to manufacture, install, and maintain, making them an economical option for many industries.

Versatility: They can be used to measure the flow of a wide range of fluids, including gases, liquids, and steam, in various operating conditions.

Proven Technology: Orifice plate flowmeters have been used for decades and are a well-established, reliable technology.

No Moving Parts: The absence of moving components reduces wear and tear, resulting in low maintenance needs and a longer lifespan.

Applications

Orifice plate flowmeters are commonly found in industries such as oil and gas, chemical processing, power generation, and water treatment. Their ability to handle high-pressure systems and varying flow conditions makes them a versatile choice for fluid measurement.

Conclusion

Orifice plate flowmeters offer a cost-effective and reliable method for measuring fluid flow across a range of industries. Their simplicity, durability, and proven accuracy make them an essential tool for monitoring and controlling fluid systems, ensuring operational efficiency.

[cflowmeter]

Target Flowmeters: Precision in Measuring Challenging Fluids

Introduction

Target flowmeters are specialized devices designed to measure the flow rate of liquids, gases, and slurries in various industrial applications. Known for their durability and precision, these flowmeters are particularly effective in handling challenging fluids that may be corrosive, viscous, or contain suspended solids.

How Target Flowmeters Work

The working principle of a target flowmeter is based on the force exerted by the flowing fluid on a target or disk placed in the flow path. As fluid moves through the pipe, it strikes the target, which is connected to a sensor or strain gauge. The force applied by the fluid deflects the target, and this deflection is proportional to the flow rate. The sensor converts the mechanical force into an electrical signal, which is then processed to determine the flow rate.

Advantages of Target Flowmeters

Robust Design: Target flowmeters are built to withstand harsh operating conditions, including high pressures, high temperatures, and abrasive or corrosive fluids.

Versatility: They can measure the flow of a wide range of fluids, including slurries, viscous liquids, and gases, making them ideal for challenging environments.

Accuracy: These flowmeters provide accurate flow measurements even in applications with fluctuating flow rates or irregular fluid properties.

Low Maintenance: The simplicity of their design, with minimal moving parts, results in reduced maintenance requirements and a longer operational life.

Applications

Target flowmeters are widely used in industries such as oil and gas, chemical processing, water treatment, and pulp and paper. They are particularly beneficial in situations where other flowmeters might struggle, such as with highly viscous or particulate-laden fluids.

ConclusionTarget flowmeters offer a robust and reliable solution for measuring the flow of challenging fluids in demanding industrial environments. Their durability, accuracy, and versatility make them an essential tool for applications where traditional flowmeters may not suffice. By understanding the benefits and applications of target flowmeters, industries can ensure precise fluid measurement even under the most challenging conditions.

[cflowmeter]

Rotameter Flowmeters: Simplicity and Reliability in Fluid Measurement

Introduction

Rotameter flowmeters, also known as variable area flowmeters, are a simple yet effective tool for measuring the flow rate of liquids and gases. Known for their ease of use and reliability, rotameters are widely employed in various industries for both monitoring and control purposes.

How Rotameter Flowmeters Work

The rotameter operates on a straightforward principle: a float rises and falls within a tapered tube as fluid flows through it. The height of the float is proportional to the flow rate. The tube is typically made of glass or clear plastic, allowing the user to directly observe the float’s position, which corresponds to the flow rate indicated on a calibrated scale. As fluid enters the tube, it lifts the float until the force of the fluid flow balances with the gravitational force acting on the float.

Advantages of Rotameter Flowmeters

Simplicity: Rotameters are mechanically simple, requiring no external power source, which makes them easy to install and operate.

Visual Flow Indication: The clear tube and visible float provide an immediate visual indication of flow rate, making it easy to monitor and adjust as needed.

Cost-Effective: Due to their basic design and materials, rotameters are generally more affordable than other flow measurement devices.

Durability: Rotameters are robust and can handle a wide range of flow rates and fluid types, including both liquids and gases.

Applications

Rotameters are commonly used in laboratories, chemical processing, water treatment plants, and HVAC systems. Their versatility and ability to provide real-time flow measurements make them invaluable in applications where visual monitoring and quick adjustments are necessary.

Conclusion

Rotameter flowmeters offer a reliable and cost-effective solution for fluid measurement. Their simplicity, durability, and ease of use make them an ideal choice for industries requiring straightforward and accurate flow monitoring. Whether in complex industrial processes or basic laboratory setups, rotameters continue to be a trusted tool in fluid measurement.

[cflowmeter]

Ultrasonic Flow Meters: Advancing Fluid Measurement Technology

Introduction

Ultrasonic flow meters are innovative devices used to measure the flow rate of liquids and gases through pipes. Utilizing sound waves, these meters offer a non-intrusive and highly accurate method of flow measurement, making them a popular choice in various industries.

How Ultrasonic Flow Meters Work

Ultrasonic flow meters operate based on the principle of sound wave propagation. There are two main types: transit-time and Doppler. In transit-time ultrasonic flow meters, sound waves are sent upstream and downstream through the fluid. The time difference between these waves is used to calculate the flow rate. Doppler ultrasonic flow meters, on the other hand, measure the frequency shift of sound waves reflected off particles or bubbles in the fluid to determine flow velocity.

Advantages of Ultrasonic Flow Meters

Non-Intrusive Measurement: Since ultrasonic flow meters do not require insertion into the pipe, they do not obstruct flow, eliminating pressure loss and reducing maintenance needs.

High Accuracy: These meters provide precise measurements, making them suitable for applications where accuracy is critical.

Versatility: Ultrasonic flow meters can measure the flow of various liquids and gases, including clean, dirty, and corrosive fluids.

Ease of Installation: They can be easily installed on the outside of existing pipes, making retrofitting simple and cost-effective.

Applications

Ultrasonic flow meters are employed in a wide range of industries, including water and wastewater management, oil and gas, chemical processing, and HVAC systems. Their ability to accurately measure flow in both small and large pipes, and under varying flow conditions, makes them a versatile solution for fluid measurement.

Conclusion

Ultrasonic flow meters offer a sophisticated, non-intrusive method for measuring fluid flow with high accuracy and reliability. Their versatility and ease of installation make them an ideal choice for modern fluid measurement needs, ensuring efficient and effective monitoring across diverse applications.

[cflowmeter]

Understanding Electromagnetic Flowmeters: Precision in Fluid Measurement

Introduction

Electromagnetic flowmeters, also known as magmeters, are widely used in various industries for their precision in measuring the flow rate of conductive fluids. This non-intrusive measurement technology is particularly valued for its accuracy, reliability, and minimal maintenance requirements.

How Electromagnetic Flowmeters Work

The working principle of an electromagnetic flowmeter is based on Faraday's Law of Electromagnetic Induction. When a conductive fluid passes through a magnetic field generated by coils in the flowmeter, it induces a voltage proportional to the fluid’s flow velocity. Electrodes placed within the flow tube detect this voltage, which is then converted into a flow rate by the flowmeter’s electronics.

Advantages of Electromagnetic Flowmeters

High Accuracy: Electromagnetic flowmeters provide highly accurate measurements, often with an error margin of less than ±0.5%.

No Moving Parts: The absence of moving parts reduces wear and tear, leading to lower maintenance costs and longer service life.

Versatility: These flowmeters can handle a wide range of conductive liquids, including corrosive and slurry fluids.

Minimal Pressure Drop: Since there are no obstructions in the flow path, pressure loss is negligible, ensuring efficient operation.

Applications

Electromagnetic flowmeters are utilized in various sectors, including water and wastewater management, chemical processing, food and beverage production, and pharmaceutical manufacturing. Their ability to handle different types of conductive fluids makes them an ideal choice for industries requiring precise and reliable flow measurement.

Conclusion

Electromagnetic flowmeters offer a blend of accuracy, durability, and versatility, making them essential tools in many industrial applications. Understanding their functionality and benefits can help industries optimize their fluid measurement processes, ensuring better control and efficiency.
