UCC27712 IC SMD High-Side Low-Side Gate Driver

UCC27712 IC SMD High-Side Low-Side Gate Driver. || UCC27712 High-Side Low-Side Gate Driver IC.

U27712 Data:

Gate Type: IGBT, N-Channel, P-Channel MOSFET

Voltage – Supply: 10V ~ 20V

Logic Voltage – VIL, VIH: 1.5V, 1.6V

Current – Peak Output (Source, Sink): 1.8A, 2.8A

High Side Voltage – Max (Bootstrap): 600 V

Operating Temperature: -40°C ~ 125°C (TJ)

Mounting Type: Surface Mount

Package: 8-SOIC (0.154″, 3.90mm Width)

Supplier Device Package: 8-SOIC

Standard Package: 2,500Pc

Download U27712 IC Datasheet PDF

BUY U27712 SMD IC

[electricsmart]

ZCW SMD Transistor (PBSS4350T) – 6pcs

ZCW SMD Transistor (PBSS4350T) – 6pcs

ZCW SMD Transistor (PBSS4350T).

Low collector-emitter saturation voltage VCEsat and corresponding low RCEsat

High collector current capability

High collector current gain

Uses for Luminous Inverter, Battery charger

ZCW SMD Transistor (PBSS4350T).

Low collector-emitter saturation voltage VCEsat and corresponding low RCEsat

High collector current capability

High collector current gain

Uses for Luminous Inverter, Battery charger

MARKING: ZCW

TYPE NUMBER: PBSS4350T

DESCRIPTION:

NPN low VCEsat transistor in a SOT23 plastic package. PNP complement: PBSS5350T.

[electricsmart]

ULN2003 IC DIP 16 Pin Transistor Arrays

ULN2003 IC Price in India || ULN2003 IC Buy || ULN2003 IC DIP 16 Pin Transistor Arrays.

TheULN2003devices have a 10.5-kΩ series base resistor to allowoperation directly fromCMOS devices that use supply voltages of 6 V to 15 V. The required input current of the ULx2004A device is below that of the ULN2003A devices, and the required voltage is less than that required by the ULN2002A device.

The ULN2002A device is designed specifically for use with 14-V to 25-V PMOS devices. Each input of this device has a Zener diode and resistor in series to control the input current to a safe limit. The ULx2003A devices have a 2.7-kΩ series base resistor for each Darlington pair for operation directly with TTL or 5-V CMOS devices.

 Features:

500-mA-Rated Collector Current (Single Output)

High-Voltage Outputs: 50 V

Output Clamp Diodes

Inputs Compatible With Various Types of Logic

Relay-Driver Applications

Applications:

Relay Drivers

Stepper and DC Brushed Motor Drivers

Lamp Drivers

Display Drivers (LED and Gas Discharge)

Line Drivers

Logic Buffers

Inverter

ULN2003 Pin Configuration and Functions:

Download ULN2003 Datasheet PDF

[electricsmart]

7CW MMBT2222A NPN switching transistor

7CW SMD Transistor MMBT2222A NPN switching transistor.

NPN switching transistor in a SOT23 plastic package. PNP complement: PMBT2907A.

FEATURES :

High current (max. 600 mA)

Low voltage (max. 40 V).

Switching and linear amplification.

MARKING CODE : 7CW

TYPE NUMBER : MMBT2222A

LIMITING VALUES :

VCBO collector-base voltage open emitter − 75 V

VCEO collector-emitter voltage open base − 40 V

VEBO emitter-base voltage open collector − 6 V

IC collector current (DC) − 600 mA

ICM peak collector current − 800 mA

IBM peak base current − 200 mA

Ptot total power dissipation Tamb ≤ 25 °C; note 1 − 250 mW

Tstg storage temperature −65 +150 °C

Tj junction temperature − 150 °C

Tamb operating ambient temperature −65 +150 °C

7CW SMD Transistor Pinout :

[electricsmart]

https://www.electricsmart.in/product/7cw-mmbt2222a-npn-switching-transistor

[electricsmart]

40 Amp DC Blade Fuse For Inverter

40A DC Blade Fuse || 40 Amp fuse for inverter || 40 amp inverter fuse.

Electrical Parameters :

Rated Voltage : 32V DC

Interrupting Rating : 1000A @ 32V DC

Component Lavel Temperature range : -40°C to +105°C

Material & Finish :

BODY : POLY CARBONET / NYLON

ELEMENT : ZINC MATERIAL , TIN PLATED

COMPLIES WITH : SAE J1284, ISO 8820-3

  Packing Details :

Standard : 500 NO's Bulk Packing

Parts No : PTF 200 In

Brand : PROTECTRON

Download 40A DC Fuse Datasheet pdf

[electricsmart]

YAC6 SMD Low-Voltage Adjustable Precision Shunt Regulator

YAC6 SMD Low-Voltage Adjustable Precision Shunt Regulator || YAC6 Transistor SMD || YACU Transistor.

Description :

The TLV431ACDBZRG4 device is a low-voltage 3-terminal adjustable voltage reference with specified thermal stability over applicable industrial and commercial temperature ranges. Output voltage can be set to any value between VREF (1.24 V) and 6 V with two external resistors (see the Parameter Measurement Information section). These devices operate from a lower voltage (1.24 V) than the widely used TLV431ACDBZRG4 (YAC6) and TLV431ACDBZR (YACU) shunt-regulator references.

[electricsmart]

https://www.electricsmart.in/product/yac6-transistor-smd-price

[electricsmart]

MC33883HEG H-Bridge Gate Driver IC

MC33883HEG H-Bridge Gate Driver IC.

The 33883 is an H-bridge gate driver (also known as a full-bridge pre-driver) IC with integrated charge pump and independent high and low side gate driver channels. The gate driver channels are independently controlled by four separate input pins, thus allowing the device to be optionally configured as two independent high side gate drivers and two independent low side gate drivers. The low side channels are referenced to ground. The high side channels are floating.

The gate driver outputs can source and sink up to 1.0 A peak current pulses, permitting large gate-charge MOSFETs to be driven and/or high pulse- width modulation (PWM) frequencies to be utilized. A linear regulator is incorporated, providing a 15 V typical gate supply to the low side gate drivers. The 33883 is AEC-Q100 qualified.

Features :

VCC operating voltage range from 5.5 V up to 55 V

VCC2 operating voltage range from 5.5 V up to 28 V

[electricsmart]

Luminous Zelio 1100 Sive Wave Home Inverter

Luminous Zelio 1100 Sive Wave Home Inverter.

PRODUCT DESCRIPTION : LUMINOUS ZELIO + 1100  Sine Wave UPS provides grid quality back - up power to the load and home appliances when there is a power failure . Normally , the UPS operates on mains , delivering power to the load . When the mains power fails , the load automatically transfers to UPS The load is automatically transferred back to mains when it restores and charging is commenced to keep the battery at optimal level . The Zelio + is equipped with a number of outstanding features such as:

Provides grid quality sine wave

Intelligent back - up and battery management system

Automatically learns the battery capacity ( Charge & Discharge cycle )

Highly efficient and equipped with in - built protection.

Specifications :

Apparent Powar : 900VA

Active Powat : 756 watt

Voltage range (UPS Mode) : 180V - 265V AC

Voltage range (Eco Mode) : 110V - 275V AC

Frequency : 50Hz

Charging Current : 15A Max

Inverter Voltage : 12V

Inverter Transfer Time : less then 20ms

Battery Support : Tubular, Flat, SMF

Inverter Efficiency : 80%

Inverter Protuction : Over load and Low battery

Total Weight : 10KG

Dimension: 275*248*120

The Luminous zelio comes with LCD Display and Powar Switch.

Power switch : This switch is for output power ON / OFF . If the switch is OFF , the UPS will not work . If the switch is ON , UPS will work ( power LED will glow indicating UPS ON ) .

LCD Display : It displays & indicates the various status of the UPS Display and Visual Indications : LOMMON 888

Display and Visual Indications.

Mains ON : Glows when mains input is available .

Mode Selector Displays the UPS status on ECO mode

Fault Indicator : Glows in case of any fault .

Water Level Indicator : Glows when water level in battery is low .

Battery Charge Indicator : Displays the battery charge level .

Status Display Displays the following parameters :                        Battery charge and discharge time . ( in                         Hours & Minutes )                                                                 Battery type - Tubular , Flat & SMF Faults                        & Protections

For more information Download Zelio Manual in PDF

[electricsmart]

LM393 IC SMD TI SOP-8 IC

LM393 SMD IC Description: Buy Now

The LM393B and LM2903B devices are the next generation versions of the industry standard LM393 and LM2903 comparator family. These next generation B-version comparators feature lower offset voltage, higher supply voltage capability, lower supply current, lower input bias current, lower propagation delay, and improved 2 kV ESD performance and input ruggedness through dedicated ESD clamps. The LM393B and LM2903B can drop-in replace the LM293, LM393 and LM2903, for both “A” and “V” grades. All devices consist of two independent voltage comparators that are designed to operate from a single power supply over a wide range of voltages. Quiescent current is independent of the supply voltage. Electricsmart

Features:

 NEW LM393B and LM2903B

 Improved specifications of B-version – Maximum rating: up to 38 V – ESD rating (HBM): 2k V – Low input offset: 0.37 mV – Low input bias current: 3.5 nA – Low supply-current: 200 µA per comparator – Faster response time of 1 µsec – Extended temperature range for LM393B – Available in tiny 2 x 2mm WSON package

 B-version is drop-in replacement for LM293, LM393 and LM2903, A and V versions

 Common-mode input voltage range includes ground

 Differential input voltage range equal to maximum rated supply voltage: ±38 V

 Low output saturation voltage

 Output compatible with TTL, MOS, and CMOS

[electricsmart]

CLA50E1200HB Thyristor

CLA50E1200HB High Efficiency Thyristor. Buy Now from Electrical Learner

Voltage VDRM: 1200V

Gate Trigger Voltage Vgt: 1.5 V

Gate Trigger Current Igt: 50 mA

Current Rating: 50 A

Operating Temperature: 150 C

Mounting Style: Through Hole

Mounting Style: Through Hole

Packaging: Tube

Brand: IXYS

Package: TO-268AA

[electricsmart]

SJ2B SMD IC ( LMR14206)Step-Down Voltage Regulator

SJ2B IC SMD LMR14206XMKX/NOPB TI. Buy Now

LMR14206 SIMPLE SWITCHER® 42Vin, 0.6A Step-Down Voltage Regulator in SOT-23.

The LMR14206 is optimized for up to 600 mA load current with a 0.765V nominal feedback voltage. Additional features include: thermal shutdown, VIN under-voltage lockout, and gate drive under-voltage lockout. The LMR14206 is available in a low profile 6- pin SOT package.

Features :

Input Voltage Range of 4.5V to 42V

Output Voltage Range of 0.765V to 34V

Output Vurrent up to 0.6A

1.25 MHz Switching Frequency

Low Shutdown Iq, 16 µA Typical

Short Circuit Protected

Internally Compensated

Soft-Start Function

Thin 6-Pin SOT Package (2.97 x 1.65 x 1mm)

Fully Enabled for WEBENCH® Power Designer

Applications :

Point-of-Load Conversions from 5V, 12V, and 24V Rails

Space Constrained Applications

Battery Powered Equipment

Industrial Distributed Power Applications

Power Meters

Portable Hand-Held Instruments

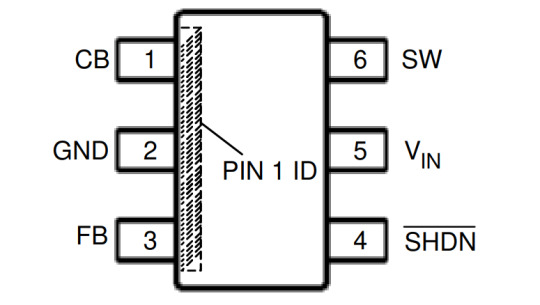

Connection Diagram :

Absolute Maximum Ratings :

VIN -0.3V to +45V

SHDN -0.3V to (VIN+0.3V) <45V

SW Voltage -0.3V to +45V

CB Voltage above SW Voltage 7V

FB Voltage -0.3V to +5V

Maximum Junction Temperature 150°C

Download  SJ2B Datasheet pdf.

[electricsmart]

LM317D2 Voltage Regulator IC

LM317D2 Voltage Regulator IC. Buy Now

1.2 V to 37 V adjustable voltage regulators The LM217, LM317 are monolithic integrated circuits in TO-220, TO-220FP, D²PAK and SOT223 packages intended for use as positive adjustable voltage regulators. They are designed to supply more than 1.5 A of load current with an output voltage adjustable over a 1.2 to 37 V range.

Features :

Output voltage range: 1.2 to 37 V

Output current in excess of 1.5 A

0.1% line and load regulation

Floating operation for high voltages

Complete series of protections: current limiting, thermal shutdown and SOA control

Pin configuration :

Maximum ratings :

VI - VO Input-reference differential voltage 40 V

IO Output current Internally limited A

ΔVO Line regulation VI - VO = 3 to 40 V TJ = 25°C 0.01 0.02 %/V 0.02 0.05

IADJ Adjustment pin current 50 100 µA

ΔIADJ Adjustment pin current VI - VO = 2.5 to 40 V IO = 10 mA to IMAX 0.2 5 µA

Download LM317D2 Datasheet PDF from download link.
