PL2000H XGS-PON+GPON EDFA (2U, Optical Switch)

PL2000H XGS-PON+GPON EDFA is a new generation EYDFA in CATV industry. It has unique back reflection function for FTTH XGS-PON GPON EDFA. This type model is 2U rack mount, 1550nm wavelength input, available for upto 64ports PON Pass through, with optical switch Block Diagram for XGS-PON+GPON EDFA with Optical Switch

Optical Characteristics Parameter Unit Value Optical Input Wavelength nm 1545 ~ 1565 Optical Input Power dBm -10~+10 Output Optical Power dBm Upto 40dBm Typical Output Power dBm ≥ 18 Port Numbers -- 1~256 Output Power Tolerance dB ± 0.5 Port Uniformity dB ± 0.7 Noise Figure dB ≤ 5.5 Optical Test Port dB -5~+5 Return Loss Input/Output dB ≥ 45 Isolation Output ► Input dB ≥ 40 Polarization Dependence dB ≤ 0.3 - Noise figure at 0 dBm input power, nominal output power and signal wavelength 1550 nm. XGS-PON+GPON Characteristics  Parameter Unit Value GPON Center Wavelengths nm 1310/1490 XG(S)-PON Center Wavelengths nm 1270 / 1577 GPON + XG(S)-PON Center Wavelengths nm 1270 /1310/1490/1577 Insertion Loss dB ≤ 1 Isolation CATV ► PON dB 30 @ 1545~1565 nm Isolation COM ► PON dB 15 @ 1545~1565 nm Return Loss dB ≥ 45   Optical Switch for 2 Inputs Parameter Unit Value Insertion Loss dB < 1 Crosstalk dB ≤ -55 Repeatability dB ± 0.05 Switch Time ms ≤ 10 Return Loss dB ≥ 50   General Characteristics Parameter Unit Value Power Supply pcs 2 (1 default, 1 optional) Chassis Type -- 1U, 2U, 3U 19’’ Rack Mounted AC Input Voltage Vac 90~132 or 176~264 DC Input Voltage Vdc 36~ 72 Power Consumption W ≤75 Dimension (W x H x D) mm 484*44*385 (1U) mm 484*88*336 or 484*88*416 (2U) Operating Temperature Range °C -5~+50   Management Interface Parameter Value Data Link Layer Ethernet 10/100 Base-T Network Layer IPv4, ICMP Transport Layer UDP, TCP Application Layer SNMPv1/v2c, DHCP, Web Connectors 10/100 Base-T Front Panel Management 3.5” 480 x 320 Color Touch Screen LCD for 2U and 3U 2.4” 320 x 240 Color Touch Screen LCD for 1U   Control Mode Parameter Value Stabilization Mode Pump Current Output Optical Power Optical Gain Automatic Pump Shutdown Mode Low Input Power (LOS)   Our XGS-PON GPON EDFA has three optical output power control modes: - APC (Automatic Power Control): Output Optical Power Level Stabilization - ACC (Automatic Current Control): Pump Current Level Stabilization - AGC (AutomaticGain Control): Optical Gain Level Stabilization Read the full article

[premlink]

PL150D-5 XGS-PON FTTH Optical Receiver

PL150D XGS-PON FTTH optical receiver is a hot sales receiver that is compact in size and cost effective. Optical Characteristics Parameter Unit Value CATV Optical Wavelength nm 1539~1565 Reflect Channel Wavelength nm 1260~1360 & 1480~1500 Optical Isolation - Pass dB ≥30 @1310/1490nm Optical Isolation - Reflect dB ≥18 @1550nm Insertion Loss @ Pass Channel dB ≤1.0 (included adapter loss) Insertion Loss @ Reflect Channel dB ≤1.0 (included adapter loss) Optical Input Power dBm -15~+2 AGC Range dBm -10~0 Optical Return Loss dB ≥45 Optical Fiber Type -- SM Connector Type -- FC, SC or LC   RF Characteristics Parameter Unit Value Frequency Range MHz 47~1002 Flatness dB ±0.75 Output Impedance Ω 75 RF Return Loss dB ≥16 RF Output Stability in AGC Range dB ±1.0 RF Output Level dBμV 76±1 Output Ports -- 1 CTB dBc 60 CSO dBc 60 C/N dBc 48@0dBm - Testing condition: OMI=3.5%,optical input power @-1dBm, 98chs signal output, above 550MHz at -10dB offset. Others Parameter Unit Value Operating Voltage (External Power Supply) VDC 5 Weight without Power Supply kg 0.1 Power Consumption W 1.8 Output Connector -- F Operating Temperature ℃ 0~+40 Dimension（L*W*H） mm 80*50*25   Ordering Information PL150D-X Power Cord-XX CATV Connector -XX PON Connector-XX 1 1100nm-1600nm Input Wavelength CN Chinese Standard SA SC/APC N N/A 2 1550+/-10nm Input Wavelength EU Europe Standard SU SC/UPC SA SC/APC 3 1310/1490nm PON Port( pass through) US United States Standard FA FC/APC SU SC/UPC 4 1270/1577nm 10GPON( pass through) UK British Standard FU FC/UPC FA FC/APC 5 1310/1490nm,1270/1577nm pass through FU FC/UPC Welcome to enquiry our PL150D-5 XGS-PON FTTH optical receiver. Read the full article

[premlink]

PL780A Outdoor Optical Node

PL780A outdoor optical node is a very cost effective optical receiver for FTTB network. Block Diagram

Specification Parameter Unit Value Frequency Range MHz 47 ~ 1002 Flatness dB ±0.75 Working Wavelength nm 1100 ~ 1600 Input Power Range dBm -9 ~ +2 AGC Db -7 ~ +2 AGC Characteristics dB ±1 Connector Type -- FC/APC or SC/APC Optical Return Loss dB ≥45 RF Return Loss dB ≥16 ATT Adjustable Range dB 0 ~20 EQ Adjustable Range dB 0 ~20 CNR1 dB ≥51 CSO1 dB ≥63 CTB1 dB ≥65 RF Output Level dBμV ≥104 HUM Ratio dB ≥66 Lightning Resistant Voltage KV ≥5(10/700μs) Operating Voltage V 130~265 or 60~90 Operating Temperature ℃ -40~ +60 - Testing condition: OMI=3.5%, optical input power @-1dBm, 98chs signal output, above 550MHz at -10dB offset. Welcome to enquiry our PL780A Outdoor Optical Node.       Read the full article

[premlink]

PL10-3A RFoG ONU

PL10-3A RFoG ONU SDU follows SCTE 174 2010 standard .(Radio Frequency over Glass Fiber-to-the-Home). PL10-3A has different frequency split option, such as 42/54MHz, 65/86/MHz, 85/105MHz. And, PL10-3A has 1002MHz working bandwidth, also 1218MHZ for DOCSIS 3.1 application. PL10-3A is the ideal platform for use in FTTH and FTTB networks. It delivers upstream and downstream DOCSIS, voice, video and high speed data service over FTTX applications. Forward Path Parameter Unit Value Condition Optical Wavelength nm 1540~1560 CWDM available PON Pass Wavelength nm 1280~1500 PON Pass Port Loss dB 1 PON Optical Isolation dB > 30 Monitor Voltage V/mW 1 λ=1550nm Optical Input Power dBm -6~+2 AGC Range *Frequency Range MHz 54~1002/1218 *42/54,65/86,85/105MHz available Flatness dB ±0.75 *Slope dB 5±1 3±1 available Output Return Loss dB ≥16 Optical Output Return Loss dB >45 *Output Level dBmV 18±2 36±2 1.(Pin=-1dBm,4% OMI/ch, 79ch NTSC,Digital ch above 550MHz at -6dB offset)2.(Pin=-1dBm,4% OMI/ch, 42ch CENELEC) dBuV 77±2 96±2 *C/N dB 51 *CTB dB ≤-65 *CSO dB ≤-60 Equivalent Noise Input pA/Hz 45 *Optical Laser turn ON Level dBmV 15 Customer’s request available dBuV 75 *Optical Laser turn OFF Level dBmV -4 Customer’s request available dBuV 56 Laser Rise Time ms ≤1.3 Laser Fall Time ms ≤1.6    Others Parameter Unit Value Condition Voltage V/DC 12 100~230V power supply adapter Power Consumption W < 5.5 W Included power supply adapter Operation Temperature ℃ -20~55 Humidity 5~95%, non condensing Optical Connector / SC/APC Customer’s request available RF Connector / F Dimensions mm 172*103*41 Weight Kg 0.4 Our RFoG  mini node delivers the same services as an DOCSIS network, with the added benefit of improved noise performance and increased usable RF spectrum in both the downstream and return-path directions. see RF over Glass solution.     Read the full article

[premlink]

7 steps to quick unpack PL2000H GPON EDFA

7 STEPS TO QUICK UPACK PL2000H GPON EDFA

WARNING: To avoid electrical shock, do not operate the unit if it bears any sign of damage to any portion of its exterior surface, such as the outer cover or panels. Wear an anti-static wrist strap and work in an electrostatic discharge (ESD) controlled area.

1) Inspect the shipping box of PL2000H GPON EDFA for any for any obvious damage. 2) Unpack the unit from all packaging boxes. 3) Inspect the appearance of the unit for any shipping damage. 4) Read the user’s manual thoroughly and become familiar with all safety symbols 5) ensure that the unit is operated and maintained safely. 6) Document and inform the shipping company, if any damage is found. 7) Keep the shipping boxes and their inserts for future shipment in case the product needs repair. PL2000H GPON EDFA Kit includes:

Item Quantity Item Quantity PL2000H Unit 1 Power Cable 1 or 2 User’s Manual 1 Testing Report 1 Quick Guide 1 Packing Box 1 NOTE: In the event of a reshipment back to the manufacturer, any additional damage caused by not using the original boxes will be considered the responsibility of the customer. Read the full article

[premlink]

PL2000H XGS-PON+GPON EDFA (1U, Optical Switch)

PL2000H XGS-PON CATV EDFA  is a new generation EYDFA in CATV industry. It has unique back reflection function for FTTH XGS-PON CATV EDFA. This type of model is 1U rack mount, 1550nm wavelength input, available for upto 64ports PON Pass through, with optical switch. Block Diagram for XGS-PON+GPON EDFA with Optical Switch

xgs-pon edfa block diagram optical switch Optical Characteristics Parameter Unit Value Optical Input Wavelength nm 1545 ~ 1565 Optical Input Power dBm -10~+10 Output Optical Power dBm Upto 40dBm Typical Output Power dBm ≥ 18 Port Numbers -- 1~256 Output Power Tolerance dB ± 0.5 Port Uniformity dB ± 0.7 Noise Figure dB ≤ 5.5 Optical Test Port dB -5~+5 Return Loss Input/Output dB ≥ 45 Isolation Output ► Input dB ≥ 40 Polarization Dependence dB ≤ 0.3 - Noise figure at 0 dBm input power, nominal output power and signal wavelength 1550 nm. XGS-PON+GPON Characteristics  Parameter Unit Value GPON Center Wavelengths nm 1310/1490 XG(S)-PON Center Wavelengths nm 1270 / 1577 GPON + XG(S)-PON Center Wavelengths nm 1270 /1310/1490/1577 Insertion Loss dB ≤ 1 Isolation CATV ► PON dB 30 @ 1545~1565 nm Isolation COM ► PON dB 15 @ 1545~1565 nm Return Loss dB ≥ 45   Optical Switch for 2 Inputs Parameter Unit Value Insertion Loss dB < 1 Crosstalk dB ≤ -55 Repeatability dB ± 0.05 Switch Time ms ≤ 10 Return Loss dB ≥ 50   General Characteristics Parameter Unit Value Power Supply pcs 2 (1 default, 1 optional) Chassis Type -- 1U, 2U, 3U 19’’ Rack Mounted AC Input Voltage Vac 90~132 or 176~264 DC Input Voltage Vdc 36~ 72 Power Consumption W ≤75 Dimension (W x H x D) mm 484*44*385 (1U) mm 484*88*336 or 484*88*416 (2U) Operating Temperature Range °C -5~+60   Management Interface Parameter Value Data Link Layer Ethernet 10/100 Base-T Network Layer IPv4, ICMP Transport Layer UDP, TCP Application Layer SNMPv1/v2c, DHCP, Web Connectors 10/100 Base-T Front Panel Management 3.5” 480 x 320 Color Touch Screen LCD for 2U and 3U 2.4” 320 x 240 Color Touch Screen LCD for 1U   Control Mode Parameter Value Stabilization Mode Pump Current Output Optical Power Optical Gain Automatic Pump Shutdown Mode Low Input Power (LOS)   Our XGS-PON CATV EDFA (1GPON+10GPON EDFA) has three optical output power control modes: - APC (Automatic Power Control): Output Optical Power Level Stabilization - ACC (Automatic Current Control): Pump Current Level Stabilization - AGC (AutomaticGain Control): Optical Gain Level Stabilization   Read the full article

[premlink]

What is ACC and AGC mode of PL2000H CATV PON EDFA?

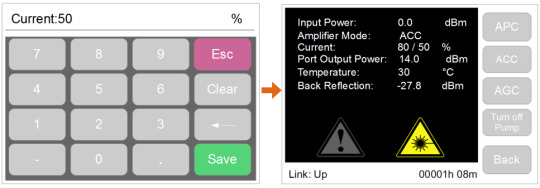

ACC and AGC mode in PL2000h CATV PON EDFA ACC mode (Automatic Current Control) provides the direct power, control the device through the management of current laser diode pumping. Current is set as a percentage of the maximum value. The maximum current is set by the manufacturer. Default Value of ACC mode is 80/80% (Recommended). Current is appeared at the top of menu as shows its value. Set the desired value using the touch keyboard to input value.

 AGC Mode: Tap “AGC” button to enter AGC mode AGC mode (Automatic Gain Control) is established and maintained by the fixed value of the input signal gain regardless of the input signal and temperature. The device automatically adjusts the current laser diode-pumped high-power cascade to maintain required gain, which is based on measurement of internal sensor. Gain is appeared at the top of menu as shows its value. Set the desired value using the touch keyboard to input value.

Note: When input power is 0dBm, the output gain value is same as Port Output Power on touchscreen. CAUTION: NEVER disconnect any fiber connections to PL2000H CATV PON EDFA while it is powered.   See what is  APC mode   Read the full article

[premlink]

PLP50 Pluggable Blocking FWDM Flitter

PLP-50 Pluggable Blocking FWDM is easily installed on existing GPON ONU equipment to block 1577nm XGS-PON signals. This solution is simple and low cost to solve the issue that 1577nm could cause interfering with 1550nm signal to CATV RF receiver in GPON ONU. Blocked Wavelength Range 1577±5nm 1572-1582 nm Insertion Loss ≤ 1.2dB @1260~1360nm ≤ 1.2dB @1460~1570nm ≤ 1dB @1600~1625nm Return Loss >40dB @1260~1360 >40dB @1460~1580 >30dB @1590~1650 PDL 0.4dB Ripple 0.6dB TDL 0.5dB Maximum Optical Power 500mW Durability >500times Connector Type SC/APC Optional LC/APC Working Environment -40 ~ +80°C Storage Environment -40 ~ +85°C Welcome to enquiry our PLP-50 Pluggable Blocking FWDM. Read the full article

[premlink]

PL160A Indoor FTTH Mini Node

PL160A Indoor FTTH mini node adopts high performance and high effective o-e converter tube with low-noise MMIC Amplifier IC.It has AGC function ,and compacted in side, which is suitable for FTTH networks upgrade. PL106A ftth mini node with a version for GPON +10GPON, XGS-PON are also avaliable. Optical Characteristics Parameter Unit Value CATV Optical Wavelength nm 1539~1565 Reflect Channel Wavelength nm 1260~1360 & 1480~1500 Optical Isolation - Pass dB ≥30 @1310/1490nm Optical Isolation - Reflect dB ≥18 @1550nm Insertion Loss @ Pass Channel dB ≤1.0 (included adapter loss) Insertion Loss @ Reflect Channel dB ≤1.0 (included adapter loss) Optical Input Power dBm -15~+2 AGC Range dBm -10~0 Optical Return Loss dB ≥45 Optical Fiber Type -- SM Connector Type -- FC, SC or LC RF Characteristics Parameter Unit Value Frequency Range MHz 47~1002 Flatness dB ±0.75 Output Impedance Ω 75 RF Return Loss dB ≥14 RF Output Stability in AGC Range dB ±1.0 RF Output Level dBμV 76±1 Output Ports -- 1 CTB dBc 60 CSO dBc 60 C/N dBc 46 1.Testing condition: OMI=3.5%, optical input power @-1dBm, 98chs signal output, above 550MHz at -10dB offset.   Others Parameter Unit Value Operating Voltage (External Power Supply) VDC 5 Weight without Power Supply kg 0.1 Power Consumption W 1.2 Output Connector -- F Operating Temperature ℃ -10~+50 Dimension(L*W*H) mm 94*60*24 Read the full article

[premlink]

How to clean optical connector of PL2000H edfa optical amplifier

CAUTION: ALWAYS MAKE SURE that all power is removed from PL2000H EDFA optical amplifier before optical connectors are connected Use caution when handling fibers. Do not exceed the fiber manufacturer's pulling tension or bend radius specifications when removing the fiber bulkhead connector plate. Cleaning for PL2000H EDFA Optical Amplifier'sFiber Patch Cord Connectors - Remove the fiber connector dust cap and wipe the fiber connector tip with high-quality fiber cleaner or a dry lint-free cloth. Check if there are scratches or debris on connector surface on PL2000H EDFA optical amplifier by using a fiber scope. - If no scratches or debris are found that means the connector is now clean and ready for connection. - If debris or scratches are found then repeat the fiber patch cord connector cleaning.

Cleaning for PL2000H EDFA Optical Amplifier's Fiber Optic Adapter - Compressed air may be used to clean fiber optic adapter. Use compressed air with at least the following specifications: - Non-residue, inert gas for precision dust removal - Ultra-filtered to < 0.2 microns - Recommended for optical systems - Using compressed air as listed above, remove the adapter dust cover and hold the can of compressed air about 6 inches from the connector. After spraying a few short bursts into the adapter the connector is clean and ready for connection. - If compressed air is not available, the fiber adapter connector can be cleaned by 2.5 mm cotton swap or connector plate may be removed to clean the internal fiber patch cords. After EDFA connector cleaning, we can start EDFA connection setting up. - Clean all fiber patch cords before connecting. - Make sure the laser key switch on the front panel of the transmitter is in the OFF position. - Connect a fiber patch cord from the output of the transmitter to the optical power meter, turn key ON position of transmitter laser. Be sure the optical output is in the -10~+10dBm range (0dBm is recommended). - Turn switch key of transmitter to the OFF position and power OFF. - Connect the fiber patch cord to the amplifier input. Power up that transmitter once the fiber connections to the amplifier input are secure. - Turn the transmitter laser key switch to the ON position. For more information about our products, please visit 10GPON EDFA - CATV, XGS-PON, RFoG ONU, DWDM Filter (premlink.net) Read the full article

[premlink]

PL200A-5 XGS-PON Optical Receiver

PL200A CATV XGS-PON optical receiver adopts high performance, and also has high effective o-e converter tube. In addition, PL200A is equipped with low-noise MMIC Amplifier IC. Our optical receiver is in compacted size, also suitable for FTTH, FTTB networks upgrade. Optical Characteristics Parameter Unit Value Wavelength  (Model:PL200A-1) nm 1100-1650 Wavelength  (Model:PL200A-2,PL200A-3) nm 1550±10 PON Pass-through Wavelength (Model:PL200A-3) nm 1310nm/1490nm Optical Isolation - Reflect (Model:PL200A-3) dB 40 @1310/1490nm Optical Isolation - Pass(Model:PL200-3) dB 25 @1550nm Input Level Range (PIN) dBm -10~ -3 or -7~0 AGC Range dBm -10~ -3 or -7~0 Optical Return Loss dB ≥45 Connector Type -- FC/APC or SC/APC RF Characteristics Frequency Range MHz 47～862/1002 Gain Characteristic Flatness dB ±0.75 Output Level dBμV 80±1 or 85±1 or 90±1 CTB1 dB ≥63 CSO1 dB ≥63 C/N1 dB ≥50 1.Testing condition: OMI=3.5%,optical input power @-1dBm, 98chs signal output, above 550MHz at -10dB offset. Others Operating Voltage (External Power Supply) VDC 9 or 12 Weight without Power Supply kg 0.18 Power Consumption W Read the full article

[premlink]

What is APC mode of PL2000H CATV EDFA Amplifier? Easily Operated

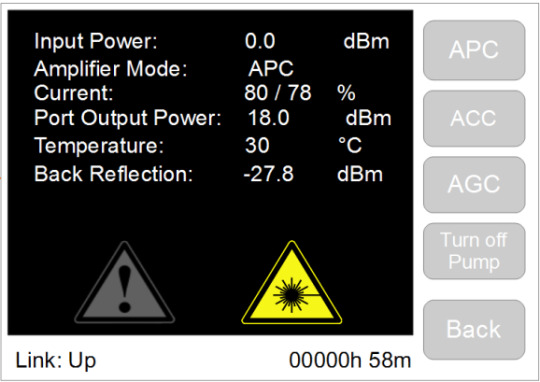

APC mode is easily operated in PL2000H CATV EDFA Amplifier APC is Automatic Power Control, which is for Output Optical Power Level Stabilization. Tap “APC” button to enter APC mode. APC mode is system default control mode. APC (Automatic Power Control) is established and maintained by the output power regardless of the changes of the input signal and temperature. PL2000H CATV EDFA Amplifier automatically adjusts the current laser diode pumping to ensure stabilization of the desired output power that measured by an internal sensor. Output power value is appeared at the top of menu as shows its value. Set the desired value by using the touch keyboard to input and then to save, the LCD display as below:

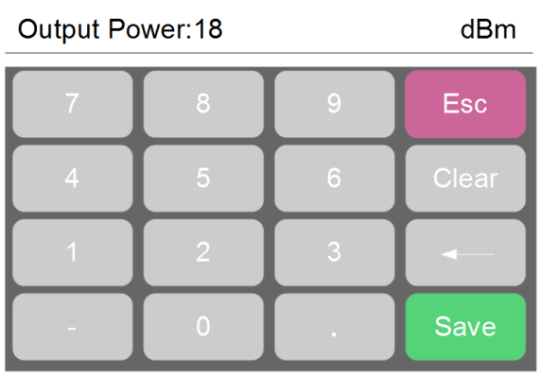

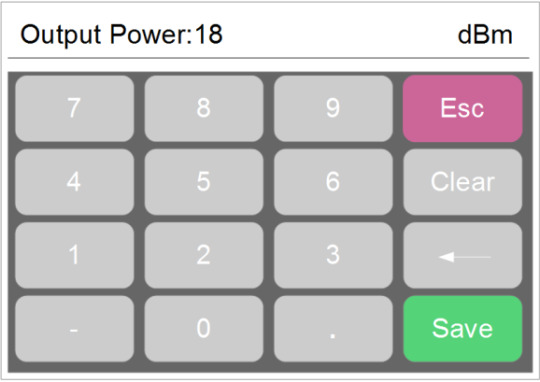

           System default mode is APC mode that is easy to operate for basic user. Click “Port Output Power” to set new output power value. Please note: The new value is adjustable according to customer’s request. For example, when customer ordered a 16x19 high power EDFA (16 ports with 19dBm per port). The new value of output power is in 30%~100% range of 19dBm. However, PL2000H CATV EDFA Amplifier is not available when new value is higher than 19dBm. See what is ACC and AGC mode Read the full article

[premlink]

PL1310 1310nm Optical Transmitter

PL1310 1310nm optical transmitter uses an ORTEL (EMCORE) or XESTON high performance DFB laser with AGC / MGC and OMI adjustable functions. There are also WEB/SNMP and plug-in power supply modules. Our 1310nm optical transmitter is designed for long-distance optical fiber transmission of television signals. It combines an imported high-performance DFB laser as a light source with RF power automatic processing technology to ensure excellent machine performance. All of its excellent characteristics make it the first choice for large-scale HFC networks.   Optical Characteristics Parameter Unit Value Working Wavelength nm 1310±10 Output Power mW 6~24 Optical Return Loss dB ≥45 Optical Fiber Type -- SM Optical Connector -- SC/APC or FC/APC RF Characteristics Parameter Unit Value Frequency Range MHz 45~870/1002/1218 RF Input Return Loss dBm ≥16 RF Input Level dBμV 78±5 (AGC) Flatness dB ±0.75 CNR1 dB >50 CSO1 dBC ≤-60 CTB1 dBC ≤-65 - Testing condition: OMI=3.5%,optical input power @-1dBm, 98chs signal output, above 550MHz at -10dB offset. Others Parameter Unit Value Operating Voltage V 90~260, 50Hz Power Consumption W ≤30 Operating Temperature ℃ 0~50 Dimension（L*W*H） mm 484*370*44 Weight Kg Read the full article

[premlink]

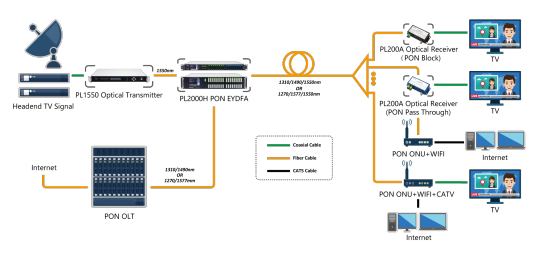

RF Overlay on PON

Read the full article

[premlink]

PL2000H High Power EDFA (1U, CATV)

PL2000H high power EDFA is characterized by low noise and high linearity performance to meet the most demanding requirements of CATV and FTTx applications. It offers a flexible, low-cost solution for large area distribution networks. Optical Characteristics Parameter Unit Value Optical Input Wavelength nm 1545 ~ 1565 Optical Input Power dBm -10~+10 Output Optical Power dBm See Ordering Information Typical Output Power dBm ≥ 18 Output Power Stabilization Range % 30 ~100 Port Numbers -- See Ordering Information Output Power Tolerance dB ± 0.5 Port Uniformity dB ± 0.6 Noise Figure dB ≤ 5.5 Optical Test Port dB -5~+5 Return Loss Input/Output dB ≥ 45 Isolation Output ► Input dB ≥ 40 Polarization Dependence dB ≤ 0.3 1.Noise figure at 0 dBm input power, nominal output power and signal wavelength 1550 nm. General Characteristics Parameter Unit Value Power Supply pcs 2 (1 default, 1 optional) Chassis Type -- 1U, 2U, 3U 19’’ Rack Mounted AC Input Voltage Vac 90~132 or 176~264 DC Input Voltage Vdc 36~ 72 Power Consumption W ≤75 Dimension (W x H x D) mm 484 x 44 x 435 (1U) mm 484 x 88 x 380 (2U) Operating Temperature Range °C -5~+50   PON Characteristics  Parameter Unit Value PON Wavelengths nm 1260~1360 & 1480~1500 Insertion Loss dB ≤ 1 Isolation CATV ► PON dB 50 @ 1545~1565 nm Isolation COM ► PON dB 15 @ 1545~1565 nm Return Loss dB ≥ 50   Management Interface Parameter Value Data Link Layer Ethernet 10/100 Base-T (and LLDP optional) Network Layer IPv4, ICMP Transport Layer UDP, TCP Application Layer SNMPv1/v2c, DHCP, Web Connectors 10/100 Base-T Front Panel Management 3.5” 480 x 320 Color Touch Screen LCD for 2U and 3U 2.4” 320 x 240 Color Touch Screen LCD for 1U   Control Mode Parameter Value Stabilization Mode Pump Current Output Optical Power Optical Gain Automatic Pump Shutdown Mode Low Input Power (LOS) High Back Reflection Overheating   PL2000H High Power EDFA, has three optical output power control modes: Firstly, APC (Automatic Power Control): Output Optical Power Level Stabilization Secondly, ACC (Automatic Current Control): Pump Current Level Stabilization Thirdly, (AutomaticGain Control): Optical Gain Level Stabilization PL2000H is equipped with standard measures of input and back reflection optical power and reflected power meter within 60 dB dynamic range.  In other words, Measurement of reverse reflection is useful function to monitor networks and to configure optimal settings exploitation. Read the full article

[premlink]

PL2000H XGS-PON+GPON EDFA (1U)

PL2000H XGS-PON CATV EDFA  is a new generation EYDFA in CATV industry. It has unique back reflection function for FTTH XGS-PON CATV EDFA. This type of model is 1U rack mount, 1550nm wavelength input, available for upto 64ports PON Pass through, with optical switch. Block Diagram for XGS-PON+GPON EDFA

Optical Characteristics Parameter Unit Value Optical Input Wavelength nm 1545 ~ 1565 Optical Input Power dBm -10~+10 Output Optical Power dBm Upto 40dBm Typical Output Power dBm ≥ 18 Port Numbers -- 1~256 Output Power Tolerance dB ± 0.5 Port Uniformity dB ± 0.7 Noise Figure dB ≤ 5.5 Optical Test Port dB -5~+5 Return Loss Input/Output dB ≥ 45 Isolation Output ► Input dB ≥ 40 Polarization Dependence dB ≤ 0.3 - Noise figure at 0 dBm input power, nominal output power and signal wavelength 1550 nm. XGS-PON+GPON Characteristics  Parameter Unit Value GPON Center Wavelengths nm 1310/1490 XG(S)-PON Center Wavelengths nm 1270 / 1577 GPON + XG(S)-PON Center Wavelengths nm 1270 /1310/1490/1577 Insertion Loss dB ≤ 1 Isolation CATV ► PON dB 30 @ 1545~1565 nm Isolation COM ► PON dB 15 @ 1545~1565 nm Return Loss dB ≥ 45    General Characteristics Parameter Unit Value Power Supply pcs 2 (1 default, 1 optional) Chassis Type -- 1U, 2U, 3U 19’’ Rack Mounted AC Input Voltage Vac 90~132 or 176~264 DC Input Voltage Vdc 36~ 72 Power Consumption W ≤75 Dimension (W x H x D) mm 484*44*385 (1U) mm 484*88*336 or 484*88*416 (2U) Operating Temperature Range °C -5~+60   Management Interface Parameter Value Data Link Layer Ethernet 10/100 Base-T Network Layer IPv4, ICMP Transport Layer UDP, TCP Application Layer SNMPv1/v2c, DHCP, Web Connectors 10/100 Base-T Front Panel Management 3.5” 480 x 320 Color Touch Screen LCD for 2U and 3U 2.4” 320 x 240 Color Touch Screen LCD for 1U   Control Mode Parameter Value Stabilization Mode Pump Current Output Optical Power Optical Gain Automatic Pump Shutdown Mode Low Input Power (LOS)   Our XGS-PON CATV EDFA (1GPON+10GPON EDFA) has three optical output power control modes: - APC (Automatic Power Control): Output Optical Power Level Stabilization - ACC (Automatic Current Control): Pump Current Level Stabilization - AGC (AutomaticGain Control): Optical Gain Level Stabilization   Read the full article
