12km Military Grade Laser Rangerfinder Module Tlrf-120sTLRF-120S is a compact eye safety laser rangefinder module which satisfying a maximum measurement range of 12Km. The TLRF-120S is compact, meeting the military standard and working well in a wide variety of battlefield conditions.

SPECIFICATIONS WAVELENGTH 1540nm BEAM DIVERGENCE ~0.6mrad MINIMUM MEASUREMENT RANGE ≤50m MAXIMUM MEASUREMENT RANGE >12000m *1) DISTANCE ACCURACY <± 1m MEASUREMENT RESOLUTION 0.1m MAXIMUM MEASUREMENT RATE 5Hz DIMENSION(L/W/H) 87×65.75×47（mm） MULTI TARGET Up to 2 WEIGHT ~130g POWER Supply DC +9V~+28V COMMUNICATION INTERFACE/RATE RS-422/9600bps OPERATING TEMPERATURE -40℃~+55℃ STORAGE TEMPERATURE -45℃~+70℃ IMPACT 30g-11ms VIBRATION GJB150.16A-2009 *1) Visibility 13km, 30% target albedo .

[smartsensor]

Monocular Night Vision Goggles Helmet has the characteristics of clear imaging, good concealment, light structure and low power consumption, and can be used by hand or installed on the head cap. This product is suitable for patrolling, driving, medical rescue, observation, monitoring and reading at night or in low-light environments.

Image intensifier: generation 2+ Power: CR2 Magnification: 1X Exit pupil diameter: 5mm Field of view: 38° Exit pupil distance: 17mm Focusing range: 250mm~∞ Resolution: ≤1.3mrad (illuminance 1 X 10-1x, contrast 85%) Diopter adjustment range: + 2 diopters ~-6 diopters Weight: 320g

Website:https://www.usmartsensor.com/portfolio/items/monocular-night-vision-goggles-helmet

Email: sales@usmartsensor.com

[smartsensor]

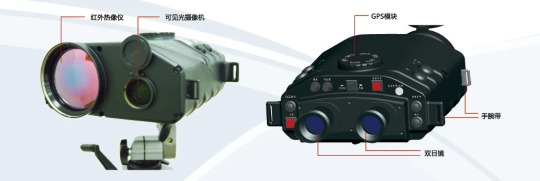

The HS-1000 handheld multifunctional thermal imager can observe, locate and record all-weather targets on the ground, in the air and at sea. The product can be used portable or fixed, and can be used in individual combat, public security investigations, border patrols, customs anti-smuggling, forest fire prevention, security monitoring, target search and rescue, administrative law enforcement and other fields.

Product features: dual-field infrared thermal imaging function; equipped with 10x continuous zoom color visible light camera; equipped with GPS global positioning system and electronic compass, which can accurately locate the coordinates and orientation of the target, real-time video recording, convenient for later playback analysis; equipped with binocular OLED high-definition display, IP67 protection level, which can be completely dustproof, waterproof, and impact resistant, dual light fusion (infrared image and visible light image fusion).

Website: https://www.usmartsensor.com/portfolio/items/handheld-multifunctional-thermal-imaging-binocular-hs-1000

Email: sales@usmartsensor.com

[smartsensor]

Micro OLED Display AMOLED driver board DRV060 HDMI-R02HDMI-R02 is an HDMI input driver board for SXGA060 Micro-OLED Display.

Low power consumption Decoder can automatically detects and converts TMDS signals into digital RGB 4: 4: 4 video data compatible with the 24-bit ITU-R BT.601 interface standard. Default display setting is HDMI input, and the resolution is 1280X1024, support EDID identification. Display center is according to the drive board center, convenient for design and optical system. One USB communication interface allow user toconfigure all register of the Decoder and Display. So user can re-configure the drive board flexible. Low-noise, low-dropout DC/DC convertor can support 5V input voltage.

Website:https://www.usmartsensor.com/portfolio/items/409174

Email: sales@usmartsensor.com

[smartsensor]

Micro OLED Display AMOLED driver board DRV060 HDMI-R02HDMI-R02 is an HDMI input driver board for SXGA060 Micro-OLED Display.

Low power consumption Decoder can automatically detects and converts TMDS signals into digital RGB 4: 4: 4 video data compatible with the 24-bit ITU-R BT.601 interface standard. Default display setting is HDMI input, and the resolution is 1280X1024, support EDID identification. Display center is according to the drive board center, convenient for design and optical system. One USB communication interface allow user toconfigure all register of the Decoder and Display. So user can re-configure the drive board flexible. Low-noise, low-dropout DC/DC convertor can support 5V input voltage.

Website:https://www.usmartsensor.com/portfolio/items/409174

Email: sales@usmartsensor.com

[smartsensor]

WVGA041 is a 0.4 inch AMOLED microdisplay which has WVGA (800×480) resolution. The product series comprise full color, mono white, mono green and mono red display.

Full digital video signal process and 804*3*484 driver units are integrated on the silicon substrate which is fabricated in 0.18μm CMOS technology. Input video signal is compatible with ITU-R BT.601/656 standard and supports 8/16/24 bit video format.

The display mode, direction, position, brightness, contrast, R/G/B offset and gamma correction can be controlled by a two-wire serial communication interface. I/O level is compatible with 1.8~3.3V CMOS standard. WVGA041 can be used in various near-to-eye systems.

Website: https://www.usmartsensor.com/portfolio/items/404493

Email: sales@usmartsensor.com

[smartsensor]

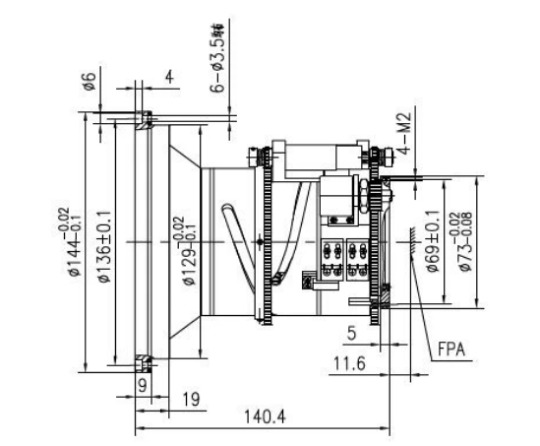

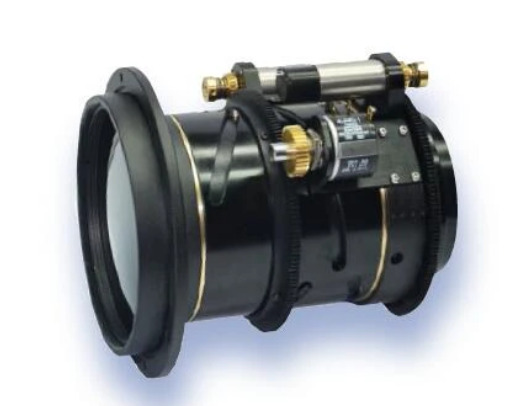

OpticsFocal Length 20～100mmF/# 1.0Wavelength 8～12μmAverage Transmission ≥80%Detector 640*512 17μmBack Focal Length 18.9mmField of View 30.4°×24.5°～6.2°×5°MechanicalFocus Mechanism Motorized adjustableFocus Range 2m～∞(@f=20) 8m～∞(@f=100)Weight 1670gDimensions φ144×140.4Back Working Distance 11.6mmEnvironmentalOperating Temperature -30℃～+60℃Storage Temperature -40℃～+70℃Sealing IP66(front lens only)Coating DLCMechanical Shock GJB150.16AVibration GJB150.18A

Website: https://www.usmartsensor.com/portfolio/items/398294

Email: sales@usmartsensor.com

[smartsensor]

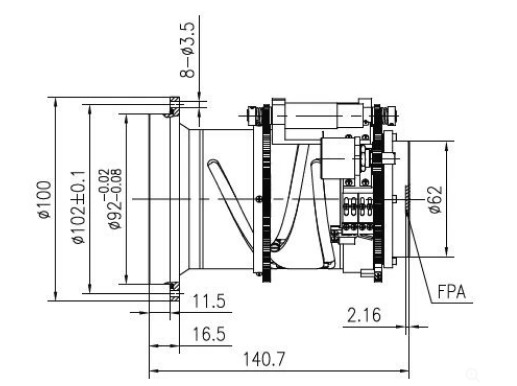

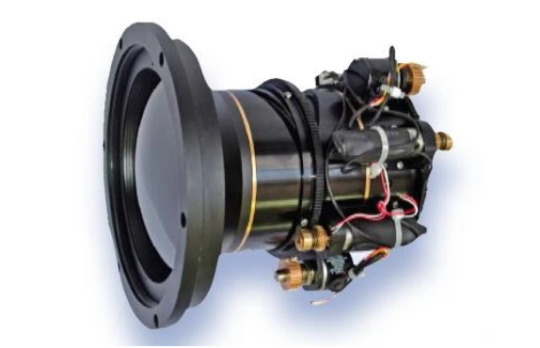

OpticsFocal Length 15～100mmF/# 0.95～1.25Wavelength 8～12μmAverage Transmission ≥80%Detector 640*512 17μmBack Focal Length 16.8mmField of View 39.8°×32.3°～6.2°×5°MechanicalFocus Mechanism Motorized adjustableFocus Range 10m～∞Weight 1200gDimensions φ100×140.7Back Working Distance 2.16mmEnvironmentalOperating Temperature -30℃～+60℃Storage Temperature -40℃～+70℃Sealing IP66(front lens only)Coating DLCMechanical Shock GJB150.16AVibration GJB150.18A

Website: https://www.usmartsensor.com/portfolio/items/398312

Email: sales@usmartsensor.com

[smartsensor]

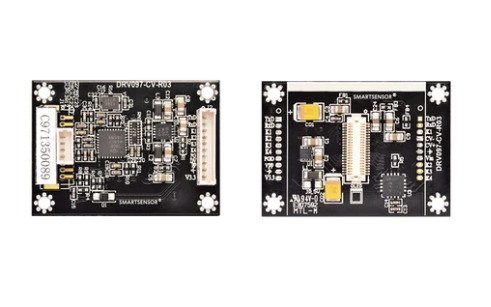

Micro OLED Display AMOLED driver board DRV097-CV-R03 CVBSCV series products are the analog composite video input driver boards for SVGA Series OLED microdisplays.

The low power consumption decoder can automatically detects and converts standard analog baseband television signals compatible with worldwide NTSC, PAL, and SECAM standards into digital ITU-R BT656 8 Bit 4: 2: 2 component video data compatible with the 8-bit ITU-R BT 656 interface standard. Default driver board setting is PAL input, and the resolution is 768x576, support mono or color signal.

The display center is accord to the driver PCB The several digital input pins allow user to adjust th brightness, and contrast of the display. One CMOS standard serial communication interface allow user to configure all register of the decoder and display.

So user can re-configure the driver board flexible. Besides, DRV050-CV-R03. DRV060-CV-R03 and R03 driver boards can support 5.5~17V(Compatible with DRV097-CV-5V)wide power input by using efficient low-noise, low-dropout DC/Dc convertor; and DRVO60-CV-GAD-R03 can support 5V~5.2V power input by using high precision low-noise, low-dropout linear regulators

Website: https://www.usmartsensor.com/portfolio/items/409466

Email: sales@usmartsensor.com

[smartsensor]

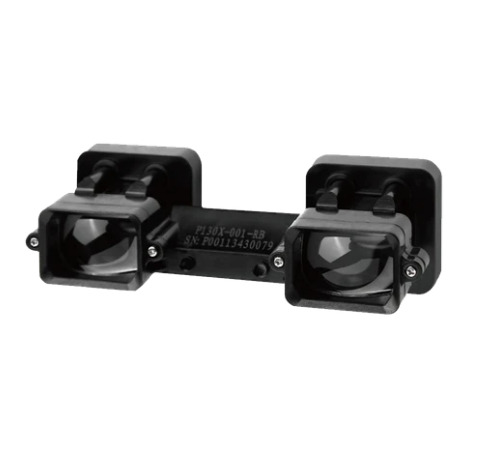

This optics module is to help customers accelerate O LED micro display based productdevelopment and design. It is suitable for 0.5" OLED microdisplays with SVGA pixels. The product can be easily applied to the customer's product development and design.

Website:https://www.usmartsensor.com/portfolio/items/409490 Email: sales@usmartsensor.com

[smartsensor]

Image Intensifier Tubes for Night Vision and Weapon Sights

All specifications can be set in accordance with Customers' requirement

Website: https://www.usmartsensor.com/portfolio/items/744422

Email: sales@usmartsensor.com

[smartsensor]

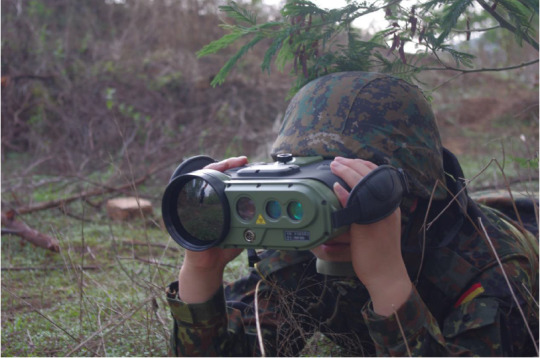

The Muti-Function Uncooled-VoX Portable Thermal Binoculars HM-90F series is multi-purpose reconnaissance system, advanced hand-held, fully integrated muti-function thermal imager binocular, which allows the user to detect and located target. It can get the coordinates and directions of the targets in day and night with thermal image or day light Camera.

HM-90F series equipped with a latest UN-cooled thermal imager, eye safe laser range finder, integrated GPS/GNSS， digital magnetic compass (DMC) and visible light camera. The system provides silent operation, advanced target location and image storage capability to work well in a wide variety of battlefield conditions.

Website: https://www.usmartsensor.com/portfolio/items/684631

Email: sales@usmartsensor.com

[smartsensor]

Website: https://www.usmartsensor.com/portfolio/items/422649

Email: sales@usmartsensor.com

[smartsensor]

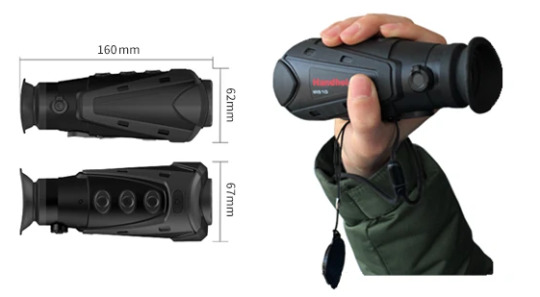

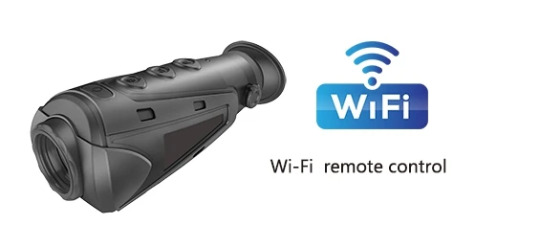

Connected to moblile APP via Wi-Fi,the new IR510 series can be remote controlled to display synchronously, take photos and videos. Compared with the last version, it provides superior image, longer detection range and advanced algorithm, helping to pick up the targets. Application field： Search and Rescue, Law enforcement, Personal Vision System, Outdoor recreation, Smart home

Website: https://www.usmartsensor.com/portfolio/items/453136

[smartsensor]

Image Intensifier Tube Gen 2+ Non-inverter tubes(PVS7)Image Intensifier Tubes for Night Vision and Weapon Sights All specifications can be set in accordance with Customers' requirement

Website: https://www.usmartsensor.com/portfolio/items/744415

[smartsensor]

Don't need to install software, just connect to the display, plug and use. Low cost. Suitable for public places such as a subway, airport, wharf, station, shopping mall and other places with high traffic. Automatic face detection and snapshot technology can accurately detect forehead temperature with an accuracy of .0.3°C. OS-FACE-DM60 has an automatic temperature algorithm based on AI technology and requires no intervention by onsite staff. Accurately identifies and counts the number of people passing by while quickly analyzing individual body temperature.

Website: https://www.usmartsensor.com/portfolio/items/499516
