Launch TPMS Tool Comparison: Creader TPMS 5011 V2 vs CRT5011E

Launch Creader TPMS 5011 V2 is a new professional TPMS tool that is for professional technicians or maintenance personnel. Its application scenarios are mainly various types of automobile repair companies and 4S stores. Compared with CRT5011E/CRT5011X TPMS Tool, what is the difference and similarity?

Creader TPMS 5011 V2 is based on Android 8.1 operating system, suitable for tire pressure systems of multiple models of vehicles.

Similarities:

1.Function

TPMS 5011 V2 and Launch CRT5011E support TPMS sensor diagnosis, programming, activation and relearning.

Both support full OBDII 10 modes, 4 in 1 live data stream, and OE sensor number lookup.

2.Language

Both support German, English, Spanish, French, Korean, Italian, Japanese, Portuguese, and Russian

3.Software

Both support lifetime free update

Differences:

1.Hardware configuration

TPMS 5011 V2 is based on Android system, and has a larger operating screen, battery capacity, and storage. It’s equipped with easier UI and easy to navigate. More user-friendly!

2.Special function

Launch 5011 V2 supports 12 special service functions while CRT5011E TPMS Tool does not support.

3.Software update method

5011 V2 supports one-click upgrade via WiFi, but CRT5011E needs to update via SD card.

4.Language

5011 V2 can support Arabic while CRT5011E cannot.

CRT5011E can support Polish but 5011 V2 cannot.

Creader TPMS 5011 V2 language:

5.Other function

TPMS V2 will add repair database, diagnostic playback and Tesla TPMS activation functions in the future, but CRT5011E will not.

Check the comparison table below.

LAUNCH Creader TPMS 5011 V2 TPMS Tool:

Launch CRT5011E TPMS Relearn Tool:

[x431euinfo]

Launch Creader TPMS 5011 V2 Software Update

Check out the latest update and optimization for Creader TPMS 511S V2!

Version:

CRT_ 501S_V2 _MAIN_APP V1.23

CRT_ 501S_V2 _GUARD_ APP V2.02

TPMS Firmware upgrade program V1.20

Update Info:

Added pop-up prompts for upgrading to the latest APP when a new version is detected.

Fixed the issue of 0BD not being recognized immediately after startup.

Improved access to special functions and the ECU reading function.

Allowed selective downloads via Reset _div software based on specific vehicle models.

Enhanced signal transmission and reception during sensor detection and programming.

Highlight:

Adjustable font size.

Added TeamViewer remote assistance.

http://blog.x431shop.de/wp-content/uploads/2025/04/launch-creader-tpms-5011-v2-software-update-1.jpg

Done!

[x431euinfo]

How to Activate and Update Launch Creader TPMS 5011 V2

Launch Creader TPMS 5011 V2 is an upgraded version of CRT5011E/CRT5011X. The TPMS 5011 V2 uses the Android system and is easier to operate.

And X431shop.de will introduce Launch Creader TPMS 5011 V2 activation and update guide

Start the TPMS 5011 V2 machine

Choose the language:

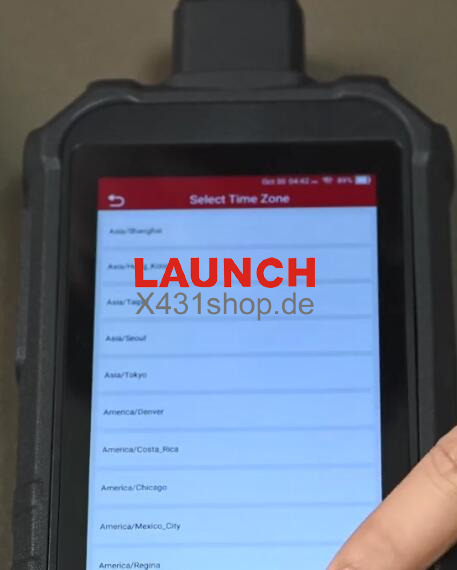

Select time zone

Connect with WIFI

Workshop information

Agreement

Main menu, then choose update

Click to update

Updating process

[x431euinfo]

How to choose Launch Creader TPMS 5011 V2 vs Launch CRT5011E?

Launch Creader TPMS 5011 V2 is an upgraded version of CRT5011E/CRT5011X. The TPMS 5011 V2 uses the Android system and is easier to operate.

Here is the comparison between Launch Creader TPMS 5011 V2 and Launch CRT5011E ModelCreader TPMS 5011 V2CRT5011E/CRT5011XScreen5-inch3.5-inchResolution720*1280320*480Battery6000mAh3100mAhStorage2+32GB-WIFI+Bluetooth2.4G-OBDII interface Input voltage9~18V9~18VOperating temperature0℃~45℃0℃~45℃Storage temperature-20℃~+70℃-20℃~+70℃Size211.5*99*34.5mm112.5*198*35mmInput Battery9~18VDC input via vehicle diagnostic socket/5V via USB cable9~18VDC input via vehicle diagnostic socket/5V via USB cableLanguagesGerman, English, Spanish, French, Korean, Italian, Japanese, Traditional Chinese, Portuguese, Russian, ArabicGerman, English, Spanish, French, Korean, Italian, Japanese, Traditional Chinese, Portuguese, Russian, PolishCertification TypeCE/FCC/ROHS/ICCE/FCC/ROHS

In short:

Launch Creader TPMS 5011 V2 comes with bigger size screen, larger battery capacity and Android operating system, with 12 reset service functions. And one click update via WIFI, no need remove and insert SD card.
