Smart Power Allocation in POE Systems with IEEE 802.3bt Autoclass

As businesses adopt increasingly sophisticated devices across their networks, the need for smarter, more efficient power solutions becomes essential. Power Over Ethernet (POE) continues to be the preferred method for simultaneously delivering power and data over a single Ethernet cable. The latest enhancement, the IEEE 802.3bt standard, takes this further by supporting higher wattages and introducing intelligent features like Autoclass.

Autoclass is a key addition in IEEE 802.3bt modules that empowers POE PDs (Power Over Ethernet Powered Devices) to declare the actual power they require during a classification window. This helps the Power Sourcing Equipment (PSE) allocate power more accurately. Without this feature, the PSE assumes the maximum power based on class, often resulting in wasted energy.

With Autoclass enabled, real-world savings become evident. For example, in an 8-port setup, using Autoclass can prevent over 130W of unnecessary power allocation. Whether it's a security camera, wireless access point, or industrial sensor, each device gets only the power it truly needs.

Infomart’s® POE PD Modules like PEM9300BT (Class 8), PEM6300BT (Class 6), and PEB9300BT all support Autoclass. These modules are fully compatible with IEEE 802.3bt PSEs and also feature Maintain Power Signature (MPS), ensuring devices stay connected even in low-power standby mode.

For advanced power control and energy savings in your next network deployment, rely on Infomart’s® innovative Power Over Ethernet Modules. Visit www.poweredethernet.com or contact marketing@infomartgroup.com.

[holavopinio]

IEEE802.3 at standard 5V 5A 25W intrusive isolated PoE module PD power receiving module

IEEE802.3 at standard 5V 5A 25W intrusive isolated PoE module PD power receiving module

lastest_volume

9

Just For Today

Click Here To Visit The Shop

N€W IEEE802.3 at standard 5V 5A 25W intrusive isolated PoE module PD power receiving module

[cocewaykixsde]

PoE module orphaned board poe module explosion-proof hemisphere PoE power supply PD power receiving module

PoE module orphaned board poe module explosion-proof hemisphere PoE power supply PD power receiving module

lastest_volume

1

Just For Today

Click Here To Visit The Shop

N€W PoE module orphaned board poe module explosion-proof hemisphere PoE power supply PD power receiving module

[willroseblog-blog]

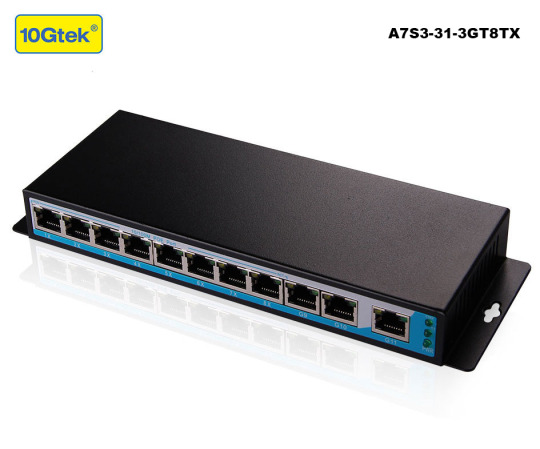

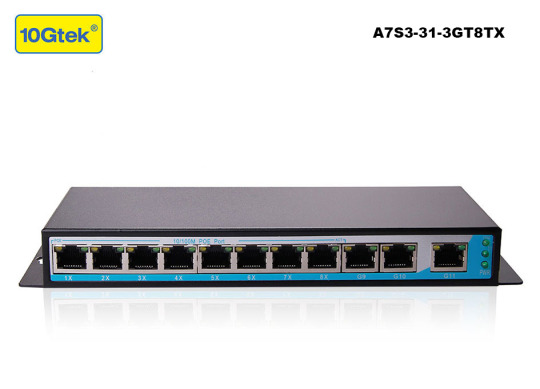

3 Things You Need to Know Before Purchasing a PoE Switch

There is a vast number of switches with PoE coming up, PoE(Power over Ethernet) is a kind of technology that is used to simplify the power supply. We are going to focus on several features to explain the reasons why you need a PoE switch.

1. PoE switches could help you out on bothering with the cables.

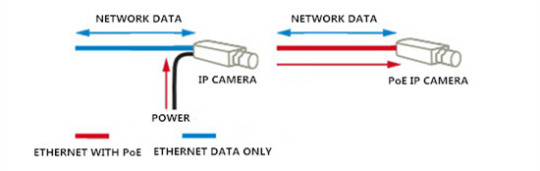

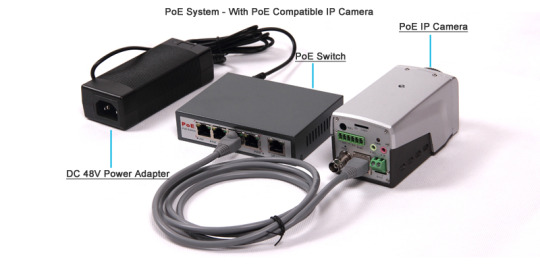

Devices like Wireless Access Point(AP) and Network Camera could be able to gain power directly from the connected switches through the PoE port, which means the PoE switch can transmit data and power through a cable in the meantime.
