Understanding Right Angle Gearboxes: The Backbone of Modern Automation

In today’s fast-evolving industrial landscape, efficiency, precision, and adaptability are non-negotiable. Right-angle gearboxes are a popular choice for engineers and automation experts because they provide reliable and compact motion control, especially when there isn’t much space to work with.

But what exactly is a right-angle gearbox, and why is it so widely used in automation, robotics, and industrial machinery?

What is a Right Angle Gearbox?

A right-angle gearbox is a mechanical device designed to transmit power and motion at a 90-degree angle. Its small, box-shaped design makes it easy to fit into machines, especially when there isn’t much space. These gearboxes are especially valued for their versatility, making them ideal for low-load and intermittent motion applications across a variety of industries.

Key features include:

Adjustable Backlash: Ensures precise motion control and reduces wear over time.

Multiple Mounting Surfaces: Typically offering up to five mounting options, these gearboxes can be easily adapted to fit diverse machine layouts.

Easy Integration: Their design supports straightforward installation into new or existing systems, minimizing downtime and complexity.

SMD’s Right Angle Gearbox Series: Tailored for Performance

SMD offers a comprehensive range of right-angle gearboxes, each engineered to address specific industrial needs. Let’s explore the main series and their technical highlights:

1. SRAE Series

The 90-degree SRAE Series gearbox is purpose-built for demanding automation, robotics, and industrial applications. Its robust construction ensures durability in harsh environments, while its technical specs make it a versatile choice:

Torque Range: 36 Nm to 1200 Nm

Backlash: 8–10 arc-min

Durability: Engineered for long-term use in challenging conditions

Versatility: Five mounting surfaces and a hollow output design for flexible integration

2. SS Series

For applications requiring higher torque and a broad range of reduction ratios, the SS Series of right angle gearbox stands out. It’s designed to accommodate various output configurations, making it suitable for diverse industrial setups.

Torque Range: 44 Nm to 1390 Nm

Backlash: 3–15 arc-min

Reduction Ratios: 1:1 to 1:100 available

Output Types: Shaft, collar clamp, and hollow bore

High Load Capacity & Rigidity: Ensures stable performance under demanding loads

3. SRAH Series

The SRAH Series Gearbox specializes in providing hollow bore outputs, which are highly valued for applications where wiring or piping needs to pass through the gearbox. This series is ideal for both automation and robotics, offering:

Torque Range: 50 Nm to 1200 Nm

Backlash: 5–10 arc-min

Reduction Ratios: 1:3 to 1:200 available

Hollow Bore Output: Simplifies integration in complex assemblies

SMD’s right-angle gearboxes are engineered for reliability, efficiency, and flexibility. Their robust designs ensure long service life, even in demanding environments, with features like adjustable backlash, multiple output options, and a wide torque range.

[smdgearbox1]

SMD Hollow Rotary Gearbox: Precision, Power, and Reliability

Looking to upgrade your business's precision engineering game? Meet the SMD Hollow Rotary Gearbox (STE) Series. It's small but mighty, designed to handle the toughest tasks with ease. Why Choose Our Gearbox? •Precision Performance: Precision is the key when it comes to motion control, whether you're into robotics, gadgets, or other high-tech stuff. •Efficient: Due to very low Gearhead inertia. Less Power is required my motor to transmit motion which increases the efficiency. •Compatibility with various Servo motors offers compatibility and ease of integration into existing setups. •Hollow Design makes it easier for installation in tight spaces •Versatile mounting options allow for installation in vertical, horizontal, or top-down positions, enhancing flexibility and adaptability to various setups. Ready to Elevate Your Business? Say goodbye to average and hello to awesome with our SMD Hollow Rotary Gearbox. Join the ranks of satisfied customers who've taken their businesses to new heights. Get in touch today to learn more! https://www.smdgearbox.com/hollow-rotary-gearbox

[smdgearbox24]

Introducing the SMD Gearbox - Revolutionizing Precision Motion Control!

Cycloidal gearbox also called Cyclo Drive Engineered for excellence, this gearbox operates on a revolutionary principle of rolling and non-sliding motion, comprising a high-speed input shaft, a cam adorned with lobes, and an output shaft featuring engaging pins.

Why choose SMD Gearbox?

🚀 High Torque Density: Exceptional power in a compact size.

🌐 Minimal Backlash: Precision control.

🤖 Ideal for Robotics: Perfect for applications demanding accuracy and efficiency.

🏭 Industrial Automation: Optimize the processes with unmatched performance.

🛠️ Versatile Applications: From machine tools to semiconductor manufacturing SMD basket covers the range

Upgrade to SMD Gearbox and elevate your technology to new heights. Embrace a gearbox that blends innovation, compactness, and precision seamlessly.

Join the future of motion control – choose SMD Gearbox for a superior engineering experience!

[smd-gearbox]

Growing Significance of Gearbox in the Medical and Pharmaceutical Industry

Gearboxes are an integral part of the pharmaceutical equipment manufacturing industry, contributing to the precision, efficiency, reliability, and regulatory compliance of various production processes. As the industry continues to evolve, the role of gearboxes will remain crucial in ensuring high-quality pharmaceutical products are manufactured consistently and safely.

SMD Gearbox is a solution provider of various types of industrial Gearbox in Taiwan. SMD is one of the largest solution provider and exporter of Gearbox as well as Motion Products. Please visit our website at https://www.smdgearbox.com/gearbox-in-medical-Pharmaceutical-Industry.html  or you can write us at sales@smdgearbox.com for technical assistance.

[smddrives111]

Enhancing A-Kart Efficiency with SMD AGV Wheels

SMD’s AGV Wheels are the driving force behind A-Kart systems, enabling smooth, reliable, and adaptable material transport within industrial environments. With features like servo drive integration, barcode-based navigation, and MES system compatibility, they provide a smart solution for evolving intralogistics and factory automation.

Specifications:

Nominal Torque: 63Nm to 320Nm

Load Handling: Up to 1200 kg

Wheel Size: 150mm to 250mm

Gear Ratio Options: 1:2 to 1:40

Learn more at: https://www.smdgearbox.com/

[smddrives111]

Planetary Gearbox – SPRE-S Series: Shaft-Style Output with Durable Aluminum Housing

The SPRE-S Series is a high-torque, low-backlash planetary gearbox featuring a fully enclosed, self-lubricated design for easy installation and integration. Its extended shaft design is perfect for racks, enabling simplified and efficient mechanical setups.

Product Highlights:

Nominal Output Torque: 18Nm to 550Nm

Reduction Ratios: 1:3 to 1:100

Backlash: 10–12 Arc-Min

[smddrives111]

SMD Hollow Rotary Gearbox – Compact, High-Torque & Precision Control

SMD's Hollow Rotary Reducer features a helical ring gear for smooth, precise motion, while its high-capacity crossed roller bearing ensures rigidity and supports heavy axial loads for reliable performance.

Here are some key advantages of the Hollow Rotary Gearbox: Advantages:

Hollow Bore Design: Large hollow rotary flange allows easy wiring or shaft integration.

Precision & Low Backlash: Offers a minimum backlash of 30 arc-seconds for high-accuracy positioning.

Versatile Gear Reduction: Compatible with planetary or right-angle gearheads for higher reduction ratios.

Ideal for Rotary Applications: Perfect for indexing tables and rotary table applications.

Experience superior control and efficiency with our Hollow Rotary Reducer.

[smddrives111]

Precision Redefined: SMD's Harmonic Gearbox with Solid Shaft End

Precision Redefined: SMD's Harmonic Gearbox with Solid Shaft End

A harmonic gearbox, also known as a strain wave gear, is a mechanical speed-changing device that utilizes the flexibility of materials to achieve high reduction ratios, compact size, and near-zero backlash.

It consists of three main components:​

Wave Generator: An elliptical component that deforms the flexspline, initiating motion.​

Flexspline: A flexible, thin-walled cylinder with external gear teeth that conforms to the wave generator's shape.​ 3.Circular Spline: A rigid ring with internal gear teeth that mesh with the flexspline.

Achieve unparalleled accuracy and efficiency with our Harmonic Gearbox.

[smddrives111]

SS Series Right-Angle Gearbox: Versatile & Seamless Integration for Any Application

SMD Right-Angle Gearboxes are designed for precision power transmission in compact spaces. Available in multiple configurations—shaft output, collar clamp, and hollow bore—our gearboxes support a wide range of industrial applications, from conveyors to automation systems.

Following are the some Benefits:

1. Space-Saving Design with 90° Power Transmission

2. High Torque & Low Backlash for Precise Motion Control

3. Multiple Output Types for Versatile Applications

4. Bevel Gear Technology for Durability & Efficiency

5. Suitable for Low-Load & Intermittent Motion

Maximize Precision & Space Efficiency with SMD Right-Angle Gearbox.

[smddrives111]

SMD AGV Wheels – Precision Mobility for Automated Operations

AGVs ensure precise, efficient material handling in warehouses and factories. SMD's AGV wheels offer durability & reliable performance for seamless automation.

Key Characteristics & Features:

High Load Capacity for Industrial Applications

Low Friction & Smooth Operation for Maximum Efficiency

Maintenance-Free & Long Service Life

Precision Control for Accurate Navigation

Maximize AGV performance with Long Lasting & high-performance wheels.

[smddrives111]

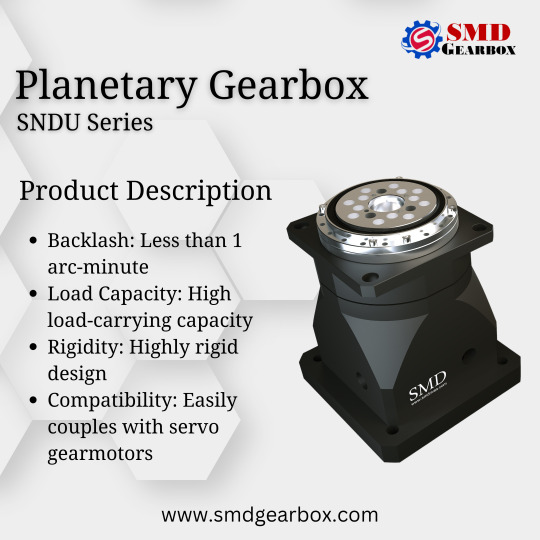

SNDU Series: Space-Saving Planetary Gearbox with Direct Load Attachment

The SNDU Series planetary gearbox is meticulously engineered for precision platform rotation. Its compact design, low backlash, and high torsional rigidity ensure quiet and efficient operation, making it an excellent investment for various power transmission and motion control applications.

Here are some key Specifications :

1.Nominal Output Torque: 25 Nm to 350 Nm​

2.Backlash: Less than 1 arc-minute​

3.Reduction Ratios: Available from 1:3 to 1:100​

4.Compatibility: Easily couples with servo gearmotors​

Elevate performance with our precision-engineered gearbox.

[smddrives111]

SMD Right-Angle Bevel Gearbox: Precision in Compact Design

These gearboxes are meticulously engineered to deliver efficiency and versatility, offering robust performance within a compact form factor.

Here's what makes our gearbox unique:

Adjustable Backlash

Hollow Output Design

Seamless Integration

Enhanced Versatility

Enhance your machinery's performance with SMD's streamlined and efficient right-angle gearboxes.

[smddrives111]

SMD SPE-S Series Planetary Gearbox – High Torque, Low Inertia, Seamless Motor Compatibility

The SMD SPE-S Series Planetary Gearbox is designed for high torque transmission with low inertia, featuring a shaft-style output and durable aluminum housing. Its fully enclosed design ensures easy installation, making it ideal for automation, robotics, and industrial applications.

Experience exceptional performance with the SMD SPE-S Series Planetary Gearbox!

[smddrives111]

SMD SNP Series Planetary Gearbox with Shaft End – High Torque & Smooth Performance

Engineered for reliability and durability, the SMD SNP Series delivers low inertia and effortless motor compatibility. Its enclosed aluminum housing enhances performance, making it perfect for automation, robotics, and industrial applications.

Experience unmatched performance with the SNP Series Planetary Gearbox!

[smddrives111]

SMD Hollow Rotary Gearbox – Large Bore, High Precision & Fast Positioning

The SMD Hollow Rotary Gearbox is designed for high-precision motion control in robotics, automation, and industrial applications. Featuring a hollow bore and a large helical ring gear, it seamlessly integrates with your servo motor to deliver smooth, accurate, and rapid positioning.

Enhance Your Automation with SMD Gearbox: https://www.smdgearbox.com/hollow-rotary-gearbox

[smddrives111]

SMD Cycloidal Gearbox – High Torque, Compact & Precision Backlash

Achieve exceptional motion control with the SMD Cycloidal Gearbox. Designed for robotics, automation, and industrial use, it ensures smooth performance, high efficiency, and lasting durability.

Enhance your machinery with the SMD Cycloidal Gearbox today
