Text
Android Advertising Display SAD1560S
https://www.kerchandisplay.com/products/android-advertising-display-sad1560s/
Enclosed design, easy to mount on a wall shelf.
Android-based, support 3rd party APK to install via USB or SD card.
With wifi and internet.
Swift videos without any delay between videos.
With CE FCC ROHS certification.
Support update contents remotely over wifi or the internet.
Android Advertising Display Features
15.6 inch Android Interactive LCD Monitor
Commercial use 15.6 interactive tablet.
IPS screen: 1920*1080.
IN-store LCD display.
15.6 inch Android Interactive LCD Monitor
Integrated Android 8.1 rooted solution, support 3rd party APK, to install via USB/SD card. K-smart is installed by default, to make the screen to be more interactive.
15.6 inch Android Interactive LCD Monitor
15.6 inch Android Interactive LCD Monitor
Support camera, touch etc.
10 points capacitive touch screen.
Exclusive new patented design.
15.6 inch Android Interactive LCD Monitor
With ultra-high sound quality speakers, has outstanding performance.
Remotely control media playing.
Support video, photo playing.
Support sending contents from office to tablets.
15.6 inch Android Interactive LCD Monitor
Enclosed design with VESA standard which is easy to mount on wall shelf.
Support 7*24 hours to play, plug-in directly. WIFI, Touch, 4G optional.
2G RAM, 8G/16G interal memory, no need for extra SD card.
Android Advertising Display Tech Spec
Model
SAD1560S
Shell color
Standard: black
Open Frame or Enclosed
Enclosed
LCD Panel
15.6inch
Resolution
1920*1080
Display Ratio
16:9
Brightness
220cd/m2
Contrast
800:1
Colour
16.7M
Visible Angle
178/178
Response Time
5ms
Life Time(hrs)
20000H
Visible Area
344.16*193.59mm(H×V)
Outline dimension
395.65*228*28.5mm
CPU
A83-Eight Core-2.0GHz/RK3288-Four Core-1.8Hz
GPU
Mali400 MP2
Memory
DDR3 2GB
ROM NAND flash
8GB/16GB
Decoded Resolution
Support 1080P
RTC Real-time Clock
Support
Switch Time Setting
Support
System Update
SD card update
OS
Android 6.0/8.1
External Interface
DC IN/USB*2/HDMI OUT/SD/Earphone
Touch Panel
10 Point Capacitive Touch
Camera
/
Ethernet Support
Support
Speaker
Size: ∅30MM, speakers 8R 1W*2
External Port
Support SD/U flash disk
Input
AC 100-240V
Output
DC 12V/2A
Power consumption(Watt)
≤15W
Standby(Watt)
≤1W
Material
ABS material injection process
Installation
100*100mm VESA Wall Mount
Image Format
JPEG/BMP/GIF/PNG
Audio Format
MP3, WMA, WAV, EAAC+, MP2, dec, Vorbis(Ogg), AC3, FLAC (lossless audio codec), APE, BSAC; Built-in two stereo speakers, with the function of audio output (support external audio equipment)
Video Format
MPEG1, MPEG2, H.264 MP4, AVI, MOV, 3GP, RMVP/MKV ETC...
Control Method
Remote control/Mouse
Default Language
English
Menu Language
Support Chinese, English
Storage Temperature
-20℃~60℃
Working Temperature
-20℃~55℃
Storage Humidity
10%-75%
Working Humidity
20%-80%RH
Product Weight(N.W. )
1.5kg
Plug Types
US, EU, AU, UK Optional
Package Size
A single package: 336*88*453mm Bulk packages: 509*442*280mm
Packaging
10pcs/Package Package Weight: 18kg (Reference Only)
Accessories
User Guide, Instruction Book, Warranty, Desiccant
Optional
1. Motion Sensor 2. Push Button
Notes
/
1 note
·
View note
Text
Android Advertising Display SAD1560KD
https://www.kerchandisplay.com/products/android-advertising-display-sad1560kd/
Powered by the Android operating system.
Memory size: 8GB.
Do not support WIFI or Internet.
Optional: 10 Point Capacitive Touch.
With integrated HDMI output.
Have passed RoHS, FCC and CE quality testing.
Android Advertising Display Features
15.6 inch Android Based Open Frame Video Screen
Open frame design with ''two ears''can help to mount into pop displays.
With the aid of a powerful video engine, a lot of videos can be decode easily, support play 1080p video.
15.6 inch Android Interactive Advertising Monitor
Run Android system.
It is very convenient for 3rd party APK installation through SD card/USB.
Using its built-in K-smart apk to help improve the more-humane interaction with the screen.
15.6 inch Android Interactive Advertising Monitor
Support 10 Point Capacitive Touch and this function is optional.
Doesn't allow to use Internet or WIFI.
Built-in multiple buttons for video playing management.
15.6 inch Android Based Open Frame Video Screen
Kerchan Android interactive advertising monitors have been applied successively in various area such as retails store, shopping mall, bank, meeting rooms, restaurants, hospital and so on.
Android Advertising Display Tech Spec
Model
SAD1560KD
Shell color
Standard: black
Open Frame or Enclosed
Open Frame
LCD Panel
15.6inch
Resolution
1920*1080
Display Ratio
16:9
Brightness
220cd/m2
Contrast
800:1
Colour
16.7M
Visible Angle
178/178
Response Time
5ms
Life Time(hrs)
20000H
Visible Area
344.16*193.59mm(H×V)
Outline dimension
395.65*228*28.5mm
CPU
A64, Corte-A53,1.5GHz
GPU
Mali400 MP2
Memory
DDR3 1GB
ROM NAND flash
8GB
Decoded Resolution
Support 1080P
RTC Real-time Clock
Support
Switch Time Setting
Support
System Update
SD card update
OS
Android 6.0
External Interface
DC IN/USB*2/HDMI OUT/SD/Earphone
Touch Panel
10 Point Capacitive Touch
Camera
/
Ethernet Support
/
Speaker
Size: ∅30MM, speakers 8R 1W*2
External Port
Support SD/U flash disk
Input
AC 100-240V
Output
DC 12V/2A
Power consumption(Watt)
≤15W
Standby(Watt)
≤1W
Material
ABS material injection process
Installation
100*100mm VESA Wall Mount
Image Format
JPEG/BMP/GIF/PNG
Audio Format
MP3, WMA, WAV, EAAC+, MP2, dec, Vorbis(Ogg), AC3, FLAC (lossless audio codec), APE, BSAC; Built-in two stereo speakers, with the function of audio output (support external audio equipment)
Video Format
MPEG1, MPEG2, H.264 MP4, AVI, MOV, 3GP, RMVP\MKV ETC...
Control Method
Remote control/Mouse
Default Language
English
Menu Language
Support Chinese, English
Storage Temperature
-20℃~60℃
Working Temperature
-20℃~55℃
Storage Humidity
10%-75%
Working Humidity
20%-80%RH
Product Weight(N.W. )
1.5kg
Plug Types
US, EU, AU, UK Optional
Package Size
A single package: 336*88*453mmBulk packages: 509*442*280mm
Packaging
10pcs/Package Package Weight: 18kg (Reference Only)
Accessories
User Guide, Instruction Book, Warranty, Desiccant
Optional
1. Motion Sensor 2. Push Button
Notes
0 notes
Text
Android Advertising Display SAD1560KA
https://www.kerchandisplay.com/products/android-advertising-display-sad1560ka/
Android system.
Size of memory: 8GB.
Built-in Ethernet and WIFI.
Provide an optional touch function,10 Point Capacitive Touch.
4G can be used as an optional feature.
Have received CE FCC ROHS certification.
Android Advertising Display Features
15.6 inch Commercial Use Android Tablet Digital Signage for Retail Store
There are two ears surrounding the screen which has a open frame design, convenient for mounting into POP displays.
15.6 inch Commercial Use Android Tablet Digital Signage for Retail Store
With full viewing angles (178° vertical/178° horizontal).
Higher picture quality.
Aided by powerful video engine, multiple videos can be decoded easily. Provide support for 1080P video.
15.6 inch Commercial Use Android Tablet Digital Signage for Retail Store
15.6 inch Commercial Use Android Tablet Digital Signage for Retail Store
Runing android OS to enable third-party apps to be installed into the device via SD card/ USB.
There is K-smart apk available by default to improve the user interaction.
Support WIFI for internet connnection.
15.6 inch Commercial Use Android Tablet Digital Signage for Retail Store
Support play various types of media files including video, photo, subtitle, weather and so. Remotely control is available.
With the help of Remotely Content Management(CMS), contents can be sent from office to the device.
15.6 inch Commercial Use Android Tablet Digital Signage for Retail Store
Kerchan Android interactive advertising monitors are now common in many commercial field like retail stores, airport, restaurants, meeting rooms, bank, hospital, supermarket etc. for all kinds of public ads displaying.
Android Advertising Display Tech Spec
Model
SAD1560KA
Shell color
Standard: black
Open Frame or Enclosed
Open Frame
LCD Panel
15.6inch
Resolution
1920*1080
Display Ratio
16:9
Brightness
220cd/m2
Contrast
800:1
Colour
16.7M
Visible Angle
178/178
Response Time
5ms
Life Time(hrs)
20000H
Visible Area
344.16*193.59mm(H×V)
Outline dimension
395.65*228*28.5mm
CPU
A83-Eight Core-2.0GHz/RK3288-Four Core-1.8Hz
GPU
PowerVR SGX544/Mali-T764
Memory
DDR3 2GB
ROM NAND flash
8GB/16G
Decoded Resolution
Support 1080P
RTC Real-time Clock
Support
Switch Time Setting
Support
System Update
SD card update
OS
Android 6.0/8.1
External Interface
DC IN/USB*2/HDMI OUT/SD/Earphone
Touch Panel
10 Point Capacitive Touch
Camera
Ethernet Support
Internet/Wifi 802.11b/g/n
Speaker
Size: ∅30MM, speakers 8R 1W*2
External Port
Support SD/U flash disk
Input
AC 100-240V
Output
DC 12V/2A
Power consumption(Watt)
≤15W
Standby(Watt)
≤1W
Material
ABS material injection process
Installation
100*100mm VESA Wall Mount
Image Format
JPEG/BMP/GIF/PNG
Audio Format
MP3, WMA, WAV, EAAC+, MP2, dec, Vorbis(Ogg), AC3, FLAC (lossless audio codec), APE, BSAC; Built-in two stereo speakers, with the function of audio output (support external audio equipment)
Video Format
MPEG1, MPEG2, H.264 MP4, AVI, MOV, 3GP, RMVP\MKV ETC...
Control Method
Remote control/Mouse/Touch
Default Language
English
Menu Language
Support Chinese, English
Storage Temperature
-20℃~60℃
Working Temperature
-20℃~55℃
Storage Humidity
10%-75%
Working Humidity
20%-80%RH
Product Weight(N.W. )
1.5kg
Plug Types
US, EU, AU, UK Optional
Package Size
A single package: 336*88*453mmBulk packages: 509*442*280mm
Packaging
10pcs/Package Package Weight: 18kg (Reference Only)
Accessories
User Guide, Instruction Book, Warranty, Desiccant
Optional
1. Motion Sensor 2.Touch screen 3.4G module
Notes
0 notes
Text
Android Advertising Display SAD1330SD
https://www.kerchandisplay.com/products/android-advertising-display-sad1330sd/
Fully enclosed housing to make it easier to mount on a wall shelf.
Built-in Android system, 3rd party apps can be installed via SD card or USB conveniently.
No WiFi and internet.
Support easily switches between different videos without delay.
Touch is optional.
Have already earned CE FCC ROHS approval.
Android Advertising Display Features
13.3 inch Commercial Use Android Tablet Display
Commercial use 13.3 interactive tablet. IPS screen: 1280*1080.
13.3 inch Commercial Use Android Tablet Display
Support camera, touch etc.
10 points capacitive touch screen.
Video / picture advertisements can be played on a circular basis, multiple videos / pictures can be played at the same time.
This Android tablet LCD display is simple to use, can insert U disk / SD card automatically copy video to memory playback files
8G interal memory, no need for extra SD card.
13.3 inch Commercial Use Android Tablet Display
Enclosed design with VESA standard which is easy to mount on wall shelf.
13.3 inch Commercial Use Android Tablet Display
Integrated Android rooted solution, support 3rd party APK, to install via USB/SD card. This will be convenient if customers need do some modification on system.
K-smart is installed by default, to make the screen to be more interactive.
13.3 inch Commercial Use Android Tablet Display
In many commercial environment, you can find Kerchan commercial Android tablets. They are widely used in retails stores, bank, supermarket, restaurants, meeting rooms, airport, hospital etc.
Android Advertising Display Tech Spec
Model
SAD1330SD
Shell color
Standard: black
Open Frame or Enclosed
Enclosed
LCD Panel
13.3inch
Resolution
1920*1080
Display Ratio
16:9
Brightness
220cd/m2
Contrast
500:1
Colour
16.7M
Visible Angle
178/178
Response Time
5ms
Life Time(hrs)
20000H
Visible Area
293.76*165.24mm(H×V)
Outline dimension
330.47*213.27*33mm
CPU
A64, Corte-A53,1.5GHz
GPU
Mali400 MP2
Memory
DDR3 1GB
ROM NAND flash
8GB
Decoded Resolution
Support 1080P
RTC Real-time Clock
Support
Switch Time Setting
Support
System Update
SD card update
OS
Android 6.0
External Interface
DC IN/USB*2/HDMI OUT/SD/Earphone
Touch Panel
/
Camera
/
Ethernet Support
/
Speaker
Size: 22MM*74MM, speakers 8R 2W*2
External Port
Support SD/U flash disk
Input
AC 100-240V
Output
DC 12V/2A
Power consumption(Watt)
≤12W
Standby(Watt)
≤1W
Material
ABS material injection process
Installation
75*75mm VESA Wall Mount
Image Format
JPEG/BMP/GIF/PNG
Audio Format
MP3, WMA, WAV, EAAC+, MP2, dec, Vorbis(Ogg), AC3, FLAC (lossless audio codec), APE, BSAC; Built-in two stereo speakers, with the function of audio output (support external audio equipment)
Video Format
MPEG1, MPEG2, H.264 MP4, AVI, MOV, 3GP, RMVP/MKV ETC...
Control Method
Remote control/Mouse
Default Language
English
Menu Language
Support Chinese, English
Storage Temperature
-20℃~60℃
Working Temperature
-20℃~55℃
Storage Humidity
10%-75%
Working Humidity
20%-80%RH
Product Weight(N.W. )
1.2kg
Plug Types
US, EU, AU, UK Optional
Package Size
A single package: 492*76*279mm Bulk packages: 784*516*250mm
Packaging
16pcs/Package Package Weight: 25kg (Reference Only)
Accessories
User Guide, Instruction Book, Warranty, Desiccant
Optional
1. Motion Sensor 2. Push Button
Notes
/
0 notes
Text
Android Advertising Display SAD1330S
https://www.kerchandisplay.com/products/android-advertising-display-sad1330s/
Enclosed design, easy to mount on a wall shelf.
Android-based, support 3rd party APK to install via USB or SD card.
With wifi and internet.
Swift videos without any delay between videos.
With CE FCC ROHS certification.
Support update contents remotely over wifi or the internet.
Android Advertising Display Features

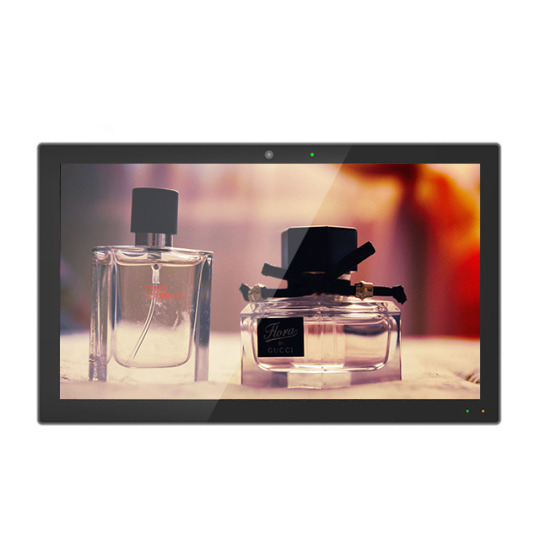

13.3 inch Android Interactive LCD Monitor
Integrated Android 8.1 rooted solution, support 3rd party APK, to install via USB/SD card. K-smart is installed by default, to make the screen to be more interactive.
13.3 inch Android Interactive LCD Monitor
Support 7*24 hours to play, plug-in directly. WIFI, Touch, 4G optional.
2G RAM, 8G/16G interal memory, no need for extra SD card.
Android based, support 3rd party APK to install via USB or SD card.
13.3 inch Android Interactive LCD Monitor
Enclosed design with VESA standard which is easy to mount on wall shelf.
13.3 inch Android Interactive LCD Monitor
Kerchan commercial Android tablets are widely used in retail stores, meeting rooms, restaurants, bank, supermarket, airport, hospital and any commercial environment.
Android Advertising Display Tech Spec
Model
SAD1330S
Shell color
Standard: black
Open Frame or Enclosed
Enclosed
LCD Panel
13.3inch
Resolution
1920*1080
Display Ratio
16:9
Brightness
220cd/m2
Contrast
500:1
Colour
16.7M
Visible Angle
178/178
Response Time
5ms
Life Time(hrs)
20000H
Visible Area
293.76*165.24mm(H×V)
Outline dimension
330.47*213.27*33mm
CPU
A83-Eight Core-2.0GHz/RK3288-Four Core-1.8Hz
GPU
Mali400 MP2
Memory
DDR3 2GB
ROM NAND flash
8GB/16G
Decoded Resolution
Support 1080P
RTC Real-time Clock
Support
Switch Time Setting
Support
System Update
SD card update
OS
Android 6.0/8.1
External Interface
DC IN/USB*2/HDMI OUT/SD/Earphone
Touch Panel
10 Point Capacitive Touch
Camera
/
Ethernet Support
Support
Speaker
Size: 22MM*74MM, speakers 8R 2W*2
External Port
Support SD/U flash disk
Input
AC 100-240V
Output
DC 12V/2A
Power consumption(Watt)
≤12W
Standby(Watt)
≤1W
Material
ABS material injection process
Installation
75*75mm VESA Wall Mount
Image Format
JPEG/BMP/GIF/PNG
Audio Format
MP3, WMA, WAV, EAAC+, MP2, dec, Vorbis(Ogg), AC3, FLAC (lossless audio codec), APE, BSAC; Built-in two stereo speakers, with the function of audio output (support external audio equipment)
Video Format
MPEG1, MPEG2, H.264 MP4, AVI, MOV, 3GP, RMVP/MKV ETC...
Control Method
Remote control/Mouse
Default Language
English
Menu Language
Support Chinese, English
Storage Temperature
0℃~40℃
Working Temperature
-20℃~55℃
Storage Humidity
10%-75%
Working Humidity
20%-80%RH
Product Weight(N.W. )
1.2kg
Plug Types
US, EU, AU, UK Optional
Package Size
A single package: 492*76*279mm Bulk packages: 784*516*250mm
Packaging
16pcs/Package Package Weight: 25kg (Reference Only)
Accessories
User Guide, Instruction Book, Warranty, Desiccant
Optional
1. Motion Sensor 2. Push Button
Notes
/
0 notes
Text
Android Advertising Display SAD1330KD
https://www.kerchandisplay.com/products/android-advertising-display-sad1330kd/
OS: rooted Android.
8GB internal storage.
WIFI and Internet are not available.
With optional touch capability, 10 Point Capacitive Touch.
With built-in HDMI output.
Already certified by CE FCC ROHS.
Android Advertising Display Features

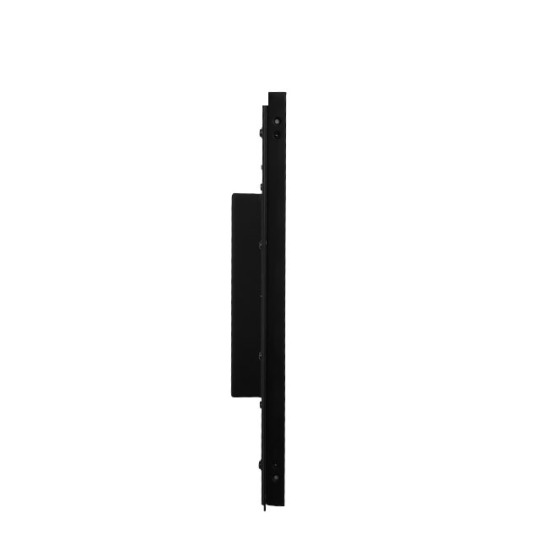

13.3'' Open Frame Wholesale Display Monitor
Open frame design with "two ears" makes it ideal for being integrated into POP displays.
Comes with 8GB of storage, has no need to rely on the extra SD card. Support automatic video playing at boot.
Be capable of runing 1080p video basing on the built-in powerful video engine.
13.3'' Open Frame Wholesale Display Monitor
Run on Android OS, which enble the third party apps be installed via SD card or USB conveniently.
The K-smart apk built into the device can bring users more interaction experience with the screen.
All devices with HDMI outnput are available.
Not supportted use WIFI or Internet for network.
The video playing can be managed by multiple buttons.
10 Point Capacitive Touch can be used as optional choice.
13.3'' Open Frame Wholesale Display Monitor
Kerchan Android interactive advertising monitors have been widely applied in many fields like retail stores, bank, supermarket, airport, hospital ,restaurants and meeting rooms etc.
Android Advertising Display Tech Spec
Model
SAD1330KD
Shell color
Standard: black
Open Frame or Enclosed
Open Frame
LCD Panel
13.3inch
Resolution
1920*1080
Display Ratio
16:9
Brightness
220cd/m2
Contrast
500:1
Colour
16.7M
Visible Angle
178/178
Response Time
5ms
Life Time(hrs)
20000H
Visible Area
293.76*165.24mm(H×V)
Outline dimension
352.47*213.27*34mm
CPU
A64, Corte-A53,1.5GHz
GPU
Mali400 MP2
Memory
DDR3 1GB
ROM NAND flash
8GB
Decoded Resolution
Support 1080P
RTC Real-time Clock
Support
Switch Time Setting
Support
System Update
SD card update
OS
Android 6.0
External Interface
DC IN/USB*2/HDMI OUT/SD/Earphone
Touch Panel
10 Point Capacitive Touch
Camera
/
Ethernet Support
/
Speaker
Size: 22MM*74MM, speakers 8R 2W*2
External Port
Support SD/U flash disk
Input
AC 100-240V
Output
DC 12V/2A
Power consumption(Watt)
≤12W
Standby(Watt)
≤1W
Material
ABS material injection process
Installation
75*75mm VESA Wall Mount
Image Format
JPEG/BMP/GIF/PNG
Audio Format
MP3, WMA, WAV, EAAC+, MP2, dec, Vorbis(Ogg), AC3, FLAC (lossless audio codec), APE, BSAC; Built-in two stereo speakers, with the function of audio output (support external audio equipment)
Video Format
MPEG1, MPEG2, H.264 MP4, AVI, MOV, 3GP, RMVP\MKV ETC...
Control Method
Remote control/Mouse
Default Language
English
Menu Language
Support Chinese, English
Storage Temperature
-20℃~60℃
Working Temperature
-20℃~55℃
Storage Humidity
10%-75%
Working Humidity
20%-80%RH
Product Weight(N.W. )
1.2kg
Plug Types
US, EU, AU, UK Optional
Package Size
A single package: 492*76*279mmBulk packages: 784*516*250mm
Packaging
16pcs/Package Package Weight: 25kg (Reference Only)
Accessories
User Guide, Instruction Book, Warranty, Desiccant
Optional
1. Motion Sensor 2. Push Button
Notes
0 notes
Text
Android Advertising Display SAD1330KA
https://www.kerchandisplay.com/products/android-advertising-display-sad1330ka/
Running smoothly on Android OS.
Built-in 8GB memory.
Support Ethernet and WIFI.
Contains support for the optional 10-Point Capacitive Touch.
Support 4G and this feature is listed as optional.
It has passed CE FCC ROHS certification.
Android Advertising Display Features
SAD1330KA 13.3 inch Commercial Use Interactive Android Tablet LCD Display
Open-frame housing design with ''ears'' on two sides for pop display installing.
SAD1330KA 13.3 inch Commercial Use Interactive Android Tablet LCD Display
It has 178/178 viewing angle ratings.
Present super high quality picture.
Be able to play 1080P video basing on built-in powerful video engine.
Can decode a variey of videos.
SAD1330KA 13.3 inch Commercial Use Interactive Android Tablet LCD Display
Come with built-in Android. 3rd party apps can easily be installed and run on the device.
K-smart, a developed software integrated into the device in advance, is built to make the screen more interactive.
By using an integrated video Content Management System(CMS), various media files including video, photo etc can be sent from office to the device conveniently.
SAD1330KA 13.3 inch Commercial Use Interactive Android Tablet LCD Display
Kerchan Android interactive advertising monitors have been widely used in many areas as they can offer good advertising effect to help to boost the business, including retail stores, meeting rooms, restaurants, bank, supermarket, airport, hospital and any commercial environment.
Android Advertising Display Tech Spec
Model
SAD1330KA
Shell color
Standard: black
Open Frame or Enclosed
Open Frame
LCD Panel
13.3inch
Resolution
1920*1080
Display Ratio
16:9
Brightness
220cd/m2
Contrast
500:1
Colour
16.7M
Visible Angle
178/178
Response Time
5ms
Life Time(hrs)
20000H
Visible Area
293.76*165.24mm(H×V)
Outline dimension
352.47*213.27*34mm
CPU
A83-Eight Core-2.0GHz/RK3288-Four Core-1.8Hz
GPU
PowerVR SGX544/Mali-T764
Memory
DDR3 2GB
ROM NAND flash
8GB/16G
Decoded Resolution
Support 1080P
RTC Real-time Clock
Support
Switch Time Setting
Support
System Update
SD card update
OS
Android 6.0/8.1
External Interface
DC IN/USB*2/HDMI OUT/SD/Earphone
Touch Panel
10 Point Capacitive Touch
Camera
Ethernet Support
Internet/Wifi 802.11b/g/n
Speaker
Size: 22MM*74MM, speakers 8R 2W*2
External Port
Support SD/U flash disk
Input
AC 100-240V
Output
DC 12V/2A
Power consumption(Watt)
≤12W
Standby(Watt)
≤1W
Material
ABS material injection process
Installation
75*75mm VESA Wall Mount
Image Format
JPEG/BMP/GIF/PNG
Audio Format
MP3, WMA, WAV, EAAC+, MP2, dec, Vorbis(Ogg), AC3, FLAC (lossless audio codec), APE, BSAC; Built-in two stereo speakers, with the function of audio output (support external audio equipment)
Video Format
MPEG1, MPEG2, H.264 MP4, AVI, MOV, 3GP, RMVP\MKV ETC...
Control Method
Remote control/Mouse/Touch
Default Language
English
Menu Language
Support Chinese, English
Storage Temperature
0℃~40℃
Working Temperature
-20℃~55℃
Storage Humidity
10%-75%
Working Humidity
20%-80%RH
Product Weight(N.W. )
1.2kg
Plug Types
US, EU, AU, UK Optional
Package Size
A single package: 492*76*279mmBulk packages: 784*516*250mm
Packaging
16pcs/Package Package Weight: 25kg (Reference Only)
Accessories
User Guide, Instruction Book, Warranty, Desiccant
Optional
1. Motion Sensor 2.Touch screen 3.4G module
Notes
0 notes
Text
Android Advertising Display SAD1160KD
https://www.kerchandisplay.com/products/android-advertising-display-sad1160kd/
With rooted Android integrated.
Memory size: 8GB.
No WiFi or Internet.
Touch is optional, 10 Point Capacitive Touch.
Build with HDMI output.
Certified by CE FCC ROHS.
Android Advertising Display Features

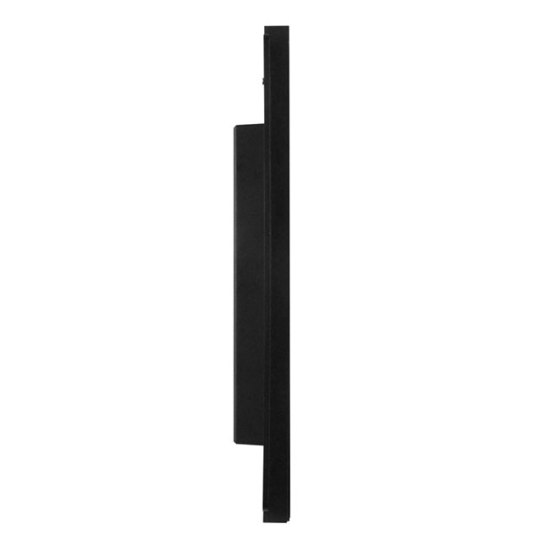

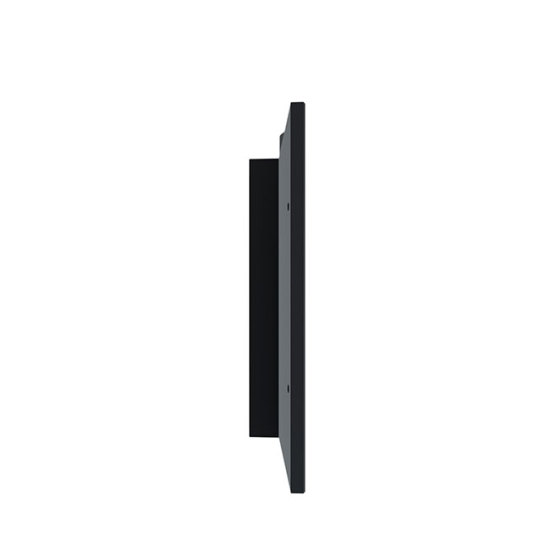

11.6 inch Android Based Open Frame Video Screen
Open-frame housing design coming with ''ears'' ideal for pop/pos display installing.
With high screen resolution of HD 1280*800.
Provide smooth switching between different videos.
11.6 inch Android Interactive Advertising Monitor
Android based, support 3rd party APK to install via USB/SD card.
K-smart is installed by default, to make the screen be more interactive.
11.6 inch Android Interactive Advertising Monitor
Touch is optional, 10 Point Capacitive Touch.
No WiFi or Internet.
11.6 inch Android Interactive Advertising Monitor
8GB internal memory, no need extra SD card.
Build in HDMI output.
11.6 inch Android Based Open Frame Video Screen
Kerchan Android interactive advertising monitors Applications:
retail stores/meeting rooms/restaurants/bank/supermarket/airport/hospital.
Android Advertising Display Tech Spec
Model
SAD1160KD
Shell color
Standard: black
Open Frame or Enclosed
Open Frame
LCD Panel
11.6inch
Resolution
1920*1080
Display Ratio
16:9
Brightness
220cd/m2
Contrast
500:1
Colour
16.7M
Visible Angle
178/178
Response Time
5ms
Life Time(hrs)
20000H
Visible Area
256.32*144.18mm(H×V)
Outline dimension
305*163.5*32mm
CPU
A64, Corte-A53,1.5GHz
GPU
Mali400 MP2
Memory
DDR3 1GB
ROM NAND flash
8GB
Decoded Resolution
Support 1080P
RTC Real-time Clock
Support
Switch Time Setting
Support
System Update
SD card update
OS
Android 6.0
External Interface
DC IN/USB*2/HDMI OUT/SD/Earphone
Touch Panel
10 Point Capacitive Touch
Camera
/
Ethernet Support
/
Speaker
Size: 22MM*74MM, speakers 8R 2W*2
External Port
Support SD/U flash disk
Input
AC 100-240V
Output
DC 12V/2A
Power consumption(Watt)
≤10W
Standby(Watt)
≤1W
Material
ABS material injection process
Installation
75*75mm VESA Wall Mount
Image Format
JPEG/BMP/GIF/PNG
Audio Format
MP3, WMA, WAV, EAAC+, MP2, dec, Vorbis(Ogg), AC3, FLAC (lossless audio codec), APE, BSAC; Built-in two stereo speakers, with the function of audio output (support external audio equipment)
Video Format
MPEG1, MPEG2, H.264 MP4, AVI, MOV, 3GP, RMVP\MKV ETC...
Control Method
Remote control/Mouse
Default Language
English
Menu Language
Support Chinese, English
Storage Temperature
-20℃~60℃
Working Temperature
-20℃~55℃
Storage Humidity
10%-75%
Working Humidity
20%-80%RH
Product Weight(N.W. )
0.9kg
Plug Types
US, EU, AU, UK Optional
Package Size
A single package: 235*60*428mmBulk packages: 575*410*210mm
Packaging
16pcs/Package Package Weight: 19kg (Reference Only)
Accessories
User Guide, Instruction Book, Warranty, Desiccant
Optional
1. Motion Sensor 2. Push Button
Notes
1 note
·
View note
