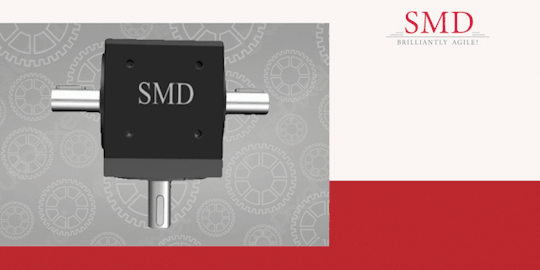

This is SMD Right Angle gearbox with 3 Shaft Output.

A Right angle gearbox is used to transmit Rotary motion in 90 degree to the axis of the rotation. The above gearbox has a Planetary Gearbox is responsible for the reduction in the rotation and after reduction the input is given to the Right Angle gearhead which transmits the motion at 90 degrees.

In this Right Angle Reducer, three output shaft gets powered by single input where the inline shaft rotated clockwise and the other two 90 degree shaft rotated anti clockwise due to the Bevel gear arrangement in between the right angle gearhead. The Reduction ratio available in this Gearbox is 1:1 to 1:200 and the Torque range starts from 44Nm to 1390 Nm.

For more Information Visit Website - https://www.smdgearbox.com/right-angle-gearbox

Reference Image - https://imgur.com/gallery/29b0fGo

[technicallysupercupcake]

SMD GEARBOX IN Medical & Pharmaceutical Industry

Now a day’s gears are used in number of applications in medical and pharmaceutical industry. Gear motions is well equipped to handle the tough requirements and tight tolerances of medical device applications. In medical industry the gears used mostly in small sizes.

Medical industry got upgraded tremendously with help of automated machinery. Gearboxes play vital role in process automation, it reduces the human interference in system process. It provides automation in surgical operations, patients bed, disease diagnostic machines, gear pumps for medical dosing applications etc.

There are different automation modules used in medical and pharmaceutical industry, gearboxes are one of those. SMD Gearbox is a high precision servo gearbox supplier. SMD gearbox supplied different gearboxes to medical industry customers. Patient’s bed gear motors uses right angle speed reducer for smooth and quite movements of bed. The hollow rotary gearbox can also be used in surgical tables which fitted with gear motors to utilize low voltage. SMD provides customized solution as per customer’s requirement.

The robotic arms are also used in medical industry. Harmonic gears, right angle gears, hollow shaft gearbox, planetary gear set can be used in a robotic arm. SMD provided this type of integrated solution to one of their customer which executed well. SMD gearboxes are used in robotics arms because it needs high precision.

SMD provides integrated solution as per customer’s requirement, we have a long list of satisfied customers.  To know more how can SMD gearbox can help you in your system automation visit our website www.smdgearbox.com or you can mail us for personal assistance on sales@smdgearbox.com.

[smdgearbox]

SMD Right Angle Gearbox uses straight bevel gears to transmit torque in 90 degrees. This Gearboxes are generally used where there is space constraint and is designed with a aim to save customers time on design stage and maintenance stage. SMD also offers various customization in Right Angle Reducer as per customer specific applications. SMD Right Angle Gearbox has diversified appearance and maximum reduction can be achieved by combination with planetary gear reducer. This gearboxes are maintenance free due to synthetic lubrication provided in the Gearbox and multi directional mounting is possible duo to tapping holes are provided on the five faces of the Gearhead.

 For More Customization, Contact us on :-

Mail – sales@smdgearbox.com

Phone No – 7030669818

Website – www.smdgearbox.com

Reference Image - https://pin.it/5iRk4qn

[smdgearbox]

SMD 90 Degree Gearbox is characterized by the fact that the output shaft and the Drive Shaft are arranged in 90 Degree. Right Angle Gearbox consists of a Bevel Gear system and can be combined with other types of Gearbox, the combination of Planetary gearbox and Right Angle Gearbox are mostly used which results in Multiplication of Ratios and wide range of uses in many industrial applications. SMD Right Angle Reducer is always used when the amount of Installation space is Limited or angular movement is required by the application.

 For More Information,

Website - https://www.smdgearbox.com/right-angle-gearbox

Reference Image - https://pin.it/26Oyeax

[smdgearbox]

A Right Angle Gearbox is used to transmit Rotary Motion in 90 degree. This Series can be customized to get three directional outputs I.e. Single Output Shaft, Two Directional Output Shaft and Three Directional Output Shaft. This particular Gearbox comes with dual shaft end where the reduced output can be achieved in the Rotary Motion form. The Application can be directly coupled with the output shaft for further transmission of Motion.

 For More Information,

Website -  https://www.smdgearbox.com/right-angle-gearbox

Reference Link - https://in.pinterest.com/pin/739716307557693167

[smdgearbox]

A Right Angle Gearbox is used to transfer Rotary Motion at 90ᵒ. A Hollow Shaft End is provided to this type of Right-Angle Reducer where the rotary motion is transmitted to the shaft. The Shaft will directly be mounted on Hollow End and hence will receive the Rotary Motion.

 For More Information,

Website - https://www.smdgearbox.com/right-angle-gearbox

Reference Image - https://imgur.com/gallery/Yyx1o5F

[smdgearbox]

A Right Angle Gearbox is used to transmit Rotary Motion in 90 degrees. This Series Comes with a Planetary Reducer which has total reduction ratio ranging from 1:4 to 1:200 with a total torque transmission capacity range of 13Nm to 793Nm. The whole Gearset has a Accuracy of 3-6 Arc Min and the models available are SS42, SS70, SS90, SS120, SS150, SS180 which are combined with SNP gearbox customizable with Shaft or Flange End according to the application.

Rack and Pinion can be directly coupled with Right Angle Gearbox to convert Rotary Motion into Linear Motion. The Pinion is mounted on the Shaft of Right Angle Gearbox and the whole Gearbox is assembled in such a way that the Rotary motion of Pinion is Coupled with Rack hence the Linear Motion is achieved.

 For More Information visit - https://www.smdgearbox.com/right-angle-gearbox

Reference link - https://dribbble.com/shots/18028050-Right-Angle-Gearbox-with-Racks-and-Pinion-SMD-Gearbox

[smdgearbox]

In this Gearbox arrangement two Right Angle Gearbox and 1 Hollow Rotary Gearbox is used. The Output of One Right Angle Gearbox is Input of Hollow Rotary gearbox  and the Right Angle Gearbox which has longer shaft ( Ball Screw) is passed throughout the Hollow Rotary Gearbox. For More Information about High Precision Servo Gearbox you can visit our Website - www.smdgearbox.com

We also provide Customized Solutions by keeping close contact with the customers and provide Best Solution for their Application. SMD Gearbox are widely used in Automation, Automobile, Pharmaceutical, Aerospace, Engineering, Medical, Agriculture, Machine tool, etc.

Reference Link - https://www.smdgearbox.com/hollow-rotary-gearbox

[smdgearbox]

SMD Right Angle Gearbox is the mostly used for Robotics and Gantry Applications because of space constraints. SMD Right Angle Reducer provides Good Accuracy with high Torque and thus precision motion is achieved. SMD also provides customization in Right Angle Gearbox as per the requirement of modern Industries.

 Reference Link - https://youtu.be/vbxqXwPrELc

Website - https://www.smdgearbox.com/right-angle-gearbox

[smdgearbox]

SMD has introduced new Rack and Pinion Series with Gearbox where Rack Module is 1.5 and its length is 100 mm. The Pinion is coupled to SMD Right Angle Gearbox SS42 hence through which input is provided. The Right Angle Reducer can have ratios between 1:1 and 1:100. The nominal output torque of this Gearbox is 13.7 Nm. This Gearbox is a light Weight which weighs only 1 kg. The Rack is coated with black oxide coating to prevent rusting. The Rack is Surface finished in 2 ways either Ground or Milled.

For More Technical Information :-

Visit - https://www.smdgearbox.com/right-angle-gearbox

Reference Link - https://dribbble.com/shots/17558217-SMD-Gearbox-Solutions-with-Rack-Pinion

Mail ID – sales@smdgearbox.com

Phone No. - +91-7030669818

[smdgearbox]

SMD Right Angle Gearbox is suitable for low load and intermitted motion. SMD also provides customized solutions for these Gearboxes as per the customer requirements. It comes two variants i.e  in solid and other one in hollow shaft. SMD also provides more than one outputs in both solid and hollow shaft. These Gearbox are used in various types of Automobile, Automation, Robotics, packaging, Printing Industries. SMD is well known in market for Speedy and Timely deliveries.

 For More Information Visit,

Website - https://www.smdgearbox.com/right-angle-gearbox

Contact -  +886 (09) 67388376 / +91 7030669818

Mail id – sales@smdgearbox.com
