#RollFormingLine

[canporensheng]

👉 Bracing Roll Forming Line 🎊🎊

👉 FLOW CHART

Uncoiling →feeding guider → oil lubrication →roll forming with logo stamping →punching and cutting →discharging🎊 🎊

👉 if you want to know more details, please contact us

Website: www.tfrollformer.com

Email: zhangrenjiao@cnabke.com

WhatsApp: + 86-18834565182

[superdamachine86]

Wall mounted steel enclosure roll forming machine

[rollformingmachine-blog]

Sen Fung was established in 1963 as a professional manufacturer of roll forming machines and is the leading manufacturer and exporter of roll forming machines in Taiwan. We are using COPRAR and AUTO CAD softwares for roller design.With more than half a contury of experience and strict quality control, our products meet European CE and International Standards. Products Include Roofing, Tile Sheet, Ceiling T-Bar, Partition Beam, Floordeck, Door Frame, Purlin,Stainless Steel Pipe and Flooring Deck Equipments......etc. Address: No. 131.Sec 3,Zhongshan N.Rd. Danshuei Township,Taipei Country 251,Taiwan Tel:+886-2-26220000 Fax:+886-2-26252086 E-mail:service@senfung.com Website: http://www.senfung.com

Please check our other videos: High Speed Corrugated Roofing Sheet Roll Forming Machine Corrugated Roofing Sheet Roll Forming Machine Floor Decking Roll Forming Line C&Z Purlin Pre-cut/Punching/Size Adjustable Roll Forming Machine C&Z Purlin Roll Forming Machine Double-Layer Roll Forming Machine Stud & Track Roll Forming Machine Storage Racking Roll Forming Machine Rack Beam Roll Forming Machine Storage Upright Roll Forming Machine Guardrail Roll Forming Machine T-Bar Roll Forming Machine Door Frame Roll Forming Machine Roofing Tile Roll Forming Machine Uncoiler/Decoiler More Videos

[falseceilingmachine]

Pop Channel Roll Forming Machine

We are involved in manufacturing of Pop Channel Roll Forming Machine, False Ceiling Roll Forming Machine, Gypsum Channel Machine, Intermedaite Channel Roll Forming Machine, Gypsum Partition Roll Forming Machine. These products are mainly used for structure purposes in diverse industries. The entire range is fabricated using high quality raw materials at our modern and well-equipped manufacturing facility. We have a ability to produce bulk needs of ceiling section of customer within the specific time frame.

De coiler 200 KG cap.

Entry Gate with

Roll Forming Line with 8 station , 1 Gear Boxes & 5 H.P. electrical.

Control Panel semi auto

Cutting Unit

Technical Specifications : (Plate body)

Maximum sheet width that can be formed : 500 mm

Maximum sheet thickness in G I Strips that can be formed : 0.5 mm

Horizontal distance between shafts : 165 mm

Number of forming stations : 8 nos.

Vertical station : 2 nos.

Total HP for Line : 7 (ABB)

Speed of the machine : 5 mt/minute

Size of machine : 1600 x 1200 x 1100 mm

Mandrel Uncoiler

Coil weight : 200 KG Max

Coil width : 200 MM

Coil bore : 450 MM min, 510 MM max dia.

Mandrel movement : Manually adjusted

Back Tension : Manually adjusted

Entry Gate

Entry gate will be provided for movement of sheet to roll former.

Main Base

The main base is MS fabricated structure and adequately ribbed to minimize the distortion. It is accurately machined on top and bottom surfaces the threaded holes are made on the bed for positioning the stands.

Mill stands (Station)

The stands are mounted on the bed of the machine the line alignment can be easily done due to guide ways arranged on the bed of the machine. Each forming head consists of a fixed housing and sliding type out board housing. The mill stands will be arranged to locate shafts mounted on taper bearings. For the top shafts the bearings are housed in the cartridge type bearing blocks. The bottom shaft bearings are located in the bored machined in the housings. The bottom arbors are fixed in position whereas the top arbors along with cartridge blocks could be raised or lowered in vertical guides machined in housings.

Roll shafts

The roll shafts dia. 50 mm will be manufactured from quality steel and will be keyed to locate tooling.

Drive

The drive to the roll former will be by means of a gear box system. The main drive will be provided by means of 5 HP motor

[metalrollformingmachine]

[Test Run] Corrugated Metal Roofing Roll Forming Machine

Thử Máy Cán Tôn Sóng Tròn tại xưởng Ameco. Roll Formed Products which are made by Ameco Corrugated Metal Roofing Roll Forming Machine: Corrugated Metal Roof Panels, Corrugated Metal Siding Panels Corrugated Steel Roofing, Corrugated Steel Panels Corrugated Metal Roofing Sheets, Corrugated Steel Roofing Sheets -- AMECO Vietnam Hotline: +84988731731 Website: https://ameco.vn Office: Floor 6, Block A, Waseco Building, 10 Pho Quang Street Ward 2, Tan Binh Dist., HCMC, Vietnam Factory: Lot K5, Street No.5, Long Khanh Industrial Zone, Long Khanh town Dong Nai province, Vietnam

#CorrugatedSteelPanelRollFormingMachine  #CorrugatedRollFormingMachine #RollFormingMachineManufacturer  #RoofTileMachine #ColdRollFormingMachine  #MetalForming #CPurlinMachine #CoilProcessingMachinery #GlazedTileRollFormingMachine #DoubleLayerRollFormingMachine

[coldrollformingmachine-blog]

Pop Channel Making Machine

First time in India we are introduce 4 profiles Pop Channel roll forming machine from that machine you can produce 4 different kind of profile in one machine. This machine can form it 4 different profiles in one machine these products are manufactured by using hi-tech machinery and advanced technology in order to use the best quality raw material and high tensile steel. Reduce scrap rigid and stable base design is the useful feature of these products. These machines are constructed by using the steel shafts and they are running between the iron housing. These machines are automatic and are easy to use. These products are available at reasonable prices as per the need of the clients and we also can make it custom roll forming machine as per profile drawing.

A) D coiler 1 ton cap.

B) Punching press,

C) Entry Gate with

D) Roll Forming Line with 16 station , 8 Gear Boxes & 15 H.P. electrical.

E) Control Panel semi auto

F) Cutting Unit (Hydro.)

TECHNICAL SPECIFICATIONS :-

Maximum sheet width that can be formed : 350 mm

Maximum sheet thickness in CRCA Strips that can be formed : 2.5 mm

Number of forming stations : 16 nos.

Vertical station - : 8 nos.

Total HP for Line : 21.5

Speed of the machine : 4 mt/minit

Size of machine : 7200 x 1200 x 1100 mm

MANDREL UNCOILER

Coil weight : 1 MT Max

Coil width : 400 MM

Coil bore : 450 MM min, 510 MM max dia.

Mandrel movement : Manually adjusted

Back Tension : Manually adjuste

à Description of the Roll Forming Machine.

Feeder

3 Hp Pneumatic

Punching press

20 tone power press

Entry Gate Entry gate will be provided for movement of sheet to roll former.

Main Base The main base is MS fabricated structure and adequately ribbed to minimize the distortion. It is accurately machined on top and bottom surfaces the threaded holes are made on the bed for positioning the stands.

Mill stands (Station)

The stands are mounted on the bed of the machine the line alignment can be easily done due to guide ways arranged on the bed of the machine. Each forming head consists of a fixed housing and sliding type out board housing. The mill stands will be arranged to locate shafts mounted on taper bearings. For the top shafts the bearings are housed in the cartridge type bearing blocks. The bottom shaft bearings are located in the bored machined in the housings. The bottom arbors are fixed in position whereas the top arbors along with cartridge blocks could be raised or lowered in vertical guides machined in housings.

Roll shafts

The roll shafts dia. 70 mm will be manufactured from quality steel and will be keyed to locate tooling.

Drive

The drive to the roll former will be by means of a gear box system. The main drive will be provided by means of 15HP motor

Tooling

One set of Tooling with EN31 grade will be from imported material suitable for your machine as standard supply. The same is involved in operations like rough machining, keyway, rough profiling, profile machining and inspection with final template for above.

Cutting Unit ( Hydro.)

Hydraulically operated power pack along with cutting die with 5 HP electrical.

Motor - ABB , Gear box – Elecon , Bearing - SKF

[canporensheng]

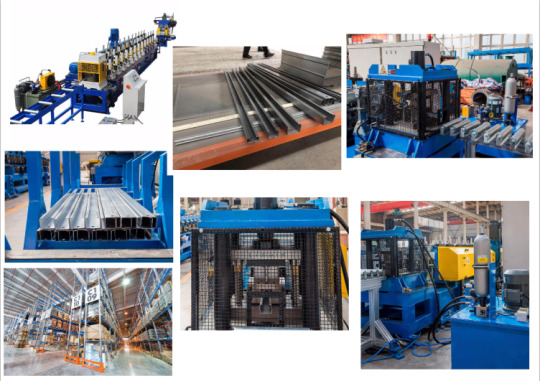

👉 TF Upright Roll Forming Line 🎊🎊

👉 One operator could run the whole line. The final products have high precision and good quality appearance. With a short producing assistance time, the equipment can stay stable in producing. The production speed can reach 20m/min. 🎊 🎊

👉 if you want to know more details, please contact us

Website: www.tfrollformer.com

Email: zhangrenjiao@cnabke.com

WhatsApp: + 86-18834565182

[china-vpn]

RFT410 Roof panel roll forming machine HANGZHOU ROLL FORMING TECHNOLOGY CO., LTD Website: www.hzrollforming.com Reasonable layout helps to save workshop spaces, raise efficiency, increase productivity, and save cost. No matter you wish to establish new plant or transform your origin plant, we can always offer efficiently services. #machine #Guardrail #Gutter #Downspout #pipe #DOOR #Tube #roof #tiles #panel #shutters #CableTray #AG #Ridge #Slitting #Decoiler #Recoiler #Upender #Stackmaster #Printing #Curving #Crimping #Purlin #doorframe #windowframe #Doubllayer #rollformingmachine #coldrollformingmachine #rollformingline

[metalrollformingmachine]

Sẵn sàng để giao đến xưởng khách hàng! #AmecoVietnam #rollformingmachinevietnam #rollformingmachine #rollformingline #maycanton #XaGoC #CPurlin #sheetmetal #vietnam (at AMECO Vietnam)

[metalrollformingmachine]

The first working day of Lunar New Year 2018. 🙏🌅👍🌺 #amecovietnam #rollformingmachine #rollformingline #maycanton #rollforming #rollformer #metalsheet #metal #metalfabrication #manufacture #manufacturer #metaltile (at Máy Cán Tôn Việt Nam)

[metalrollformingmachine]

Slitting machine. Just as mini as its name - mini slitter. 😊🌺 #slitter #slittingmachine #slitting #shearing #amecovietnam #rollformingline #rollformingmachine #rollformingmachinevietnam #metalfabrication #manufacturing #manufacturer #sheetsteel #sheetmetal #coilprocessing #coilprocessinglines #coilprocessingequipment (at Metal Tile Roofing Roll Forming Machine)

[metalrollformingmachine]

View this post on Instagram

A post shared by Ameco +84 988 731 731 (@ameco.vn)

5 ribs Roofing Roll Forming Machine - exported to Thailand. Energetic Orange 🍊 ! #rollformer #rollforming #rollformingline #rollformingmachine #rollformingmachinevietnam #manufacturer #sheetmetal #manufacturing #metalfabrication #roofing #roofer #metalroller #metalrollformingmachine #amecovietnam #vietnam #maycanton (at Metal Tile Roofing Roll Forming Machine)

[metalrollformingmachine]

View this post on Instagram

A post shared by AMECO +84 988 731 731 (@rollformingmachines)

5 ribs Roofing Roll Forming Machine - exported to Thailand. Orange 🍊 is so energetic! #rollformer #rollforming #rollformingline #rollformingmachine #rollformingmachinevietnam #manufacturer #sheetmetal #manufacturing #metalfabrication #roofing #roofer #metalroller #metalrollformingmachine #amecovietnam #vietnam #maycanton

[metalrollformingmachine]

View this post on Instagram

A post shared by Ameco +84 988 731 731 (@ameco.vn)

Testing Omega Upright Roll Forming Machine Line. This Upright Beams for Shelves Line includes a Manual Decoiler and a Racking Upright Rollforming Machine. #rollformingline #sheetsteel #metalfabrication #omegaupright #rackingandshelving #purlin #rollformingmachine #rollformingmachinevietnam #amecovietnam #punchingmachine

[metalrollformingmachine]

COOL, isn't it?!!! 😆😄👏👏👏💐💐💐🍾🍾🍾 New Home for @ameco.vn Ameco Metal Roll Forming Machine!! 💥💥💥❤️#amecovietnam #vietnam #manufacturer #metalroller #metalsheet #steelsheet #rollforming #rollformingline #rollformer #rollformingmachine (at AMECO Vietnam)

[metalrollformingmachine]

View this post on Instagram

A post shared by Ameco +84 988 731 731 (@ameco.vn)

Testing Omega Upright Roll Forming Machine Line. This Upright Beams for Shelves Line includes a Manual Decoiler and a Racking Upright Rollforming Machine. #rollformingline #sheetsteel #metalfabrication #omegaupright #rackingandshelving #purlin #rollformingmachine #rollformingmachinevietnam #amecovietnam #punchingmachine
