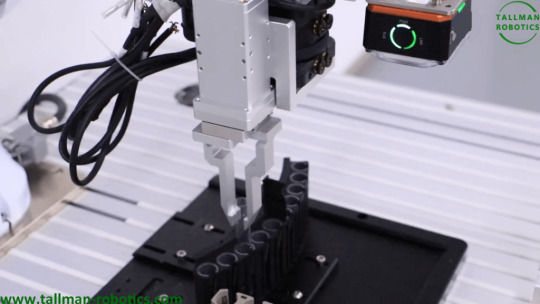

Smart Mini Servo Gripper

Smart Mini Servo Gripper Designed for gripping hard, soft, shaped and fragile objects. You are welcome to visit our download centre to check E-catalogues or watch our video centre to check more projects. Tallman Robotics Limited , TM Branch provides Smart Mini Servo Gripper. With strong independent R&D capabilities, TM develops servo grippers, servo pushers, servo slides, servo rotary cylinders and integrated drive and control controllers, and offers servo electric cylinders . Electric gripper (also called "servo gripper") is an intelligent electric cylinder that is composed of non-standard structural parts, transmission parts, servo motor, PLC control system and control program. Its speed, stroke and clamping force can be separately Independent control. Compared with pneumatic grippers, it has more powerful functions and a wider range of applications. Commonly used in food, medical, laboratory and other precision gas-free environment. Features of Smart Mini Servo Gripper Integrated design, Easy operation out of the packing box. TM mini servo gripper, the core adopts completely independent research and development servo motor, integrates non-standard parts, transmission parts, TM servo motor, PLC, execution program, its shape is similar to the market cylinder, and is equipped with standard screw holes Bit. After unpacking, it only needs to be installed at the end of the robot and connected to the power supply to be used directly. Stroke, speed and force are controlled separately. In actual production, pneumatic grippers often cause long production cycles and damage work pieces due to inability to control them accurately. Noise exceeding 80 decibels also affects the health of workers and indirectly causes high-cost production for enterprises. The micro servo gripper can control the stroke, speed and force separately, and the repeat accuracy is 0.01mm, which can reduce the movement distance of the finger within the effective stroke range. The fastest jaw opening and closing speed is 0.11s each time, and the uniform acceleration/deceleration movement is automatically performed during the gripping process, effectively shortening the gripping time. Through the control of the clamping force, it is easy to quickly pick up vulnerable items such as eggs and egg rolls. Three-in-one communication, 2 kinds of torque control TM mini servo gripper uses a three-in-one communication method to support bus, pulse, and I/O communication. And with two torque control modes, engineers can set torque parameters through software or hardware to provide enterprises with flexible and diverse operating solutions. Integrated drive and control, saving installation space and reducing the number of wiring. In the era of increasing popularity of industrial automation, large robots will not be the solution pursued by enterprises. Traditional robots have many components, large volume, and complicated wiring, etc., which make the overall solution less effective. After TM adopts the "integration of drive and control" design, it not only saves a lot of installation space, but also reduces the number of wiring. Only 4 lines are connected to complete the communication control, which effectively reduces the occupation of communication ports.

              Technical Parameters: Model No. TM-MGBD-11-14-S TM-MGBD-11-14-L TM-MGBD-08-8 Applicable Controller TM-C TM-C Integrated Max Clamping Force (N) 10 20 5 Stroke (mm) 14 14 8 Repeatability (mm) ±0.01 ±0.01 ±0.01 Fastest Opening and Closing Speed (s) 0.14 0.14 0.14 Backlash (mm) Less than 0.05 on one side Less than 0.05 on one side Less than 0.05 on one side Allowable Load Torque (N.m) MR:4.6、MP:2.7、MY2.7 MR:4.6、MP:2.7、MY2.7 MR:1.5、MP:0.5、MY0.5 Mass (kg) 0.4 0.5 0.3 Recommended Use Environment (temperature and humidity) 0~40℃, below 85%RH (without condensation) 0~40℃, below 85%RH (without condensation) 0~40℃, below 85%RH (without condensation) Five advantages of industrial robots with Tallman Robotics smart servo electric grippers In electric grippers or servo grippers, the motor controls the movement of the jaws through the electrical input of the robot controller. These robot arm end tools are increasingly appearing in the industrial market. The following are the five advantages of using SGA electric grippers compared to other types of robot grippers. 1. Control the position of the fingers of the gripper Through the use of coded motors and appropriate control schemes, electric clamps can be used to determine the position of the jaws. In contrast, for traditional grippers, it is usually necessary to maintain a full stroke at all times. When using an electric gripper, you can flexibly use only the smallest necessary clearance to approach the part, and then pick it with the smallest stroke. Partial opening and closing helps to select a wider range of part sizes without affecting the production cycle. 2. Detect grip strength Using an encoder, you can determine whether the gripper picked up the part. Some electric grippers will pass this information back to the robot controller. In many applications, in order to prevent errors, the handle must be detected. Doing this at the gripper level avoids putting other sensors in the loop, simplifying integration and reducing overall costs. 3. Control grip and speed Since the motor current is proportional to the applied torque, the soft force applied by the electric clip can be controlled. The same is true for the closing speed. For example, this may be helpful when dealing with fragile parts. 4. No trachea: save electricity and maintenance costs Many companies are moving from pneumatic to electric to reduce operating costs. An important aspect of this transformation is the reduction of the cost of pneumatic hardware and the reduction of energy costs. 5. Cleaner gripper Some applications require a clean environment, otherwise air leakage may cause pollution. In this case, electric grippers are the only viable solution for picking parts. Read the full article

[tallman-robotics]

Servo Motor Electric Grippers are Delivered to Germany

Servo Motor Electric Grippers are finished for Gremany clients. You are welcome to visit our download centre to check E-catalogues or watch our video centre to check more projects. Electric gripper is an important part of robot system, which is mainly used to hold and operate tools or workpieces, and bears important operation and execution functions. Integrated electric gripper,Servo Motor Electric Grippers. ● based on integrated step servo motor ● use gear rack to drive the gripper finger ● the inner wall is used for micro guide rail positioning and clamping finger limit position limit. https://youtube.com/shorts/kt8jFpMKVok?feature=share Obstacles and challenges of intelligent PLC breaking the cocoon into a butterfly PLC is the product of industry in the 3.0 era. After more than 50 years of development, the technology continues to push through the old and bring forth the new, and the product categories continue to be enriched. As the brain that controls the industrial production system, the emergence of PLC has replaced the previous relay that controls high-power equipment, saving manufacturing equipment space, reducing power consumption, and reducing the workload of engineer equipment maintenance. At present, industrial manufacturing is transitioning to 4.0, and manufacturing enterprises need to complete the transformation and upgrading. On the one hand, they need to improve the automation level of manufacturing equipment; on the other hand, they need to integrate Internet technology on the basis of industrial control technology. With the help of consumption data, optimize supply chain management and reasonably plan factory manufacturing production. Therefore, in industrial automation, PLC, as the "brain", plays a very important role in the new round of industrial reform. 1 today's PLC is no longer a traditional PLC In short, PLC is a special computer for industrial control, which uses programmable memory to store instructions, perform functions such as logic, sequence, timing, calculation, and control various mechanical production processes through simulation or mathematical i/o. Among them, CPU is the brain of PLC, which executes user programs, summarizes, analyzes and processes the information collected from other modules. Smart factories have the characteristics of comprehensive perception, optimized decision-making, accurate implementation, and independent business management and manufacturing operations. To realize intelligent manufacturing, multifunctional and high-performance industrial controllers cannot be absent. In previous industrial sites, the same equipment, process section and production line may be multiple controllers, such as the industrial robot platform, which is robot controller +plc, and the flexible processing unit is cnc+plc. The future smart factory needs to control all units by a "brain". Dr. xiaoweirong, President of Greater China of baccalais, once proposed in the online open class that today's PLC is no longer a traditional PLC. He pointed out that when traditional PLC performs multiple tasks, it starts from task by task and starts again. On the basis of multiple tasks in a project, the system is divided into multiple task levels, each task corresponds to a cycle, and priority is set according to the length of the cycle. It can be seen that the new PLC is not simply performing logical tasks, but can handle more complex processes in the production line. In the event of an emergency, the multi task processing function of the new generation of PLC will not be interrupted like the traditional PLC. In other words, the brain of today's industrial production system needs a highly intelligent PLC. Some insiders also pointed out that today's large PLC system itself is a distributed computing system based on Fieldbus and LAN, and the application of relevant technologies supporting cloud mode distributed computing system in the field of industrial control will bring revolutionary changes in the architecture, technical architecture, product form and application mode of industrial control system. In the process of manufacturing turning to "intelligent" manufacturing, there are still many research topics in the field of PLC. 2 what kind of PLC can meet the requirements of industry 4.0? Under the background of industry 4.0, the factory network has moved from closed LAN to external interconnection, so the communication mode of PLC also needs to be changed. PLC communication system can form a more complex control system through PROFINET, CC link, DeviceNet and other networking, but many PLCs do not match with barcode scanners, RFID readers, sensors, industrial cameras and other equipment required by smart factories. The premise of intelligent manufacturing is to collect data. The material management, equipment management and other data of the factory should be integrated into the MES system, so as to provide a stronger hardware foundation for the comprehensive digitalization of enterprise production and manufacturing, logistics warehousing and marketing management. It can be seen that there are many challenges in developing a PLC that meets the requirements of industry 4.0, waiting for researchers to overcome. First, we need to deal with huge production data and increasingly complex algorithms. Under intelligent manufacturing with Servo Motor Electric Grippers , it is inevitable that PLC needs to store more production data. On the one hand, consumer terminals' requirements for product personalization and quality are improving, and factories need to improve production technology and reduce manufacturing costs. Therefore, the bottom control system needs to deal with large-scale production data and logical relationships; On the other hand, in order to process a large number of production data, the algorithm behind the PLC hardware is required to be higher. There is a certain technical threshold for writing a good algorithm. Secondly, the simplicity of the supporting programming software design. As consumers' requirements for products increase, the complexity of factory production will certainly increase. PLC is required to complete PID control, network communication, high-speed calculator, position control, data recording, text display and other functions. This means that the difficulty of programming is increasing. Moreover, the PLC programming languages of different brands in the market are different, and engineers need to master a variety of programming languages. From the perspective of terminal procurement, engineers can learn once and use everywhere to reduce the cost of personnel training, technical consulting, system debugging and software maintenance. It is a practical PLC product. Thirdly, understand the operating habits of engineers in specific downstream application scenarios. In the practical application of PLC, users will encounter the so-called Japanese system and German system, both of which have their own advantages in software programming. Since PLC is a product combining software and hardware, the software of PLC needs to be adjusted accordingly in different application scenarios. In addition, different application scenarios will lead to different operating habits of engineers. Conversely, PLC suppliers are required to reconstruct the general PLC software for specific downstream industries and engineers' operating habits. No matter in any industry or in the new manufacturing environment, the software programming of PLC tends to be simple and easy to operate. 3.Competition pattern of domestic PLC Market China is the largest processing plant in the world, and the use of natural PLC is also huge. In the domestic PLC market, Europe, America and Japan are the main ones. In terms of European and American brands, Siemens, Rockwell and Schneider are represented. Among them, Siemens has excellent performance in small, medium and large products, and has become a major supplier in the domestic PLC market, with a market share of 40.7% in 2016 alone; Rockwell maintains a leading position in the large PLC market, with a share of 10.1%; As an old PLC supplier, Schneider's share has been maintained at about 9%. In Japan, the representative enterprises are Mitsubishi and OMRON. With the advantages of cost performance and market channels, they maintain a high level of competition in China. In addition, Taiwan funded Delta has dug deep into the OEM market with the advantage of high cost performance. At the same time, it adheres to the solution of mutual cooperation between PLC, frequency converter and servo driver, and the market sales have maintained a high-speed growth trend. In terms of local PLC, its development has a history of nearly 40 years, which can be roughly divided into the introduction period from the 1980s to the 1990s. At this time, PLC on the market are all overseas brands. From the 1990s to 200, it is the start-up period of local industrial control enterprises, and local PLC brands began to appear. After 2000, it is the development period of local PLC brands. Local brands start with small PLC with low technical threshold, and have localization advantages to achieve rapid growth. In recent years, the local medium-sized PLC market has made a breakthrough. For example, the AM series medium-sized PLC launched by Huichuan technology has made great breakthroughs in expanding the number of points, communication functions, program capacity, etc; Xinjie Electric is introducing XG series medium-sized PLC, which can support 20 axis servo control and all functions of standard PLC, with faster processing speed. epilogue PLC is an indispensable part of factory automation and industrial process control. In the era of intelligent manufacturing with Servo Motor Electric Grippers , it is inevitable to further improve the performance of PLC, so it needs to be fundamentally redesigned, including high-performance control, interconnection, safe communication, cross platform operation, and timeliness. From a market perspective, PLC has sales channel barriers, and the market of single PLC products in industrial automation enterprises usually has a hidden ceiling. Take foreign high-end brands as an example: first, combine their own advantages to find a suitable entry point; Secondly, after being recognized by customers, gradually improve the product research and development of the industrial chain, from a single supplier to a solution provider; Finally, take advantage of technology precipitation and brand advantages to become a comprehensive supplier across the medium and high-end market. Read the full article
