Week #10

Introduction

2 more weeks left! AAHHHHHHHH! Thankfully, I feel good with the advice and feedback I was given during the critique last week in class. The professors suggested maybe using flocking, but I had looked into that the previous week and decided it wasn’t the look I was going for. I need to refine the tiles to make them look better. I also need to incorporate the colorful tiles into the box design. I liked the black and white color scheme, but it would definitely elevate the look and make it pop by adding in the galaxy style of the tiles. The professors also said that I need to make the text on the box and the cards more readable, which is an easy fix. The last thing they said was that the characters didn’t feel like they related to the rest of the game because they were too “cute.” I can definitely see that, but since there’s limited time left, that would be the last thing on my list of things to do. I might have time though, since I cut out making a trailer for the exhibition, as that would bring on a lot of extra work I don’t think I have time for anymore.

Research

I went to the NYU MakerSpace to test out the vacuum former machine they had. Unfortunately, I only realized I should have made a female mold the day before, and by then it was too late to model and print the molds, so I just went with my pieces to become familiar with the equipment and then hopefully come back. When I arrived, I realised they had 3 machines when their website only listed one. I was prepared for their Keystone Single Chambered Vacuum Former, which was only 5x5 inches in space, so I was pleasantly surprised to see they had larger machines! They had a huge industrial one that I think would be overkill for what I was doing, but the medium-sized machine they had was a Makyu FormBox which was perfect for making my individual molds for the board game inserts.

The plastic I brought was a little too thick, so I ended up ordering thinner sheets after the fact (they’re only 10 dollars with free shipping so I just got them sent without using my budget, so they came on time).

I started by putting my dice and characters onto the machine bed. My first go around was really rough because I didn’t heat up the plastic enough. But on my second go, I was able to get a good vacuum seal onto the pieces and the dice, although they shifted a little during the vacuuming process. I tried a couple of times, but didn’t want to waste too much of my material. I ended up using one of the plastic formed pieces I had made as a mold. I punched holes through the bottom to see how well the air would go through those holes and fit the form of a mold. I didn’t want to have a noticeable draft angle for the inside as that would affect the fit of the pieces. Thankfully, the holes I punched seemed to work well!

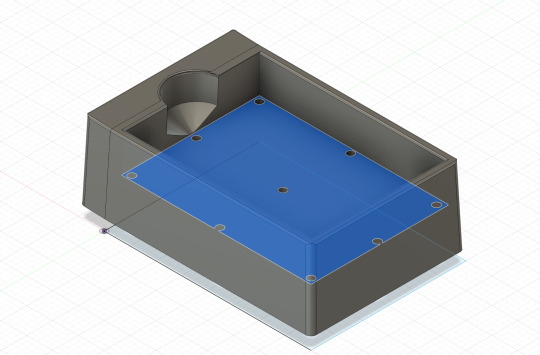

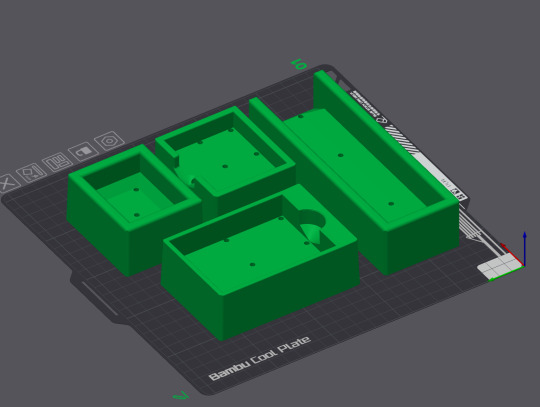

I unfortunately had to leave or else I would have stayed longer, but I was ultimately satisfied with my trip that day. Over the weekend, I modelled the molds I would use for my next visit to the MakerSpace. I started in Blender, which I was more comfortable with, but I was having a difficult time getting my measurements to be exact. So I looked into alternatives and ended up downloading Fusion 360 and learning how to use it. After some tutorials, I was caught up to speed and modelled these molds to be 3D printed in the FabLab. The tile holder is going to have to be done in two parts because the forming machine is just slightly too small, but I made the mold longer than it needs to be, and then I plan on combining two halves in the middle. I originally didn’t think about the thumb holes, but I ended up adding them to make the pieces out easier. Hopefully, the holes at the bottom are enough to allow the vacuum to properly get into the nooks and crannies.

Reflections

I felt like I was waiting on timing for some things. It was awkward planning when to get things done because I worked Saturday, Sunday, and Monday this week and couldn’t find time to get on campus. In addition to that, I was waiting for the linen textured paper to come in before wrapping the box. Now that it came in, I will work on getting that box completely done. After that, I think the tiles I want to completely finish next. I am really hoping that my visit to NYU pt.2 goes well so I don’t have to plead with my friend to go back since it’s out of the way for both of us (he’s at the Manhattan location, but the MakerSpace is in Brooklyn and he has to travel there to swipe me in). I’m going to buy him dinner or something after this as a thank you for sure! I have felt swamped with my work, capstone, and design III, so I took off one of the days I was supposed to work when it gets closer to the exhibition installation so that I can really focus up and produce the best quality work I can.
