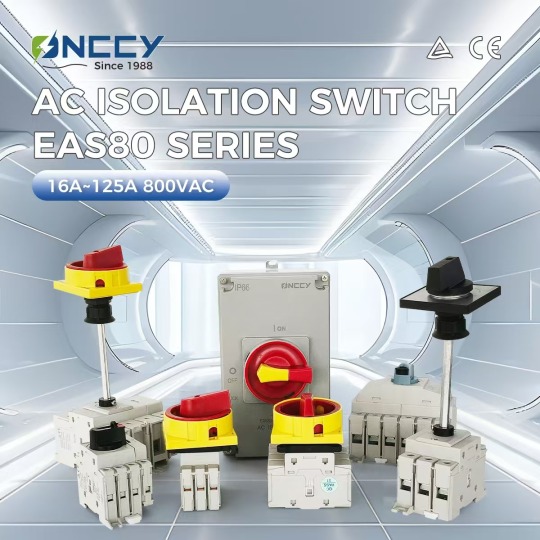

EAS80 AC Isolation Switch Series This is ONCCY's latest popular product—the EAS80 AC Isolation Switch Series. In terms of electrical performance, it covers a range from 16A to 125A, with an insulation voltage of 800V. This series of isolation switches features a compact and modular design, specifically tailored for industrial applications. It offers various mounting options and enclosed solutions, with a protection level that can reach IP66, ensuring reliable operation in various complex industrial environments.

[onccyelectrical]

⚡ EAS80 AC Isolator Switch as a Changeover Switch: Two State Logic Differences

1️⃣ The EAS80 AC isolator switch operates with two state logics when used as a changeover switch:

2️⃣ Standard Type (I-0-II): The middle "O" position features normally open (NO) contacts, disconnecting both Circuits I and II for complete isolation.

3️⃣ Special Type (I-I+II-II): The middle position uses normally closed (NC) contacts to maintain main circuit continuity. When rotated to "I" or "II", it engages the corresponding contacts while cutting off other circuits. In the "I+II" position, it activates both circuits simultaneously.

➡️ Structural Comparison:

1️⃣ Three-position (I-0-II): Ensures safe isolation via a dedicated middle "O" position and mechanical interlock for single-circuit operation.

2️⃣ Two-position (I-I+II-II): Lacks an independent isolation position, ideal for seamless main/backup power switching in critical scenarios.

Both types comply with electrical isolation standards but prioritize different functions.

🔗 Learn more: www.onccy.com

[onccyelectrical]

✍ ONCCY EHA Series AC Disconnecting Switch is engineered for demanding industrial environments, delivering exceptional environmental resilience and operational reliability. Supporting multiple wiring configurations and offering multi-angle mounting flexibility, this product seamlessly adapts to diverse installation layouts.

📌 Its innovative mechanism design achieves complete decoupling between switching operations and handle speed, ensuring precise circuit interruption regardless of rapid or gradual actuation, thereby eliminating arc flash hazards.Current: 160~800A、Voltage: 1000VAC

 ⚡ Featuring an IP65-rated fully sealed enclosure, it provides robust protection against dust ingress, moisture condensation, and corrosive gas penetration. Critical components undergo specialized surface treatment processes, meeting industrial-grade electrical isolation standards.

⚡ This solution stands as the optimal choice for ensuring secure power system isolation and stable operation in extreme industrial conditions.

🌍 Learn more: www.onccy.com

📫 Technical Support: contact@onccy.com | 📞 WhatsApp: +86 17301617015

[onccyelectrical]

The ONCCY EAS80 AC isolation switch (Panel Mount) is renowned for its durability and wide applicability. It adopts a reliable panel mounting method, ensuring safe and efficient electrical isolation in both industrial and commercial applications.Our maximum voltage can reach 800VAC with a maximum current of 125A.

Want to learn more? Get more: www.onccy.com, contact@onccy.com, WhatsApp: +86 17301617015.

#ACDisconnector #ElectricalIsolation #ONCCY #PanelMount #IndustrialApplications #CommercialApplications #ElectricalSafety #DurableDesign

[onccyelectrical]

The ONCCY EAS80 AC isolation switch series has received high acclaim from customers for its outstanding performance.

This series features a rated current range from 16A to 125A, effectively catering to the power needs of various scenarios.

In terms of installation methods, the EAS80 series provides remarkable versatility: DIN Rail Mounting: The installation process is simple and quick, making it suitable for a variety of industrial environments. Door Interlock Mounting: This feature significantly enhances safety and effectively prevents accidental operations. Waterproof Box Installation: Provides superior protection for the equipment. Panel Mounting: It can seamlessly integrate with various control panels, saving space while ensuring an aesthetically pleasing appearance.

Furthermore, this series presents a choice between plastic and aluminum housings. The plastic housing is lightweight with excellent insulation properties, whereas the aluminum housing is more robust and provides superior heat dissipation.

This product complies with CE, TUV, and other quality standards, ensuring reliable quality. With an IP66 protection rating, it offers outstanding dust and water resistance capabilities—making it suitable for use in various harsh environments.

[onccyelectrical]

EAS80 External Isolation Switch: The Perfect Combination of Safety and Aesthetics

ONCCY's EAS80 external isolation switch features a closed design and offers waterproof box options in plastic, aluminum, and iron, ensuring product safety while also considering cost-effectiveness. Additionally, users can choose from different knob colors based on their personal preferences or corporate safety color standards, allowing the equipment to combine safety with aesthetics. This product is certified with CE and TUV, and in terms of electrical performance, it covers a current range from 16A to 125A with an insulation voltage of 800V. Its protection level reaches IP66, allowing it to operate reliably and stably in various complex industrial environments.

[onccyelectrical]

Introducing the EAS80 AC isolation switch, a star product from Onccy that has received high praise from consumers. This product is widely used in industrial control machinery and various electrical devices, effectively addressing issues related to emergency disconnection, safety disconnection, machine control, and motor control.

·Current range: 16 to 125 Amperes, insulation voltage: 800VAC

·Available in 3P, 4-pole (3P + N), 6P, and 8P configurations

·Supports multiple installation methods for easy and flexible installation

·Complies withIEC/EN 60947-3

If you are interested in this type of product, please feel free to contact us at contact@onccy.com.

[onccyelectrical]

The Onccy EAS80 Series Metal Enclosed Fused Switches is widely used in industrial controlmachinery and various electrical applances, and caneffectively solve the problemRergency disconnection,safety disconnection, machine control, motor control and soon.

*16 to 125 Amp 800VAC

*3P，4 Pole (3P+N)，6P

*Door interlocked handle

*Padlockable in the off position

*IP65 RAL7035 Metal weatherproof enclosure

*Supplied complete with Fuses optional

*Conform to IEC/EN60947-3

If you are interested in this type of product, please feel free to contact us.  contact@onccy.com

[onccyelectrical]

【Real-World Case】 Below are photos provided by trusted customers of Onccy Electrical. Our combiner boxes are suitable for photovoltaic systems and come equipped with fuses, surge protectors, isolators, and miniature circuit breakers, providing isolation, leakage protection, and grounding protection. We offer custom combiner box services. If you are interested in our products, please contact us at contact@onccy.com.

[onccyelectrical]

The feedback images from the customer are related to two products from ONCCY.

The first is the EDS1 series DC isolator switch, which has a rated voltage of up to 1200V DC and a rated current of 32A. It has an IP66 protection rating. This product features UV resistance and is made from V0 flame-retardant materials, and it is certified by CE,CB, TUV, and SSA.

The second is the EAS69 series AC isolator switch, which has a rated current of 80A and a rated voltage of 415VAC. This product uses alloy contacts made from electrical-grade silver, providing a longer service life and higher reliability. It supports multiple installation methods, such as panel mounting, DIN rail mounting, and sealed switch box mounting. Its protection rating is IP66, and it is certified by CE and TUV.
