Safety Protocols in Winding Machine Operations

The coil winding process is a critical step in manufacturing transformers, motors, and other electrical devices. While advanced coil winding machines increase productivity, they also present operational hazards. To ensure a safe working environment, it is essential to follow proper safety protocols.

This article outlines essential safety measures and protocols for winding machine operations, with a focus on preventing accidents and ensuring a safe workplace.

Safety in the workplace is paramount, especially when operating high-speed machinery like coil winding machines. Winding operations involve numerous moving parts, high voltages, and rotating components that can pose risks to operators and other personnel. By implementing comprehensive safety protocols, manufacturers can reduce accidents and protect workers from potential harm.

Here, we will discuss key safety measures every coil winding machine operator should follow, highlighting best practices promoted by ACME Electronics, a leading manufacturer and supplier of coil winding machines.

1. Training and Certification

One of the fundamental pillars of machine safety is operator training. Every employee working with winding machines should receive thorough training on the equipment's operation, safety features, and emergency shutdown procedures. Training programs should cover:

Understanding machine controls

Safe loading and unloading of coils

Recognizing common hazards, such as moving parts and high-voltage components

Emergency stop protocols

At ACME Electronics, operator safety is prioritized with machines that include intuitive control systems and comprehensive user manuals. ACME also offers optional training sessions for buyers, ensuring that personnel are well-versed in machine safety.

2. Personal Protective Equipment (PPE)

Personal Protective Equipment (PPE) is essential in ensuring worker safety during coil winding operations. Operators must wear appropriate protective gear such as:

Safety glasses or face shields to protect against flying debris

Heat-resistant gloves to handle materials at elevated temperatures

Safety footwear with non-slip soles to prevent slips and falls

Ensuring that PPE is used consistently can significantly reduce the risk of injury. ACME Electronics ensures that its machines are designed to work seamlessly with PPE requirements, promoting safe and effective operation.

3. Machine Guarding and Safety Features

Guarding critical parts of the machine is an essential preventive measure. Winding machines have many moving components, such as spindles, which can cause injury if operators come into contact with them. Essential safety features include:

Protective enclosures or guards around rotating parts

Emergency stop buttons placed in easily accessible locations

Safety interlocks that prevent the machine from operating when covers are removed

Machines manufactured by ACME Electronics come with state-of-the-art guarding mechanisms, designed to reduce direct contact with hazardous parts and ensure operator safety. Their machines are equipped with reliable safety systems that allow quick machine shut-down in case of emergencies.

4. Regular Maintenance and Inspections

Routine maintenance and inspections are key to preventing mechanical failures and ensuring safe operation. Machines should undergo regular checks for wear and tear, ensuring that all parts are functioning correctly. Maintenance protocols should include:

Lubrication of moving parts to prevent overheating or friction

Inspection of electrical components for wear or damage

Replacing any worn-out or broken parts immediately

ACME Electronics provides detailed maintenance guidelines with their coil winding machines. Their support team is available to assist with maintenance and troubleshooting, reducing downtime and preventing accidents caused by equipment malfunctions.

5. Safe Workspace Organization

The layout and organization of the workspace also play a critical role in ensuring operator safety. A well-organized workspace reduces the likelihood of accidents. Key organizational tips include:

Keeping the floor around the machine clear of obstacles and debris

Ensuring proper ventilation to reduce overheating

Clearly marking hazardous areas around the machine with warning signs

ACME Electronics advises manufacturers to adopt ergonomic and organized workspace layouts to promote efficiency and safety. By keeping the area around the winding machine orderly, risks are significantly reduced. Conclusion

The safety of operators in coil winding machine operations is vital to ensuring a productive and accident-free environment. Through comprehensive training, use of PPE, proper machine guarding, regular maintenance, and safe workspace organization, risks can be minimized.

Manufacturers like ACME Electronics are dedicated to providing safe, reliable, and high-quality coil winding machines that help operators work confidently. By adhering to these essential safety protocols, operators can enjoy greater efficiency and reduced risks.

Are you ready to prioritize safety in your winding machine operations?

Contact Us:

ACME Electronics

Address: 780/A GIDC Industrial Estate, Makarpura, Vadodara 390 010, Gujarat, India

Phone: +91-265-2632962

Email: sales@acmeengg.com

[acmemechatronics1]

The Ultimate Guide to Coil Winding Machines: Enhancing Precision and Efficiency

In today's rapidly advancing industrial landscape, coil winding machines have become a cornerstone in the manufacturing sector. From electric motors to transformers, these machines ensure precise and efficient coil production, meeting the ever-increasing demand for high-performance components. This article delves into the essentials of coil winding machines, their types, benefits, and applications, shedding light on why they are indispensable in modern industries.

What is a Coil Winding Machine?

A coil winding machine is a specialized equipment designed to wind wire coils around a core or bobbin. These coils are essential components in various electrical devices, such as transformers, inductors, and motors. With the evolution of technology, coil winding machines have transformed from manual devices to highly automated systems, ensuring unmatched precision and efficiency.

Types of Coil Winding Machines

Manual Coil Winding Machines:

Ideal for small-scale production.

Operated manually, providing full control to the user.

Commonly used in prototyping and low-volume tasks.

Semi-Automatic Coil Winding Machines:

A blend of manual operation and automation.

Suitable for medium-scale production with consistent quality.

Automatic Coil Winding Machines:

Fully automated systems designed for high-volume production.

Equipped with programmable controls, ensuring precision and repeatability.

CNC Coil Winding Machines:

Advanced machines featuring Computer Numerical Control (CNC) technology.

Capable of complex winding patterns, making them ideal for sophisticated applications.

Key Features of Modern Coil Winding Machines

Modern coil winding machines are equipped with cutting-edge features that enhance productivity and accuracy:

Programmable Logic Controllers (PLCs): Allow for precise control of winding parameters.

Touchscreen Interfaces: Simplify machine operations and settings adjustments.

Automatic Wire Tension Control: Ensures consistent winding quality.

Multi-Spindle Capabilities: Enable simultaneous production of multiple coils.

Applications Across Industries

Coil winding machines play a critical role in diverse industries, including:

Electrical and Electronics: For transformers, inductors, and relays.

Automotive: In the production of alternators, starters, and sensors.

Aerospace: For manufacturing coils used in advanced avionics.

Medical Devices: In the production of coils for diagnostic and therapeutic equipment.

Why Choose the Right Manufacturer?

Selecting the right manufacturer is crucial to ensuring quality and reliability. ACME Mechatronics, Inc. is a trusted name in the coil winding industry, known for delivering state-of-the-art machines tailored to specific production needs. Their innovative solutions are designed to optimize manufacturing processes while maintaining high precision.

Conclusion

Coil winding machines are the backbone of precision manufacturing, driving efficiency and innovation across multiple industries. By understanding the types, features, and applications of these machines, businesses can make informed decisions to enhance their production capabilities.

Are you ready to revolutionize your manufacturing process with the right coil winding machine?

[acmemechatronics1]

Learn how bobbin winders play a crucial role in modern technology, enhancing precision, efficiency, and production in coil winding industries.

[acmemechatronics1]

Explore single-axis, two-axis, and three-axis coil winders and their importance in producing high-quality electrical coils.

[acmemechatronics1]

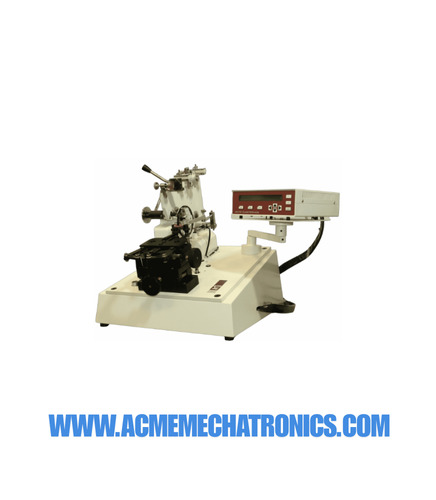

Toroid Winding Machine: Precision and Efficiency in Coil Production | ACME Electronics

In the manufacturing of electrical components, the quality of the coils used in transformers, inductors, filters, and other devices is paramount to performance. One of the most efficient and precise ways to produce these coils is by using a toroid winding machine. These specialized machines are designed to wind wire around a toroidal core, creating a compact, donut-shaped coil that offers superior efficiency and low electromagnetic interference (EMI). Whether you’re producing coils for power electronics, telecommunications, or automotive applications, a toroid winding machine ensures high precision, uniformity, and consistency. In this article, we will explore the functionality, advantages, and features of toroid winding machines, with a spotlight on ACME Electronics, a leading manufacturer and supplier of high-performance coil winding solutions.

What is a Toroid Winding Machine?

A toroid winding machine is a specialized coil winding machine used to wind wire around a toroidal core. Unlike traditional solenoid coils, which are cylindrical, toroidal coils have a donut-like shape. This configuration allows for reduced magnetic losses, better efficiency, and lower electromagnetic interference (EMI), which is crucial in many electrical applications, including transformers, inductors, and filters.

Toroid winding machines are engineered to wind wire evenly and precisely around the core, with tight control over wire tension and layer placement. The machine's design includes features that enable automatic wire feeding, precise layering, and quick adjustments to accommodate different core sizes and wire gauges. These features help ensure that each coil is wound uniformly, with optimal performance characteristics.

Key Features of a Toroid Winding Machine

1. Precision Control

The hallmark of any toroid winding machine is its ability to wind coils with extreme precision. These machines are equipped with advanced digital controls that allow for precise adjustments in wire tension, speed, and layer placement. This high level of control ensures that the wire is wound evenly around the core, preventing issues such as uneven winding or overlapping, which could lead to poor coil performance.

2. Automatic Layer Control

A critical feature of a toroidal winding machine is its ability to automatically manage the winding layers. The machine’s automatic layer control system ensures that each layer of wire is evenly spaced and correctly aligned. This prevents issues such as misalignment or gaps between layers, which could affect the efficiency and reliability of the final coil.

Automatic layer control is especially important in high-precision applications, such as in transformers or inductors, where uniform winding is key to achieving desired inductance values and minimizing losses.

3. High-Speed Operation

Toroid winding machines are designed for high-speed operation, enabling manufacturers to meet demanding production schedules. Despite their high speed, these machines maintain a high level of accuracy, ensuring that coils are wound consistently and without defects. High-speed operation is especially beneficial for industries that require large volumes of coils to be produced in a short amount of time, such as in automotive electronics or power distribution systems.

4. Versatility and Adaptability

Many toroid winding machines are highly versatile, offering adjustable settings for different core sizes, wire gauges, and winding patterns. This adaptability allows manufacturers to use the same machine for various coil configurations, whether producing small coils for sensors or larger coils for industrial transformers. The ability to quickly adjust the machine for different specifications helps manufacturers optimize their production processes and reduce downtime.

5. User-Friendly Interface

Modern toroid winding machines come equipped with intuitive, easy-to-use interfaces. These interfaces allow operators to program winding parameters, monitor the winding process, and make adjustments in real-time. With a user-friendly touchscreen interface, operators can input specific settings, track coil production progress, and quickly troubleshoot any issues that may arise during the winding process. This minimizes human error and enhances operational efficiency.

Benefits of Using a Toroid Winding Machine

1. Enhanced Performance and Efficiency

Toroidal coils are known for their efficiency and low electromagnetic interference (EMI). The uniform winding achieved by toroid winding machines ensures that coils perform optimally, with minimal energy losses and reduced noise. This is especially important for applications where signal integrity and low power loss are critical, such as in power electronics, audio systems, and telecommunications equipment.

2. Reduced Manufacturing Time

By automating the winding process and optimizing the wire placement, toroid winding machines significantly reduce the time required to produce high-quality coils. High-speed operation and automatic layer control mean that manufacturers can produce large batches of coils in less time, increasing overall production throughput and meeting tight deadlines.

3. Improved Quality and Consistency

One of the biggest advantages of using a toroid winding machine is the consistency it brings to coil production. These machines ensure that each coil is wound to the exact same specifications, reducing variability in coil quality. This consistency is essential for manufacturers who need to maintain tight tolerances and deliver reliable products to their customers.

4. Cost-Effectiveness

While the initial investment in a toroid winding machine can be significant, the long-term cost savings are substantial. The automation of the winding process reduces labor costs, minimizes material waste, and increases production efficiency. By producing high-quality coils with minimal defects, these machines help manufacturers reduce rework and improve profitability over time.

ACME Electronics: Leading Supplier of Toroid Winding Machines

When it comes to purchasing a high-quality toroid winding machine, it’s crucial to partner with a trusted supplier who understands the specific needs of your industry. ACME Electronics, a leading manufacturer and supplier of coil winding machines, offers cutting-edge toroidal winding solutions that meet the demands of high-precision coil production.

With years of experience in the coil manufacturing industry, ACME Electronics provides advanced winding machines that deliver exceptional performance, reliability, and efficiency. Their toroid winding machines come equipped with the latest technologies, such as automatic layer control, high-speed operation, and intuitive control interfaces, ensuring that manufacturers can achieve the best results in their production processes.

Whether you’re producing coils for power electronics, automotive applications, or industrial transformers, ACME Electronics has the expertise and solutions to help streamline your production and improve the quality of your coils.

Conclusion

Toroid winding machines are essential tools for producing high-quality, efficient coils for a wide range of electrical and electronic applications. With their precision, versatility, and high-speed capabilities, these machines ensure that manufacturers can meet the demands of modern industries while maintaining optimal coil performance. By choosing a reliable supplier like ACME Electronics, manufacturers can access state-of-the-art toroidal winding solutions that optimize production processes and improve overall product quality.

Are you ready to enhance your coil production process with a cutting-edge toroid winding machine?

[acmemechatronics1]

Linear Winding Machines: Revolutionizing Coil Production | ACME Electronics

In the world of coil manufacturing, efficiency, precision, and consistency are key factors for success. Whether it's for transformers, motors, or sensors, the quality of the coil can directly impact the performance and longevity of the final product. One of the most important machines in this process is the linear winding machine. This specialized piece of equipment is designed to wind coils in a linear pattern, offering several advantages in terms of speed, accuracy, and uniformity. In this article, we will explore what a linear winding machine is, its benefits, and how it contributes to improved coil production, with a focus on ACME Electronics, a leading manufacturer and supplier of coil winding machines.

What is a Linear Winding Machine?

A linear winding machine is an automated device designed to wind wire or other materials onto a cylindrical core in a linear fashion. Unlike traditional coil winding machines that may wind coils in a spiral or helical pattern, linear winding machines offer precise control over the winding process, ensuring that the wire is evenly spaced and wound in a consistent, straight line. This is particularly important for applications that require a high degree of uniformity in the coil, such as in transformers, inductors, and motors.

Linear winding machines are used in both high-volume production and specialized applications where precision is critical. The machine’s design typically includes features that allow for easy adjustment of winding parameters such as wire tension, speed, and layer control, making it a versatile solution for different types of coil production.

Advantages of Using a Linear Winding Machine

1. Precision and Accuracy

One of the most significant advantages of a linear winding machine is its ability to produce coils with a high level of precision. The linear winding process ensures that the wire is wound evenly, preventing issues such as overlapping, tangling, or uneven spacing. This level of accuracy is essential for producing coils that meet strict quality standards, especially in applications like electric motors and inductors, where coil integrity is critical.

2. Consistency in Coil Production

The automated nature of the linear winding machine allows for consistent and repeatable coil production. Once the winding parameters are set, the machine can produce coils with the same specifications across multiple production runs, which reduces the chances of human error and improves overall efficiency. This consistency is essential for manufacturers looking to produce large quantities of coils without sacrificing quality.

3. Increased Production Speed

Linear winding machines are built for high-speed operation, which increases the throughput of the coil manufacturing process. By automating the winding process, these machines can significantly reduce production time compared to manual winding methods. This is especially beneficial for industries that require large volumes of coils to be produced in a short time frame.

4. Customization and Flexibility

Most linear winding machines come with customizable settings that allow manufacturers to adjust key parameters like wire tension, winding speed, and layer control. This flexibility makes them suitable for a wide range of applications, from small-scale specialized projects to large-scale industrial production. Whether you need to wind fine wire for sensors or heavier wire for transformers, a linear winding machine can be adapted to meet your specific needs.

Key Features of a Linear Winding Machine

1. Programmable Control Systems

Modern linear winding machines are equipped with advanced control systems that allow operators to input precise winding parameters and adjust them as needed. This includes control over the number of turns, wire tension, speed, and even the pattern of the winding, enabling highly customized production runs.

2. Automatic Layer Control

Linear winding machines often feature automatic layer control, which ensures that each layer of wire is wound with consistent tension and spacing. This is critical for preventing issues like coil misalignment or uneven layers, which can affect the performance of the finished product.

3. High-Quality Tension Mechanisms

To ensure that the wire is wound tightly and uniformly, linear winding machines come equipped with high-quality tensioning mechanisms. These mechanisms maintain consistent tension throughout the winding process, preventing issues such as slack or excessive tightness that could compromise the quality of the coil.

4. User-Friendly Interface

The user interface of a linear winding machine is typically designed to be intuitive and easy to navigate, allowing operators to quickly adjust settings, monitor the winding process, and troubleshoot any issues that arise. This helps reduce downtime and improve overall operational efficiency.

ACME Electronics: Leading the Way in Coil Winding Technology

When it comes to purchasing high-quality linear winding machines, partnering with a reputable manufacturer is crucial. ACME Electronics, a leading coil winding machine manufacturer and supplier, is known for providing cutting-edge solutions to the coil manufacturing industry. ACME Electronics offers a wide range of winding machines, including advanced linear winding machines designed to meet the demanding needs of various industries.

With years of experience in the field, ACME Electronics is committed to delivering reliable, high-performance machines that help manufacturers achieve precision and efficiency in their production processes. Whether you're in the automotive, energy, or electronics sector, ACME’s linear winding machines are designed to streamline your coil production while ensuring top-quality results every time.

Conclusion

Linear winding machines are an essential tool in modern coil manufacturing, providing unmatched precision, consistency, and speed. These machines are designed to meet the demands of a wide range of industries, from motors and transformers to sensors and inductors. By choosing a reliable manufacturer like ACME Electronics, you can ensure that your production process is optimized for efficiency and quality.

Are you ready to take your coil production to the next level with a high-performance linear winding machine?

[acmemechatronics1]

Winding Services: Unraveling the Intricacies of Coil Winding Machines

In today's technologically advanced era, the demand for precision and efficiency in electrical components is higher than ever. One such essential component in many electrical devices is the coil, created through an intricate process called winding. Winding services, especially those involving coil winding machines, play a pivotal role in ensuring the reliability and performance of countless electronic and electrical systems. In this article, we'll delve into the world of winding services, exploring the significance of coil winding machines, their various applications, and the benefits of professional winding services.

1. Understanding Coil Winding Machines

Coil winding machines are specialized equipment designed to wind coils of wire, typically around a core, to create inductors, transformers, and other essential components. These machines come in various types and configurations, each tailored for specific applications and levels of precision. From manual to fully automated systems, coil winding machines are essential in industries such as automotive, telecommunications, and medical devices.

2. Applications of Coil Winding Machines

Automotive Industry: Used in the production of ignition coils, solenoids, and sensors.

Telecommunications: Essential for creating coils used in signal transformers and RF applications.

Medical Devices: Critical in the manufacture of MRI machines and other diagnostic equipment.

Consumer Electronics: Found in transformers and inductors for devices like smartphones and computers.

3. Benefits of Professional Winding Services

Precision and Accuracy: Professional winding services ensure that coils are wound with exact specifications, leading to better performance and reliability of the final product.

Cost-Effective: Outsourcing winding services can be more cost-effective than maintaining an in-house winding operation, especially for small to medium-sized enterprises.

Expertise and Experience: Leveraging the knowledge and experience of experts can lead to higher quality products and innovative solutions.

Scalability: Professional services can easily scale production to meet increasing demands without compromising quality.

4. Choosing the Right Winding Service

When selecting a winding service provider, consider factors such as the company's experience, the range of services offered, and their commitment to quality. Look for providers who use the latest technology and adhere to industry standards, as this will ensure the highest level of precision and reliability in your products.

Conclusion

Winding services, and specifically coil winding machines, are integral to the production of reliable and high-performing electrical components. By understanding the different types of machines, their applications, and the benefits of professional services, you can make informed decisions to enhance your products' quality and performance. Are you ready to explore the world of winding services and elevate your electronic components to the next level?

[acmemechatronics1]

Motor Rewinding Machines: Restoring Efficiency and Performance

Electric motors are integral to industrial and commercial operations, powering everything from machinery to appliances. Over time, these motors can suffer from wear and tear, leading to reduced performance or complete failure. A motor rewinding machine is a valuable tool for restoring motors to optimal condition by rewinding the coils. In this article, we’ll explore what motor rewinding machines are, their benefits, and how they play a critical role in maintaining and repairing electric motors.

What is a Motor Rewinding Machine?

A motor rewinding machine is specialized equipment used to remove old or damaged windings from an electric motor and replace them with new windings. This process restores the motor’s functionality and extends its lifespan.

Key Features:

Automatic Coil Removal: Efficiently strips old windings.

Programmable Winding Control: Allows precise winding of new coils.

Wire Tension Regulation: Ensures uniform winding to maintain motor performance.

Benefits of Motor Rewinding Machines

1. Cost Savings

Rewinding a motor is often more cost-effective than replacing it, especially for large or custom motors.

2. Extended Motor Life

Rewinding restores the motor to its original specifications, prolonging its operational life.

3. Energy Efficiency

A properly rewound motor operates more efficiently, reducing energy consumption and operational costs.

4. Customizability

Motor rewinding machines can be programmed to handle various winding configurations, making them versatile for different motor types.

Types of Motor Rewinding Machines

1. Manual Rewinding Machines

These machines require operator input and are ideal for small-scale operations or custom rewinding tasks.

2. Semi-Automatic Rewinding Machines

Combine manual setup with automated winding, offering a balance of control and efficiency.

3. Fully Automatic Rewinding Machines

These machines handle the entire process, from coil removal to new winding, maximizing productivity and precision.

Applications of Motor Rewinding Machines

Motor rewinding machines are used in various industries to repair and maintain electric motors:

Manufacturing Plants: Keeps industrial machinery running smoothly.

Automotive Industry: Rewinds motors in electric vehicles and automotive components.

HVAC Systems: Essential for repairing motors in heating, ventilation, and air conditioning systems.

Power Generation: Maintains generators and other power equipment.

Marine and Aerospace: Repairs specialized motors used in ships and aircraft.

Innovations in Motor Rewinding Technology

Technological advancements have made motor rewinding machines more efficient and user-friendly:

1. Smart Automation

Modern machines use AI to optimize winding patterns and adjust parameters for different motor types.

2. Digital Interfaces

Touchscreen controls and digital monitoring make it easier to operate and track the rewinding process.

3. Eco-Friendly Operation

Energy-efficient designs reduce power consumption and minimize waste.

Factors to Consider When Choosing a Motor Rewinding Machine

Motor Size Compatibility: Ensure the machine can handle the range of motor sizes you work with.

Automation Level: Decide between manual, semi-automatic, or fully automatic machines based on your needs.

Customization Capabilities: Look for machines that allow flexible winding patterns.

Budget and ROI: Assess the machine’s cost-effectiveness and potential long-term savings.

Conclusion

Motor rewinding machines are essential tools for restoring electric motors to peak performance. By enabling cost-effective repairs and extending motor life, these machines play a critical role in various industries. With advancements in automation and technology, motor rewinding has become more efficient and precise, ensuring motors operate at their best.

Are you ready to revitalize your electric motors with the latest motor rewinding solutions?

[acmemechatronics1]

Toroidal Winding Machines: Precision and Efficiency in Coil Manufacturing

In the world of coil manufacturing, toroidal winding machines are essential for creating high-performance toroidal coils. These machines are designed to wind wires onto circular cores, ensuring uniformity and precision. Their applications span industries such as electronics, power generation, and telecommunications, where efficient and reliable coils are critical. This article delves into the features, benefits, and technological advancements of toroid winding machines, highlighting their importance in modern manufacturing processes.

Understanding Toroidal Winding Machines

A toroidal winding machine is specialized equipment used to wind insulated wire onto toroidal cores, forming coils with a doughnut-shaped design. The toroid’s shape offers distinct advantages, such as reduced electromagnetic interference and higher efficiency compared to traditional coils.

Key Features:

Precision Control: Ensures consistent winding, critical for maintaining performance.

Programmable Settings: Allows for customization of winding patterns and wire tension.

Durable Construction: Built to handle continuous operation in industrial environments.

Benefits of Using Toroid Winding Machines

1. High Precision and Accuracy

Toroidal winding machines are designed for exacting standards, ensuring each coil meets precise specifications. This accuracy translates into improved product quality and reliability.

2. Efficiency and Productivity

Automated toroid winding machines streamline the production process, reducing labor costs and increasing output. With programmable settings, manufacturers can quickly adapt to different coil designs.

3. Versatility and Customization

These machines support a range of wire sizes and core materials, allowing for diverse applications across industries. Custom winding patterns can be programmed to meet specific performance requirements.

Applications of Toroidal Winding Machines

Toroid winding machines are widely used in various industries due to their ability to produce high-quality coils.

Power Transformers: Toroidal transformers offer superior efficiency and reduced noise.

Inductors and Chokes: Used in power electronics for filtering and energy storage.

Telecommunications: Critical for signal processing and power distribution.

Medical Devices: High-precision coils are essential in diagnostic and imaging equipment.

Renewable Energy Systems: Toroidal coils enhance the performance of inverters and converters.

Innovations in Toroid Winding Technology

The coil winding industry continues to evolve, with innovations enhancing the capabilities of toroidal winding machines.

1. Advanced Automation

Modern machines feature AI-driven controls that adjust parameters in real time, improving accuracy and reducing waste.

2. User-Friendly Interfaces

Touchscreen controls and intuitive software make it easier for operators to program and monitor the winding process.

3. Energy Efficiency

New designs focus on reducing power consumption, contributing to sustainability efforts and lowering operational costs.

Factors to Consider When Choosing a Toroid Winding Machine

When selecting a toroidal winding machine, several factors should be considered to ensure optimal performance:

Production Volume: Assess whether the machine can handle your output requirements.

Core Compatibility: Ensure the machine supports the sizes and materials you need.

Customization Needs: Look for machines that allow for flexible programming and design adjustments.

Budget and Long-Term Value: Evaluate the machine’s cost-effectiveness and potential return on investment.

Conclusion

Toroidal winding machines are indispensable in the production of high-performance coils, offering precision, efficiency, and flexibility. Their applications span various industries, from power electronics to medical devices, making them a vital component of modern manufacturing. With continuous advancements in automation and energy efficiency, these machines are poised to meet the evolving needs of the industry.

Is your manufacturing process ready to benefit from the precision and efficiency of a toroid winding machine?

[acmemechatronics1]

Toroidal Winding Machines - High Precision Solutions

A toroidal winding machine is designed to wind coils in a toroidal shape, which is commonly used in transformers, inductors, and chokes. These machines are highly specialized, as toroidal coils require precision to maintain uniform winding and minimize losses. A toroid winding machine ensures that the wire is wrapped evenly around the circular core, which results in a compact and efficient design ideal for applications requiring low electromagnetic interference. The key advantage of using a toroidal design is its ability to reduce size while improving electrical performance. ACME Electronics offers advanced toroidal winding machines that combine speed, precision, and versatility, making them perfect for high-quality production. With these machines, manufacturers can efficiently produce durable and reliable toroidal coils for a variety of industries, from electronics to renewable energy systems.

[acmemechatronics1]

SMPS coil winding machine Manufacturer Supplier

An SMPS coil winding machine is specifically designed for winding coils used in Switch Mode Power Supplies (SMPS). These machines play a crucial role in ensuring the high efficiency and compact size of SMPS units, which are widely used in power electronics. The SMPS coil winding machine ensures precise coil winding with optimal tension and layering, which is critical for reducing losses and maintaining consistent performance in power supplies. With advancements in technology, these machines are now equipped with features like automatic winding speed control, layer counting, and digital tension adjustment. ACME Electronics provides high-performance SMPS coil winding machines that deliver excellent precision and reliability. By investing in advanced winding equipment, manufacturers can improve production quality, reduce operational costs, and enhance the overall efficiency of their SMPS products.

[acmemechatronics1]

Transformer Winding Machine Manufacturer Supplier

A transformer winding machine is essential for the precise production of transformer coils used in electrical power systems. These machines ensure accurate and uniform winding of copper or aluminum wire onto the transformer core, which is critical for the device’s performance and efficiency. The CNC winding machine takes this process a step further by using computer numerical control (CNC) technology. This allows for higher precision, faster production speeds, and the ability to handle complex winding patterns without manual intervention. By automating adjustments to tension, speed, and layer count, CNC winding machines reduce human error and improve consistency. ACME Electronics offers cutting-edge transformer winding machines that integrate CNC technology, ensuring optimal performance and reliability for high-demand applications. Investing in advanced winding solutions can significantly enhance your production capabilities and product quality.

[acmemechatronics1]

Automatic Coil Winding Machine Manufacturer Supplier

A coil winder is a crucial tool in industries that require precise coil winding for motors, transformers, and other electrical components. The coil winding machine automates this process, ensuring consistent and accurate windings. This is particularly important for manufacturers aiming to maintain high quality while increasing production efficiency. For those looking for advanced solutions, an automatic winding machine can take the process further by automatically adjusting parameters like tension, speed, and layer count, significantly reducing human intervention. ACME Electronics provides state-of-the-art winding machines that offer both flexibility and precision for various applications. Whether you're winding small coils for delicate electronics or large ones for industrial machinery, investing in the right coil winding equipment is essential for optimizing performance and reducing operational costs.

[acmemechatronics1]

foil winding machine | lv winding machine

Acme offers advanced foil winding machines designed to meet the needs of modern transformer and LV (Low Voltage) coil production. Our foil winding machines are engineered for precision and efficiency, ensuring high-quality winding for transformers and LV coils with minimal waste and maximum performance. Ideal for both small and large production runs, these machines can handle various foil materials and winding configurations, providing versatility for a wide range of applications. Acme’s LV winding machines feature state-of-the-art technology that optimizes the winding process, improving speed while maintaining high accuracy. Whether you are producing transformers or low-voltage coils, our foil winding machines ensure consistent results, enhancing overall productivity. Choose Acme for reliable, durable, and efficient winding solutions tailored to meet your specific requirements.

[acmemechatronics1]

toroidal winding machine - ACME Mechatronics, Inc.

Acme offers high-quality toroidal winding machines designed for the precise production of CT (Current Transformer) coils and various other toroidal shapes. Our toroidal winding machine is built for accuracy, efficiency, and versatility, ensuring optimal winding performance for a range of applications, from transformers to inductors. With advanced technology and user-friendly features, these machines streamline the winding process, reducing errors and enhancing productivity. Ideal for industries requiring intricate coil designs, Acme's toroid winding machines can handle both small and large production runs with ease. Whether you need to produce CT coils or other toroidal products, our machines deliver exceptional results, ensuring high-quality, reliable outputs every time. Choose Acme for your toroidal winding machine needs and experience the difference in precision and efficiency.
