Controlling Brain Function With Wearables

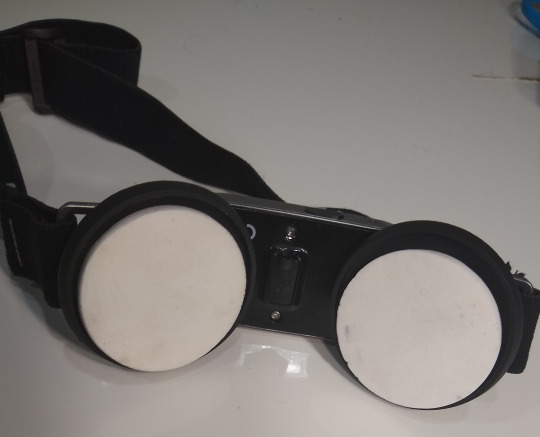

A big part of the research in my lab focuses on how rhythmic sensory stimulation can influence brain function, a process known as sensory entrainment. For example, presenting light flashes and pulses of white noise about 5 times a second (a frequency known as theta, which is linked to memory processes) can improve learning in lab studies. Other labs have shown that entrainment at different frequencies can deepen sleep and may even reduce the buildup of toxic proteins in the brain. An exciting thing about this technology is that because it’s so noninvasive, it has the potential for easy use in daily life. Could we perhaps make a wearable that lets you entrain theta oscillations while sitting in class, to help you remember the material better? Or entrains slow oscillations at night to boost your sleep?

The current systems we use in the lab entrain brainwaves through pulses of light and rhythmic white noise. But there’s another potential way to do it: using vibrations applied to the skin, which is already possible with many wearable devices. Because entrainment happens as a result of the brain processing stimuli, there’s every reason to think that a wearable vibration device should provide an easy, non-intrusive way of influencing brain activity. To test this, I recorded some of my brainwaves while using an OpenHaptic stimulator attached to my ankle. I tested entrainment at two frequencies: theta at 5 Hz (associated with memory) and alpha at 10 Hz (associated with relaxation and mind-wandering).  To measure the effects, I recorded EEG using a Muse headset while I listened to audiobooks with my eyes closed. Results To look at how stimulation affected brain activity, I computed the power spectrum of the EEG--a graph which shows how much brain activity is present at each frequency. I compared the EEG from all of the “vibration on” periods to the EEG during the baseline periods, where stimulation was turned off. These graphs are shown below.When alpha stimulation was on (green line), I saw more alpha oscillations than it was off (gray line). The alpha stimulation also appeared to reduce the amount of theta oscillations between 4 and 8 Hz

The Muse has four independent sensors, and breaking down the data by electrode location it’s clear that there’s two things going on: alpha entrainment mostly increased alpha oscillations over the frontal areas, and mostly suppressed theta oscillations over the posterior areas (directly behind the ear)

The data for theta stimulation is similar--stimulation increased power in the broad theta band (4-8 Hz), peaking at around 7 Hz. Unlike alpha, the increases were most pronounced on the rear sensors.

Update 2/26 I also recorded some data in a similar protocol using a Fitbit Sense with 7 H stimulation. Much like with the OpenHaptic, we see a clear peak at the entrainment frequency--which suggests that commercial wearables can also be used for this kind of entrainment!

Conclusions

I think this is a pretty interesting proof of concept for sensory entrainment with a wearable device--suggesting that an unobtrusive, wrist-or ankle worn device can increase brain oscillations at targeted frequencies.

This also suggests that wearable devices might be help to produce some of the behavioral and health benefits associated with brainwave entrainment--such as increasing learning ability with theta stimulation. However, this is something that will still have to be tested, as stimulation with a wearable device is not exactly the same as the stimulation protocols used in labs.

Finally, it seems like these effects can be produced by a wide range of devices, including both the open-source OpenHaptic device and commercial werables like the Fitbit Sense. Some software is available to do this includes OpenWave, which is available for Wear OS and Fitbit smartwatches. A similar app called NeuroStrobe is also available for Android phones.

[quicktotheratcave]

An Open-Source Platform For Tactile Nerve Stimulation

OpenHaptic GitHub: https://github.com/nathanww/OpenHaptic If you get a lot of ads for wearables (like I do), you might have noticed that wearables that work by stimulating your sense of touch are suddenly A Thing. Many are geared to make you more alert or less stressed (like the Apollo Neuro, Cove, or Doppel), but others like Neosensory have other uses, like augmenting hearing or treating tinnitus. I’m always a bit skeptical about claims like this, but there is some interesting science in this area. For example, vibration stimulation has been used to reduce pain, suppress inflammation, and modulate blood pressure and fatigue  Haptic devices can also be used for other interesting purposes like sensory substitution, giving people the ability to experience artificial senses, or biofeedback. So needless to say, it’s an interesting field. But unfortunately there aren’t many good options for experimenting with haptic devices. Commercial haptic devices generally use proprietary patterns, with few options for customization, experimentation, or hacking. Devices like smartwatches and phones can also be used for haptics experiments ( I’ve done this before) but still very limited by their software and low-quality vibration motors.

All of this was the impetus for to design a purpose-built open source haptic device . This device allows me to write Python programs, which run on the internal microcontroller and control three vibration motors. Because the microcontroller is an ESP32, it can connect over Wifi and Bluetooth, and a companion Android app allows me to program and control it.

The OpenHaptic electronics schematic

The assembled OpenHaptic device, with Velcro upper arm/leg strap. The three vibration motors and MOSFETs are attached to the bottom of the ESP32 Feather board, the battery is placed on top, and the whole thing was wrapped in tape and glued to the velcro straps. By using the Android app, it’s possible to write your own haptic applications and download them to the board, where you have full control over the three vibration motors as well as the Bluetooth/wifi connections and internal sensors built into the ESP32. There’s also an API, which simplifies some tasks like synthesizing and combining vibration waveforms.

This system allows one to implement a lot of interesting programs. For example, it can run sensory substitution program that lets you feel Bluetooth signals, or some nerve stimulation programs designed to be (somewhat) similar to the ones the Apollo device uses to make you feel more alert or relaxed.

I think there’s a lot of interesting possibilities with a device like this, and I’m curious to see what people make with it!

[quicktotheratcave]

OpenWave, a platform for experimenting with nerve stimulation

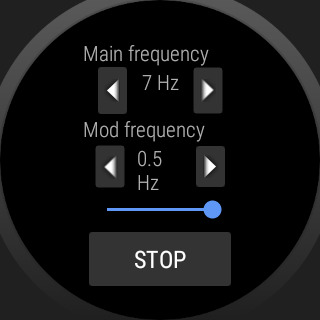

If you want to try OpenWave on your Wear OS Smartwatch, click here. There’s also a similar application called Neurostrobe which runs on Android phones here

A few months ago I started getting ads for wearable devices that claimed to reduce stress. I get a lot of ads for various kinds of neurostimulators , but these were interesting because they claimed to use vibration to influence the autonomic nervous system, and thus your mood, alertness, and stress levels.

While it might seem odd that something that’s essentially a vibrating watch could do this, there’s a surprising amount of research on it. Much of this is from studying vibration in industrial settings; like how the vibration of driving a truck affects fatigue. Notably, vibration appears to impact alertness, as well as the balance of the sympathetic and parasympathetic nervous system, and even inflammation (when applied to the vagus nerve) Some of these findings need to be interpreted with caution (there’s potentially a big difference between the kinds of vibration you’d experience while driving, and the kind of vibration you get from a thing strapped on your wrist, for instance). But I thought it was interesting enough to try experimenting with. This lead me to make OpenWave, an app for experimenting with vibration stimulation on Wear OS smartwatches. OpenWave lets you deliver stimulation at specific frequencies and lets you modulate one frequency with another frequency, which is a function found in some devices and which may help improve the effect. If you’d like to try OpenWave you can install it from the Play Store here or see the source code on Github here.

(Don’t have a wear OS device? I also have an app that’s designed to do something similar using vibration, light, and sound stimuli on an Android phone. You can get it here)

[quicktotheratcave]

A Look At The LIFTiD tDCS

A few weeks ago, Caputron sent me a new tDCS device to try out and review--the LIFTiD brain stimulator.

So, what does it do?

Interestingly, a lot of Liftid’s marketing focuses on using it as a replacement for caffeine or other performance enhancers, and as a way to boost attention.  There is some research that supports this as a use for tDCS, although weirdly the study that Liftid’s website cites (comparing tDCS with caffeine) used a completely different electrode configuration than the Liftid actually uses.

Still, there is some evidence that the Liftid’s configuration can improve attention, particularly if you’re doing a task that’s monotonous and requires focus for long periods of time (say, driving on the freeway) . There’s also evidence that this kind of stimulation can make people faster (though not better) on a number of cognitive tests.

Still, the bottom line is that this is all still very much experimental . The tasks used in laboratory experiments are much simpler than the things we deal with day-to-day, and often don’t account for the potential negative effects of the stimulation (one example: a study finding that stimulating the prefrontal cortex reduced people’s scores on an intelligence test).

Entry-level tDCS

The experimental nature of tDCS is exactly what makes Liftid’s design stand out. Most tDCS devices are built for experimenting--they let you tweak the intensity, timing, and position of stimulation. Liftid’s interface consists of just one button, which when pressed will deliver 1.3 milliamps of current to the left and right dorsolateral prefrontal cortex for exactly 20 minutes.

This simplicity is appealing--when I was feeling sleepy I opted for the Liftid device because its fixed-in-place electrodes are a lot easier to set up than those of my other devices . But it also didn’t seem like it was working, and this is where the simplicity became limiting--would it work better with higher current, or a different electrode position? There’s evidence that higher current levels might work better--but Liftid doesn’t give you any way to try that. (An unrelated issue: it’s quite easy to put the device on upside down and thus accidentally swap the locations of the anode and cathode) The device also comes with a kit that’s designed to help you get started with tDCS, which includes electrodes, a dropper for salt water, a spoon for measuring salt, and a mirror to help  you stick the Liftid over F3 and F4. To start it up, you mix the salt water, wet two of the white electrode disks, and place them into the black electrode holders on the Liftid. You can then attach the device (a velcro strap across the back holds it in place) and turn it on. Overall, everything seemed comfortable and well-built.  The fact that this device uses sponge electrodes as its default (and only) option, is a nice safety feature that’s likely to reduce the risk of skin burns. An unavoidably tricky part of of using this (or any) device is ensuring the electrodes were positioned properly. The manual and website instructs users to put the electrodes just under the hairline, but this is likely a bit too low to adequately stimulate the frontal cortex. (Most studies and clinics use the F3 and F4 points, which are higher). Luckily, because the device uses sponge electrodes that can work through hair, I didn’t experience any issues using the device higher on my head than recommended.  It’s really important to stress this: the device will not work if the electrodes are not correctly positioned.

The Liftid with its removable sponge electrodes in (top), how the company shows you to position it on the forehead (middle).

Technical stuff

The Liftid’s electrodes and current output fall well within the accepted ranges for current and current density, and I didn’t note any major issues here.

A nice feature of the Liftid is its automatic current shutoff if the resistance becomes too high. This is something that’s found on a handful of consumer devices, and is an important way to prevent skin burns should an electrode be damaged or have a poor connection.

Like other devices that use a digital control, the Liftid’s current regulator was sometimes slow to respond to a drop in electrical resistance, resulting in momentary current spikes of a few milliamps. Current spikes at this level don’t seem to pose a safety risk, and the device was often able to prevent spikes by shutting down when resistance rose too high.  It’s unlikely that you’ll experience any spiking using the device normally, unless you attempt to take it off or put it on while it’s running.

Conclusions--a neat brain stimulator, but not for everyone

A lot of what Liftid wants to be--a one-touch device to enhance your brain--is simply not possible at the moment. There are simply too many remaining questions about the efficacy of tDCS in general, and the Liftid’s electrode placement in particular. For some goals--like boosting learning or athletic perfomance--you might be better off with a different device that allows you to place the electrodes in more optimal locations.

That said, the device that exists today seemed solid, well built and easy to use.  If you have to stay focused on monotonous tasks for extended periods of time--say you’re an air-traffic controller or a long-haul trucker--there’s a real case to be made that the Liftid might help.
