Metro RP2350 is wrappin' up testing ✨🐢

This week we got our Metro RP2350 boards

https://blog.adafruit.com/2024/11/11/metro-rp2350-now-with-bigger-better-rp2350b/

back and after fixing the pin direction and rerouting

the whole thing, it came up and pretty much works perfectly! Just one component needed a swap - we were able to test all GPIO, analog inputs, MicroSD slot, PSRAM, LEDs & NeoPixel, user button, I2C/SPI/UART, aaand power supplies. The 5V supply is great, we got a nice clean 5V out at 2A+ from 12V DC in. The last thing to check is the HSTX port, which gives us DVI access, and it works, thanks to this festive turtle demo!

We're aiming to get this into the shop before the end of the year, wouldn't that be smashing?

[soddaa]

who are you to judge¿ (fav nizhniy)

[sriko-batteries1]

ANT USB to UART Cable for Bluetooth BMS

The USB to UART cable simplifies the process of accessing the BMS data, allowing users to view important battery metrics such as voltage, current, temperature, and state of charge in real-time. It also facilitates firmware updates and troubleshooting. The integration of Bluetooth technology enhances the flexibility and convenience of managing battery systems remotely, reducing the need for physical connections.

Typically, this cable supports a range of communication protocols, ensuring compatibility with a variety of BMS models. It’s widely used in applications such as electric vehicles, solar energy storage systems, and other battery-powered devices. By providing a reliable and efficient means of data exchange, the ANT USB to UART Cable enhances the overall performance and longevity of the battery system, ensuring optimal efficiency and safety.

For those seeking to streamline their battery management processes, this cable is an indispensable tool that offers both convenience and enhanced control.

Contact

+𝟭 𝟳𝟳𝟵-𝟳𝟳𝟬-𝟯𝟭𝟬𝟵

kruthala@srikobatteries.com

1585 Beverly CT, Unit 121, Auror

[electricalinsightsdaily]

Understanding ESP32 Pin Configuration: A Developer's Guide

The ESP32 microcontroller has become a cornerstone of IoT development, thanks to its versatility and powerful features. One of the most crucial aspects of working with ESP32 is understanding its pin configuration and capabilities. Let's dive into the essential aspects of ESP32 pins that every developer should know.

GPIO Pins Overview

The ESP32 boasts up to 34 GPIO (General Purpose Input/Output) pins, but not all are available for use in most development boards. Some key points about ESP32 pins:

GPIO 6-11: Reserved for internal SPI flash connection

GPIO 34-39: Input-only pins with no internal pull-up/pull-down resistors

ADC Capabilities: Two 12-bit SAR ADCs, supporting 18 measurement channels

Touch Sensors: Up to 10 capacitive touch GPIOs

Special Function Pins

Several pins serve dual purposes or have specific functions:

Boot Mode Pins GPIO 0: Bootloader mode when pulled low during reset GPIO 2: Connected to on-board LED in many development boards

UART Pins GPIO 1 (TX) and GPIO 3 (RX): Default UART0 communication Often used for flashing and debugging

SPI Pins VSPI: GPIO 5 (CS), 18 (CLK), 19 (MISO), 23 (MOSI) HSPI: GPIO 14 (CLK), 12 (MISO), 13 (MOSI), 15 (CS)

Best Practices for Pin Usage

Strapping Pins Always check the strapping pin status before using GPIO 0, 2, 4, 5, 12, and 15. These pins may affect boot behavior if incorrectly configured.

Input-Only Pins When designing sensor interfaces, prefer GPIO 34-39 for analog inputs as they're input-only and less susceptible to noise.

Pull-up/Pull-down Configuration

ADC Usage ADC1: Can be used with Wi-Fi/Bluetooth active ADC2: Only available when Wi-Fi/Bluetooth is disabled

Common Pitfalls to Avoid

Don't use GPIO 6-11 in your projects as they're connected to the internal SPI flash.

Avoid using strapping pins for critical functions that can't be changed during boot.

Remember that GPIO 34-39 don't have internal pull-up/pull-down resistors.

Be cautious with voltage levels - ESP32 pins operate at 3.3V.

Conclusion

Understanding ESP32 pinout is fundamental for successful project development. By following these guidelines and best practices, you can avoid common issues and make the most of your ESP32's capabilities. Remember to always consult the official ESP32 technical reference manual for detailed specifications and updates.

#ESP32 #PinConfiguration #DevelopersGuide #Microcontrollers #EmbeddedSystems #IoT #Programming #Hardware #Electronics #Arduino #ESP32S2 #ESP32C3 #ESP32C2 #ESP32C6 #ESP32S3 #ESP32H2 #ESP32P1

[incogninto1-1]

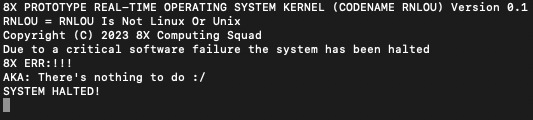

And so it begins. I managed to get the UART TX driver working for my ATMega328P and now it is showing the boot log of the prototype OS kernel that I am working on codenamed RNLOU (WIP)

[bitstream24]

ESP32 Serial Ports - UART0, UART1, UART2 Access Using the Arduino IDE

The ESP32 has three UART interfaces: UART0, UART1, and UART2. They provide asynchronous, bidirectional communication at up to five Mbps. You can establish serial protocols using the appropriate breakout boards, such as RS232, RS422, RS485, USB, and more.

[stochastique-blog]

Insert Random Comments

The 100 Day Project Day 10 WIP Continuing to work on quahogs and shadows in “winter” color palette challenge prompt by Ed Chesnovitch. 16x16” Terry Ludwig, Art Spectrum and Mount Vision Pastels and ArtGraff on UART. . . . #The100DayProject #shadowplay #nature #drawingfromlife #capecodartist #eileencaseyart #capecodartcenter #creativeartcenterchatham #artgraff #quahog #shadows #naturephotography #https://the100dayproject.substack #edchesnovitch #terryludwigpastels #artspectrumpastels #mountvisionpastels #uart (at Sandwich Boardwalk) https://www.instagram.com/p/CpnIWOsLivZ/?igshid=NGJjMDIxMWI=

[yeahiwasintheshit]

What is going on where 3 art schools have all closed so far just this year. My old school university of the arts, the phila academy of fine arts and the Delaware college of art and design. Which is crazy that it’s all happening at once.

[cinno2]

Hello I am alive.

Time and socials move different in the wake of one’s university suddenly closing down. Now I’m on a completely different life path in a completely different place. Still making art

Hoping to start making more fanart like i used to but life has a way of throwing me curveballs

Here’s a sketch dump in the meantime

[adafruit]

The SC16IS74x is an I2C to UART converter

If you know us, you know we luuuuuv I2C as a near-universal interface for sensors, GPIO expanders, OLEDs, and other various devices under our Stemma QT family: https://www.adafruit.com/search?q=stemma+qt 🌱. But we still bump into some UART devices: https://www.adafruit.com/search?q=uart here and there—GNSS/GPS units, MP3 playback chips, fingerprint sensors, LIDARs, and more.

These can be annoying if you only have one UART port-or none at all! So we put together this SC16IS74x breakout. It can use either the SC16IS740: https://www.digikey.com/en/products/detail/nxp-usa-inc/SC16IS740IPW-128/1301043 or SC16IS741: https://www.digikey.com/en/products/detail/nxp-usa-inc/SC16IS741AIPWJ/4486521 chips-both essentially the same for our purpose: providing a bidirectional UART with flow control. Address jumpers on the back allow you to select up to four devices on one I2C bus—and there's even native Linux kernel drivers: https://www.kernel.org/doc/Documentation/devicetree/bindings/serial/nxp%2Csc16is7xx.txt 🧠.

[void-lantern]

i wasnt mentally well so i drew chilchuck. i was planning on drawing him hurling abusive remarks at someone but dat wasn’t good for my mental state so here he is being…disgruntled ig.

[sriko-batteries1]

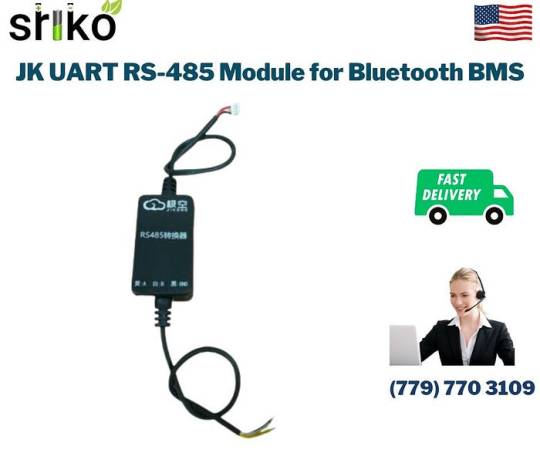

JK UART RS-485 Module for Bluetooth BMS
