STM32F103C6T6 Datasheet, Pinout, and Specifications

The STM32F103C6T6 is a powerful microcontroller known for its versatility and performance. It belongs to the STM32F1 series produced by STMicroelectronics, offering a wide range of features and capabilities. This microcontroller is highly regarded in the world of embedded systems and microcontroller applications due to its robustness, cost-effectiveness, and ease of use. Its popularity stems from its ability to cater to a wide range of applications, from simple DIY projects to complex industrial automation systems. In this article, we'll provide an overview of theSTM32F103C6T6, exploring its specifications, schematic, pinout, programming, datasheet, and more details.

Description of STM32F103C6T6

The STM32F103C6T6 performance line family integrates the high-performance ARM Cortex-M3 32-bit RISC core, operating at a frequency of 72 MHz. It features high-speed embedded memories (Flash memory up to 32 Kbytes and SRAM up to 6 Kbytes) and a wide range of enhanced I/Os and peripherals connected to two APB buses. All devices offer two 12-bit ADCs, three general-purpose 16-bit timers plus one PWM timer, as well as standard and advanced communication interfaces: up to two I2Cs and SPIs, three USARTs, a USB, and a CAN.

The STM32F103C6T6 low-density performance line family operates from a 2.0 to 3.6 V power supply. It is available in both the –40 to +85 °C temperature range and the –40 to +105 °C extended temperature range. A comprehensive set of power-saving modes allows for the design of low-power applications.

The STM32F103C6T6 low-density performance line family includes devices in four different package types, ranging from 36 pins to 64 pins. Depending on the chosen device, different sets of peripherals are included. The following description provides an overview of the complete range of peripherals proposed in this family.

These features make the STM32F103C6T6 low-density performance line microcontroller family suitable for a wide range of applications such as motor drives, application control, medical and handheld equipment, PC and gaming peripherals, GPS platforms, industrial applications, PLCs, inverters, printers, scanners, alarm systems, video intercoms, and HVACs.

Features of STM32F103C6T6

ARM 32-bit Cortex™-M3 CPU Core: The microcontroller is powered by an ARM Cortex™-M3 CPU core, capable of operating at a maximum frequency of 72 MHz. It delivers a performance of 1.25 DMIPS/MHz (Dhrystone 2.1) with 0 wait state memory access and supports single-cycle multiplication and hardware division.

Versatile Memories: The STM32F103C6T6 features 16 or 32 Kbytes of Flash memory for program storage and 6 or 10 Kbytes of SRAM for data storage.

Clock, Reset, and Supply Management: It supports 2.0 to 3.6 V application supply and I/Os. The microcontroller includes a Power-On Reset (POR), a Power-Down Reset (PDR), and a programmable voltage detector (PVD). It also features a 4-to-16 MHz crystal oscillator, an internal 8 MHz factory-trimmed RC oscillator, and an internal 40 kHz RC oscillator. Additionally, it provides a PLL for the CPU clock and a 32 kHz oscillator for the Real-Time Clock (RTC) with calibration.

Low Power: The STM32F103C6T6 offers Sleep, Stop, and Standby modes for power optimization. It includes VBAT supply for RTC and backup registers.

2 x 12-bit, 1 µs A/D Converters: The microcontroller is equipped with two 12-bit analog-to-digital converters (ADC) with up to 16 channels. It has a conversion range of 0 to 3.6 V and supports dual-sample and hold capability. Additionally, it features a temperature sensor.

Direct Memory Access (DMA): It includes a 7-channel DMA controller that supports peripherals such as timers, ADC, SPIs, I2Cs, and USARTs.

Up to 51 Fast I/O Ports: The STM32F103C6T6 offers 26/37/51 I/Os, all mappable on 16 external interrupt vectors. Almost all ports are 5 V-tolerant, providing flexibility in interfacing with various external devices.

STM32F103C6T6 Specifications

TypeParameterCoreARM Cortex M3

Core Size

32-Bit Single-CoreProgram Memory Size32 kBData Bus Width32 bitADC Resolution12 bitMaximum Clock Frequency72 MHzRAM Size10K x 8Supply Voltage - Min1.8 V, 2 VSupply Voltage - Max3.6 VVoltage - Supply (Vcc/Vdd)2V ~ 3.6VConnectivityCANbus, I2C, IrDA, LINbus, SPI, UART/USART, USBPeripheralsDMA, Motor Control PWM, PDR, POR, PVD, PWM, Temp Sensor, WDTNumber of I/Os48 I/O

Operating Temperature

-40°C ~ 85°C (TA)

Package / Case

48-LQFP

Absolute Maximum Ratings

SymbolRatingsValueVDD − VSSExternal main supply voltage (including VDDA and VDD)–0.3V ~ 4.0VVINInput voltage on five volt tolerant pinVSS − 0.3V ~ VDD + 4.0VInput voltage on any other pinVSS − 0.3V ~ 4.0V|VDDx|Variations between different VDD power pins50mV|VSSX −VSS|Variations between all the different ground pins50mVVESD(HBM)Electrostatic discharge voltage (human body model)2000VIVDDTotal current into VDD/VDDA power lines (source)150mAIVSSTotal current out of VSS ground lines (sink)150mAIIOOutput current sunk by any I/O and control pin 25mAOutput current source by any I/Os and control pin-25mAIINJ(PIN)Injected current on five volt tolerant pins-5/+0mAInjected current on any other pin± 5mAΣIINJ(PIN)Total injected current (sum of all I/O and control pins)± 25mATSTGStorage temperature range–65°C to +150°CTJMaximum junction temperature150°C

STM32F103C6T6 Pinout

STM32F103C6T6 Application

Motor Drives

The STM32F103C6T6 is used in motor drive systems to control the speed and direction of motors in various applications, such as industrial machinery, robotics, and automotive systems.

Application Control

It is utilized for controlling the operation of various applications, including home automation systems, smart appliances, and industrial automation equipment.

Medical and Handheld Equipment

Due to its low power consumption and high processing capabilities, the microcontroller is employed in medical devices such as portable monitoring systems, infusion pumps, and handheld diagnostic tools.

PC and Gaming Peripherals

STM32F103C6T6 is used in peripherals for PCs and gaming consoles, such as keyboards, mice, and game controllers, to provide efficient and reliable control interfaces.

GPS Platforms

It is used in GPS tracking devices and navigation systems to process location data and provide accurate positioning information.

Industrial Applications

Due to its robustness and reliability, the microcontroller is widely used in various industrial applications, including factory automation, process control, and monitoring systems.

PLCs (Programmable Logic Controllers)

It is utilized in PLCs for controlling and monitoring industrial processes and machinery.

Inverters

STM32F103C6T6 is used in power inverters, which convert DC power to AC power in applications such as solar power systems and uninterruptible power supplies (UPS).

Printers and Scanners

It is used in printers and scanners for controlling printing and scanning functions, providing fast and efficient operations.

Alarm Systems

The microcontroller is used in alarm systems for detecting and signaling unauthorized entry or other security breaches.

Video Intercoms

It is used in video intercom systems for communication and remote access control in residential and commercial buildings.

HVAC (Heating, Ventilation, and Air Conditioning)

STM32F103C6T6 is used in HVAC systems for controlling temperature, humidity, and air quality, ensuring comfortable and energy-efficient indoor environments.

STM32F103C6T6 Programming

To program the STM32F103C6T6, developers can use a variety of development tools and integrated development environments (IDEs) such as Keil, STM32CubeIDE, and Arduino IDE. These tools provide a user-friendly interface for writing, compiling, and debugging code for the microcontroller.

IDEs for STM32F103C6T6

Several integrated Development Environments (IDEs) support STM32F103C6T6, including the STM32CubeIDE, Keil uVision, and CoIDE. Each offers a unique set of features, catering to different programming needs and preferences.

STM32CubeIDE

STM32CubeIDE is an official IDE from STMicroelectronics for STM32 development. It integrates the STM32Cube library, providing a comprehensive software infrastructure to streamline the programming process.

Keil uVision

Keil uVision is another popular choice. It offers robust debugging capabilities, making it easier for developers to identify and resolve errors in their code.

STM32CubeMX is a graphical tool that helps developers configure the microcontroller and generate initialization code quickly. It allows users to configure peripherals, pin assignments, and clock settings, among other parameters. Then, it generates the corresponding initialization code in C language, which can be easily integrated into the development environment.

Another essential aspect of programming the STM32F103C6T6 is understanding the HAL (Hardware Abstraction Layer) libraries provided by STMicroelectronics. HAL libraries abstract the low-level hardware details, providing a standardized interface for interacting with the microcontroller's peripherals. This abstraction simplifies the development process and makes the code more portable across different STM32 microcontrollers. Understanding how to use HAL libraries is essential for efficiently programming the STM32F103C6T6 and leveraging its full potential in embedded applications.

STM32F103C6T6 Equivalent/Alternative

STM32F103C8T6.

STM32F103C6T6 Package

STM32F103C6T6 Manufacturer

STMicroelectronics, a global leader in semiconductor manufacturing, is the proud manufacturer of the STM32F103C6T6 microcontroller. With a strong focus on innovation and quality, STMicroelectronics has established itself as a trusted name in the electronics industry. The company's commitment to excellence is evident in the STM32F103C6T6, which boasts high performance, reliability, and versatility. STMicroelectronics' dedication to customer satisfaction and technological advancement makes it a preferred choice for engineers and designers worldwide.

STM32F103C6T6 Datasheet

Download STM32F103C6T6 Datasheet PDF.

Conclusion

In conclusion, the STM32F103C6T6 microcontroller stands out as a versatile and powerful solution for embedded systems design. Its advanced features, including a 32-bit ARM Cortex-M3 core, a wide range of peripherals, and low power consumption, make it ideal for a variety of applications. It provides developers with a powerful tool to create innovative and efficient solutions for a wide range of applications.

#STM32F103C6T6

0 notes

biggelectronics · 2 years ago

Text

3 Must-Have Arduino Shields for Your Next Project: ESP8266 Wifi, TFT LCD Display, and Dual Motor Drive!

Arduino shields are add-on boards that can be connected to an Arduino microcontroller to enhance its functionality. These shields are designed to provide an easy and convenient way to add various features to an Arduino project without requiring extensive knowledge of electronics. In this blog, we will explore three different types of Arduino shields: ESP8266 Serial wifi Expansion Board, LCD TFT01 Shield for Mega Board, and Dual Monster Moto Shield VNH3ASP30 DC Motor Drive.

ESP8266 Serial wifi Expansion Board:

The ESP8266 Serial wifi Expansion Board is a popular shield that enables your Arduino project to connect to the internet through a wifi network. It is based on the ESP8266 chip, which provides a low-cost, high-speed wireless connection. The shield includes an onboard antenna and can be easily configured using the Arduino IDE.

LCD TFT01 Shield for Mega Board:

The LCD TFT01 Shield for Mega Board is an Arduino shield that features a 3.2-inch TFT LCD screen. The shield is compatible with the Arduino Mega board and provides a high-resolution display for your projects. The TFT LCD screen has a resolution of 320x240 pixels and supports 16-bit color depth. The shield also includes a microSD card slot, which can be used to store images, videos, and other data.

Dual Monster Moto Shield VNH3ASP30 DC Motor Drive:

The Dual Monster Moto Shield VNH3ASP30 DC Motor Drive is an Arduino shield that allows you to control two high-power DC motors. The shield is designed to drive motors with a voltage range of 5V to 16V and a maximum current of 30A. It includes a built-in thermal protection circuit, which prevents overheating and damage to the shield.

Conclusion

Arduino shields provide an easy and convenient way to enhance the functionality of your Arduino projects. The ESP8266 Serial wifi Expansion Board allows your project to connect to the internet through a wifi network, while the LCD TFT01 Shield for Mega Board provides a high-resolution display. Finally, the Dual Monster Moto Shield VNH3ASP30 DC Motor Drive allows you to control high-power DC motors. These shields are just a few examples of the wide range of Arduino shields available, and they offer endless possibilities for your Arduino projects.

#arduino project #arduino #arduino board #arduino nano #arduino shield

1 note · View note

t2mip · 3 years ago

Text

Ultra-high-speed 14-bit at 4.32Gbps ADC IP Cores

T2MIP, the global independent semiconductor IP Cores provider & Technology experts, is pleased to announce the availability of its partner’s silicon and production-proven 14-bit Wideband Time-Interleaved Pipeline ADC IP cores supporting 4.32 Gsps sampling speed in 28nm FDSOI process with full modification rights and unlimited usage.

The 14-bit, 4.32Gbps Pipeline ADC IP Cores, extracted from a Production Chipset, supports 60dB Signal Noise Ratio (SNR) with input frequencies ranging from 54MHz to 1.7GHz. They are used in a variety of applications, including audio applications, microcontrollers, high-speed STB, Wi-Fi, automotive, radar, and 5G applications.

The ADC IP Cores includes two internal power supply regulators (LDO) for the analog part:

- A 1.1v LDO with an external decoupling capacitor to reach a high-power rejection ratio,

- A 1.5v LDO with an internal capacitor for the input buffer and biasing

The digital part is supplied by the external 1.0V.

This ultra-high-speed wide-band Analog-to-Digital Converter IP cores, is based on 16 Time-Interleaved Pipeline sub-ADC followed by a digital correction algorithm for gain, offset, and skew correction. The differential input is terminated by a 100 Ohms resistor (100 Ohms differential) and followed by an input buffer driving the sub-ADC. The signal amplitude is 1Vpp differential. The analog source driving the ADC should be coupled to the input pins with two external capacitors of 1nF minimum. The input common models are generated internally.

Pipeline ADC IP Cores is a mixed-signal system made up of a comparator, switch-capacitor circuits, biassing circuits, bandgap voltage reference, sample and hold amplifier (SHA), and multiplying digital-to-analog converter (MDAC). It connects all the specs at the circuit and system levels. A pipeline ADC IP Core is designed using two or more low resolution Flash ADCs. The architecture is divided into number of stages where each stage consists of Sample and Hold circuit. This circuit samples the analog signal and holds the sampled value for a short interval of time. This signal is fed to Flash ADC to get the binary output. The generated binary outputs from each stage is then time-aligned (Pipelined) to the Shift Register and further undergoes error detection and correction using Digital Error Correction Logic to obtain the final Binary output.

T2M’s extensive range of wireless IP cores also includes Bluetooth Dual mode v5.2 RF Transceiver IP Cores in 22nm ULL, BLE v5.2 / 15.4 (0.5mm2) RF Transceiver IP Cores in 40/55nm, NB-IoT/Cat M UE RF Transceiver IP Cores in 40ULP, and Sub6 GHz RF Transceiver IP Cores, all of which can be ported

Availability: This Analog Data convertor IP cores is available for immediate licensing. For further information on licensing options and pricing please drop a request at contact.

About T2M: T2M-IP is the global independent semiconductor technology experts, supplying complex semiconductor IP Cores, Software, KGD and disruptive technologies enabling accelerated development of your Wearables, IOT, Communications, Storage, Servers, Networking, TV, STB and Satellite SoCs. For more information, please visit: www.t-2-m.com

0 notes

embeddedschool · 7 years ago

Text

Enhance Your Career with Best ARM Microcontroller Training

What is ARM Microcontroller?

The ARM stands for Advanced RISC Machine, and it is a 32-bit reduced instruction set computer (RISC) microcontroller. It was presented in 1987 by the Acron computers’ organization. The ARM is a family of the microcontroller developed by the different manufacturers such as ST Microelectronics, Motorola and so on. The ARM microcontroller architecture arrives with a few several versions such as ARMv1, ARMv2 and each one has its pros and cons.

The ARM cortex microcontroller is an innovative microcontroller in the family of an ARM, which is established by the architecture of ARMv7. The ARM Cortex family separated into three sub-families. They are

• ARM-Cortex -A

• ARM-Cortex -R

• ARM-Cortex –M: This varies from Cortex-M0, M0+. M1, M2, M3, M4 because of its instruction set.

The most commonly used and the familiar ARM microcontroller is Cortex-M3. The ARM microcontroller training offers a detailed knowledge of these functions.

Cortex- M3 Architecture

A high-performance 32-bit processor of cortex-M3 ARM processor delivers the more welfares to the developers. The ARM architecture is a ‘Harvard architecture’ that offers clear data and instruction buses for interacting with the RAM and ROM memories. This has two major types as application and the embedded processor. It contains a 3-stage pipeline for fetching, decoding and executing the instructions consecutively. The Cortex processor is a cost complex device which is useful for reducing the processor area and has the wide improvement for handling interrupt and capabilities of system debug.

Features

1. RISC Controller

• 3-stage pipeline and compact one

• 32-bit high-performance CPU

2. Has Thumb2 Technology

• For High Performance

• 16/32 bit instructions of optimal merges

3. Provides Tools supports and Real-Time Operating System

• Multiple processors support

• 2-pin serial connection for wire debug

4. Low Power Modes

• Sleep mode support

• Software control

• Multiple power domains

5. Nested Vectored Interrupt Controller

• Interrupt response with low jitter and low latency

• Does not require the assembly language need.

To run the tasks of the users, the ARM customs seven processing modes.

They are

• User mode

• FIQ Mode

• IRQ Mode

• SVC Mode

• UNDEFINED Mode

• ABORT Mode

• Monitor Mode

User Mode

It is a normal mode, which has the minimum number of registers.

FIQ and IRQ

The FIQ and IRQ are the two CPU modes interrupt. The FIQ is for interrupt processing, and IRQ is known as the standard interrupt.

SVC Mode

This processor is for startup or reset, and it is supervisor mode.

Undefined Mode

The Undefined mode deceits when illegitimate instructions are accomplished.

Abort Mode

This rise the speed of processing by dividing 32-bit data into 16 bits.

Monitor Mode

In this mode, the instructions can either be 16-bit or 32-bit, and it improves the ARM cortex –M3 performance.

#embedded #certification #courses #education #technology #madurai #centre #training #student #embeddedschool #article #arm #microcontroller

1 note · View note

market-research-updates · 4 years ago

Text

Ethernet Controller Market is Estimated To Expand At a Healthy CAGR in The Upcoming Forecast 2025

The ethernet controller market is expected to register a CAGR of 6.1% during the forecast period 2020-2025. As Ethernet controller controls Ethernet communications, the trend towards industrial Ethernet physical layer (PHY) products to help manufacturers addressing key Industry 4.0 and smart factory communication challenges surrounding data integration, synchronization, edge connectivity, and system interoperability is highly being adopted. The ADIN1300, for example, is a low-power, single-port Ethernet transceiver designed for time-critical industrial Ethernet applications up to Gigabit speeds and designed to operate reliably in harsh industrial conditions over extended ambient temperature ranges. It is the latest technology developed for the company’s ADI Chronous portfolio of industrial Ethernet solutions. - Adoption of EtherCat for the real-time network for machine control drives the market. EtherCAT uses the implementation of on-board Ethernet controller integrated via Direct Memory Access (DMA), so no CPU capacity is required for the data transfer between the master device and the network providing higher orders of magnitude faster than Profibus, DeviceNet, and ModbusTCP. Automation equipment manufacturers can use EtherCAT on their own device implementations to improve performance and flexibility, while end-users and automation system designers can implement their own EtherCAT-compliant devices. Further, EtherCAT is part of several IEC Standards (61158, 61784, 61800), ISO 15745, and is also a SEMI standard (E54.20).

Click Here to Download Sample Report >> https://www.sdki.jp/sample-request-86056 - In April 2020, Renesas Electronics Corporation announced the RX72N Group and RX66N Group of 32-bit microcontrollers (MCUs), new additions to the RX Family that combines equipment control and networking function on a single chip with EtherCAT support.

- The adoption of USB Ethernet controllers drives the market. There are various protocols for Ethernet-style networking over USB. The main function of these protocols is to allow the application-independent exchange of data with USB devices, instead of specialized protocols such as video or MTP. Even though USB is not a physical Ethernet, the networking stacks of all major operating systems are set up to transport IEEE 802.3 frames.

- For instance, implementing the KL5KUSB121 10/100 Base-T USB-Ethernet controller provides highly integrated 16-bit RISC CPU, mask ROM, and RAM buffer coupled with serial, external memory, and SPORT interfaces. It easily converts USB to Ethernet. The chip's internal processor enables a remote network device interface specification that provides compatibility with next-generation operating systems and faster data transfers and is well suited for LAN, Home Area Network, cable modem, set-top boxes, or mobile networking applications.

- The impact of COVID-19 has provided the restraints to market growth. There is nearly an 80% chance for significant contraction in worldwide semiconductor revenues in 2020, which also affects the market of ethernet controllers due to the massive slowdown of the supply chain. A player such as Arista, Cisco, Juniper, and many others in the 400GbE ecosystem planned to demonstrate interoperability and the growing volume of 400GbE wares at OFC (Optical Fiber Communication Conference and Exhibition) 2020 and the major networking vendors working on 400GbE were reported some degree of 400G implementation, but the players have decided to manufacture in the first half of 2021, and currently, the production has been stopped. - Further, as the epidemic has caused the manufacturing industry to slow down, the requirement of EtherCAT in the industry is most vital as it provides real-time, deterministic, high performance, and open industrial Ethernet network protocol and can ensure the data transmission certainty and real-time. In April 2020, ASIX Electronics Corporation announced to supply EtherCAT Slave Controller SoC in China and other parts of the world, which caters to the significant assistance in the market growth. But overall, the growth is restrained due to negligible demand from all the sectors. Key Market Trends Gigabit Ethernet to Witness Growth in Data Centers - Data-intensive applications such as big data and cloud computing continue to grow at an accelerating rate. Multiple terabits of data travel to and from the data center each second. Moving such massive data around the data center requires a robust infrastructure that is capable of handling high bandwidth data delivery having high IP traffic to and from storage endpoints, servers, top-of-rack (TOR) switches, and core switches. This penetrates the demand of an ethernet controller, which connects devices using media access control (MAC) addresses. - Players such as Marvell Ethernet Network Adapters and Controllers are purpose-built to accelerate and simplify data center, PC and workstation networking. Marvell Ethernet controllers deliver Ethernet connectivity speeds ranging from NBASE-T for Workstations to data center-class 10/25/50/100GbE for high-volume software-defined datacenters. - Further, rising power consumption and costs related to continuous growth in data are bringing data centers to face the challenges of delivering greater storage bandwidth and capacity. To address such issues, in April 2020, Marvell’s MRVL QLogic Fibre Channel and FastLinQ Ethernet adapter solutions will now enable NVMe over Fabrics (NVMe-oF) technology in VMwarevSphere 7.0, displaying its continued efforts to strengthen its end-to-end Ethernet storage and bandwidth capabilities. - Further, with an increasing demand for networking speed and throughput performance within the data center and high-performance computing clusters, in April 2020, the newly rebranded Ethernet Technology Consortium has announced a new 800 Gigabit Ethernet technology for data center replacing the 400 Gigabit Ethernet. The 800 B base-R specification (or 800 GbE) will need new definitions for media access control (MAC) and physical coding sublayer (PCS). This further benefits hyperscale datacenter networks that span a large number of nodes and require multiple hops. - Furthermore, in April 2020, Tyan has officially announced its support for the new chips on selecting models of their Transport HX barebones servers, which are designed for high-performance computing and server data-driven workflows. It includes Transport HX TN83-B8251, TS75A-B8252, and the TS75-B8252, where on the motherboard, there is an Intel X550-AT2 dual 10 G Ethernet controller, with a dedicated Realtek IPMI Ethernet port, and an Aspeed AST2500 BMC. Each model has offered its own benefits for the server, data center, and high-frequency trading systems.

- Moreover, as the demand for public cloud services continues to grow, hyper-scale data centers and cloud providers increasingly rely on multicore SmartNIC solutions to offload infrastructure services and workloads to maximize server utilization. In March 2020, Broadcom Inc. announced that its Stingray adapter, the industry’s first 100G SmartNIC (integrated NetXtreme Ethernet Controller), is powering Baidu Cloud with unprecedented levels of performance. The Stingray adapter’s exceptional levels of integration, includes eight ARM A72 CPU cores running at 3GHz, 300G of memory bandwidth.

Click Here to Download Sample Report >> https://www.sdki.jp/sample-request-86056 North America Accounts for Significant Share - North America accounts for a significant share. With the increase in the development of technology along with the adoption of a high rate of consumer electronics such as gaming consoles, etc., the demand for the ethernet controller is growing in this region.

- For instance, in April 2020, Killer announced the Killer E3100 Ethernet controller is improving the internet performance by prioritizing gaming and rescuing up CPU power and PC memory. It reaches speeds up to 2.5Gbps and can combine with Killer Wi-Fi products to reach up to 4.9 Gbps of theoretical throughput. The Killer 3100 is available in systems from Acer and MSI, including the newly announced MSI Creator 17 and MSI GE66 Raider.

- Further, as the automotive industry increasingly adopts Ethernet in-vehicle networks for mainstream models, the number of related ports is expected to grow at a 62% annualized growth trajectory, from 53 million in 2018 to 367 million by 2022, according to Marvell Technology Group. Moreover, in September 2019, Marvell Technology Group completed the acquisition of Aquantia Corporation to expand the market in automotive solutions. - The acquisition of Aquantia complements Marvell’s portfolio of copper and optical, physical layer product offerings, and extends its position in the Multi-Gig 2.5G/5G/10G Ethernet segments. In particular, Aquantia’s innovative Multi-gig automotive PHYs, coupled with Marvell’s gigabit PHY and secure switch products, creates a broad range of high-speed in-car networking solutions. - Further, in November 2019, Astronics Ballard announced to embed an open architecture with a 64-bit processing foundation and Ethernet backbone across its next generation of NG avionics input/output (I/O) computers. Inside the next generation, boxes are simple converters capable of supporting Ethernet, MIL-STD-1553 and ARINC 429 among other data bus protocols, and the processing is capable of enabling advanced distributed control and mission computing on fighter jets, drones, and helicopters. - To support the instance, in January 2019, U.S. Air Force, Army, and Navy officials signed a memorandum agreeing that future acquisitions of new aircraft technologies will focus on using the Modular Open Systems Approach (MOSA). In addition to MOSA, the NG computers also meet the design requirements for DoD’s Open Mission Systems (OMS) standard. This enhances the demand for the market in this sector.

Competitive Landscape The ethernet controller market is fragmented in nature due to high competition. Despite the fragmentation, the market is largely tied by the regulatory requirements for establishment and operation. Further, with increasing innovation, acquisitions, and partnerships, the rivalry in the market tends to be increasing in the future. Key players are Intel Corporation and Broadcom Inc. Recent developments in the market are - - March 2020 - Ethernity Networks introduced its ENET-D, an add-on Ethernet Controller technology to its ACE-NIC100 SmartNIC that efficiently processes millions of data flows and offers performance acceleration for networking and security appliances. ENET-D is an Ethernet adapter and DMA (direct memory access) engine that eliminates the need for proprietary hardware on a network interface card. By fitting into various FPGAs and enabling customers to further avoid ASIC-based components, ENET-D advances complete disaggregation at the edge of the network. The dynamic nature of business environment in the current global economy is raising the need amongst business professionals to update themselves with current situations in the market. To cater such needs, Shibuya Data Count provides market research reports to various business professionals across different industry verticals, such as healthcare & pharmaceutical, IT & telecom, chemicals and advanced materials, consumer goods & food, energy & power, manufacturing & construction, industrial automation & equipment and agriculture & allied activities amongst others.

For more information, please contact:

Hina Miyazu

Shibuya Data Count Email: [email protected] Tel: + 81 3 45720790

0 notes

amaxchipamaxchip · 4 years ago

Text

TMS320F28034PNT Microcontrollers

A microcontroller is an integrated circuit device denoted by μC or uC. It uses a microprocessor unit (MPU), memory, and peripheral to control other portions of an electronic system. These devices are optimized for applications that require both processing functionality and agile. It is a small, low-cost, and self-contained computer-on-a-chip used as an embedded system. A few microcontrollers may utilize four-bit expressions and work at clock rate frequencies, which usually include an eight or 16-bit microprocessor. Microcontrollers usually must have low-power requirements since many devices they control are battery-operated. The dominant part of microcontrollers being used nowadays is implanted in other apparatus.

The 2803x (C28x) family is a member of the TMS320C2000™ microcontroller (MCU) platform. The C28x-based controllers have the same 32-bit fixed-point architecture as existing C28x MCUs. It is a very efficient C/C++ engine, enabling users to develop their system control software in a high-level language and develop math algorithms using C/C++. The device is as efficient at MCU math tasks as system control tasks handled by microcontroller devices. The 32 × 32-bit MAC 64-bit processing capabilities enable the controller to manage higher numerical resolution problems efficiently. Add to this the fast interrupt response with automatic context save of critical registers, resulting in a device capable of servicing many asynchronous events with minimal latency. The device has an 8-level-deep protected pipeline with pipelined memory accesses. This pipelining enables it to execute at high speeds without resorting to expensive high-speed memories.

The features of TMS320F28034PNT include High-efficiency 32-bit CPU, Harvard bus architecture, and fast interrupt response and processing. The TMS320F28034PNT consists of a Programmable Control Law Accelerator that executes code independently of the main CPU. There are Three 32-bit CPU timers and an Independent 16-bit timer in Each Enhanced Pulse Width Modulator. The TMS320F28034PNT has a 128-bit security key and lock. This not only Protects secure memory blocks but also Prevents firmware reverse engineering. The TMS320F28034PNThas advanced emulation features that help in Analysis and breakpoint functions and Real-time debug through hardware.

Due to its features, the TMS320F28034PNT has various advantages, including Low cost for both device and system Single 3.3-V supply, no power sequencing requirement, Integrated power-on reset, and brown-out reset Low power, and No analog support pins. The TMS320F28034PNT has up to 45 individually programmable and multiplexed GPIO pins with input filtering. The TMS320F28034PNT

comes with a Peripheral Interrupt Expansion (PIE) block that supports all peripheral interrupts. The TMS320F28034PNT offers both Serial port peripherals and Enhanced control peripherals.

TMS320F28034PNT are used in a large number of applications such as air conditioner outdoor unit, door operator drive control, DC/DC converter, inverter & motor control, automated sorting equipment, textile machine, welding machine, AC/DC charging (pile) station, EV charging station power module, microinverter, solar power optimizer, AC drives control module, linear motor segment controller.

#TMS320F28034PNT #TMS320LF2406APZA

0 notes

quartzcomponents · 4 years ago

Text

ESP8266 NodeMCU CP2102 Development Board

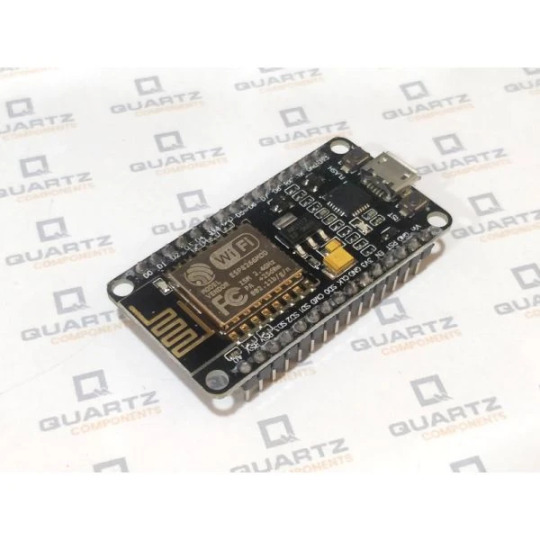

NodeMCU ESP8266 is an open-source Lua based firmware and development board specially targeted for IoT based applications. It includes firmware that runs on the ESP8266 Wi-Fi SoC from Espressif Systems and hardware which is based on the ESP-12 module, and like this, it can also be programmed using Arduino IDE and can act as both WiFi Hotspot or can connect to one. It has one Analog Input Pin, 16 Digital I/O pins along with the capability to connect with serial communication protocols like SPI, UART, and I2C. NodeMCU has 128 KB RAM and 4MB of Flash memory to store data and programs. Its high processing power with in-built Wi-Fi / Bluetooth and Deep Sleep Operating features make it ideal for IoT projects. Its applications include prototyping for IoT devices, low powered battery-operated applications, and projects requiring I/O interface with Bluetooth and WiFi capabilities.
