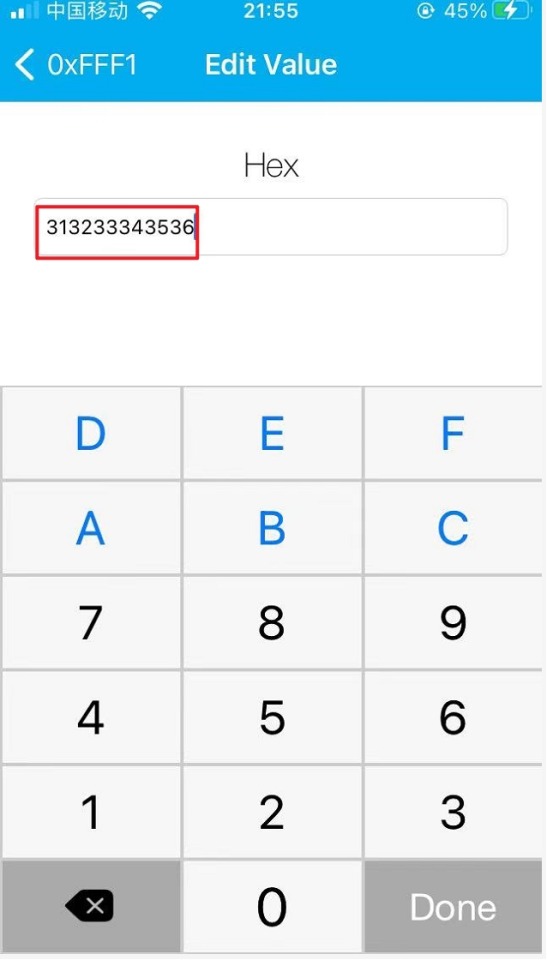

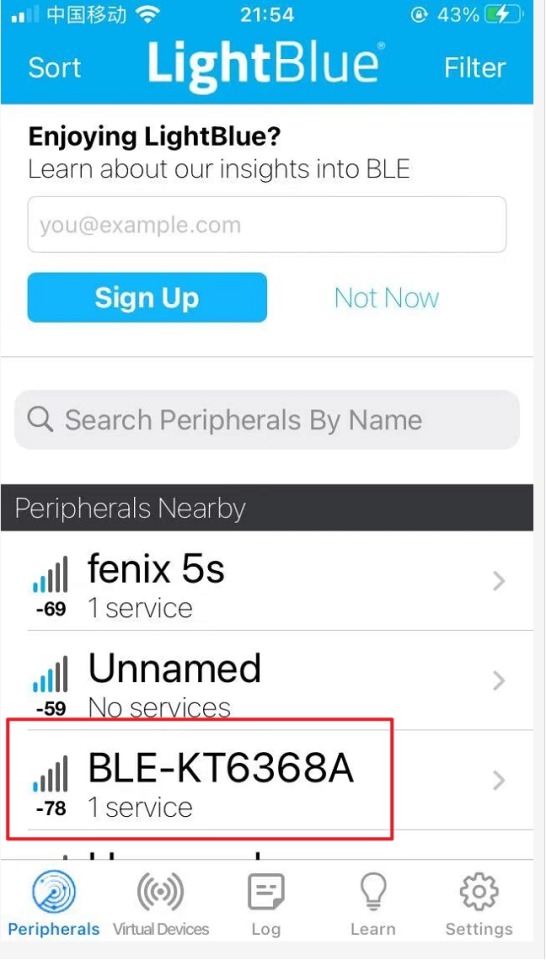

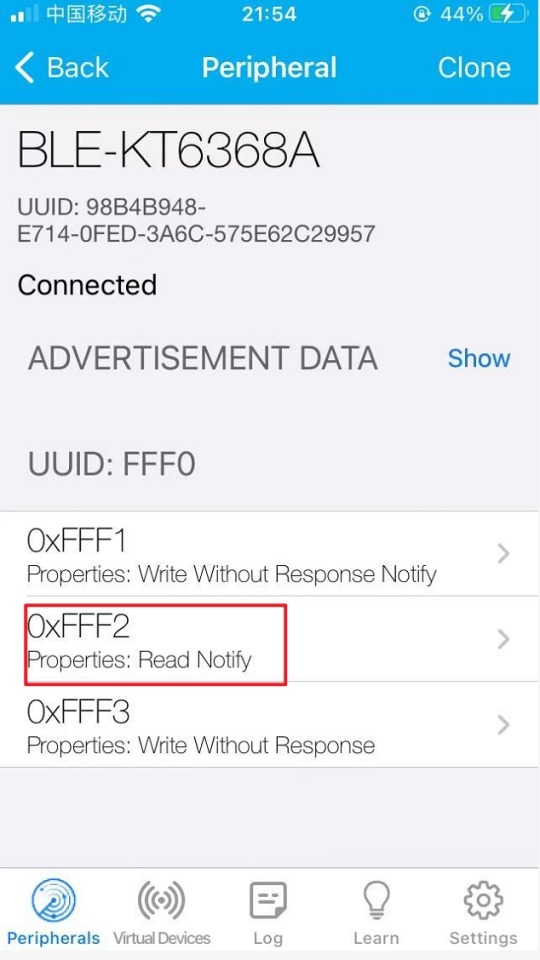

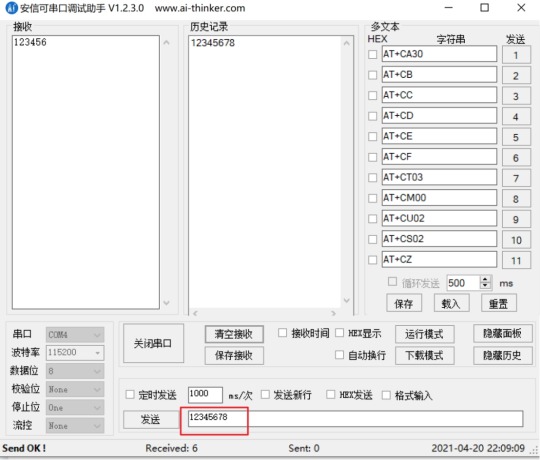

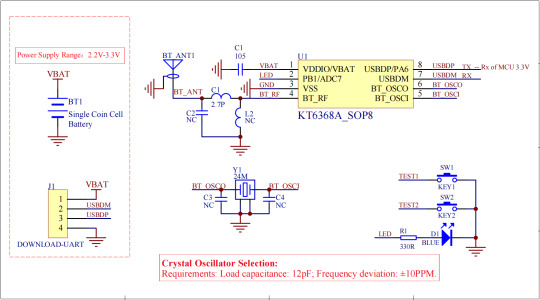

#uart protocol

[didw2rden]

https://www.futureelectronics.com/p/semiconductors--comm-products--i2c/pca9515adp-118-nxp-5973557

I2C CAN Bus Module, I2C adapter, I2C devices, Serial Peripheral Interface

PCA9515A Series 3.6 V 5 mA 400 kHz 6 pF Surface Mount I2C-bus Repeater - SOIC-8

[adafruit]

We're vibin' with Claude 3.7 and writing uBlox drivers 😎🤖🛰️

Heeeey, we're just having a super chill vibe here at the desk of Ladyada—writing a driver for the uBlox M8Q

https://blog.adafruit.com/2024/09/10/a-mini-gps-from-ublox-with-i2c-and-uart

, which has both I2C and UART interfaces. As expected, it can do everyday NMEA output, but it can also do UBX, a "compressed" protocol for advanced data reads and writes over I2C/UART—or even SPI on some other chips.

However, the UBX protocol is a hugely complex driver to implement, with dozens of commands and hundreds of flags. But why stress when you can viiiibe? We're using this beast of a spec as an excuse to try out the new Claude 3.7, which is doing great at chomping through the UBX documentation roughage and giving us some nice code on the other side. Within an hour, we're able to connect and switch to UBX mode by sending a well-formed message and receiving an ACK.

What we like about coding with a good LLM is that it does the work we sometimes get lazy over, like handling various error conditions, timeouts, and verbose error messages.

[moose-mousse]

Frustrations

Following other developers, learners and makers are great. It facilitates learning and gives inspiration

But one thing that is often missing from people telling about how it is going, is the failures, frustrations and problems any developer will run into.

For this reason, two of my favorite maker youtube channels are Extractions&Ire (Chemistry) and Code Bullet (machine learning). Because these madlads are brave enough to not just show their process and result, but also their failures, mistakes and errors. And how they overcome them. Not always by learning (Sometimes making a dumb mistake is not really something you can learn from...)

It's good, because it's real.

Code tutorials and guides can give the impression that the normal process of development is "Open IDE, code, fix tiny typo error, compile, success". They don't do it out of malice, but out of a want to be concise. Which is fair.

So I also want to share when things do not go so well. I have programmed Atmel's AVR Chips for quite a while now. But I have done it mostly in microchip studio(former Atmel studio) and a bit in the arduino IDE. A job I am currently applying for, uses visual studio code. Which is fair enough. So to prepare for this specific job, and to acquire this quite good-to-have skill, I want to set that up for myself First things first, since I have not done this before, I cannot know if my code would have a weird error so I want to know everything else is working first. So I write a tiny program which simply have the microcontroller increase a number every 2 seconds and write it to my PC over UART. Takes 2 minutes.... I grab one of my Arduino Nano boards and a USB cable for it. And then... I cannot flash it... Its communication protocol have troubles.

I have seen this before. It is to do with the cables not being correct. If they are USB 2.0, very little magnetic noise can cause trouble. (And you cannot tell if a cable runs USB 2.0 or 3.0 by looking at it... because the universal serial bus is not universal... Insert grump rant here) I then spend an hour finding and trying different USB A to USB B-mini cables. Give up, notes down to buy (and MARK) some USB 3.0 versions for the future. I then grab a Arduino Uni instead, as they use USB B, which is much more resistant to noise... And then spend half an hour trying to find a the cable, as I do not have a lot of them, since... nearly nothing uses them. Finally find it, and yes, the program can now be flashed. So I packed all the cables I tested back in their places, after marking them so I will(hoefully) not have to do this again. Had to take several breaks feeling depressed and grumpy, and all in all, this adventure took 4-5 hours. And now I can START on this... And this is how work sometimes is. And that is ok. It is still... VERY frustrating ...

[c-53]

WARNING: LONG ASK INCOMING

For hobby electronics there’s two major kinds of processors: Microcomputers and Microcontrollers. Microcomputers are small full computer systems like the Raspberry Pi, they typically run a general-purpose OS (typically some flavor of Linux) and are useful for the kinds of projects that require basically a full computer to function, but not necessarily individual sensors. They’re a great place to start for people who don’t know a whole ton about programming or working with individual components because they typically can output a true GUI to a screen and have the capabilities of a regular desktop computer. They have a main processor, true RAM, and either large on-board storage space or a way to read a storage device, like an SD card.

Microcontrollers are less complicated (component wise) than microcomputers, but as a result are more difficult for total beginners to begin working with. They’re typically primarily a SoC (System on a Chip) processor without discrete RAM modules and a very small EEPROM (on-ship storage space) and need to have components wired and configured to them to be able to do much more than being a fancy calculator. They’re used for when you need something to carry out electronic functions or get sensor readings, but not necessarily a full operating system, so they’re best suited for small/integrated applications. Your helmet uses a microcontroller to control the LEDs you used in the Cunt Machine post.

I build high-power model rockets as a hobby and with my university team, so I work with both kinds of processor as part of designing payload systems. I typically prefer microcontrollers in these as most of what we do doesn’t need an actual OS to run, and they’re smaller/lighter than microcomputers. One of the advantages of a microcontroller is that it runs a Real-Time OS (RTOS) which forgoes all the user-friendliness of things like windows and linux to instead be the bare minimum backend necessary to run code uploaded into the processor.

The main advantage of using a microcontroller is really that they’re typically a lot cheaper than microcomputers are and are plenty powerful for really embedded applications. They also make other parts of whatever system is being built cheaper/easier to integrate because they require less overhead to function - the raspberry pi needs a minimum of 5 volts of power to work, while a chip like an ESP32-PICO can run at 1.8V.

The main way you make sensors/buttons/peripherals work with a microcontroller is via digital communication busses. There’s a few protocols, the most common being I2C, SPI, and UART. I’ll talk about I2C since that’s generally the most common. With I2C each component is assigned a 2-byte “address” that they’re identified by. When the controller sends a request signal on the I2C data bus, every sensor along the line will return their own signal, marked with their address so that they can be identified. It allows for a large number of devices to be put on the same lines and you can daisy-chain them through each other to the microcontroller.

I’ll be honest I really can’t think of a good way to say much more on the subject as like a starting message because I’ve been working with computers so long all the tech stuff for me is second nature, but if you have any questions ask away I can probably answer them or google them.

.

[homeandkitchenparts]

Understanding the Functionality of Samsung Refrigerator PCB Main Assembly

Samsung refrigerators have become essential appliances in modern households, offering innovative features and advanced technologies to ensure food preservation and convenience. The (Printed Circuit Board) PCB Main Assembly serves as the brain of the refrigerator, coordinating various functions and ensuring optimal performance.

Components of the Refrigerator PCB Main Assembly

 The Refrigerator PCB Main Assembly consists of several essential components, each playing a crucial role in the refrigerator's operation.

Microcontroller: It is the central processing unit (CPU) and the computer performs programmed instructions to coordinate communication between the components.

Sensors: The ambient parameters (temperature, humidity, door status) supply critical information for regulation.

Relays: You control the flow of electricity to the compressor, fan motors, and defrost heater.

Capacitors: It will help you store the electrical energy and help to regulate voltage, and guarantee that the PCB is operating reliably.

Resistors: Protect sensitive components from harm by limiting the flow of electricity across certain circuits.

Diodes: Allow current to flow exclusively in one direction to avoid reverse polarity and safeguard components from damage.

Connectors: Facilitate electrical connections between the PCB and other refrigerator components to ensure seamless integration.

Working Principle PCB Main Assembly

The PCB Main Assembly operates on a set of programmed instructions that determine its behavior depending on sensor input and user command. The micro controller continuously monitors sensor input such as the reading of the temperature from the refrigerator compartment, and freezer. The microcontroller controls the transition of the compressor on, or off or the speed of the fan and also the defrost cycles based on the sensor data as to how to keep the temperature and humidity at the optimal level. In addition to the other refrigerator components, for example, display panel and user interface, the PCB Main Assembly provides feedback and enables users’’ interaction. The PCB Main Assembly incorporates safety features of overload protection and temperature sensors to protect the refrigerator from damage and to protect the user.

Communication Protocols

Data can be communicated to other components through microcontrollers by communication protocols like UART (Universal Asynchronous Receiver Transmitter), SPI (Serial Peripheral Interface), and I2C (Inter Integrated Circuit).

UART is used to transfer real-time data from a microcontroller to external devices like display panels and temperature sensors.

There is a power of communication SPI and I2C for the communication of integrated circuits associated with the PCB Main Assembly for efficient data transfer and synchronization between components.

Troubleshooting and Maintenance

Common issues with the Samsung Refrigerator PCB Main Assembly include sensor failures, relay malfunctions, and power supply issues, which can affect the refrigerator's performance.

To solve PCB Main Assembly problems, we can use diagnostic methods, like running self-tests and checking the error code.

The assembly can stay longer depending on the main, such as cleaning dust and debris from the PCB and securing appropriate ventilation.

The PCB Main Assembly is an important component of the Samsung refrigerator systems since it organizes several functions to contribute to the overall efficiency of the refrigerator and food preservation. Fore-knowledge of the PCB Main Assembly and the way it is constructed can assist users in likely managing problems in their fridges.

[quartz-components]

The ESP32 is a development board developed by Espressif systems. It can be programmed using Arduino IDE and ESP-IDF. It has higher processing power than ESP8266 but it is more costly and bigger in physical dimension than ESP8266. It has a built in Bluetooth module and CAN protocol and SRAM. It has 36 GPIO Pins with a CPU clock of 160MHz. It has 12-bit ADC onboard and supports CAN, UART, I2C and I2S. It can be used in prototyping IoT products, Low power Battery operated application, small range networking projects, and with the projects which require many Input Output Pins and Wi-Fi and Bluetooth connectivity.

[tia003]

What are interrupts used for mainly?

In embedded systems, interrupts are a crucial mechanism that allows a processor to respond immediately to important events, even while executing other tasks. Instead of continuously checking (or polling) for events like button presses, sensor data, or communication input, an interrupt automatically notifies the processor when an event occurs, allowing for faster and more efficient operation.

Interrupts essentially "interrupt" the normal execution flow of a program to handle urgent tasks. This is done using an Interrupt Service Routine (ISR) — a special function that is executed in response to the interrupt. Once the ISR finishes, the processor resumes its previous task. This ability to react instantly is vital in real-time applications, such as reading data from sensors, responding to user input, or handling communication protocols like UART, SPI, or I2C.

There are two main types of interrupts: hardware and software. Hardware interrupts are triggered by peripherals or external devices (like a temperature sensor), while software interrupts are triggered by programs to signal specific events internally.

Using interrupts helps optimize CPU usage, reduce power consumption (as the CPU can sleep until interrupted), and ensure timely responses to critical events. However, poor interrupt handling can lead to issues like missed events or system crashes, so proper design and prioritization of interrupts are essential.

Overall, interrupts form the backbone of responsiveness in modern embedded systems and are indispensable for designing efficient, real-time applications. For those aspiring to build a career in this domain, mastering interrupt-driven programming is a key skill. A structured embedded systems course with placement can provide hands-on experience and career opportunities in this high-demand field.

[servotechinc78]

Embedded Controls Development: From Design to Deployment

Embedded controls development is a critical area in embedded systems engineering, involving the design, programming, and integration of control systems into hardware platforms. These systems are typically found in devices that perform dedicated functions, ranging from consumer electronics to industrial automation and automotive applications. The development process requires a combination of hardware knowledge, software engineering, and systems integration skills.

What Are Embedded Controls?

Embedded controls are computer-based systems that control specific functions within a larger mechanical or electrical system. They use microcontrollers, digital signal processors (DSPs), or microprocessors to monitor inputs from sensors, process data according to a control algorithm, and output control signals to actuators or other system components. These control loops can be simple (like turning on a fan when a sensor detects high temperature) or complex (like managing engine timing and fuel injection in modern vehicles).

Development Lifecycle

The development lifecycle for embedded controls typically follows several key stages:

Requirements Definition: Understanding what the control system needs to do. This includes identifying input/output interfaces, environmental constraints, performance requirements, and safety or compliance standards.

System Design: Creating a high-level architecture that defines how software and hardware will interact. This stage also involves choosing the right microcontroller or processor, selecting sensors and actuators, and outlining communication protocols.

Software Development: Writing code for the embedded control system, often in C or C++. Developers must consider memory limitations, real-time constraints, and hardware-specific details. This stage includes implementing control algorithms, handling interrupts, and developing communication interfaces such as I2C, SPI, UART, or CAN.

Hardware Integration: Integrating the embedded software with physical components. This includes setting up the development board, connecting sensors and actuators, and testing signal integrity and power consumption.

Testing and Validation: Rigorously testing the control system to ensure it functions as expected under various conditions. Unit testing, integration testing, and hardware-in-the-loop (HIL) simulations are commonly used to verify performance and reliability.

Deployment and Maintenance: After development and testing, the system is deployed into the final product. Ongoing maintenance may involve firmware updates, bug fixes, or performance improvements.

Tools and Platforms

A wide range of tools are used in embedded controls development, including:

Integrated Development Environments (IDEs): Tools like Keil µVision, MPLAB X, STM32CubeIDE, and Arduino IDE are popular for writing and debugging code.

Real-Time Operating Systems (RTOS): Systems such as FreeRTOS or VxWorks provide scheduling, task management, and synchronization capabilities for time-sensitive applications.

Version Control Systems: Git is widely used to manage code versions and support collaborative development.

Simulation and Modeling Tools: MATLAB/Simulink is frequently used in control systems design for simulation and code generation.

In-Circuit Debuggers/Programmers: Tools like JTAG or SWD interfaces allow developers to program and debug the target microcontroller directly.

Challenges in Embedded Controls Development

Developing embedded control systems presents several challenges:

Resource Constraints: Embedded systems often have limited CPU power, memory, and energy availability. Efficient coding and hardware optimization are essential.

Real-Time Requirements: Many control systems must respond within strict timing constraints. Missed deadlines can result in system failure or unsafe behavior.

Hardware Dependence: Embedded software is closely tied to specific hardware, requiring deep knowledge of the processor, peripherals, and electrical characteristics.

Debugging Complexity: Diagnosing problems in embedded systems can be difficult due to limited visibility into internal states and limited logging capabilities.

Safety and Reliability: In industries like automotive or medical devices, the control systems must meet rigorous safety standards such as ISO 26262 or IEC 62304.

Applications

Embedded controls are used in countless applications:

Automotive Systems: Engine control units (ECUs), anti-lock braking systems (ABS), adaptive cruise control, and infotainment systems.

Consumer Electronics: Smart thermostats, washing machines, and robotic vacuum cleaners all rely on embedded control systems.

Industrial Automation: PLCs and industrial controllers manage processes on factory floors, often integrating with SCADA systems.

Aerospace and Defense: Flight control systems, unmanned aerial vehicles (UAVs), and radar systems.

Medical Devices: Infusion pumps, pacemakers, and diagnostic equipment all include embedded control systems to ensure safe and accurate operation.

Trends and Future Directions

The field of embedded controls is rapidly evolving. Several key trends are shaping the future:

IoT Integration: Many embedded systems are now connected to the internet, allowing for remote monitoring, control, and firmware updates.

Edge Computing: More processing is being done on the device itself, reducing the need to send data to the cloud and improving response times.

AI and Machine Learning: Embedded systems are beginning to incorporate ML algorithms for pattern recognition, predictive maintenance, and adaptive control.

Model-Based Design: Tools like Simulink allow engineers to design control systems graphically and automatically generate embedded code.

Cybersecurity: As systems become more connected, securing embedded control systems against hacking and data breaches is becoming essential.

Conclusion

Embedded controls development by Servotechinc is a complex but vital discipline that sits at the heart of modern technology. From managing vehicle dynamics to enabling smart home features, embedded control systems play a crucial role in ensuring that machines operate efficiently, safely, and intelligently. As technology advances, the demand for skilled engineers in this domain will only continue to grow.

[glarysourcing]

High-Efficiency Electric Motor Controller for E-Rickshaws Designed for OEMs | Optimized for BLDC/PMSM Motors | Proven Field Reliability

Our electric motor controller is engineered specifically for low-voltage electric three-wheelers, delivering consistent performance in demanding urban environments.

Featuring precise control algorithms and rugged construction, it supports a wide range of BLDC hub and mid-drive motors.

Technical Specifications:

1. Voltage Range: 48V / 60V / 72V options

2. Rated Power Output: 800W – 5000W

3. Motor Type: Compatible with BLDC (Hall/No-Hall configurable), PMSM

4. Control Mode: Sine wave or trapezoidal (FOC optional)

5. Communication: UART / CAN (customizable)

6. Protections: Overvoltage, undervoltage, overcurrent, thermal shutdown

7. Enclosure: Aluminum alloy housing, IP65-rated for water and dust resistance

Advantages for Manufacturers:

1. High reliability, low defect rate in mass production

2. Parameter configuration software for rapid tuning

3. Compact size for flexible vehicle integration

4. Technical support for custom firmware or interface protocols

Application: Ideal for electric rickshaws (passenger and cargo types), compliant with common drivetrain standards used across Indian and Southeast Asian markets.

Partner with us for scalable, reliable EV controller solutions. Shanghai Glary

www.glarysh.com

WhatsApp: +86 13501781413

[bliiot-jerry]

ARM AI Edge Controller + Prometheus Database for Smart Building Energy Monitoring

Case Details

ARM Embedded Computers and Prometheus Overview

1. ARM Embedded Computers

ARM embedded computers are low-power, high-performance microcomputers based on ARM architecture, designed for IoT and edge computing scenarios. Key features include:

Low Power Consumption: Utilizes ARM processors (e.g., Cortex-A series), ideal for long-term embedded applications.

Compact Design: Small form factor, easily integrated into devices like sensor gateways or industrial controllers.

Rich Interfaces: Supports GPIO, I2C, SPI, UART, USB, Ethernet, etc., enabling seamless connectivity with sensors and peripherals.

Real-Time Capabilities: Some models support real-time operating systems (RTOS) or Linux, meeting industrial control requirements. Typical applications include smart homes, industrial automation, and energy management.

2. Prometheus

Prometheus is an open-source monitoring and alerting tool maintained by the Cloud Native Computing Foundation (CNCF). Core functionalities include:

Time-Series Database: Efficiently stores and queries metrics (e.g., CPU usage, energy consumption).

Data Collection: Uses HTTP pull mode to gather metrics from targets (e.g., ARM devices).

PromQL Query Language: Enables flexible data analysis and aggregation.

Visualization & Alerting: Integrates with Grafana for dashboards and Alertmanager for anomaly notifications. Prometheus excels in distributed systems and IoT real-time monitoring.

Application Cases: ARM Embedded Computers + Prometheus in Lighting System Energy Monitoring

System Architecture

Hardware Layer

ARM embedded computers (e.g., Raspberry Pi, NVIDIA Jetson Nano, Rockchip boards) act as edge nodes, connected to light sensors, current/voltage sensors, and smart meters.

Collects real-time data (power, current, on/off status) from lighting devices (e.g., LED lights, smart switches) via Modbus, MQTT, or LoRa protocols.

Data Collection Layer

Deploy Prometheus Exporters (e.g., Node Exporter, custom exporters) on ARM devices to convert sensor data into Prometheus-compatible metrics (e.g., light_power_consumption{watt="50", location="room1"}).

Transmits data to a Prometheus server (deployed locally or in the cloud) via Wi-Fi/Ethernet.

Monitoring & Analytics Layer

Prometheus periodically pulls metrics from ARM devices and stores them in its time-series database.

Grafana dashboards visualize real-time energy usage, historical trends, and device status.

Typical Use Cases

Case 1: Commercial Building Energy Optimization

Requirement: Reduce lighting energy consumption in an office building while ensuring comfortable illumination.

Solution:

Deploy ARM devices on each floor to collect light intensity and power data.

Use Prometheus to monitor real-time power usage and automatically adjust LED brightness based on ambient light.

Trigger alerts via Alertmanager for high-energy zones (e.g., lights left on in empty meeting rooms).

Outcome: 30% reduction in energy consumption; remote lighting strategy management.

Case 2: Industrial Lighting Health Monitoring

Requirement: Prevent production line downtime caused by lighting failures in a factory.

Solution:

ARM devices monitor current fluctuations to detect anomalies (e.g., voltage drops).

Prometheus stores historical data; machine learning models (e.g., TensorFlow Lite) predict lamp lifespan.

Dashboards display device health scores for proactive maintenance.

Outcome: 50% fewer failures; 20% lower maintenance costs.

Case 3: Smart City Streetlight Management

Requirement: Enable remote control and time-based dimming for municipal streetlights.

Solution:

ARM devices with LoRa modules act as streetlight controllers.

Prometheus collects status and energy data, adjusts brightness based on time (e.g., dimming at night).

GPS-integrated maps pinpoint faulty streetlights.

Outcome: 40% lower energy usage; 60% reduction in public complaints.

Key Advantages

Real-Time Insights: ARM edge computing + Prometheus enables sub-second data collection for rapid responses.

Cost Efficiency: Low-cost ARM hardware + free/open-source Prometheus suits large-scale deployments.

Scalability: Easily expandable—add sensors or zones without system overhauls.

Data-Driven Decisions: Historical analysis supports energy-saving initiatives (e.g., replacing inefficient fixtures).

Future Prospects

Integrating AI algorithms (e.g., time-series prediction) could further optimize lighting strategies,

The BL370 series, with its high-performance hardware, industrial protocol stack, and edge AI capabilities, combined with Prometheus’ real-time monitoring, flexible querying, and visualization, delivers the following core benefits for lighting energy management:

Precision Control: End-to-end low latency from data acquisition to action.

Reliable Operations: Resilient in harsh environments with remote diagnostics and long-term stability.

Intelligent Decision-Making: AI-driven energy optimization and predictive maintenance.

Rapid Deployment: Out-of-the-box hardware/software with strong protocol compatibility, shortening project timelines.

Future Expansion: Leverage BL370’s NPU and Prometheus’ time-series database to develop predictive models (e.g., lighting demand forecasts based on historical data), enabling "zero-touch" energy management.

[jxyic]

E5908 module RJ45 interface communication

How to achieve communication with the E5908 module RJ45, a brief introduction to help you take the next step

Introduction to the module and interface E5908 is an Ethernet communication module with a built-in TCP/IP protocol stack. It supports direct communication with an Ethernet switch or router through the RJ45 interface. The main control MCU can interact with the module through UART (AT command) or SPI/SDIO (depending on the module description).

Hardware connection (RJ45 interface) RJ45 interface (with magnetic transformer): The module's onboard RJ45 interface has an integrated magnetic transformer and can be plugged into a standard network cable without an external transformer. Power and ground: VCC (3.3V/5V) -> module VCC, GND -> module GND. UART connection: MCU_TX -> module UART_RX, MCU_RX -> module UART_TX Reset pin: connected to the MCU GPIO for module hardware reset. Decoupling capacitors: Add 10µF and 0.1µF decoupling capacitors to the module power pins to ensure stable power supply.

Network configuration:

DHCP: AT+NETMODE=DHCP returns +IP:...; Static IP: AT+NETMODE=STATIC,<IP>,<Mask>,<Gateway>. Establish socket: TCP client: AT+TCPSTART="<IP>",<Port>; TCP server: AT+TCPLISTEN=<Port>; UDP: AT+UDPSTART="<IP>",<Port>.

Data sending and receiving: Sending: AT+TCPSEND=<Len> → module prompts > → sending data; Receiving: module serial port pushes +TCP:RECV,..., followed by data.

Typical C code example:

#define UARThuart1 bool at_send(const char *cmd, const char *exp, uint32_t to) {...} void net_init(void) { //reset HAL_GPIO_WritePin(RESET_GPIO_Port, RESET_Pin, GPIO_PIN_RESET); HAL_Delay(50); HAL_GPIO_WritePin(RESET_GPIO_Port, RESET_Pin, GPIO_PIN_SET); HAL_Delay(200); at_send("AT+NETMODE=DHCP", "OK", 2000); } void tcp_client(void) { at_send("AT+TCPSTART=\"192.168.1.50\",8000", "CONNECT", 5000); at_send("AT+TCPSEND=5", ">", 2000); HAL_UART_Transmit(&UART, (uint8_t*)"hello", 5, 100); at_send("", "SENDOK", 2000); at_send("AT+TCPSTOP", "CLOSED", 3000); }

If you want to know more detailed solutions, please read this article: E5908 module Ethernet communication implementation solution

[pcbdesignbrisbane]

A Comprehensive Guide to Firmware Development

In the world of embedded systems and smart devices, firmware plays a critical role in enabling hardware to function effectively. Whether you're developing IoT devices, automotive systems, or industrial machinery, firmware development is the backbone that bridges hardware and software.

In this blog post, we’ll explore what firmware is, its importance, the development process, tools used, and best practices to ensure efficient and secure firmware solutions.

What is Firmware?

Firmware is a specialized type of software that provides low-level control for a device's specific hardware. Unlike regular software applications, firmware is tightly coupled with the hardware and is often stored in non-volatile memory such as ROM, EEPROM, or flash memory.

Examples of devices with firmware include:

Smartphones

Routers

Smart TVs

Medical devices

Automotive control units (ECUs)

Why is Firmware Important?

Firmware is essential because it:

Controls hardware operations: Without firmware, the hardware components of a device would be non-functional.

Ensures device functionality: It manages startup routines, I/O operations, sensor integration, and communication protocols.

Supports software-hardware integration: Firmware acts as a middle layer, allowing high-level software applications to interact with low-level hardware components.

Enables updates: Firmware can often be updated to fix bugs, enhance performance, or add features.

The Firmware Development Process

1. Requirements Gathering

Understanding the hardware specifications and the device’s purpose is crucial. Developers need to gather requirements from both hardware engineers and end users.

2. Architecture Design

This involves deciding on the architecture and communication protocols (e.g., I2C, SPI, UART), memory usage, and timing constraints.

3. Choosing a Development Platform

Most firmware is written in C or C++ due to their efficiency and hardware-level access. You’ll also need:

Microcontroller/microprocessor datasheets

Board Support Packages (BSPs)

RTOS (Real-Time Operating System), if required

4. Coding and Integration

Firmware code is written to interface directly with hardware. This includes writing drivers for peripherals (LEDs, sensors, motors) and managing power consumption, timing, and interrupts.

5. Testing and Debugging

Testing includes:

Unit testing

Hardware-in-the-loop (HIL) testing

Simulation and emulation tools

Debugging tools such as JTAG and SWD are used to step through code and analyze performance.

6. Deployment

Once tested, firmware is compiled and flashed onto the device using programmers or over-the-air (OTA) update mechanisms.

Tools Used in Firmware Development

Integrated Development Environments (IDEs): Keil µVision, MPLAB X, STM32CubeIDE

Compilers and Toolchains: GCC, IAR Embedded Workbench

Debuggers/Programmers: JTAG, ST-LINK, AVR ISP

Version Control Systems: Git

Simulators/Emulators: QEMU, Proteus

Best Practices for Firmware Development

Write modular and reusable code

Follow coding standards (e.g., MISRA C for safety-critical systems)

Optimize for memory and power consumption

Document thoroughly for maintainability

Implement fail-safes and watchdog timers

Secure your firmware (e.g., with encryption and secure boot loaders)

Plan for firmware updates with mechanisms like OTA updates

[adafruit]

Bus Pirate 5 is in stock and shipping now, going fast! 🚌 🏴‍☠️

Bus Pirate 5 is the latest edition of the original universal serial interface trusted by hackers since 2008. We've stocked and loved the Bus Pirate 4 for years and are excited to see the latest and greatest from the minds at WhereLabs.

The Bus Pirate is a RP2040 based, open-source hardware debugging tool that converts simple commands into common bus protocols such as 1-Wire, I2C, SPI, UART, several LEDs and more. Send commands to a chip or sensor and get the response, without writing a line of code.

[shakshi09]

What are the main communication protocols in embedded systems?

Embedded systems rely on various communication protocols to enable efficient data transfer between components, microcontrollers, sensors, and external devices. These protocols can be broadly categorized into serial, parallel, wired, and wireless communication protocols.

UART (Universal Asynchronous Receiver-Transmitter) – A widely used serial communication protocol that facilitates full-duplex data exchange between embedded devices. It requires minimal hardware and is commonly used in debugging and low-speed data transfer applications.

SPI (Serial Peripheral Interface) – A high-speed, full-duplex protocol used for short-distance communication between a microcontroller and peripherals such as sensors, displays, and memory devices. It follows a master-slave architecture and is widely used in real-time embedded applications.

I2C (Inter-Integrated Circuit) – A multi-slave, half-duplex serial communication protocol designed for communication between multiple ICs using only two wires: SDA (data line) and SCL (clock line). It is highly efficient for low-speed applications and is commonly used in sensor integration.

CAN (Controller Area Network) – A robust, message-based protocol widely used in automotive and industrial applications. CAN allows multiple nodes to communicate efficiently without requiring a host computer. It ensures data integrity using error detection and correction mechanisms.

Ethernet – A widely adopted wired communication protocol that enables high-speed data transfer in embedded applications, especially in industrial automation and IoT systems. It supports networking capabilities for remote monitoring and control.

Bluetooth & Wi-Fi – These wireless protocols are essential for modern embedded systems, enabling connectivity in consumer electronics, IoT devices, and smart home applications. Bluetooth is preferred for short-range, low-power communication, while Wi-Fi offers high-speed data exchange over long distances.

Understanding these protocols is crucial for designing efficient embedded solutions. If you want to gain hands-on experience and expertise in these protocols, consider enrolling in an embedded system certification course.

[lithionpower]

Choosing the Right Battery Management System for Your Vehicle

A Battery Management System (BMS) is an essential component for maintaining the health, performance, and safety of your vehicle's battery. Whether you are upgrading your electric vehicle (EV), building a custom battery pack, or enhancing a hybrid vehicle, selecting the right BMS is crucial. Here's a comprehensive guide to help you make the right choice.

What is a Battery Management System (BMS)?

A BMS monitors and manages the performance of a battery pack by regulating voltage, current, and temperature. It prevents overcharging, deep discharging, and overheating to ensure optimal battery performance and longevity.

Key Factors to Consider When Choosing a BMS

1. Battery Type Compatibility

Different BMS units are designed for specific battery chemistries such as Lithium-ion, LiFePO4, Lead-acid, or NiMH. Ensure the BMS you choose matches your battery type for efficient operation.

2. Voltage and Current Ratings

The BMS must support the voltage range and current output of your battery pack. Choosing a BMS with insufficient capacity can compromise performance and safety.

3. Number of Cells (Cell Configuration)

BMS units are rated for a specific number of series-connected cells (e.g., 4S, 10S, or 16S). Verify that your battery pack aligns with the BMS cell configuration.

4. Balancing Method

Passive Balancing: Affordable and simple, but may generate excess heat.

Active Balancing: More efficient, redistributes energy between cells to optimize performance.

5. Protection Features

A robust BMS should include safeguards such as:

Overvoltage protection

Undervoltage protection

Overcurrent protection

Thermal protection

6. Communication Protocols

For advanced monitoring and control, select a BMS that supports communication protocols like CAN bus, UART, or Bluetooth. This feature is particularly useful for EVs and smart battery systems.

7. Environmental Conditions

Consider the operating temperature range and IP rating (Ingress Protection) to ensure the BMS can withstand environmental factors such as dust, moisture, and extreme temperatures.

8. Ease of Installation and Configuration

Some BMS units come with user-friendly software for configuration and monitoring. Choosing a BMS with clear instructions can simplify the installation process.

Recommended BMS Brands and Models

Daly BMS: Popular for its reliable performance in EV and DIY battery projects.

JBD (Jikong) BMS: Known for its Bluetooth support and advanced protection features.

Bestgo BMS: Offers sophisticated battery management for high-performance battery packs.

Conclusion

Choosing the right BMS ensures your battery pack operates safely and efficiently, maximizing performance and lifespan. Assess your vehicle's power requirements, battery type, and desired features before making your decision. Investing in a quality BMS will protect your battery investment and ensure a reliable driving experience.

For more information BMS for Electric Vehicle

[mastersofthearts]

Chatgpt computer communication design

Designing a computer circuit where two computers communicate with each other and "teach themselves" using an Arduino board involves a combination of hardware setup and software programming. Here’s a general guide to get you started:

1. Basic Concept

Two Computers (PCs or Microcontrollers): These are the two devices that will communicate and learn from each other. Each will run a program for self-learning.

Arduino Board: The Arduino will facilitate the communication between the two computers and control the process. It could also be part of the system performing calculations or simulations.

Communication Protocol: The two computers will need to communicate with each other. For simplicity, we can use serial communication (UART) or I2C with the Arduino acting as the intermediary.

2. Hardware Components

Arduino Board (e.g., Arduino Uno, Nano, or Mega)

Two Computers (PCs or other microcontrollers, like Raspberry Pi or other Arduino boards)

Communication Module: If you are using something like a Raspberry Pi or another microcontroller, you might need USB-to-Serial adapters or Bluetooth/Wi-Fi modules (e.g., ESP8266/ESP32, HC-05).

Power Supply: Proper power sources for the Arduino and computers.

Cables: USB, serial cables, or jumper wires for communication.

3. Circuit Design

Here is a high-level overview of the connections between the Arduino and the two computers.

Arduino and PC1 (Computer 1):

Connect the Arduino to PC1 via USB or UART communication pins (TX/RX pins if using serial).

Arduino and PC2 (Computer 2):

If you are using a second microcontroller (like another Arduino or a Raspberry Pi), connect them to the Arduino board using a communication protocol (e.g., I2C or UART).

The two computers could either communicate directly over a network (like Ethernet or Wi-Fi) or through serial communication.

For this example, let’s assume you are using UART for communication between the Arduino and both computers. You can use the TX/RX pins on the Arduino and connect them to the USB-to-Serial adapters connected to each computer.

4. Software Design

The software should allow the computers to "teach themselves," which likely means implementing some form of machine learning or pattern recognition. For simplicity, let’s outline how you could set up communication, with the learning part handled on the computers.

Arduino Code: The Arduino will act as the middleman for the communication. It will receive data from one computer, send it to the other, and also handle basic processing or simulation. It can be programmed to send responses or instructions back to the computers.

// Simple Arduino code for UART communication void setup() { Serial.begin(9600); // Start the serial communication at 9600 baud } void loop() { if (Serial.available()) { char incomingByte = Serial.read(); // Read incoming byte Serial.print("Received: "); Serial.println(incomingByte); // Send back the received byte } }

Computer 1 and Computer 2 Code: Each computer should run a program that will send data to the Arduino and receive responses. This could be a simple Python script or C++ program for serial communication.

Example Python Script: Here’s a basic Python script that can run on each computer. This script will send data to the Arduino and read the response back.import serial import time # Open serial port (make sure to change COM port for your system) ser = serial.Serial('COM3', 9600) # Change COM port as needed time.sleep(2) # Wait for the serial connection to initialize # Send data to Arduino ser.write(b'Hello Arduino!\n') # Read response while True: if ser.in_waiting > 0: response = ser.readline().decode('utf-8').strip() print(f"Arduino says: {response}") break ser.close()

This Python script could run on Computer 1, while a similar script runs on Computer 2. Both will send messages to the Arduino and receive feedback.

5. Self-Learning Simulation

To simulate the "self-teaching" aspect, each computer can use machine learning algorithms. You could start with something simple like linear regression or a decision tree. The computers could send random data points to each other and exchange feedback on whether the predictions made by each other are correct.

Computer 1 could generate a random dataset and send it to Computer 2.

Computer 2 processes the data, makes predictions, and sends the feedback back.

Computer 1 uses this feedback to adjust its learning algorithm (e.g., adjust weights in a simple linear regression model).

Example of a Simple Learning Process: Each computer could adjust its internal model based on the received feedback, similar to how a neural network or other machine learning models learn. The Arduino could be involved in simple processing tasks or sending acknowledgment signals when certain thresholds are reached (e.g., "success" or "failure").

6. Scaling Up

If you want to scale up the project to involve more complex learning or higher levels of interaction, you could use a more advanced platform such as a Raspberry Pi or ESP32/ESP8266 for networking and faster processing, where each computer uses a machine learning library (like TensorFlow Lite or scikit-learn).

7. Final Setup

Computer 1 and Computer 2 run machine learning algorithms that adjust based on feedback.

Arduino manages data flow between the computers and possibly performs basic learning tasks like adjusting variables or sending commands.

The entire system simulates a network where two computers are learning from each other.

This is a high-level overview, and there are many ways to implement it depending on the complexity of the communication and learning algorithm you want to achieve. Would you like to dive deeper into any specific area or need more detailed code for the project?

Creating two PCs from scratch using Arduino boards is an interesting challenge, but it's important to note that a full-fledged personal computer involves much more complexity than an Arduino is capable of. However, you can certainly simulate basic "PC-like" behavior using Arduino boards, where each "PC" would be a microcontroller (Arduino) with some level of functionality, communication, and processing.

High-Level Concept

Each Arduino board would act as a basic computing unit (like a simplified "PC"), running simple programs, processing input, and communicating with each other. While these "PCs" won't have the advanced features of a real computer (like an OS, GUI, or complex processing power), they can serve as learning devices or communication nodes in a network.

To make two PCs communicate with each other using an Arduino board, the Arduino acts as an intermediary. The Arduino will handle the communication between the two PCs, either via a serial connection (UART), I2C, or wireless communication (e.g., Bluetooth/Wi-Fi). Below is a guide on how to set up such a system:

1. Hardware Setup

Here, I'll describe a setup where two PCs communicate via an Arduino board using serial communication (UART). The Arduino will act as a mediator, forwarding messages between the two computers.

Components Needed:

Arduino board (e.g., Arduino Uno, Nano, Mega)

2 PCs (PC1 and PC2)

USB-to-Serial adapters (if using UART)

Jumper wires (if using direct communication between Arduino and PC)

Connections:

PC1 <-> Arduino: The first PC will communicate with the Arduino using its USB port (acting as a serial port).

PC2 <-> Arduino: The second PC will communicate via another USB-to-Serial adapter or possibly the second USB port of the Arduino (if the Arduino model supports multiple serial connections, e.g., Mega).

In simpler terms:

Arduino will be connected via USB to PC1.

PC2 will be connected to Arduino's serial pins (TX/RX) or using a USB-to-Serial adapter.

2. Arduino Code

The Arduino will need to read from one serial port (PC1) and forward the data to another serial port (PC2) and vice versa. The following is a simple Arduino sketch for this task.// Arduino code for mediating between two PCs void setup() { // Start serial communication with both computers Serial.begin(9600); // For communication with PC1 Serial1.begin(9600); // For communication with PC2 (if using Arduino Mega or another board with multiple serial ports) } void loop() { // Check if data is available from PC1 (connected to Serial) if (Serial.available() > 0) { char dataFromPC1 = Serial.read(); // Read data from PC1 Serial1.write(dataFromPC1); // Send data to PC2 (connected to Serial1) } // Check if data is available from PC2 (connected to Serial1) if (Serial1.available() > 0) { char dataFromPC2 = Serial1.read(); // Read data from PC2 Serial.write(dataFromPC2); // Send data to PC1 (connected to Serial) } }

Explanation of the Code:

Serial.begin(9600): Initializes communication with PC1.

Serial1.begin(9600): Initializes communication with PC2. (Note: Only available on boards with multiple UARTs like Arduino Mega, if using an Arduino Uno, you’ll need a USB-to-Serial adapter for PC2).

Serial.read(): Reads data from one serial port.

Serial.write(): Sends data to the other serial port.

3. Software on the PCs

On each of the two PCs, you will run a program that communicates with the Arduino via a serial connection. You can use Python to interface with the Arduino. Here’s a simple Python example that reads data from the Arduino and sends data back.

Python Code for PC1:

import serial import time # Connect to Arduino via serial port (Adjust the port name as needed) ser = serial.Serial('COM3', 9600) # Replace 'COM3' with your Arduino's port time.sleep(2) # Wait for the serial connection to establish # Send data to Arduino (which will forward to PC2) ser.write(b'Hello from PC1!\n') # Read data from Arduino (which is coming from PC2) while True: if ser.in_waiting > 0: response = ser.readline().decode('utf-8').strip() print(f"Received from PC2: {response}") break ser.close()

Python Code for PC2:

import serial import time # Connect to Arduino via serial port (Adjust the port name as needed) ser = serial.Serial('COM4', 9600) # Replace 'COM4' with your Arduino's port time.sleep(2) # Wait for the serial connection to establish # Read data from Arduino (which is coming from PC1) while True: if ser.in_waiting > 0: message = ser.readline().decode('utf-8').strip() print(f"Received from PC1: {message}") # Send data back to Arduino (which will forward to PC1) ser.write(b'Hello from PC2!\n') break ser.close()

4. Explanation of the PC Software:

Python serial library: Used to open a serial connection to the Arduino.

ser.write(): Sends data from PC1 or PC2 to the Arduino.

ser.readline(): Reads incoming data from the Arduino, which is forwarded from the other PC.

Time Delays: time.sleep(2) ensures that the serial connection is established before communication begins.

5. Communication Flow

PC1 sends a message (e.g., "Hello from PC1") to the Arduino.

The Arduino forwards the message to PC2.

PC2 receives the message, processes it, and sends a response back to the Arduino (e.g., "Hello from PC2").

The Arduino forwards the message back to PC1.

6. Adjusting for More Complex Setups

If you are using an Arduino Uno (which has only one serial port), you’ll need an additional USB-to-Serial adapter to handle communication with both PCs. Alternatively, you can use an Arduino Mega, which has multiple serial ports (like Serial, Serial1, Serial2, etc.).

For the Arduino Mega, you can use Serial for PC1 and Serial1 for PC2, as shown in the code above.

For PC2, you might need a USB-to-Serial adapter if you're not using an Arduino Mega.

7. Next Steps

To make the setup more advanced, you can:

Add error handling and retry mechanisms for more robust communication.

Implement data processing algorithms to simulate machine learning (e.g., a simple model for each PC that "learns" from the data it receives).

Use wireless communication like Bluetooth or Wi-Fi if you don't want to rely on USB connections.

Would you like to explore how to expand this further or add more complexity to the system? Let me know!

Here’s how you might approach creating two Arduino-based "PCs" from scratch:

1. Basic Requirements and Constraints

You’re working with Arduino boards, which are microcontrollers with limited processing power, memory, and storage compared to a real PC. The Arduino can run basic programs, perform calculations, and communicate with other devices, but it cannot run complex software like a PC.

To simulate PCs, you'll need:

Arduino microcontroller boards (e.g., Arduino Uno, Nano, Mega, etc.)

Inputs/outputs (e.g., buttons, LEDs, displays)

Communication method between the two Arduinos (e.g., UART serial, I2C, or even wireless)

Storage (limited, but can use EEPROM or SD card modules)

Basic display (e.g., an LCD or LED screen for output)

2. Building the Two "PCs" with Arduino

Each Arduino board will act as one "PC." Here’s how you can conceptualize the setup:

Arduino 1 (PC1): Will handle user input and perform computations.

Arduino 2 (PC2): Will also handle user input and perform computations. It will communicate with PC1 to share or exchange data.

The communication between the two PCs can be done using serial communication (UART) or I2C.

3. Basic Hardware Setup for Each PC

Each "PC" could have:

Buttons or switches to simulate input (e.g., user input or commands).

LCD or 7-segment display for output (or use an LED to indicate activity).

Communication interface to talk to the other PC (e.g., UART or I2C).

SD card or EEPROM to simulate storage.

Components Needed:

2 Arduino boards (e.g., Arduino Uno or Nano)

1 LCD display (16x2 or 20x4 for basic text output)

2 push buttons (to simulate input)

2 LEDs (to indicate some activity or status)

2 USB-to-Serial adapters (if using UART communication between PCs)

1 I2C or UART communication method

1 SD card module (optional for storage simulation)

4. Software Design for the "PCs"

Each Arduino PC will need a program to read inputs, perform some basic computation, and send/receive data to/from the other PC. Here’s a simple breakdown of the software for each Arduino:

Arduino PC1 (PC1 Sketch)

This sketch allows PC1 to process input (button presses), perform simple calculations, and send/receive data from PC2.#include <Wire.h> // For I2C communication (if using I2C) #include <LiquidCrystal_I2C.h> // For LCD display // Initialize the LCD (change pin numbers according to your setup) LiquidCrystal_I2C lcd(0x27, 16, 2); // Input and output pins int buttonPin = 7; // Pin for button input int ledPin = 13; // Pin for LED output void setup() { // Start communication Wire.begin(); // Start I2C communication if using I2C lcd.begin(16, 2); pinMode(buttonPin, INPUT); pinMode(ledPin, OUTPUT); lcd.print("PC1: Ready"); delay(2000); // Wait for 2 seconds } void loop() { int buttonState = digitalRead(buttonPin); // Read button state if (buttonState == HIGH) { // If button is pressed digitalWrite(ledPin, HIGH); // Turn on LED lcd.clear(); lcd.print("Button Pressed"); // Send data to PC2 (via I2C or serial) Wire.beginTransmission(8); // 8 is the I2C address of PC2 Wire.write("PC1: Button Pressed"); Wire.endTransmission(); } else { digitalWrite(ledPin, LOW); // Turn off LED } delay(100); // Small delay to avoid bouncing }

Arduino PC2 (PC2 Sketch)

This sketch for PC2 will receive data from PC1 and display it on the LCD, simulating output.#include <Wire.h> // For I2C communication (if using I2C) #include <LiquidCrystal_I2C.h> // For LCD display LiquidCrystal_I2C lcd(0x27, 16, 2); // LCD setup void setup() { Wire.begin(8); // Set PC2's I2C address to 8 Wire.onReceive(receiveEvent); // Define the event handler for receiving data lcd.begin(16, 2); // Start the LCD display lcd.print("PC2: Ready"); } void loop() { // Main loop does nothing, waiting for incoming data } void receiveEvent(int bytes) { String message = ""; // Initialize an empty string for the message while (Wire.available()) { message += (char)Wire.read(); // Read each byte and convert to character } // Display the received message on LCD lcd.clear(); lcd.print("PC2: "); lcd.print(message); // Print received message on LCD }

5. How They Communicate:

I2C Communication: In this setup, PC1 sends a message to PC2 using I2C. This allows you to connect the two Arduinos with just two wires (SDA, SCL) and share data.

Serial Communication (UART): Alternatively, if you're using UART (Serial) communication, PC1 sends data to PC2 via the Arduino’s TX/RX pins and vice versa.

6. Adding Storage (Optional)

To simulate storage, you can attach an SD card module to the Arduino. The Arduino can read/write simple text files or store computational results on the SD card.

Example of using an SD card module on PC1:#include <SPI.h> #include <SD.h> File myFile; void setup() { Serial.begin(9600); if (!SD.begin(4)) { Serial.println("SD card initialization failed!"); return; } myFile = SD.open("log.txt", FILE_WRITE); if (myFile) { myFile.println("PC1: Data Log"); myFile.close(); } else { Serial.println("Error opening log.txt"); } } void loop() { // Example of logging data continuously myFile = SD.open("log.txt", FILE_WRITE); if (myFile) { myFile.println("New Data Recorded"); myFile.close(); } delay(1000); // Wait for 1 second }

7. Expanding the "PCs"

You can add more features to each Arduino "PC," such as:

User input: Keyboard or mouse emulation.

Network Communication: Use Wi-Fi or Ethernet modules (like ESP8266 or Ethernet shield) to allow the two PCs to communicate over a network.

Processing: Implement simple algorithms or calculations on each Arduino to make them more like basic computers.

8. Limitations

Remember that an Arduino board is not a real PC, and it has significant limitations:

Limited processing power and memory.

No operating system or advanced software.

Minimal input/output capabilities.

But it is still a great way to learn about the basics of computer-like behavior, communication, and microcontroller programming.

Conclusion

While building a full-fledged PC using Arduino isn’t feasible, you can create two basic "PC-like" systems by using Arduino boards to simulate basic functionality such as processing, input/output, communication, and storage. This setup is a great way to learn about how computers work at a fundamental level, as well as how data is shared and processed between multiple devices.

Would you like to explore any specific part of the project further or need help with something else?
